Battery-Electric Trains On The Henley Branch

As I keep mentioning battery-electric trains on the Henley branch line and I was in the area today, I thought I’d pop in and take a trip to Henley-on-Thames station.

These are my thoughts about the Henley branch line.

The Branch Line Was Busy

The two-car Class 165 train coped with the traffic today, but I suspect that on some days more capacity is needed.

The Branch Line Is Only 4.6 Miles Long

Battery-electric trains of a length of three- or four-cars are typically showing battery ranges of upwards of fifty miles, so I am fairly certain, that several battery-electric trains could handle the route, with charging at Twyford station.

  • Conversions of Class 321, Class 379 and Class 387 trains would probably be possibilities.
  • The Class 379 and Class 387 have a very handy 110 mph operating speed.
  • Alstom, CAF, Hitachi and Siemens could probably offer new trains.
  • All are four-car trains.

Because of the length of the branch, I doubt there wouldn’t need to be any infrastructure changes at Henley-on-Thames station.

Charging A Train In Platform 5 At Twyford Station

These pictures show the Class 165 train, that worked the branch in Platform 5 at Twyford station.

Note.

  1. The two-car Class 165 train in the station is 46.50 metres long.
  2. I suspect that a three-car or even four-car train, that would be eighty metres long, could be accommodated in the platform.
  3. The last picture shows a Class 387 train in the adjoining electrified Platform 4 in Twyford station.

It looks to me, that installing a three-car length of overhead electrification in the bay platform would not be the most challenging of projects.

Longer Trains To Henley-on-Thames

The Wikipedia entry for the Henley branch line says this about services.

The current (2022) passenger train service pattern on the line provides trains at about 30 minute intervals off peak. The first train out from Henley is at 06:05 and the last train back at 00:18. The Saturday service is also half-hourly until around 20:15, after which a largely hourly service is operated. This is also the case with the Sunday service, with half-hourly services until 19:15.

Additional services are provided during Henley Regatta at the beginning of July, with longer trains. All services are operated by Great Western Railway (GWR), using Class 165 and 166 Turbo diesel multiple units. Upon completion of electrification, Class 387 trains will be used, while the Turbos will be displaced to other parts of the GWR network.

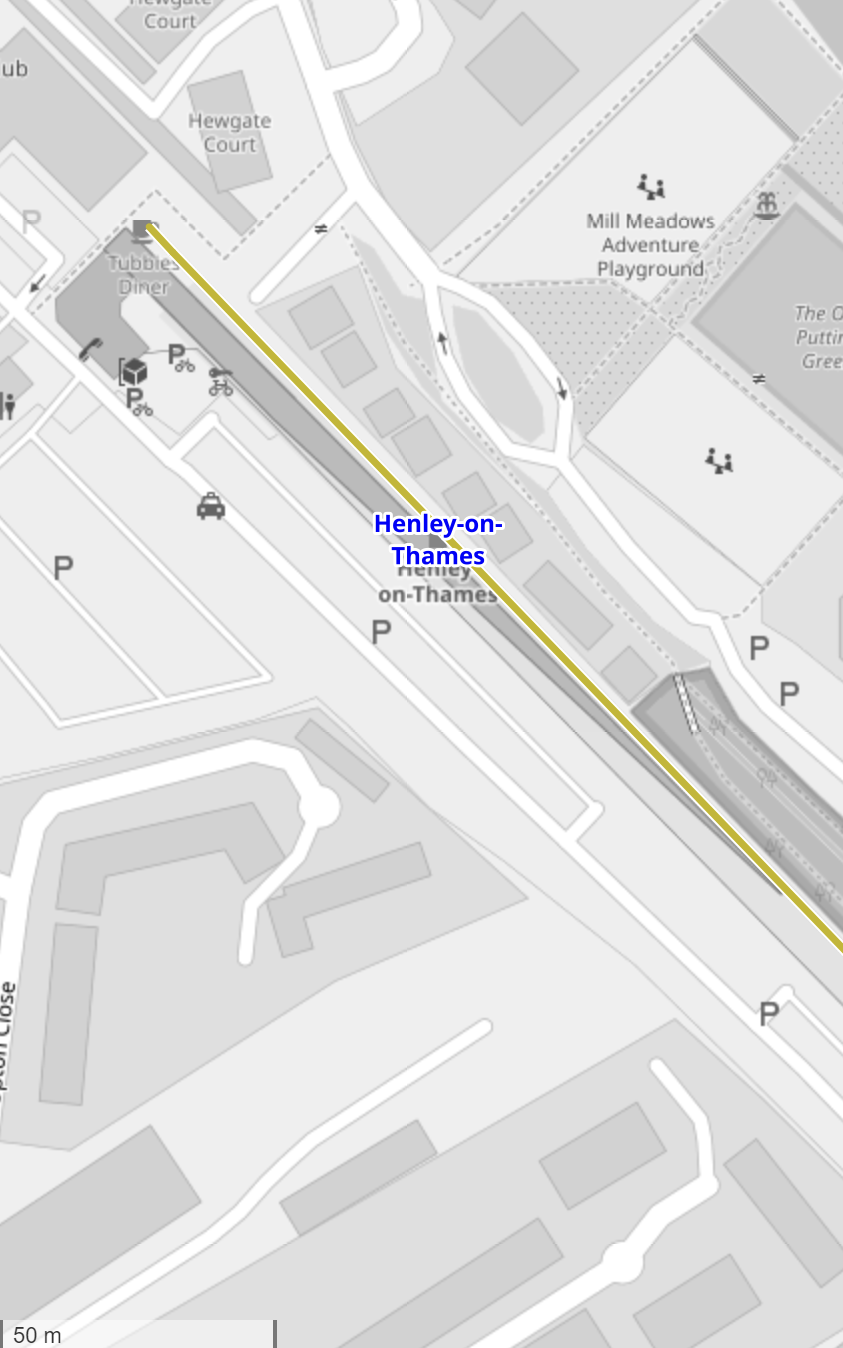

The map from OpenRailwayMap shows the platform and track layout at Henley-on-Thames station.

Note.

  1. The Henley branch line is shown in yellow.
  2. The scale in the bottom-left corner of the map.
  3. I would estimate that the platform is around 200 metres long, which means it will take an eight-car train.

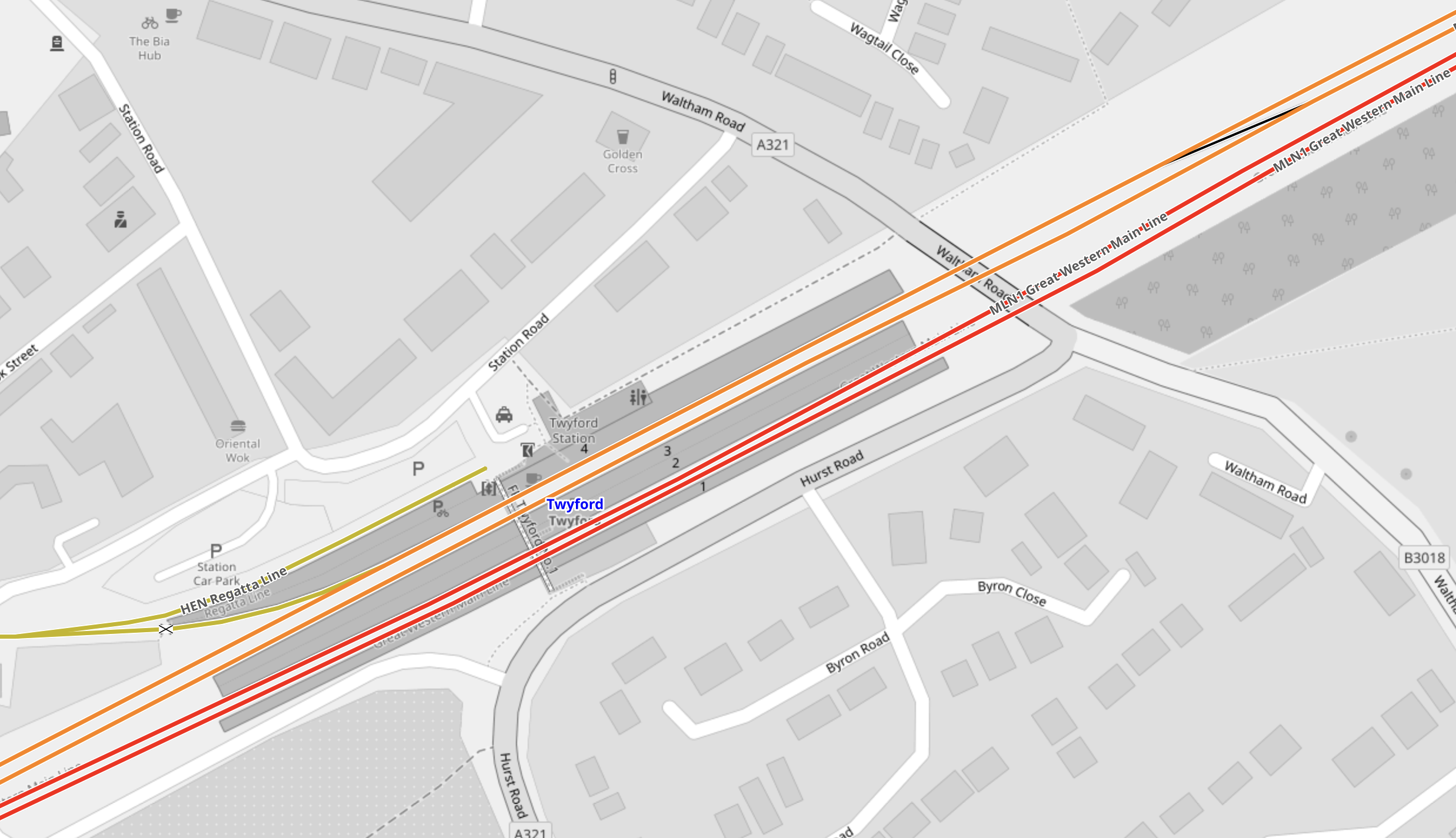

The second map from OpenRailwayMap shows the track layout at Twyford station.

Note.

  1. Both maps are to the same scale.
  2. The Henley branch line is shown in yellow.
  3. The slow lines of the Great Western Main Line are shown in orange.
  4. The fast lines of the Great Western Main Line are shown in red.

There is a cross-over between the two slow lines to allow trains from London to access the branch line.

It looks to me, that the line will be fully-electrified or battery-electric trains could be used.

Ticketing

I can get to Twyford by using my Freedom Pass on the Elizabeth Line, like probably a large number of those over sixty, who live in London.

I had started my journey at the Moorgate end of Liverpool Street station, where there is no ticket office or machine capable of selling an extension ticket.

In the end, I bought my ticket for the branch in the ticket office, but you can buy tickets on the train.

Transport for London and Great Western Railway can do better.



June 10, 2023 Posted by | Transport/Travel | , , , , , | 8 Comments

Govia Thameslink Railway Issues a Prior Information Notice For New Trains

This article on Railway Gazette is entitled UK Railway News Round-Up and contains this section.

Govia Thameslink Railway has issued a prior information notice seeking the provision of between 21 and 30 four-car 25 kV 50 Hz 160 km/h through-gangwayed EMUs with air-conditioning and toilets for use on existing and/or additional Great Northern services from May 2024. Maintenance would be undertaken in-house at Hornsey depot, supported by a Technical Support & Spares Supply Agreement.

I find this all a bit puzzling.

  • The trains that need replacing are surely the eighteen Class 313 trains, that run on the West Coastway Line, as they are some of the oldest trains on the UK network.
  • If Govia Thameslink Railway were serious about decarbonisation, they would also replace the Class 171 diesel trains, that work the Marshlink Line and the Uckfield branch, with electric trains with a range of thirty miles on batteries.

How many trains would be needed to replace the Class 313 and Class 171 trains?

  • The eighteen three-car Class 313 trains could be replaced with an equal number of new four-car trains and this might result in a rise in passenger numbers.
  • I would assume the eighteen trains includes allowances for trains in maintenance and spare trains for when a train fails.
  • It may be possible to  replace the six four-car Class 171 trains used on the Marshfield Line with three new four-car trains, which have a range of thirty miles on batteries.
  • The eleven two-car Class 171 trains used on the Uckfield branch could be replaced with three new four-car trains, which have a range of thirty miles on batteries and would run as four-car trains.
  • If eight-car trains were needed on the Uckfield branch, there would be a need for six new four-car trains.
  • If twelve-car trains were needed on the Uckfield branch, there would be a need for nine new four-car trains.

Note.

  1. If four-car trains are needed on the Uckfield branch, this means a total of 18+3+3 or 24 trains.
  2. If eight-car trains are needed on the Uckfield branch, this means a total of 18+3+6 or 27 trains.
  3. If twelve-car trains are needed on the Uckfield branch, this means a total of 18+3+9 or 30 trains.

Trains on these Southern routes wouldn’t be stabled at Hornsey depot, but could be moved to Hornsey for maintenance  using Thameslink.

But the puzzling bit is that the prior information notice says that the trains will be.

Four-car 25 kV 50 Hz 160 km/h through-gangwayed EMUs with air-conditioning and toilets for use on existing and/or additional Great Northern services from May 2024.

Note.

  1. There is no mention of the trains being able to run on 750 VDC third-rail infrastructure.
  2. The trains will run on Great Northern services and the Class 313 and Class 171 trains run on Southern routes.
  3. The only Great Northern services, that have not been moved to Thameslink are Kings Cross and Cambridge, Ely and King’s Lynn and services to Moorgate.
  4. The Moorgate services have their own dual-voltage Class 717 trains.
  5. Govia Thameslink Railway have ambitions to double the frequency of trains to King’s Lynn.
  6. Two eight-car trains per hour (tph) between King’s Cross and King’s Lynn would need sixteen operational four-car trains.
  7. Two twelve-car trains per hour (tph) between King’s Cross and King’s Lynn would need twenty-four operational four-car trains.

If Govia Thameslink Railway are thinking of thirty new trains, they must have other destinations in mind.

Could we be seeing a double swap?

  • An appropriate number of new trains are procured to run Great Northern services between Kings Cross and Cambridge, Ely and King’s Lynn.
  • The Class 387 trains released will be moved to the South to replace the Class 313 and Class 171 trains.
  • Some or all of the transferred Class 387 trains will be fitted with batteries to give a range of thirty miles without electrification.

Note.

  1. Could the new trains be Siemens Desiro City trains like the Class 700 and Class 717 trains, which are already maintained at Hornsey depot? It would surely be more efficient and save money.
  2. Class 387 trains are dual voltage and would need little or no modification to replace the Class 313 trains.
  3. Uckfield and Hurst Green junction is 24.7 miles.
  4. Ashford International and Ore is 25.4 miles
  5. Adding a battery to a Class 387 train has not been done, but Bombardier converted a near-identical Class 379 train to battery-electric operation over eight years ago.
  6. Converting a Class 387 train gives a dual-voltage battery-electric train.
  7. I suspect a charger would be needed at Uckfield. Could it be a short length of 25 KVAC overhead electrification?

Could all the Class 387 trains, that will replace the Class 313 and Class 171 trains be identical to ease the problems, when a train develops a fault?

Conclusion

It looks a good plan.

It also opens up the following possibilities.

  • Deployment of 750 VDC battery-electric trains on other routes.
  • Deployment of 25 KVAC overhead battery-electric trains on other routes.
  • Deployment of tri-mode battery-electric trains on other routes.
  • Charging of battery-electric trains using a short length of 25 KVAC overhead electrification.
  • Fitting of batteries to Class 379 trains to create a 25 KVAC overhead battery-electric train.

It might be possible to convert other Electrostars to battery-electric operation.

Ignoring Class 387 trains on dedicated services like Heathrow and Gatwick Express, these trains are available for conversion.

  • Class 379 trains – Stored – 30 trains
  • Class 387 trains – Govia Thameslink Railway – 40 trains
  • Class 387 trains – Great Western Railway – 33 trains

Note.

  1. This gives 103 trains.
  2. They all have good interiors.
  3. They are all 100/110 mph trains.
  4. All trains could be updated to 110 mph.
  5. All trains can use 25 KVAC overhead electrification.
  6. The Class 387 trains can also use 750 VDC third-rail electrification.
  7. The Class 379 trains were built in 2010-2011.
  8. The Class 387 trains were built from 2014.

I believe both classes will make excellent battery-electric trains.

Where will they be deployed?

These are a selection of routes starting in the South-East of England.

  • Ashford International and Eastbourne.
  • Gravesend and Hoo.
  • London Bridge and Uckfield.
  • London Paddington and Bedwyn.
  • London Paddington and Oxford.
  • Reading and Basingstoke.
  • Reading and Gatwick.
  • Reading and Redhill.
  • Slough and Windsor & Eton Central.
  • Twyford and Henley-on-Thames

I’ve only added routes which are less than thirty miles.







April 27, 2023 Posted by | Transport/Travel | , , , , , , , , , , , , , , , | 7 Comments

GWR And Vivarail

This is an attempt to make some sense about what is happening between GWR and the assets of Vivarail.

These are some random thoughts.

Ongoing Maintenance Of Existing Trains

Currently, there are four operators in the UK, with various types of Vivarail‘s Class 230 trains.

Note.

  1. West Midlands Trains withdrew the trains because of uncertainty about the servicing of the trains.
  2. West Midlands Trains are getting complaints about the bus replacement service.
  3. All operators will probably need assistance to service the trains.
  4. Great Western Railway and Island Line are First Group companies.

Could First Group have got in first, so they can protect their interests with a professional Vivarail train maintenance organisation?

Mark Hopwood

In Special Train Offers A Strong Case For Reopening Fawley Line, I said this.

This is another quote from the Rail Magazine article.

However, SWR’s Mark Hopwood favours a much bolder plan. “We’d have to take a decision, once we knew the line was going ahead. But my personal belief is that we should be looking for a modern environmentally-friendly train that can use third-rail electricity between Southampton and Totton and maybe operate on batteries down the branch line.”

Pressed on whether that would mean Vivarail-converted former-London Underground stock, Hopwood adds. “It could be. Or it could be a conversion of our own Class 456, which will be replaced by new rolling stock very shortly. But I don’t think this is the time to use old diesels.

Mark Hopwood is now the Managing Director of Great Western Railway and he seems to be in favour of battery-electric trains. I agree totally with his statement about old diesels.

Mark Hopwood And The Cholsey And Wallingford Branch

According to LinkedIn, Mark Hopwood is also the President at the Cholsey and Wallingford Railway

  • This is a two-and-a-half mile long standard gauge heritage railway.
  • It used to be a branch line, that served the town of Wallingford.
  • It connects to the Great Western Main Line in a bay platform at Cholsey station.
  • Wallingford station has now been demolished.
  • The heritage railway uses a new site on the south side of St. Johns Road.

This map from OpenRailwayMap shows the branch line.

Note.

  1. Cholsey station and the Great Western Main Line is in the South-Western corner of the map.
  2. The current Wallingford station is in the North-Eastern corner.
  3. The Cholsey and Wallingford Railway is shown in yellow.

This Google Map shows Cholsey station.

Note.

  1. There are four through platforms for Great Western Railway services.
  2. Platforms 1 and 2 for the fast services are on the Western side.
  3. Platforms 3 and 4 for the slow services are on the Eastern side.
  4. Bay Platform 5 is tucked in the North-East corner of the station and is the terminus for services on the Cholsey and Wallingford Railway.
  5. There are only 55 parking spaces.

Is the number of parking spaces sufficient for the station, if a lot of passengers drive from Wallingford?

Could a commercial service run between Cholsey and Wallingford?

Consider.

  • Wallingford is a town of nearly twelve thousand people.
  • Cholsey station has two trains per hour (tph) between Paddington and Didcot Parkway stations, with extra services between Oxford and Reading stations in the Peaks.
  • There is only limited parking at Cholsey station.
  • Most GWR branch lines are run by an hourly service.
  • I feel that two-car battery-electric train could provide one or two tph on the branch.
  • Charging would probably be needed at only one end of the branch line.
  • As all the through lines at Cholsey station are electrified with 25 KVAC overhead wires, I suspect that charging would be provided at that station.

A two-car battery-electric train could probably provide a commercial service on this branch, if the Cholsey and Wallingford Railway wanted a revenue stream.

First Group Services That Could Be Run By Battery-Electric Trains

These Great Western Railway and South Western Railway services might be suitable for battery-electric services.

  • Newbury and Bedwyn – Newbury is electrified.
  • West Ealing and Greenford – West Ealing is electrified.
  • Slough and Windsor and Eton Central – Slough is electrified.
  • Maidenhead and Marlow – Maidenhead is electrified.
  • Twyford and Henley-on-Thames – Twyford is electrified.
  • Reading and Gatwick Airport – Partially electrified.
  • Reading and Redhill – Partially electrified.
  • Reading and Basingstoke – Partially electrified.
  • Didcot Parkway and Oxford – Didcot Parkway is electrified.
  • Weston-super-Mare and Severn Beach – No electrification.
  • Bristol Temple Meads and Avonmouth – No electrification.
  • Bristol Temple Meads and Filton Abbey Wood – No electrification.
  • Bristol Temple Meads and Portishead – Proposed – No electrification.
  • Swindon and Westbury – Swindon is electrified.
  • Exmouth and Paignton – No electrification.
  • Exeter Central and Okehampton – No electrification.
  • Exeter Central and Barnstaple – No electrification.
  • Plymouth and Gunnislake – No electrification.
  • Liskeard and Looe – No electrification.
  • Par and Newquay – No electrification.
  • Truro and Falmouth Docks – No electrification.
  • St. Erth and St. Ives- No electrification.
  • Romsey and Salisbury – Partially electrified.
  • Southampton Central and Fawley – Proposed – Partially electrified.

Note.

  1. Most services are one or two tph or less.
  2. Reading and Basingstoke, Didcot Parkway and Oxford, Exmouth and Paignton, and Romsey and Salisbury are 2 tph.
  3. I have included the proposed Bristol Temple Meads and Portishead and Southampton Central and Fawley services.
  4. All electrification is 25 KVAC overhead except for the North Downs Line between Reading and Gatwick Airport via Redhill, and Romsey and Salisbury, which are 750 VDC third rail.

There are a total of 24 services. As each 2 tph service will need two trains and the North Downs services probably six, a rough calculation, indicates there would need to be a minimum of over thirty trains, to convert all these services to battery-electric operation.

This simple analysis makes Mark Hopwood’s enthusiasm, that I quoted earlier understandable.

The Requirement For First Group Battery-Electric Trains

Consider.

  • Most of the services can accommodate three or four-car trains.
  • A few services can only be run with two-car trains.
  • Some services will need running with 25 KVAC overhead electrification for operation or deploying to and from the depot.
  • Some services will need running with 750 VDC third-rail electrification for operation or deploying to and from the depot.
  • A modern interior with or without a fully-accessible toilet is needed.
  • Ability to recharge in a platform fitted with electrification or a charging system in under ten minutes.
  • A reasonable cruising speed where electrification is needed for deployment.

This suggests to me, that two train types will be needed.

  • A Vivarail-style two-car train for branches like West Ealing and Greenford and Southampton Central and Fawley.
  • A three- or four-car dual-voltage electric multiple unit, based on something like an Alstom Aventra, a Bombardier Electrostar or a British Rail-era Class 321 train.

The Class 321 train could be ideal.

  • It is a 100 mph train.
  • It is a four-car train, that can be shortened to three-cars.
  • Versions are available for both 25 KVAC overhead and 750 VDC third-rail electrification.
  • Some have been converted to a modern Renatus interior, with a fully-accessible toilet.
  • Greater Anglia have run Class 321 Renatus trains between London and Norwich.
  • The Class 321 Renatus trains are fitted with a modern AC-based traction system.
  • Eversholt Rail and Vivarail were working on a Class 321 BEMU, which I wrote about in Eversholt Rail And Vivarail To Develop Class 321 BEMU.
  • Other operators like Northern, Scotrail and Transport for Wales might like a Class 321 BEMU.

Could First Group convert the Class 321 trains?

In What Train Is This?, I talk about a refurbishment of a GWR Class 150 train, that was one of the best I’ve seen.

I suspect that First Group could do the conversion, with a little help from their friends, like Wabtec and the ex-Vivarail employees, that they’ve hired.

Could The Class 387 Trains Be Converted To Battery-Electric Operation?

It was in February 2015, that I wrote Is The Battery Electric Multiple Unit (BEMU) A Big Innovation In Train Design?, after a ride in public service on Bombardier’s test battery-electric train based on a Class 379 train.

The Class 387 and Class 379 trains are very similar and with Vivarail’s battery and charging expertise, I believe that both Class 379 and Class 387 trains could be converted into modern four-car battery-electric trains.

  • They would have a 100 mph or possibly a 110 mph operating speed, so could work routes like the Great Western Main Line amongst the thundering herds of Hitachis.
  • The interiors would be suitable for longer routes like Cardiff Central and Exeter or Waterloo and Exeter via Salisbury.
  • Great Western Railway have 33 Class 387 trains.
  • Thirty Class 379 trains are wasting space in sidings.

I believe that with modern battery technology, these trains could have a battery range in excess of ninety miles.

This would enable services like Cardiff Central and Exeter St. Davids and Exeter St. Davids and Salisbury.

With judicious use of charging stations in stations like Bristol Temple Meads, Exeter St. Davids and Salisbury, all First Group main line services, that are not run by the Hitachi trains could be converted to battery-electric operation.

Conclusion

I believe a well-thought out plan is emerging.









February 17, 2023 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , | 15 Comments

Alstom Hydrogen Aventras And Great Western Branch Lines Between Paddington And Oxford

In Alstom And Eversholt Rail Sign An Agreement For The UK’s First Ever Brand-New Hydrogen Train Fleet, I give my thoughts on Alstom’s new hydrogen train, which I have called the Alstom Hydrogen Aventra.

One reader suggested these lines in a comment, as they are all run by diesel Class 165 trains.

These are the lines, that could be converted to Hydrogen operation.

Greenford Branch

The branch runs between West Ealing and Greenford via Drayton Green, Castle Bar Park and South Greenford.

  • It has a frequency of two trains per hour (tph).
  • The branch is 2.5 miles long.
  • Services take eleven minutes.
  • It needs a single train to run the service.

Note.

  1. In GWR To Test Battery Train On Branch Line, I wrote about Great Western Railway’s plans to test battery-eclectic trains on this line.
  2. The platform at Greenford station may need lengthening to accommodate the Alstom Hydrogen Aventra.
  3. It is my view that the branch needs four tph.
  4. It might also be possible to run Peak hour services to and from Paddington.

I do think that if the train length issue is solved that a single Alstom Hydrogen Aventra could work this branch.

A two-car Class 230 train would certainly fit.

Windsor Branch

The branch runs between Slough and Windsor & Eton Central.

  • It has a frequency of three tph
  • The branch is 2.8 miles long.
  • Services take six minutes.
  • It needs a single train to run the service.

Note.

  1. The extra capacity of the Alstom Hydrogen Aventra could be welcome.
  2. Prince Charles would like it.

I do think that a single Alstom Hydrogen Aventra could work this branch.

Marlow Branch

The branch runs between Maidenhead and Marlow via Furze Platt, Cookham and Bourne End.

  • It has a frequency of one tph
  • The branch is 7.1 miles long.
  • Services take twenty-three minutes.
  • The service reverses at Bourne End.
  • It needs a single train to run the service.

Note that the three-car Alstom Hydrogen Aventra may be too long to execute the reverse at Bourne End.

I do think that if the Bourne End problem can be solved that a single Alstom Hydrogen Aventra could work this branch.

The two-car Class 165 train, that currently works the branch is 46 metres long, so a two-car battery-electric train may be needed for this branch. A two-car Class 230 train would certainly fit.

Regatta Line

The branch runs between Twyford and Henley-on-Thames via Wargrave and Shiplake.

  • It has a frequency of two tph
  • The branch is 4.6 miles long.
  • Services take twelve minutes.
  • It needs a single train to run the service.

Note.

  1. If this line needed more capacity trains could be doubled up, as there are no length issues.
  2. It might also be possible to run Peak hour services to and from Paddington.

I do think that a single Alstom Hydrogen Aventra could work this branch.

North Downs Line

The line runs between Reading and Gatwick Airport via Wokingham, Crowthorne, Sandhurst, Blackwater, Farnborough North, North Camp, Ash, Guildford, Shalford, Chilworth, Gomshall, Dorking West, Dorking Deepdene, Betchworth, Reigate and Redhill

  • It has a frequency of two tph
  • The route is 53.1 miles long.
  • The route is partially-electrified with 750 VDC third-rail electrification.
  • The route has been planned for 100 mph trains.
  • Services take eighty-two minutes.
  • It needs six trains to run the service.

Note.

  1. The route is proposed to be run by four-car Class 769 bi-mode trains.
  2. Would a three-car train be sufficient for this route?
  3. The Alstom Hydrogen Aventras are only 90 mph trains and would they be fast enough?

I do think that Alstom Hydrogen Aventras could work this route, but given the number of trains and possible capacity and speed issues, a four-car battery-electric train could be better suited to the route.

Reading And Basingstoke Line

This line runs between Reading and Basingstoke via Reading West, Mortimer and Bramley

  • It has a frequency of two tph
  • The route is 15.4 miles long.
  • There is 25 KVAC overhead electrification at Reading.
  • There is 750 VDC third-rail electrification at Basingstoke, but the platform used by the service is unelectrified.
  • The route has been planned for 100 mph trains.
  • Services take twenty-eight minutes.
  • It needs two trains to run the service.

Note.

  1. For a battery-electric train to work this route, it might need a charging system at Basingstoke.
  2. The Alstom Hydrogen Aventras are only 90 mph trains and would they be fast enough?

I do think that a pair of Alstom Hydrogen Aventras could work this service.

Oxford Canal Line

This route runs between Didcot Psrkway and Banbury via Appleford, Culham, Radley, Oxford, Tackley, Heyford and Kings Sutton.

  • It is effectively two routes with a combined frequency of two tph between Didcot Junction and Oxford and half that between Oxford and Banbury.
  • The full route is 33 miles long.
  • There is 25 KVAC overhead electrification at Didcot Parkway.
  • Services take forty-one minutes.
  • It probably needs four trains to run the service.

I do think that a small fleet of Alstom Hydrogen Aventras could work this service.

Some General Thoughts

These are a few general points.

Stabling And Hydrogen Fuelling

Reading Train Care Facility is a large depot to the west of Reading.

  • It is ideally placed for all the lines, that I’ve mentioned.
  • It is connected to all the lines by electrified lines.

I am sure that it would be possible to build a hydrogen fuelling facility at the depot.

Two-Car Battery-Electric Trains

It looks like the Greenford and Marlow Branches might need to be served by two-car battery-electric trains.

Four-Car Trains

Some of the services might be run by four-car trains, as these would be more suitable for the number of passengers.

Total Number Of Trains

My rough estimates of numbers of trains are as follows.

  • Greenford Branch – 1 train
  • Windsor Branch – 1 train
  • Marlow Line – 1 train
  • Regatta Line – 1 train
  • North Downs Line – 6 trains
  • Reading And Basingstoke Line – 2 trains
  • Oxford Canal Line – 4 trains

This would be a total of sixteen trains or ten, if the Class 769 trains were used on the North Downs Line.

Additional Routes

There may be other routes, where the trains could be used, that are handy for Reading Train Care Facility.

Hydrogen or battery power may give advantages in opening new routes.

Would Hydrogen Trains Attract Passengers And Tourists?

I think they could, as if nothing there is a curiosity value.

Conclusion

This collection of routes surround Reading Train Care Facility and would be a nice package to run with hydrogen or battery-electric trains.





November 13, 2021 Posted by | Hydrogen, Transport/Travel | , , , , , , , , , , , , | 9 Comments

Vivarail’s Plans For Zero-Emission Trains

The title of this post is the same as that of this article on the Modern Railways web site.

This is the introductory subtitle.

Vivarail Chairman Adrian Shooter talks to Modern Railways about the company’s Class 230s and its plans for battery trains.

The article is mainly a video of Mr. Shooter talking in front of various examples of Vivarail trains.

It’s probably easier to watch the video and listen on what is said.

But I have some thoughts on what he said.

Battery Range

Consider.

  • Early on in the video he talks about a battery range of forty miles with four battery packs on the train.
  • He also talks about switching battery supplier to Hoppecke.
  • Later he says that a train with six battery packs in the train, has a hundred mile range.

That is impressive.

The number of battery packs has increased by 50 % and the range has gone up by two-and-a-half times.

If those figures are right and I’ve no reason to disbelieve them, then Hoppecke have done a good job with the batteries.

A very rough calculation indicates their size.

  • The current 4 x 100 kWh takes the train 40 miles, which is 10 kWh per mile.
  • So to travel a hundred miles will need 1000 kWh.
  • Divide by six batteries and you get 167 kWh per battery or a 67 % increase in individual battery capacity.

If these are a new generation of batteries, what would they do for Hitachi’s Regional Battery train, which is proposed to have a range of 56 miles? They could give it a range of around 93 miles.

These ranges of distances would be very useful to manufacturers of battery trains.

Charging Battery Trains Using Vivarail’s Fast Charge System

The video did give a few more details of Vivarail’s Fast Charge system.

I was also able to take this screen capture from the video, which shows the extra rails used to pass charge to the train and the batteries.

Note.

  • The rails are well-shielded. Not that they’re live unless a train is over the top and connected.
  • The driver  just has to stop the train in the correct place and automation does the rest.
  • This image is four minutes and thirty-five seconds into the video.

My only problem with the design is that those thick copper cables used to bring electricity to the train, way be a tempting target for metal thieves.

Vivarail Now Has Permission To Charge Any Train

Mr. Shooter said this about Vivarail’s Fast Charge system.

The system has now been given preliminary approval to be installed as the UK’s standard charging system for any make of train.

I may have got the word’s slightly wrong, but I believe the overall message is correct.

In the November 2020 Edition of Modern Railways, there is a transcript of what Mr. Shooter said.

‘Network Rail has granted interim approval for the fast charge system and wants it to be the UK’s standard battery charging system’ says Mr. Shooter. ‘We believe it could have worldwide implications.’

I hope Mr. Shooter knows some affordable lawyers, as in my experience, those working in IPR are not cheap.

A Prototype Class 230 Train That Can Use 25 KVAC Is Under Construction

Mr. Shooter also announced that a version of the train with a third can in the middle, with a pantograph on the roof and a 35 KVAC transformer is under construction.

This will enable batteries to be charged from existing electrification.

I can already think of a few routes, where this train could be used.

  • Bedford and Bletchley – It would replace a diesel-electric Class 230 train.
  • Poulton-le-Fylde and Fleetwood
  • Oxenholme and Windermere
  • Glasgow Central and East Kilbride
  • Glasgow Queen Street and Anniesland
  • Chester and Crewe – It would replace a battery Class 230 train
  • West Ealing and Greenford
  • Slough and Windsor Central
  • Henley and Twyford
  • Maidenhead and Marlow

This could be the standard train in many places.

The November 2020 Edition of Modern Railways, also has more details on this project.

  • The centre vehicle is under construction at their factory at Seaham in County Durham.
  • Mr. Shooter is quoted as saying. ‘We’ve identified 60 lines on partially electrified tracks’

Vivarail plans to demonstrate the concept on the Northumberland Line to Blyth and Ashington next spring.

West Highland Opportunity

This is a section of the print article, that is not mentioned in the video.

This is the introductory paragraph.

While Mr. Shooter highlights several opportunities south of the border to deploy the 25kV/battery Class 230, he is particularly interested in deployment of Vivarail trains in Scotland.

And this is the last paragraph, describing a possible deployment on the West Highland Line.

Top of the list is the West Highland Line.

Here a 25kV/battery Class 230 would operate under electric power from Glasgow Queen Street to Craigendoran Junction, switching there to battery power. The batteries could be topped up on the way using Vivarail’s fast charge system, with Mr, Shooter suggesting this could take place at Crianlarich, Oban and Fort William. On the West Highland the 60 mph top speed of the Class 230 is not prohibitive as the top speed on the route does not exceed this.

If this sounds familiar, I made a similar proposal in Hitachi Plans To Run ScotRail Class 385 EMUs Beyond The Wires, in a section, which is entitled Electric Trains On The West Highland Line Between Glasgow And Mallaig/Oban. I start with this sentence.

This might be considered as difficult as putting a London bus on the Moon.

But that was done by the Daily Sport newspaper, so perhaps my reasoning is the same as Vivarail’s.

My conclusion of the section was as follows.

What would battery-electric trains to Oban and Mallaig do for tourism in the area?

Hitachi would have one of the most scenic and iconic test tracks in the world!

These statements would surely, apply to a Vivarail train or a battery electric Class 385 train.

Pop-Up Metro

Mr. Shooter shows a battery train, which is going to the United States to trial a concept called a Pop-up Metro.

  • In the US, there are hundreds of lightly used freight lines serving towns and cities
  • Temporal separation would mean that freight and passenger trains used the lines at different times of the day.
  • Battery powered Vivarail trains could provide a Metro service.

He also talked about his US partner and 50 % shareholder in Vivarail, leasing trains for a year, to see if the concept was viable in a given area. He indicated, the cost could be less than a consultant’s report.

Could the Pop-up Metro concept work in the UK?

In these possible Beeching Reversal projects, there could be scope for using the concept.

Note.

  1. Some of these are on heritage railway infrastructure. Does a Class 230 train count a heritage unit?
  2. The Aston Rowant Extension is Chiltern territory, so Mr. Shooter could know it well!
  3. In the Wikipedia entry for the Class 230 train, there is a useful Cost Comparison.

I should say, that I like the concept of a Pop-up Metro.

  • The trains have proved they are up to the job.
  • A package of one or two trains and a containerised charging system could surely be created.
  • Installation of the battery charger in many platforms would not be a major engineering project costing millions.
  • On a heritage railway, the enthusiasts could probably do it from their own resources.

But the best point to me, is that a system could probably be leased for a year on a Try-Before-You-Buy basis for less than the cost of a consultant’s report.

Go for it!

Conversion Of Diesel Multiple Units To Battery Electric Multiple Units

This was the bombshell in the tail of the video.

There a lot of diesel multiple units in the UK and Mr. Shooter and Vivarail have developed a plan to convert some of them to battery electric operation.

The trains he is proposing to convert are diesel multiple units, that use a Voith transmission, which I list in How Many Diesel Multiple Units In The UK Have Voith Hydraulic Transmissions?.

Consider.

  • There are 815 trains on my list.
  • All have a Voith hydraulic transmission, with most having similar type numbers starting with T211.
  • Some are 75 mph trundlers and others are full-on 100 mph expresses.
  • All have one engine and transmission per car.

They fit into distinct groups.

Sprinters

Sprinters are a group of trains that were produced by British Rail.

The earliest were built in 1984 and all were built in the last century.

  • There are 314 trains in total.
  • All have a Cummins engine of 213 kW, with one engine per car.
  • They have a Voith T211r transmission, which drives two axles per car.
  • They have an operating speed of 75 mph.

The trains may be elderly, but like some well-known actresses, they scrub up well with a little TLC.

The pictures show an immaculate refurbished Class 150 train, that I travelled on in Devon.

With a battery electric transmission, they would make a superb rural route and branch line train.

Express Sprinters

Express Sprinters are a group of trains that were produced by British Rail.

  • The earliest were built in 1990 and all were built in the last century.
  • There are 202 trains in total.
  • All have a Cummins engine of between 260 and 300 kW, with one engine per car.
  • They have a Voith T211r transmission, which drives two axles per car.
  • They have an operating speed of 90 mph.

These pictures show a Class 159 train on a visit to the Swanage Railway, where it was shuttling in visitors.

With a battery electric transmission, that gave a range of say 80 miles at 90 mph, they would be low cost competition for Hitachi’s Regional Battery Train on secondary routes.

Scotrail have forty Class 158 trains, which run on the following routes.

  • Glasgow Queen Street and Anniesland – 5.5 miles
  • Fife Circle Line – 61 miles round trip
  • Stonehaven and Inverurie – 66 miles round trip.
  • Borders Railway – 70 miles round trip.
  • Edinburgh and Arbroath – 76 miles
  • Inverness and Kyle of Lochalsh – 82.5 miles
  • Inverness and Aberdeen – 108 miles – Inter7City route.
  • Inverness and Wick – 174 miles
  • Inverness and Edinburgh – 175 miles – Inter7City route.

Note.

  1. The routes are shown in order of length.
  2. Anything over a hundred miles would need intermediate charging.
  3. Some routes would need charging at both ends.
  4. Glasgow Queen Street and Anniesland would probably not need a Class 158, but is very suitable for a battery electric train.
  5. The three longest routes from Inverness are probably too long for battery electric power, but two are run by Inter7City trains.
  6. A battery electric train on the Inverness and Kyle of Lochalsh route, would surely be a tourist asset.

With an eighty mile range, ScotRail could find a battery-equipped Class 158 train very useful.

Networkers

Networkers are a group of trains that were produced by British Rail.

  • The earliest were built in 1990 and all were built in the last century.
  • There are 96 trains in total.
  • All have a Perkins engine of 261 kW, with one engine per car.
  • They have a Voith T211r transmission, which drives two axles per car.
  • They have an operating speed of 75 or 90 mph.

These pictures show ac selection of Class 165 and Class 166 trains.

As with the Express Sprinters, with a battery electric transmission, that gave a range of say 80 miles at 90 mph, they would be low cost competition for Hitachi’s Regional Battery Train on secondary routes.

The Networkers are used by Great Western Railway and Chiltern Railways.

  • Great Western Railway do run a few long routes with their Networkers, but these routes would probably be too long for battery operation.
  • Local routes around Bristol, Exeter and Plymouth and some short branch lines could be possibilities for battery operation.
  • Great Western Railway have also leased tri-mode Class 769 trains for the Reading and Gatwick route.
  • Chiltern Railways don’t run their Networkers on the longer routes to Birmingham.
  • But they do run them on the shorter routes to Aylesbury (39 miles), Aylesbury Vale Parkway (41 miles), Banbury (69 miles), Gerrards Cross (19 miles), High Wycombe (28 miles), Oxford (66 miles) and Stratford-upon-Avon (104 miles).
  • Some of these Chiltern routes must surely be possibilities for battery operation. Especially, as all the stations in the list, don’t appear to be the most difficult to add a Fast Charge facility.

With an eighty mile range, battery-equipped Networkers could be very useful.

Turbostars

Turbostars are a group of trains that were produced at Derby.

  • The earliest were built in the last few years of the the last century.
  • There are 177 trains in total.
  • All have an MTU engine of 315 kW, with one engine per car.
  • They have a Voith T211 transmission, which drives two axles per car.
  • They have an operating speed of 100 mph.

These pictures show a selection of Turbostar trains.

As with the Express Sprinters and the Networkers, with a battery electric transmission, that gave a range of say 80 miles at 100 mph, they would be low cost competition for Hitachi’s Regional Battery Train on secondary routes.

The post; DfT and Arriva CrossCountry Sign Agreement is partly based on this article on Railway News, which has the same name.

This is a paragraph from the original article.

One element of this new contract is a focus on reducing the environmental impact of the operator’s diesel fleet. For instance, Arriva CrossCountry will do a trial of using electrical shore supplies on its Bombardier Turbostar fleet when these trains are in depots for cleaning. Trains are cleaned both in the winter and at night, which means that the interior lighting and heating systems have to be powered. By using electricity to power these systems instead of the trains’ diesel engines, there will be a reduction in both emissions and noise pollution, which is doubly important when the depots are near built-up areas.

If Turbostars were to have their power unit and transmission updated to battery electric, there would be less need to provide shore supplies to where the trains were to be cleaned.

How Would Sprinters, Express Sprinters, Networkers And Turbostars Be Converted To Battery Electric Power?

The layout of the transmission in all these trains is very similar.

That is not surprising, as they are effectively different interpretations of the same theme over four decades.

  • A diesel engine provides the power.
  • On the back of the diesel engine, a hydraulic transmission is mounted.
  • The transmission performs a similar function to an automatic gearbox in a car. Trains like cars perform better in the right gear.
  • The transmission is connected to the final drive in one or more of the bogies using a cardan shaft. The propeller shaft in many rear-wheel-drive vehicles, is a cardan shaft.

In the video at about 5 mins 50 seconds, Mr. Shooter outlines how the train will be converted to battery electric drive.

  • The diesel engine, hydraulic transmission, radiator, fuel tank and all the other diesel-related gubbins will be removed.
  • A 280 kW electric traction motor will be installed, which will be connected to the cardan shaft.
  • Batteries will be installed. Possibly, they will fit, where the diesel engine was originally located.

I wouldn’t be surprised if the weight of the battery was similar to that of all the equipment that has been removed, as this would mean the train’s handling wouldn’t change.

  • Acceleration will be faster, as it is in electrically-powered road vehicles.
  • The traction motor can work in reverse to slow the train and the energy regenerated by braking can be stored in the batteries.
  • Mr. Shooter doesn’t say if his battery electric trains use regenerative braking in the video, but it is possible and a common procedure, as it saves energy.

An intelligent control system will control everything  according to the driver’s needs and wishes.

This extract from the print edition, gives Mr. Shooter’s advantages of this diesel to battery electric conversion.

‘Unlike cars, trains have a planned duty cycle so you can easily plan for when the batteries should be charged’ says. Mr. Shooter. ‘Our analysis shows the fuel cost would be halved and the maintenance cost would be halved compared to a DMU. And to allay concerns about battery life we would offer to lease batteries on a cost per mile. You get the financial payback within five years, with the greenness free of charge!’ Mr. Shooter reports early work by Vivarail suggests a converted battery train on the Far North line might need fast charge stations at four locations.



Where In The World Is This?

The print edition of the interview poses an interesting question.

Mr. Shooter says the opportunities are significant, and reports Vivarail is in discussions with an overseas customer about a bid for battery trains for a new 500 mile line which would incorporate 12 fast charge points at stations. He also said customers are suggesting the use of solar parks or even tidal power to feed the static batteries at the fast charge stations, rather than power coming from the local supply.

Imagine two large cities about 500 miles apart, with a string of small towns between them.

  • The small towns might be on a scenic river or coastline.
  • Commuters drive to both cities.
  • People from the two cities visit the area to relax.
  • There might even be a lightly used freight line or a dismantled railway alignment running between the cities.
  • Perhaps, the road network is overloaded and a green alternative is needed.

Given, Vivarail is part-owned, by an American entrepreneur, I would expect, the proposed line is somewhere in North America. But I also think there would be possibilities in Australia, around the coast of the Baltic Sea and India and South East Asia.

Cpnclusion

This is the conclusion of the print article in Modern Railways.

While electrification will be the key component in decarbonising traction emissions, battery technology will have a role to play, and Vivarail is at the forefront of this development.

I wholeheartedly agree.



October 18, 2020 Posted by | Energy Storage, Transport/Travel | , , , , , , , , , | 15 Comments

Hitachi Targets Export Opportunities From Newton Aycliffe

The title of this post, is the same as that of this article on Rail Magazine.

This is the introductory paragraph.

Very High Speed Trains (VHSTs) built in Britain could be exported to Europe and even further afield from Hitachi’s Newton Aycliffe factory.

The article would appear to confirm, that the AT-300 family of trains is now a family with a very wide reach.

Trains in the family include.

Very High Speed Trains (VHST)

The article states that VHST trains will form part of the AT-300 family.

The big order to be handed out in the UK, is for 54 Classic-Compatible trains for High Speed Two.

The Classic-Compatible trains are described in this section in Wikipedia, by this sentence.

The classic-compatible trains, capable of high speed but built to a British loading gauge, permitting them to leave the high speed track to join conventional routes such as the West Coast Main Line, Midland Main Line and East Coast Main Line. Such trains would allow running of HS2 services to the north of England and Scotland, although these non-tilting trains would run slower than existing tilting trains on conventional track. HS2 Ltd has stated that, because these trains must be specifically designed for the British network and cannot be bought “off-the-shelf”, these conventional trains were expected to be around 50% more expensive, costing around £40 million per train rather than £27 million for the captive stock.

The trains will have the same characteristics as the full-size High Speed Two trains.

  • Maximum speed of 225 mph.
  • Cruising speed of 205 mph on High Speed Two.
  • Length of 200 metres.
  • Ability to work in pairs.
  • A passenger capacity around 500-600 passengers.

A seven-car Class 807 train with twenty-six metre long cars would appear to be a partial match and tick all the boxes, except for the following.

  • The train’s maximum and cruising speeds are well below what is needed.
  • The train is only 182 metres long.
  • The train has a passenger capacity of 453.

Would a train with eight twenty-five metre long cars be a better fit?

  •  The train length would be 200 metres.
  • Twenty-five metre cars would not cause a problem!
  • I estimate the passenger capacity would be 498 seats.

The trains or members of the same family have already shown.

  • They can run on the East Coast, Great Western, Midland and West Coast Main Lines.
  • They can run on High Speed One.
  • They can split and join automatically.
  • When needed they can run on local lines.

If I was Avanti West Coast’s train-Czar, I would be seriously interested in a Classic-Compatible High Speed Two train, that was very similar to one I already had in service. Provided, of course it did what it promised in the specification.

By adjusting the car-length and the number of cars, the Classic-Compatible High Speed Two train can probably made to fit any operators needs.

High Speed Trains (HST)

There are several fleets of these in service.

The picture shows one of LNER’s Hitachi trains going through Oakleigh Park station.

It would appear that the trains can be configured to the customers needs.

  • Trains have been ordered in lengths of five, seven or nine cars, with a maximum length of up to twelve or more cars.
  • Cars have been ordered in lengths of 24 and 26 metres.
  • Some fleets will be fitted with diesel engines for bi-mode operation.

Operating speeds will be as follows.

  • 100 mph operating speed on diesel.
  • 125 mph operating speed on electric power
  • 140 mph operating speed on electric power with in-cab signalling.

The signalling required for 140 mph running, is currently being installed between London Kings Cross and Doncaster.

High Speed Commuter Trains

As high speed lines proliferate, there will be a need for faster commuter trains.

In a few years time, the following lines out of London will see High Speed Trains like those made by Hitachi sharing tracks with commuter trains.

  • East Coast Main Line
  • Midland Main Line
  • West Coast Main Line
  • Great Western Main Line

Already on the Great Western Main Line services to Bedwyn and Oxford are run by Class 800 or Class 802 trains, so these trains could be considered to be High Speed Commuter Trains.

  • Their 125 mph operating speed allows them to mix it, with the other High Speed Trains running into and out of London Paddington.
  • Digital in-cab signalling may allow running of both expresses and High Speed Commuter trains at 140 mph.

Other routes, where they could be used, would include.

  • London Kings Cross and Ely via Cambridge.
  • London Paddington and Cheltenham
  • London Paddington and Westbury
  • London St. Pancras and Corby.
  • Liverpool And Blackpool
  • Liverpool And Crewe

The trains would only be doing the same as already happens on High Speed One.

As more and more High Speed Trains run in the UK on existing 125 mph routes, there will be a greater need to increase the operating speed of commuter trains sharing the routes.

Regional Battery Trains

I described these trains in Hyperdrive Innovation And Hitachi Rail To Develop Battery Tech For Trains.

Their specification is given in this Hitachi infographic.

A Regional Battery Train has the following capabilities on battery power.

  • 100 mph operating speed.
  • Ability to run for 56 miles.

It appears that all AT-300 based trains could be converted into either Regional Battery Trains or AT-300 trains fitted with batteries.

If you take one of Great Western Railway’s Class 802 trains, it will have the following specification.

  • 125 mph operating speed on electric power
  • 140 mph operating speed on electric power with in-cab signalling.

These speeds will be unaffected by fitting batteries, as when running using electrification, the batteries will effectively be more passengers, just as any diesel engines are today.

I also believe that the trains could be Plug-and-Play, with interchangeable diesel engines and battery packs. The train’s operating system would determine how much power was available and drive the car accordingly.

I also believe that Hitachi are being economical with the truth on range on battery power and that if every car was fitted with an intelligent battery pack, on some routes the range could be much greater in a few years.

As an example of their use, Harrogate is eighteen miles from electrification at Leeds. With a range of 56 miles, a Regional Battery Train could do the following.

  • Travel from London Kings Cross to Leeds using the existing electrification.
  • Travel from Leeds to Harrogate and back on battery power.
  • Travel back to London Kings Cross from Leeds using the existing electrification.

Note.

  1. Trains would charge their batteries on the run up from London Kings Cross.
  2. Trains would be travelling at up to 125 mph between London Kings Cross and Leeds.
  3. Once in-cab signalling is installed between London and Doncaster, this section could be run at up to 140 mph.

This battery train is no glorified milk-float!

There are other services off high speed lines , that could be handled

  • Bedwyn – 13 miles
  • Harrogate – 18 miles
  • Henley – 4.5 miles
  • Huddersfield – 17 miles
  • Lincoln – 16.5 miles
  • Oxford – 10.5 miles

These are just a few of many examples, which are probably increased by a factor of two or three if you have charging at both ends of route without electrification.

Conclusion

Hitachi have developed a family of high speed trains, that can handle anything from fast commuter trains to very high speed trains.

They also probably have battery options to fit all of them.







October 5, 2020 Posted by | Transport/Travel | , , , , , , , | 4 Comments

Crossrail Trains Cleared To Use The Heathrow Tunnel

This title of this post, is the same as that of this article on Ian Visits.

These are the first four paragraphs.

Last month, a significant achievement took place on the Crossrail project, which is far more important than the headlines make it seem to be.

At a basic level, the Office of Rail Regulation approved the use of the new Class 345 trains that will be used on the Elizabeth line to carry passengers into the Heathrow tunnels.

The practical implication being that TfL Rail will in the next few weeks be able to run from Paddington to Heathrow direct, as they were supposed to start doing back in May 2018.

The delay has been caused by the bane and saviour of modern railways, the signalling system.

Ian then goes on to give a full and understandable explanation of the complex nature of modern rail signalling.

Ian finishes by giving a detailed description of the Class 345 trains‘ Auto-Reverse feature.

Around half of westbound trains will terminate at Paddington, but to head back eastwards, once all the passengers are off, they carry on westwards to Westbourne Park, then return back to Paddington on the eastbound line.

Normally that means the train driver would drive to Westbourne Park, stop, walk through the train to the other end, then drive back. But with “auto-reverse”, as soon as the train leaves Paddington, the driver switches to automatic and starts walking through the train to the other end. By the time the train arrives at Westbourne Park sidings, the driver will be sitting in the drivers cab at the other end of the train ready to head back into Central London.

I feel we need more automation on trains.

Possible Uses Of Automation

These are some possibilities.

Reversing In Services

Several services, require the driver to change ends and then drive the train from the other end, when calling at a station.

  • Some Nottingham and Skegness services, reverse in Grantham station.
  • Maidenhead and Marlow services, reverse in Bourne End station.
  • Norwich and Sheringham services, reverse in Cromer station.

I could envisage an automatic system, that took the train from A to B to C etc. under the control of the driver.

  • They might just touch a screen or button to move to the next station, as drivers have done on the Victoria Line.
  • Both cabs would have a remote video screen showing the view from the other end of the train.
  • The driver could drive the train from either cab.
  • Arriving at a station, the automation would stop the train in the correct position.
  • As on a Victoria Line train, the driver would monitor the system at all times and take control and drive manually, if required.
  • The driver might also have a sophisticated remote control, so that if he needed to walk through the train to change cabs, he would still be in full control.

The guard might also have a remote control, for use in the very rare case of driver incapacitation, where he would need to halt the train.

Shuttle Services

There are services in the UK, where a single train shuttles between two stations.

  • Brockenhurst and Limington Pier – 11 minutes
  • Grove Park and Bromley North stations –  5 mins
  • St. Erth and St. Ives stations – 10 mins
  • Slough and Windsor & Eton Central – 6 mins
  • Sudbury and Marks Tey – 19 mins
  • Twyford and Henley stations – 12 mins
  • Watford Junction and St. Albans Abbey – 16 minutes

Note.

  1. The time shown is the time for a single journey.
  2. All these services use a single train, where the driver changes ends before each journey.
  3. The  services use a dedicated platform at both terminals.
  4. There is a dedicated track between the terminals.
  5. Some of these services may need a more frequent service.

If the driver doesn’t change ends, would the time saved allow more trains per hour (tph)?

I think the following improvements are possible.

  • Grove Park and Bromley North – three tph to four
  • Slough and Windsor & Eton Central – three tph to four
  • Watford Junction and St. Albans Abbey – If the journey time could be reduced to fourteen minutes or less, there is a chance that the service could be doubled to two tph.

It looks that if the driver change ends, then it appears the following frequencies are possible, with these journey times.

  • Less than six-and-a-half minutes – four tph
  • Less than nine minutes – three tph
  • Less than fourteen minutes – two tph

I do wonder if an automated shuttle on the Abbey Line could run at the required two tph, with only minimal infrastructure works.





June 2, 2020 Posted by | Transport/Travel | , , , , , | 6 Comments

Thoughts On Very Light Rail

The article on Railway Gazette International, which is entitled Very Light Rail Research On Track, a list of thirty-five rail lines, that could use the technology are given.

These are some of my thoughts.

Multiple Working

These are some examples of branch lines, where very light rail my be used.

  • Cromer  to Sheringham – 226,000
  • Liskeard to Looe – 118,000
  • St Erth to St Ives – 750,000
  • Twyford to Henley-on-Thames – 771,000
  • Maidenhead to Marlow – 300,000
  • Slough to Windsor & Eton Central – 2,024,000
  • Watford to St Albans Abbey – 167,000

Note.

  1. The first station is on the main line and the second is the terminus of the branch line.
  2. The figure is the number of passengers, who used the terminal station in 2018-2019

The numbers have quite a range and I’m sure that a single eighteen metre vehicle carrying 56 seated and 60 standing passengers, will not be big enough, even if it runs at a frequency of four trains per hour (tph) on some routes.

So I am convinced that the vehicles must be able to work in multiple.

One picture on this page on the Transport Design International web site, shows the vehicle with a coupler.

Increasing Passenger Numbers, Festivals And Sporting Events

Forecasting passenger numbers on a new rail service, is a very inexact science. I talk about London Overground Syndrome, which seems to occur regularly.

There are also the problems of festivals and sporting events of various kinds, where perhaps for a week or so traffic is much higher.

Extra very light rail vehicles can be added to the trains as required or even drafted in at times of high demand.

Automatic Coupling And Uncoupling

They must also be able to couple and uncouple quickly and automatically, as needs vary throughout the day and to rescue a stranded unit.

Transit Mode

Suppose a large event, like say the Open Golf was taking place near a station with an inadequate train service and for the duration of the event, a dozen very light rail vehicles were to be running a shuttle to the nearest major rail hub.

A method must be developed to bring the vehicles to the event. I suspect Rail Operations Group, who are the experts in rolling stock movements would have a simple solution, perhaps by using a diesel locomotive to tow them to and from central warm storage.

It could probably be argued, that a capability to build temporary stations is needed.

Automation

These very light rail vehicles are prime candidates for automation.

I can envisage a lot of routes being run automatically, with the driver in a supervisory role, very much as the Victoria Line has been run since it opened in 1968.

  • At each station, when they had ascertained that the passengers had all left and boarded the train safely, they would close the doors and activate a control to start the vehicle.
  • It would then move to the next station and stop in the right place.
  • The doors would then be opened automatically or by action of the crew.

Dear old Vicky has been doing this for over fifty years!

I also think, that with automation and CCTV, a system could be devised, where the driver stays in one cab all the time.

This would speed up operations.

Procedures For Running On Shared Tracks With Freight, Private And Heritage Railways

These suggested routes for very light rail are either freight, private or heritage railways.

  • Bodmin Parkway to Bodmin General
  • Kidderminster to Stourport
  • Ashington to Blyth
  • Sheffield to Stocksbridge
  • Paignton to Brixham
  • Totton to Hythe

I’m sure procedures can be devised, so that all traffic can run safely.



February 3, 2020 Posted by | Transport/Travel | , , , , , , | 3 Comments

Very Light Rail Research On Track

The title of this post is the same as that of this article on Railway Gazette International.

It details the progress on very light rail, which is defined as a vehicle with a weight of less than one tonne per linear metre.

It is a thorough article and very much a must-read.

It also details thirty-five rail routes in the UK and several cities, where the technology could be employed.

Some of the routes mentioned include, ones that I’ve covered on this blog, including.

  • Cromer – Sheringham – Part of Greater Anglia
  • Saxmundham – Aldeburgh – Part of Greater Anglia
  • Coventry – Nuneaton – Part of West Midlands
  • Liskeard – Looe – Part of Great Western
  • Plymouth – Tavistock – Part of Great Western
  • St Erth – St Ives – Part of Great Western
  • Henley-on-Thames – Twyford – Part of Great Western
  • Maidenhead – Marlow – Part of Great Western
  • Slough – Windsor & Eton Central – Part of Great Western
  • Truro – Falmouth- Part of Great Western
  • Watford – St Albans Abbey – Part of London Midland
  • Ashington – Blyth
  • Fleetwood – Poulton-le-Fylde

Note.

  1. On reading the full list, I wondered why Greenfood – West Ealing and Southall – Brentford weren’t included, but it’s probably because freight uses the lines.
  2. I particularly like the inclusion of Saxmundham – Aldeburgh and Watford Junction – St. Albans Abbey.

You can understand why the rail leasing company; Eversholt, has got involved, as they must see quite a few possible sales.

There is more information on the concept call Revolution on this page on the Transport Design International web site.

Some points that can be gleaned from this page.

  • One picture shows a coupler on the front of the vehicle. So can they work in multiple?
  • Vehicles will have low axle weights (around 4 tonnes),
  • Self-powered vehicles, with energy recovery and storage systems as standard,
  • Reduced infrastructure costs for installation, operation and maintenance.

The consortium is also aiming for a sub million pound price tag.

Conclusion

It is a bold plan, which is backed by some large companies and organisations with deep pockets.







January 31, 2020 Posted by | Transport/Travel | , , , , , , | 5 Comments

The Definitive Branch Line For An Electric Train With On Board Energy Storage

In Curious Rail Construction At Ipswich Station, I described how the current five-car Platform 1 has been electrified and given an electrified route of a few hundred metres to the Felixstowe Branch Line.

I then outlined how an ow an electric train with on-board energy storage, could work the Ipswich-Felixstowe service.

  • I’ll assume that a fully-charged train starts from the new depot at Manningtree or some other suitable overnight stabling.
  • The train positions early in the morning for the first service from Felixstowe, using  overhead power to Ipswich and on-board power on the branch.
  • Passengers load at Felixstowe and the train proceeds to Ipswich under on-board power to the current Platform 1 at Ipswich.
  • The train would sneak into the platform on the North side of Ipswich Freight Yard, well out of the way of the Great Eastern Main Line and any freight movements.
  • If the platform was busy and the train had to wait at a signal, it could even up pantograph to start the recharging of the on-board energy storage.
  • Once in Platform 1, the train would either start or continue the charging process.
  • The pantograph would be lowered, when the charging was complete or at any time before the train left for Felixstowe.

The process would continue all day.

But things don’t always go to plan, so what happens at Ipswich, if Platform 1 is blocked by a failed train?

As the train will be approaching Ipswich on a dedicated line, it would stop at a signal and wait. As the overhead wire to the station will be continuous, it would immediately up pantograph to start the charging process, to make certain, it wasn’t stuck with a flat battery.

There has been a lot of thought, in how trains with on board storage should be operated.

Similar layouts seem to be being installed at other places.

Maidenhead and the Marlow Branch Line

Maidenhead station is where the Marlow Branch Line connects to the Great Western Main Line.

Platform assignments after Crossrail will probably be.

  1. Down Fast
  2. Up Fast
  3. Down Slow – Crossrail
  4. Up Show – Crossrail
  5. Marlow Branch

Note that Platform 5 has recently been extended to the full Crossrail length of 200 metres, so could this platform be shared between the Marlow Branch trains and the Class 387 trains that will start to shuttle between Maidenhead and Paddington in mid-2017.

These are pictures taken at Maidenhead station.

Note the platform 5 for the Marlow Branch and the first couple of hundred metres of the branch are being electrified.

Trains with on-board energy storage between Maidenhead and Bourne End stations could certainly use the same procedure as the one I outlined for trains between Ipswich and Felixstowe. They would probably come into Platform 5 at Maidenhead, as the Marlow Branch trains currently do.

But they also have the advantage at Maidenhead of a very long two hundred metre Platform 5.

Note that four-car Class 387 trains couldn’t go past Bourne End station, so the remainder of the branch to Marlow would probably be served by a diesel shuttle.

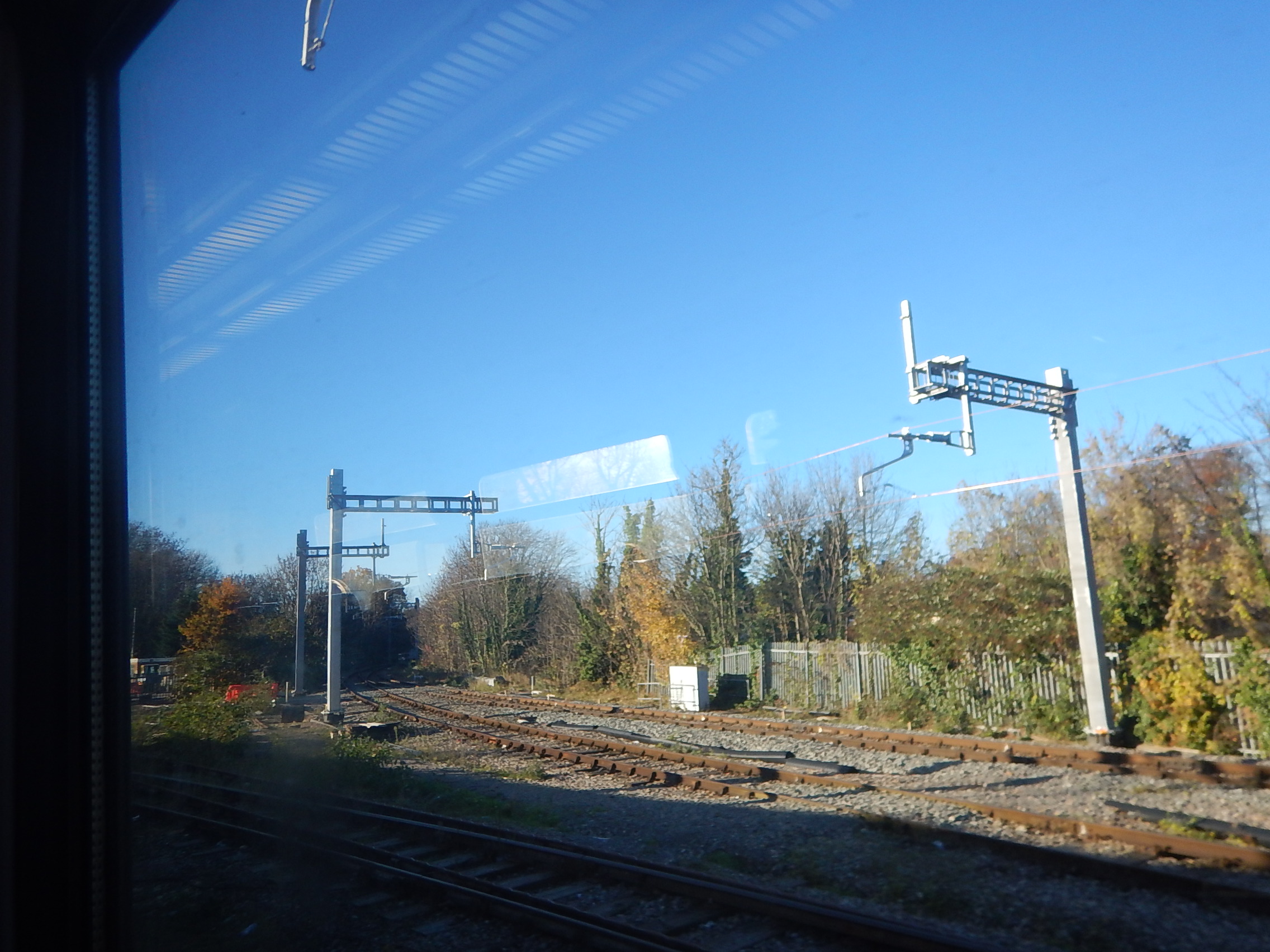

On November 25th, 2016, I took this picture from a passing train.

dscn8302

Note.

  • I was looking directly down the Marlow Branch.
  • The two lines join around the position of the last gantry and the nearest one goes into Platform 4, with the farthest one going into Platform 5.
  • You can’t really see it too well in the picture, but the overhead wire appears to be only above the line into Platform 5.

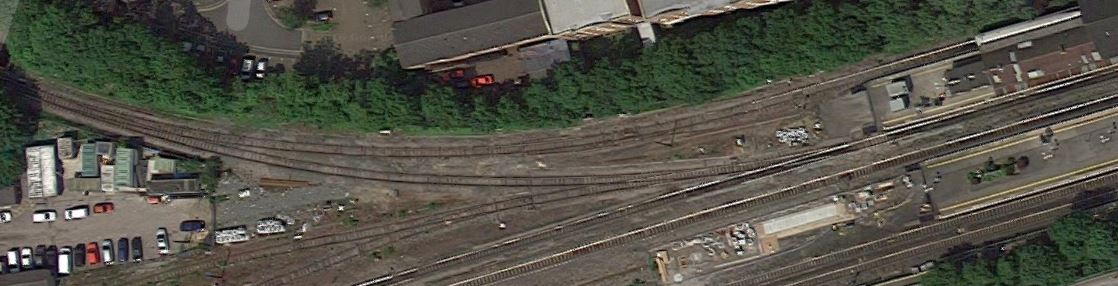

This Google Map shows a close-up of the Western \end of Platforms 4 and 5 and the start of the Marlow Branch.

maidenheadstation

Hopefully, it will be clearer than mud now!

Note the two-car train in Platform 5.

So why is there no connecting electrification between Platform 4 and the Marlow Branch Line?

It could be that it hasn’t been erected yet, but on the other hand, it could be that it isn’t needed.

  • All trains arriving at Maidenhead from Bourne End would use Platform 5.
  • These trains would only use the wiring to the West of Platform 5, if say the platform was blocked, by say a failed train.
  • Trains between Bourne End and Paddington, after arriving at Platform 5 would up pantograph and  after leaving the platform, they would use an existing crossover to access the Up Slow line for Paddington.
  • Trains between Paddington and Bourne End would probably use the existing crossovers  to stop in Platform 5 after arriving on the Up Slow. Once in Platform 5, they would down pantograph and continue to Bourne End under on-board power.

So a second electrified line not being needed, could be the explanation of only one being created.

Note that when Crossrail starts, Crossrail trains will use Platforms 3 and 4 and will reverse using a reversing siding to the West of the station..

So the Marlow Branch and Crossrail will effectively be two separate systems with their own tracks, trains and arrangements.

Slough And The Slough to Windsor & Eton Line

Slough station is where the Slough to Windsor & Eton Line connects to the Great Western Main Line.

As I passed through Slough station, I noticed that the gantries are such, that just as at Maidenhead, the bay Platform 1 could have a short length of overhead wiring installed, so that the shuttle to Windsor and Eton Central station could be run using an electric train with on-board energy storage.

This small add-on to the electrification, would create a branch line independent of the main line.

  • It would be worked as a single train shuttle.
  • The train would be electric with on-board energy storage.
  • The train would charge at Slough station.
  • It would have dedicated platforms in the two terminal stations; Slough and Windsor and Eton Central.
  • The train could be worked using the principle of only one train on the line at a time or One Train Working.
  • Trains would enter and leave the dedicated branch tracks for servicing and other tasks, as they do now, through a connection to the Fast lines at Slough station.

Unlike the Marlow Branch, it would not need protection for failed trains, as there is only one train.

I would suspect that capacity at the Windsor end of the branch would limit any expansion unless a scheme like the Windsor Link Railway was brought forward and that a four-car electric shuttle train would be sufficient to work the line for many years.

Twyford And The Henley Branch Line

Twyford station is where the Henley Branch Line connects to the Great Western Main Line.

I wrote about using trains with on-board energy storage on the Henley Branch in Twyford Station And The Henley Branch and came to the conclusion, that electric trains of this type could serve this short branch of just four miles in length, with very little change to the infrastructure

Installing a short length of electrification in the bay platform 5 at Twyford station and for a short distance on the branch could be used to charge the trains.

As on the Marlow Branch and the Slough to Windsor and Eton Line, this would create a branch line independent of the main line.

I doubt that this line will ever be fully-electrified.

Certainly, as I passed the line today, there was no sign of any electrification.

West Ealing And Greenford Branch Line

West Ealing station is where the Greenford Branch Line connects to the Great Western Main Line.

But seeing as the last direct train from Greenford to Paddington seems to be on the 23rd of December 2016, the Greenford Branch Line will become an independent branch line with its own bay Platform 5 at West Ealing station, where passengers will have to change to and from Paddington.

In West Ealing Station – 12th October 2016, I showed the progress a couple of months ago and as at Slough gantries are in place, that could be used to electrify the new bay platform.

Once the wires were in place at the platform, all it would need to provide a quality service to Greenford, would be suitable electric train with on-board energy storage.

  • The journey would take around ten minutes.
  • Trains would charge their storage at West Ealing.
  • Two trains per hour would be possible with one train.
  • Four trains per hour would be possible with two trains, as the branch has a lot of double-track to allow passing.

The only infrastructure needed, other than the electrification might be some platform lengthening for the new trains.

As I passed the line today, there was some evidence of wires going up, but they probably can’t be completed until the new station is finished at West Ealing station.

Surely, if the branch was going to be run in perpetuity by diesel trains, there would be no evidence of electrification in the bay platform 5 and at the start of the Greenford Branch.

The Emerging Design

If you look at all these examples, most of which are ongoing projects, they have a series of common features.

  • The branch line is fairly simple, often just a shuttle between two dedicated terminal platforms.
  • The branch line is within the range of an electric train with on-board energy storage, to go out and return.
  • Some branches are worked using the principle of only one train on the line at a time or One Train Working.
  • At least one terminal platform will be electrified, so that the on board energy storage can be charged.
  • The branch line is within the range of an electric train with on-board energy storage.

The only feature not common to all the detailed examples, is where the electrified platform could be shared as at Ipswich and Maidenhead,

In these cases, provision must be made for another train failing in the station.

If Network Rail can get this philosophy right, it has the following advantages.

  • New or refurbished environmentally-friendly electric trains can replace elderly diesel trains on suitable routes.
  • As the electric trains will typically be four-cars or more, there will be large capacity increases.
  • There will be very little infrastructure work, except for platform lengthening and possibly electrifying an extra platform in a station on an already electrified line.
  • Network Rail will gain a bit of credibility.

As an example, Ipswich Felixstowe could go from an hourly single -car Class 153 train to an hourly five-car modern Aventra with Wi-fi and lots of space.



















November 27, 2016 Posted by | Transport/Travel | , , , , , | Leave a comment

« Previous Entries
