Success For The Dartmoor Line

This article on Railnews is entitled Railway Braces For Weekend Changes.

The article flags up that rail timetables will change to the summer timetable and uses the Dartmoor Line where services will go hourly, as an example.

The article says this about the changes to the Dartmoor Line and the success of the restored service to Okehampton station.

One of the many changes includes the doubling of service frequencies on the recently-reopened Dartmoor Line between Exeter and Okehampton, where scheduled passenger trains were restored last November. From Sunday trains will be running every hour, and rail minister Wendy Morton visited Okehampton yesterday to celebrate the improvements.

The reopening is part of the government’s promise to ‘Restore your railways’, and the Okehampton line is the first practical example of this in action. The line was upgraded for £10 million less than the £40.5 million budgeted, and Network Rail said the route has proved ‘hugely popular’, because passenger numbers have been more than double than predicted, reaching an average of over 2,500 a week during the first 20 weeks. The number of passengers at nearby Crediton, where the Dartmoor Line joins services on the Tarka Line from Barnstaple, is also 39 per cent higher than it was before the pandemic.

I have some thoughts.

Reopening Of The Line

Network Rail can build projects on time and on budget, if they get the project management right.

Passenger Numbers Between Exeter And Okehampton

If 2,500 passengers per week can use the line in the winter, when there is only one train per two hours (tp2h), how many passengers will use the train, when there is an hourly service?

2,500 passengers per week, throughout the year would be 125,000 passengers per year and as surely the summer will be busier, I don’t think it will be an unreasonable figure.

Okehampton station car park appears to have around 300 spaces, so at 2,500 passengers per week, there might be a not too distant day, when it fills up.

Passenger Numbers At Crediton

I am not surprised that traffic at Crediton is up by 39 percent.

Consider.

  • Pre-pandemic, Crediton station had one train per hour (tph) to and from Exeter.
  • Post-pandemic, Crediton has three trains per two hours to and from Exeter.

It looks like the train frequency has been increased by 50 % and the number of passengers has increased by 39 %.

That surely is not surprising and passenger numbers might increase further when one tph are running between Exeter and both Barnstaple and Okehampton, if there are more possible passengers to attract.

Car parking at Crediton station may also be a problem, as there appears to be less than a hundred spaces.

Okehampton Parkway Station

Okehampton Parkway Station is likely to be built to the East of Okehampton. Wikipedia says this about the station.

Okehampton Parkway is a proposed railway station in Okehampton on the Dartmoor Line. The station would be part of the Devon Metro and has been described as a priority station. The station is to be sited at the A30 junction at Stockley Hamlet and would be sited at the Business Park at Okehampton as well as serving a further 900 homes close to the site.

Wikipedia, also says that Devon County Council has bought the site.

This must be one of the best sites to build a parkway station in the UK.

  • It’s on the dual-carriageway A 30, between London and Cornwall.
  • The good people of Devon seem to like to use trains given the passenger numbers at Okehampton and Crediton stations.
  • Housing is being built nearby.

This Google Map shows Devon and Cornwall to the West of Okehampton and Barnstaple.

Note.

  1. Okehampton with two stations is in the South-East corner of the map.
  2. Barnstaple, which has a station, is in the North-East corner of the map.
  3. There are well-visited holiday resorts all along the cost including Ilfracombe, Westward Ho! and Bude.

It strikes me that if Devon put together a network of zero-carbon buses, it would be well-used and they could sell the area for zero-carbon holidays.

Rolling Stock

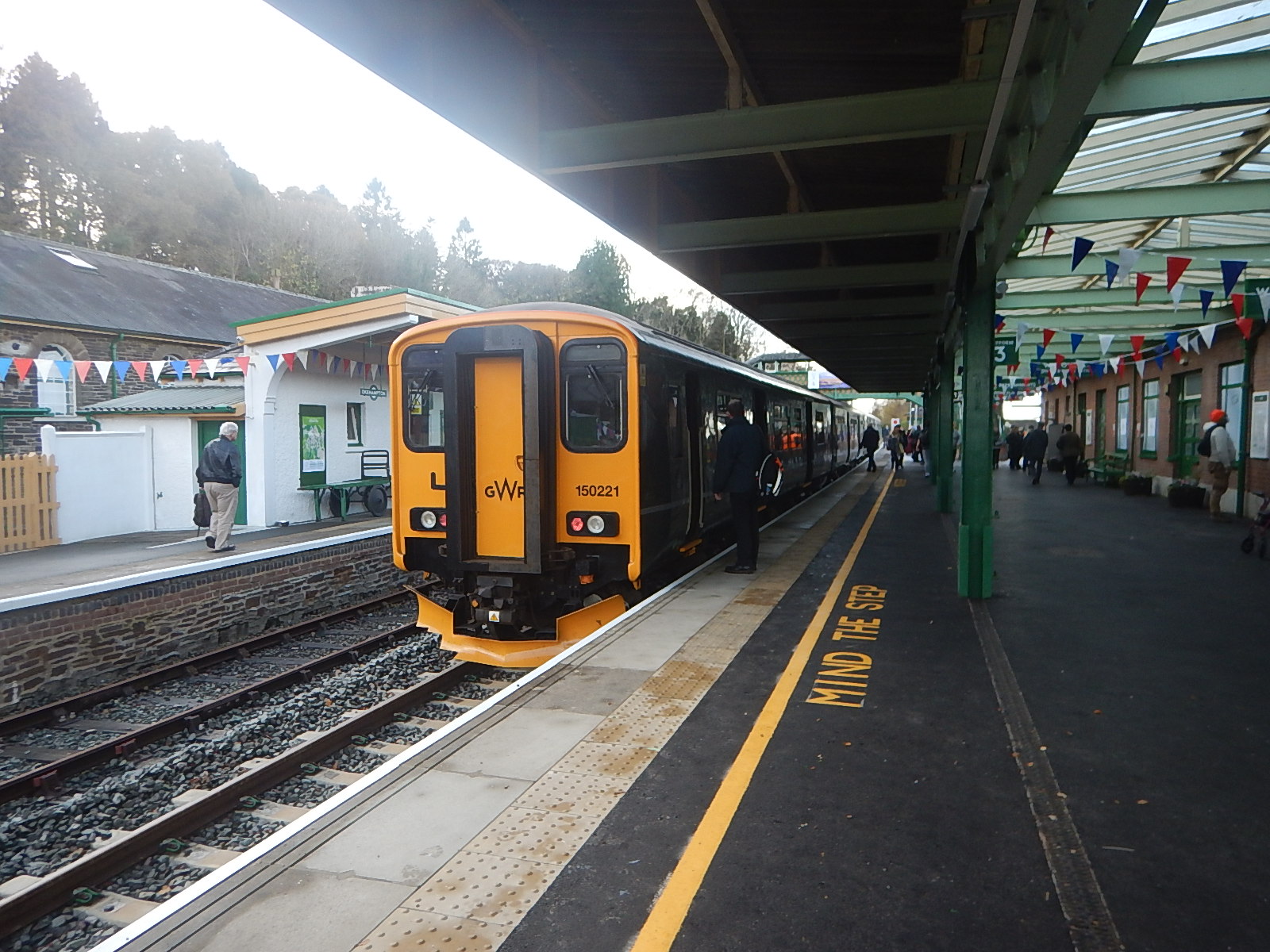

Currently, the Okehampton and Barnstaple services are operated by Class 150 trains.

These are definitely not good enough, due to their age and diesel power.

The distances of the two services are as follows.

  • Exeter and Barnstable – 39.5 miles
  • Exeter and Okehampton – 25.5 miles

I feel that these routes could be handled by a battery-electric train like the Hitachi Regional Battery Train, which is shown in this Hitachi infographic.

Note.

  1. For these routes, the trains would probably be based on four-car Class 385 trains, with a top speed of 90 mph.
  2. Charging would be in Exeter.
  3. Charging may not be needed at Barnstaple and Okehampton as the routes are downhill.

If battery-electric trains can’t handle the routes, I’m sure hydrogen-powered trains could.

May 13, 2022 Posted by | Transport/Travel | , , , , , , , , , , | 4 Comments

Could Battery-Electric Hitachi Trains Work LNER’s Services?

Before I answer this question, I will lay out the battery-electric train’s specification.

Hitachi’s Proposed Battery Electric Train

Based on information in an article in Issue 898 of Rail Magazine, which is entitled Sparking A Revolution, the specification of Hitachi’s proposed battery-electric train is given as follows.

  • Based on Class 800-802/804 trains or Class 385 trains.
  • Range of 55-65 miles.
  • Operating speed of 90-100 mph
  • Recharge in ten minutes when static.
  • A battery life of 8-10 years.
  • Battery-only power for stations and urban areas.
  • Trains are designed to be created by conversion of existing Class 80x trains

For this post, I will assume that the train is five  or nine-cars long. This is the length of LNER‘s Class 800 and 801 trains.

LNER’s Services

These are LNER services that run from London to the North of England and Scotland.

I shall go through all the services and see how they would be affected by Hitachi’s proposed battery-electric Class AT-300 train.

London Kings Cross And Edinburgh

  • The service runs at a frequency of two trains per hour (tph)
  • Some services extend to Aberdeen, Stirling and Inverness and are discussed in the following sections.

This service can be run totally using the existing electrification.

London Kings Cross And Aberdeen

  • The service runs at a frequency of four trains per day (tpd)
  • Intermediate stations are York, Darlington, Newcastle, Berwick-upon-Tweed, Edinburgh, Haymarket, Inverkeithing, Kirkaldy, Leuchars, Dundee, Arbroath, Montrose and Stonehaven.
  • Currently, the electrification goes 394 miles to Haymarket.

The service is 524 miles long and takes seven hours and four minutes.

To ascertain, if the Hitachi’s proposed battery-electric Class AT-300 train, could run this route, I’ll display the various sections of the route.

  • London Kings Cross and Haymarket – 394 miles – Electrified
  • Haymarket and Inverkeithing – 12 miles – Not Electrified
  • Inverkeithing and Kirkcaldy – 13 miles – Not Electrified
  • Kirkaldy and Leuchars – 25 miles – Not Electrified
  • Leuchars and Dundee – 8 miles – Not Electrified
  • Dundee and Arbroath – 17 miles – Not Electrified
  • Arbroath and Montrose – 14 miles – Not Electrified
  • Montrose and Stonehaven – 24 miles – Not Electrified
  • Stonehaven and Aberdeen – 16 miles – Not Electrified

Note.

  1. Haymarket and Dundee is a distance of 58 miles
  2. Dundee and Stonehaven is a distance of 55 miles

So could the service be run with Fast Charge systems at Dundee, Stonehaven and Aberdeen?

I think it could, but the problem would be charging time at Dundee and Stonehaven, as it could add twenty minutes to the journey time and make timetabling difficult on the route.

Perhaps, an alternative would be to electrify a section in the middle of the route to create an electrification island, that could be reached from both Haymarket and Aberdeen.

The obvious section to electrify would be between Dundee and Montrose.

  • It is a distance of 31 miles to electrify.
  • I have flown my virtual helicopter along the route and it could be already gauge-cleared for electrification,
  • Dundee station has been recently rebuilt.
  • Haymarket and Dundee is a distance of 58 miles.
  • Montrose and Aberdeen is a distance of 40 miles.
  • Pantographs could be raised and lowered at Dundee and Montrose stations.

With this electrification and a Fast Charge system at Aberdeen, I believe that Hitachi’s proposed battery-electric Class AT-300 train could run between London Kings Cross and Aberdeen.

As an alternative to the Fast Charge system at Aberdeen, the route of Aberdeen Crossrail between Aberdeen and Inverurie could be electrified.

  • This would enable battery-electric Class 385 trains to run between Inverurie and Montrose.
  • The route through Aberdeen is newly-built, so should be gauge-cleared and reasonably easy to electrify.

It should also be noted that if battery-electric trains can run between Edinburgh and Aberdeen, then these services are also possible, using the same trains.

  • Glasgow and Aberdeen
  • Stirling and Aberdeen

All passenger services  between Scotland’s Cenreal Belt and Aberdeen appear to be possible using battery-electric trains

London Kings Cross And Stirling

  • The service runs at a frequency of one tpd
  • Intermediate stations are York, Darlington, Newcastle, Berwick-upon-Tweed, Edinburgh, Haymarket, Falkirk Grahamstown

This service can be run totally using the existing electrification.

London Kings Cross And Inverness

  • The service runs at a frequency of one tpd
  • Intermediate stations are York, Darlington, Newcastle, Berwick-upon-Tweed, Edinburgh, Haymarket, Falkirk Grahamstown, Stirling, Gleneagles, Perth, Pitlochry, Kingussie and Aviemore.
  • Currently, the electrification goes 429 miles to Stirling, but I have read that the Scottish government would like to see it extended to Perth, which is 462 miles from London.

The service is 581 miles long and takes eight hours and six minutes.

To ascertain, if the Hitachi’s proposed battery-electric Class AT-300 train, could run this route, I’ll display the various sections of the route.

  • London Kings Cross and Haymarket – 394 miles – Electrified
  • Haymarket and Falkirk Grahamsrown – 23 miles – Electrified
  • Falkirk Grahamsrown and Stirling – 11 miles – Electrified.
  • Stirling and Gleneagles – 17 miles – Not Electrified
  • Gleneagles and Perth –  16 miles – Not Electrified
  • Perth and Pitlochry – 28 miles – – Not Electrified
  • Pitlochry and Kingussie – 44 miles – Not Rlectrified.
  • Kingussie and Aviemore – 12 miles – Not Rlectrified.
  • Aviemore and Inverness – 34 miles – Not Electrified

Note.

  1. The distance between Dunblane, where the electrification actually finishes and Perth is only 28 miles, which shouldn’t be too challenging.
  2. All the sections North of Perth are well within range of a fully charged train.
  3. Some sections of the route are challenging. Look at the video I published in Edinburgh to Inverness in the Cab of an HST.
  4. Hitachi run diesel Class 800 trains to Inverness, so they must know the power required and the battery size to run between Perth and Inverness.

I also believe that the Scottish Government, ScotRail, the Highland tourist industry and Hitachi, would all put their endeavours behind a project to get battery-electric trains between Perth and Inverness.

It would send a powerful message, that if battery-electric trains can run on one of the most scenic rail lines in the world without electrification, then nowhere is out of reach of battery trains.

Looking at the figures, I am convinced that a series of Fast Charge systems at stations like Pitlochry, Kingussie and Aviemore could supply enough power to allow a nine-car version of Hitachi’s proposed battery-electric Class AT-300 train to work the route.

This battery-electrification, would also enable battery-electric Class 385 trains to work the route.

If all this sounds a bit fanciful and over ambitious, read the history of the North of Scotland Hydro-Electric Board, which brought electricity to the area in the 1940s and 1950s.

This battery-electrification is a small project compared to what the Hydro-Electric Board achieved.

I can see a time, when similar techniques allow battery-electric trains to run these lines from Inverness.

  • Far North Line – 174 miles
  • Inverness and Kyle of Lochalsh – 82 miles
  • Inverness and Aberdeen – 108 miles

The Far North Line would probably need two or three Fast Charge systems at intermediate stations, but the other lines would probably only need one system, somewhere in the middle.

I think that this analysis for London and Inverness shows that all parts of England, Scotland and Wales can be served by modern battery-electric trains.

It would also appear that the cost of the necessary Fast Charging systems, would be much more affordable than full electrification, North of Perth.

I estimate that less than a dozen Fast Charging systems would be needed, North of Perth.

  • Some electrification might be needed in Inverness station.
  • Electrification between Inverurie and Aberdeen could help.
  • There’s no shortage of zero-carbon electricity from wind and hydro-electric power.

A couple of years ago, I speculated in a post called London To Thurso Direct.

Could it happen on a regular basis in the summer months?

London Kings Cross And Leeds

  • The service runs at a frequency of two tph
  • Intermediate stations are Stevenage, Peterborough, Grantham, Doncaster and Wakefield Westgate

This service can be run totally using the existing electrification.

London Kings Cross And Harrogate

  • The service runs at a frequency of six tpd
  • Intermediate stations are Stevenage, Grantham, Doncaster and Wakefield Westgate
  • Leeds and Harrogate is a distance of nineteen miles and is not electrified.
  • Hitachi’s proposed battery-electric Class AT-300 train should be able to go from Leeds to Harrogate and back, using battery power alone.
  • Batteries will be charged using the electrification at and around Leeds.

This service can be run totally using the existing electrification.

London Kings Cross And Bradford Foster Square

  • The service runs at a frequency of one tpd
  • Intermediate stations are Stevenage, Peterborough, Grantham, Doncaster and Wakefield Westgate
  • Leeds and Bradford Forster Square is a distance of fourteen miles and electrified.

This service can be run totally using the existing electrification.

London Kings Cross And Skipton

  • The service runs at a frequency of one tpd
  • Intermediate stations are Stevenage, Peterborough, Grantham, Doncaster and Wakefield Westgate
  • Leeds and Skipton is a distance of twenty-six miles and electrified.

This service can be run totally using the existing electrification.

London Kings Cross And Lincoln

  • The service runs at a frequency of one train per two hours (1tp2h)
  • Intermediate stations are Stevenage, Peterborough, Grantham and Newark North Gate
  • Newark North Gate and Lincoln is a distance of sixteen miles and not electrified.
  • Hitachi’s proposed battery-electric Class AT-300 train should be able to go from Newark North Gate to Lincoln and back, using battery power alone.
  • Batteries will be charged using the electrification between Newark North Gate and London Kings Cross.

This service can be run totally using the existing electrification.

London Kings Cross And York

  • The service runs at a frequency of 1tp2h
  • Intermediate stations are Stevenage, Peterborough, Grantham and Newark North Gate, Retford and Doncaster

This service can be run totally using the existing electrification.

London Kings Cross And Hull

  • The service runs at a frequency of one tpd
  • Intermediate stations are Stevenage, Peterborough, Grantham and Newark North Gate, Retford and Doncaster
  • Temple Hirst Junction and Hull is a distance of thirty-six miles and not electrified.
  • Hitachi’s proposed battery-electric Class AT-300 train should be able to go from Temple Hirst Junction and Hull and back, using battery power and a Fast Charge system at Hull.
  • Batteries will also be charged using the electrification between Temple Hirst Junction and London Kings Cross.

This service can be run totally using the existing electrification.

Consider.

  • The train runs seventy-two miles to get to Hull and back on lines without electrification..
  • Hitachi state that the trains maximum range on battery power is sixty-five miles.
  • Hull Trains and TransPennine Express also run similar trains on this route, that will need charging at Hull.

So rather than installing a Fast Charge system at Hull, would it be better to do one of the following.

  • Create a battery-electric AT-300 train with a bigger battery and a longer range. A One-Size-Fits-All could be better.
  • However, the larger battery would be an ideal solution for Hull Trains, who also have to reverse and go on to Beverley.
  • Electrify the last few miles of track into Hull. I don’t like this as electrifying stations can be tricky and getting power might be difficult!
  • Electrify between Temple Hirst Junction and Selby station and whilst this is done, build a solution to the problem of the swing bridge. Power for the electrification can be taken from the East Coast Main Line.

I’m sure a compromise between train battery size and electrification can be found, that creates a solution, that is acceptable to the accountants.

Conclusion

I think it could be possible, that LNER could use a fleet of all-electric and battery-electric AT-300 trains.







February 27, 2020 Posted by | Transport/Travel | , , , , , , , , , , , , , , , | Leave a comment

Around The Fife Circle Line

Although, I’ve been to Scotland many times, I’d never knowingly been over the Forth Bridge in good light.

So I went all the way round the Fife Circle Line and took these pictures.

The route was fairly busy and I very much feel that the three-car Class 170 train could at times be rather small for the route.

The Fife Circle Line

This map from Wikipedia shows the stations on the Fife Circle Line.

Consider.

The route is double-track.

  • The distance from Dalmeny to Glenrothes with Thornton station via Comdenbeath is 22.3 miles
  • The distance from Dalmeny to Glenrothes with Thornton station via Kirkcaldy is 21.4 miles
  • The train I was on waited a couple of minutes at Glenrothes with Thornton station before turning to Edinburgh.

In addition my pictures show the following.

  • Many of the bridges are high- enough to allow electrification.
  • On the East side of the Circle, there are some old stone bridges that would need to be raised for electrification.
  • Some of the stations are step-free with ramps.

Overall, it is a typically-Scottish neat-and-tidy line, that needs some improvement, like longer electric trains and some improved stations with step-free access.

Electrification Of The Fife Circle Line

In my view, there are two major obstacles to full-electrification of the Fife Circle Line.

The Forth Rail Bridge

I feel that engineers could electrify the Forth Rail Bridge without too much difficulty.

But that is not the problem.

  • The bridge is on the main route between Edinburgh and Aberdeen and North East Scotland and electrification would cause major disruption during the installation.
  • There is also the Heritage Lobby, who would probably be totally against major changes to a World Heritage Site.

For these reasons, I don’t think that the Forth Bridge will be electrified.

The Stone Bridges On The Eastern Side Of The Circle

There are nearly a dozen stone arch bridges on the route through Kirkcaldy and raising these for electrification would cause major disruption to one of Scorland’s main rail routes.

Third-Rail Electrification Of The Fife Circle Line

In my view, this would be an option to get round the problems of disruption and the Forth Rail Bridge.

But, third-rail electrifrication is still-considered a method non-grata, despite being used successfully for over a hundred years in Merseyside and South of London.

I do wonder, if Brexit will make it easier to install third-rail systems.

Certainly, Hitachi who would probably make most of the electric trains that would use the Forth Rail Bridge and the Fife Circle Line have the technology for third-rail trains, which they used on the Class 395 trains for HighSpeed commuter services to Kent.

I do wonder, if Brexit will make it easier to install third-rail systems.

Battery-Electric Trains On The Fife Circle Line

In Hitachi Plans To Run ScotRail Class 385 EMUs Beyond The Wires, I discussed Hitachi’s plan to fit batteries to Class 385 trains, so they could run on unelectrified lines.

The Fife Circle Line would be an ideal route for battery-electric trains.

This map shows the rail lines to the South of the Forth Rail Bridge.

Note.

  1. An unelectrified line, through South Gyle and Edinburgh Gateway stations, connects the Forth Bridge to the main electrifield Edinburgh and Glasgow Line through Edinburgh Park station.
  2. There is also another unelectrified line, that connects the Forth Rail Bridge to Linlithgow, Falkirk and Glasgow.
  3. Shown in yellow is a proposed chord, which would create another route between Edinburgh and Glasgow.

Electrification as far as Dalmeny station, which is between the Forth Bridge and the proposed chord would enable LNER’s bi-mode Class 800 trains to use electric power for a few extra miles.

As I said earlier, the distance between Dalmeny and Glenrothes with Thorntonh station is under twenty-five miles using either the Western or Eastern side of the Fife Circle Line.

  • Twenty-five miles is well within range of a battery-electric train, that has charged the battery using the electrification between Edinburgh and Dalmeny.
  • Most quoted ranges for battery-electric trains are in the order of sixty miles, so a well-designed train could probably do a complete round trip from Dalmeny station.
  • A charging point could be provided at Glenrothes with Thorton station to top up the batteries, whilst the train waits to return, if that were deemed necessary.

In my view, the Fife Circle Line is an ideal route for battery-electric trains. Especially, as the only new infrastructure required is as follows.

  • Electrification to Dalmeny station, which may be under consideration anyway.
  • Provision of a charging station at Glenrothes with Thornton station.

It is undoubtedly, the lowest cost way to provide new electric trains on the Fife Circle Line.

How Big Would The Batteries Need To Be?

I use a figure of three kWh per vehicle mile for the energy consumption of an electric multiple unit running on a typical route. My reasoning for this figure is given in How Much Power Is Needed To Run A Train At 125 mph?.

On that basis a three-car Class 385 train would need a battery capacity of 3x3x50 or 450 kWh to do a complete trip around the Fife Circle Line.

Note that Vivarail are talking about putting 424 kWh in a three-car Class 230 train.

This page on the Vivarail web site is entitled Battery Train Update.

This is a paragraph.

Battery trains are not new but battery technology is – and Vivarail is leading the way in new and innovative ways to bring them into service. 230002 has a total of 4 battery rafts each with a capacity of 106 kWh and requires an 8 minute charge at each end of the journey. With a 10 minute charge this range is extended to 50 miles and battery technology is developing all the time so these distances will increase.

So it looks like Vivarail manage to put 212 kWh under each car of their two-car train.

Surely, Hitachi have the technology to put 450 kWh in a three-car Class 385 train.

Trains On The Levenmouth Rail Link

In Scottish Government Approve £75m Levenmouth Rail Link, I talked about using Class 385 trains with batteries on the Levenmouth Rail Link.

The same Class 385 trains with batteies could do both routes.

Extension To The Borders Railway

There has been suggestions, that Borders Railway and Fife Circle Line trains run back-to-back across Edinburgh.

It is just over thirty miles between Newcraighall, where the electrification from Edinburgh ends, and Tweedbank.

With a charging station at Tweedbank, Class 385 trains with batteries could run both routes.

Conclusion

It appears that running battery-electric Class 385 trains on the Fife Circle Line and the Levenmouth Rail Link is a feasible option.

It would also be superb publicity for the company, who supplied the trains, if videos were shown of the trains on the Forth Rail Bridge.

August 21, 2019 Posted by | Transport/Travel | , , , , | Leave a comment

Scottish Government Approve £75m Levenmouth Rail Link

The title of this post is the same as that of this article on Rail Technology Magazine.

The plan seems to have been well-received by politicians and the media.

I’ve always thought this line to be a good candidate for reopening.

  • It is only five miles long.
  • It would serve Scotland’s largest town without a rail station.
  • There must be freight opportunities for freight, as the line could serve Scotland’s largest distillery.

There is more here on the Wikipedia entry for the Levenmouth Rail Link under Cost, Feasibility And Services.

Could The Levenmouth Rail Link Be Part Of A Bigger Picture?

The Fife Circle Line is an important route into Edinburgh for commuters, shoppers and visitors.

This map from Wikipedia shows the stations on the Fife Circle Line.

Consider.

  • The route is not electrified.
  • A train starting in Edinburgh and going rund the loop would cover about sixty miles.
  • Trains have a frequency of four trains per hour (tph)

It would appear that it would be the sort of service that would be ideal for electric trains, like ScotRail’s Class 385 trains, where a fleet of perhaps eight trains could provide the current service.

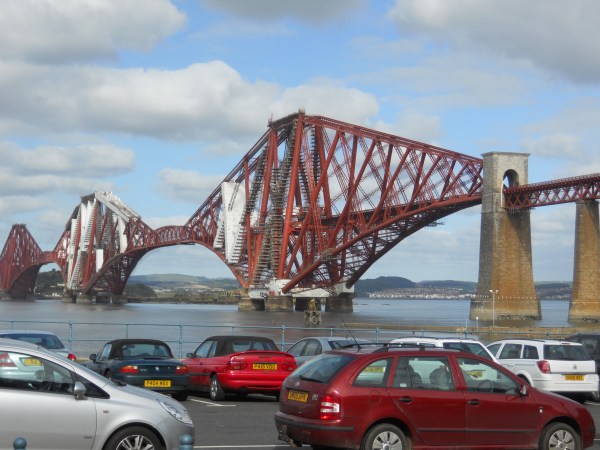

But there is a big obstacle to electrification; the Forth Rail Bridge.

It would be a difficult engineering project, that would cause massive disruption and one that would probably be strongly opposed by the Heritage lobby.

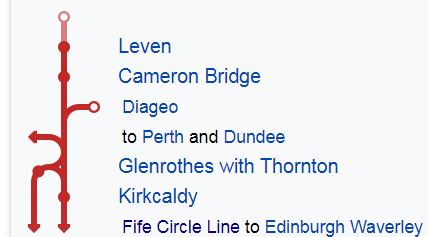

This map from Wikipedia shows the proposed Levenmouth Rail Link.

Note how it connects to the Fife Circle Line at Glenrothes with Thorton and Kirkcaldy stations.

I estimate that the distance between Leven and Edinburgh stations would be about 31 miles.

Could Battery-Electric Trains Work To Glenrothes with Thorton And Leven?

Consider these  facts abut battery-electric trains.

  • Bombardier ran a battery-electric train on the 11.5 mile Mayflower Line in public service for three months, without a hitch in 2015.
  • Hitachi, Siemens, Stadler and Vivarail have sold battery-electric trains.
  • Hitachi are running battery-electric trains in Japan.
  • Ranges of upwards of fifty miles are being claimed.
  • Battery-electric trains are a quality experience for passengers.

.As the Edinburgh and Leven and dinburgh and Glenrothes with Thorton routes  are about thirty miles, I believe it is now possible to run battery-electric trains on these two routes.

  • They would be charged at the Edinburgh end using the existing electrification.
  • Charging stations would be needed at Leven and Glenrothes with Thornton.
  • Electrification could also be erected as far as Dalmeny station at the Edinburgh end, which would reduce the range on batteries by about seven miles.

There would be no difficult engineering and the Forth Rail Bridge would look the same as the day it was built!

Hitachi Plans To Run ScotRail Class 385 EMUs Beyond The Wires

I covered this in more detail in Hitachi Plans To Run ScotRail Class 385 EMUs Beyond The Wires.

Hitachi appear to be serious according to this article of the same name on Rail Engineer.

The article concludes with this paragraph.

Hitachi’s proposal to operate battery trains in Scotland is at an early stage. However, with their use being recommended by the rail decarbonisation task force and the Scottish Government about to pass new climate change legislation, it may not be long before battery trains are operating in Scotland.

Hitachi aren’t stupid and I doubt they could want for a better portfolio of launch routes, than some of those in Scotland.

  • Edinburgh and Leven over the Forth Rail Bridge.
  • Edinburgh and Grenrothes with Thornton over the Forth Rail Bridge.
  • The Borders Railway.

I also show in the related article, that Glasgow to Oban and Mallaig may be possible.

The Rail Network And Electrification To The West Of Edinburgh

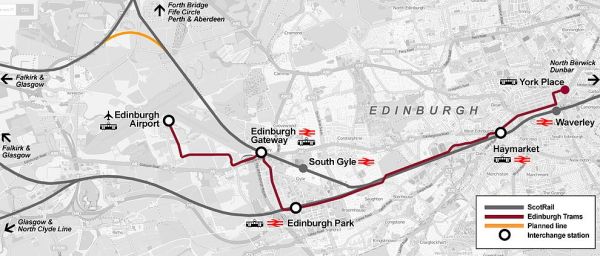

This map shows the rail system to the West of Edinburgh.

All lines except for the route through South Gyle and Edinburgh Gateway stations are electrified.

Electrification as far as Dalmeny station, the addition of the new chord (shown in yellow) and fill in electrification to join the chord to the Glosgow wires would open up the possibilities of more routes between Edinburgh and Glasgow and a connection between Glasgow and the Fife Circle.

But battery-electric trains would be needed.

ScotRail has Options For More Class 385 Trains

This is said in the Wikipedia entry for the Class 385 trains.

10 unit optional follow up order after 2020.

So ScotRail seem to have a gateway to the future.

Will Battery-Electric Trains Be Good For Tourism?

I very much doubt, that they’ll be bad for it!

Conclusion

The announcement of the reinstatement of the Levenmouth Rail Link, could be be a collateral benefit of a decision to trial or even order some battery-electric Hitachi Class 385 trains.

August 9, 2019 Posted by | Transport/Travel | , , , , , , | 8 Comments

Tender Set To Be Issued For East West Rail Rolling Stock

The title of the this post is the same as that of this article on Rail Magazine.

Brief details of the fleet include.

  • Eleven trains.
  • Self-propelled.
  • Three cars.

Services are due to commence in 2024, serving Oxford, Aylesbury, Milton Keynes and Bedford.

Here are a few of my thoughts.

Are Three Car Trains Long Enough?

New train services in the UK, especially those on new or reopened routes, seem to suffer from London Overground Syndrome.

I define it as follows.

This benign disease, which is probably a modern version of the Victorian railway mania, was first identified in East London in 2011, when it was found that the newly-refurbished East London Line and North London Line were inadequate due to high passenger satisfaction and much increased usage. It has now spread across other parts of the capital, despite various eradication programs.

The Borders Railway certainly suffered and the London Overground is still adding extra services on the original routes.

Three-car trains may be enough for the initial service, but provision must be made  for running longer trains.

  • The trains that are purchased must be capable of lengthening.
  • Platforms must be built for longer trains.

So often we don’t future-proof new rail routes.

What Performance Is Needed?

I’ll ask this question first, as it may affect the choice of train.

The trains will certainly be at least capable of 100 mph operation.

But I wouldn’t be surprised if they were capable of 110 mph or even 125 mph, as this would surely make it easier for trains to go walkabout on the Great Western, Midland and West Coast Main Lines.

Faster East West trains might also get more services out of the fleet.

Appropriate acceleration and braking would be needed.

Conservative Or Innovative?

Will we get more of the same or will some of the responders to the tender offer trains based on innovative designs?

I would hope that as the line will eventually connect Oxford and Cambridge via Milton Keynes, the trains will take over the flavour of the route and be more innovative.

The Route

The eventual full route of the East West Rail Link will serve these sections.

  • Reading and Ocford – 25 miles – Partially-electrified
  • Oxford and Milton Keynes – 43 miles – Not electrified
  • Milton Keynes and Bedford – 20 miles – Partially-electrified
  • Bedford and Sandy – 10 miles – Not electrified
  • Sandy and Cambridge – 25 miles – Partially-electrified.

Note.

  1. The distances are approximate.
  2. With the exception of Oxford, all the major stations will be served by electric trains on other routes.

It is rather a mixture created out of existing and abandoned routes.

Could Battery Trains Run On The East West Rail Link?

Consider.

  • All the major stations except Oxford have electrification.
  • Sections of the route are electrified.
  • The route is not very challenging.
  • The longest section without electrification is around forty miles.

All this leads me to believe that a battery-electric train with a range of forty miles could handle the route, if there was the means to charge the train at Oxford.

Possibly the easiest way to achieve the charging station at Oxford station, would be to electrify between Didcot Junction and Oxford stations.

In How Much Power Is Needed To Run A Train At 125 mph?, I showed that to run at 125 mph, a train needs around three kWh per vehicle mile.

This would mean that to run between Oxford and Milron Keynes stations, would need a maximum power of around 40*3*3 kWh or 360 kWh.

This is only a 120 kWh battery in each car.

I am fairly certain, that a well-designed battery train could run on the East West Rail Link.

The Usual Suspects

There are several train companies, who could be offering existing trains or their developments.

Alstom

Alstom don’t have a current design of train for the UK, but they are heavily into the development of trains powered by hydrogen.

By 2024, I suspect they will be offering a purpose-built hydrogen-powered train for the UK.

Also, by that time, I think it will be likely, that many buses in cities will be powered by zero-carbon hydrogen and the availability of this fuel would be much better than it is today.

An East West Rail Link running hydrogen-powered trains would go a long way to answer the electrification lobby.

Bombardier

Bombardier are developing a 125 mph bi-mode Aventra with batteries, that they are proposing for various franchises in the UK, including the Midland Main Line.

I believe that by rearranging the components of this train, they could develop a train that would be very suitable for the East West Rail Link.

  • Three cars
  • At least 100 mph operating speed
  • In service by 2024 or earlier.

It could be a bi-mode train with batteries, or if battery and the associated charging technology has improved, it could be a battery-electric train.

The latter would certainly fulfil the flavour of the route.

Bombardier’s Aventra would also have the advantages of an electrical version and the ability to add more cars.

CAF

CAF have recently introduced the Class 195 traincaf in the UK.

But would a diesel train be acceptable on a flagship route?

On the other hand CAF have been delivering battery-powered trams for several years and I wouldn’t be surprised to see the company, offer an innovative battery-electric train for the East West Rail Link.

Hitachi

Hitachi don’t make self-powered trains in the UK.

But in Hitachi Plans To Run ScotRail Class 385 EMUs Beyond The Wires, I wrote about the company’s plans to use batteries as range extenders on their Class 385 trains.

I suspect that by 2024, these trains will be running in Scotland and they will probably be high-quality reliable trains.

So could these trains be able to run between Reading and Cambridge using battery power, topped up at the various sections of electrification along the route.

Hitachi’s development regime is cautious, professional and well-funded, so I suspect they could offer a version of the Class 385 train, for delivery in 2024.

Hitachi would also have the advantages of an electrical version and the ability to add more cars.

Siemens

Siemens have a large number of modern electrical multiple units in the UK, but none are self-powered, except the diesel Class 185 train.

Siemens will have a factory in the UK to built London Underground trains by 2024.

But eleven trains could be an expensive order to fulfil, if it required a new self-powered train design.

Stadler

Stadler are an innovative company and their Class 755 train will shortly be starting passenger service in East Anglia.

  • It is three-cars, which is extendable if required.
  • It has a 100 mph operating speed.
  • It is a bi-mode; diesel and electric train.
  • Trains for Wales have ordered a diesel/electric/battery version.
  • There are rumours of hydrogen-powered versions.

Stadler could certainly deliver some of these trains by 2024.

Summing Up

I would suspect that the front runners are Bombardier, Hitachi and Stadler, with CAF in fourth place.

  • All could probably develop a zero-emission train for the route using battery technology.
  • Stadler will have trains in service this year, and I suspect Bombardier and Hitachi will be running trains by 2022.

I think we could be seeing some very good trains on the route.









July 13, 2019 Posted by | Transport/Travel | , , , , , , , , , , | 8 Comments

Scottish Government Is Considering Plans To Electrify The Borders Railway

The title of this post is the same as that of this article in The Scotsman.

These reasons are given for the electrification, of the Borders Railway.

  • Electric trains would shorten journey times.
  • New Class 385 trains would be more reliable than the current elderly diesel trains.
  • It would be an easy line to electrify, as the line was built so that overhead electrification could be added without any gauge enhancement.

I would add a few reasons of my own.

  • The route is already electrified as far as Newcraighall station. This would probably ease the grid connection  to the new electrification.
  • I believe that electrification of a new railway, where everything is known an well-documented has a higher change of being delivered on time and on budget.
  • Running Class 385 trains may also produce operating and maintenance savings.
  • The Class 385 trains are serviced at the convenient Millerhill Depot.
  • Electrification might help running trains across Edinburgh.

If and when the Borders Railway is extended to Carlisle, there could be very good reasons to electrify the whole route.

I will answer a few questions.

How Much Time Would a Class 385 Train Save?

Currently, trains between Edinburgh and Tweedbank currently take fifty-five minutes with seven stops.

The Class 385 trains will probably save a few minutes at each stop, so this will make the journey time a bit shorter and turnround at each end of the route will be more relaxed.

How Long Is The Section Without Electrification Of The Borders Railway?

The distance between Newcraighall and Tweedbank stations is 30.75 miles.

How Challenging Is The Borders Railway?

It is not the easiest of routes, but it is not the most difficult either. It also has a high summit.

The current diesel trains don’t seem to be working that hard, when I’ve used the railway.

Would Electrification Be Difficult?

If I look at electrification projects over the last few years in the UK, they have been delayed and suffered cost increases because of the following.

  • Difficulty of raising bridges over the route.
  • Connecting to the electricity grid.
  • Surprises like unexpected sewers and mine workings, when installing the electrification.

Hopefully, as the Borders Railway is new railway, that is already partially electrified, this will not be a difficult electrification.

Could the Current Route Be Served By A Battery-Electric Train?

This is the big question, as it were possible, then the current Borders Railway may not need to be electrified.

In Hitachi Plans To Run ScotRail Class 385 EMUs Beyond The Wires, I talked about Class 385 trains with batteries, that #Hitachi are proposing.

Hitachi have said this.

  • It would be straightforward to add batteries to give a range of twenty miles on batteries.
  • Sixty miles would be possible but more difficult.

I believe that a safety-first way to run a battery-electric Class 385 train on the Borders Railway would be to do the following.

  • Procure a sin-fleet of Class 385 trains, with a range of forty miles on onboard batteries.
  • The trains would handle regenerative braking to the onboard batteries.
  • A charging station would be provided at Tweedbank station.

The only new infrastructure would be the charging station, which I believe should be based on Vivarail’s design, which I wrote about in Vivarail Unveils Fast Charging System For Class 230 Battery Trains

  • Currently, trains take just under ten minutes to turn round at Tweedbank station, which would be time enough to charge the battery.
  • Vivarail’s system is fully automatic, after the driver stops the train over a length of third-rail electrified track, which is only live, when a train is connected.

Hitachi would need to fit third-rail shoes to the trains, but then they could use the design from their Class 395 trains.

Conclusion

There is currently no need to electrify the Borders Railway, if Hitachi can do the following.

  • Fit batteries to a Class 385 train, to give a range of forty miles.
  • Design a fast charging system and install it at Tweedbank station.

I also believe that if and when the Borders Railway is extended to Carlisle, that there could be a strong case for electrification of the whole route.

Running battery-electric Class 385 trains on the Borders Railway would be a project with a lot of winners.

  • Hitachi would have a scenic demonstration route, close to a major well-connected international city.
  • The Borders would get a better and more environmentally – friendly train service to Edinburgh.
  • Scotrail would have a higher proportion of one class of electric trains.

But the biggest advantage could be the possibility of terminating Borders Railway services on the other side of Edinburgh, at perhaps Stirling or Dunblane.







June 19, 2019 Posted by | Transport/Travel | , , | 1 Comment

Chester To Liverpool Via Runcorn

This new service between Chester and Liverpool Lime Street stations via Runcorn station and the Halton Curve, started a couple of weeks ago.

I took these pictures of the journey.

Note.

  1. The service was busy, as everybody seemed to be going to Liverpool to prepare for the evening’s match.
  2. The Class 150 train kept up a good speed, which indicates that Network Rail didn’t cut quality on the link.
  3. Runcorn is about the halfway point of the journey.
  4. The route is electrified between Runcorn and Liverpool Lime Street stations.
  5. The Class 150 train was a bit tired.

I wouldn’t be surprised to see a hybrid train working this route.

Operation would be as follows.

  • All these trains work be capable of 100 mph using 25 KVAC overhead electrification between Liverpool Lime Street and Runcorn stations.
  • Power changeover would be at Runcorn station.
  • Between Runcorn to Chester stations is only about fourteen miles.. This will be well within battery range in a few years.

Transport for Wales will be obtaining trains from a crowded market.

More Halton Curve Services

Under Planned Improvements in the Wikipedia entry for Transport for Wales, this is said.

Introduction of a new hourly Liverpool to Llandudno and Shrewsbury service, and a new two-hourly Liverpool to Cardiff Central service from December 2022.

Adding these to the current hourly service, this would mean that two trains per hour (tph) would normally run between Liverpool Lime Street and Chester stations, with three trains in every alternate hour.

I think that, there would be a marketing advantage in running hybrid trains on these routes. Hydrogen would be ideal, as these would not need recharging like battery trains after a long trip.

To go through the single-track Halton Curve appears to take trains about five minutes, so up to eight tph could probably be feasible, which would mean four tph between Liverpool and Chester via Runcorn in both directions.

If Trains for Wales are going to compete with the Merseyrail electric services, they need a four tph frequency in both directions.

Flexible Ticketing

Currently, if you want to buy a ticket between the Chester and Liverpool Lime Street, you have to buy an appropriate ticket for your chosen route.

Surely, tourists and others might like to do the out and back journeys by a different route.

If London Underground and some train companies can share ticketing, then surely Merseyrail and other train companies can do the same.

Conclusion

This new service will be surprisingly well-used and needs an iconic hybrid train.

  • Diesel is not appropriate for the long term, although in Northern Connect Between Chester And Leeds To Start In May, I did report a rumour that Class 769 trains might be running between Chester and Leeds.
  • Hydrogen is non-polluting and has a longer range, that could make services between Liverpool and Holyhead possible.
  • Battery will probably need a charging infrastructure.

My money is on hydrogen power.





June 2, 2019 Posted by | Transport/Travel | , , , , , , , , , , , | 2 Comments

Hitachi Plans To Run ScotRail Class 385 EMUs Beyond The Wires

The title of this post is the same as that of this article on Rail Engineer.

This is the first paragraph.

Hitachi are in discussions with the Scottish Government to run a Class 385 variant with underfloor batteries that could either be charged whilst under the wires or whilst stationary at the end of the route.

The article makes these points, about adding batteries to Class 385 trains.

  • It would be straightforward to add batteries to give a range of twenty miles on batteries.
  • Sixty miles would be possible but more difficult.
  • Experience gained with the DENCHA trains in Japan would be used.

The article concludes with this paragraph.

Hitachi’s proposal to operate battery trains in Scotland is at an early stage. However, with their use being recommended by the rail decarbonisation task force and the Scottish Government about to pass new climate change legislation, it may not be long before battery trains are operating in Scotland.

I think it should be noted that Hitachi’s order book is rather thin these days and it appears that innovative technology will sell new trains.

Alstom, Bombardier, CAF, Siemens, Stadler and Vivarail have all designed, demonstrated or sold trains, where batteries are used improve efficiency or extend range.

As Scotland has several routes, where battery trains could provide a service, perhaps Hitachi thought it was time to do some marketing, to make sure that they got any orders for battery trains.

Scotrail would probably prefer to have a battery train similar to their largest fleet of electric trains.

Electric Trains On The West Highland Line Between Glasgow And Mallaig/Oban

This might be considered as difficult as putting a London bus on the Moon.

But consider.

  • The West Highland Line is electrified as far as Helensburgh Central station.
  • Electrification to Helensburgh Upper station would probably not be a difficult project for Network Rail in Scotland.
  • Heleburgh Upper to Mallaig is just under 140 miles.
  • Hellensuburgh Upper to Oban is around 76 miles.
  • Crianlarich station, where the two routes divide is under forty miles from Helensburgh Upper.
  • Fort William station is around halfway between Mallaig and Crianlarich.
  • Trains take several minutes to reverse at Fort William.

Vivarail have developed fast charging for battery trains, that I wrote about in Vivarail Unveils Fast Charging System For Class 230 Battery Trains.

If Hitachi can develop a Class 385 train with batteries, that has a range of perhaps sixty miles on a full battery, then I believe it would be possible to run an electric train service between Glasgow and Oban and Mallaig.

  • Charging stations would need to be able to fully charge the batteries in perhaps six minutes.
  • Trains would leave Hellensburgh Upper with a full battery and charging stations at Crianlarich and Fort William would top up the batteries.
  • The longest stretch is between Crianlarich and Fort William and it would probably need an additional charging station at perhaps Tulluch.

What would battery-electric trains to Oban and Mallaig do for tourism in the area?

Hitachi would have one of the most scenic and iconic test tracks in the world!





April 2, 2019 Posted by | Transport/Travel | , , , , , | 14 Comments
