A New Reston Station

This page on the Scotland’s Railway web site, gives an overview of the project to build a new Reston station on the East Coast Main line about 3.5 miles North of Berwick-upon-Tweed station.

This is the project summary given on the web page.

Network Rail has developed proposals to create a new station at Reston in the Scottish Borders.

We worked with local partners and stakeholders to develop plans for the station and liaised with the local community in advance of submitting a planning application to Scottish Borders Council.

Planning consent was granted in February 2021 and the team are gearing up to deliver a challenging programme of work to create the new station.

The page also says that work on the station started in March 2021. Certainly, by May 2021, there was quite a bit happening.

This Google Map shows the village of Reston.

Note.

  1. The A1 running East-West at the top of the map.
  2. Main Street running East-West across the middle of the map.
  3. The East Coast Main Line runs North West-South East across the South-West corner of the map.

The station would appear to be East of the road called The Orchard.

Station Facilities

Looking at the video the station appears to have the following facilities.

  • Two platforms.
  • About seventy car-parking spaces, which is designed to be expanded
  • Five disabled car-parking spaces.
  • Electric car charging.
  • Bicycle storage
  • Full step-free access, at the South-Eastern end of the station.

There does not appear to be any avoiding line for freight trains or a bay platform to reverse trains.

But there appear to be a pair of crossovers to the North of the station site.

Distances Between Reston Station And Selected Towns

This are road distances between Reston station and selected towns.

  • Duns – 10 miles
  • Galashiels – 38 miles
  • Hawick – 47 miles
  • Kelso – 26 miles

Are there plans for new housing in the area?

Services Between Newcastle And Edinburgh

The following services run between Edinburgh and Newcastle.

  • CrossCountry – 1 tph – Plymouth and Edinburgh/Glasgow – Stops at Alnmouth (irregular), Berwick-upon-Tweed (irregular), Dunbar (1tp2h)
  • East Coast Trains – 5 tpd – London Kings Cross and Edinburgh – Stops at Morpeth
  • LNER – 1 tph – London Kings Cross and Edinburgh – Stops at Berwick-upon-Tweed
  • LNER – 1 tph – London Kings Cross and Edinburgh – Stops at Alnmouth (1tp2h)
  • TransPennine Express – 1 tph – Liverpool Lime Street and Edinburgh – Stops at Morpeth

Note.

  1. tpd is trains per day.
  2. tph is trains per hour.
  3. tp2h is trains per two hours.
  4. All services are run by 125 mph trains
  5. All services stop at Edinburgh and Newcastle.
  6. A typical service averages around 88.9 mph between Edinburgh and Newcastle.

The timetable appears to be arranged to ensure at least 4 tph between Edinburgh and Newcastle.

I have a few thoughts.

How Many Services Should Call At Reston?

On an urban line, stopping frequencies of services of up to four or even six tph are common, which would probably be in excess of what is needed at Reston.

Most rural main or secondary lines have frequencies of one or two tph.

I would suggest that if you’re designing and building a station, that will cost several million pounds, then the station must have at least an hourly service, but that two tph would be much more preferable.

In an ideal world, there might be two tph.

  • A slow train that stopped at all the larger stations, which could include East Linton, Dunbar, Berwick-upon-Tweed, Almouth and Morpeth.
  • A fast train that stopped just once at Reston station between Edinburgh and Newcastle.

Note.

  • Like Reston station, East Linton station is also under construction.
  • Reston station, is likely to have a selection of buses to Galashiels and other towns in the Borders.
  • Reston station has space for a sensible amount of parking.

I would also expect bus and train services to obey these conditions.

  • Be timetabled to arrive and leave at the same time each hour.
  • Run from early until late.
  • Provide an easy interchange, so that travellers don’t have to endure too much unfriendly weather.
  • Have a comprehensive ticketing system to attract passengers.

I also think that a warm waiting room and cafe should be provided.

Will Reston Station Have A Direct Service To London And The South?

Both of LNER’s services between Edinburgh and London call at York, Darlington and Newcastle, with only one service calling at Berwick-upon-Tweed.

This Google Map shows the location of Berwick-upon-Tweed station.

Note.

  1. The long island platform between the tracks.
  2. There are 124 parking spaces.
  3. The A1 is some distance away to the West.

It all looks very cramped.

So if, one of LNER’s London services stopped at Reston, would it be better for all travellers and operators.

I would suggest that it would probably be ideal if one of LNER’s two services stopped at Berwick-on-Tweed and the other stopped at Reston.

It would also probably be a good idea for ticketing to consider Reston as a Berwick-on-Tweed station.

Will ERTMS Signalling Be Used Between Edinburgh and Newcastle?

I don’t think this is a question of will, but more one of when.

  • It will enable trains to run at up to 140 mph.
  • It will handle trains efficiently, when they are running at different speeds.
  • It will allow the increasing of the frequency of trains on the double-track route.
  • All trains on the route will probably be fitted with equipment to run under in-cab digital ERTMS signalling in a few years.

I would expect that ERTMS signalling could be used to run an increasingly complex pattern of trains between Edinburgh and Newcastle.

Will There Be 140 mph Running Between Edinburgh and Newcastle?

I have flown my helicopter along the route between Edinburgh and Newcastle and ridden it in a 125 mph train many times.

Given how Network Rail have squeezed increased speeds out of routes like the Midland Main and Great Eastern Main Line, I have no doubt that some 140 mph running will be possible between Edinburgh and Newcastle.

I estimate that with a substantial amount of 140 mph running between Edinburgh and Berwick-on-Tweed could save as much as fifteen minutes on current timings.

What Trains Will Be Used Between Edinburgh and Newcastle?

Consider.

  • It is a fully-electrified double-track railway.
  • There will be 125 mph and possibly 140 mph express trains passing through.

I suspect that to avoid getting in the way of the expresses, trains with at least a 110 mph capability would be needed.

Some of the redundant Class 350 trains would probably do fine.

How Will LNER’s Extra Paths Affect Trains Between Edinburgh and Newcastle?

In the December 2020 Edition of Modern Railways, there is an article, which is entitled LNER Seeks 10 More Bi-Modes.

This is the last paragraph.

Infrastructure upgrades are due to prompt a timetable recast in May 2022 (delayed from December 2022), from which point LNER will operate 6.5 trains per hour out of King’s Cross, compared to five today. As an interim measure  LNER is retaining seven rakes of Mk. 4 coaches hauled by 12 Class 91 locomotives to supplement the Azuma fleet and support its timetable ambitions until new trains are delivered.

In A New Elizabethan, I suggest that one of these extra paths could be used to run a third hourly service between London King’s Cross and Edinburgh.

I would think it likely, that it only would only stop at Newcastle, if it provided a fast service between the two capitals.

Is Reston Station About Borders Unemployment?

This post has been up for a few days now and there have been comments about the cost of this station and the more-than-adequate car-parking provision for the small villages.

This article on the Southern Reporter is entitled Unemployment In Borders Up Almost 120% Year On Year.

Could it be that one of the purposes with its expandable car-parking is to allow people to get to jobs in Edinburgh and Newcastle?

  • It should also be noted that Britishvolt are planning to build a £4 billion battery factory at Blyth, which according to reports will employ between three and five thousand people.
  • It is a distance of seventy miles and Google says it will take nearly an hour-and-a-half.
  • I suspect a 110 mph train between Reston and Bebside stations on the Northumberland Line would take about forty-five minutes.
  • Bebside station is on the Northumberland Line and will have a shuttle bus to the Britishvolt factory.
  • Porterbrook are developing a battery/FLEX version of their 110 mph Class 350 trains.

By choosing to build a station will the possibility of large amounts of parking are the Scottish Government doing the best for the unemployed in the Borders?

You can imagine a scenario in the employment office at Britishvolt.

  • They are getting a lot of letters and e-mails asking about jobs.
  • Someone does a bit of counting and realises their planned car-park is too small.
  • Problems are outlined to ministers in the UK and Scottish Governments.
  • The reopening of the Northumberland Line and the building of Reston station do appear to have been accelerated.

Perhaps the rail developments are a small price for both governments to pay to secure a £4 billion investment,

Conclusion

There’s a lot more to Reston station, than first appears.



May 16, 2021 Posted by | Transport/Travel | , , , , , , , , , | 11 Comments

First Passenger Train In 80 Years Runs On Camp Hill Line

The title of this post is the same as that of this article on Rail Technology Magazine.

These two paragraphs described the route, that the train took on the Camp Hill Line.

On Monday morning a train carrying the Mayor, West Midlands Railway’s customer experience director Jonny Wiseman and other representatives from across the rail industry, travelled along the line.

The train followed the route of what would be the re-opened line, stopping at the Moseley, Kings Heath and Hazelwell sites before arriving into Kings Norton, and later returning to Birmingham New Street.

The article has a picture showing the VIPs showing boards indicating the stations at Moseley, Kings Heath and Hazelwell, that will be reopened.

Wikipedia says this under Future for all three stations.

In 2019, the project to re-open the stations at Moseley, Kings Heath and Hazelwell received £15 million in Government funding, with construction due to start in 2020 and aimed for completion in time for the 2022 Commonwealth Games.

£15million seems good value to reopen three stations.

Let’s hope the world has solved the COVID-19 crisis before the 2022 Commonwealth Games.

Trains For The Service

The picture in the article, shows the test service was run by a two-car Class 170 train. This is an ideal train to do the testing, but as the Camp Hill Line is not electrified, self-powered trains will be needed for the passenger service.

West Midlands Trains will have a good selection of self-powered trains with which to run the service.

  • They already have a selection of Class 170 and Class 172 Turbostar diesel multiple units in very good condition, which total thirty-seven two-cars and twenty-one three-cars.
  • I’m sure Vivarail will pitch diesel-electric or battery-electric versions of their Class 230 trains.
  • Alstom will probably pitch the Breeze hydrogen-powered train.
  • Porterbrook will probably pitch their proposed Battery/FLEX conversion of Class 350 trains.

I don’t think there will be a problem finding a suitable fleet for this route.

I suspect some form of battery-electric train will be used, as there is lots of 25 KVAC overhead electrification in the Birmingham area, that can be used to charge the batteries.

Battery-electric trains with a range of perhaps forty miles would also open up the possibilities for other electric services for West Midlands Trains.

A Thought On Construction

Because of COVID-19, there will probably be numbers of unemployed in this part of Birmingham, who have skills that could be useful to do the building work.

So should the non-railway related parts of the reopening be accelerated to put money in the pockets of the local unemployed.

March 19, 2020 Posted by | Health, Sport, Transport/Travel | , , , , , , , , , , , | 2 Comments

New Railway Station Between Hinckley And Nuneaton Receives Backing

The title of this post is the same as that of this article on Rail Technology Magazine.

This is the first paragraph of the article.

Plans for a new railway station between Hinckley and Nuneaton looks set to go ahead following backing from councillors.

The station will be called Nuneaton Parkway.

This page on Coventry Live gives some more information.

There is also a proposed station, to be called Nuneaton Parkway, situated off the A5 between Hinckley and Nuneaton.

This Google Map shows the area where the A5 crosses the Birmingham-Peterborough Line, that runs between Hinckley and Nuneaton..

This must surely be one of the best sites to build a new Parkway station in the UK.

  • The triangular site is a waste transfer station operated by Veolia Environmental Services UK.
  • It has a direct connection to the A5, which could be easily improved, with perhaps a roundabout.
  • Doing a crude estimate from the Google Map, I calculate that the site is about sixteen hactares, which is surely a good size for a Parkway station.
  • There’s even quite a lot of new housing within walking and cycling distance.

It would also appear that the station could be built on this site without major disruption to either road or rail traffic.

Train Services

Currently the train service passing the proposed site of Nuneaton Parkway, which stops at both Hinckley and Nuneaton stations is as follows.

  • An hourly CrossCountry service between Birmingham New Street and Leicester.
  • In addition there are four trains per day between Birmingham New Street and Stansted Airport and/or Cambridge.
  • All trains take seven minutes between Nuneaton and Hinckley.

But just under forty trains per day is not enough.

In my view, there should be a train at least every half-hour and preferably four trains per hour (tph) between Birmingham New Street and Leicester.

What About Coventry and Birmingham International?

Services between Nuneaton and Birmingham go via Coleshill Parkway and don’t call at Coventry and Birmingham International for the Airport, High Speed Two and the National Exhibition Centre.

So could there be a Birmingham New Street and Leicester service via Birmingham International, Coventry, Coventry Arena, Nuneaton, Nuneaton Parkway and Hinckley?

London, Liverpool and Manchester Via Nuneaton

Currently, the Nuneaton and London service is hourly and timed badly for connections at Nuneaton.

If it is intended that passengers will park at Nuneaton Parkway station and go to and from London, Liverpool or Manchester, the following must be arranged.

  • At least four tph calling at Nuneaton, Nuneaton Parkway and Hinckley.
  • At least two tph from West Midland Trains going between London Euston and Crewe calling at Nuneaton.
  • Perhaps one tph from Virgin Trains calling at Nuneaton.
  • A big improvement in cafes and waiting rooms at Nuneaton.

Note that times between Nuneaton and London Euston are as follows.

  • West Midlands Trains – 78 minutes
  • Virgin Trains – 69 minutes

Perhaps West Midlands Trains should be running trains with the same performance as Virgin?

Could Battery-Electric Trains Be Used Between Birmingham New Street And Leicester?

The route between Birmingham New Street and Leicester is not electrified, but two important stations; Birmingham New Street and Nuneaton are both wired, as is the route between Coventry and Birmingham New Street via Birmingham International.

Distances between Nuneaton and other stations, where independent power would be needed are.

  • Birmingham New Street via Coleshill Parkway – 21 miles.
  • Leicester – 19 miles or 38 miles return.
  • Coventry – 10 miles

These distances are all feasible for battery operation.

In Porterbrook Makes Case For Battery/Electric Bi-Mode Conversion, I talked about Porterbrook’s plan to convert redundant Class 350 trains into battery-electric trains.

  • They are four-car electric trains.
  • They were built within the last ten years.
  • They are currently used by West Midlands Trains.

In the related post, I estimated that these converted trains would have the following battery ranges for the power usages shown, if they were to be fitted with 400 kWh of batteries. I chose 400 kWh as this is the battery capacity of a Three-car Class 230 train.

  • 5 kWh per vehicle mile – 20 miles
  • 4 kWh per vehicle mile – 25 miles
  • 3 kWh per vehicle mile – 33.3 miles
  • 2 kWh per vehicle mile – 50 miles

In How Much Power Is Needed To Run A Train At 125 mph?, I calculated that.

  • A Class 801 train needs 3.42 kWh per vehicle mile to maintain 125 mph.
  • An IOnterCity125 train needs 2.83 kWh per vehicle mile to maintain 125 mph.
  • A Class 222 train needs 4.83 kWh per vehicle mile to maintain 125 mph.
  • A Class 170 train needs 3.15 kWh per vehicle mile to maintain 100 mph.

Looking at the last figure for the Class 170 train, I feel that a modern electric train must surely be as or more efficient and I’m justified to assume that a well-designed battery-electric train based on a Class 350 train, should be capable of a power usage of 3 k|Wh per vehicle mile, which would give a 33.3 mile range.

If more range was needed to handle Nuneaton and Leicester, the following could be done.

  • Install a bigger battery in the trains.
  • Install a charging station at Leicester.
  • Extend the electrificationfrom Nuneaton for a few miles.

I very much believe that within a few years, the technology exists to have 100 mph battery electric trains running between Birmingham and Leicester, getting a quick charge en route at Nuneaton.

Conclusion

My logical thinking leads me to the conclusion, that a high-frequency service between Birmingham New Street and Leicester could grow into a Crossrail-style service.

  • Six tph between Birmingham New Street and :Leicester.
  • Services split between Birmingham New Street and Nuneaton, with some trains going via Coleshill and others via Coventry and Birmingham International.
  • There could be extensions from Coventry to Leamington and Birmingham to Wolverhampton and Bromsgrove.
  • Centred on Nuneaton Parkway.
  • Possibly run by battery-electric trains.

Although the Crossrail branding is possibly overused these days.



September 16, 2019 Posted by | Transport/Travel | , , , , , | 1 Comment

Chester To Liverpool Via Runcorn

This new service between Chester and Liverpool Lime Street stations via Runcorn station and the Halton Curve, started a couple of weeks ago.

I took these pictures of the journey.

Note.

  1. The service was busy, as everybody seemed to be going to Liverpool to prepare for the evening’s match.
  2. The Class 150 train kept up a good speed, which indicates that Network Rail didn’t cut quality on the link.
  3. Runcorn is about the halfway point of the journey.
  4. The route is electrified between Runcorn and Liverpool Lime Street stations.
  5. The Class 150 train was a bit tired.

I wouldn’t be surprised to see a hybrid train working this route.

Operation would be as follows.

  • All these trains work be capable of 100 mph using 25 KVAC overhead electrification between Liverpool Lime Street and Runcorn stations.
  • Power changeover would be at Runcorn station.
  • Between Runcorn to Chester stations is only about fourteen miles.. This will be well within battery range in a few years.

Transport for Wales will be obtaining trains from a crowded market.

More Halton Curve Services

Under Planned Improvements in the Wikipedia entry for Transport for Wales, this is said.

Introduction of a new hourly Liverpool to Llandudno and Shrewsbury service, and a new two-hourly Liverpool to Cardiff Central service from December 2022.

Adding these to the current hourly service, this would mean that two trains per hour (tph) would normally run between Liverpool Lime Street and Chester stations, with three trains in every alternate hour.

I think that, there would be a marketing advantage in running hybrid trains on these routes. Hydrogen would be ideal, as these would not need recharging like battery trains after a long trip.

To go through the single-track Halton Curve appears to take trains about five minutes, so up to eight tph could probably be feasible, which would mean four tph between Liverpool and Chester via Runcorn in both directions.

If Trains for Wales are going to compete with the Merseyrail electric services, they need a four tph frequency in both directions.

Flexible Ticketing

Currently, if you want to buy a ticket between the Chester and Liverpool Lime Street, you have to buy an appropriate ticket for your chosen route.

Surely, tourists and others might like to do the out and back journeys by a different route.

If London Underground and some train companies can share ticketing, then surely Merseyrail and other train companies can do the same.

Conclusion

This new service will be surprisingly well-used and needs an iconic hybrid train.

  • Diesel is not appropriate for the long term, although in Northern Connect Between Chester And Leeds To Start In May, I did report a rumour that Class 769 trains might be running between Chester and Leeds.
  • Hydrogen is non-polluting and has a longer range, that could make services between Liverpool and Holyhead possible.
  • Battery will probably need a charging infrastructure.

My money is on hydrogen power.





June 2, 2019 Posted by | Transport/Travel | , , , , , , , , , , , | 2 Comments

Hydrogen Trains To Be Trialled On The Midland Main Line

This article on Railway Gazette is entitled Bimode And Hydrogen Trains As Abellio Wins Next East Midlands Franchise.

Abellio will be taking over the franchise in August this year and although bi-mode trains were certain to be introduced in a couple of years, the trialling of hydrogen-powered trains is a surprise to me and possibly others.

This is all that is said in the article.

Abellio will also trial hydrogen fuel cell trains on the Midland Main Line.

It also says, that the new fleet will not be announced until the orders are finalised.

In this post, I’m assuming that the hydrogen trial will be performed using the main line trains.

Trains for the Midland Main Line will need to have the following properties

  • 125 mph on electric power
  • 125 mph on diesel power
  • Ability to go at up to 140 mph, when idigital n-cab signalling is installed and the track is improved.
  • UK gauge
  • Ability to run on hydrogen at a future date.

I think there could be three types of train.

  • A traditional bi-mode multiple unit, with underfloor engines like the Hitachi Class 800 series, is obviously a possibility.
  • An electrical multiple unit, where one driving car is replaced by a bi-mode locomotive with appropriate power.
  • Stadler or another manufacturer might opt for a train with a power pack in the middle.

The second option would effectively be a modern InterCity 225.

  • South of Kettering, electricity would be used.
  • North of Kettering, diesel would be used
  • Hydrogen power could replace diesel power at some future date.
  • Design could probably make the two cabs and their driving desks identical.
  • The locomotive would be interchangeable with a driver car.

Bi-modes would work most services, with electric versions working to Corby at 125 mph.

Which manufacturer has a design for a 125 mph, hydrogen-powered train?

Alstom

Alstom have no 125 mph UK multiple unit and their Class 321 Hydogen train, is certainly not a 125 mph train and probably will still be under development.

Bombardier

In Mathematics Of A Bi-Mode Aventra With Batteries, I compared diesel and hydrogen-power on bi-mode Aventras and felt that hydrogen could be feasible.

In that post, I wrote a section called Diesel Or Hydrogen Power?, where I said this.

Could the better ambience be, because the train doesn’t use noisy and polluting diesel power, but clean hydrogen?

It’s a possibility, especially as Bombardier are Canadian, as are Ballard, who produce hydrogen fuel-cells with output between 100-200 kW.

Ballard’s fuel cells power some of London’s hydrogen buses.

The New Routemaster hybrid bus is powered by a 138 kW Cummins ISBe diesel engine and uses a 75 kWh lithium-ion battery, with the bus being driven by an electric motor.

If you sit in the back of one of these buses, you can sometimes hear the engine stop and start.

In the following calculations, I’m going to assume that the bi-mode |Aventra with batteries has a power source, that can provide up to 200 kW, in a fully-controlled manner

Ballard can do this power output with hydrogen and I’m sure that to do it with a diesel engine and alternator is not the most difficult problem in the world.

So are Bombardier designing the Bi-Mode Aventra With Batteries, so that at a later date it can be changed from diesel to hydrogen power?

All an Aventra needs to run is electricity and the train, the onboard staff and passengers don’t care whether it comes from overhead wires, third-rail, batteries, diesel or hydrogen.

Bombardier  also have the technology for my proposed locomotive-based solution, where one driver-car of an Aventra is replaced by what is effectively a locomotive.

If Bombardier have a problem, it is that they have no small diesel train to replace Abellio’s small diesel trains. Could the longer services use the bi-mode Aventras and the shorter ones Aventras with battery power?

CAF

CAF probably have the technology, but there would be a lot of development work to do.

Hitachi

Hitachi have the bi-mode trains in the Class 802 trains, but haven’t as yet disclosed a hydrogen train.

Siemens

They’ve made a few noises, but I can’t see them producing a bi-mode train for 2022.

Stadler

In a few weeks time, I will be having a ride in a Stadler-built Class 755 train, run by Abellio Greater Anglia.

The Class 755 train is a bi-mode 100 mph train, from Stadler’s Flirt family.

Could it be stretched to a 125 mph train?

  • Stadler have built 125 mph electric Flirts.
  • It is my view, that Stadler have the knowledge to make 125 mph trains work.
  • Flirts are available in any reasonable length.
  • I’ve read that bi-mode and electric Flirts are very similar for drivers and operators.

These could work the Midland Main Line.

If the mainline version is possible, then Abellio could replace all their smaller diesel trains with appropriate Class 755 trains, just as they will be doing in East Anglia.

Stadler with the launch of the Class 93 locomotive, certainly have the technology for a locomotive-based solution.

East Midlands Railway would be an all-Stadler Flirt fleet.

As to hydrogen, Stadler are supplying hydrogen-powered trains for the Zillertalbahn, as I wrote in Zillertalbahn Orders Stadler Hydrogen-Powered Trains.

Talgo

Talgo could be the joker in the pack. They have the technology to build 125 mph bi-mode trains and are building a factory in Scotland.

My Selection

I think it comes down to a straight choice between Bombardier and Stadler.

It should also be noted, that Abellio has bought large fleets from both manufacturers for their franchises in the UK.

Zero-Carbon Pilots At Six Stations

This promise is stated in the franchise.

Once the electrification reaches Market Harborough in a couple of years, with new bi-mode trains, running on electricity, the following stations will not see any passenger trains, running their diesel engines.

  • St. Pancras
  • Luton Airport Parkway
  • Luton
  • Bedford
  • Wellingborough
  • Kettering
  • Corby
  • Market Harborough

These are not pilots, as they have been planned to happen, since the go-ahead for the wires to Market Harborough.

Other main line stations include.

  • Beeston
  • Chesterfield
  • Derby
  • East Midlands Parkway
  • Leicester
  • Long Eaaton
  • Loughborough
  • Nottingham
  • Sheffield

Could these stations be ones, where East Midlands Railway will not be emitting any CO2?

For a bi-mode train to be compliant, it must be able to pass through the station using battery power alone.

  • As the train decelerates, it charges the onboard batteries, using regernerative braking.
  • Battery power is used whilst the train is in the station.
  • Battery power is used to take the train out of the station.

Diesel power would only be used well outside of stations.

How would the trains for the secondary routes be emission-friendly?

  • For the long Norwich to Derby and Nottingham to Liverpool routes, these would surely be run by shorter versions of the main line trains.
  • For Stadler, if secondary routes were to be run using Class 755 trains, the battery option would be added, so that there was no need to run the diesel engines in stations.
  • For Bombardier, they may offer battery Aventras or shortened bi-modes for the secondary routes, which could also be emission-free in stations.
  • There is also the joker of Porterbrook’s battery-enhaced Class 350 train or BatteryFLEX.

I think that with the right rolling-stock, East Midlands Railway, could be able to avoid running diesel engines in all the stations, where they call.

Why Are Abellio Running A Hydrogen Trial?

This is a question that some might will ask, so I’m adding a few reasons.

A Train Manufacturer Wants To Test A Planned Hydrogen Train

I think that it could be likely, that a train manufacturer wants to trial a hydrogen-powered variant of a high-speed train.

Consider.

  • The Midland Main Line is about 160 miles long.
  • A lot of the route is quadruple-track.
  • It is a 125 mph railway for a proportion of the route.
  • It has only a few stops.
  • It is reasonably straight with gentle curves.
  • Part of the route is electrified.
  • It is connected to London at one end.

In my view the Midland Main Line is an ideal test track for bi-mode high speed trains.

A Train Manufacturer Wants To Sell A Fleet Of High Speed Trains

If a train manufacturer said to Abellio, that the fleet of diesel bi-mode trains they are buying could be updated to zero-carbon hydrogen bi-modes in a few years, this could clinch the sale.

Helping with a trial, as Abellio did at Manningtree with Bombardier’s battery Class 379 train in 2015, is probably mutually-beneficial.

The Midland Main Line Will Never Be Fully Electrified

I believe that the Midland Main Line will never be fully-electrified.

  • The line North of Derby runs through the Derwent Valley Mills World Heritage Site. Would UNESCO allow electrification?
  • I have been told by drivers, that immediately South of Leicester station, there is a section, that would be very difficult to electrify.
  • Some secondary routes like Corby to Leicester via Oakham might be left without electrification.

But on the other hand some sections will almost certainly be electrified.

  • Around Toton, where High Speed Two crosses the Midland Main Line and the two routes will share East Midlands Hub station.
  • Between Clay Cross North Junction and Sheffield, where the route will be shared with the Sheffield Spur of High Speed Two.
  • The Erewash Valley Line, if High Speed Two trains use that route to Sheffield.

The Midland Main Line will continue to need bi-mode trains and in 2040, when the Government has said, that diesel will not be used on UK railways,

It is my view, that to run after 2040, there are only two current methods of zero-carbon propulsion; on the sections without overhead electrification battery or hydrogen power.

So we should run trials for both!

Abellio Know About Hydrogen

Abellio is Dutch and after my trip to the Netherlands last week, I wrote The Dutch Plan For Hydrogen, which describes how the Dutch are developing a green hydrogen economy, where the hydrogen is produced by electricity generated from wind power.

So by helping with the trial of hydrogen bi-mode trains on the Midland Main Line, are Abellio increasing their knowledge of the strengths and weaknesses of hydrogen-powered trains.

In Thoughts On Eurostar To North Netherlands And North West Germany, I  proposed running bi-mode trains on the partially-electrified route between Amsterdam and Hamburg via Groningen and Bremen, which would be timed to connect to Eurostar’s services between London and Amsterdam. These could use diesel, hydrogen or battery power on the sections without electrification.

If hydrogen or battery power were to be used on the European bi-mode train, It would be possible to go between Sheffield and Hamburg on a zero-carbon basis, if all electric power to the route were to be provided from renewable sources.

Abellio Sees The PR Value In Running Zero-Carbon Trains

In My First Ride In An Alstom Coradia iLint, I talked about running hydrogen-powered trains on a hundred mile lines at 60 mph over the flat German countrside

The Midland Main Line is a real high speed railway, where trains go at up to 125 mph between two major cities, that are one-hundred-and-sixty miles apart.

Powered by hydrogen, this could be one of the world’s great railway journeys.

If hydrogen-power is successful, Abellio’s bottom line would benefit.

Conclusion

This franchise will be a big improvement in terms of  carbon emissions.

As I said the choice of trains probably lies between Bombardier and Stadler.

But be prepared for a surprise.











April 11, 2019 Posted by | Transport/Travel | , , , , , , , , , , , , , , , | 7 Comments

Thoughts On A Battery/Electric Train With Batteries And Capacitors

I’m going to use a Class 350/2 train as the example.

In Porterbrook Makes Case For Battery/Electric Bi-Mode Conversion, I calculated the kinetic energy of one of these trains at various speeds.

Wikipedia gives this information.

  • Maximum Speed – 100 mph
  • Train Weight – 175.5 tonnes
  • Capacity – Around 380 passengers

If I assume each passenger weighs 90 Kg with baggage, bikes and buggies, the train weight is 209.7 tonnes.

This weight could be a bit high, bnut then the train must perform even when crush-loaded.

Using Omni’s Kinetic Energy Calculator, I get the following kinetic energies at various speeds.

  • 80 mph – 37.2 kWh
  • 90 mph – 47.1 kWh
  • 100 mph – 58.2 kWh
  • 110 mph – 70.4 kWh

In the video shown in A Must-Watch Video About Skeleton Technologies And Ultracapacitors., Taavi Madiberk of Skeleton Technologies likens a capacitor/battery energy store with Usain Bolt paired with a marathon runner. Usain would handle the fast energy transfer of braking and acceleration, with the marathon runner doing the cruising.

This would seem to be a good plan, as the capacitors  could probably quickly store the regenerative braking energy and release it at a high rate to accelerate the train.

Once, up to operating speed, the lithium-ion batteries would take over and keep the train at the required speed.

Obviously, it would be more complicated than that and the sophisticated control system would move electricity about to keep the train running efficiently and to maximum range.

The capacitors should probably be sized to handle all the regenerative braking energy, so for a 100  mph train, which would have a kinetic energy of 58.2 kWh, a 100 kWh capacitor would probably be large enough.

In some ways the lithium-ion batteries can be considered to be a backup to the capacitors.

  • They provide extra power where needed.
  • If during deceleration, the capacitors become full, energy could be transferred to the lithium-ion batteries.
  • If after acceleration, the capacitors have got more energy than they need, it could be transferred to the lithium-ion batteries.
  • The lithium-ion batteries would probably power all the hotel services, like air-con, lights doors etc.  of the train.

Note that the energy transfer between the capacitors and the lithium-ion batteries should be very fast.

A good Control Engineer could have a lot of fun with sorting the trains control system.







November 11, 2018 Posted by | Energy Storage, Transport/Travel | , , , | Leave a comment

How Do Porterbrook’s Battery/FLEX Trains Compare With Eversholt’s Hydrogen-Powered Trains?

In the two green corners of this ultra-heavyweight fight to provide electric trains for rail routes without electrification, there are two ROSCOs or rolling stock operating companies.

Eversholt Rail Group

Eversholt Rail Group‘s product is the Class 321 Hydrogen, which is an upgrade of a Class 321 train with batteries and hydrogen-power.

Porterbrook

Porterbrook‘s product is the Class 350 Battery/FLEX, which is an upgrade of a Class 350 train with batteries.

How Do The Two Trains Compare?

I will list various areas and features in alphabetical order.

Age

The Class 350 trains date from 2008-2009 and others were introduced to the UK rail network as early as 2004.

The Class 321 trains date from the 1990s, but that shouldn’t be too  much of a problem as they are based on the legendary Mark 3 Coach.

Scores: Porterbrook 4 – Eversholt 3

Batteries And Supercapacitors

This is an area, where the flow of development and innovation is very much in favour of both trains.

Currently, a 1000 kWh battery would weigh about a tonne. Expect the weight and volume to decrease substantially.

Scores: Porterbrook 5 – Eversholt 5

Battery Charging – From Electrification

No problem for either train.

Scores: Porterbrook 5 – Eversholt 5

Battery Charging – From Rapid Charging System

I believe that a third-rail based rapid charging system can be developed for battery/electric trains and I wrote about this in Charging Battery/Electric Trains En-Route.

No problem for either train.

Scores: Porterbrook 5 – Eversholt 5

Development And Engineering

Fitting batteries to rolling stock has now been done successfully several times and products are now appearing with 400 kWh and more energy storage either under the floor or on the roof of three and four-car electrical multiple units.

I feel that adding batteries, supercapacitors or a mixture of both to typical UK electric multiple units is now a well-defined process of engineering design and is likely to be achieved without too much heartache.

It should be noted, that the public test of the Class 379 BEMU train, was a rare rail project, where the serious issues found wouldn’t even fill a a thimble.

So I have no doubt that both trains will get their batteries sorted without too much trouble.

I do feel though, that adding hydrogen power to an existing UK train will be more difficult. It’s probably more a matter of space in the restricted UK loading gauge.

Scores: Porterbrook 5 – Eversholt 3

Electrification

Both types of train currently work on lines equipped with 25 KVAC overhead electrification, although other closely-related trains have the ability to work on 750 VDC third-rail electrification.

Both trains could be converted to work on both systems.

Scores: Porterbrook 5 – Eversholt 5

Interiors

The interior of both trains will need updating, as the interiors reflect the period, when the trains were designed and built.

Eversholt have already shown their hand with the Class 321 Renatus.

The interiors is a design and refurbishment issue, where train operating companies will order the trains and a complimentary interior they need, for the routes, where they intend to run the trains.

Scores: Porterbrook 5 – Eversholt 5

Operating Speed

Both trains in their current forms are 100 mph trains.

However some versions of the Class 350 trains have been upgraded to 110 mph, which allows them to work faster on busy main lines and not annoy 125 mph expresses.

I am pretty sure that all Class 350 trains can be 110 mph trains.

Scores: Porterbrook 5 – Eversholt 4

Public Perception

The public judge their trains mainly on the interiors and whether they are reliable and arrive on time.

I’ve talked to various people, who’ve used the two scheduled battery/electric services, that have run in the UK.

All reports were favourable and I heard no tales of difficulties.

In my two trips to Hamburg, I didn’t get a ride on the Coradia iLint hydrogen-powered train, but I did talk to passengers who had and their reactions were similar to those who travelled to and from Harwich in the UK.

I rode on the Harwich train myself and just like Vivarail’s Class 230 train, which I rode in Scotland, it was impressive.

I think we can say, that the concept and execution of battery/electric or hydrogen-powered trains in the UK, will be given a fair hearing by the general public.

Scores: Porterbrook 5 – Eversholt 5

Range Without Electrification

Alstom talk of ranges of hundreds of miles for hydrogen trains.and there is no reason to believe that the Class 321 Hydrogen trains will not be capable of this order of distance before refuelling.

Bombardier, Vivarail and others talk of battery ranges in the tens of miles before a recharge is needed.

The game-changer could be something like the technique for charging electric trains, I outlined in Charging Battery/Electric Trains En-Route.

This method could give battery trains a way of topping up the batteries at station stops.

Scores: Porterbrook 3 – Eversholt 5

Conclusion

The total scores are level at forty-seven.

All those, who say that I fiddled it, not to annoy anybody are wrong.

The level result surprised me!

I feel that it is going to be an interesting engineering, technical and commercial battle between the two ROSCOs, where the biggest winners could be the train operating companies and the general public.

I wouldn’t be surprised to see two fleets of superb trains.



November 4, 2018 Posted by | Transport/Travel | , , , , , , , , | 2 Comments

Could Electric Trains Run On Long Scenic And Rural Routes?

In the UK we have some spectacular scenic rail routes and several long rural lines.

Basingstoke And Exeter

The West of England Main Line is an important rail route.

The section without electrification between Basingstoke and Exeter St. Davids stations has the following characteristics.

  • It is just over one hundred and twenty miles long.
  • There are thirteen intermediate stations, where the expresses call.
  • The average distance between stations is around nine miles.
  • The longest stretch between stations is the sixteen miles between Basingstoke and Andover stations.
  • The average speed of trains on the line is around forty-four mph.

There is high quality 750 VDC third-rail electrification at the London end of the route.

Cumbrian Coast Line

The Cumbrian Coast Line  encircles the Lake District on the West.

The section without electrification between Carnforth and Carlisle stations has the following characteristics.

  • It is around a hundred and fourteen miles long.
  • There are twenty-nine intermediate stations.
  • The average distance between stations is around four miles.
  • The longest stretch between stations is the thirteen miles between Millom and Silecroft stations.
  • The average speed of trains on the line is around thirty-five mph.

There is also high standard 25 KVAC electrification at both ends of the line.

Far North Line

The Far North Line is one of the most iconic rail routes in the UK.

The line has the following characteristics.

  • It is one-hundred-and-seventy-four miles long.
  • There are twenty-three intermediate stations.
  • The average distance between stations is around seven miles.
  • The longest stretch between stations is the thirteen miles between Georgemas Junction and Wick stations.
  • The average speed of trains on the line is around forty mph.

The line is without electrification and there is none nearby.

Glasgow To Oban

The West Highland Line is one of the most iconic rail routes in the UK.

The line is without electrification from Craigendoran Junction, which is two miles South of Helensburgh Upper station  and the section to the North of the junction, has the following characteristics.

  • It is seventy-eight miles long.
  • There are ten intermediate stations.
  • The average distance between stations is around eight miles.
  • The longest stretch between stations is the twelve miles between Tyndrum Lower and Dalmally stations.
  • The average speed of trains on the line is around thirty-three mph.

From Glasgow Queen Street to Craigendoran Junction is electrified with 25 KVAC overhead wires.

Glasgow To Mallaig

This is a second branch of the West Highland Line, which runs between Crianlarich and Mallaig stations.

  • It is one hundred and five miles long.
  • There are eighteen intermediate stations.
  • The average distance between stations is around five miles.
  • The longest stretch between stations is the twelve miles between Bridge Of Orchy and Rannoch stations.
  • The average speed of trains on the line is around twenty-five mph.

Heart Of Wales Line

The Heart of Wales Line is one of the most iconic rail routes in the UK.

The line is without electrification and the section between Swansea and Shrewsbury stations, has the following characteristics.

  • It is just over one hundred and twenty miles long.
  • There are thirty-one intermediate stations.
  • The average distance between stations is around four miles.
  • The longest stretch between stations is the thirteen miles between Shrewsbury and Church Stretton stations.
  • The average speed of trains on the line is just under forty mph.

There is also no electrification at either end of the line.

Settle And Carlisle

The Settle and Carlisle Line is one of the most iconic rail routes in the UK.

The section without electrification between Skipton and Carlisle stations has the following characteristics.

  • It is just over eighty miles long.
  • There are thirteen intermediate stations.
  • The average distance between stations is around six miles.
  • The longest stretch between stations is the sixteen miles between Gargrave and Hellifield stations.
  • The average speed of trains on the line is around forty mph.

There is also high standard 25 KVAC electrification at both ends of the line.

Tyne Valley Line

The Tyne Valley Line is an important route between Carlisle and Newcastle stations.

The line is without electrification has the following characteristics.

  • It is just over sixty miles long.
  • There are ten intermediate stations.
  • The average distance between stations is around six miles.
  • The longest stretch between stations is the sixteen miles between Carlisle and Haltwhistle stations.
  • The average speed of trains on the line is around mph.

There is also high standard 25 KVAC electrification at both ends of the line.

A Pattern Emerges

The routes seem to fit a pattern, with very similar characteristics.

Important Local Transport Links

All of these routes are probably important local transport links, that get children to school, many people to large towns for shopping and entertainment and passengers of all ages to see their friends and relatives.

Many would have been closed but for strong local opposition several decades ago.

Because of the overall rise in passengers in recent years, they are now relatively safe for a couple of decades.

Iconic Routes And Tourist Attractions

Several of these routes are some of the most iconic rail routes in the UK, Europe or even the world and are tourist attractions in their own right.

Some of these routes are also, very important in getting tourists to out-of-the-way-places.

Lots Of Stations Every Few Miles

The average distance between stations on all lines seems to be under ten miles in all cases.

This surprised me, but then all these lines were probably built over a hundred years ago to connect people to the expanding railway network.

The longest stretch between two stations appears to be sixteen miles.

Diesel Hauled

All trains seem to be powered by diesel.

This is surely very inappropriate considering that some of the routes go through some of our most peaceful and unspoilt countryside.

Inadequate Trains

Most services are run by trains, that are just too small.

I know to put a four-car train on, probably doubles the cost, but regularly as I explore these lines, I find that these two-car trains are crammed-full.

I once inadvertently took a two-car Class 150 train, that was on its way to Glastonbury for the Festival. There was no space for anything else and as I didn’t want to wait an hour for the next train, I just about got on.

Passengers need to be encouraged to take trains to rural events, rather than discouraged.

An Electric Train Service For Scenic And Rural Routes

What would be the characteristics of the ideal train for these routes?

A Four-Car Electric Train

Without doubt, the trains need to be four-car electric trains with the British Rail standard length of around eighty metres.

Dual Voltage

To broaden the applications, the trains should obviously be capable of running on both 25 KVAC overhead and 750 VDC third-rail electrification.

100 mph Capability

The trains should have at least a 100 mph capability, so they can run on main lines and not hold up other traffic.

No Large Scale Electrification

Unless there is another reason, like a freight terminal, quarry, mine or port, that needs the electrification, using these trains must be possible without any large scale electrification.

Battery, Diesel Or Hydrogen Power

Obviously, some form of power will be needed to power the trains.

Diesel is an obvious no-no but possibly could only be used in a small way as emergency power to get the trains to the next station, if the main power source failed.

I have not seen any calculations about the weight, size and power of hydrogen powered trains, although there have been some professional videos.

But what worries me about a hydrogen-powered train is that it still needs some sizeable batteries.

So do calculations indicate that a hydrogen-powered train is both a realisable train and that it can be produced at an acceptable cost?

Who knows? Until, I see the maths published in a respected publication, I will reserve my judgement.

Do Bombardier know anything?

In the July 2018 Edition of Modern Railways, there is an article entitled Bi-Mode Aventra Details Revealed.

A lot of the article takes the form of reporting an interview with Des McKeon, who is Bombardier’s Commercial Director and Global Head of Regional and Intercity.

This is a paragraph.

However, Mr McKeon said his view was that diesel engines ‘will be required for many years’ as other power sources do not yet have the required power or efficiency to support inter-city operation at high-speeds.

As Bombardier have recently launched the Talent 3 train with batteries that I wrote about in Bombardier Introduces Talent 3 Battery-Operated Train, I would suspect that if anybody knows the merits of hydrogen and battery power, it is Mr. McKeon.

So it looks like we’re left with battery power.

What could be a problem is that looking at all the example routes is that there is a need to be able to do station-to-station legs upwards of thirteen-sixteen miles.

So I will say that the train must be able to do twenty miles on battery power.

How Much Battery Capacity Should Be Provided On Each Train?

In Issue 864 of Rail Magazine, there is an article entitled Scotland High Among Vivarail’s Targets for Class 230 D-Trains, where this is said.

Vivarail’s two-car battery units contains four 100 kWh lithium-ion battery rafts, each weighing 1.2 tonnes.

If 200 kWh can be placed under the floor of each car of a rebuilt London Underground D78 Stock, then I think it is reasonable that up to 200 kWh can be placed under the floor of each car of the proposed train.

As it would be required that the train didn’t regularly run out of electricity, then I wouldn’t be surprised to see upwards of 800 kWh of battery installed in the train.

n an article in the October 2017 Edition of Modern Railways, which is entitled Celling England By The Pound, Ian Walmsley says this in relation to trains running on the Uckfield Branch, which is not very challenging.

A modern EMU needs between 3 and 5 kWh per vehicle mile for this sort of service.

So if we are aiming for a twenty mile range from a four-car train with an 800 kWh battery, this means that any energy consumption better than 10 kWh will achieve the required range.

Regular Charging At Each Station Stop

In the previous section, I showed that the proposed train with a full battery could handle a twenty mile leg between stations.

But surely, this means that at every stop, the electricity used on the previous leg must be replenished.

In Porterbrook Makes Case For Battery/Electric Bi-Mode Conversion, I calculated the kinetic energy of a four-car Class 350 train, with a full load of passengers, travelling at ninety mph, as 47.1 kWh.

So if the train is travelling at a line speed of ninety mph and it is fitted with regenerative braking with an efficiency of eighty percent, 9.4 kWh of energy will be needed for the train to regain line speed.

There will also be an energy consumption of between 3 kWh and 5 kWh per vehicle per mile.

For the proposed four-car train on a twenty mile trip, this will be between 240 and 400 kWh.

This will mean that between 240 and 400 kWh will need to be transferred to the train during a station stop, which will take one minute at most.

I covered en-route charging fully in Charging Battery/Electric Trains En-Route.

I came to this conclusion.

I believe it is possible to design a charging system using proven third-rail technology and batteries or supercapacitors to transfer at least 200 kWh into a train’s batteries at each stop.

This means that a substantial top up can be given to the train’s batteries at stations equipped with a fast charging system.

New Or Refurbished Trains?

New trains designed to meet the specification, could obviously be used.

But there are a several fleets of modern trains, which are due to be replaced. These trains will be looking for new homes and could be updated to the required battery/electric specification.

  • Greater Anglia – 30 x Class 379 trains.
  • Greater Anglia – 26 x Class 360 trains.
  • London North Western Railway – 77 x Class 350 trains.
  • TransPennine Express – 10 x Class 350 trains

In Porterbrook Makes Case For Battery/Electric Bi-Mode Conversion, I describe Porterbrook’s plans to convert a number of Class 350 trains to battery/electric trains.

These Class 350 Battery/FLEX trains should meet the specification needed to serve the scenic and rural routes.

Conclusion

I am led to the conclusion, that it will be possible to design a battery/electric train and charging system, that could introduce electric trains to scenic and rural routes all over the UK, with the exception of Northern Ireland.

But even on the island of Ireland, for use both North and South of the border, new trains could be designed and built, that would work on similar principles.

I should also say, that Porterbrook with their Class 350 Battery/FLEX train seem to have specfied a train that is needed. Pair it with the right charging system and there will be few no-go areas in mainland UK.

November 2, 2018 Posted by | Energy Storage, Transport/Travel | , , , , , , , , , , | 2 Comments

Could A Class 450 Battery/FLEX Train Be Used Between Waterloo And Exeter?

When I wrote Porterbrook Makes Case For Battery/Electric Bi-Mode Conversion, Issue 864 of Rail Magazine hadn’t been published. The magazine contained details of Vivarail’s proposed rapid charging facility, which I wrote about in Charging A Battery-Powered Class 230 Train.

Consequently, at the time, I came to the conclusion that a Class 450 train with a Battery/FLEX conversion, similar to Porterbrook’s one for a Class 350 train, couldn’t stretch between Waterloo and Exeter, as it was just too far.

But Vivarail’s proposed rapid charging facility could change everything!

The West of England Main Line is electrified as far as Basingstoke station, from where the route is worked excursively by diesel Class 159 trains.

Between Basingstoke and Exeter St. Davids stations, the trains make fourteen stops.

  • Most station stops,take up to a minute, but could take longer if say the train is busy or there’s a passenger in a wheelchair.
  • The train stops at Salisbury for four minutes, possibly to allow loading and unloading of catering trolleys.
  • The distances between stations range between a few and eighteen miles.
  • In Porterbrook Makes Case For Battery/Electric Bi-Mode Conversion, I said that if a 400 kWh battery were to be fitted to a Class 350/2 train, that this would give a range between twenty and fifty miles.
  • The Class 350 and South Western Railway’s Class 450 trains are the same basic Siemens Desiro train, although the Class 350 train uses 25 KVAC overhead electrification and the Class 450 train uses 750 VDC third-rail electrification.

It would appear that if the train could be charged at each station, it should be able to hop all the way between Basingstoke and Exeter St. Davids stations.

Using a traditional charger, where the train would have to be physically plugged into the charger, wouldn’t be possible in the short station stops on the route.

Even raising a pantograph to connect to a 25 KVAC overhead line would be slow and could distract the driver, whilst they were doing more important things.

But Vivarail’s proposed rapid charging facility, which I am sure is automatic would give the battery a top-up without any driver intervention.



The charging system would have a third rail on the opposite side of the track to the platform, as in this picture of Kidbrooke station.

The third-rail would be.

  • Short enough to be shielded by a train stopping on top.
  • Long enough to connect to at least two contact shoes on the train.
  • Automatically earthed, when no train is present and connected.

This would be the sequence, as a train stopped in a station.

  • The driver would stop the train at the defined place in the platform, as thousands of train drivers do all over the world, millions of times every day.
  • Once stopped, the contact shoes on the train would be in contact with the third rail, as they would be permanently down, as they are when running on third-rail electrification.
  • The charging system would detect the stationary train and that the train was connected, and switch on the power supply. to the third-rail.
  • Electricity would flow from the track to the batteries, just as if the train was on a standard third-rail electrified track.
  • If the battery should become full, the train’s system could stop the charging.
  • When passengers had finished leaving and joining the train and it was safe to do so, the driver would start the train and drive it to the next station.
  • When the charging system determined that the train was moving or that the contact shoe was no longer connected to the third-rail, it would immediately cut the power to the rail and connect it to earth.

It is a brilliant system; simple, efficient and fail-safe.

  • Regenerative braking will mean that stopping in the station will help to top-up the batteries.
  • The battery on the train is being charged, as long as it is stationary in the station.
  • Delays in the station have no effect on the charging, except to allow it for longer if the battery can accept more charge.
  • The driver concentrates on driving the train and doesn’t have to do anything to start and stop the charging.
  • The charging system never exposes a live rail to passengers and staff.

The charging system may also help recovery after an incident.

Suppose a fallen tree or a herd of cows has blocked the line and the electricity used to power the train’s systems has used a lot of battery power, so that when the train eventually gets to the next station, the battery needs a long charge before continuing.

The driver would just wait in the station, charging the battery, until there is enough energy to safely proceed.

A Look At The Mathematics

I shall now look at the mathematics of a leg between Basingstoke and Andover stations.

I will assume the following.

  • The train will leave the electrification at Basingstoke with a full battery, containing 400 kWh of electricity, as it will have been charged on the way from Waterloo.
  • The train is running at an operating speed of up to 90 mph between stations where possible, which means it has a kinetic energy of 47.1 kWh.
  • For each mile, the train consumes 8 kWh of electricity, to power the trains services and maintain the required speed.
  • Regenerative braking is eighty percent efficient.

As Basingstoke to Andover is eighteen miles, this means that energy consumption in the leg and the stop at Andover is as follows.

  • 144 kWh is used to power the train and maintain speed.
  • 9.42 kWh is lost in the braking and acceleration back to operating speed..

So the train will lose about 154 kWh on the eighteen mile leg.

I have built an Excel spreadsheet of the route and it looks that if a minimum of 100 kWh can be transferred to the train’s battery at each stop and the train uses no more than 8 kWh per mile, that it should be possible for the train to go from Basingstoke to Exeter on battery power.

Obviously, there are ways to make this journey more certain.

  • Reduce the train’s energy consumption for items like lighting and air-conditioning..
  • Improve the efficiency of regenerative braking.
  • Improve the charging systems, so more electricity is transferred in the short stops.
  • Improve the track, so that it is as smooth as possible with gentle curves.
  • Fit a larger battery.

It requires different teams of engineers to optimise their own area, so all contribute to a more energy-efficient system.

Would Battery Power Work If The Line Speed Was Increased to 100 mph?

I have done this calculation assuming an operating speed of 100 mph, rather than the current 90 mph determined in part by the maximum speed of the Class 159 trains and it appears to be still possible.

Could 100 kWh Be Transferred To The Train In The Short Stops?

In Station Dwell Times On The London Overground, I showed that the London Overground regularly has station stops of under thirty seconds.

Even to me, as an trained Electrical Engineer, 100 kWh does seem a lot of power to transfer to the train in a stop that is that short.

In the related post, I postulated that a thirty-second dwell time, means that the only way to connect the train to the rapid charging system is to use third-rail electrification, as this connects and disconnects automatically.

This was said about Vivarail’s charging system in Issue 864 of Rail Magazine.

The rapid charging concept consists of a shipping container of batteries that are trickle charged from a mains supply. When a Class 230 sits over the short sections of third-rail, electricity can be quickly transferred to the train’s batteries. When the train is away, the power rails are earthed to ensure they pose no risk The concept provides for charging a Class 230 as it pauses at a terminus before making its return journey.

The key is the battery-to-battery transfer of electricity, as batteries have a low impedance and are designed to supply high electrical currents for a short time, as when starting a massive diesel engine in a truck.

This page shows a 12v 250Ah battery available for just over three hundred pounds.

  • This battery alone has a capacity of 3 kWh.
  • It is 518mm x 273mm x 240mm.
  • It weighs 61 Kg.

You’d get a lot of these in a twenty-foot shipping container, which according to Wikipedia has a volume of 33.2 m³.

I estimate that a hundred of these batteries would fit easily into the container with all their control gear and electronics, which would mean a total capacity of 300 kWh.

Running my Excel spreadsheet with a 200 kWh transfer at each station, shows that the train can leave many stations with a full battery.

I have also run a more difficult scenario.

  • For each mile, the train consumes 10 kWh of electricity instead of 8 kWh, to power the trains services and maintain the required speed.
  • The rapid charging system can only transfer 80 kWh in thirty seconds.

The train still appears to get to its destination.

Obviously, Porterbrook, Siemens and Vivarail have better data than I have and will know what the actual performance of their trains and systems are.

How Much Power Can The Third-Rail Handle?

It should also be noted that a Class 450 train has eight x 250 kW traction motors, so the third-rail system of the train, must be capable of handling all of these at full power, when running on lines with third-rail electrification.

Would One Charging System Handle Both Tracks?

The route is double-track, with often platforms on either side of the tracs.

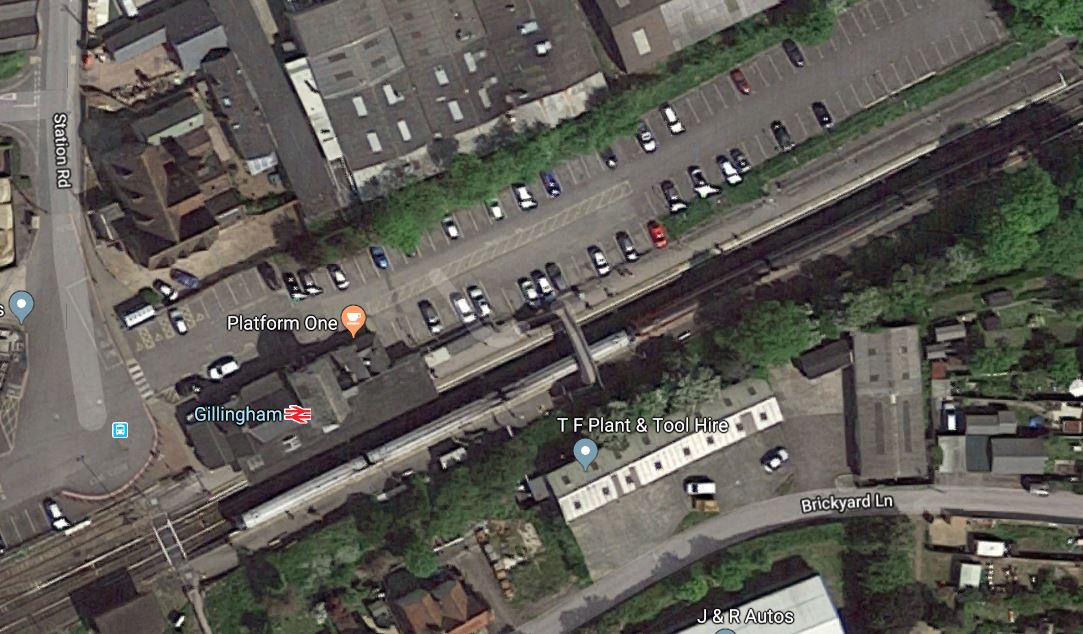

This Google Map shows Gillingham station, which appears to have a typical layout.

Note the three-car Class 159 train in the station.

If both tracks were to have a charging rail, I can’t see why one set of batteries shouldn’t be able to feed both tracks with separate control systems.

Although it does appear that several stations often use the same platforms for both directions.

Conclusion

This could be a very affordable way of electrifying a line with a lot of stations.



October 26, 2018 Posted by | Transport/Travel | , , , , , , , | 1 Comment

Flirt Akku Battery Multiple-Unit Unveiled

The title of this post is the same as that of this article in Railway Gazette International.

This is the first paragraph.

Stadler has officially unveiled the prototype Flirt Akku, a version of its Flirt family of electric multiple-units which is equipped with a battery to permit operation on non-electrified or partly-electrified routes.

So it looks like another train with batteries, that joins the following, that have been announced in recent months.

There are also several projects using MTU Hybrid Power Packs.

What new projects will emerge in the next couple of years?

October 26, 2018 Posted by | Energy Storage, Transport/Travel | , , , , , , , | 4 Comments

« Previous Entries
