East West Railway Company To Start Second Phase Of Rolling Stock Procurement

The title of this post, is the same as that of this press release from East West Rail.

These are the three introductory paragraphs.

East West Railway Company (EWR Co) is to restart market engagement with potential train suppliers, as its rolling stock procurement process enters a new phase.

The move follows an initial phase of procurement activity, which EWR Co concluded earlier in the year. A new PIN Notice has been published today to restart engagement with potential suppliers, which includes a set of technical specifications taking account of feedback from the market gained during the initial procurement phase.

This procurement aims to secure a short-term, interim solution to leasing a small fleet of self-powered trains for the Western Section of East West Rail.

The press release has a link to the Prior Information Notice or PIN Notice on the EU database.

along with all the usual contact and other details, this is said about the specification.

The East West Railway Company (EWR Co.) is looking to leasing a fleet of 12 or 14 x 3 car self-powered units with modifications including European Train Control System (‘ETCS’) Level 2 and Driver Controlled Operation (‘DCO’) capability, supported by a full maintenance package (under a ‘wet’ lease). These units will ensure timely operation of EWR’s Western Section Phase 2 between Oxford, Milton Keynes, Bedford and Aylesbury. The lease duration would be 4 years, with an option to extend for 2 years.

The date of the notice is the 10th of November 2020, so it has been recently updated.

I commented on these trains in March 2020, when I wrote EWR Targets Short-Term Fleet Ahead Of Possible Electrification.

In the intervening eight months, a lot have things have happened.

Awareness Of Green Issues

The Covid-19 pandemic has arrived, with all its ferocity and seems to be moving people in the direction of thinking about green issues and zero-carbon transport.

Type “build back greener UK” into Google and you get lots of articles. Some feature Boris Johnson, like this article on Business Green, which is entitled Boris Johnson To Pledge To ‘Build Back Greener’.

I don’t think the public, myriad engineers and scientists and a good selection of politicians will find it appropriate for the East West Railway to use any rolling stock, that is not zero-carbon and powered by renewable energy.

Hitachi Have Launched The Regional Battery Train In Conjunction With Hyperdrive Innovation

In July 2020, I wrote Hyperdrive Innovation And Hitachi Rail To Develop Battery Tech For Trains.

Hitachi had been talking for some time, that they were developing battery electric trains for the UK, but this was the first news of a route to their design, manufacture and into service.

Hitachi also published this YouTube video and this infographic of the train’s specification.

They have also called the train, the Hitachi Regional Battery Train.

My estimate is that Oxford and Bedford are under fifty miles apart, so if Hitachi’s train could be charged at both ends of the route, one of their trains could provide a self-powered service between Oxford and Bedford.

It seems that Hitachi have an off-the-shelf train, that fits the specification for the trains required by East West Railway.

Vivarail Have Launched A Fast Charge System

Battery electric trains, like electric vehicles are not much use, if you can’t charge them when it is needed.

The initial Service Pattern of the East West Railway is given in the Wikipedia entry of the East West Railway.

  • Two trains per hour (tph) – Oxford and Milton Keynes Central via Oxford Parkway, Bicester Village, Winslow and Bletchley.
  • One tph – Oxford and Milton Keynes via Oxford Parkway, Bicester Village, Winslow, Bletchley, Woburn Sands and Ridgemont.
  • One tph – Aylesbury and Milton Keynes Central via Aylesbury Vale Parkway, Winslow and Bletchley.

There are four terminal stations.

  • Aylesbury – No electrification
  • Bedford – Full Electrification
  • Milton Keynes Central – Full Electrification
  • Oxford – No electrification

The existing electrification could be used at Bedford and Milton Keynes Central, whereas some type of charging system, would be needed at Aylesbury and Oxford.

It appears that Adrian Shooter of Vivarail has just announced a One-Size-Fits-All Fast Charge system, that has been given interim approval by Network Rail.

I discuss this charger in Vivarail’s Plans For Zero-Emission Trains, which is based on a video on the Modern Railways web site.

There is more about Vivarail’s plans in the November 2020 Print Edition of the magazine, where this is said on page 69.

‘Network Rail has granted interim approval for the fast charge system and wants it to be the UK’s standard battery charging system’ says Mr. Shooter. ‘We believe it could have worldwide implications.’

Vivarail’s Fast Charge system would surely be a front-runner for installation at Aylesbury and Oxford, if battery electric trains were to be run on the East West Railway.

Choosing A Train

East West Rail have said the following about the train specification.

  • Three cars
  • Self-powered
  • European Train Control System (‘ETCS’) Level 2 and Driver Controlled Operation (‘DCO’) capability
  • Available on a wet lease, that includes a full maintenance package

The press release from East West Rail and other documents mentions between twelve and fourteen trains will be leased.

In Trains Needed For The East West Railway, I calculated that the proposed services could need around eight or nine trains.

This must mean one of three things.

  • There are plans for extra services.
  • There are plans for the proposed services to be extended.
  • Trains will run some services in pairs.

Because, of the last reason, the trains must have the ability to run in pairs.

As sections of the East West Railway are being built for 100 mph operation, the trains must also have a 100 mph capability.

When I talked briefly about green issues earlier, I said that I felt the trains should be zero-carbon, which would rule out diesel.

That leaves two options for self-powered operation; battery electric or hydrogen.

So what trains fit the specification?

British Rail Era Trains

A large number of British Rail era trains could be suitable for updating for interim use on the East West Railway.

I even suspect, some fantasist will suggest using shortened versions of InterCity 125 trains, as are used in South-West England and Scotland.

But let’s be serious and not insult the intelligence of the three world-leading universities on the final route of the East West Railway.

A lot of money is also being spent on this railway and tarted-up forty-year-old trains would not encourage people to use the new railway.

Class 170 Trains

There are eighty-seven three-car Class 170 trains with various operators, some of which will be surplus to requirements, as they are being replaced with new trains.

But they are diesel, so surely they don’t fit my perceived need for zero-carbon trains.

That would have been true until a couple of weeks ago, when as I wrote in Vivarail’s Plans For Zero-Emission Trains, Adrian Shooter of Vivarail disclosed an audacious plan to convert, diesel trains into zero-carbon battery electric trains.

Class 170 trains like this were on the list of possible conversions.

  • They 100 mph trains.
  • Some are three-cars.
  • They meet all the disability regulations.
  • They have been used for services much longer than Oxford and Bedford.

They could also start the service as diesel trains and gradually converted to battery electric, if this would be better for operation.

Class 175 Trains

The three-car 100 mph Class 175 trains could be a possibility as there are fifteen trains, but they have two problems.

  • They are powered by diesel.
  • They probably won’t be available until 2023.

So I think they can be ruled out.

Class 185 Trains

All the fifty-one Class 185 trains are currently in service with TransPennine Express. They are due to release fifteen trains in 2021 and it was thought that these trains were in prime position for becoming the interim trains for East West Railway.

  • They 100 mph trains.
  • Some are three-cars.
  • They meet all the disability regulations.
  • They have been used for services much longer than Oxford and Bedford.
  • The fleet is the right size.

But then the Department of Transport decided to change their plans for the Liverpool and Norwich service.

I wrote about one journey on the overcrowded section of this service in Mule Trains Between Liverpool And Norwich.

The picture shows the inadequate train formed of an assorted collection of Class 153 trains, I took from Liverpool to Sheffield.

The service is now being split at Nottingham and East Midlands Railway will receive the released Class 185 trains for the Liverpool and Nottingham portion of the service.

A fleet of these Class 185 trains will surely offer more comfort on a very busy service.

So it is looking unlikely that Class 185 trains will be used on the East West Railway.

Class 220, 221 and 222 Trains

These three fleets of Voyager trains could be a possibility, as they can be shortened to three-car trains.

But they have disadvantages.

I think it is unlikely, that these trains will be used on the East West Railway.

Class 350 Trains

There are thirty-seven Class 350 trains, that were built only twelve years ago, that have been retired. The owner; Porterbrook are planning to convert them into battery electric versions, which they have called BatteryFLEX trains.

Unfortunately, they are four-cars and unlike other trains, it doesn’t appear that they can be shortened to three cars.

Class 375, 377, 379 and 387 Trains

These four fleets of Electrostar trains could be a possibility for running as battery electric trains.

  • Some are three-car trains and four-car trains can be converted to three-car trains, by simply removing a car.
  • They are 100 mph trains.
  • Bombardier converted a Class 379 train for battery operation and I have heard or seen no adverse reports from either passengers, rail staff or journalists.
  • They can work in multiple formations.
  • They are all wired for dual-voltage operation.
  • Pantographs wells have already been fitted to trains that normally work using 750 VDC third-rail electrification.

The picture shows the Class 379 train, that was converted to battery electric operation.

The Class 379 trains, also have the advantage, that there is a fleet of thirty trains, that are being replaced by Greater Anglia, who are homeless.

If I were the owner of the Class 379 trains, I’d do the following.

  • Convert them all into battery electric trains.
  • Shuffle cars around to get a mix of three-, four- and five-car trains to match market opportunities.
  • Make them compatible with Vivarail’s Fast Charge system.
  • Do a licensing deal with Vivarail, so I could supply the chargers.

This plan has some big advantages.

  • Battery electric operation of the Class 379 trains has been successfully proven.
  • Some Class 379 trains are already available for conversion, as they have been replaced by Greater Anglia.
  • The trains could easily be delivered in time for the opening of the East West Railway.
  • The trains would not need to be replaced, if the East West Railway was to be fully electrified in the future.
  • If I leased out all the Class 379 trains, I’m fairly sure that I could acquire some other Electrostars to convert.

The trains would surely be ideal for the Uckfield Branch and Ashford and Hastings, which are to be run by battery electric trains.

  • The order for these services is still to be announced.
  • This use would be a trial application of the highest quality.
  • I suspect that five-car trains would be ideal for these Southern routes.
  • In Battery Electrostars And The Uckfield Branch, I estimated that Southern would need twelve five-car trains for the Uckfield Branch and four trains for the Ashford and Hastings service.

It looks to me, the thirty four-car Class 379 trains could be converted into the following battery electric trains.

  • Twelve five-car trains for the Uckfield Branch.
  • Four four-car trains for Ashford and Hastings.
  • Fourteen three-car trains for the East West Railway.

Using battery electric Class 379 trains for the East West Railway, the Uckfield Branch and Ashford and Hastings. looks from the engineering, numbers and financial points of view to be a very efficient proposition.

Class 385 Trains

As I indicated earlier, Hitachi have the technology to create a Class 385 train with a battery capability.

  • They appear to be talking to ScotRail.
  • Are they talking to Vivarail about using their Fast Charge system?
  • As the trains would be new, East West Railway would get trains to their specification.

Battery electric Class 385 trains must be a serious proposition.

Class 600 Trains

The Class 600 train could be an interesting possibility.

The trains can be powered by both hydrogen and overhead or third-rail electrification.

  • The trains are three-cars long.
  • They are 100 mph trains.
  • First in-service dates are scheduled for 2024, which could be convenient.
  • The trains will have a state-of-the-art Renatus interior.
  • They will not need charging and could probably be refuelled as infrequently as only once per day.

I am not worried, by the train being powered by hydrogen, but because of the large tanks in the train, the passenger capacity will be lower, than a diesel, electric or battery electric train of a similar length.

I suspect though, that Alstom will be pitching for the order.

Aventras

In this article in Global Rail News from 2011, which is entitled Bombardier’s AVENTRA – A new era in train performance, gives some details of the Aventra’s electrical systems. This is said.

AVENTRA can run on both 25kV AC and 750V DC power – the high-efficiency transformers being another area where a heavier component was chosen because, in the long term, it’s cheaper to run. Pairs of cars will run off a common power bus with a converter on one car powering both. The other car can be fitted with power storage devices such as super-capacitors or Lithium-ion batteries if required. The intention is that every car will be powered although trailer cars will be available.

Unlike today’s commuter trains, AVENTRA will also shut down fully at night. It will be ‘woken up’ by remote control before the driver arrives for the first shift

This was published over nine years ago, so I suspect Bombardier have refined the concept.

Bombardier have not announced that any of their trains have energy storage, but I have my suspicions, that both the Class 345 and Class 710 trains use super-capacitors or Lithium-ion batteries, as part of their traction system design.

I believe that Bombardier, have the ability to build an Aventra to this specification.

  • Three-cars
  • 100 mph running
  • Sixty mile range on battery power.
  • Dual voltage.
  • Ability to work in pairs.

Like the Hitachi trains, they would be new build.

CAF

CAF have proposed a battery electric train based on the Class 331 train, which I wrote about in Northern’s Battery Plans.

It is a four-car development of the three-car Class 331 trains.

Can it be built as a three-car train to fit the specification?

Conclusion

There are some good candidates sir supplying an interim fleet of trains for the East West Railway.

My money’s on one of the following.

  • New Hitachi Class 385 trains
  • Converted Class 379 trains.
  • New Aventras

All would be battery electric trains.

But there is a change that Alstom’s Class 600 hydrogen trains could be used.













November 14, 2020 Posted by | Hydrogen, Transport | , , , , , , , , , , , , , | 8 Comments

Teeside’s Refurbished Trains

On my trip around Teeside, I took four trains.

There was none of the usual rubbish, that I have endured in the North like this scrapyard special at Carlisle.

All trains were refurbished Class 158 trains.

They were a lot better, with tables and clean, working toilets.

But will they get replaced with hydrogen or updated to zero-carbon trains?

Hydrogen Trains

In Fuelling The Change On Teesside Rails, I talked about the local services on Teesside being run by a fleet of hydrogen trains, based on an article in RAIL Magazine.

But the order has not been placed and it must be getting tight if trains are going to run in a few years.

There was this report in the November 2020 Edition of Modern Railways, which is entitled Tees Valley Hydrogen Hub.

This is the first paragraph.

Mott MacDonald is to create a masterplan for the development of a hydrogen transport hub  in the Tees Valley. Transport Secretary Grant Shapps made the announcement as he travelled on the HydroFLEX on the 29th of September.

It appears the masterplan could be published in January and would cover several modes of transport.

Battery Electric Trains

There have been developments in the battery electric train field over the past few months.

Hitachi at Newton Aycliffe and Hyperdrive Innovation at Sunderland have partnered up to produce Hitachi’s Regional Battery Train. Three-car trains based on Hitachi’s Class 385 trains would be ideal for trundling around the North East.

The trains would need charging and what better charging system is there than Vivarail’s Fast Charge system? And they could be produced at Vivarail’s factory at Seaham just up the coast towards Sunderland.

As I indicated in £100m Station Revamp Could Double Local Train Services, where I said this about the location of chargers to power battery electric trains in the Tees and the Tyne.

There will need to be strategically-placed battery chargers around the North-East of England. These could include.

    • Hexham
    • Nunthorpe
    • Redcar or Saltburn – This would also be used by TransPennine Express’s Class 802 trains, if they were to be fitted with batteries.
    • Whitby

If Grand Central did the right thing and ran battery electric between London and Sunderland, there would probably be a need for a battery charger at Sunderland.

It appears that Adrian Shooter of Vivarail has just announced a One-Size-Fits-All Fast Charge system, that has been given interim approval by Network Rail.

I discuss this charger in Vivarail’s Plans For Zero-Emission Trains, which is based on a video on the Modern Railways web site.

Vivarail might just have another card or should it be train to play.

In the video, Mr. Shooter discusses using Vivarail’s technology to convert British Rail era diesel multiple units to battery electric trains.

Northern have already refurbished the Class 158 trains, so it would surely be an economical route to convert them to battery electric operation.

October 30, 2020 Posted by | Hydrogen, Transport | , , , , , , , | 1 Comment

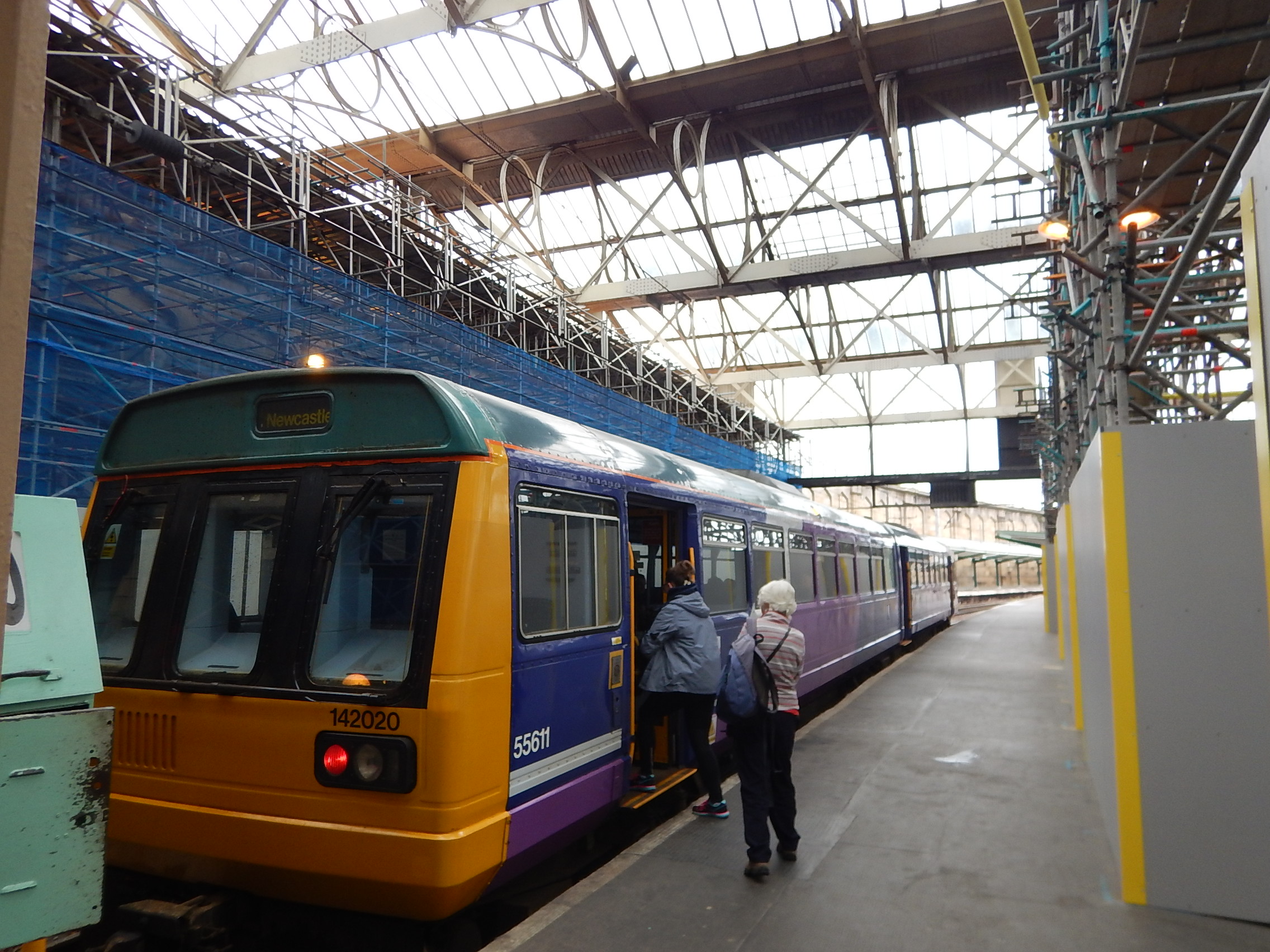

£100m Station Revamp Could Double Local Train Services

The title of this post, is the same as that of this article on the Northern Echo.

This is the opening paragraph.

Officials behind plans for a £100m-plus transformation of Darlington’s Bank Top Station have confirmed it will remain the only one on the East Coast Mainline without a platform specifically for the London to Scotland service.

Darlington station has made various appearances in my life, all of which have been pleasurable ones.

I went several times to ICI’s Wilton site on Teesside in the 1970s, when the route to London was worked by the iconic Class 55 locomotives or Deltics.

I wrote about one memorable trip home from Darlington in The Thunder of Three-Thousand Three-Hundred Horses.

Over the years, I also seem to have had several clients for my computing skills in the area, including the use of my data analysis software; Daisy at Cummins Engines in the town.

And lately, it’s been for football at Middlesbrough to see Ipswich play, where I’ve changed trains. Sometimes, Town even won.

The improvements planned for the station are two-fold.

Improvement Of Local Services

This paragraph from Wikipedia, sums up the local train services on the Tees Valley Line between Saltburn and Bishop Auckland via Darlington, Middlesbrough and Redcar.

Northern run their Tees Valley line trains twice hourly to Middlesbrough, Redcar and Saltburn (hourly on Sundays), whilst the Bishop Auckland branch has a service every hour (including Sundays). The company also operates two Sundays-only direct trains to/from Stockton and Hartlepool.

If ever a route needed improvement it is this one.

This paragraph from the Northern Echo article, outlines the plans for Darlington station.

The meeting was also told the overhaul, which will see new platforms, a new station building, parking and an interchange for passengers, alongside other improvements, would also double capacity on Tees Valley and Bishop Auckland lines, meaning four trains an hour on the former and two trains an hour on the latter.

I also believe that the route is a shoe-in for zero-carbon services; hydrogen or battery electric.

Hydrogen Trains On Teesside

In Fuelling The Change On Teesside Rails, I discuss using hydrogen powered trains for the lines in the area and they could certainly provide services on more than just the Tees Valley Line.

The hydrogen powered trains would probably be this Alstom Breeze.

They would appear to be in pole position to change the image of Teesside’s trains.

Battery Electric Trains On Teesside

But I suspect. that an Anglo-Japanese partnership, based in the North-East could have other ideas.

  • Hitachi have a train factory at Newton Aycliffe on the Tees Valley Line.
  • Hyperdrive Innovation design and produce battery packs for transport and mobile applications in Sunderland.

The two companies have launched the Regional Battery Train, which is described in this Hitachi infographic.

Note than 90 kilometres is 56 miles, so the train has a very useful range.

Hitachi have talked about fitting batteries to their express trains to serve places like Middlesbrough, Redcar and Sunderland with zero-carbon electric services.

But their technology can also be fitted to their Class 385 trains and I’m sure that Scotland will order some battery-equipped Class 385 trains to expand their vigorous electric train network.

Both Scotland and Teesside will need to charge their battery trains.

Example distances on Teesside include.

  • Darlington and Saltburn – 28 miles
  • Darlington and Whitby – 47 miles
  • Darlington and Bishop Auckland – 12 miles

The last route would be possible on a full battery, but the first two would need a quick battery top-up before return.

So there will need to be strategically-placed battery chargers around the North-East of England. These could include.

  • Hexham
  • Nunthorpe
  • Redcar or Saltburn – This would also be used by TransPennine Express’s Class 802 trains, if they were to be fitted with batteries.
  • Whitby

If Grand Central did the right thing and ran battery electric between London and Sunderland, there would probably be a need for a battery charger at Sunderland.

It appears that Adrian Shooter of Vivarail has just announced a One-Size-Fits-All Fast Charge system, that has been given interim approval by Network Rail.

I discuss this charger in Vivarail’s Plans For Zero-Emission Trains, which is based on a video on the Modern Railways web site.

There is more about Vivarail’s plans in the November 2020 Print Edition of the magazine, where this is said on page 69.

‘Network Rail has granted interim approval for the fast charge system and wants it to be the UK’s standard battery charging system’ says Mr. Shooter. ‘We believe it could have worldwide implications.’

I believe that Hitachi and Hyperdrive Innovation, with a little bit of help from friends in Seaham, can build a battery-electric train network in the North-East.

The Choice Between Hydrogen And Battery Electric

Consider.

  • The hydrogen trains would need a refuelling system.
  • The battery electric trains would need a charging structure, which could also be used by other battery electric services to and from the North-East.
  • No new electrification or other infrastructure would be needed.
  • If a depot is needed for the battery electric trains, they could probably use the site at Lackenby, that has been identified as a base for the hydrogen trains.

Which train would I choose?

I think the decision will come down to politics, money and to a certain extent design, capacity and fuel.

  • The Japanese have just signed a post-Brexit trade deal and France or rather the EU hasn’t.
  • The best leasing deal might count for a lot.
  • Vivarail have stated that batteries for a battery electric train, could be leased on a per mile basis.
  • The Hitachi train will be a new one and the Alstom train will be a conversion of a thirty year old British Rail train.
  • The Hitachi train may well have a higher passenger capacity, as there is no need for the large hydrogen tank.
  • Some people will worry about sharing the train with a large hydrogen tank.
  • The green credentials of both trains is not a deal-breaker, but will provoke discussion.

I feel that as this is a passenger train, that I’m leaning towards a battery electric train built on the route.

An Avoiding Line Through Darlington

The Northern Echo also says this about track changes at the station.

A meeting of Darlington Borough Council’s communities and local services scrutiny committee was told a bus lane-style route off the mainline at the station would enable operators to run more high-speed services.

Councillors heard that the proposed track changes would enable very fast approaches to Darlington and allow other trains to pass as East Coast Mainline passengers boarded.

Some councillors seem to be unhappy about some trains passing through the station without stopping.

Are their fears justified?

This Google Map shows Darlington station.

Note.

  1. The station has two long platforms and two South-facing bay platforms.
  2. There is plenty of space.
  3. There already appear to be a pair of electrified avoiding lines on the Eastern side of the station.

Wikipedia also says this about how Darlington station will be changed by High Speed Two.

The new high speed rail project in the UK, High Speed 2, is planned to run through Darlington once Phase 2b is complete and will run on the existing East Coast Main Line from York and Newcastle. Darlington Station will have two new platforms built for the HS2 trains on the Main Line, as the station is built just off the ECML to allow for freight services to pass through.

This would appear to suggest that the two current avoiding lines will be turned into high speed platforms.

Current High Speed Services At Darlington

The current high speed services at Darlington are as follows.

  • LNER – two trains per hour (tph) – London Kings Cross and Edinburgh
  • Cross Country – one tph – Plymouth and Edinburgh or Glasgow
  • Cross Country – one tph – Southampton and Newcastle
  • TransPennine Express – one tph – Liverpool and Edinburgh
  • TransPennine Express – one tph – Manchester Airport and Newcastle

Northbound, this gives eight tph to Newcastle and four tph to Edinburgh

East Coast Trains

East Coast Trains‘s services are not planned to stop at Darlington.

High Speed Two Trains

Darlington is planned to be served by these High Speed Two trains.

  • 1 tph – Birmingham Curzon Street and Newcastle via East Midlands Hub, York and Durham
  • 1 tph – London Euston and Newcastle via Old Oak Common and York.

Both will be 200 metre High Speed Two Classic-Compatible trains

Northbound, this gives ten tph to Newcastle and four tph to Edinburgh.

As the Eastern Leg of High Speed Two has some spare capacity, I suspect there could be other services through Darlington.

Improvements To The East Coast Main Line

If you look at the East Coast Main Line between Doncaster and Newcastle, the route is a mixture of two and four-track railway.

  • Between Doncaster and York, there are two tracks
  • Between York and Northallerton, there are four tracks
  • Between Northallerton and Darlington, there are two tracks
  • North of Darlington, the route is mainly two tracks.

I have flown my virtual helicopter along much of the route and I can say this about it.

  • Much of the route is through agricultural land, and where absolutely necessary extra tracks could possibly be added.
  • The track is more-or-less straight for large sections of the route.
  • Routes through some towns and cities, are tightly hemmed in by houses.

I also believe that the following developments will happen to the whole of the East Coast Main Line before High Speed Two opens.

  • Full ERTMS in-cab digital signalling will be used on all trains on the route.
  • The trains will be driven automatically, with the driver watching everything. Just like a pilot in an airliner!
  • All the Hitachi Class 80x trains used by operators on the route, will be able to operate at up to 140 mph, once this signalling and some other improvements have been completed.
  • All level crossings will have been removed.
  • High Speed Two is being built using slab track, as I stated in HS2 Slab Track Contract Awarded. I suspect some sections of the East Coast Main Line, that are used by High Speed Two services, will be upgraded with slab track to increase performance and reduce lifetime costs.

Much of the East Coast Main Line could become a 140 mph high speed line, as against High Speed Two, which will be a 225 mph high speed line.

This will mean that all high speed trains will approach Darlington and most other stations on the route, at 140 mph.

Trains will take around a minute to decelerate from or accelerate to 140 mph and if the station stop took a minute, the trains will be up to speed again in just three minutes. In this time, the train would have travelled two-and-a-half miles.

Conclusion

I think that this will happen.

  • The Tees Valley Line trains will be greatly improved by this project.
  • Trains will generally run at up to 140 mph on the East Coast Main Line, under full digital control, like a slower High Speed Two.
  • There will be two high speed platforms to the East of the current station, where most if not all of the High Speed Two, LNER and other fast services will stop.
  • There could be up to 15 tph on the high speed lines.

With full step-free access between the high speed and the local platforms in the current station, this will be a great improvement.

October 25, 2020 Posted by | Computing, Hydrogen, Sport, Transport | , , , , , , , , , , , , , , , , , , , | 3 Comments

Running Battery Electric Trains Between London Marylebone And Aylesbury

This post was suggested by Fenline Scouser in a comment to Vivarail Targets Overseas Markets, where they said.

I have long thought that one UK application that would make sense is the Marylebone – Aylesbury via Harrow on the Hill service, the intermediate electrified section lending itself to full recharge on each trip. ? stabling facility at Aylesbury with overnight charging.

It does look to be an idea worth pursuing.

Current And Future Services

Currently, the services between London Marylebone and Aylesbury are as follows.

  • London Marylebone and Aylesbury via High Wycombe
  • London Marylebone and Aylesbury via Amersham
  • London Marylebone and Aylesbury Vale Parkway via Amersham

All services are one train per hour (tph)

In the future, it is planned to extend the Aylesbury Vale Parkway service to Milton Keynes, according to information I found on the East West Rail web site.

  • It looks like the service will go via High Wycombe, Saunderton, Princes Risborough, Monks Risborough, Little Kimble, Aylesbury, Aylesbury Vale Parkway, Winslow and Bletchley.
  • The service will have a frequency of 1 tph.
  • Time between Milton Keynes and Aylesbury is quoted as 33 minutes.
  • Time between High Wycombe and Milton Keynes is quoted as 63 minutes.

Will this leave the Marylebone and Aylesbury are as follows?

  • 1 tph – London Marylebone and Aylesbury via High Wycombe.
  • 2 tph – London Marylebone and Aylesbury via Amersham

Passengers between London Marylebone and Aylesbury would have the same service.

Distances

These are a few distances, of which some have been estimated.

  • London Marylebone and Harrow-on-the-Hill – 9.18 miles.chains
  • Amersham and Harrow-on-the-Hill – 14.27 miles.chains – Electrified
  • Aylesbury and Amersham – 15.23 miles.chains
  • London Marylebone and High Wycombe – 28.11 miles.chains
  • Aylesbury and High Wycombe – 15.28 miles.chains
  • Aylesbury and Aylesbury Vale Parkway – 2.25 miles.chains
  • Aylesbury Vale Parkway and Calvert – 8.19 miles.chains
  • Aylesbury and Milton Keynes – 16.40 miles.chains – Estimated

Note that there are eighty chains to the mile.

Hitachi’s Regional Battery Train

Hitachi’s Regional Battery Train, is the only battery electric train intended for the UK network for which a detailed specification has been released.

This infographic from Hitachi gives the specification.

Note that ninety kilometres is fifty-six miles.

I would suspect that battery trains from other manufacturers, like Bombardier, CAF and Stadler, will have a similar specification.

Battery Electric Trains Between London Marylebone And Aylesbury

I’ll take each possible route in turn.

London Marylebone And Aylesbury Via Amersham

The three sections of the route are as follows.

  • London Marylebone and Harrow-on-the-Hill – 9.23 miles – Not Electrified
  • Harrow-on-the-Hill and Amersham – 14.34 – Electrified
  • Amersham and Aylesbury – 15.29 miles – Not Electrified

Note.

  1. The total distance is 38.85 miles
  2. A typical service takes just under twenty minutes to travel between Harrow-on-the-Hill and Amersham. This should be enough to fully charge the batteries.
  3. A train going South from Harrow-on-the-Hill could reach London Marylebone and return.
  4. A train going North from Amersham could reach Aylesbury and return.

I am fairly confident, that a battery electric train, with the range of a Hitachi Regional Battery Train could work this route.

London Marylebone And Aylesbury Vale Parkway Via Amersham

The four sections of the route are as follows.

  • London Marylebone and Harrow-on-the-Hill – 9.23 miles – Not Electrified
  • Harrow-on-the-Hill and Amersham – 14.34 – Electrified
  • Amersham and Aylesbury – 15.29 miles – Not Electrified
  • Aylesbury and Aylesbury Vale Parkway – 2.31 miles – Not Electrified

Note.

  1. The total distance is 41.16 miles
  2. A typical service takes just under twenty minutes to travel between Harrow-on-the-Hill and Amersham. This should be enough to fully charge the batteries.
  3. A train going South from Harrow-on-the-Hill could reach London Marylebone and return.
  4. A train going North from Amersham could reach Aylesbury Vale Parkway and return.

I am fairly confident, that a battery electric train, with the range of a Hitachi Regional Battery Train could work this route.

London Marylebone And Aylesbury Via High Wycombe

The two sections of the route are as follows.

  • London Marylebone and High Wycombe- 28.14 miles – Not Electrified
  • High Wycombe and Aylesbury – 15.35 miles – Not Electrified

Note.

  1. The total distance is 43.50 miles
  2. There is no electrification to charge the trains.

A battery electric train, with the range of a Hitachi Regional Battery Train will need charging to work this route.

However, with charging at both ends, this would be a route for a battery electric train.

At the London Marylebone end, there are two possible solutions.

  • Electrify the station traditionally, together with perhaps the tracks as far as Neasden, where the routes split. Either 750 VDC third-rail or 25 KVAC overhead electrification could be used.
  • Fit fast charging systems into all the platforms at the station.

Note.

  1. Turnround times in Marylebone station are typically nine minutes or more, so using a charging system should be possible.
  2. Power for the electrification should not be a problem, as the station is close to one of London’s central electricity hubs at Lisson Grove by the Regent’s Canal.

The final decision at Marylebone, would be one for the engineers and accountants.

At the Aylesbury end, it should be noted that much of the under twenty miles of track between Princes Risborough and Aylesbury and on to Aylesbury Vale Parkway and Calvert us single-track.

So why not electrify from Princes Risborough and Calvert, where the route joins the East West Railway?

The electrification in Aylesbury station could also be used to top-up trains going to London via Amersham.

I would use 25 KVAC overhead electrification, using lightweight gantries like these, which use laminated wood for the overhead structure.

There is also a video.

Electrification doesn’t have to be ugly and out-of-character with the surroundings.

London Marylebone And Milton Keynes Via High Wycombe, Aylesbury and Aylesbury Vale Parkway

The three sections of the route are as follows.

  • London Marylebone and High Wycombe- 28.14 miles – Not Electrified
  • High Wycombe and Aylesbury – 15.35 miles – Not Electrified
  • Aylesbury and Milton Keynes – 16.50 miles – Partially Electrified

Note.

  1. The total distance is sixty miles
  2. There is some electrification to charge the trains between Bletchley and Milton Keynes.

A battery electric train, with the range of a Hitachi Regional Battery Train should be able to work this route, if they can work London Marylebone and Aylesbury, with charging at Aylesbury.

Milton Keynes Central is a fully-electrified station.

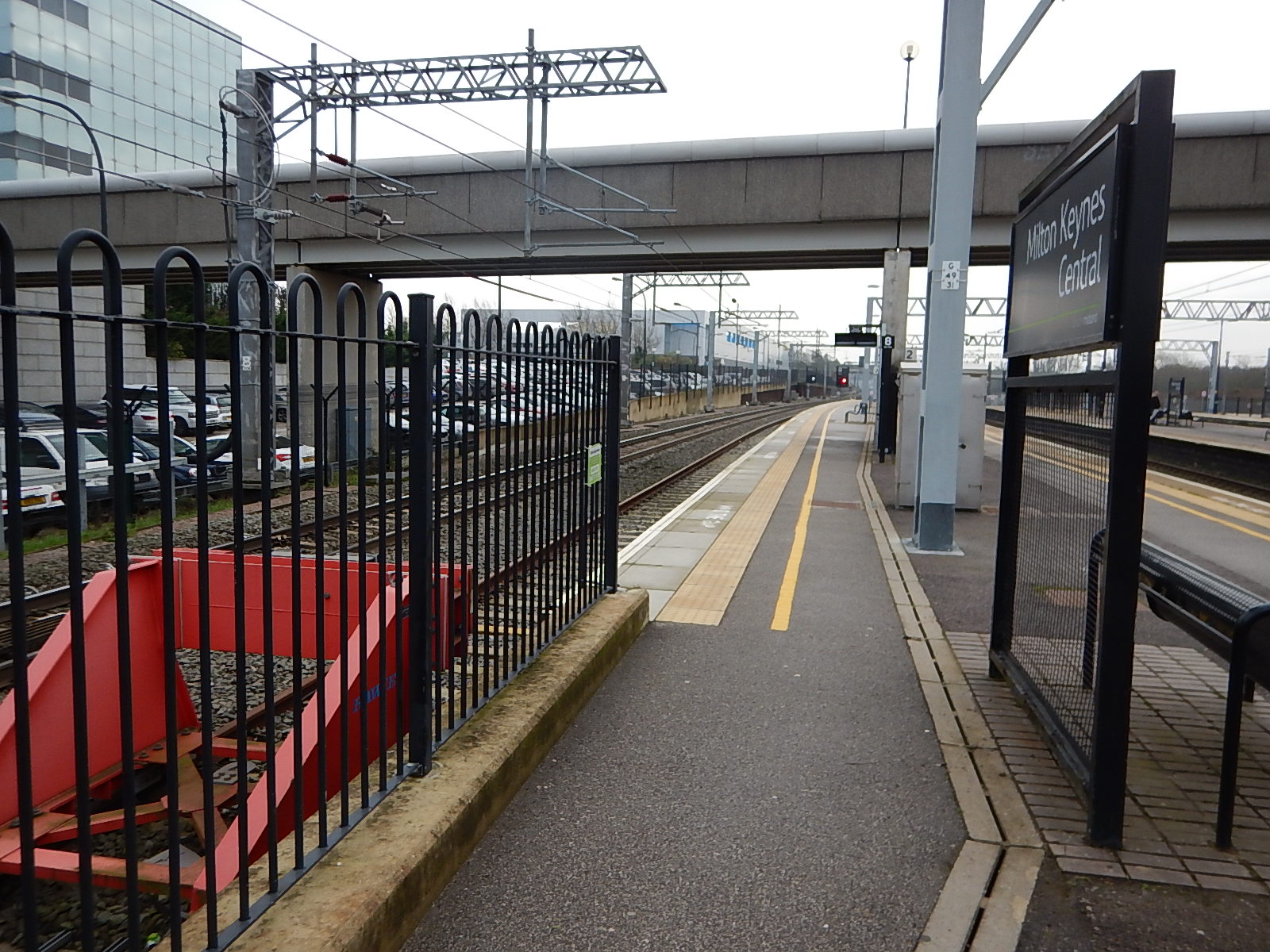

The picture shows Platform 2A, which is South-facing electrified, five-car platform, which could be used by the Chiltern service.

Train Specification

Consider.

  • Chiltern Railway’s workhorse is a Class 168 train, which is a diesel multiple unit of up to four cars, with a 100 mph operating speed.
  • The longest leg without electrification could be London Marylebone and Aylesbury via High Wycombe, which is 43.5 miles.
  • Hitachi’s Regional Battery Train has a range of fifty-six miles.
  • As there is a need to work with London Underground electrification, a dual-voltage train will be needed.

So a battery electric train with this specification would probably be ideal.

  • Four cars
  • Ability to work with both 750 VDC third-rail and 25 KVAC overhead electrification.
  • 100 mph operating speed.
  • Battery range of perhaps 55 miles.

Could the specification fit a battery-equipped Class 385 train, which will probably be built for Scotland?

Conclusion

I am convinced that battery electric trains can run between London Marylebone and Aylesbury, Aylesbury Vale Parkway and Milton Keynes stations.

The following would be needed.

  • A battery electric range of perhaps fifty-five miles.
  • Some form of charging at Marylebone and Aylesbury stations.

I would electrify, the single-track route between Princes Risborough and Aylesbury Vale Parkway.

September 4, 2020 Posted by | Transport | , , , , , , , , , , , | Leave a comment

Beeching Reversal – Reinstatement Of The Beverley And York Rail Line

This is one of the Beeching Reversal projects that the Government and Network Rail are proposing to reverse some of the Beeching cuts.

The York And Beverley Line does what it says in the name.

A section in the Wikipedia entry is entitled Re-Opening Proposals and the treatment of the trackbed after closure would appear to be a case study in how not to mothball a railway.

  • The original route has been built on in several places at Huntingdon, New Earswick, Pocklington and Stamford Bridge.
  • A new route will have to be built to connect to the York and Scarborough Line at Haxby.
  • There may also be problems at Beverley.

The only positive thing I can see, is that York City Council, want to re-open Haxby station. If this station were to be re-opened with a future-proofed design that might help in the wider scheme of reopening the Beverley and York Line.

This Google Map shows the original location of Haxby station.

Note.

  1. There is a dreaded level crossing in the middle of the village, that typically has around two trains per hour (tph)
  2. The road going to the West at the top of the map, is called Station Road, which is a bit of a giveaway.
  3. The building on the triangular site is called Station garage.
  4. Some reports on the Internet say that allotments will be turned into car parks.
  5. According to Wikipedia 22,000 people live within three miles of the station site.

The station site appears to be hemmed in by housing and comments from readers on one report are complaining about car parking being a problem an definitely don’t want the station.

Wikipedia says this about the proposed service on the Beverley and York Line.

The report recommended reinstating a service from Hull via Beverley, Market Weighton, Stamford Bridge and Pocklington connecting to the York to Scarborough Line at Haxby, on a double track line with a frequency of 2 trains per hour, with intermediate stations only at Market Weighton, Pocklington and Stamford Bridge. The estimate journey time was under 1 hour.

As the Beverley and York Line can’t join the York and Scarborough Line in the middle of Haxby, would it join North or South of the town?

Joining to the North would allow the Beverley trains to call at Haxby, but that would mean the level crossing was busy with six tph.

This Google Map shows the countryside between Haxby in the North and Earswick in the South.

Note.

  1. The York and Scarborough Line going through the centre of Haxby and then passing down the West side of the light brown fields.
  2. York is to the South and Scarborough is to the North.

I wonder, if the Beverley and York Line could branch to the East here and skirt to the North of Earswick before continuing to Pocklington for Beverley.

Perhaps, a Park-and-Ride station could be situated, where the railway and the road called Landing Lane cross?

At Beverley, this Google Map shows how the Beverley and York Line connects to the station.

Note.

  1. Beverley station at the bottom of the map.
  2. The Hull and Scarborough running North-South through the station.

The line divides by Beverley Rugby Football Club, with the trackbed of the Beverley and York Line going off in the North-Westerly direction.

This seems a lot easier than at the York end of the route.

I have flown my virtial helicopter over much of the route between Beverley and York, and the trackbed is visible but missing in places, where construction has taken place.

Would The Route Be Single Or Double-Track?

The plans call for double track, but would it be necessary?

  • There will only be two tph, that will take under an hour.
  • No freight trains will use the line.
  • The route is 32 miles long.

I suspect a single track would suffice, with a passing loop at Market Weighton station.

Should The Line Be Electrified?

I wouldn’t electrify the whole line, but I would electrify the following.

  • Hull and Beverley, so that battery trains to and from London could top up their batteries.
  • Haxby and York, so that battery trains to and from Scarborough could top up their batteries.

These two short stretches of electrification would allow battery electric operation between Hull and York, trains could charge their batteries at either end of the route.

Electrification Between Hull And Beverley

Consider.

  • Hull Trains extend their London and Hull services to Beverley.
  • Hull and Beverley are just over eight miles apart.
  • Trains to and from London Kings Cross use the electrification on the East Coast Main Line to the South of Temple Hirst Junction.
  • Hull and Temple Hirst Junction are thirty-six miles apart.
  • Hull Trains and LNER use Hitachi Class 800 or Class 802 electro-diesel trains on services between London Kings Cross and Hull.

Hitachi’s proposed battery-electric conversion of these trains, would have a range of 56 miles, according to this infographic.

I have flown my helicopter along the route and counted the following.



  • Level crossings – 5
  • Modern road bridges – 5
  • Footbridges – 5
  • Other bridges – 5
  • Stations – 1

Nothing looked too challenging.

In my view electrification between Hull and Beverley and at convenient platforms at both stations, would be a simple way of decarbonising rail travel between London and Hull.

If this electrification were to be installed, distances from the electrification between Hull and Beverley, these would be the distances to be covered on battery power to various places.

  • Bridlington – 23 miles
  • Doncaster via Goole – 41 miles
  • Leeds – 52 miles
  • Neville Hill Depot – 49 miles
  • Scarborough – 45 miles
  • York – 52 miles

Note.

  1. All of these places would be in range of a fully-charged Hitachi battery electric train running to and from Hull.
  2. Of the destinations, only Bridlington and Scarborough, is not a fully-electrified station.
  3. One of the prerational problems in the area, is that due to a lack of electrification to the East of Neville Hall Depot, electric trains from York and Hull have difficulty reaching the depot. Trains with a battery capability won’t have this problem.
  4. Hull and Beverley and a lot of stations in the area, would only be served by electric trains, with a battery capability.

There would be a large decrease in pollution and emissions caused by passenger trains in the area.

Electrification Between Haxby And York

Consider.

  • York and Haxby are 4 miles apart.
  • York and Scarborough are 42 miles apart.
  • York and Beverley are 32 miles apart.

Note that unlike at Beverley, there is no need to electrify the end of the route, as trains can be charged in the turnround at York.

With a charging facility at Scarborough, the Class 802 trains of TransPennine Express could work this route if fitted with batteries.

Could Lightweight Electrification Be Used?

Electrification gantries like these have been proposed for routes, where the heavy main-line gantries would be too intrusive.

They could have a place in the rebuilding of lines like Beverley and York.

Trains Between York And Beverley

The UK’s railways need to be decarbonised before 2040.

As a train delivered today, would probably last forty years, I think it would be prudent to only introduce zero-carbon trains to the network, where they are able to run the proposed services.

There is no doubt in my mind, that all these local services in East Yorkshire could be run using battery-electric trains with a 56 mile range.

  • Hull and Doncaster
  • Hull and Leeds
  • Hull and Neville Hill Depot
  • Hull and Scarborough
  • Hull and York via Beverley and Market Weighton
  • Hull and York via Selby
  • York and Scarborough

The only electrification needed would be as follows.

Electrification between Hull and Beverley.

Electrification of some platforms at Beverley and Hull stations.

Some form of charging at Scarborough.

Charging may also be needed at Bridlington station.

The trains needed for the route seem to fit Hitachi’s specification well and a Class 385 train to the following specification, would do a highly capable job.

  • Three or four-cars.
  • Batteries for a 56 mile range.
  • 90-100 mph operating speed.

I’m also sure that Bombardier, CAF and Stadler could also provide a suitable train.

Could Tram-Trains Be Used?

I feel that they could be used successfully and might enable cost savings on the substantial rebuilding of the route needed.

  • Lighter weight structures.
  • Single track with passing places.
  • Tramway electrification or battery.
  • Less vidual intrusion.
  • The service could also have more stops.

Perhaps too, it could go walkabout in Hull City Centre to take passengers to and from Hull station.

Conclusion

It is rebuilding the tracks between Beverley and York, that will be difficult in the reopening of this line, which with hindsight should have not been vandalised by British Rail.

But even, if the Beverley and York Line is not re-opened, it does look that if Beverley and Hull were to be electrified, it would enable a network of battery electric zero-carbon trains in East Yorkshire and allow battery electric trains to run between Kings Cross and Hull.





July 10, 2020 Posted by | Energy Storage, Transport | , , , , , , , , , , , | 2 Comments

Are Hitachi Designing the Ultimate Battery Train?

In Sparking A Revolution, a post based on an article of the same name in Issue 898 of Rail Magazine, I repeated this about the specification of Hitachi UK Battery Train Specification.

  • Range – 55-65 miles
  • Performance – 90-100 mph
  • Recharge – 10 minutes when static
  • Routes – Suburban near electrified lines
  • Battery Life – 8-10 years

Does this mean that the train can do 55-65 miles cruising at 90-100 mph?

How Much Energy Is Needed To Accelerate A Five-Car Class 800 Train To Operating Speed?

I will do my standard calculation.

  • Empty train weight – 243 tonnes (Wikipedia for Class 800 train!)
  • Passenger weight – 302 x 90 Kg (Includes baggage, bikes and buggies!)
  • Train weight – 270.18 tonnes

Using Omni’s Kinetic Energy Calculator, the kinetic energy at various speeds are.

  • 60 mph – 27 kWh
  • 80 mph – 48 kWh
  • 90 mph – 61 kWh
  • 100 mph – 75 kWh
  • 125 mph – 117 kWh – Normal cruise on electrified lines.
  • 140 mph – 147 kWh – Maximum cruise on electrified lines.

Because the kinetic energy of a train is only proportional to the weight of the train, but proportional to the square of the speed, note how the energy of the train increases markedly after 100 mph.

Are these kinetic energy figures a reason, why Hitachi have stated their battery train will have an operating speed of between 90 and 100 mph?

A 100 mph cruise would also be very convenient for a lot of main lines, that don’t have electrification in the UK.

What Battery Size Would Be Needed?

In How Much Power Is Needed To Run A Train At 125 mph?, I calculated that a five-car Class 801 electric train, needed 3.42 kWh per vehicle-mile to maintain 125 mph.

For comparison, an InterCity 125 train, had a figure of 2.83 kWh per vehicle-mile.

Hitachi are redesigning the nose of the train for the new Class 810 train and I suspect that these trains can achieve somewhere between 1.5 and 3 kWh per vehicle-mile, if they are cruising at 100 mph.

Doing the calculation for various consumption levels gives the following battery capacity for a five-car train to cruise 65 miles at 100 mph

  • 1.5 kWh per vehicle-mile – 487 kWh
  • 2 kWh per vehicle-mile – 650 kWh
  • 2.5 kWh per vehicle-mile – 812.5 kWh
  • 3 kWh per vehicle-mile – 975 kWh

These figures don’t include any energy for acceleration to line speed from the previous stop or station, but they would cope with a deceleration and subsequent acceleration, after say a delay caused by a slow train or other operational delay, by using regenerative braking to the battery.

The energy needed to accelerate to operating speed, will be as I calculated earlier.

  • 90 mph – 61 kWh
  • 100 mph – 75 kWh

As the battery must have space to store the regenerative braking energy and it would probably be prudent to have a ten percent range reserve, I can see a battery size for a train with an energy consumption of 2 kWh per vehicle-mile, that needed to cruise at 100 mph being calculated as follows.

  • Energy for the cruise – 650 kWh
  • 10% reserve for cruise – 65 kWh
  • Braking energy from 100 mph – 75 kWh

This gives a total battery size of 790 kWh, which could mean that 800 kWh would be convenient.

Note that each of the three MTU 12V 1600 diesel engines, fitted to a Class 800 train, each weigh around two tonnes.

In Innolith Claims It’s On Path To 1,000 Wh/kg Battery Energy Density, I came to these conclusions.

  • Tesla already has an energy density of 250 Wh/Kg.
  • Tesla will increase this figure.
  • By 2025, the energy density of lithium-ion batteries will be much closer to 1 KWh/Kg.
  • Innolith might achieve this figure. But they are only one of several companies aiming to meet this magic figure.

Suppose two of the MTU 12V 1600 diesel engines were each to be replaced by a two tonne battery, using Tesla’s current energy density, this would mean the following.

  • Each battery would have a capacity of 500 kWh.
  • The train would have one MWh of installed battery power.
  • This is more than my rough estimate of power required for a 65 mile trip.
  • The train would have little or no weight increase.
  • I also wouldn’t be surprised to find that the exchange of a diesel engine for a battery was Plug-and-Play.

Hitachi would have an electric/battery/diesel tri-mode train capable of the following.

  • Range – 55-65 miles
  • Out and Back Range – about 20-30 miles
  • Performance – 90-100 mph
  • Recharge – 10 minutes when static
  • Emergency diesel engine.

I feel it would be a very useful train.

Trains That Could Be Fitted With Batteries

The original article in Rail Magazine says this.

For the battery project, positive discussions are taking place with a number of interested parties for a trial, with both Class 385s and Class 800s being candidates for conversion.

So this means that the following operators will be able to use Hitachi’s battery technology o their trains.

  • Avanti West Coast – Class 80x trains
  • First East Coast Trains – Class 80x trains
  • East Midlands Railway – Class 80x trains
  • GWR – Class 80x trains
  • Hull Trains – Class 80x trains
  • LNER – Class 80x trains
  • ScotRail – Class 385 trains
  • TransPennine Express – Class 80x trains

Although, I based my calculations on Class 80x trains, I suspect that the methods can be applied to the smaller Class 385 trains.

Possible Out-And-Back Journeys

These are possible Out-And-Back journeys, that I believe Hitachi’s proposed battery-electric trains could handle.

  • Edinburgh and Tweedbank – 30 miles from Newcraighall
  • London Paddington and Bedwyn – 30 miles from Reading
  • London Euston and Blackburn – 12 miles from Preston
  • London Kings Cross and Bradford – < 27 miles from Leeds
  • London Euston and Chester – 21 miles from Crewe
  • London Kings Cross and Harrogate – <18 miles from Leeds
  • London Kings Cross and Huddersfield – 17 miles from Leeds
  • London St. Pancras and Leicester – 16 miles from Market Harborough
  • London Kings Cross and Lincoln – 17 miles from Newark
  • London St. Pancras and Melton Mowbray – 26 miles from Corby
  • London Kings Cross and Middlesbrough – 20 miles from Northallerton
  • London Kings Cross and Nottingham – 20 miles from Newark
  • London Paddington and Oxford – 10 miles from Didcot
  • London Kings Cross and Redcar – 29 miles from Northallerton
  • London Kings Cross and Rotherham- 14 miles from Doncaster
  • London Kings Cross and Sheffield – 20 miles from Doncaster
  • London and Weston-super-Mare – 19 miles from Bristol

Note.

  1. Provided that the Out-And-Back journey is less than about sixty miles, I would hope that these stations are comfortably in range.
  2. Leicester is the interesting destination, which would be reachable in an Out-And-Back journey. But trains from the North stopping at Leicester would probably need to charge at Leicester.
  3. I have included Blackburn as it could be a destination for Avanti West Coast.
  4. I have included Melton Mowbray as it could be a destination for East Midlands Railway.
  5. I have included Nottingham, Rotherham and Sheffield as they could be destinations for LNER. These services could prove useful if the Midland Main Line needed to be closed for construction works.
  6. I’m also fairly certain, that no new electrification would be needed, although every extra mile would help.
  7. No charging stations would be needed.

I suspect, I’ve missed a few possible routes.

Possible Journeys Between Two Electrified Lines

These are possible journeys between two electrified lines, that  I believe Hitachi’s proposed battery-electric trains could handle.

  • London St. Pancras and Eastbourne via Hastings – 25 miles between Ashford and Ore.
  • Leeds and York via Garforth – 20 miles between Neville Hall and Colton Junction
  • London Kings Cross and Norwich via Cambridge – 54 miles between Ely and Norwich.
  • Manchester Victoria and Leeds via Huddersfield – 43 miles between Manchester Victoria and Leeds.
  • Preston and Leeds via Hebden Bridge – 62 miles between Preston and Leeds.
  • Newcastle and Edinburgh – Would battery-electric trains get round the well-publicised power supply problems on this route?

Note.

  1. I am assuming that a range of 65 miles is possible.
  2. If the trains have a diesel-generator set, then this could be used to partially-charge the battery in places on the journey.
  3. Leeds and York via Garforth has been scheduled for electrification for years.
  4. Preston and Leeds via Hebden Bridge would probably need some diesel assistance.
  5. London Kings Cross and Norwich via Cambridge is a cheeky one, that Greater Anglia wouldn’t like, unless they ran it.
  6. As before no new electrification or a charging station would be needed.

I suspect, I’ve missed a few possible routes.

Possible Out-And-Back Journeys With A Charge At The Destination

These are possible Out-And-Back journeys, that I believe Hitachi’s proposed battery-electric trains could handle, if the batteries were fully charged at the destination.

  • Doncaster and Cleethorpes – 52 miles from Doncaster.
  • London Paddington and Cheltenham – 42 miles from Swindon
  • London Kings Cross and Cleethorpes via Lincoln – 64 miles from Newark
  • London Euston and Gobowen – 46 miles from Crewe
  • London Euston and Wrexham – 33 miles from Crewe
  • London Kings Cross and Hull – 45 miles from Selby
  • London Kings Cross and Shrewsbury – 30 miles from Wolverhampton
  • London Kings Cross and Sunderland 41 miles from Northallerton
  • London Paddington and Swansea – 46 miles from Cardiff
  • London Paddington and Worcester – 67 miles from Didcot Parkway
  • London St. Pancras and Derby – 46 miles from Market Harborough
  • London St. Pancras and Nottingham – 43 miles from Market Harborough

Note.

  1. I am assuming that a range of 65 miles is possible.
  2. If the trains have a diesel-generator set, then this could be used to partially-charge the battery in places on the journey.
  3. I am assuming some form of charging is provided at the destination station.
  4. As before no new electrification would be needed.

I suspect, I’ve missed a few possible routes.

Midland Main Line

The Midland Main Line could possibly be run between London St. Pancras and Derby, Nottingham and Sheffield without the use of diesel.

Consider.

  • The route will be electrified between London St. Pancras and Market Harborough.
  • In connection with High Speed Two, the Midland Main Line and High Seed Two will share an electrified route between Sheffield and Clay Cross North Junction.
  • London St. Pancras and Derby can be run with a charging station at Derby, as Market Harborough and Derby is only 46 miles.
  • London St. Pancras and Nottingham can be run with a charging station at Nottingham, as Market Harborough and Nottingham is only 43 miles.
  • The distance between Clay Cross North Junction and Market Harborough is 67 miles.
  • The distance between Sheffield and Leeds is 38 miles.

It looks to me that the range of East Midlands Railway’s new Class 810 trains, will be a few miles short to bridge the gap on batteries, between Clay Cross North Junction and Market Harborough station, but Leeds and Sheffield appears possible, once Sheffield has been electrified.

There are several possible solutions to the Clay Cross North and Market Harborough electrification gap.

  1. Fit higher capacity batteries to the trains.
  2. Extend the electrification for a few miles North of Market Harborough station.
  3. Extend the electrification for a few miles South of Clay Cross North Junction.
  4. Stop at Derby for a few minutes to charge the batteries.

The route between Market Harborough and Leicester appears to have been gauge-cleared for electrification, but will be difficult to electrify close to Leicester station. However, it looks like a few miles can be taken off the electrification gap.

Between Chesterfield and Alfriston, the route appears difficult to electrify with tunnels and passig through a World Heritage Site.

So perhaps options 1 and 2 together will give the trains sufficient range to bridge the electrification gap.

Conclusion On The Midland Main Line

I think that Hitachi, who know their trains well, must have a solution for diesel-free operation of all Midland Main Line services.

It also looks like little extra electrification is needed, other than that currently planned for the Midland Main Line and High Speed Two.

North Wales Coast Line

If you look at distance along the North Wales Coast Line, from the electrification at Crewe, you get these values.

  • Chester – 21 miles
  • Rhyl – 51 miles
  • Colwyn Bay – 61 miles
  • Llandudno Junction – 65 miles
  • Bangor – 80 miles
  • Holyhead – 106 miles

It would appear that Avanti West Coast’s new AT-300 trains, if fitted with batteries could reach Llandudno Junction station, without using diesel.

Electrification Between Crewe And Chester

It seems to me that the sensible thing to do for a start is to electrify the twenty-one miles between Crewe and Chester, which has been given a high priority for this work.

With this electrification, distances from Chester are as follows.

  • Rhyl – 30 miles
  • Colwyn Bay – 40 miles
  • Llandudno Junction – 44 miles
  • Bangor – 59 miles
  • Holyhead – 85 miles

Electrification between Crewe and Chester may also open up possibilities for more electric and battery-electric train services.

But some way will be needed to charge the trains to the West of Chester.

Chagring The Batteries At Llandudno Junction Station

This Google Map shows Llandudno Junction station.

Note.

  1. It is a large station site.
  2. The Conwy Valley Line, which will be run by battery Class 230 trains in the future connects at this station.
  3. The Class 230 train will probably use some of Vivarail’s Fast Charging systems, which use third-rail technology, either at the ends of the branch or in Llandudno Junction station.

The simplest way to charge the London Euston and Holyhead train, would be to build a charging station at Llandudno Junction, which could be based on Vivarail’s Fast Charging technology or a short length of 25 KVAC overhead wire.

But this would add ten minutes to the timetable.

Could 25 KVAC overhead electrification be erected for a certain distance through the station, so that the train has ten minutes in contact with the wires?

Looking at the timetable of a train between London Euston and Holyhead, it arrives at Colwyn Bay station at 1152 and leaves Llandudno Junction station at 1200.

So would it be possible to electrify between the two stations and perhaps a bit further?

This Google Map shows Colwyn Bay Station,

Note how the double-track railway is squeezed between the dual-carriageway of the A55 North Wales Expressway and the sea.

The two routes follow each other close to the sea, as far as Abegele & Pensarn station, where the Expressway moves further from the sea.

Further on, after passing through more caravans than I’ve ever seen, there is Rhyl station.

  • The time between arriving at Rhyl station and leaving Llandudno Junction station is nineteen minutes.
  • The distance between the two stations is fourteen miles.
  • Rhyl and Crewe is fifty-one miles.
  • Llandudno Junction and Holyhead is forty-one miles.

It would appear that if the North Wales Coast Line between Rhyl and Llandudno Junction is electrified, that Hitachi’s proposed battery trains can reach Holyhead.

The trains could even changeover between electrification and battery power in Rhyl and Llandudno Junction stations.

I am sure that electrifying this section would not be the most difficult in the world, although the severe weather sometimes encountered, may need some very resilient or innovative engineering.

It may be heretical to say so, but would it be better if this section were to be electrified using proven third-rail technology.

West of Llandudno Junction station, the electrification would be very difficult, as this Google Map of the crossing of the River Conwy shows.

I don’t think anybody would want to see electrification around the famous castle.

Electrification Across Anglesey

Llanfairpwll station marks the divide between the single-track section of the North Wales Coast Line over the Britannia Bridge and the double-track section across Anglesey.

From my virtual helicopter, the route looks as if, it could be fairly easy to electrify, but would it be necessary?

  • Llandudno Junction and Holyhead is forty-one miles, which is well within battery range.
  • There is surely space at Holyhead station to install some form of fast-charging system.

One problem is that trains seem to turn round in only a few minutes, which may not be enough to charge the trains.

So perhaps some of the twenty-one miles between Llanfairpwll and Holyhead should be electrified.

London Euston And Holyhead Journey Times

Currently, trains take three hours and forty-three minutes to go between London Euston and Holyhead, with these sectional timings.

  • London Euston and Crewe – One hour and thirty-nine minutes.
  • Crewe and Holyhead – Two hours and four minutes.

The big change would come, if the London Euston and Crewe leg, were to be run on High Speed Two, which will take just fifty-five m,inutes.

This should reduce the London Euston and Holyhead time to just under three hours.

Freight On The North Wales Coast Line

Will more freight be seen on the North Wales Coast Line in the future?

The new tri-mode freight locomotives like the Class 93 locomotive, will be able to take advantage of any electrification to charge their batteries, but they would probably be on diesel for much of the route.

Conclusion On The North Wales Coast Line

Short lengths of electrification, will enable Avanti West Coast’s AT-300 trains, after retrofitting with batteries, to run between Crewe and Holyhead, without using any diesel.

I would electrify.

  • Crewe and Chester – 21 miles
  • Rhyl and Llandudno Junction – 14 miles
  • Llanfairpwll and Holyhead – 21 miles

But to run battery-electric trains between London Euston and Holyhead, only Rhyl and Llandudno Junction needs to be electrified.

All gaps in the electrification will be handled on battery power.

A Selection Of Possible Battery-Electric Services

In this section, I’ll look at routes, where battery-electric services would be very appropriate and could easily be run by Hitachi’s proposed battery-electric trains.

London Paddington And Swansea

Many were disappointed when Chris Grayling cancelled the electrification between Cardiff and Swansea.

I went along with what was done, as by the time of the cancellation, I’d already ridden in a battery train and believed in their potential.

The distance between Cardiff and Swansea is 46 miles without electrification.

Swansea has these services to the West.

  • Carmarthen – 32 miles
  • Fishguard – 73 miles
  • Milford Haven  71 miles
  • Pembroke Dock – 73 miles

It looks like, three services could be too long for perhaps a three car battery-electric version of a Hitachi Class 385 train, assuming it has a maximum range of 65 miles.

But these three services all reverse in Carmarthen station.

So perhaps, whilst the driver walks between the cabs, the train can connect automatically to a fast charging system and give the batteries perhaps a four minute top-up.

Vivarail’s Fast Charging system based on third-rail technology would be ideal, as it connects automatically and it can charge a train in only a few minutes.

I would also electrify the branch between Swansea and the South Wales Main Line.

This would form part of a fast-charging system for battery-trains at Swansea, where turnround times can be quite short.

I can see a network of battery-electric services developing around Swansea, that would boost tourism to the area.

Edinburgh And Tweedbank

The Borders Railway is electrified as far as Newcraighall station and the section between there and Tweedbank is thirty miles long.

I think that a four-car battery-electric Class 385 train could work this route.

It may or may not need a top up at Tweedbank.

The Fife Circle

The Fife Circle service from Edinburgh will always be difficult to electrify, as it goes over the Forth Rail Bridge.

  • The Fife Circle is about sixty miles long.
  • Plans exist for a short branch to Leven.
  • The line between Edinburgh and the Forth Rail Bridge is partly electrified.

I believe that battery-electric Class 385 train could work this route.

London Kings Cross and Grimsby/Cleethorpes via Lincoln

The Cleethorpes/Grimsby area is becoming something of a  renewable energy powerhouse and I feel that battery trains to the area, might be a significant and ultimately profitable statement.

LNER recently opened a six trains per day service to Lincoln.

Distances from Newark are as follows.

  • Lincoln – 17 miles
  • Grimsby – 61 miles
  • Cleethorpes – 64 miles

A round trip to Lincoln can probably be achieved on battery alone with a degree of ease, but Cleethorpes and Grimsby would need a recharge at the coast.

Note that to get to the Cleethorpes/Grimsby area, travellers usually need to change at Doncaster.

But LNER are ambitious and I wouldn’t be surprised to see them dip a toe in the Cleethorpes/Grimsby market.

The LNER service would also be complimented by a TransPennine Express service from Manchester Airport via Sheffield and Doncaster, which could in the future be another service run by a Hitachi battery train.

There is also a local service to Barton-on-Humber, which could be up for improvement.

London Waterloo And Exeter

This service needs to go electric, if South Western Railway is going to fully decarbonise.

But third-rail electrification is only installed between Waterloo and Basingstoke.

Could battery-electric trains be used on this nearly two hundred mile route to avoid the need for electrification.

A possible strategy could be.

  • Use existing electrification, as far as Basingstoke – 48 miles
  • Use battery power to Salisbury – 83 miles
  • Trains can take several minutes at Salisbury as they often split and join and change train crew, so the train could be fast-charged.
  • Use battery power to the Tisbury/Gillingham/Yeovil/Crewkerne area, where trains would be charged – 130 miles
  • Use battery power to Exeter- 172 miles

Note.

  1. The miles are the distance from London.
  2. The charging at Salisbury could be based on Vivarail’s Fast-Charging technology.
  3. The charging around Yrovil could be based on perhaps twenty miles of third-rail electrification, that would only be switched on, when a train is present.

I estimate that there could be time savings of up to fifteen minutes on the route.



To Be Continued…























February 18, 2020 Posted by | Transport | , , , , , , , , , , , , , , , , , , , , , , , | 5 Comments

Sparking A Revolution

The title of this post is the same as that of an article in Issue 898 of Rail Magazine.

The sub-title is.

When it comes to powering a zero-enissions train with no overhead line infrastructure, battery power is clearly the answer, according to Hitachi.

These are the first three paragraphs.

Over the next decade around 1,000 diesel-powered vehicles will need to be replaced with vehicles that meet emissions standards.

Hitachi, which has been building bi-mode trains for the UK since 2012, and electric trains since 2006, says that retro-fitting old vehicles alone will not be good enough to improve capacity, reliability or passenger satisfaction.

Battery power is the future – not only as a business opportunity for the company, but more importantly for the opportunities it offers the rail industry.

Speaking is Andrew Barr of Hitachi Rail.

Some important points are made.

  • Hitachi has identified various towns and cities, where battery trains would be useful including Bristol, Edinburgh, Glasgow, Hastings, Leeds and Manchester.
  • Andrew Barr says he gets a lot of questions about battery power.
  • Battery power can be used as parts of electrification schemes to bridge gaps, where rebuilding costs of bridges and other infrastructure would be too high.
  • Battery trains are ideal for decarbonising branch lines.
  • Batteries could be fitted to Class 385, 800, 802 and 810 trains.

Hitachi would like to run a battery train with passengers, within the next twelve months.

The article also gives the specification of a Hitachi battery train.

  • Range – 55-65 miles
  • Performance – 90-100 mph
  • Recharge – 10 minutes when static
  • Routes – Suburban near electrified lines
  • Battery Life – 8-10 years

These figures are credited to Hitachi.

Hitachi are also thinking about tri-mode trains.

  • Batteries could be installed on Class 800-802/810 trains.
  • Battery-only power for stations and urban areas.
  • 20% performance improvements or 30% fuel savings.

These is also credited to Hitachi.

Costs And Power

This is an insert in the article, which will apply to all applications with traction batteries.

This is said.

The costs of batteries are expected to halve in the next five years, before dropping further again by 2030.

Hitachi cites research by Bloomberg New Energy Finance (BNEF) which expects costs to fall from £135/kWh at the pack level today to £67/kWh in 2025 and £47/kWh in 2030.

United Kingdom Research and Innovation (UKRI)  is also predicting that battery energy density will double in the next 15 years, from 700 Wh/l to 1,400 Wh/l in 2035, while power density (fast charging) is likely to increase four times in the same period from 3 kW/kg now to 12 kW/kg in 2035.

In Batteries On Class 777 Trains, I quoted a source that said that Class 777 trains are built to handle a five tonne battery.

I estimated the capacity as follows.

Energy densities of 60 Wh/Kg or 135 Wh/litre are claimed by Swiss battery manufacturer; Leclanche.

This means that a five tonne battery would hold 300 kWh.

Hitachi’s figures are much higher as it looks like a five tonne battery can hold 15 MWh.

Batteries will be going places on Hitachi trains.



February 16, 2020 Posted by | Energy Storage, Transport | , , , , , , | 14 Comments

The Traction System Of A Class 385 Train

This document on the Hitachi web site is entitled Development of Class 385 Semi-customised/Standard Commuter Rolling Stock for Global Markets.

The Hitachi document gives a schematic of the traction system of a Class 385 train.

This is the description, that accompanies the diagram.

Railway businesses in the UK include ROSCOs, TOCs, and track maintenance and management companies. The TOCs pay fees, called track access charges, which are based on the weight of rolling stock and the distance travelled, and are obliged to pay the track maintenance and management company for the electrical power consumed in train operation. Because lighter trains put less load on the track, they incur lower track access charges. As lighter trains also consume less electrical power, there was strong demand from the TOC to make the rolling stock lighter, right from the pre-contract stage.

There are two types of Class 385, a four-car train set and a three-car train set. The four-car train set has two motor cars (M) and two trailer cars (T) in what is called a 2M2T configuration. For a three-car train set, in contrast, sufficient traction capacity is provided by 1.5 M cars. Accordingly, the Class 385 adopts a system in which the traction unit (converter) is split into two drive systems, with each car having two motor bogies that are controlled separately (see Fig. 4). This means that three-car train sets can have a 1.5M1.5T configuration in which one of the bogies on one of the two M cars is a trailer bogie, thereby eliminating two traction motors and one traction unit drive system. This configuration reduces the weight of a three-car train set by approximately 1.5 tonnes.

Next time you design a train, will you stand more chancw of getting the order, if you think out of the box?

August 10, 2019 Posted by | Transport | , | Leave a comment

Scottish Government Approve £75m Levenmouth Rail Link

The title of this post is the same as that of this article on Rail Technology Magazine.

The plan seems to have been well-received by politicians and the media.

I’ve always thought this line to be a good candidate for reopening.

  • It is only five miles long.
  • It would serve Scotland’s largest town without a rail station.
  • There must be freight opportunities for freight, as the line could serve Scotland’s largest distillery.

There is more here on the Wikipedia entry for the Levenmouth Rail Link under Cost, Feasibility And Services.

Could The Levenmouth Rail Link Be Part Of A Bigger Picture?

The Fife Circle Line is an important route into Edinburgh for commuters, shoppers and visitors.

This map from Wikipedia shows the stations on the Fife Circle Line.

Consider.

  • The route is not electrified.
  • A train starting in Edinburgh and going rund the loop would cover about sixty miles.
  • Trains have a frequency of four trains per hour (tph)

It would appear that it would be the sort of service that would be ideal for electric trains, like ScotRail’s Class 385 trains, where a fleet of perhaps eight trains could provide the current service.

But there is a big obstacle to electrification; the Forth Rail Bridge.

It would be a difficult engineering project, that would cause massive disruption and one that would probably be strongly opposed by the Heritage lobby.

This map from Wikipedia shows the proposed Levenmouth Rail Link.

Note how it connects to the Fife Circle Line at Glenrothes with Thorton and Kirkcaldy stations.

I estimate that the distance between Leven and Edinburgh stations would be about 31 miles.

Could Battery-Electric Trains Work To Glenrothes with Thorton And Leven?

Consider these  facts abut battery-electric trains.

  • Bombardier ran a battery-electric train on the 11.5 mile Mayflower Line in public service for three months, without a hitch in 2015.
  • Hitachi, Siemens, Stadler and Vivarail have sold battery-electric trains.
  • Hitachi are running battery-electric trains in Japan.
  • Ranges of upwards of fifty miles are being claimed.
  • Battery-electric trains are a quality experience for passengers.

.As the Edinburgh and Leven and dinburgh and Glenrothes with Thorton routes  are about thirty miles, I believe it is now possible to run battery-electric trains on these two routes.

  • They would be charged at the Edinburgh end using the existing electrification.
  • Charging stations would be needed at Leven and Glenrothes with Thornton.
  • Electrification could also be erected as far as Dalmeny station at the Edinburgh end, which would reduce the range on batteries by about seven miles.

There would be no difficult engineering and the Forth Rail Bridge would look the same as the day it was built!

Hitachi Plans To Run ScotRail Class 385 EMUs Beyond The Wires

I covered this in more detail in Hitachi Plans To Run ScotRail Class 385 EMUs Beyond The Wires.

Hitachi appear to be serious according to this article of the same name on Rail Engineer.

The article concludes with this paragraph.

Hitachi’s proposal to operate battery trains in Scotland is at an early stage. However, with their use being recommended by the rail decarbonisation task force and the Scottish Government about to pass new climate change legislation, it may not be long before battery trains are operating in Scotland.

Hitachi aren’t stupid and I doubt they could want for a better portfolio of launch routes, than some of those in Scotland.

  • Edinburgh and Leven over the Forth Rail Bridge.
  • Edinburgh and Grenrothes with Thornton over the Forth Rail Bridge.
  • The Borders Railway.

I also show in the related article, that Glasgow to Oban and Mallaig may be possible.

The Rail Network And Electrification To The West Of Edinburgh

This map shows the rail system to the West of Edinburgh.

All lines except for the route through South Gyle and Edinburgh Gateway stations are electrified.

Electrification as far as Dalmeny station, the addition of the new chord (shown in yellow) and fill in electrification to join the chord to the Glosgow wires would open up the possibilities of more routes between Edinburgh and Glasgow and a connection between Glasgow and the Fife Circle.

But battery-electric trains would be needed.

ScotRail has Options For More Class 385 Trains

This is said in the Wikipedia entry for the Class 385 trains.

10 unit optional follow up order after 2020.

So ScotRail seem to have a gateway to the future.

Will Battery-Electric Trains Be Good For Tourism?

I very much doubt, that they’ll be bad for it!

Conclusion

The announcement of the reinstatement of the Levenmouth Rail Link, could be be a collateral benefit of a decision to trial or even order some battery-electric Hitachi Class 385 trains.

August 9, 2019 Posted by | Transport | , , , , , , | 8 Comments

Manchester Victoria To Chester

On Saturday, I went between Manchester Victoria and Chester on the new hourly Northern Connect service between Chester and Leeds.

Note.

  1. The train was a Class 158 train, with a Class 153 train acting as a capacity enhancer.
  2. The train was only doing 60 mph on the West Coast Main Line.
  3. The service was fairly busy.
  4. The route is electrified between Manchester Victoria and Warrington Bank Quay stations.

On this Saturday morning, it appeared to me that a better train is needed.

In Northern Connect Between Chester And Leeds To Start In May, I did report a rumour that Class 769 trains might be running between Chester and Leeds.

In my view Class 769 trains are ideal for the route between Chester and Leeds.

  • They are four-car trains.
  • They can do 100 mph, where electrification is available.
  • They are 90 mph trains on diesel.

There main problem, is not their age, but since they were proposed, train interiors have moved on. Passengers and train operating companies want more tables and comfortable seats. Even some refurbishments of forty-year-old trains have tables. In What Train Is This?, I described a high class refurbishment of a Class 150 train. Here’s a picture.

The Chester and Leeds route and probably many other routes in the UK need a train with the following characteristics.

  • 100 mph using either 25 KVAC overhead or 750 VDC third-rail electrification.
  • 100 mph on secondary power like diesel, battery or hydrogen.
  • two hundred mile range without refuelling.
  • Four or five cars.
  • Comfortable interior with tables, wi-fi, power points and everything else passengers want.

Train operating companies would probably like a 125 mph version.

Hitachi already have a train with this specification in the Class 800 train. In Hitachi Plans To Run ScotRail Class 385 EMUs Beyond The Wires, I detail, Hitachi’s plans for Class 385 trains. Could these be stretched to perhaps do 100 miles on batteries.

Bombardier are offering a High Speed Bi-Mode Aventra with batteries and Stadler are introducing the Class 755 train for Greater Anglia.

Conclusion

It looks to me, that Northern need to get themselves some new 100 mph hybrid trains. The diesels they have on order are so Twentieth Century and late!

June 3, 2019 Posted by | Transport | , , , , , , | 5 Comments
