High Speed Two And Scotland

In this post, I will only look at services and capacity.

I will leave the economics to others with the appropriate data.

Current Anglo-Scottish Services

Currently, these services run between England and Edinburgh Waverley and Glasgow Central stations.

  • 1 train per hour (tph) – Avanti West Coast – London Euston and Glasgow Central via Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Carlisle.
  • 1 train per two hours (tp2h) – Avanti West Coast – London Euston and Glasgow Central via Milton Keynes Central, Coventry, Birmingham International, Birmingham New Street, Sandwell and Dudley, Wolverhampton, Crewe, Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Carlisle.
  • 1 tp2h – CrossCountry – South-West England and Edinburgh Waverley via Bristol Temple Meads, Birmingham New Street, Derby, Chesterfield, Sheffield, Wakefield Westgate, Leeds, York and Newcastle.
  • 1 tp2h – CrossCountry – South-West England and Glasgow Central via Bristol Temple Meads, Birmingham New Street, Derby, Chesterfield, Sheffield, Wakefield Westgate, Leeds, York, Newcastle and Edinburgh Waverley.
  • 1 tph – LNER – London Kings Cross and Edinburgh Waverley via York, Darlington, Newcastle and Berwick-upon-Tweed
  • 1 tph – LNER – London Kings Cross and Edinburgh Waverley via Peterborough, Newark North Gate, Doncaster, York, Northallerton, Darlington, Durham and Newcastle
  • 1 tph – TransPennine Express – Liverpool Lime Street and Edinburgh Waverley via Newton-le-Willows, Manchester Victoria, Huddersfield, Leeds, York, Darlington, Durham, Newcastle and Morpeth
  • 1 tp2h – TransPennine Express – Manchester Airport and Edinburgh Waverley via Manchester Piccadilly, Manchester Oxford Road, Bolton, Preston, Lancaster and Carlisle.
  • 3 trains per day (tpd) – TransPennine Express – Liverpool Lime Street and Glasgow Central via St. Helen’s Central, Wigan North Western, Preston, Lancaster and Carlisle.
  • 1 tp2h – TransPennine Express – Manchester Airport and Glasgow Central via Manchester Piccadilly, Manchester Oxford Road, Bolton, Preston, Lancaster and Carlisle.

Note.

  1. I’ve not included service extensions to Aberdeen and Inverness.
  2. I’ve cut out a few smaller stations
  3. Some services call at both Edinburgh and Glasgow.
  4. Because of signalling and track improvements it is likely that London Kings Cross and Edinburgh timings will come down to four hours.

The services can be roughly summarised as follows.

  • Birmingham and Edinburgh – 0.5 tph
  • Birmingham and Glasgow – 1 tph
  • London and Edinburgh – 2 tph
  • London and Glasgow – 1.5 tph
  • Leeds and Edinburgh – 1.5 tph
  • Leeds and Glasgow – 0.5 tph
  • Liverpool and Edinburgh – 1 tph
  • Liverpool and Glasgow – 3 tpd
  • Manchester and Edinburgh – 1.5 tph
  • Manchester and Glasgow – 0.5 tph
  • Manchester Airport and Edinburgh – 0.5 tph
  • Manchester Airport and Glasgow – 0.5 tph

Note.

  1. I have ignored the five tpd London Kings Cross and Edinburgh service, that starts next year, which will be run by East Coast Trains.
  2. 0.5 tph is equivalent to one tp2h.

It looks a fairly well-balanced and comprehensive service.

High Speed Two Anglo-Scottish Services

According to a table in the June 2020 Edition of Modern Railways, these High Speed Two services will run between England and Edinburgh Waverley and Glasgow Central.

  • 1 tph – London Euston and Edinburgh Waverley via Old Oak Common, Preston, Carlisle and Edinburgh Haymarket
  • 1 tph – London Euston and Edinburgh Waverley via Old Oak Common, Birmingham Interchange, Preston, Carlisle and Edinburgh Haymarket
  • 1 tph – London Euston and Glasgow Central via Old Oak Common, Preston and Carlisle
  • 1 tph – London Euston and Glasgow Central via Old Oak Common, Birmingham Interchange, Preston and Carlisle
  • 1 tp2h – Birmingham Curzon Street and Edinburgh Waverley via Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Oxenholme or Penrith, Carlisle and Edinburgh Haymarket.
  • 1 tp2h – Birmingham Curzon Street and Glasgow Central via Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Oxenholme or Penrith, Carlisle, Lockerbie and Motherwell.

Note.

  1. All trains will be High Speed Two’s 200 metre long Classic-Compatible trains.
  2. The four one tph services will run as two pairs of trains and split and join at Carlisle.

The services can be roughly summarised as follows.

  • Birmingham and Edinburgh – 1.5 tph
  • Birmingham and Glasgow – 1.5 tph
  • London and Edinburgh – 2 tph
  • London and Glasgow – 2 tph

Note.

  1. Passengers between Liverpool or Manchester and Scotland will have to change at Preston.
  2. There is no connection between the Eastern Leg of High Speed Two and Edinburgh.
  3. London and Edinburgh Waverley will take three hours and forty minutes, which saves twenty minutes on the likely four hours on the East Coast Main Line.
  4. London and Glasgow Central will take three hours and forty minutes, which saves fifty minutes on the current time.

High Speed Two certainly provides good services between London, Birmingham and Scotland, but it leaves out travelling between the cities of the North and North of the Border.

High Speed Two Classic-Conventional Trains

In Thoughts On Class 807 Trains And High Speed Two’s Classic-Compatible Trains, I discussed a design of Classic-Compatible High Speed Two train based on the recently-ordered Class 807 trains for Avanti West Coast.

Except for the required speeds, the specifications of the  trains are similar and this was my conclusion.

I wouldn’t be surprised that Hitachi’s offering for more trains on the West Coast Main Line and the Classic-Compatible trains for High Speed Two are very similar to the Class 807 trains.

    • The Classic-Compatible trains for High Speed Two could be eight-car trains with twenty-five metre cars.
    • The replacements for the eleven-car Class 390 trains could be nine-car trains with twenty-six metre cars.

Both would be based on the Class 807 train.

A common design would surely ease operation of the combined West Coast Partnership.

TransPennine Express Between Liverpool Lime Street And Edinburgh

Will this TransPennine Express service still be the primary connection between the North of England and Edinburgh?

  • It has a frequency of one tph.
  • It takes about four hours and fifty minutes.
  • It connects Liverpool, Manchester, Huddersfield, Leeds, York, Darlington, Durham and Newcastle to the Scottish capital.
  • According to Real Time Trains, it runs as far as York on diesel and then using the electrification.

Current plans envisage Northern Powerhouse Rail will create an electrified route across the Pennines.

This report on the Transport for the North web site, is entitled At A Glance – Northern Powerhouse Rail.

It gives these times and frequencies for the various legs of the route.

  • Liverpool and Manchester via Manchester Airport – 26 minutes – 6 tph
  • Manchester and Leeds – 25 minutes – 6 tph
  • Leeds and Newcastle – 58 minutes – 4 tph
  • Newcastle and Edinburgh – 90 minutes

This totals to three hours and nineteen minutes.

Note.

  1. The Newcastle and Edinburgh time is that currently achievable today by Class 801 trains.
  2. Liverpool and Manchester city centres have a six tph high speed service via Manchester Airport.
  3. Manchester and Edinburgh will be under three hours.
  4. Leeds and Edinburgh will be under two-and-a-half hours.
  5. The Manchester and Manchester Airport leg could be shared with High Speed Two.

Most of this will be achievable with the current TransPennine Express Class 802 trains, which are capable of 140 mph.

In addition, I think that it is likely that the East Coast Main Line will be upgraded between York and Newcastle  for High Speed Two.

Liverpool Lime Street and Edinburgh will unlikely be to High Speed Two standards, but it could match the standards of the East Coast Main Line.

Improvements To The East Coast Main Line Between Newcastle and Edinburgh

Consider

  • There have been reports that the power supply on the route is not very robust and Class 800 and Class 802 trains have to use diesel power.
  • The route is fairly straight and could probably be partially-upgraded for 140 mph running with appropriate signalling.
  • The route carries about five tph in both directions. Modern digital signalling could probably double this frequency.
  • The Scottish Government has suggested adding new stations at East Linton and Reston.
  • Edinburgh and Newcastle are 124.5 miles apart and trains typically take ninety minutes.

In addition, High Speed Two might like to extend some or all of their three Newcastle services to Edinburgh.

  • 1 tph – Birmingham Curzon Street and Newcastle via East Midlands Hub, York, Darlington and Durham
  • 1 tph – London Euston and Newcastle via Old Oak Common and York
  • 1 tph – London Euston and Newcastle via Old Oak Common, York and Darlington.

High Speed Two will run between London Euston and Newcastle in two hours and seventeen minutes.

I think it could be possible, that an upgraded Newcastle and Edinburgh route could be covered in seventy minutes by either one of High Speed Two’s Classic Compatible trains or a Class 80x train.

This could mean these timings.

  • Under four hours for classic services between London Kings Cross and Edinburgh.
  • Around three hours for classic services between Liverpool and Edinburgh.
  • Under three-and-a-half hours for High Speed Two services between London Euston and Edinburgh.

This shows the importance of improving the East Coast Main Line to the North of Newcastle.

Improvements To The West Coast Main Line Between Carlisle and Glasgow/Edinburgh

If the frequency and speed of trains on the East Coast Main Line can be increased, what can be done on the West Coast Main Line?

Consider.

  • High Speed Two are showing Carlisle and Glasgow Central as a one hour and nineteen minute journey. Avanti West Coast do the journey in one hour and eleven minutes.
  • High Speed Two are showing Carlisle and Edinburgh as a one hour and eleven minute journey. Avanti West Coast do the journey in one hour and fifteen minutes.
  • Could the route be fully upgraded for 140 mph running with appropriate signalling?
  • In a typical hour, there are two Avanti West Coast trains and one TransPennine Express passing along all or part of the West Coast Main Line North of Carlisle.
  • The route carries a total of about four tph in both directions. Modern digital signalling could probably increase this frequency.
  • Hitachi and Avanti West Coast seem to be saying that their new Class 807 trains have similar performance to the Class 390 trains, but without using tilting technology.

There doesn’t appear to be the scope for such dramatic improvement in the West, as in the East, but I can still see a succession of 140 mph trains running between Carlisle and Glasgow or Edinburgh in no more than an hour and eleven minutes.

These passenger services could be running North of Carlisle, when High Speed Two is fully open.

  • 2 tph – High Speed Two – London Euston and Edinburgh – High Speed Two Classic-Compatible train
  • 2 tph – High Speed Two – London Euston and Glasgow Central – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Birmingham Curzon Street and Edinburgh – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Birmingham Curzon Street and Glasgow Central – High Speed Two Classic-Compatible train
  • 0.5 tph – TransPennine Express – Manchester Airport and Edinburgh – Class 397 train
  • 0.5 tph – TransPennine Express – Manchester Airport and Glasgow Central – Class 397 train
  • 3 tpd – TransPennine Express – Liverpool and Glasgow Central – Class 397 train

Note.

  1. I am assuming that Avanti West Coast’s services will be replaced by the High Speed Two services.
  2. As the TransPennine Express services share a path, it would appear that six tph will be running between Carlisle and Edinburgh or Glasgow.

There would appear to be space for more trains on the West Coast Main Line, to the North of Carlisle.

A Few Random Thoughts

These are a few random thoughts and ideas.

Avanti West Coast And High Speed Two Classic-Compatible Trains

Avanti West Coast will have these fleets of high-speed trains.

  • 11-car Class 390 electric trains, which are 265.3 metres long
  • 9-car Class 390 electric trains, which are 217.5 metres long.
  • 7-car Class 807 electric trains, which will be 182 metres long
  • 5-car Class 805 bi-mode trains, which will be 130 metres long
  • High Speed Two Classic-Compatible trains, which will be 200 metres long
  • Full-size High Speed Two trains, which will be 400 metres long.

It would appear that there could be some fleet simplification.

All Passenger Trains Between Newcastle Or Carlisle and Glasgow Central Or Edinburgh Should Be Capable Of Operating At 140 mph

Both the East and West Coast Main Lines between Carlisle and Newcastle in England and Edinburgh and Glasgow in Scotland are not far off being capable of running trains at 140 mph. Modern digital in-cab signalling and some track works will be needed.

Once 140 mph running is achieved, then all trains will need to be capable of making use of the speed, to maximise the capacity of the routes.

Freight Trains Between Newcastle Or Carlisle and Glasgow Central Or Edinburgh Should Be Capable Of Operating As Fast As Possible

Freight trains will need to be hauled by electric locomotives, at as high a speed as possible, to avoid slowing the express passenger trains.

More well-positioned freight loops may be needed.

Will TransPennine’s Manchester And Scotland Service Transfer To High Speed Two?

I think, that this is highly likely.

  • The service would be run by High Speed Two Classic-Compatible trains.
  • Depending on track layout, the Liverpool and Scotland service on the West Coast Main Line could be upgraded to the High Speed Two Classic-Compatible trains or discontinued.

This would mean, that  all passenger trains on the West Coast Main Line North of Lancaster would be High Speed Two Classic-Compatible trains.

  • 2 tph – High Speed Two – London Euston and Edinburgh – High Speed Two Classic-Compatible train
  • 2 tph – High Speed Two – London Euston and Glasgow Central – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Birmingham Curzon Street and Edinburgh – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Birmingham Curzon Street and Glasgow Central – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Manchester Airport and Edinburgh – High Speed Two Classic-Compatible train
  • 0.5 tph – High Speed Two – Manchester Airport and Glasgow Central – High Speed Two Classic-Compatible train
  • 3 tpd – High Speed Two – Liverpool and Glasgow Central – High Speed Two Classic-Compatible train

This must mean that if the operating speed on the West Coast Main Line were to be increased, all passenger services could take advantage, which would surely improve timings.

What About CrossCountry?

CrossCountry run a single hourly service between Plymouth and Edinburgh.

  • The route goes via Bristol Temple Meads, Birmingham New Street, Derby, Chesterfield, Sheffield, Wakefield Westgate, Leeds, York, Newcastle.
  • Some services are extended to Glasgow Central and Aberdeen.

Currently, this service is run by a diesel train, which surely will need to be replaced with a zero-carbon train.

Consider.

  • Scotland is keen to electrify or allow electric trains to run between Edinburgh and Aberdeen.
  • High Speed Two will provide an electrified route between Birmingham and York via East Midlands Hub for Derby, Chesterfield, Sheffield and Leeds.
  • The likes of Hitachi and Adrian Shooter of Vivarail are very bullish about battery electric trains.
  • Great Western Railway, Hitachi and Network Rail have probably hired Baldrick for a cunning plan to run battery electric trains between Bristol and Penzance.

Could it be possible for Hitachi or another manufacturer to design a High Speed Two Classic-Compatible train, with a battery capability?

A train with this specification, could be ideal for the Plymouth and Edinburgh service.

It might also be useful for these CrossCountry services.

  • Southampton and Newcastle
  • Bournemouth and Manchester Piccadilly
  • Exeter St. Davids/Bristol and Manchester Piccadilly
  • Cardiff Central and Nottingham
  • Birmingham and Nottingham
  • Birmingham and Stansted Airport

Note.

  1. All could run on High Speed Two fpr part of the route.
  2. Birmingham and Nottingham has already been proposed for running using High Speed Two Classic-Compatible train, by Midlands Engine Rail, as I wrote about in Classic-Compatible High Speed Two Trains At East Midlands Hub Station.
  3. I proposed a Birmingham and Cambridge service using High Speed Two Classic-Compatible trains in A Trip To Grantham Station – 4th November 2020.

High Speed Two could have a big positive effect on CrossCountry services.

Future Anglo-Scottish Services After High Speed Two Opens Fully

It is possible, that when High Speed Two fully opens, these services will run between England and Edinburgh Waverley and Glasgow Central stations.

  • 1 tp2h – CrossCountry – South-West England and Edinburgh Waverley via Bristol Temple Meads, Birmingham New Street, Derby, Chesterfield, Sheffield, Wakefield Westgate, Leeds, York and Newcastle.
  • 1 tp2h – CrossCountry – South-West England and Glasgow Central via Bristol Temple Meads, Birmingham New Street, Derby, Chesterfield, Sheffield, Wakefield Westgate, Leeds, York, Newcastle and Edinburgh Waverley.
  • 1 tph – LNER – London Kings Cross and Edinburgh Waverley via York, Darlington, Newcastle and Berwick-upon-Tweed
  • 1 tph – LNER – London Kings Cross and Edinburgh Waverley via Peterborough, Newark North Gate, Doncaster, York, Northallerton, Darlington, Durham and Newcastle
  • 1 tph – High Speed Two – London Euston and Edinburgh Waverley via Old Oak Common, Preston, Carlisle and Edinburgh Haymarket
  • 1 tph – High Speed Two – London Euston and Edinburgh Waverley via Old Oak Common, Birmingham Interchange, Preston, Carlisle and Edinburgh Haymarket
  • 1 tph – High Speed Two – London Euston and Glasgow Central via Old Oak Common, Preston and Carlisle
  • 1 tph – High Speed Two – London Euston and Glasgow Central via Old Oak Common, Birmingham Interchange, Preston and Carlisle
  • 1 tp2h – High Speed Two – Birmingham Curzon Street and Edinburgh Waverley via Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Oxenholme or Penrith, Carlisle and Edinburgh Haymarket.
  • 1 tp2h – High Speed Two – Birmingham Curzon Street and Glasgow Central via Warrington Bank Quay, Wigan North Western, Preston, Lancaster, Oxenholme or Penrith, Carlisle, Lockerbie and Motherwell.
  • 1 tph – TransPennine Express – Liverpool Lime Street and Edinburgh Waverley via Newton-le-Willows, Manchester Victoria, Huddersfield, Leeds, York, Darlington, Durham, Newcastle and Morpeth
  • 1 tp2h – High Speed Two – Manchester Airport and Edinburgh Waverley via Manchester Piccadilly, Manchester Oxford Road, Bolton, Preston, Lancaster and Carlisle.
  • 3 trains per day (tpd) – High Speed Two – Liverpool Lime Street and Glasgow Central via St. Helen’s Central, Wigan North Western, Preston, Lancaster and Carlisle.
  • 1 tp2h – High Speed Two – Manchester Airport and Glasgow Central via Manchester Piccadilly, Manchester Oxford Road, Bolton, Preston, Lancaster and Carlisle.

Note.

  1. I have assumed that the Liverpool/Manchester services to Scotland via the West Coast Main Line have transferred to High Speed Two.
  2. All trains would be run by High Speed Two Classic-Compatible trains.

The services can be roughly summarised as follows.

  • Birmingham and Edinburgh – 1.5 tph (0.5 tph)
  • Birmingham and Glasgow – 1.5 tph (1 tph)
  • London and Edinburgh – 4 tph (2 tph)
  • London and Glasgow – 2 tph (1.5 tph)
  • Leeds and Edinburgh – 1.5 tph (1.5 tph)
  • Leeds and Glasgow – 0.5 tph (0.5 tph)
  • Liverpool and Edinburgh – 1 tph (1 tph)
  • Liverpool and Glasgow – 3 tpd (3 tpd)
  • Manchester and Edinburgh – 1.5 tph (1.5 tph)
  • Manchester and Glasgow – 0.5 tph (0.5 tph)
  • Manchester Airport and Edinburgh – 0.5 tph (0.5 tph)
  • Manchester Airport and Glasgow – 0.5 tph (0.5 tph)

Note.

  1. My estimates for the number of trains in the future, are probably best described as minimum figures.
  2. The figures in brackets are the current frequencies.
  3. Currently, there are eleven express trains between England and Scotland and after High Speed Two is fully open there could be at least fifteen express trains.

I have a few final thoughts.

Capacity Between England And Scotland

Capacity of the current and future Anglo-Scottish trains is as follows.

  • High Speed Two Classic-Compatible train – 500-600
  • Eleven-car Class 390 train – 589
  • Nine-car Class 800 train – 611

It appears that the all the longer trains have roughly the same capacity.

As there are now eleven Anglo-Scottish long trains and these will be increased to fifteen, that indicates an minimum 36 % increase in capacity.



Will High Speed Two And Northern Powerhouse Rail Share A Route Across The Pennines?

Northern Powerhouse Rail have talked about extending High Speed Two services from Manchester to Huddersfield, Leeds, Hull, York and Newcastle.

I wrote about this in Changes Signalled For HS2 Route In North.

I like this plan for the following reasons.

It gives more places like Huddersfield and Hull access to High Speed Two.

It increases frequencies across the North.

But most importantly, as infrastructure is shared, it saves a lot of money.

It also opens up possibilities for services.

  • The Liverpool and Edinburgh service could be run on the High Speed Two route across the Pennines and up the East Coast Main Line.
  • London and Manchester services could be extends to Leeds, York, Newcastle and Scotland.

If Northern Powerhouse Rail were to be cleared for High Speed Two’s Full-Size trains, it opens up the possibility of running them further North.

Conclusion

High Speed Two will increase Anglo-Scottish capacity by more than a third.









November 13, 2020 Posted by | Transport | , , , , , , , , , , , , , | Leave a comment

How Many Trains Are Needed To Run A Full Service On High Speed Two?

The latest High Speed Two schedule was published in the June 2020 Edition of Modern Railways.

The Two Train Classes

Two separate train classes have been proposed for High Speed Two.

Full-Size – Wider and taller trains built to a European loading gauge, which would be confined to the high-speed network (including HS1 and HS2) and other lines cleared to their loading gauge.

Classic-Compatible – Conventional trains, capable of high speed but built to a British loading gauge, permitting them to leave the high speed track to join conventional routes such as the West Coast Main Line, Midland Main Line and East Coast Main Line.

The Wikipedia entry for High Speed Two has a section entitled Rolling Stock, where this is said about the design.

Both types of train would have a maximum speed of at least 360 km/h (225 mph) and a length of 200 metres (660 ft); two units could be joined together for a 400-metre (1,300 ft) train. It has been reported that these longer trains would have approximately 1,100 seats.

These are some of my thoughts.

Seating Density

I would assume that this means that a single 200 metre train, will have a capacity of approximately 550 seats or a density of 2.75 seats per metre. How does that compare with other trains?

  • 9-car Class 801 train – 234 metres – 611 seats – 2.61 seats/metre
  • 7-car Class 807 train – 182 metres – 453 seats – 2.49 seats/metre
  • 9-car Class 390 train  – 217.5 metres – 469 seats – 2.16 seats/metre
  • 11-car Class 390 train  – 265.3 metres – 589 seats – 2.22 seats/metre
  • 12-car Class 745/1 train – 236.6 metres – 767 seats – 3.24 seats/metre
  • 16-car Class 374 train – 390 metres – 902 seats – 2.31 seats/metre

What I find strange with these figures, is that I feel most crowded and cramped in a Class 390 train. Could this be because the Pendelino trains are eighteen years old and train interior design has moved on?

But I always prefer to travel in a Hitachi Class 80x train or a Stadler Class 745 train.

I very much feel that a seating density of 2.75 seats per metre, designed using some of the best modern practice, could create a train, where travelling is a very pleasant experience.

Step-Free Access

I have travelled in high speed trains all over Europe and have yet to travel in one with step-free access.

Surely, if Stadler can give their trains step-free access everybody can.

The pictures shows step-free access on Stadler Class 745 and Class 755 trains.

If I turned up pushing a friend in a wheelchair, would I be able to push them in easily? Or better still will they be able to wheel themselves in?

A Greater Anglia driver once said to me, that they never have to wait anymore for wheelchairs to be loaded.

So surely, it is in the train operator’s interest to have step-free access, if it means less train delays.

Double-Deck Trains

In my view double-deck trains only have one only good feature and that is the ability to see everything, if you have a well-designed window seat.

I may be seventy-three, but I am reasonably fit and only ever travel on trains with airline-sized hand baggage. So I don’t find any problem travelling upstairs on a double-deck bus or train!

But it could have been, so very different, if my stroke had been a bit worse and left me blind or in a wheelchair for life.

I have seen incidents on the Continent, which have been caused by double-deck trains.

  • A lady of about eighteen in trying to get down with a heavy case dropped it. Luckily it only caused the guy she was travelling with, to roll unhurt down the stairs.
  • Luggage is often a problem on Continental trains because of the step-up into the train and access is worse on double deck trains.
  • I also remember on a train at Leipzig, when several passengers helped me lift a guy and his wheelchair out of the lower deck of a double-deck train, which was lower than the platform, as they often are with double-deck trains.

I am not totally against double-deck trains, but they must be designed properly.

Consider.

  • High Speed Two’s Full-Size trains will only use London Euston, Old Oak Common, Birmingham Interchange, Birmingham Curzon Street, Manchester Airport, Manchester Piccadilly, East Midlands Hub and Leeds stations.
  • All stations used by Full-Size trains will be brand-new or substantially rebuilt stations.
  • Someone sitting in a wheelchair surely has the same right to a view from the top-deck of a double-deck train as anybody else.
  • Jumbo jets seemed to do very well without a full-length top-deck.
  • The A 380 Superjumbo has been designed so that entry and exit on both decks is possible.

I feel if High Speed Two want to run double-deck trains, an elegant solution can surely be found.

A Crude Estimate On The Number Of Trains

This is my crude estimate to find out how many trains, High Speed Two will need.

Western Leg

These are the services for the Western Leg between London , Birmingham, Liverpool, Manchester, Edinburgh and Glasgow.

  • Train 1 – London Euston and Birmingham Curzon Street – 400 metre Full-Size – 45 minutes – 2 hour Round Trip – 4 trains
  • Train 2 – London Euston and Birmingham Curzon Street – 400 metre Full-Size – 45 minutes – 2 hour Round Trip – 4 trains
  • Train 3 – London Euston and Birmingham Curzon Street – 400 metre Full-Size – 45 minutes – 2 hour Round Trip – 4 trains
  • Train 4 – London Euston and Lancaster – Classic Compatible – 2 hours 3 minutes – 5 hour Round Trip – 5 trains
  • Train 4 – London Euston and Liverpool – Classic Compatible – 1 hours 34 minutes – 4 hour Round Trip – 4 trains
  • Train 5 – London Euston and Liverpool – Classic Compatible – 1 hours 34 minutes – 4 hour Round Trip – 4 trains
  • Train 6 – London Euston and Macclesfield – Classic Compatible – 1 hours 30 minutes – 4 hour Round Trip – 4 trains
  • Train 7 – London Euston and Manchester – 400 metre Full-Size – 1 hour and 11 minutes – 3 hour Round Trip – 6 trains
  • Train 8 – London Euston and Manchester – 400 metre Full-Size – 1 hour and 11 minutes – 3 hour Round Trip – 6 trains
  • Train 9 – London Euston and Manchester – 400 metre Full-Size – 1 hour and 11 minutes – 3 hour Round Trip – 6 trains
  • Train 10 – London Euston and Edinburgh – Classic Compatible – 3 hours 48 minutes – 8 hour Round Trip – 8 trains
  • Train 10 – London Euston and Glasgow – Classic Compatible – 3 hours 40 minutes – 8 hour Round Trip – 8 trains
  • Train 11 – London Euston and Edinburgh – Classic Compatible – 3 hours 48 minutes – 8 hour Round Trip – 8 trains
  • Train 11 – London Euston and Glasgow – Classic Compatible – 3 hours 40 minutes – 8 hour Round Trip – 8 trains
  • Train 12 – Birmingham Curzon Street and Edinburgh or Glasgow – Classic Compatible – 3 hours 20 minutes – 7 hour Round Trip – 7 trains
  • Train 13 – Birmingham Curzon Street and Manchester – 200 metre Full-Size – 41 minutes – 2 hour Round Trip – 2 trains
  • Train 14 – Birmingham Curzon Street and Manchester – 200 metre Full-Size – 41 minutes – 2 hour Round Trip – 2 trains

Note.

  1. I have assumed 400 metre Full-Size trains will be a pair of 200 metre trains.
  2. I think that trains 4 and 5 work an intricate dance with appropriate splitting and joining at Crewe.
  3. The full schedule will need 34 Full-Size trains and 56 Classic-Compatible trains

According to Wikipedia, the first order will be for 54 Classic-Compatible trains, so I would assume, that more trains will be ordered.

Eastern Leg

These are the services for the Eastern Leg between London , Birmingham, East Midlands Hub, Leeds, Sheffield, York and Newcastle.

  • Train 15 – Birmingham Curzon Street and Leeds – 200 metre Full-Size – 49 minutes – 2 hour Round Trip – 2 trains
  • Train 16 – Birmingham Curzon Street and Leeds – 200 metre Full-Size – 49 minutes – 2 hour Round Trip – 2 trains
  • Train 17 – Birmingham Curzon Street and Newcastle – Classic Compatible – 1 hour 57 minutes – 5 hour Round Trip – 5 trains
  • Train 18 – London Euston and Sheffield – Classic Compatible – 1 hour 27 minutes – 4 hour Round Trip – 4 trains
  • Train 18 – London Euston and Leeds – Classic Compatible – 1 hour 21 minutes – 3 hour Round Trip – 3 trains
  • Train 19 – London Euston and Leeds – 400 metre Full-Size – 1 hour and 21 minutes – 3 hour Round Trip – 6 trains
  • Train 20 – London Euston and Leeds – 400 metre Full-Size – 1 hour and 21 minutes – 3 hour Round Trip – 6 trains
  • Train 21 – London Euston and Sheffield – Classic Compatible – 1 hour 27 minutes – 4 hour Round Trip – 4 trains
  • Train 21 – London Euston and York – Classic Compatible – 1 hour 24 minutes – 3 hour Round Trip – 3 trains
  • Train 22 – London Euston and Newcastle – Classic Compatible – 2 hour 17 minutes – 5 hour Round Trip – 5 trains
  • Train 23 – London Euston and Newcastle – Classic Compatible – 2 hour 17 minutes – 5 hour Round Trip – 5 trains

Note.

  1. I have assumed 400 metre Full-Size trains will be a pair of 200 metre trains.
  2. Trains 15 and 16 work as a pair
  3. I think that trains 18 and 21 work an intricate dance with appropriate splitting and joining at East Midlands Hub.
  4. The full schedule will need 16 Full-Size trains and 29 Classic-Compatible trains

Adding the two legs together and I estimate that 50 Full-Size trains and 85 Classic-Compatible trains, will be needed to run a full schedule.

Trains Per Hour On Each Section

It is possible to make a table of how many trains run on each section of the High Speed Two network in trains per hour (tph)

  • London Euston (stops) – 1-11, 18-23 – 17 tph
  • London Euston and Old Oak Common – 1-11, 18-23 – 17 tph
  • Old Oak Common (stops) – 1-11, 18-23 – 17 tph
  • Old Oak Common and Birmingham Interchange – 1-11, 18-23 – 17 tph
  • Birmingham Interchange (stops) – 2, 3, 7, 11, 20 – 5 tph
  • Birmingham Curzon Street (stops) – 1-3, 12-14, 15-17 – 9 tph
  • Birmingham and Crewe – 4,5, 7-9, 10-14 – 10 tph
  • Crewe (stops) – 4,5 – 2 tph
  • Crewe and Liverpool – 4,5 – 2 tph
  • Crewe and Lancaster – 4, 10-12 – 4 tph
  • Crewe and Manchester – 7-9, 13, 14 – 5 tph
  • Crewe and Wigan via Warrington – 4 – 1 tph
  • Crewe and Wigan via High Speed Two (new route) – 10-12 – 3 tph
  • Lancaster (stops) 4 – 1 tph
  • Lancaster and Carlisle  – 10-12 – 3 tph
  • Carlisle and Edinburgh – 10-12 – 2.5 tph
  • Carlisle and Glasgow – 10-12 – 2.5 tph
  • Birmingham and Stoke – 6 – 1 tph
  • Stoke (stops) – 6 – 1 tph
  • Stoke and Macclesfield – 6 – 1 tph
  • Macclesfield (stops) – 6 – 1 tph
  • Birmingham and East Midlands Hub – 15-17, 18-20, 21-23 – 9 tph
  • East Midlands Hub (stops) – 15-17, 18-20, 21 – 7 tph
  • East Midlands Hub and Sheffield – 18, 21 – 2 tph
  • Sheffield (stops) – 18, 21 – 2 tph
  • Midlands Hub and Leeds – 15, 16, 18-20 – 5 tph
  • Leeds (stops) – 15, 16, 18-20 – 5 tph
  • East Midlands Hub and York – 17, 21-23 – 4 tph
  • York (stops) – 17, 21-23 – 4 tph
  • York and Newcastle – 17, 22, 23 – 3 tph
  • Newcastle (stops) – 17, 22, 23 – 3 tph

These are a few thoughts.

Capacity Of The Southern Leg

The busiest section is between London Euston and Birmingham Interchange, which handles 17 tph.

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives a path for recovery, according to the article.

Trains Serving Euston

The following train types serve London Euston station.

  • Full-Size – 8 tph
  • 400 metre Classic-Compatible – 5 tph
  • 200 metre Classic-Compatible – 4 tph

As a 200 metre long train needs the same track and platform resources as a 400 metre long train, by splitting and joining, it would appear that extra destinations could be served.

Platform Use At Euston

This page on the High Speed Two web site, gives details of Euston High Speed Two station.

HS2 will deliver eleven new 400m long platforms, a new concourse and improved connections to Euston and Euston Square Underground stations. Our design teams are also looking at the opportunity to create a new northerly entrance facing Camden Town as well as new east-west links across the whole station site.

So how will the eleven platforms be used?

Destinations served from London are planned to be as follows.

  • Birmingham Curzon Street – Full-Size – 3 tph
  • Edinburgh/Glasgow – Classic-Compatible – 2 tph
  • Lancaster – Classic-Compatible – 1 tph
  • Leeds – Full-Size – 2 tph – Classic-Compatible – 1 tph

Liverpool – Classic-Compatible – 2 tph

  • Macclesfield – Classic-Compatible – 1 tph
  • Manchester Piccadilly – Full-Size – 3 tph
  • Newcastle – Classic-Compatible – 2 tph
  • Sheffield – Classic-Compatible – 2 tph
  • York – Classic-Compatible – 1 tph

That is ten destinations and there will be eleven platforms.

I like it! Lack of resources is often the reason systems don’t work well and there are certainly enough platforms.

Could platforms be allocated something like this?

  • Birmingham Curzon Street – Full-Size
  • Edinburgh/Glasgow – Classic-Compatible
  • Leeds – Full-Size
  • Liverpool – Classic-Compatible – Also serves Lancaster
  • Macclesfield – Classic-Compatible
  • Manchester Piccadilly – Full-Size
  • Newcastle – Classic-Compatible
  • Sheffield – Classic-Compatible – Also serves Leeds and York

Note.

  1. No  platform handles more than three tph.
  2. There are three spare platforms.
  3. Each platform would only be normally used by one train type.
  4. Only Birmingham Interchange, East Midlands Hub, Leeds, Preston and York are not always served from the same platform.

Platform arrangements could be very passenger- and operator-friendly.

Platform Use At Birmingham Curzon Street

Birmingham Curzon Street station has been designed to have seven platforms.

Destinations served from Birmingham Curzon Street station are planned to be as follows.

  • Edinburgh/Glasgow – Classic-Compatible – 1 tph
  • Leeds – Full-Size – 2 tph
  • London Euston – Full-Size – 3 tph
  • Manchester Piccadilly – Full-Size – 2 tph
  • Newcastle – Classic-Compatible – 1 tph
  • Nottingham – Classic-Compatible – 1 tph

Note.

  1. The Nottingham service has been proposed by Midlands Engine Rail, but will be running High Speed Two Classic Compatible trains.
  2. That is six destinations and there will be seven platforms.

I like it! For the same reason as London Euston.

Could platforms be allocated something like this?

  • Edinburgh/Glasgow – Classic-Compatible
  • Leeds – Full-Size
  • London Euston – Full-Size
  • Manchester Piccadilly – Full-Size
  • Newcastle/Nottingham – Classic-Compatible

Note.

  1. No  platform handles more than three tph.
  2. There are two spare platforms.
  3. Each platform would only be normally used by one train type.
  4. Only East Midlands Hub is not always served from the same platform.

Platform arrangements could be very passenger- and operator-friendly.

Back-to-Back Services via Birmingham Curzon Street

The current plan for High Speed Two envisages the following services between the main terminals served by Full-Size trains.

  • London Euston and Birmingham Curzon Street – 3 tph – 45 minutes
  • London Euston and Leeds – 2 tph – 81 minutes
  • London Euston and Manchester Piccadilly – 3 tph – 71 minutes
  • Birmingham Curzon Street and Leeds – 2 tph – 40 minutes
  • Birmingham Curzon Street and Manchester Piccadilly – 2 tph – 41 minutes

Suppose a traveller wanted to go between East Midlands Hub and Manchester Airport stations.

Wouldn’t it be convenient if the Leeds to Birmingham Curzon Street train, stopped in Birmingham Curzon Street alongside the train to Manchester Airport and Piccadilly, so passengers could just walk across?

Or the two services could be run Back-to-Back with a reverse in Birmingham Curzon Street station?

Note.

  1. The current fastest times between Nottingham and Manchester Airport stations are around two-and-a-half hours, with two changes.
  2. With High Speed Two, it looks like the time could be under the hour, even allowing up to eight minutes for the change at Birmingham Curzon Street.

The design of the track and stations for High Speed Two, has some interesting features that will be exploited by the train operator, to provide better services.

Capacity Of The Western Leg Between Birmingham And Crewe

The section is between Birmingham and Crewe, will be running 10 tph.

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.

But where will they come from?

High Speed One copes well with a few interlopers in the shape of Southeastern’s Class 395 trains, which run at 140 mph, between the Eurostars.

High Speed Two is faster, but what is to stop an operator running their own Classic-Compatible trains on the following routes.

  • Birmingham Curzon Street and Liverpool via Crewe, Runcorn and Liverpool South Parkway.
  • Birmingham Curzon Street and Holyhead via Crewe, Chester and an electrified North Wales Coast Line.
  • Birmingham Curzon Street and Blackpool via Crewe, Warrington Bank Quay, Wigan North Western and Preston.
  • Birmingham Curzon Street and Blackburn and Burnley via Crewe, Warrington Bank Quay, Wigan North Western and Preston.

Note.

  1. If these trains were say 130 metres long, they could call at all stations, without any platform lengthening.
  2. I’m sure that the clever engineers at Hitachi and Hyperdrive Innovation could come up with battery electric Classic-Compatible train, that could run at 225 mph on High Speed Two and had a battery range to reach Holyhead, with a small amount of electrification.
  3. A pair of trains, could work the last two services with a Split/Join at Preston.

The advantages of terminating these service in Birmingham Curzon Street would be as follows.

  • A lot more places get a fast connection to the High Speed Two network.
  • Passengers can reach London with an easy change at Birmingham Curzon Street station.
  • They can also walk easily between the three Birmingham stations.

But the big advantage is the trains don’t use valuable paths on High Speed Two between Birmingham Curzon Street and London Euston.

Crewe Station

In the current Avanti West Coast timetable, the following trains pass through Crewe.

  • London Euston and Blackpool – 4 trains per day (tpd)
  • London Euston and Chester – 1 tph
  • London Euston and Edinburgh/Glasgow – 2 tph
  • London Euston and Liverpool – 1 tph
  • London Euston and Manchester Piccadilly – 1 tph

Most trains stop at Crewe.

In the proposed High Speed Two timetable, the following trains will pass through Crewe.

  • London Euston and Edinburgh/Glasgow – 2 tph
  • London Euston and Lancaster/Liverpool – 2 tph
  • London Euston and Manchester – 3 tph
  • Birmingham Curzon Street and Edinburgh/Glasgow  -1 tph
  • Birmingham Curzon Street and Manchester – 2 tph

Note.

  1. Only the Lancaster and Liverpool trains stop at Crewe station.
  2. North of Crewe there will be a three-way split of High Speed Two routes to Liverpool, Wigan and the North and Manchester Airport and Piccadilly.
  3. High Speed Two will loop to the East and then join the West Coast Main Line to the South of Wigan.
  4. High Speed Two trains will use the West Coast Main Line to the North of Wigan North Western station.

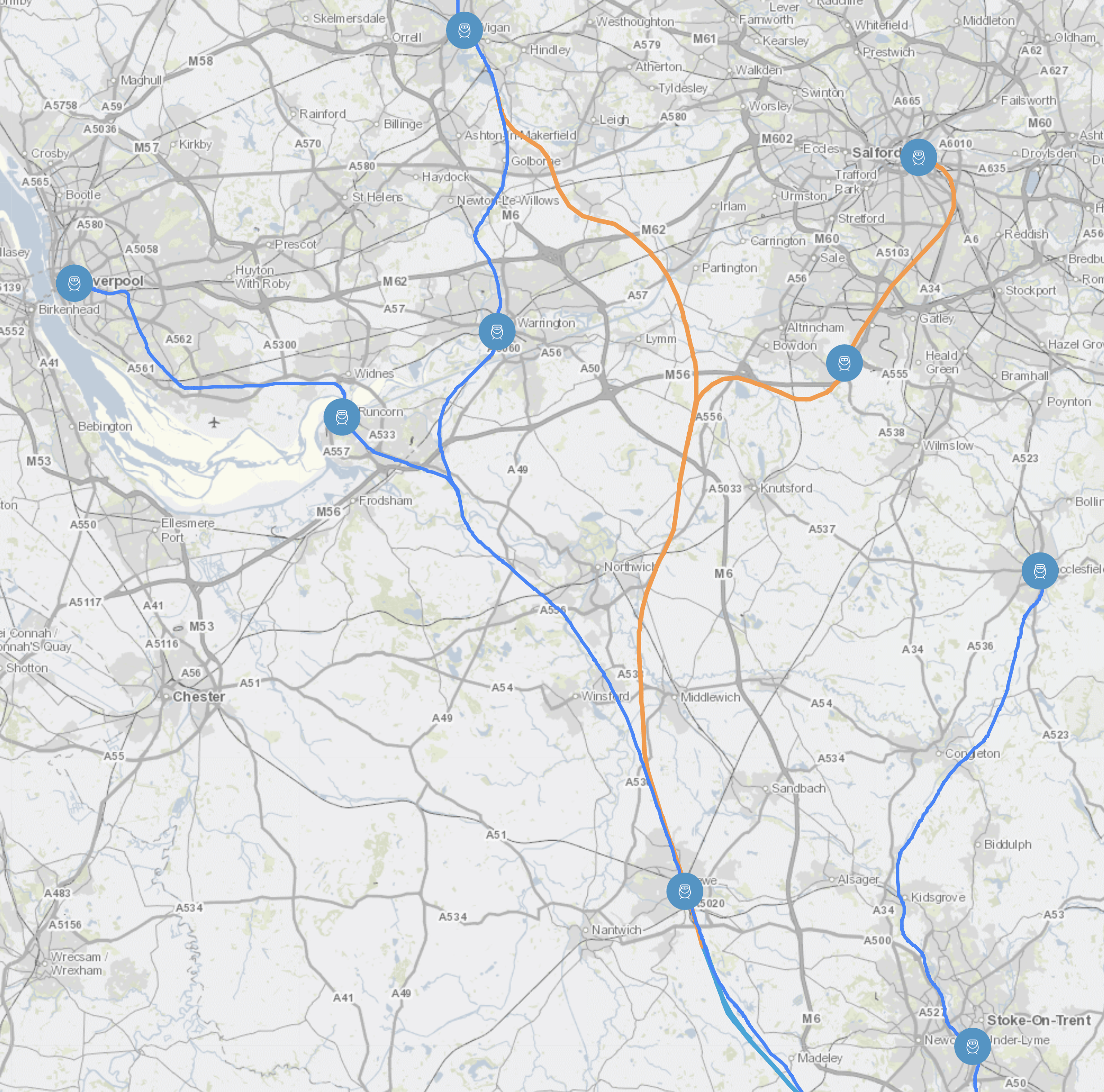

This map of High Speed Two in North West England was captured from the interactive map on the High Speed Two web site.





Note.

  1. The current West Coast Main Line (WCML) and Phase 2a of High Speed Two are shown in blue.
  2. Phase 2b of High Speed Two is shown in orange.
  3. The main North-South route, which is shown in blue, is the WCML passing through Crewe, Warrington Bank Quay and Wigan North Western as it goes North.
  4. The Western Branch, which is shown in blue, is the Liverpool Branch of the WCML, which serves Runcorn and Liverpool.
  5. High Speed Two, which is shown in orange, takes a faster route between Crewe and Wigan North Western.
  6. The Eastern Branch, which is shown in orange, is the Manchester Branch of High Speed Two, which serves Manchester Airport and Manchester Piccadilly.
  7. The route in the East, which is shown in blue, is the Macclesfield Branch of High Speed Two, which serves Stafford, Stoke-on-Trent and Macclesfield.

The route of Northern Powerhouse Rail between Manchester Airport and Liverpool has still to be finalised.

Liverpool Branch

Consider.

  • The Liverpool Branch will take  two tph between London Euston and Liverpool.
  • In the future it could take up to 6 tph on Northern Powerhouse Rail between Liverpool and Manchester Piccadilly via Manchester Airport.

I believe that Liverpool Lime Street station, after the recent updating can handle all these trains.

Manchester Branch

This document on the Government web site is entitled HS2 Phase 2b Western Leg Design Refinement Consultation.

It indicates two important recently-made changes to the design of the Manchester Branch of High Speed Two.

  • Manchester Airport station will have four High Speed platforms instead of two.
  • Manchester Piccadilly station will have six High Speed platforms instead of four.

These changes will help the use of these stations by Northern Powerhouse Rail..

Consider.

  • The Manchester Branch will be new high speed track, which will probably be built in a tunnel serving Manchester Airport and Manchester Piccadilly stations.
  • The Manchester Branch will terminate in new platforms.
  • The Manchester Branch will take  five tph between Birmingham Curzon Street or London Euston and Manchester Airport and Manchester Piccadilly.
  • In the future it could take up to six tph on Northern Powerhouse Rail between Liverpool and Manchester Piccadilly via Manchester Airport.
  • London Euston and Old Oak Common will be new stations on a tunnelled approach to London and will handle 18 tph.

If London Euston and Old Oak Common can handle 18 tph, I can’t see why Manchester Airport and Piccadilly stations can’t handle somewhere near a similar number of trains.

At the moment eleven tph have been allocated to the Manchester Branch.

I believe that if infrastructure for Northern Powerhouse Rail was designed so that as well as connecting to Manchester and Liverpool, it connected Manchester and the West Coast Main Line running North to Preston, Carlisle and Scotland, services to the following destinations would be possible.

  • Barrow
  • Blackburn
  • Blackpool
  • Edinburgh
  • Glasgow
  • Windermere

Note.

  1. Edinburgh and Glasgow would probably be a service that would alternate the destination, as it is proposed for High Speed Two’s Birmingham and Scotland service.
  2. There would probably be a need for a North Wales and Manchester service via Chester.
  3. All trains would be Classic-Compatible.

If the Manchester Branch were to be built to handle 18 tph, there would be more than enough capacity.

Crewe, Wigan And Manchester

My summing up earlier gave the number of trains between Crewe, Wigan and Manchester as follows.

  • Crewe and Manchester – 5 tph
  • Crewe and Wigan via Warrington  – 1 tph
  • Crewe and Wigan via High Speed Two (new route) – 3 tph

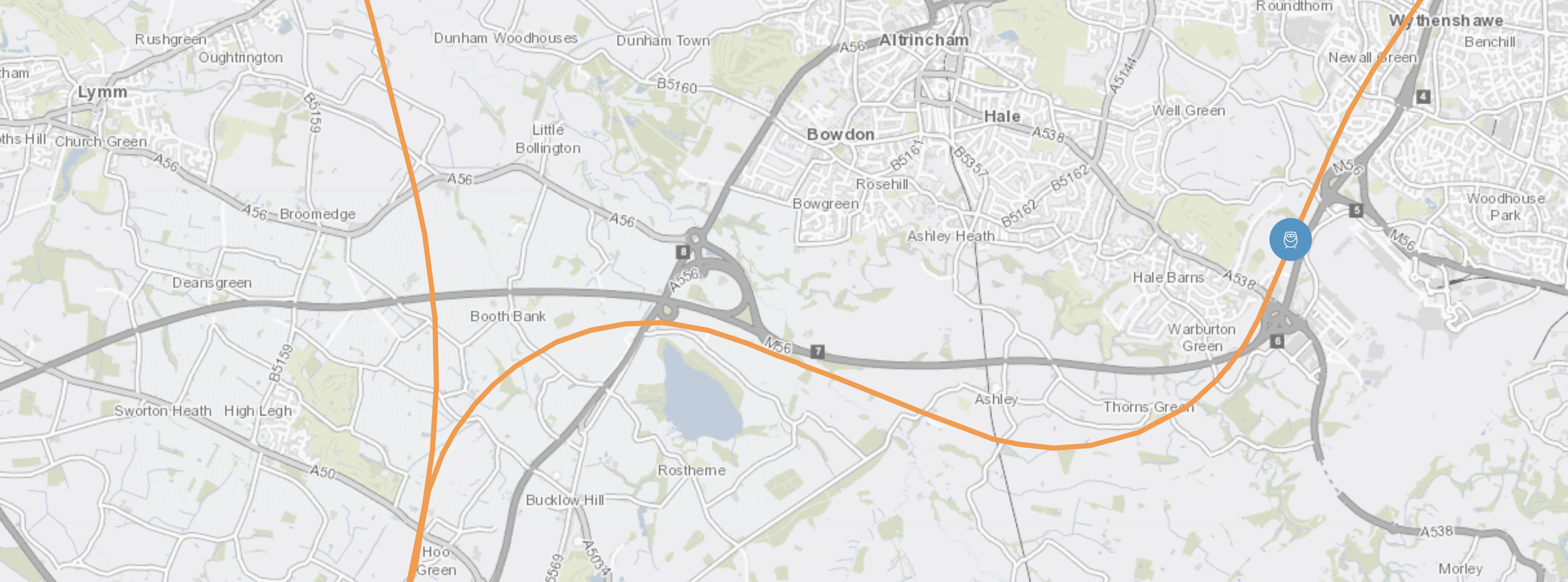

This map of High Speed Two where the Manchester Branch leaves the new High Speed Two route between Crewe and Wigan was captured from the interactive map on the High Speed Two web site.

Note.

  1. The Manchester Branch runs to the South of the M56,
  2. The large blue dot indicates Manchester Airport station.
  3. Wigan is to the North.
  4. Crewe is to the South.
  5. Manchester Piccadilly is to the North East.

I believe this junction will be turned into a full triangular junction, to connect Wigan directly to Manchester Airport and Manchester Piccadilly.

  • Barrow, Blackburn, Blackpool, Preston and Windermere could all have high speed connections to Manchester Airport and Manchester Piccadilly. Trains could be shorter Classic-Compatible trains.
  • A Manchester and Scotland service would take the same route.

Another pair of tracks could leave the junction to the West to create a direct route between Manchester Airport and Liverpool for Northern Powerhouse Rail, by sneaking along the  M56.

Suppose extra services were as follows.

  • Manchester and Barrow – 1 tph
  • Manchester and Blackburn – 1 tph
  • Manchester and Blackpool – 1 tph
  • Manchester and Liverpool – 6 tph
  • Manchester and Scotland – 1 tph
  • Manchester and Windermere – 1 tph

The frequencies from the junction would be as follows.

  • To and from Crewe – High Speed Two (Manchester) – 5 tph – High Speed Two (North) – 3 tph = 8 tph
  • To and from Liverpool – Northern Powerhouse Rail – 6 tph = 6 tph
  • To and from Manchester – High Speed Two – 5 tph – Northern Powerhouse Rail – 6 tph – Local – 4 tph – Scotland – 1 tph = 16 tph
  • To and from Wigan – High Speed Two – 3 tph – Local – 4 tph – Scotland – 1 tph = 8 tph.

Only the Manchester Branch would be working hard.

The Liverpool Connection

I indicated that another pair of tracks would need to extend the Manchester Branch towards Liverpool in the West for Northern Powerhouse Rail.

  • Would these tracks have a station at Warrington?
  • Would there be a connection to allow services between Liverpool and the North and Scotland?

It might even be possible to design a Liverpool connection, that avoided using the current Liverpool Branch and increased the capacity and efficiency of all trains to Liverpool.

Capacity Of The Western Leg Between Wigan And Scotland

The sections between  Crewe and Carlisle, will be running at the following frequencies.

  • Wigan and Lancaster – 4 tph
  • Lancaster and Carlisle  – 3 tph
  • Carlisle and Edinburgh  – 2.5 tph
  • Carlisle and Glasgow – 2.5 tph

Note.

  1. The unusual Scottish frequencies are caused by splitting and joining at Carlisle and alternate services to Edinburgh and Glasgow.
  2. Any local high speed services and a Scotland service from Manchester, will increase the frequencies.

Over this section the services will be running on an improved West Coast Main Line.

But in some cases the trains will be replacing current services, so the increase in total frequencies will be less than it first appears.

Avanti West Coast currently run the following Scottish services.

  • One tph – London Euston and Glasgow via the most direct route.
  • One tph – London Euston and alternately Edinburgh and Glasgow via Birmingham.

This means that effectively Glasgow has 1.5 tph and Edinburgh 0.5 tph from London Euston.

The capacity of the current eleven-car Class 390 trains is 145 First and 444 Standard Class seats, which compares closely with the 500-600 seats given in Wikipedia for High Speed Two trains. So the capacity of the two trains is not that different.

But High Speed Two will be running 2.5 tph Between London Euston and both Edinburgh and Glasgow.

I would expect, that Class 390 services to Scotland will be discontinued and replaced by High Speed Two services.

Capacity Of The Eastern Leg Between Birmingham And East Midlands Hub

The section is between Birmingham and East Midlands Hub, will be running 9 tph

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.

But where will they come from?

Midlands Engine Rail is proposing a service between Birmingham Curzon Street and Nottingham.

  • It will have a frequency of one tph.
  • It will be run by High Speed Two Classic-Compatible trains.
  • The journey will take 33 minutes.
  • It will run on High Speed Two infrastructure between Birmingham Curzon Street and East Midlands Hub.

If High Speed Two has been designed with this service in mind, I doubt it will be a difficult service to setup.

  • There might be enough capacity on High Speed Two  for two tph on the route,
  • It could possibly be extended to Lincoln.

It will also depend on the service timing being consistent with an efficient use of trains and platforms.

  • Thirty-three minutes is not a good timing, as it means twenty-seven minutes wait in a platform to get a round trip time, that suits clock-face time-tabling.
  • The current Lincoln and Nottingham service takes 56 minutes for 34 miles.
  • LNER’s London Kings Cross and Lincoln service travels the 16 miles between Lincoln and Newark in 25 minutes.
  • I estimate that after track improvements,  with a single stop at Newark Castle station, that Nottingham and Lincoln could be achieved in several minutes under fifty minutes.
  • This would enable a sub-ninety minute journey time between Birmingham Curzon Street and Lincoln, with enough time to properly turn the trains at both ends of the route.
  • The three hour round trip would mean that an hourly service would need three trains.

This is probably just one of several efficient time-tabling possibilities.

Are there any other similar services?

The obvious one is surely Cambridge and Birmingham

  • It would run via Peterborough, Grantham, Nottingham and East Midlands Hub.
  • It would connect the three big science, engineering and medical centres in the Midlands and the East.
  • It could be run by High Speed Two Classic-Compatible trains.

It might even be a replacement for CrossCountry’s Stansted Airport and Birmingham service.

Capacity Of The Eastern Leg Between East Midlands Hub And Sheffield

The section between East Midlands Hub and Sheffield, will be running 2 tph

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.

But where will they come from?

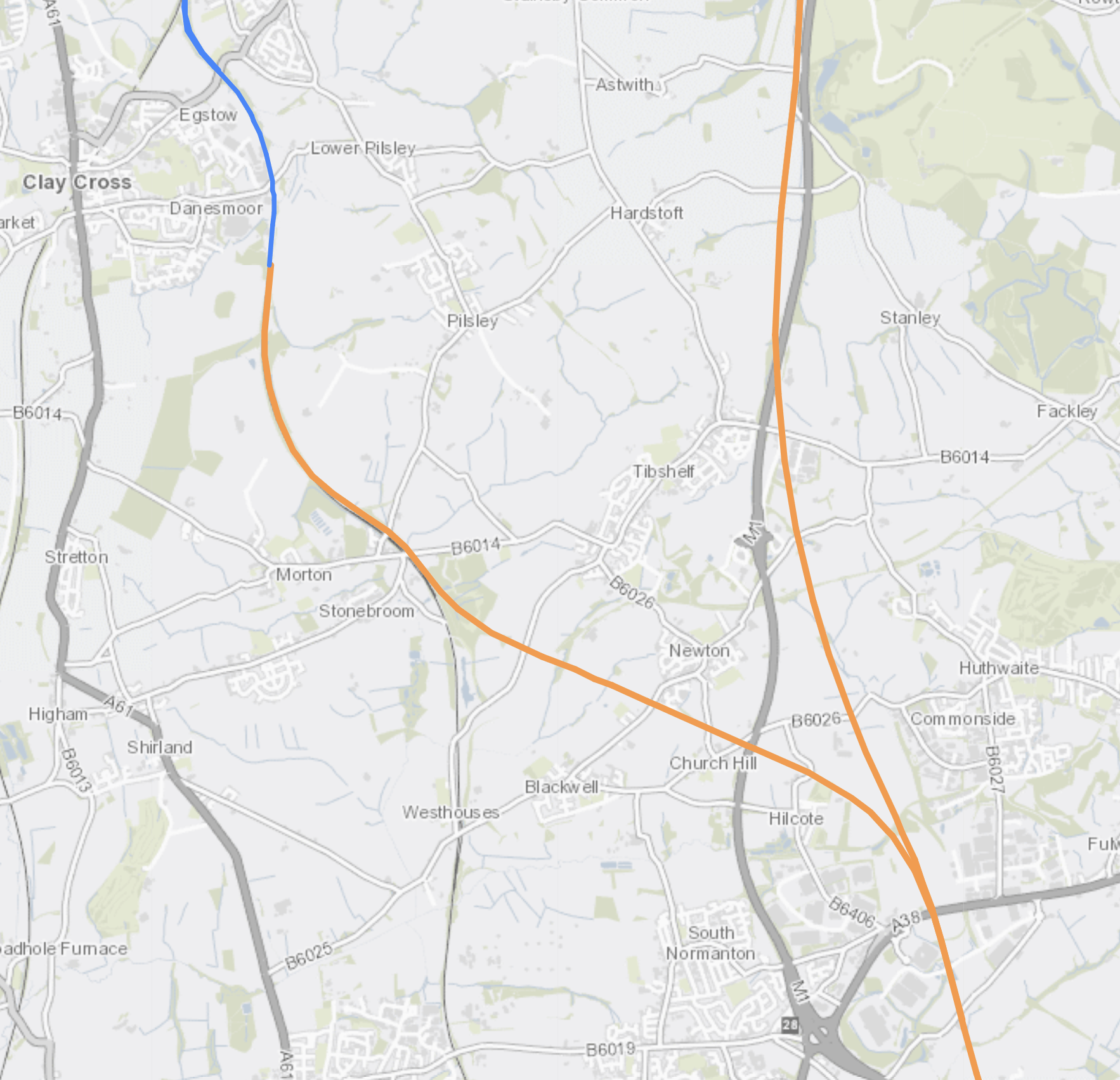

This map of High Speed Two where the Sheffield Branch leaves the new High Speed Two route between East Midlands Hub and Leeds was captured from the interactive map on the High Speed Two web site.

Note.

  1. The main route of High Speed Two between East Midlands Hub, is shown in orange and follows the route of the M1 Motorway, towards the East of the map.
  2. The Sheffield Branch is new track to Clay Cross North Junction, where is takes over the Midland Main Line to Sheffield, which is shown in blue.
  3. The line going South in the middle of the map is the Erewash Valley Line, which goes through Langley Mill and Ilkeston stations.

I suspect Clay Cross to Sheffield will be an electrified high speed line, with a maximum speed of at least 140 mph.

Could the Erewash Valley Line have been used as an alternative route to Sheffield?

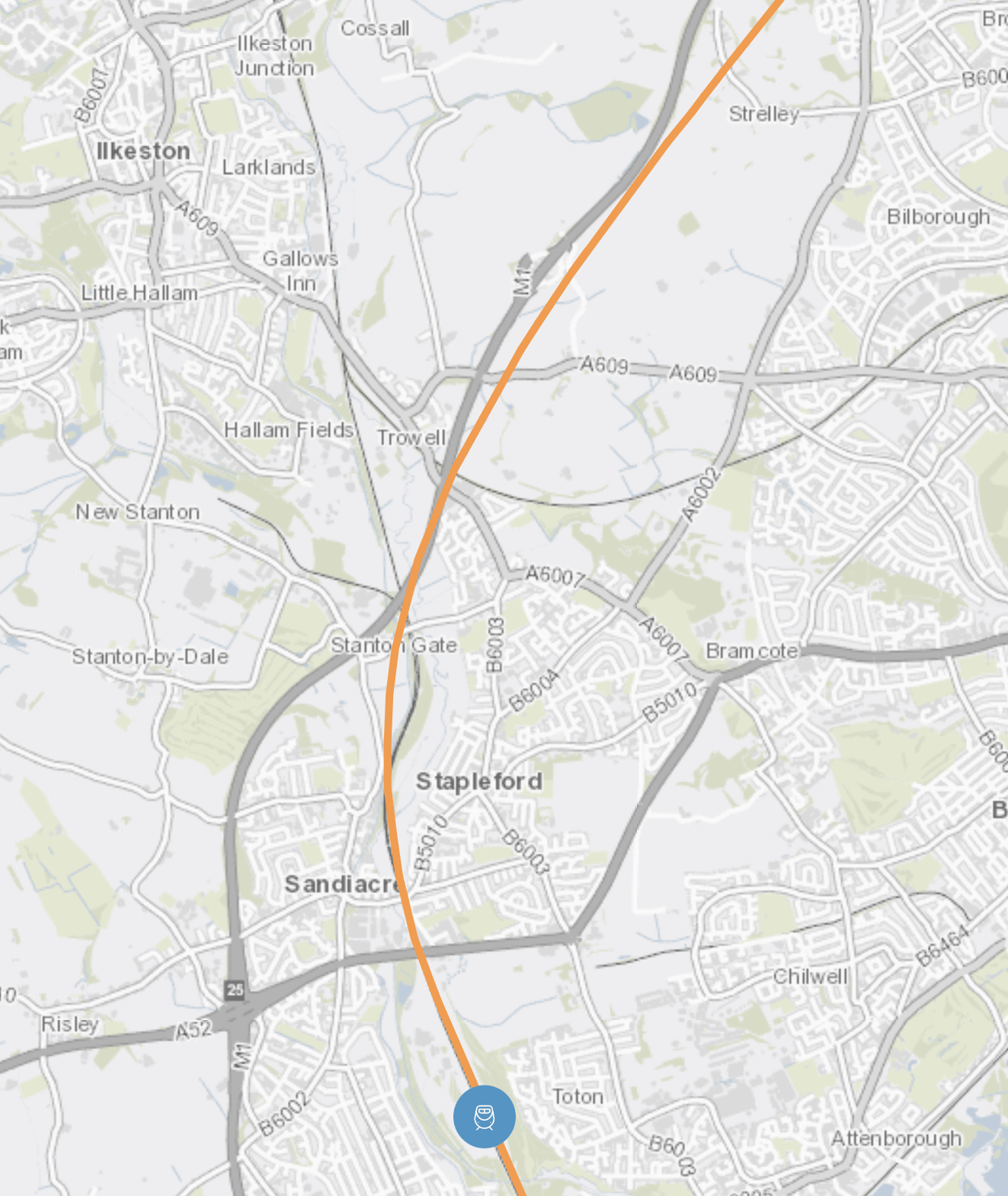

This map of High Speed Two captured from their interactive map, shows the connection of High Speed Two and the Erewash Valley Line to East Midlands Hub.

Note.

  1. East Midlands Hub is shown by the big blue dot.
  2. High Speed Two is shown in orange.
  3. The route to Leeds vaguely follows the M1 Motorway.
  4. The Erewash Valley Line goes North to the East of Ilkeston.

Would have been quicker and easier to electrify the Erewash Valley Line, as the High Speed Two route to Chesterfield and Sheffield?

  • Network Rail updated the route a few years ago.
  • It does not have the problems of electrification, through a World Heritage Site, as does the route through Derby.
  • It could surely handle two tph, even if they were High Speed Two Classic Compatible trains.
  • Sheffield will be just under ninety minutes from London by High Speed Two, as opposed to two hours now.

I suspect that it all comes down to saving a few minutes to Sheffield and the civic pride of having a High Speed Two connection.

So it looks like we’ll have the following capacity between East Midlands Hub and Sheffield.

  • Between East Midlands Hub and Clay Cross North Junction, there will be the High Speed Two capacity of 18 tph.
  • Between Clay Cross and Sheffield, there will probably be an upgraded capacity of perhaps 8-10 tph.

It seems a lot of capacity for just two tph.

Consider.

  • High Speed Two is planning to run three tph between Birmingham Curzon Street and East Midlands Hub
  • Midlands Rail Engine is planning to run one tph between Birmingham Curzon Street and East Midlands Hub
  • Four tph is considered a Turn-Up-And-Go service, and could exist between Birmingham Curzon Street and East Midlands Hub.
  • Sheffield and Leeds, both probably need a Turn-Up-And-Go service, to and from East Midlands Hub.
  • Semi-fast services between Sheffield and East Midlands Hub, calling at Chesterfield, Alfreton, Langley Mill and Ilkeston would be possible, by using the Erewash Valley Line.
  • The Maid Marian Line will join the Robin Hood Line in adding extra connectivity to East Midlands Hub Station.
  • Leeds and East Midlands Hub could have a six tph service courtesy of High Speed Two and Midlands Rail Engine.

Using High Speed Two’s web site, the following times should be possible.

  • Sheffield and East Midlands Hub – 27 minutes
  • Sheffield and Birmingham Curzon Street – 47 minutes.

Both services allow time for an efficient service.

There are certainly many options to create a Turn-Up-And-Go service between Sheffield and East Midlands Hub and also improve connections to other locations across the area.

Capacity Of The Eastern Leg Between East Midlands Hub And Leeds

The section is between East Midlands Hub and Leeds, will be running 5 tph

High Speed Two between Midlands Hub and Leeds is a totally new high speed line.

  • As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.
  • The Southern section of the leg closely follows the M1 Motorway.
  • Leeds, York and Newcastle will be 27, 36 and 93 minutes from East Midlands Hub, respectively.

This map of High Speed Two, which shows the route of the line in Yorkshire, was captured from the interactive map on the High Speed Two web site.

Note.

  1. Sheffield is marked by the blue dot in the South.
  2. Leeds is marked by the blue dot in the North West.
  3. York is marked by the blue dot in the North East.
  4. New routes are shown in orange.
  5. Upgraded routes are shown in blue.

The route seems to open up several possibilities for extra routes.

Leeds and Sheffield will be used by Northern Powerhouse Rail and there will be four tph, taking 28 minutes.

Leeds and Bedford via East Midlands Hub has been proposed by Midlands Rail Engine.

Services between Sheffield and the North via York must be a possibility.

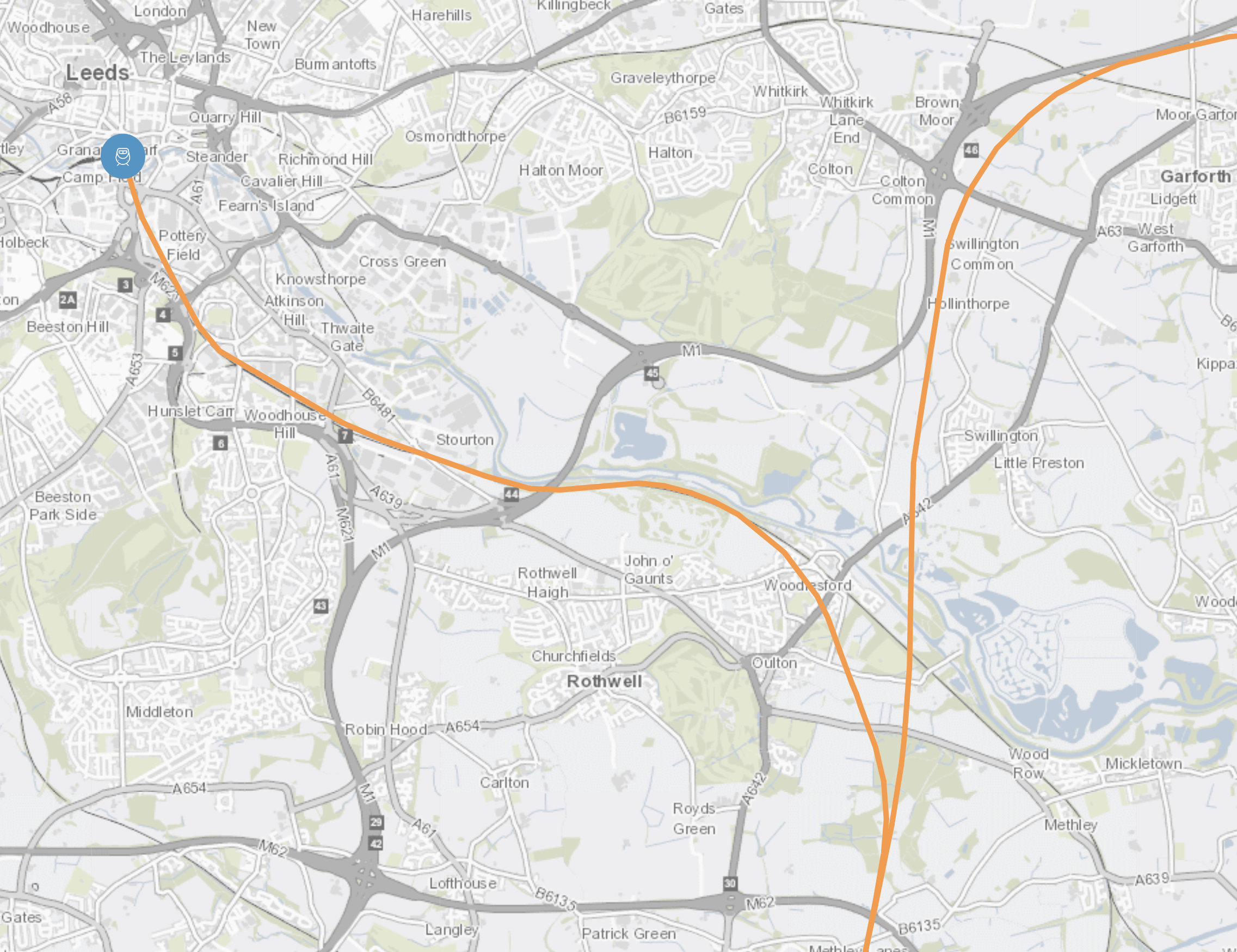

This map of High Speed Two, which shows the routes to the East of Leeds, was captured from High Speed Two’s interactive map.

I think that two things might be missing.

  • A full triangular junction would surely allow services between Leeds and the North via York.
  • A high speed connection to Hull.

We shall see in the future.

Capacity Of The Eastern Leg Between York And Newcastle

The section between  York and Newcastle, will be running at a frequency of 3 tph.

Over this section the services will be running on an improved East Coast Main Line.

Conclusion

I shall split the conclusions into various sections.

Route And Track Layout

I think there may be places, where the route and track layout might need to be improved.

  • The Manchester Branch probably needs a triangular junction with the Western Leg of High Speed Two.
  • How Liverpool is served by Northern Powerhouse Rail needs to be decided.
  • The approach to Leeds probably needs a triangular junction with the Eastern Leg of High Speed Two.
  • It is not clear how services will reach Hull.

Hopefully, these issues will become clear in the next year or so.

Capacity

The sections with the highest levels of capacity would appear to be the following.

  • London Euston and Birmingham Interchange.
  • The Manchester Branch
  • The section shared with the East Coast Main Line between York and Newcastle.
  • The section shared with the West Coast Main Line between Wigan and Scotland.

But on these sections extra trains can be run.

  • Birmingham and North West England
  • Birmingham and East Midlands Hub
  • East Midlands Hub and Leeds
  • East Midlands Hub and Sheffield
  • East Midlands Hub and York

I can see, this capacity being filled by high speed local services, like those proposed by Midlands Rail Engine.

Rolling Stock

The only comment, I will make, is that there could be a need for a shorter Classic-Compatible train to work local services.







October 22, 2020 Posted by | Design, Transport | , , , , , , , , , , , , , , , , , , , | 5 Comments

The Definitive High Speed Two Route Map

This map is shown on the High Speed Two web site.

The map shows how it links to other routes.

  • High Speed Two joins the West Coast Main Line at Crewe and South of Wigan.
  • High Speed Two uses a route via Stafford and Stoke-on-Trent to serve Macclesfield.
  • High Speed Two uses the current Crewe and Liverpool route to serve Runcorn and Liverpool.
  • High Speed Two to Manchester Piccadilly share tracks with Northern Powerhouse Rail between Liverpool and Manchester Piccadilly via Warrington and Manchester Airport.
  • High Speed Two uses the loop around Crewe to Wigan to serve North West England and Scotland.
  • High Speed Two joins the East Coast Main Line South of York, to serve York, Darlington, Durham and Newcastle.
  • High Speed Two joins the Midland Main Line at Clay Cross North Junction to serve Chesterfield and Sheffield.
  • High Speed Two has connections to Midlands Rail Engine at Birmingham, Crewe and East Midlands Hub.
  • High Speed Two has connections to Northern Powerhouse Rail at Liverpool, Manchester Airport, Manchester Piccadilly, Sheffield and Leeds.

June 25, 2020 Posted by | Transport | , , , , | Leave a comment

Classic-Compatible High Speed Two Trains At East Midlands Hub Station

This article on Rail News, is entitled £2.7bn East Midlands Plan Unveiled For HS2 Links.

This is the first two paragraphs.

A bold plan costed at £2.7 billion for the area around the HS2 hub in the East Midlands has been published by a group of councils, transport bodies and East Midlands Airport.

The core of the scheme is the future East Midlands Hub at Toton, and the plan proposes direct access to the Hub from more than 20 cities, towns and villages in the East Midlands.

If you want to read the original report by Midlands Connect, there’s a download link on this page of their web site.

The original report has a section entitled Midlands Engine Rail, where this is said.

This project is fully integrated with Midlands Engine Rail, a rail improvement plan developed by Midlands Connect to revolutionise connectivity, mobility and productivity across the region. Midlands Engine Rail includes plans for two new HS2 classic-compatible services on an electrified Midland Main Line that will run direct from:

  • Bedford and Leeds via Leicester and East Midlands Hub
  • Nottingham and Birmingham Curzon Street via East Midlands Hub

These services can run on both electrified and high speed tracks, and would join the HS2 network at Toton, the HS2 East Midlands Hub, meaning that Nottingham and Leicester city centres are directly linked to HS2 without the need to change trains.

These improved connections will more than halve current journey times, with Leicester to Leeds dropping from 120 minutes to 46 minutes and Nottingham to Birmingham falling from 72 minutes to 33 minutes.

Note.

  1. Between Bedford and East Midland Hub stations, the Midland Main Line is or soon will be an almost a complete 125 mph rail line.
  2. It is likely, that with digital in-cab signalling, that faster running up to 140 mph may be permitted in places.
  3. Between Birmingham Curzon Street and East Midlands Hub stations, trains will use High Speed Two at up to 205 mph.
  4. Between Leeds and East Midlands Hub stations, trains will use High Speed Two at up to 205 mph.
  5. Leeds and Birmingham Curzon Street station will be new stations for High Speed Two.

The Classic-Compatible Trains

These are described in this section in Wikipedia, by this sentence.

The classic-compatible trains, capable of high speed but built to a British loading gauge, permitting them to leave the high speed track to join conventional routes such as the West Coast Main Line, Midland Main Line and East Coast Main Line. Such trains would allow running of HS2 services to the north of England and Scotland, although these non-tilting trains would run slower than existing tilting trains on conventional track. HS2 Ltd has stated that, because these trains must be specifically designed for the British network and cannot be bought “off-the-shelf”, these conventional trains were expected to be around 50% more expensive, costing around £40 million per train rather than £27 million for the captive stock.

The trains will have the same characteristics as the full-size trains.

  • Maximum speed of 225 mph.
  • Cruising speed of 205 mph on High Speed Two.
  • Length of 200 metres.
  • Ability to work in pairs.
  • A passenger capacity around 500-600 passengers.

It should be noted that one of these trains will be shorter than a pair of East Midlands Railway’s five-car Class 810 trains, which should avoid any serious platform lengthening on existing lines.

Bedford and Leeds via Leicester and East Midlands Hub

A few facts and thoughts.

  • The service is shown as stopping at Wellingborough, Kettering, Market Harborough, Leicester, Loughborough and East Midlands Hub.
  • The service frequency could be hourly.
  • This service could be more important, than it appears, as by the time High Speed Two opens to Leeds, the East West Railway will be open through Bedford.
  • Would a terminal platform need to be added at Bedford station? As the station could be rebuilt for the East West Railway, this shouldn’t be a problem.
  • Leeds will have a new High Speed Two station or at least new platforms in the existing station.
  • The Bedford and Leeds service would join High Speed Two at East Midlands Hub and go North.
  • The Leeds and Bedford service would leave High Speed Two at East Midlands Hub and go South.

Leeds and Leicester will take 46 minutes, with High Speed Two’s journey time calculator, indicating twenty-seven minutes between East Midlands Hub and Leeds stations.

According to an article in the June 2020 Edition of Modern Railways High Speed Two is planning to run the following services on the Eastern leg of High Speed Two between East Midlands Hub and Leeds.

  • Two tph – Birmingham Curzon Street and Leeds
  • Three tph – London Euston and Leeds

There will be a Turn-Up-And-Go six tph service between East Midlands Hub and Leeds stations.

If the Bedford and Leeds service was an hourly service, when added to the current East Midlands Railway Inter-City services, it would give the following calling frequencies.

  • Wellingborough – 2 tph
  • Kettering – 2 tph
  • Market Harborough – 3 tph
  • Leicester – 5 tph
  • Loughborough – 3 tph
  • East Midlands Parkway – 2 tph

The calling pattern can be adjusted to the number of passengers.

Nottingham and Birmingham Curzon Street via East Midlands Hub

A few facts and thoughts.

  • The service is shown as only stopping at East Midlands Hub.
  • The service frequency could be hourly.
  • The service would go between East Midlands Hub and Nottingham using the Trowell Curve route, which I discussed in Access To Toton – Scheme 6 – Trowell Curve.
  • Nottingham station has long terminal platforms that take a full-length Inter-City 125.
  • Birmingham Curzon Street will be a new High Speed Two station.
  • The Nottingham and Birmingham Curzon Street service would join High Speed Two at East Midlands Hub and go South.
  • The Birmingham Curzon Street and Nottingham service would leave High Speed Two at East Midlands Hub and go North.

Nottingham and Birmingham Curzon Street will take 33 minutes, with High Speed Two’s journey time calculator, indicating twenty minutes, between Birmingham Curzon Street and East Midlands Hub stations.

According to an article in the June 2020 Edition of Modern Railways High Speed Two is planning to run the following services on the Eastern leg of High Speed Two from Birmingham Curzon Street.

  • Two tph – East Midlands Hub and Leeds
  • One tph – East Midlands Hub, York, Darlington, Durham and Newcastle.

There will be a Turn-Up-And-Go four tph service between East Midlands Hub and Birmingham Curzon Street stations.

Midland Main Line Electrification

Midlands Connect is calling for full electrification of the Midland Main Line.

The problem is electrification through Leicester station, where there is a low bridge over the track.

In Discontinuous Electrification Through Leicester Station, I showed how the problem might be solved by discontinuous electrification and battery-equipped trains.

The Shared High Speed Two Path

If you look at the two previous sections you’ll see the following.

  • The Birmingham Curzon Street and Nottingham service would leave High Speed Two at East Midlands Hub and go North.
  • The Bedford and Leeds service would join High Speed Two at East Midlands Hub and go North.
  • The Leeds and Bedford service would leave High Speed Two at East Midlands Hub and go South.
  • The Nottingham and Birmingham Curzon Street service would join High Speed Two at East Midlands Hub and go South.



The two services are using the same path on High Speed Two.

I would design the East Midlands Hub, so that High Speed Two and classic services going in the same direction shared an island platform.

Southbound services would behave like this.

  • The Nottingham to Birmingham Curzon Street train would arrive in the High Speed Two face of the platform.
  • The Leeds to Bedford train would arrive in the classic face of the platform.
  • Passengers who needed to change would walk across the platform.
  • When ready both trains would go on their way.

Northbound services would do something similar.

It would be an efficient way to organise interchange between services.

  • Train design would have to ensure, that all trains using the island platform had similar and preferably step-free access.
  • If Greater Anglia and Merseyrail, can do step-free access, then no train designer has an excuse not to.
  • Surely every High Speed Two train that arrives at East Midlands Hub, should be paired with a Midland Main Line service, if the timetable allows it.

The money being spent on High Speed Two means that the British public, won’t accept anything less than perfect.

Are There Any Other Possible Destinations For Classic-Compatible High Speed Two Trains From East Midlands Hub Station?

I will put these in alphabetical order.

Bedford

Consider.

  • Bedford is already planned to have one classic-compatible service to and from Leeds.
  • One of East Midlands Railway’s St. Pancras services calls at Bedford.
  • Bedford has a four tph Thameslink service to a large proportion of Central London and the South East of England.
  • Bedford has direct services to Gatwick Airport.
  • Bedford station will be expanded to accommodate the East West Railway.
  • In a few years, Bedford will be connected to Milton Keynes, Oxford and Reading by the East West Railway.
  • When the East Midlands Hub station opens, Bedford will be connected to Cambridge, Ipswich and Norwich by the East West Railway.

I feel there is a need for a Turn-Up-And-Go four tph service between Bedford and East Midlands Hub stations.

I estimate that between Bedford and East Midlands Parkway stations  will have a journey time of around 60 minutes.

Cambridge

I believe that the East West Railway should be built to the same standard as the East Coast, Great Western, Midland and West Coast Main Lines.

  • Digitally signalled
  • 125 mph-capable
  • Electrified

This would enable classic-compatible services to be extended from Bedford to the UK’s Technology Powerhouse; Cambridge.

As Bedford and East Midlands Parkway could be 60 minutes, timings depend on the times of the East West Railway, between Bedford and Cambridge.

Edinburgh

Consider.

  • Edinburgh is an important city; financially and politically.
  • Edinburgh is planned to have a classic-compatible service from London via the West Coast Main Line.
  • Newcastle is planned to have a classic-compatible service from East Midlands Hub

The city must be a possibility for a classic compatible service from East Midlands Hub.

I estimate that Edinburgh and East Midlands Parkway will have a journey time of a few minutes over two hours

Hull

This clip of a map from the Transport for the North report shows a schematic of the rail links in Yorkshire.

Hull is important for various reasons.

  • It is large city.
  • It is the Eastern terminus of an increasing number of routes.
  • It is becoming a manufacturing centre for North Sea wind.
  • The city will be the terminus of Northern Powerhouse Rail across the Pennines from Liverpool, Manchester and Leeds.
  • Some reports have shown the city as a terminus of the Western leg of High Speed Two.

For these reasons, I will add Hull to the list.

I estimate that Hull and East Midlands Parkway will have a journey time of under an hour.

Lincoln

Looking forward to 2040, I wouldn’t bet against Lincoln being a very important city in the UK.

  • It has history.
  • It is becoming an important higher education centre.
  • It has lots of space.
  • Train operating companies like LNER and East Midlands Railway are improving services to the city.

But most importantly, as Aberdeen became Scotland’s centre for North Sea Oil and Gas, I believe that Lincoln could become England’s centre for North Sea renewable electricity and hydrogen.

I estimate that Lincoln and East Midlands Parkway will have a journey time of around an hour.

Milton Keynes

As I said for Cambridge, I believe that the East West Railway should be built to the same standard as the East Coast, Great Western, Midland and West Coast Main Lines.

This would enable classic-compatible services to be extended from Bedford to Milton Keynes.

As Bedford and East Midlands Parkway could be 60 minutes, timings depend on the times of the East West Railway, between Bedford and Milton Keynes.

Newcastle

As Newcastle already has a direct High Speed Two classic-compatible connection to and from East Midlands Hub station, this must be a possibility.

According to High Speed Two’s journey time calculator<, trains between Newcastle and East Midland Hub stations will take 96 minutes.

Northern Powerhouse Rail

The map I showed with Hull could indicate that a train could take High Speed Two to Leeds and then power its way across the Pennines calling at Leeds, Huddersfield, Manchester Piccadilly, Manchester Airport and Liverpool.

East Midlands Railway would have found a replacement for the Western part of their Liverpool and Norwich service, which is one of the worst railway services in the UK.

Oxford And Reading

As I said for Cambridge, I believe that the East West Railway should be built to the same standard as the East Coast, Great Western, Midland and West Coast Main Lines.

This would enable classic-compatible services to be extended from Bedford to Oxford and Reading.

As Bedford and East Midlands Parkway could be 60 minutes, timings depend on the times of the East West Railway, between Bedford and Oxford and Reading.

Peterborough

I think Peterborough could be an interesting possibility.

  • It is the gateway to the East of England.
  • It is a fully-electrified station.
  • It has seven platforms with space for more.
  • Most platforms could take a two hundred metre long train.

East Midlands Railway’s Liverpool and Norwich service, links Peterborough with Nottingham.

  • That section of the route is 52 miles long.
  • 29 miles of the route on the East Coast Main Line are electrified.
  • The 100 mph Class 158 trains take 67 minutes and 30 minutes to travel between the two stops at Grantham and Peterborough.
  • Some of LNER’s 125 mph electric Class 800 trains are timetabled to travel between the two stops at Grantham and Peterborough as fast as 18 minutes.

What time will be achievable on this short length of electrified track, when digital signalling is fully-deployed and 140 mph running is possible?

I can certainly see a bi-mode Class 801 train going between Peterborough and Nottingham in under an hour.

I also think that they could equal East Midlands Railway’s times to Nottingham going from Kings Cross via Grantham.

In Access To Toton – Scheme 6 – Trowell Curve, I advocated the following electrification, to allow battery-electric trains to work the Nottingham and Skegness service.

  • The Allington Chord between Bottesford and Ancaster stations.
  • The line linking the chord to Grantham station.

As Nottingham station will surely be electrified to allow classic-compatible High Speed Two trains to run between the station and Birmingham using High Speed Two, there will only be sixteen miles of double-track between Bottesford and Nottingham station without electrification.

I have just flown my helicopter along the route and there are one or two bridges and Netherfield station, that will need a rebuild, but it wouldn’t be the most challenging of electrifications.

Especially, as there is High Speed Two and the East Coast Main Line to provide power at both ends of the route.

But as it is only sixteen miles would they use battery-electric high-speed trains.

Surely, that is a crazy idea?

In Will High Speed Two’s Classic-Compatible Trains Have Battery Operation?, I explain why you would use such a concept to create an efficient train.

  • The batteries drive the train and they are charged from the electrification and regenerative braking.
  • Batteries would give a train recovery capability in case of overhead catenary failure.
  • Batteries would be used for depot movements.

In Will The Trains On High Speed Two Have Batteries For Regenerative Braking?, I do a calculation for the battery size needed for a 250 mph Spanish high speed train and the batteries are surprisingly small, at 100 kWh per carriage.

I firmly believe, that the mathematics say it is possible for a high speed train to use on-board battery power to perhaps do thirty miles at say 90 mph on a line without electrification.

Sheffield

As Sheffield station will have a direct High Speed Two connection to and from East Midlands Hub station, this must be a possibility.

According to High Speed Two’s journey time calculator, trains between Sheffield and East Midland Hub stations will take 27 minutes.

Note.

  1. An article in the June 2020 Edition of Modern Railways shows that the Eastern leg of High Speed Two is planned to have nine tph, against a theoretical limit of 18 tph.
  2. The Leeds-Bedford and Nottingham-Birmingham Curzon Street will use another path.
  3. Not all services would need to be hourly.
  4. Could some CrossCountry services be replaced with classic-compatible services?

I feel there is plenty of scope to develop more classic-compatible services along the Eastern leg of High Speed Two.











May 31, 2020 Posted by | Transport | , , , , , , , , , , , , , , , | 5 Comments
