Hopes Rekindled Of Full Midland Main Line Electrification

The title of this post, is the same as that of this article on Rail Magazine.

This is the key section of the article.

During a House of Commons debate on transport on September 17, HS2 Minister Andrew Stephenson said in response to a question from Alex Norris (Labour/Co-op, Nottingham North): “We are currently delivering the Midland Main Line upgrade, which includes electrification from London to Kettering, with additional electrification to Market Harborough being developed.

“Further electrification of the MML is currently at an early stage, but it is being examined by Network Rail.”

Stephenson said the DfT will continue to work closely with NR on the development of a proposal that would include approaches to advancing the delivery of electrification across the route.

The title of the article, probably sums it up well.

Electrification Of The Midland Main Line

Having read lots of stories about electrification of Midland Main Line, I think the following must be born in mind.

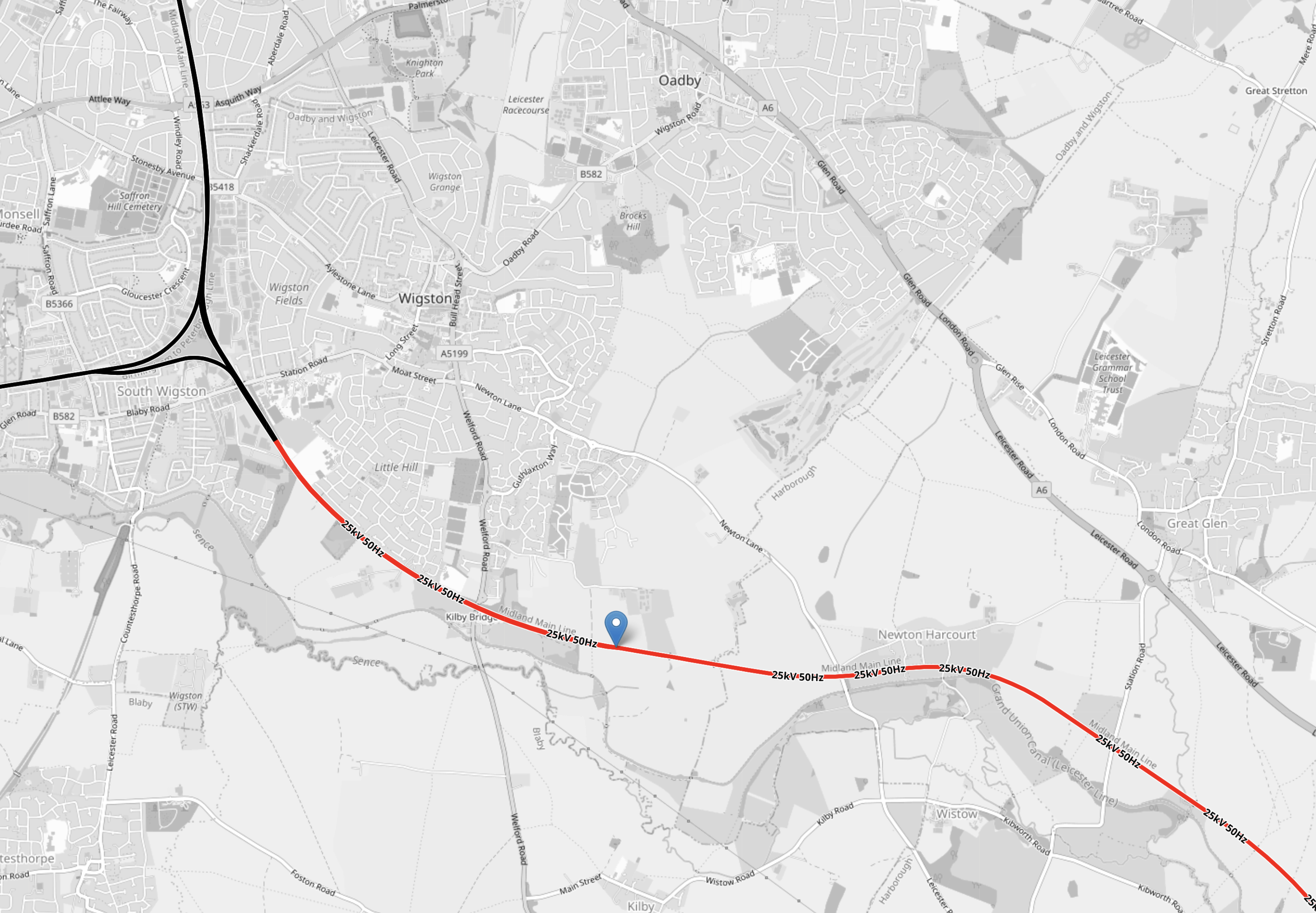

  • Electrification on the line will reach as far North as Market Harborough station.
  • The route between Sheffield station and Clay Cross North Junction will be shared with High Speed Two. It will obviously need to be electrified for High Speed Two.
  • The section of the Midland Main Line between Derby and Clay Cross North Junction, runs through the World Heritage Site of the Derwent Valley Mills. The Heritage Taliban will love the electrification, with a vengeance.
  • Electrification through Leicester station could be tricky, as the station building and the A6 road are over the tracks and there is limited clearance. Electrification could involve major disruption to the trains for some time.

These are some of the distances involved of sections of the route that are not electrified.

  • Market Harborough and Derby are 54 miles apart.
  • Market Harborough and Clay Cross North Junction are 67 miles apart.
  • Market Harborough and Chesterfield are 70 miles apart.
  • Market Harborough and Nottingham are 44 miles apart
  • Market Harborough and Leicester are 16 miles apart.
  • Derby and Clay Cross North Junction are 21 miles apart.

Since 2017, when electrification for the full route was originally abandoned, there have been big changes in rolling stock technology.

The biggest change has been the development of battery trains.

Hitachi’s Regional Battery Trains

This infographic from Hitachi gives the specification for their Regional Battery Train.

Note.

  1. The trains have a range of 56 miles on battery power.
  2. The trains can cruise at 100 mph on battery power.
  3. Hitachi have said that all of their AT-300 trains can be converted into Regional Battery Trains.
  4. Trains are converted by removing the diesel engines and replacing them with battery packs.
  5. I suspect these battery packs look like a diesel engine in terms of control inputs and performance to the driver and the train’s computer.

It is extremely likely, that the bi-mode Class 810 trains, which are a version of the AT-300 train, that have been ordered for the Midland Main Line can be converted into Regional Battery Trains.

These trains have four diesel engines, as opposed to the Class 800 and Class 802 trains, which only have three.

These are reasons, why the trains could need four engines.

  • The trains need more power to work the Midland Main Line. I think this is unlikely.
  • Four engine positions gives ,more flexibility when converting to Regional Battery Trains.
  • Four battery packs could give a longer range of up to 120 kilometres or 75 miles.

It could just be, that Hitachi are just being conservative, as engines can easily be removed or replaced. The fifth-car might even be fitted with all the wiring and other gubbins, so that a fifth-engine or battery pack can be added.

I suspect the train’s computer works on a Plug-And-Play principle, so when the train is started, it looks round each car to see how many diesel engines and battery packs are available and it then controls the train according to what power is available.

London St. Pancras And Sheffield By Battery Electric Train

Any battery electric train going between London St. Pancras and Sheffield will need to be charged, at both ends of the route.

  • At the London end, it will use the electrification currently being erected as far as Market Harborough station.
  • At the Sheffield end, the easiest way to charge the trains, would be to bring forward the electrification and updating between Sheffield station and Clay Cross North Junction, that is needed for High Speed Two.

This will leave a 67 mile gap in the electrification between Market Harborough station and Clay Cross North junction.

It looks to me, the Class 810 trains should be able to run between London St. Pancras and Sheffield, after the following projects are undertaken.

  • Class 810 trains are given four battery packs and a battery range of 75 miles.
  • Electrification is installed between Sheffield station and Clay Cross North Junction.

Trains would need to leave Market Harborough station going North and Clay Cross Junction going South with full batteries.

Note.

  1. Trains currently take over an hour to go between Chesterfield to Sheffield and then back to Chesterfield, which would be more than enough to fully charge the batteries.
  2. Trains currently take around an hour to go between London St. Pancras and Market Harborough, which would be more than enough to fully charge the batteries.
  3. Chesterfield station is only three miles further, so if power changeover, needed to be in a station, it could be performed there.
  4. Leeds and Sheffield are under fifty miles apart and as both stations would be electrified, London St. Pancras and Sheffield services could be extended to start and finish at Leeds.

London St. Pancras and Sheffield can be run by battery electric trains.

London St. Pancras And Nottingham By Battery Electric Train

Could a battery electric train go from Market Harborough to Nottingham and back, after being fully-charged on the hour-long trip from London?

  • The trip is 44 miles each way or 88 miles for a round trip.
  • Services have either three or eight stops, of which two or three respectively are at stations without electrification.
  • Trains seem to take over thirty minutes to turnback at Nottingham station.

Extra power North of Market Harborough will also be needed.

  • To provide hotel power for the train, during turnback at Nottingham station.
  • To compensate for power losses at station stops.

If 75 miles is the maximum battery range, I doubt that a round trip is possible.

I also believe, that Hitachi must be developing a practical solution to charging a train during turnback, at a station like Nottingham, where trains take nearly thirty minutes to turnback.

If the Class 810 trains have a battery range of 75 miles, they would be able to handle the London St. Pancras and Nottingham service, with charging at Nottingham.

Conclusion

It appears that both the Nottingham and Sheffield services can be run using battery electric Class 810 trains.

  • All four diesel engines in the Class 810 trains would need to be replaced with batteries.
  • The route between Clay Cross North Junction and Sheffield station, which will be shared with High Speed Two, will need to be electrified.
  • Charging facilities for the battery electric trains will need to be provided at Nottingham.

On the other hand using battery electric trains mean the two tricky sections of the Derwent Valley Mills and Leicester station and possibly others, won’t need to be electrified to enable electric trains to run on the East Midlands Railway network.

Will it be the first main line service in the world, run by battery electric trains?



September 28, 2020 Posted by | Transport | , , , , , , , , , , , , , , | 1 Comment

Beeching Reversal – Increased Services To Nottingham And Leicester, via Syston And Loughborough From Melton Mowbray

This is one of the Beeching Reversal projects that the Government and Network Rail are proposing to reverse some of the Beeching cuts.

It is one of a pair of submissions from the local MP; Alicia Kearns. The other is More Stopping Services At Radcliffe-on-Trent And Bottesford Stations On The Poacher Line Between Grantham And Nottingham.

When I heard of the MP’s submissions, I wrote MP Campaigns To Extend Train Services For Melton Borough and the following uses that post as a starting point.

Wikipedia says this about services at Melton Mowbray station.

  • There is an hourly off-peak service in both directions between Stansted Airport and Birmingham, that calls at Cambridge, Peterborough, Oakham and Leicester.
  • East Midlands Railway and their predescessor have added services to London via Corby and to Derby and East Midlands Parkway.

When you consider, that both Bottesford and Melton Mowbray are the same Council and Parliamentary constituency, it does seem that a more direct train service is needed between Bottesford and Melton Mowbray stations.

It does seem to me that some innovative thinking is needed.

If the current plans to fulfil British Rail’s ambition of an Ivanhoe Line running from Lincoln to Burton-on-Trent via Nottingham, East Midlands Parkway, Loughborough and Leicester, are carried out, that will give important towns to the West of Leicester much better rail connections.

Given that High Speed Two is coming to East Midlands Hub station at Toton and there will be a Bedford and Leeds service run by Midlands Connect using High Speed Two classic-compatible trains, that I wrote about in Classic-Compatible High Speed Two Trains At East Midlands Hub Station, I wonder if in the interim, there should be more trains between Derby and Melton.

  • Intermediate stations would be Syston, Sileby, Barrow-upon-Soar, Loughborough, East Midlands Parkway Long Eaton and Spondon.
  • An hourly frequency would double the service frequency at smaller stations like Sileby and Barrow-upon-Soar.
  • The Southern terminal could be Melton station, but I feel Corby or Peterborough stations would be better, as this would improve services at Oakham station. We should not forget Rutland!
  • As Corby will be an electrified two-platform station with a two trains per hour (tph) service to London, this could work quite well as a Southern terminus.
  • Peterborough would have advantages and give a good connection to Cambridge, London and Scotland, but improvements to the current Birmingham and Stansted Airport service would have similar effects.

This route would be just as valuable after High Speed Two opens through the East Midlands Hub station, as it will give fast ongoing connections to Birmingham, Leeds, Newcastle and York.

Electrification Of The Midland Main Line

I feel strongly, that full electrification of the Midland Main Line could be a step to far.

  • Electrification, through Leicester station will mean a complete closure of the station for a couple of years.
  • Electrification of the route North of Derby, through the Derwent Valley Mills, which is a World Heritage Site, will be opposed by the Heritage Taliban with all their might.

But.

  • Electrification of the route between Clay Cross Junction and Sheffield via Chesterfield will take place in conjunction with High Speed Two
  • Electrification to Market Harborough, which is sixteen miles South of Leicester will happen.
  • East Midlands Railway’s new Class 810 trains could be fitted with a battery option giving a range of between 55 and 65 miles.
  • Pantographs on these trains can go up and down with all the alacrity of a whore’s drawers.

If the easier section of electrification between Leicester and Derby stations, were to be installed, this would enable the following routes to be run using battery-equipped Class 810 trains.

  • London and Derby, where battery power would be used through Leicester.
  • London and Nottingham, where battery power would be used through Leicester and between East Midlands Parkway and Nottingham.
  • London and Sheffield, where battery power would be used through Leicester and between Derby and Clay Cross Junction.
  • Lincoln and Burton-on-Trent, where battery power would be used South of Leicester and North of East Midlands Parkway.
  • Derby and Corby, where battery power would be used between Syston and Corby.

There would also be the service between Derby and Norwich, which might be able to be run by a similar train.

Conclusion

I think the ideal way to achieve the MP’s objective would be to extend a proportion of London St. Pancras and Corby services to  the Midland Main Line.

But the problem with this, is that the Corby trains will be Class 360 trains, which are electric, so the thirty-six mile route between Corby and the Midland Main Line would need to be electrified.

On the other hand, a shuttle train could be used between Corby and Leicester.

They would call at Oakham, Melton Mowbray and Syston stations.

If the Midland Main Line to the North of Leicester were to be electrified, Battery electric trains could be used on the route, with charging at Leicester and Corby.

August 22, 2020 Posted by | Energy Storage, Transport | , , , , , , , , | 1 Comment

Midlands Rail Hub

On the Midlands Connect web site, they have a page, which is entitled Midlands Rail Hub.

This is the introductory paragraph.

The Midlands Rail Hub – our flagship project – is the biggest upgrade of our rail network for a generation.

The page contains this helpful map.

There is also a table of journeys and the improvements to be made.

  • Birmingham – Nottingham – +1 tph – 72 minutes – 59 minutes
  • Birmingham – Leicester – +2 tph – 66 minutes – 42 minutes
  • Birmingham – Hereford – +1 tph – 85 minutes – 65 minutes
  • Bitmingham – Worcester – +1 tph – 40 minutes – 35 minutes
  • Birmingham – Derby – +2 tph – 38 minutes – 38 minutes
  • Coventry – Leicester – +2 tph – 57 minutes – 38 minutes
  • Coventry – Nottingham -+2 tph – 99 minutes – 63 minutes
  • Birmingham – Bristol – +1 tph – 85 minutes – 80 minutes
  • Birmingham – Cardiff – +1 tph – 117 minutes – 112 minutes
  • Birmingham – Kings Norton – +2 tph – 18 minutes – 14 minutes

Note that the data by each route is the increase in frequency in trains per hour (tph), the current journey time and the future journey time.

I’ll now look at each route in more detail.

Birmingham And Bristol

Consider.

  • Birmingham New Street and Bristol Temple Meads stations are 90 miles apart.
  • Current service is two tph, which is provided by CrossCountry and goes via Worcestershire Parkway, Cheltenham Spa and Bristol Parkway.
  • There is to be an increase of one tph.
  • Current journey time is 85 minutes
  • Future journey time is 80 minutes

As CrossCrountry’s Birmingham and Bristol service goes through to Edinburgh, Glasgow or Manchester Piccadilly, would it not be convenient, if the service could use High Speed Two to the North of Birmingham?

Birmingham And Cardiff

Consider.

  • Birmingham New Street and Cardiff Central stations are 108 miles apart.
  • Current service is two tph, which is provided by CrossCountry and goes via Worcestershire Parkway, Cheltenham Spa. Gloucester and Newport.
  • There is to be an increase of one tph.
  • Current journey time is 85 minutes
  • Future journey time is 80 minutes

As CrossCrountry’s Birmingham and Cardiff service goes through to Nottingham, would it not be convenient, if the service could use High Speed Two between Birmingham and Nottingham?

It would appear that both Bristol and Cardiff services could benefit from a High Speed Two connection.

This map from High Speed Two shows the line’s route through the Water Orton area.

Note.

  1. High Speed Two is shown in various colours.
  2. High Speed Two splits at the Eastern edge of the map, with the Northern link going to Northern destinations and the Southern link going to Birmingham Interchange and London.
  3. Curving across the map beneath it, is the M6 motorway, with Spaghetti Junction off the map to the West.
  4. Water Orton station is in the North East corner of the map.
  5. The Birmingham and Peterborough Line, which connects Leicester and Birmingham New Street stations via Water Orton runs just tom the North of the route of High Speed Two shown on the map.

This Google Map shows the area.

I wonder if it would be possible to provide links so that the following would be possible.

  • Trains running East from New Street station could join High Speed Two to run to East Midlands Hub, Edinburgh, Glasgow, Leeds, Liverpool, Manchester, Newcastle, Sheffield and York.
  • Trains from the North could run into New Street station and then continue to Bristol, Cardiff and Cheltenham.

The trains would have to be classic-compatible High Speed Two trains. These would fit into New Street station, as they are shorter than Class 390 trains and will have a aimilar height and width.

Time savings could be as follows.

  • Bristol/Cardiff and Edinburgh – 110 minutes
  • Bristol/Cardiff and Manchester Piccadilly- 50 minutes
  • Bristol/Cardiff and Newcastle – 80 minutes
  • Bristol/Cardiff and Nottingham – 45 minutes

All trains would be direct.

Birmingham And Derby

Consider.

  • Birmingham New Street and Derby stations are 41 miles apart.
  • Current service is two tph, which is provided by CrossCountry and goes via Wilnecote, Tamworth and Burton-on-Trent
  • There is to be an increase of two tph.
  • Current journey time is 38 minutes
  • Future journey time is 38 minutes
  • High Speed Two will run three tph between Birmingham Curzon Street and East Midlands Hub station in 20 minutes.
  • Midlands Connect will run one tph between Birmingham Curzon Street and Nottingham Station in 30 minutes. See Classic-Compatible High Speed Two Trains At East Midlands Hub Station

Will passengers between Birmingham and Derby use High Speed Two services, which will be four tph or the current ones?

Birmingham And Hereford Via Worcester

Consider.

  • Birmingham New Street and Hereford stations are 55 miles apart.
  • Current service is one tph, which is provided by West Midlands Trains, and goes via Bromsgrove, Malvern Link and Great Malvern.
  • There is to be an increase of one tph.
  • Current journey time is 85 minutes
  • Future journey time is 65 minutes
  • The track between Bromsgrove and Birmingham is electrified.
  • Hereford and Bromsgrove are 41 miles apart.
  • Worcester and Bromsgrove are 13 miles apart.

With charging facilities at Worcester, this route would be an ideal one for battery electric trains.

Birmingham And Leicester

Consider.

  • Birmingham New Street and Leicester stations are 40 miles apart.
  • Current service is two tph, which is provided by CrossCountry and goes via Water Orton, Coleshill Parkway, Nuneaton, Hinckley and Narborough.
  • There is to be an increase of two tph.
  • Current journey time is 66 minutes
  • Future journey time is 42 minutes

Birmingham – Nottingham

Consider.

  • Birmingham New Street and Nottingham stations are 57 miles apart.
  • Current service is two tph, which is provided by CrossCountry and goes via Tamworth, Burton-on-Trent and Derby.
  • There is to be an increase of one tph.
  • Current journey time is 72 minutes
  • Future journey time is 59 minutes
  • High Speed Two will run three tph between Birmingham Curzon Street and East Midlands Hub station in 20 minutes.
  • Midlands Connect will run one tph between Birmingham Curzon Street and Nottingham Station in 30 minutes. See Classic-Compatible High Speed Two Trains At East Midlands Hub Station

Will passengers between Birmingham and Nottingham use High Speed Two services, which will be four tph or the current ones?

Coventry And Leicester

Consider.

  • Coventry and Leicester are 28 miles apart.
  • There is currently no direct train and a change is needed at Nuneaton
  • There is to be an increase of two tph.
  • Current journey time is 57 minutes
  • Future journey time is 38 minutes

I suspect that a direct Coventry and Leicester service is being provided that does one of the following.

  • Reverses in Nuneaton station.
  • Takes a new flyover to cross the West Coast Main Line.

Would the Southern terminus of the route be Coventry, Leamington Spa or Stratford-on-Avon?

Coventry And Nottingham

Consider.

  • Coventry and Nottingham are 55 miles apart.
  • There is currently no direct train and a change is needed at Birmingham New Street or at both Nuneaton and Leicester.
  • There is to be an increase of two tph.
  • Current journey time is 99 minutes
  • Future journey time is 63 minutes

Would this service be an extension of the Coventry and Leicester service?

As Leicester and Nottingham takes around thirty minutes, this could be the case.

Birmingham And Kings Norton Via The Camp Hill Line

The Midlands Rail Hub page, says this about the Bordesley Chords, which will connect Birmingham Moor Street station to the Camp Hill Line.

Construction of the Bordesley Chords, two viaducts creating new paths to the East Midlands and South West from Birmingham Moor Street Station.

This Google Map shows where they will be built.

Note.

  1. The Football ground in the North-East corner of the map is St. Andrew’s, which is Birmingham City’s home ground.
  2. The rail line going North South across the map and passing to the West side of the ground is the Camp Hill Line, which leads to Water Orton station in the North and Kings Norton station in the South.
  3. The station in the middle of the map is Bordesley station.
  4. The rail line going NW-SE across the map through the station is the Chiltern Main Line into Birmingham Moor Street station, which is a couple of miles to the North-West.

The two Bordesley chords will be double-track chords linking the following routes.

  • Moor Street station to the Camp Hill Line going South to Kings Norton via new stations at Moseley, Kings Heath and Hazelwell.
  • Moor Street station to the Camp Hill Line going North to Water Orton station.

The initial service would appear to be two tph between Moor Street and Kings Norton stations.

CrossCountry Trains and Moor Street Station

Consider.

  • Birmingham New Street station is very busy.
  • Some CrossCountry trains take a Water Orton-Birmingham New Street-Kings Norton route across the city.

Could these trains go between Water Orton and Kings Norton, with a reverse in Moor Street station?

  • Plymouth and Edinburgh Waverley
  • Cardiff Central and Nottingham

And could these services terminate at Moor Street station?

  • Birmingham New Street and Nottingham
  • Birmingham New Street and Stansted Airport via Leicester
  • Birmingham New Street and Leicester

It would seem there must be scope improve the operation of New Street station, by using Moor Street station and the Bordesley chords.

If all these trains used Moor Street station it would be a very busy station.

In an hour it would handle these trains via the Bordesley chords.

  • CrossCountry – 1 tph – Cardiff Central
  • CrossCountry – 1 tph – Edinburgh Waverley
  • West Midlands Railway – 2 tph – Kings Norton
  • CrossCountry – 2 tph – Leicester
  • CrossCountry – 2 tph – Nottingham
  • CrossCountry – 1 tph – Plymouth
  • CrossCountry – 1 tph – Stansted Airport

That is a balanced five tph to the North and five tph to the South.

There would also be the existing services.

  • Chiltern Trains – 2 tph – London Marylebone and Birmingham
  • West Midlands Railway – 6 tph – Dorridge/Stratford-upon-Avon/Whittocks End and Stourbridge Junction

There would also be the proposed Moor Street and Oxford service.

Battery Electric Trains

If we assume that a battery electric train has a battery range equal to or longer than Hitachi’s quoted figure of 56 miles, these routes are possibilities for battery electric trains.

  • Birmingham and Leicester with either electrification or charging at Leicester.
  • Birmingham and Hereford with charging at Hereford
  • Birmingham and Kings Norton
  • Birmingham and Oxford with charging at Oxford and Banbury
  • Coventry and Leicester

If the Midland Main Line is electrified in the Nottingham Area, then all services to Nottingham could be added.

CrossCountry And High Speed Two

Consider.

  • There are up to half-a-dozen spare hourly paths on both the Northern legs of High Speed Two.
  • Using High Speed Two tracks to the North of Birmingham can speed up services considerably.
  • CrossCountry needs a new fleet of trains.
  • Services could be run using classic-compatible High Speed Two trains.
  • The trains might be shorter and would certainly have independent power sources.

It could be a large improvement in quality and journey times, with all current destinations served.

The only extra infrastructure needed would be a connecting junction near Water Orton station. A junction there would work, whether services used Moor Street or New Street station in Birmingham.

Cnnclusion

The concept of a Midlands Rail Hub is very sound.

July 18, 2020 Posted by | Transport | , , , , , , , , , , , , | 2 Comments

Birmingham Airport Connectivity

On the Midlands Connect web site, they have a page, which is entitled Birmingham Airport Connectivity.

This is the introductory paragraph.

By using capacity released by HS2 and investing in new track south of Birmingham Airport, we can improve connections from the south of England, East Midlands, Yorkshire and the North East.

The page contains this helpful map.

It looks like Midlands Connect are thinking about improving the Reading and Newcastle service.

Points made on the page and related articles, like this one on Rail News  include.

  • Birmingham Airport has plans to increase passenger numbers to 18 million by 2033.
  • Coventry and Leamington Spa via Kenilworth will be double-tracked.
  • High Speed Two will release capacity in the area.
  • It will open up rail capacity between Birmingham and Solihull.
  • There will be a new service between Birmingham Moor Street and Oxford via Solihull and Warwick Parkway.
  • It will improve local connections to Birmingham Airport.
  • Birmingham and Reading services will be increased to two trains per hour (tph)
  • The Government is being asked to chip in £20 million.

These are my thoughts.

Birmingham Airport

Birmingham Airport can become a true Heart of England Airport.

I feel that the future of aviation will be very different to the past.

  • COVID-19 and the future pandemics, that we will endure from the East and the Americas, will mean that flying will be a very different experience with hygiene and social distancing to the fore.
  • Smaller aircraft, for flights up to 500 miles, will be odd-looking zero-carbon machines with exotic power systems.
  • Larger aircraft will be energy efficient planes powered by aviation biofuels produced from household and industrial waste, and biomass.
  • Boeing 747s and Airbus A380s will only be talked about in tales from older people to the young.
  • Airports will be important rail hubs to more than just the local area.

Wikipedia also says this about expansion of Birmingham Airport.

Plans for a second runway (a third when demand requires) on the other side of the M42 and a new terminal complex and business park have been published, and they could help to create around 250,000 jobs. It has been estimated that if these plans went ahead, the airport could handle around 70,000,000 passengers annually, and around 500,000 aircraft movements.

This Google Map shows the Airport.

Note the M42 motorway passing North-South to the East of the Airport.

Could Birmingham Airport develop towards Birmingham Interchange and High Speed Two?

It is worth looking at the distance to other airports.

  • Aberdeen – 328 miles
  • Amsterdam – 280 miles
  • Dublin – 199 miles
  • Frankfurt – 478 miles
  • Geneva – 558 miles
  • Paris – 304 miles

All could be within range of an electric aircraft like the under-development Eviation Alice.

I believe that large airports will develop low-noise zero-carbon secondary runways.

Birmingham Airport is well-situated to take advantage.

Adding A Second Track Between Leamington Spa And Coventry

This section of track is about ten miles long, with probably under half only single-track.

This Google Map shows the single-track through the new Kenilworth station.

And these are pictures I took soon after the station opened.

It is certainly one of the best of the current crop of new small stations.

I don’t think that adding a second track will be the most challenging of projects.

It should be noted that the Leamington Spa and Nuneaton service could be a candidate for a battery electric train.

  • The route is twenty miles long

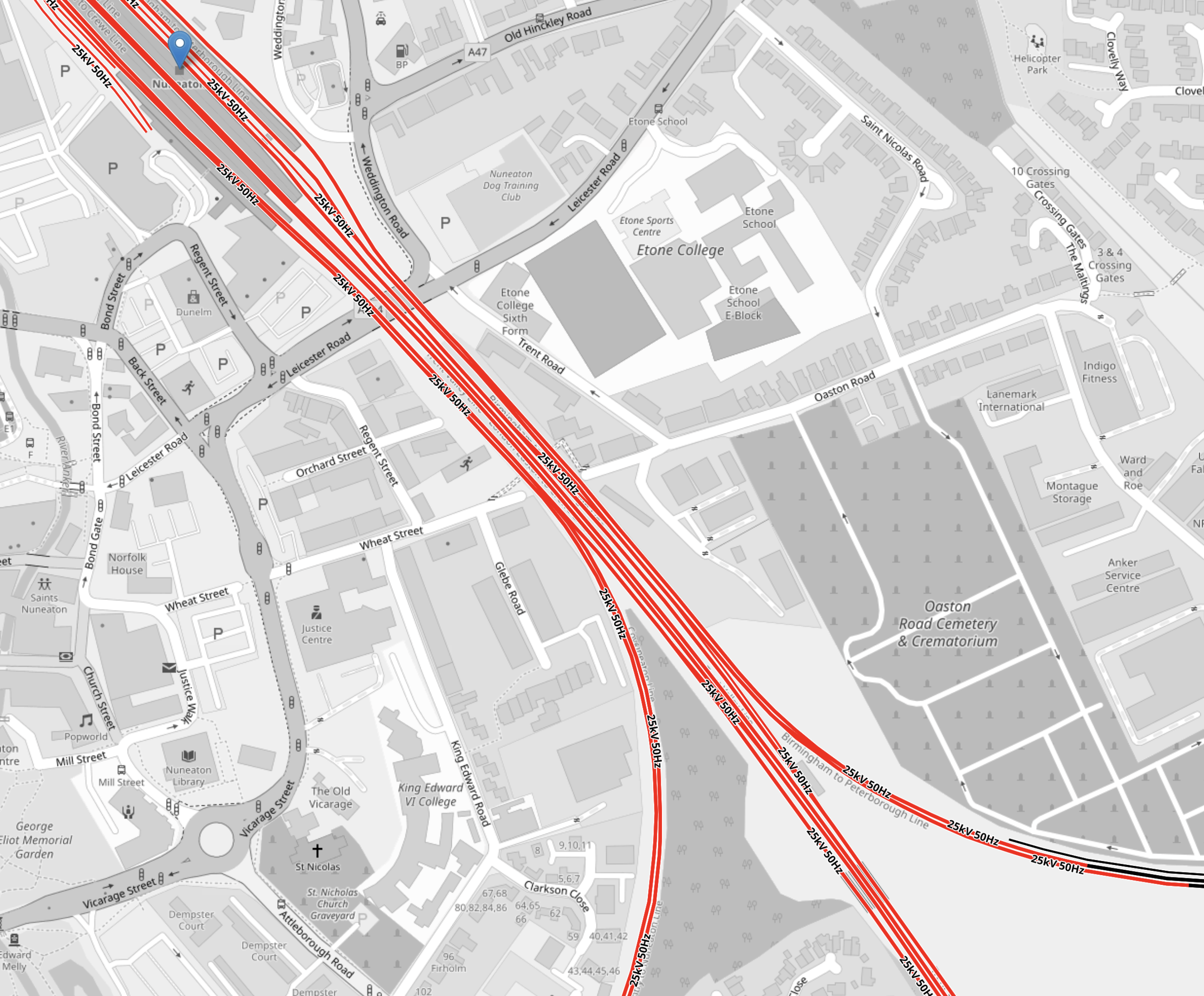

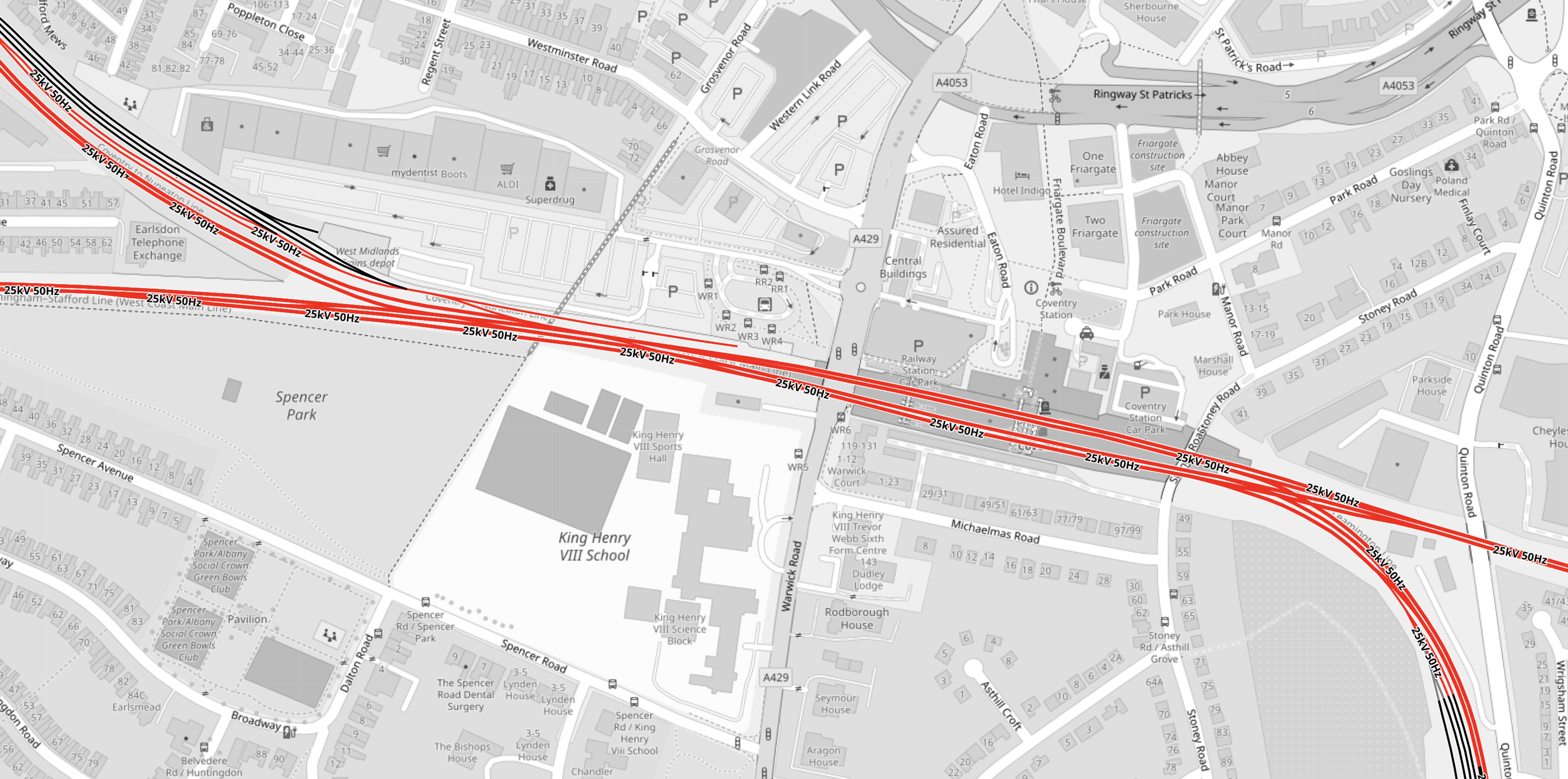

  • Nuneaton and Coventry stations are fully electrified.
  • There might be possibilities to extend this service at either or both ends.
  • Nuneaton and Leicester are nineteen miles apart and a new Nuneaton Parkway station is proposed for the route. I wrote about this station in New Railway Station Between Hinckley And Nuneaton Receives Backing.
  • Leamington Spa and Stratford-upon-Avon are fifteen miles apart and would need a reverse at Leamington Spa.

A battery electric train might give a faster and more passenger-friendly service, if the passenger numbers and forecasts would support an extended service.

A Birmingham Moor Street And Oxford Service

This Google Map shows Birmingham Moor Street station.

Note.

  1. The two Northern through platforms on the Snow Hill Lines, that continue under Birmingham to Birmingham Snow Hill station.
  2. At least two, but possibly three bay platforms, that can take Chiltern Railway’s longest trains.
  3. There is more space for possibly another two bay platforms to be reinstated or built.

Birmingham Moor Street station will also be a short walk from High Speed Two’s Birmingham Curzon Street station.

This Google Map shows Oxford station.

Note.

  1. Birmingham Moor Street station is to the North via Banbury and Warwick Parkway stations.
  2. The two long through platforms capable of taking a nine-car train.
  3. There are two bay platforms to the East of the two through platforms, at the Northern end of the station.
  4. The bay platforms handle Chiltern’s services from London Marylebone and could also handle the proposed service to Birmingham Moor Street.

Consider this about the proposed Birmingham Moor Street and Oxford service.

  • The service could stop at Solihull, Warwick Parkway, Warwick, Leamington Spar and Banbury, as was thought necessary.
  • I estimate that Birmingham Moor Street and Oxford are 66 miles apart and that a 100 mph train would take around 66 minutes.
  • Birmingham Moor Street and Banbury are 43 miles apart.
  • Oxford and Banbury are 23 miles apart.

With these timings and a few minutes to reverse at each end of the route, I would estimate that a 2.5 hour round trip would be possible.

But, I also think, that with charging facilities or short lengths of electrification at Birmingham Moor Street, Banbury and Oxford stations, this service could be run by battery electric trains.

  • A three hour round trip should be possible.
  • Three trains would be needed to provide an hourly service.
  • Oxford, Banbury, Leamington Spa and Warwick would have a direct connection to High Speed Two.

It should also be noted

  • Birmingham Moor Street and Stratford-upon-Avon stations are only 25 miles apart and the journey rakes 46 minutes
  • Banbury and Stratford-upon-Avon are 35 miles apart. and the journey takes 57 minutes.
  • Leamington Spa and Nuneaton are 20 miles apart and the journey takes 36 minutes.

There would appear to be tremendous potential for battery electric services between Birmingham and Oxford.

How many tourists would a Birmingham and Oxford service via Stratford-upon-Avon attract?

Improving The Reading And Newcastle Service

Currently, this is a one tph service between Reading and Newcastle stations.

  • It is run by CrossCountry.
  • Intermediate stops include Oxford, Banbury, Leamington Spa, Birmingham New Street, Derby, Sheffield, Doncaster, York, Darlington and Durham.
  • It appears that the full journey takes four-and-a-half hours.

It looks like to run a two tph service would need as many as twenty trains.

There is an alternative route after High Speed Two opens.

  • High Speed Two – Newcastle and Birmingham Curzon Street – 118 minutes
  • Walk – Curzon Street and New Street – 10 minutes
  • CrossCountry – Birmingham New Street and Reading – 90 minutes

This saves about forty-five minutes.

You could even do a double change.

  • High Speed Two – Newcastle and East Midlands Hub – 96 minutes
  • High Speed Two – East Midlands Hub and Birmingham Interchange – 17 minutes
  • Walk – Birmingham Interchange and Birmingham International – 10 minutes
  • CrossCountry – Birmingham International and Reading – 78 minutes

This gives a time of around three hours and twenty minutes.

High Speed Two certainly saves time.

But look at this map clipped from the High Speed Two web site.

Note.

  1. The blue dot shows the location of Curzon Street station.
    The West Coast Main Line running into New Street station, is just to the South of Curzon Street station.
    New Street station can be picked out to the West of Curzon Street station.

This Google Map shows a close-up of the current Curzon Street station site.

The same pattern of rail lines going past the Curzon Street site into New Street station can be picked out.

Surely, a connection could be made to allow trains from a couple of platforms in Curzon Street station to terminate trains from the West Coast Main Line.

To improve services between Newcastle and Reading, trains would do the following.

  • Run on the current East Coast Main Line infrastructure between Newcastle and York. Station stops could be Durham, Darlington and York.
  • Switch to new High Speed Two infrastructure South of York.
  • Run on High Speed Two infrastructure to Birmingham Curzon Street station. Station stops could be Sheffield, Chesterfield and East Midlands Hub.
  • The train would reverse at Birmingham Curzon Street station.
  • Switch to the West Coast Main Line outside Birmingham Curzon Street station.
  • Run on the West Coast Main Line to Birmingham International station.
  • Take the route currently used by CrossCountry between Birmingham International and Reading. Station stops could be Leamington Spa, Warwick Parkway, Banbury and Oxford stations.

Timings would be as follows.

  • Newcastle and Birmingham Curzon Street – 118 minutes – From High Speed Two web site.
  • Birmingham Curzon Street and Reading – 90 minutes – Current CrossCountry timing.

Note.

  1. This saves about an hour over the current CrossCountry timings.
  2. It could use classic-compatible High Speed Two trains.
  3. Between Birmingham Curzon Street and Newcastle, it follows the same route as one of the current proposed High Speed Two services.
  4. The service could be extended to Edinburgh from Newcastle.
  5. The service could be extended to Southampton from Reading
  6. As there are only twelve tph planned to be running on the Eastern leg of High Speed Two, against a total capacity of eighteen tph, it should be possible to accommodate the extra service or services.

This would surely be a very useful High Speed Two service.

Conclusion

It is a comprehensive package of measures, some of which could have a high cost benefit ratio.









July 17, 2020 Posted by | Transport | , , , , , , , , , , , , , , , , | 7 Comments

Discontinuous Electrification Through Leicester Station

Leicester station is an important station on the Midland Main Line

  • Leicester is an urban area of half a million people.
  • All of East Midlands Railway Intercity services call as they pass through the station.
  • Leicester station is only sixteen miles North of the end of the Southern electrification at Market Harborough station.
  • Birmingham New Street is 40 miles away.
  • Clay Cross North Junction is 50 miles away.
  • Derby is 29 miles away.
  • East Midlands Parkway is 19 miles away.
  • Long Eaton is 21 miles away.
  • Nottingham is 27 miles away.
  • Peterborough is 52 miles away.
  • Sheffield is 66 miles away.

A sensible decision would probably be to extend the electrification from Market Harborough to a few miles North of Leicester, so that battery-electric trains could reach all the places in the above list.

Unfortunately, the following about the bridge at the Southern end of Leicester station, must be noted.

  • The bridge doesn’t have sufficient clearance for electrification and would need to be rebuilt.
  • It carries the main A6 road to London over the railway.
  • The station building also spans the railway lines.
  • To complicate matters, there is an important sewer either in or under the bridge.

This Google Map shows the bridge and the Southern end of the station.

It looks to me, that Leicester station and the road, would have to be closed to traffic for some time, if the bridge were to be rebuilt, to allow the erection of electrification through the area.

A solution could be discontinuous electrification.

  • The electrification from the South, would finish on the South side of bridge.
  • The electrification from the North, would finish in Leicester station.
  • Electric trains would cover the gap of a few hundred metres on battery power.

Pantographs could be raised and lowered, where the wires exist.

  • On the North side of the bridge, this could be in Leicester station, whilst passengers are getting off and on the train.
  • On the South side of the bridge, this could be as far South as Market Harborough, which is sixteen miles away.

The other big problem area of electrification on the Midland Main Line is North of Derby, where the railway runs through the World Heritage Site of the Derwent Valley Mills. There might be serious opbjections to electrification in this area.

  • But if electrification were to be installed between Leicester and Derby stations, the following would be possible.
  • The Midland Main Line would be electrified at East Midlands Hub station.
  • Power could be taken from High Speed Two’s supply at East Midland Hub station.
  • Battery-electric trains could do a return trip to Nottingham from an electrified East Midlands Parkway, as it’s only sixteen miles in total.
  • Battery-electric trains could reach the High Speed Two spur into Sheffield at Clay Cross from Derby, as it’s only twenty-one miles.

I am assuming, that Hitachi’s Class 810 trains will have range of over fifty miles on battery power, which fits with Hitachi’s statements.

Conclusion

Discontinuous electrification and batteries on trains can solve the problem of electrification through Leicester station.

Also. electric trains could run between London and Sheffield, if the following were done.

  • The Class 810 trains were to be given a range of twenty-five miles
  • Electrification were to be erected between Leicester and Derby stations.
  • Electrification were to be erected between Sheffield and Clay Cross Junction, as required by High Speed Two.

The electrification could be brought forward, to bring Sheffield early benefits of High Speed Two.

June 25, 2020 Posted by | Transport | , , , , , , | 8 Comments

Classic-Compatible High Speed Two Trains At East Midlands Hub Station

This article on Rail News, is entitled £2.7bn East Midlands Plan Unveiled For HS2 Links.

This is the first two paragraphs.

A bold plan costed at £2.7 billion for the area around the HS2 hub in the East Midlands has been published by a group of councils, transport bodies and East Midlands Airport.

The core of the scheme is the future East Midlands Hub at Toton, and the plan proposes direct access to the Hub from more than 20 cities, towns and villages in the East Midlands.

If you want to read the original report by Midlands Connect, there’s a download link on this page of their web site.

The original report has a section entitled Midlands Engine Rail, where this is said.

This project is fully integrated with Midlands Engine Rail, a rail improvement plan developed by Midlands Connect to revolutionise connectivity, mobility and productivity across the region. Midlands Engine Rail includes plans for two new HS2 classic-compatible services on an electrified Midland Main Line that will run direct from:

  • Bedford and Leeds via Leicester and East Midlands Hub
  • Nottingham and Birmingham Curzon Street via East Midlands Hub

These services can run on both electrified and high speed tracks, and would join the HS2 network at Toton, the HS2 East Midlands Hub, meaning that Nottingham and Leicester city centres are directly linked to HS2 without the need to change trains.

These improved connections will more than halve current journey times, with Leicester to Leeds dropping from 120 minutes to 46 minutes and Nottingham to Birmingham falling from 72 minutes to 33 minutes.

Note.

  1. Between Bedford and East Midland Hub stations, the Midland Main Line is or soon will be an almost a complete 125 mph rail line.
  2. It is likely, that with digital in-cab signalling, that faster running up to 140 mph may be permitted in places.
  3. Between Birmingham Curzon Street and East Midlands Hub stations, trains will use High Speed Two at up to 205 mph.
  4. Between Leeds and East Midlands Hub stations, trains will use High Speed Two at up to 205 mph.
  5. Leeds and Birmingham Curzon Street station will be new stations for High Speed Two.

The Classic-Compatible Trains

These are described in this section in Wikipedia, by this sentence.

The classic-compatible trains, capable of high speed but built to a British loading gauge, permitting them to leave the high speed track to join conventional routes such as the West Coast Main Line, Midland Main Line and East Coast Main Line. Such trains would allow running of HS2 services to the north of England and Scotland, although these non-tilting trains would run slower than existing tilting trains on conventional track. HS2 Ltd has stated that, because these trains must be specifically designed for the British network and cannot be bought “off-the-shelf”, these conventional trains were expected to be around 50% more expensive, costing around £40 million per train rather than £27 million for the captive stock.

The trains will have the same characteristics as the full-size trains.

  • Maximum speed of 225 mph.
  • Cruising speed of 205 mph on High Speed Two.
  • Length of 200 metres.
  • Ability to work in pairs.
  • A passenger capacity around 500-600 passengers.

It should be noted that one of these trains will be shorter than a pair of East Midlands Railway’s five-car Class 810 trains, which should avoid any serious platform lengthening on existing lines.

Bedford and Leeds via Leicester and East Midlands Hub

A few facts and thoughts.

  • The service is shown as stopping at Wellingborough, Kettering, Market Harborough, Leicester, Loughborough and East Midlands Hub.
  • The service frequency could be hourly.
  • This service could be more important, than it appears, as by the time High Speed Two opens to Leeds, the East West Railway will be open through Bedford.
  • Would a terminal platform need to be added at Bedford station? As the station could be rebuilt for the East West Railway, this shouldn’t be a problem.
  • Leeds will have a new High Speed Two station or at least new platforms in the existing station.
  • The Bedford and Leeds service would join High Speed Two at East Midlands Hub and go North.
  • The Leeds and Bedford service would leave High Speed Two at East Midlands Hub and go South.

Leeds and Leicester will take 46 minutes, with High Speed Two’s journey time calculator, indicating twenty-seven minutes between East Midlands Hub and Leeds stations.

According to an article in the June 2020 Edition of Modern Railways High Speed Two is planning to run the following services on the Eastern leg of High Speed Two between East Midlands Hub and Leeds.

  • Two tph – Birmingham Curzon Street and Leeds
  • Three tph – London Euston and Leeds

There will be a Turn-Up-And-Go six tph service between East Midlands Hub and Leeds stations.

If the Bedford and Leeds service was an hourly service, when added to the current East Midlands Railway Inter-City services, it would give the following calling frequencies.

  • Wellingborough – 2 tph
  • Kettering – 2 tph
  • Market Harborough – 3 tph
  • Leicester – 5 tph
  • Loughborough – 3 tph
  • East Midlands Parkway – 2 tph

The calling pattern can be adjusted to the number of passengers.

Nottingham and Birmingham Curzon Street via East Midlands Hub

A few facts and thoughts.

  • The service is shown as only stopping at East Midlands Hub.
  • The service frequency could be hourly.
  • The service would go between East Midlands Hub and Nottingham using the Trowell Curve route, which I discussed in Access To Toton – Scheme 6 – Trowell Curve.
  • Nottingham station has long terminal platforms that take a full-length Inter-City 125.
  • Birmingham Curzon Street will be a new High Speed Two station.
  • The Nottingham and Birmingham Curzon Street service would join High Speed Two at East Midlands Hub and go South.
  • The Birmingham Curzon Street and Nottingham service would leave High Speed Two at East Midlands Hub and go North.

Nottingham and Birmingham Curzon Street will take 33 minutes, with High Speed Two’s journey time calculator, indicating twenty minutes, between Birmingham Curzon Street and East Midlands Hub stations.

According to an article in the June 2020 Edition of Modern Railways High Speed Two is planning to run the following services on the Eastern leg of High Speed Two from Birmingham Curzon Street.

  • Two tph – East Midlands Hub and Leeds
  • One tph – East Midlands Hub, York, Darlington, Durham and Newcastle.

There will be a Turn-Up-And-Go four tph service between East Midlands Hub and Birmingham Curzon Street stations.

Midland Main Line Electrification

Midlands Connect is calling for full electrification of the Midland Main Line.

The problem is electrification through Leicester station, where there is a low bridge over the track.

In Discontinuous Electrification Through Leicester Station, I showed how the problem might be solved by discontinuous electrification and battery-equipped trains.

The Shared High Speed Two Path

If you look at the two previous sections you’ll see the following.

  • The Birmingham Curzon Street and Nottingham service would leave High Speed Two at East Midlands Hub and go North.
  • The Bedford and Leeds service would join High Speed Two at East Midlands Hub and go North.
  • The Leeds and Bedford service would leave High Speed Two at East Midlands Hub and go South.
  • The Nottingham and Birmingham Curzon Street service would join High Speed Two at East Midlands Hub and go South.



The two services are using the same path on High Speed Two.

I would design the East Midlands Hub, so that High Speed Two and classic services going in the same direction shared an island platform.

Southbound services would behave like this.

  • The Nottingham to Birmingham Curzon Street train would arrive in the High Speed Two face of the platform.
  • The Leeds to Bedford train would arrive in the classic face of the platform.
  • Passengers who needed to change would walk across the platform.
  • When ready both trains would go on their way.

Northbound services would do something similar.

It would be an efficient way to organise interchange between services.

  • Train design would have to ensure, that all trains using the island platform had similar and preferably step-free access.
  • If Greater Anglia and Merseyrail, can do step-free access, then no train designer has an excuse not to.
  • Surely every High Speed Two train that arrives at East Midlands Hub, should be paired with a Midland Main Line service, if the timetable allows it.

The money being spent on High Speed Two means that the British public, won’t accept anything less than perfect.

Are There Any Other Possible Destinations For Classic-Compatible High Speed Two Trains From East Midlands Hub Station?

I will put these in alphabetical order.

Bedford

Consider.

  • Bedford is already planned to have one classic-compatible service to and from Leeds.
  • One of East Midlands Railway’s St. Pancras services calls at Bedford.
  • Bedford has a four tph Thameslink service to a large proportion of Central London and the South East of England.
  • Bedford has direct services to Gatwick Airport.
  • Bedford station will be expanded to accommodate the East West Railway.
  • In a few years, Bedford will be connected to Milton Keynes, Oxford and Reading by the East West Railway.
  • When the East Midlands Hub station opens, Bedford will be connected to Cambridge, Ipswich and Norwich by the East West Railway.

I feel there is a need for a Turn-Up-And-Go four tph service between Bedford and East Midlands Hub stations.

I estimate that between Bedford and East Midlands Parkway stations  will have a journey time of around 60 minutes.

Cambridge

I believe that the East West Railway should be built to the same standard as the East Coast, Great Western, Midland and West Coast Main Lines.

  • Digitally signalled
  • 125 mph-capable
  • Electrified

This would enable classic-compatible services to be extended from Bedford to the UK’s Technology Powerhouse; Cambridge.

As Bedford and East Midlands Parkway could be 60 minutes, timings depend on the times of the East West Railway, between Bedford and Cambridge.

Edinburgh

Consider.

  • Edinburgh is an important city; financially and politically.
  • Edinburgh is planned to have a classic-compatible service from London via the West Coast Main Line.
  • Newcastle is planned to have a classic-compatible service from East Midlands Hub

The city must be a possibility for a classic compatible service from East Midlands Hub.

I estimate that Edinburgh and East Midlands Parkway will have a journey time of a few minutes over two hours

Hull

This clip of a map from the Transport for the North report shows a schematic of the rail links in Yorkshire.

Hull is important for various reasons.

  • It is large city.
  • It is the Eastern terminus of an increasing number of routes.
  • It is becoming a manufacturing centre for North Sea wind.
  • The city will be the terminus of Northern Powerhouse Rail across the Pennines from Liverpool, Manchester and Leeds.
  • Some reports have shown the city as a terminus of the Western leg of High Speed Two.

For these reasons, I will add Hull to the list.

I estimate that Hull and East Midlands Parkway will have a journey time of under an hour.

Lincoln

Looking forward to 2040, I wouldn’t bet against Lincoln being a very important city in the UK.

  • It has history.
  • It is becoming an important higher education centre.
  • It has lots of space.
  • Train operating companies like LNER and East Midlands Railway are improving services to the city.

But most importantly, as Aberdeen became Scotland’s centre for North Sea Oil and Gas, I believe that Lincoln could become England’s centre for North Sea renewable electricity and hydrogen.

I estimate that Lincoln and East Midlands Parkway will have a journey time of around an hour.

Milton Keynes

As I said for Cambridge, I believe that the East West Railway should be built to the same standard as the East Coast, Great Western, Midland and West Coast Main Lines.

This would enable classic-compatible services to be extended from Bedford to Milton Keynes.

As Bedford and East Midlands Parkway could be 60 minutes, timings depend on the times of the East West Railway, between Bedford and Milton Keynes.

Newcastle

As Newcastle already has a direct High Speed Two classic-compatible connection to and from East Midlands Hub station, this must be a possibility.

According to High Speed Two’s journey time calculator<, trains between Newcastle and East Midland Hub stations will take 96 minutes.

Northern Powerhouse Rail

The map I showed with Hull could indicate that a train could take High Speed Two to Leeds and then power its way across the Pennines calling at Leeds, Huddersfield, Manchester Piccadilly, Manchester Airport and Liverpool.

East Midlands Railway would have found a replacement for the Western part of their Liverpool and Norwich service, which is one of the worst railway services in the UK.

Oxford And Reading

As I said for Cambridge, I believe that the East West Railway should be built to the same standard as the East Coast, Great Western, Midland and West Coast Main Lines.

This would enable classic-compatible services to be extended from Bedford to Oxford and Reading.

As Bedford and East Midlands Parkway could be 60 minutes, timings depend on the times of the East West Railway, between Bedford and Oxford and Reading.

Peterborough

I think Peterborough could be an interesting possibility.

  • It is the gateway to the East of England.
  • It is a fully-electrified station.
  • It has seven platforms with space for more.
  • Most platforms could take a two hundred metre long train.

East Midlands Railway’s Liverpool and Norwich service, links Peterborough with Nottingham.

  • That section of the route is 52 miles long.
  • 29 miles of the route on the East Coast Main Line are electrified.
  • The 100 mph Class 158 trains take 67 minutes and 30 minutes to travel between the two stops at Grantham and Peterborough.
  • Some of LNER’s 125 mph electric Class 800 trains are timetabled to travel between the two stops at Grantham and Peterborough as fast as 18 minutes.

What time will be achievable on this short length of electrified track, when digital signalling is fully-deployed and 140 mph running is possible?

I can certainly see a bi-mode Class 801 train going between Peterborough and Nottingham in under an hour.

I also think that they could equal East Midlands Railway’s times to Nottingham going from Kings Cross via Grantham.

In Access To Toton – Scheme 6 – Trowell Curve, I advocated the following electrification, to allow battery-electric trains to work the Nottingham and Skegness service.

  • The Allington Chord between Bottesford and Ancaster stations.
  • The line linking the chord to Grantham station.

As Nottingham station will surely be electrified to allow classic-compatible High Speed Two trains to run between the station and Birmingham using High Speed Two, there will only be sixteen miles of double-track between Bottesford and Nottingham station without electrification.

I have just flown my helicopter along the route and there are one or two bridges and Netherfield station, that will need a rebuild, but it wouldn’t be the most challenging of electrifications.

Especially, as there is High Speed Two and the East Coast Main Line to provide power at both ends of the route.

But as it is only sixteen miles would they use battery-electric high-speed trains.

Surely, that is a crazy idea?

In Will High Speed Two’s Classic-Compatible Trains Have Battery Operation?, I explain why you would use such a concept to create an efficient train.

  • The batteries drive the train and they are charged from the electrification and regenerative braking.
  • Batteries would give a train recovery capability in case of overhead catenary failure.
  • Batteries would be used for depot movements.

In Will The Trains On High Speed Two Have Batteries For Regenerative Braking?, I do a calculation for the battery size needed for a 250 mph Spanish high speed train and the batteries are surprisingly small, at 100 kWh per carriage.

I firmly believe, that the mathematics say it is possible for a high speed train to use on-board battery power to perhaps do thirty miles at say 90 mph on a line without electrification.

Sheffield

As Sheffield station will have a direct High Speed Two connection to and from East Midlands Hub station, this must be a possibility.

According to High Speed Two’s journey time calculator, trains between Sheffield and East Midland Hub stations will take 27 minutes.

Note.

  1. An article in the June 2020 Edition of Modern Railways shows that the Eastern leg of High Speed Two is planned to have nine tph, against a theoretical limit of 18 tph.
  2. The Leeds-Bedford and Nottingham-Birmingham Curzon Street will use another path.
  3. Not all services would need to be hourly.
  4. Could some CrossCountry services be replaced with classic-compatible services?

I feel there is plenty of scope to develop more classic-compatible services along the Eastern leg of High Speed Two.











May 31, 2020 Posted by | Transport | , , , , , , , , , , , , , , | 4 Comments

The Concept Of Electrification Islands

Consider how Imperial Airways and BOAC used to fly long routes to places like Sydney, Hong Kong and Cape Town before the days of long distance jet airliners. They used to fly from airport to airport, picking up fuel and supplies on the way.

If you want to know more about the details, read what is my favourite travel book, Beyond The Blue Horizon by Alexander Frater.

He followed the Imperial Airways route to Sydney, on what was reputed to be the most complicated ticket, that British Airways ever issued.

But can the concept of flying a short range airliner over a long distance refuelling as necessary, be applied to running a battery electric train by charging the batteries on a series of electrification islands?

In Ipswich And Peterborough In A Battery Train, I described how an Ipswich and Peterborough service could be run by a battery-equipped Class 755 train.

The Ipswich and Peterborough route is 82.5 miles long and it can be split as follows.

  • Ipswich and Haughley Junction – 13.8 miles – Electrified
  • Haughley Junction and Ely – 38.2 miles – Not Electrified
  • Ely and Peterborough – 30.5 miles – Not Electrified

Legs two and three, should be within the capability of a battery-equipped Class 755 train. No definite figure has been given, but in the July 2018 Edition of Modern Railways, this was said about the similar Class 756 trains, ordered for the South Wales Metro.

The units will be able to run for 40 miles between charging, thanks to their three large batteries.

Perhaps, what is needed is to create an electrification island at Ely, that can be used to charge the batteries.

An Electrification Island At Ely

This map from Wikipedia shows the complicated railways at Ely,

Note.

  1. Ely station is fully electrified.
  2. The line to Cambridge,Kings Cross, Liverpool Street and Stansted Airport is fully electrified. Greater Anglia’s Class 755 trains between Norwich and Stansted Airport, change between diesel and electrification at Ely.
  3. The line to Kings Lynn is fully electrified.
  4. The lines to Bury St. Edmunds, Norwich and Peterborough are not electrified.
  5. Ely is a city of 20,000 inhabitants, so I suspect it must have a robust electricity supply.
  6. Freight trains take about five minutes to pass between Ely West and Ely Dock Junctions.
  7. Ely West and Ely Dock Junctions are 2.5 miles apart.
  8. There appears to be an avoiding line South-East of Ely station, where I’ve seen trains from Felixstowe to Peterborough sometimes wait for a few minutes before proceeding.
  9. There is also a lot of space at March station, where a passing loop with a charging station could be built.

I believe it would be possibly to do the following at Ely.

  • Electrify the West Curve and the South-East avoiding line.
  • Electrify the Bury St. Edmunds, Norwich and Peterborough lines for perhaps five miles.
  • If required, put a high capacity charging station on the avoiding line.

There would be plenty of electrification to charge the trains.

An alternative plan might be to electrify between March station and the new Soham station, which has been planned to open in 2021.

  • This would be around eighteen miles of electrification.
  • This would certainly be enough electrification to fully-charge passing freight and passenger trains.
  • Soham to Ely could be doubled.
  • The extra electrification would mean the two unelectrified sections of the Ipswich and Peterborough route; Haughley Junction-Soham and March-Peterborough would be well within range of a battery-electric train.
  • The proposed service between Cambridge and Wisbech would only have the twelve miles of the Bramley Line between March and Wisbech to run on battery power.

It might also be possible to put in an extra curve to make Ely Dock Junction, a full triangular junction. This would allow the new Soham station to have direct services to both Cambridge and Cambridge North stations, without a reverse at Ely station.

Other Possible Electrification Islands

I’ll break these down by regions and train operators.

East Anglia (Greater Anglia)

Greater Anglia only runs trains on diesel to the North of Cambridge and Ipswich, which are both fully electrified, as is Norwich.

I would consider Cambridge, Ely, Ipswich and Norwich to be electrification islands.

  • All have a good connection to the electrification power supply, as they handle main line electric trains.
  • All or most platforms at the stations are electrified to charge trains.
  • There are electrified sidings at Cambridge and Norwich and possibly at Ipswich.

Lowestoft and Yarmouth might be fitted with charging systems to make sure a fault doesn’t strand a train.

In Battery Power Lined Up For ‘755s’, I talked about a report in Rail Magazine, which said that the Class 755 trains will get a battery fitted at the first overhaul.

I wouldn’t be surprised, that in a couple of years, Greater Anglia announces the end of diesel power on some or all of their services.

East Coast Main Line (LNER and Others)

Hitachi AT-300 Trains On The East Coast Main Line

The East Coast Main Line (ECML), is increasingly becoming a railway where the vast majority of services are run by versions of Hitachi AT-300 trains.

Classes 800, 802 and 803 are bi-modes and can probably have some or all of their diesel engines replaced by batteries.

In Sparking A Revolution, I gave this specification for a Hitachi battery-electric train.

  • Range – 55-65 miles
  • Performance – 90-100 mph
  • Recharge – 10 minutes when static
  • Routes – Suburban near electrified lines
  • Battery Life – 8-10 years

I will use these figures from Hitachi in this post.

Electrification Islands On The East Coast Main Line

There are several large and smaller stations along the ECML, that can act as electrification islands to support either local services or long-distance services from London.

Cleethorpes

Consider

  • Cleethorpes station would need a decent electricity supply. Offshore wind?
  • Doncaster is 52 miles away.
  • Lincoln is 37 miles away.
  • Newark is 63 miles away.
  • Scunthorpe is 29 miles away.

If you can get battery-electric trains to Cleethorpes, you also serve Grimsby Town station, which is three miles closer to the ECML.

With electrification islands at Lincoln and Scunthorpe and Hitachi AT-300 trains with a battery range of at least sixty miles, electric trains could be run to Cleethorpes and Grimsby.

Would that improve the economy of the area?

Darlington

Darlington station is on the electrified ECML, so it must have a top class electricity supply.

  • Bishop Auckland is 12 miles away.
  • Middlesbrough is 15 miles away.
  • Nunthorpe is 20 miles away.
  • Saltburn is 27 miles away.
  • Whitby is 47 miles away.

Darlington could support battery-electric operation of the Tees Valley Line, if the route doesn’t go for hydrogen. Note that hydrogen would probably also handle services from Middlesbrough to Newcastle, Nunthorpe and Whitby with ease.

Note my views on the definitive hydrogen train, which will be a battery-electric-hydrogen hybrid train, able to use power from a variety of sources.

Doncaster

Doncaster station is on the electrified ECML, so it must have a top class electricity supply.

  • Cleethorpes is 52 miles away.
  • Hull is 40 miles away.
  • Scunthorpe is 25 miles away.
  • Sheffield is 19 miles away.

Doncaster could certainly support some battery-electric services.

Grantham

Grantham station is on the electrified ECML, so it must have a top class electricity supply.

  • Nottingham is 22 miles away.
  • Sleaford is 18 miles away.
  • Nottingham and Skegness services seem to take about four minutes to reverse in the station.

The Nottingham and Skegness service could take advantage of the driver changing ends to top up the battery.

Hull

Consider.

  • Hull is a city of nearly 300,000 people, so it must have a decent electricity supply.
  • Hull station is under forty miles from the electrification of the ECML.
  • Doncaster is 40 miles away.
  • Scarborough is 54 miles away.
  • York is 52 miles away, with about 20 miles electrified.

I would certainly suspect that with an electrification island at Hull, the Hitachi AT-300 trains of Hull Trains and LNER could certainly run fully electric services to the city, if they were fitted with batteries.

With an electrification island at Scarborough, could Hull Trains and LNER services be extended to Scarborough?

Leeds

Leeds station is already an electrification island, as it is fully electrified.

  • It also has electrified services to Bradford, Ilkley and Skipton.
  • Leeds and Huddersfield will be electrified in the next few years.

Harrogate is 18 miles away, so a return journey is within range of a Hitachi AT-300 train with a battery, that is charged on the ECML.

Lincoln

Consider.

  • Lincoln station would need a decent electricity supply.
  • Cleethorpes is 37 miles away.
  • Doncaster is 40 miles away.
  • Newark is 16 miles away, so a return journey is within range of a Hitachi AT-300 train with a battery, that is charged on the ECML.
  • Nottingham is 34 miles away and Leicester is 61 miles away.
  • Peterborough is 57 miles away.
  • Sleaford is 21 miles away.

With an electrification island at Lincoln, the following should be possible.

  • Electric services between Cleethorpes and Lincoln using battery-electric trains.
  • Electric services between Doncaster and Lincoln using battery-electric trains.
  • Electric services between Nottingham/Leicester and Lincoln using battery-electric trains. Electrify the Midland Main Line (MML) and this is easy.
  • Electric services between Peterborough and Lincoln using battery-electric trains. It may need an electrification island at Sleaford.
  • Electric services between London Kings Cross and Grimsby/Cleethorpes using Hitachi AT-300 trains with a battery, that is charged on the ECML and at Lincoln.

The London Kings Cross and Lincoln services could top up their batteries if required if they were run using Hitachi AT-300 trains with a battery

Surely, if Class 755 trains are good enough for Norfolk and Suffolk and both franchises are run by Abellio, then battery versions of these trains would be ideal for running services from Lincoln to Cleethorpes/Grimsby, Doncaster, Newark, Nottingham, Peterborough and Skegness.

Middlesbrough

If required an electrification island could be placed at Middlesbrough station.

  • Darlington is 15 miles away.
  • Newcastle is 47 miles away.
  • Saltburn is 13 miles away.
  • Whitby is 35 miles away.

This area might opt for hydrogen, but I believe battery-electric trains could also work the routes through Middlesbrough and Darlington. Note my views on the definitive hydrogen train, which will be a battery-electric-hydrogen hybrid train, able to use power from a variety of sources.

Newark

Consider.

  • Newark North Gate station is on the electrified ECML, so it must have a top class electricity supply.
  • Cleethorpes is 63 miles away.
  • Grimsby is 60 miles away.
  • Lincoln is 16 miles away.
  • Nottingham is 17 miles away.

With an electrification island at Cleethorpes/Grimsby, battery-electric services could be extended to either town. They would need to use the electrification island at Lincoln station to top-up the battery.

Newcastle

Newcastle station is on the electrified ECML, so it must have a top class electricity supply.

  • Carlisle is 61 miles away.
  • Middlesbrough is 47 miles away.
  • Nunthorpe is 52 miles away.

Newcastle could surely support local services using battery-electric trains. They could be dual-voltage, so they can use Tyne and Wear Metro electrification.

Peterborough

Peterborough station is on the electrified ECML, so it must have a top class electricity supply.

  • Ely is 31 miles away.
  • Leicester is 52 miles away, with Birmingham another 40 miles further.
  • Lincoln is 57 miles away.
  • Sleaford is 35 miles away.

It might even be possible for Hitachi AT-300 trains with a battery to be able to run between Stansted Airport and Birmingham for CrossCountry.

  • Stansted and Ely – 38 miles – Electrified
  • Ely and Peterborough – 30.5 miles – Not Electrified
  • Through Peterborough – 6 miles – Electrified (ECML)
  • Peterborough and Leicester – 52 miles – Not Electrified
  • Leicester and Nuneaton – 19 miles – Not Electrified
  • Through Nuneaton – 3 miles – Electrified (WCML)
  • Nuneaton and Birmingham – 21 miles – Not Electrified

Note.

  1. Trains would charge when running under electrification and also during station stops in Cambridge, Ely, Peterborough  Leicester and Nuneaton.
  2. Trains would automatically raise and lower their pantographs as required.
  3. There may be scope to add sections of extra electrification.
  4. For example, electrification of the MML could add as much as eight miles of electrification, through Leicester.

As much as forty percent of the route between Birmingham and Stansted could be electrified.

Sandy/St. Neots

It is planned that the East West Railway (EWR) and the ECML will cross at an interchange station somewhere in this area.

Consider.

Both stations are on the electrified ECML, so must have a top class electricity supply.

  • Bedford is 10 miles away.
  • The electrification South of Cambridge is about 20 miles away.

It would surely be possible to create an electrification island, where the two major routes cross at Sandy/St. Neots.

Scarborough

Consider.

  • Scarborough station would need a decent electricity supply.
  • Hull is 54 miles away.
  • York is 42 miles away.

With charging facilities at Scarborough battery-electric trains could be run to the seaside resort.

  • I also think it would be possible to run a direct service between London Kings Cross and Scarborough using Hitachi AT-300 trains with batteries, either via York or Hull.
  • TransPennine’s Hitachi trains could also read Scarborough from York, if fitted with batteries.

Would battery-electric trains between Hull, Scarborough and York attract more users of the services?

Sleaford

If required an electrified island could be placed at Sleaford station.

  • Sleaford would need a decent electricity supply.
  • The station is where the Nottingham and Skegness and Peterborough and Lincoln routes cross.
  • Grantham on the ECML is 18 miles away.
  • Lincoln is 21 miles away.
  • Nottingham is 40 miles away.
  • Peterborough is 35 miles away.
  • Skegness is 40 miles away.

Services through Sleaford would be run as follows.

As Lincoln and Peterborough are likely to both have the ability to charge trains, the Peterborough and Lincoln route can probably be run using a battery-electric train, that also charges during the stop at Sleaford.

To run the Nottingham and Skegness route, there will need to be a charging facility or an electrification island at Skegness, as forty miles is to far from an out and back from Sleaford on battery power. The section between Sleaford and Nottingham is easier, as there is a reverse at the fully-electrified Grantham station, where the trains could top-up their batteries.

York

York station is already an electrification island, as it is fully electrified.

  • Harrogate is 20 miles away, with Leeds another 18 miles further.
  • Hull is 52 miles away, with about 20 miles electrified.
  • Scarborough is 42 miles away.

It would appear that battery-electric trains could work the routes between Doncaster, Harrogate, Hull, Leeds, Scarborough and York.

Midland Main Line (East Midlands Railway)

Hitachi AT-300 Trains On The Midland Main Line

The Midland Main Line (MML) is a mixture of electrified and non-electrified sections. East Midlands Railway have chosen Hitachi Class 810 trains to cope with the mixed infrastructure.

  • There will be thirty-three five car trains.
  • They will have four diesel engines instead of three in the Class 800 trains.
  • They will have a redesigned nose.

Are East Midlands Railway ordering a dual-purpose design?

In the January 2020 Edition of Modern Railways, this is said about the bi-mode Hitachi Class AT-300 trains for Avanti West Coast.

Hitachi told Modern Railways it was unable to confirm the rating of the diesel engines on the bi-modes, but said these would be replaceable by batteries in future if specified.

Consider.

  • Both fleets of trains are for delivery in 2022.
  • Ease of manufacture would surely mean, that Hitachi would want the two fleets to be substantially the same.
  • A train with four engines could be needed to cruise at 125 mph on diesel.
  • Four engine slots would mean that, if you were replacing some engines with batteries, you’d have more flexibility.

Hitachi seem to be playing an inscrutable game.

This section entitled Powertrain in the Wikipedia entry for the Class 800 train, says this about the powertrain for Class 800/801/802 trains.

Despite being underfloor, the generator units (GU) have diesel engines of V12 formation. The Class 801 has one GU for a five to nine-car set. These provide emergency power for limited traction and auxiliaries if the power supply from the overhead line fails. The Class 800 and Class 802 bi-mode has three GU per five-car set and five GU per nine-car set. A five-car set has a GU situated under vehicles 2/3/4 and a nine-car set has a GU situated under vehicles 2/3/5/7/8.

Hitachi must have found a way to arrange four GUs under a Class 810 train.

  • They could be using slightly smaller engines. Smaller engines could be fitted to curb overheating.
  • The engines might be in pairs under vehicles 2 and 4, possibly sharing utilities like fuel tanks and cooling systems.

But as the vehicles are two metres shorter, it wouldn’t be a shoe-in.

When the trains are to be upgraded to battery electric trains, an appropriate number of GUs would be replaced by batteries.

I wouldn’t be surprised to find out that both Avanti West Coast and East Midlands Railway will have trains that can be converted from five-car bi-mode trains into battery-electric trains, with a range of between 55 and 65 miles.

  • As a control engineer, I believe that a battery could be made to be plug compatible with a GU.
  • An extra battery could be placed under vehicle 3, in the spare engine position.

I reckon that Hitachi’s quote of a sixty-five mile range would at 3 kWh per vehicle-mile need about one MWh of batteries.

That is 200 kWh per vehicle, so I feel it should be possible.

Electrification Of The Midland Main Line

Current plans for electrified sections of the MML are as follows.

  • London St. Pancras and Corby – 79.5 miles – Opening December 2020
  • London St. Pancras and Market Harborough – 83 miles – Opening December 2020
  • Clay Cross North Junction and Sheffield – 15.5 miles – To be built in conjunction with High Speed Two

The gap between Market Harborough and Clay Cross North Junction is about 66 miles.

Electrification Islands On The Midland Main Line

As with the ECML, there are several large and smaller stations along the MML, that can act as electrification islands to support either local services or long-distance services from London.

I will deal with the electrification islands, starting in London.

Bedford

In Looking At The East West Railway Between Bedford And Cambridge, I came to the conclusion, that the East West Railway (EWR) and the MML, would share electrified tracks through Bedford station.

  • There are also rumours of electrification of the East West Railway, which I wrote about in EWR Targets Short-Term Fleet Ahead Of Possible Electrification, after an article in Rail Magazine with the same title.
  • But even so Bedford and Cambridge are only thirty miles apart, which is well within the capability of a battery-electric train.
  • Continuing to the West on the EWR, it is under twenty miles to the electrification at Bletchley on the West Coast Main Line (WCML).

It looks to be that battery-electric trains running on the EWR would be able to charge their batteries as they pass through Bedford.

  • It does appear to me, that the EWR chose a route through Bedford that would make this feasible.
  • It would also be relatively easy to electrify the EWR to the East and/or West of Bedford to increase the time using electrification, to fully charge the trains.
  • As Cambridge and Bletchley are around fifty miles apart, this journey between two fully-electrified stations, would be possible for a battery-electric train, especially, if it were able to take a sip of electricity in the possible stops at Bedford and Sandy or St. Neots.

If in the end, it is decided to electrify the EWR, Bedford would surely be a location, with enough power to feed the electrification.

Leicester

Leicester station is an important station on the MML.

But it would be a difficult station to electrify because of a bridge with limited clearance.

In Discontinuous Electrification Through Leicester Station, I discussed how the following.

  • Discontinuous electrification through Leicester station.
  • Electrification between Leicester and Derby stations.
  • Electrifying the High Speed Two route between Clay Cross Junction and Sheffield.

Would allow Hitachi Class 810 trains, equipped with batteries to run between London and Sheffield on electric power alone.



East Midlands Parkway

East Midlands Parkway station is nineteen miles North of Leicester station.

This Google Map shows its unique position.

Ratcliffe-on-Soar power station is the eighteenth highest emitter of CO2 in Europe and will surely be closed soon.

But then, a power station, will have a good connection to the National Grid, ensuring there could be plenty of power for electrification, even after the current power station is long gone, as it will surely be replaced by another power station or energy storage.

East Midlands Parkway station is also well-connected.

  • Clay Cross North Junction is 31 miles away.
  • Derby is 10 miles away.
  • Leicester is 18 miles away.
  • Nottingham is 8 miles away.
  • Sheffield is 47 miles away.

It should be possible to reach all these places on battery-power from East Midlands Parkway.

Electrification Between Leicester And East Midlands Parkway

The more I look at this stretch of the MML, the more I feel that this eighteen mile stretch should be electrified to create what could become a linear electrification island.

Consider.

  • It is a 125 mph multi-track railway across fairly flat countryside.
  • Connecting electrification to the grid is often a problem, but Ratcliffe-on-Soar power station is adjacent to East Midlands Parkway station.
  • The section is only eighteen miles long, but this is surely long enough to fully-charge a battery train speeding to and from the capital.
  • There are only four intermediate stations; Syston, Sileby, Barrow-on-Soar and Loughborough.
  • The engineering for gauge clearance and electrification, looks to be no more difficult, than it will be between Kettering and Market Harborough.
  • Between Leicester and Market Harborough stations is only sixteen miles.
  • Between East Midlands Parkway and Nottingham is only eight miles, so it would be possible for Nottingham services to run without a charge at Nottingham station.
  • Between East Midlands Parkway and Derby is only ten miles, so it would be possible for Derby services to run without a charge at Derby station.
  • Between East Midlands Parkway and the shared electrified section with High Speed Two at Clay Cross North Junction is thirty-one miles, so it would be possible for Sheffield services to be run without using diesel, once the shared electrification is complete between Clay Cross North Junction and Sheffield.
  • Battery-electric trains between East Midlands Parkway and Clay Cross North Junction could also use the Erewash Valley Line through Ikeston, Langley Mill and Alfreton.
  • There would be no need to electrify through the World Heritage Site of the Derwent Valley Mills that lies between Derby and Clay Cross North Junction, as trains will be speeding through on battery power. Electrifying through this section, might be too much for some people.
  • If the trains can’t switch between battery and overhead electrification power, the changeover can be in Leicester and East Midlands Parkway stations. However, I believe that Hitachi’s AT-300 trains can do the changeover at line speed.

The electrification could also be used by other services.

  • Between Corby and Syston North Junction is only thirty-six miles, so it would be possible to run electric services between London St. Pancras and Derby, Nottingham and Sheffield via Corby, if the main route were to be blocked by engineering work.
  • Between Peterborough and Syston East Junction is forty-seven miles, so it should be possible to run CrossCountry’s Stansted Airport and Birmingham service using battery-electric trains. If the train could leave Leicester with a full battery, both Birmingham New Street and Peterborough should be within range.
  • East Midlands Railway’s Lincoln and Leicester service run for a distance of sixty-one miles via East Midlands Parkway, Nottingham and Newark stations. Electrification between Leicester and East Midlands Parkway, would mean there was just forty-two miles to do on battery power. An electrification island at Lincoln would charge the train for return.

Battery-electric trains with a range of between 55 and 65 miles would really open up the East Midlands to electric services if between Leicester and East Midlands Parkway were to be electrified.

London And Sheffield In A Battery-Electric Class 810 Train

This is speculation on my part, but I think this could be how trains run London to Sheffield before 2030.

  • London to Market Harborough – 83 miles – Using electrification
  • Switch to battery power at line speed.
  • Market Harborough to Leicester – 16 miles – Using battery power
  • Switch to electrification in Leicester station
  • Leicester to East Midlands Parkway – 19 miles – Using electrification
  • Switch to battery power at line speed.
  • East Midlands Parkway to Clay Cross North Junction – 31 miles – Using battery power
  • Switch to electrification at line speed.
  • Clay Cross North Junction to Sheffield – 15.5 miles – Using electrification

Note.

  1. 118 miles would be run using electrification and 47 miles using battery power.
  2. Battery power has been used to avoid the tricky electrification at Leicester station and along the Derwent Valley.

I don’t believe any of the engineering will be any more difficult, than what has been achieved on the MML in the last year or so.

Nottingham

Consider

  • Nottingham station would probably have access to a reliable electricity supply, as Nottingham is a large city of over 300,000 people.
  • Nottingham station has a comprehensive network of local services.
  • Nottingham station has an excellent connection to Nottingham Express Transit.
  • Birmingham New Street is 57 miles away, via Derby and Burton.
  • Burton-on-Trent is 27 miles away.
  • Derby is 16 miles away.
  • Grantham is 23 miles away.
  • Lincoln is 34 miles away.
  • Matlock is 33 miles away.
  • Newark is 17 miles away.
  • Sheffield is 40 miles away.
  • Worksop is 32 miles away.
  • Most of these local services are run by East Midlands Railway, with some services run by Northern and CrossCountry.
  • Some services run back-to-back through Nottingham.

I feel very strongly that if charging is provided in Nottingham, when trains turnback or pass through the station, that many of the local services can be run by battery-electric trains.

Previously, I have shown, that if between Leicester and East Midlands Parkway is electrified, then services between London and Nottingham, can be run by battery-electric trains.

There is also a fall-back position at Nottingham, as the local services could be run by hydrogen-powered trains.

Sheffield

Sheffield station would at first glance appear to be very similar to Nottingham.

  • Sheffield station would probably have access to a reliable electricity supply, as Sheffield is a large urban area of 700,000 people.
  • Sheffield station has a comprehensive network of local services.
  • Sheffield station has an excellent connection to the Sheffield Supertram.

But it looks like Sheffield station will see the benefits of electrification the Northern section of the MML from Clay Cross North Junction.

  • The 15.5 miles of electrification will be shared with the Sheffield spur of High Speed Two.
  • Currently, trains take sixteen minutes between Sheffield and Clay Cross North Junction.
  • Electrification and an improved high-speed track will allow faster running, better acceleration and a small saving of time.
  • A Sheffield train will be charged going to and from Sheffield, so will leave Clay Cross North Junction for Derby and the South with full batteries.
  • There must also be opportunities for local trains running between Sheffield and Class Cross Junction North to use the electrification and be run by battery-electric trains.

Current destinations include.

  • Derby is 36 miles away.
  • Doncaster is 19 miles away.
  • Huddersfield is 36 miles away.
  • Leeds is 45 miles away.
  • Lincoln is 49 miles away.
  • Manchester Piccadilly is 42 miles away.
  • Nottingham is 40.5 miles away.

Note.

  1. Doncaster, Leeds and Manchester Piccadilly stations are fully electrified.
  2. Work on electrifying Huddersfield and Leeds will start in a year or so, so Huddersfield will be electrified.
  3. I am firly sure that Lincoln and Nottingham will have enough electrification to recharge and turn trains.
  4. Some routes are partially electrified.

As with Nottingham, I am fairly sure, that local services at Sheffield could be run by battery-electric trains. And the same fall-back of hydrogen-powered trains, would also apply.

Sheffield And Manchester Piccadilly In A Battery-Electric Train

Consider.

  • Once Sheffield and Clay Cross North Junction is electrified in conjunction with High Speed Two, at least five miles of the Hope Valley Line at the Sheffield end will be electrified.
  • It may be prudent to electrify through Totley Tunnel to increase the electrification at Sheffield to ten miles.
  • The route via Stockport is 43 miles long of which nine miles at the Manchester End is electrified.
  • The route via Marple is 42 miles long of which two miles at the Manchester End is electrified.

There would appear to be no problems with running the TransPennine Express service between Manchester Airport and Cleethorpes using battery-electric trains, as from Hazel Grove to Manchester Airport is fully electrified and in the East, they can charge the batteries at Sheffield, Doncaster and a future electrification island at Cleethorpes.

The Northern service between Manchester Piccadilly and Sheffield could be run using battery-electric trains with some more electrification at the Manchester End or an extended turnback in Manchester Piccadilly.

Transport for Manchester has plans to run improve services at their end of the Hope Valley Line, with tram-trains possible to Glossop and Hadfield.

It would probably be worthwhile to look at the Hope Valley Line to make sure, it has enough future capacity. I would suspect the following could be likely.

  • More electrification.
  • More stations.
  • Battery-electric trains or tram-trains from Manchester to Glossop, Hadfield, New Mills Central, Rose Hill Marple and Sheffield.

I would suspect one solution would be to use more of Merseyrail’s new dual-voltage Class 777 trains, which have a battery capability.

Sheffield And Nottingham In A Battery-Electric Train

Consider.

  • Once Sheffield and Clay Cross North Junction is electrified in conjunction with High Speed Two, 15.5 miles of the route will be electrified.
  • The total length of the route is 40.5 miles.
  • There are intermediate stops at Dronfield, Chesterfield, Alfreton, Langley Mill and Ilkeston.
  • Currently, journeys seem to take around 53 minutes.

I think it would be likely that the battery would need to be topped up at Nottingham, but I think a passenger-friendly timetable can be developed.

West Coast Main Line (Avanti West Coast)

Hitachi AT-300 Trains On The West Coast Main Line

The West Coast Main Line (WCML) is a mainly electrified and with some non-electrified extended routes. Avanti West Coast have chosen Hitachi AT-300 trains to cope with infrastructure.

  • There will be ten seven-car electric trains.
  • There will be thirteen five-car bi-mode trains.

As these trains will be delivered after East Midlands Railway’s Class 810 trains and East Coast Trains’ Class 803 trains, the following questions must be asked.

  • Will the trains have the redesigned nose of the Class 810 trains?
  • Will the bi-mode trains have four diesel engines (Class 810 trains) or three ( Class 800 trains)?
  • Will the electric trains ordered by First Group companies; Avanti West Coast and East Coast Trains be similar, except for the length?

I would expect Hitachi will want the trains to be as similar as possible for ease of manufacture.

Electrification Islands On The West Coast Main Line

As with the ECML and the MML, there are a couple of large and smaller stations along the WCML, that can act as electrification islands to support either local services or long-distance services from London.

I will deal with the electrification islands, starting in London.

Watford Junction

Watford Junction station is already an electrification island, as it is fully electrified.

Services around Watford Junction have possibilities to be expanded and improved using battery-electric trains.

Milton Keynes

Milton Keynes Central station is already an electrification island, as it is fully electrified.

  • East West Railway services will call at Bletchley and not Milton Keynes.
  • There may be a connection between East West Rail and High Speed Two at Calvert station, which is 15 miles away.
  • Milton Keynes will get a service from Aylesbury, which is 22 miles away.

There may be possibilities to link Watford Junction and Milton Keynes via Aylesbury using battery-electric trains to give both places a connection to High Speed Two at a new Calvert station.













April 8, 2020 Posted by | Transport | , , , , , , , , , , , | 2 Comments

Silent Hydrogen Trains On The Cards For New Line Linking Burton And Leicester

The title of this post is the same as that on this article on Derbyshire Live.

The idea of using hydrogen power came about after some people worried about the noise of trains, if the full route were to reopen.

The Proposed Route

The proposed route that would be reopened is the Leicester and Burton-on-Trent Line.

  • The route is double-track.
  • It is around forty miles long.
  • It is still used by freight trains, so the track must be in serviceable condition.
  • There are no stations.

Sadly, when the route was closed to passengers in 1964, British Rail simplified Knighton Junction at the Leicester end of the line. Wikipedia says this.

At the Leicester end of the line, Knighton North Junction has been dismantled and the former course of the line to the junction has been sold and turned into an industrial estate. The line’s remaining connection with the Midland Main Line is Knighton South Junction, which faces southwards, away from Leicester station. Trains between Leicester and the line therefore have to reverse direction at the junction.

This Google Map shows, what’s left of the junction.

Note.

  1. Leicester is to the North
  2. Burton is to the North-West.
  3. Melton Mowbray and London are to the South.

It looks to me, that someone at British Rail made it absolutely certain, that the rail line could not be reopened to provide a passenger service between Leicester and Burton.

For a train to go between Leicester and Burton, it would either need to reverse as Wikipedia indicated, or the curve would have to be very tight.

There is only one class of passenger train, that can go round tight curves and that is a Class 399 tram-train!

So to enable trains to go direct around the corner, the option is either expensive disruptive demolition or use something like tram-train technology or a specially designed bendy train.

The Ivanhoe Line

The route was originally planned to be the second part of the Ivanhoe Line, but this was discontinued after rail privatisation.

Services on this line is an hourly service between Leicester and Lincoln Central stations.

  • Intermediate stations are Syston, Sileby, Barrow-upon-Soar, Loughborough, East Midlands Parkway, Beeston, Nottingham, Newark Castle, Collingham, Swinderby and Hykeham.
  • Services can get overcrowded, as the service is run by two-car trains.
  • Platforms would need to be lengthened for longer trains.

Extending this service to Burton station would surely be good for connectivity at and through Leicester.

The Association Of Train Operating Companies Plan For The Line

This is taken from the Wikipedia entry for the line.

In 2009 the Association of Train Operating Companies published a £49 million proposal (Connecting Communities: Expanding Access to the Rail Network) to restore passenger services to the line that would include reopening stations at Kirby Muxloe, Bagworth and Ellistown, Coalville Town, Ashby de la Zouch, Moira, and Gresley (for Swadlincote). There is also some support in the Leicester area for the line to have new stations to serve Leicester City F.C.’s stadium and the suburb of Braunstone.

Wikipedia also says, it could be developed as a no-frills line.

Possible New Stations In Leicester

I have mentioned new stations in Leicester, so here’s a few more thoughts.

Leicester Reversal Station

A friend said that to reverse the trains between Leicester and Burton, a station has been proposed to be built, south of Knighton Junction.

This Google Map shows the junction and the line to the South.

Only a single-platform station would be needed and it would be a simple and affordable solution to British Rail’s lack of vision of the future.

Leicester City Stadium

This Google Map shows the stadium.

Note the rail line passing to the South of the station.

It would appear that building a new station would not be the most difficult of projects.

But after the experience of Coventry City, who were relegated twice after Coventry Arena station opened, would eicester City want a station?

Braunstone Station

This Google Map shows the rail line running through Braunstone.

The rail line is at the top of the map.

Leicester Forest East Station

I wrote about this possible station in A Station At Leicester Forest East.

Burton Station

Intriguingly, Burton station is run by East Midlands Railway, who run no services to the town.

Services are provided by CrossCountry using a variety of long distance services.

The South Staffordshire Line connects Burton and Birmingham.

Part of this line is being converted to become an extension of the West Midlands Metro and Staffordshire County Council have looked at converting the whole route to tram-train operation to bring trams to Burton to promote tourism.

Hydrogen Power

I estimate that the distance between Lincoln and Burton is about a hundred miles.

Alstom are predicting a range of several hundred miles for their hydrogen trains for their Breeze train, which should mean a round trip to Lincoln from Burton will surely be in range.

Refuelling could be at a suitable place on the route.

In Delivering Hydrogen For Vehicles, I talk about how iTM Power are building hydrogen refuelling stations for road vehicles.

As the company is already building stand-alone hydrogen fuelling stations for fleets of buses in Birmingham and Pau, I’m sure that one for a fleet of trains is not a problem.

All their filling stations need is a small amount of space, a supply of tap water and a connection to the electricity grid.

It should be noted that Central Rivers Depot is four miles South of Burton.

Possibilities

There are a lot of possibilities to extend the Ivanhoe Line to Burton and even beyond using the South Staffordshire Line.

  • Battery or hydrogen trains can be used.
  • Stations can be added as required.
  • The route will connect to Eat Midlands Airport.
  • A solution for Knighton Junction an surely be devised.

Amazon are reported to be interested in the project, as they have a big depot at Coalville.

January 15, 2020 Posted by | Transport | , , , , , , , , , , | 2 Comments

Shapps Supports Beeching Axe Reversals

The title of this post is the same as that of this article on Rail Magazine.

This is the introductory paragraph.

Secretary of State for Transport Grant Shapps says he supports the reopening of routes closed in the Beeching cuts of the 1960s.

In the article, which describes proceedings in the House of Commons, Grant Shapps, says he was very supportive of opening the Market Harborough Line.

Digging around the Internet, I found this article on the Harborough Mail, which is entitled Harborough Rail Group Says Plan To Reopen Historic Line Is A ‘Excellent Idea’.

This is the introductory paragraph.

Moves to reopen the historic Market Harborough-Northampton railway line are being backed by a local rail passengers’ chief.

The Market Harborough-Northampton Line was only finally closed in 1981.

  • It used to connect the two stations with a double-track railway.
  • It is about fourteen miles long.
  • It is now partly a heritage railway and a walking and cycling route called the Brampton Valley Way.

I have flown my virtual helicopter along the route and can make these observations.

  • There is space for a bay platform at Market Harborough station.
  • Once clear of Market Hrborough, the route appears to be across open countryside.
  • The connection to the Northampton Loop Line wouldn’t be too difficult.

The only problem, I can see is that the route into Market Harborough station could be tricky.

These are a few of my thoughts.

What Passenger Service Would Be Provided?

Consider.

  • The route could certainly handle an hourly shuttle, as does the nearby Marston Vale Line.
  • Northampton station currently has three trains per hour (tph) to and from London.
  • Timings between Northampton and Market Harborough stations would probably be around twenty minutes.
  • Fast services between Northampton and Euston take about an hour.
  • Four tph between Northampton and London would probably be desirable.

So could a fourth service to and from London, be extended to Market Harborough station? Or perhaps even Leicester, which already has a platform, where the trains could be turned back?

  • I estimate that with a ten minute turnround at Market Harborough, a three hour round trip would be possible and very convenient.
  • A single track between Northampton and Market Harborough station would be enough.
  • The fourteen miles between the two stations could be handled by a battery-electric train, as there will be electrification at both ends of the route.
  • Porterbrook are developing a battery-electric Class 350 train.

It looks to be a very sensible proposition.

This map clipped from Wikipedia, shows the rail line between Milton Keynes Central and Northampton stations.

It is planned to introduce, a service between Marylebone and Milton Keynes Central using the tracks of the East West Rail Link.

  • It could be run by East West Rail or Chiltern.
  • It might be an easier service to operate as trains wouldn’t need to be turned back at Milton Keynes Central station.
  • It might be a better financial option, if services were to be extended to Northampton and Market Harborough.

As the East West Rail Link is being built by a private company, do they have plans to create services between say Leicester and Oxford?

Could Freight Trains Use The  Northampton And Market Harborough Line?

Consider.

  • A large rail freight interchange is being developed close to East Midlands Airport.
  • The East West Rail Link will be a better route between Southampton Docks and the West Coast Main Line, than the current roundabout routes.
  • Multimodal trains need to travel between the East Midlands and Sheffield and Southampton Docks.
  • Stone trains need to travel between the North Midlands and West London.

If the  Northampton and Market Harborough Line were to be reopened, it would provide a convenient freight route between the Midland Main Line and the Great Western Main Line.

Would the The Northampton And Market Harborough Line Be Electrified?

Consider.

  • It joins the electrified Midland Main Line at Market Harborough station.
  • It joins the electrified Northampton Loop Line at Northampton station.
  • It is only fourteen miles long.
  • Most trains should be able to bridge use the line on battery power.
  • It will be a new well-surveyed railway, which is easier to electrify.

I suspect, whether the line is electrified will be more down to planning issues.

Would the The Northampton And Market Harborough Line Be Double Track?

The line was double-track when it closed and I think that only planning issues will stop it being reopened as a double track.

Is the Opening Of The Northampton And Market Harborough Line Being Driven By The East West Rail Link?

This is a paragraph from the Rail Magazine article.

Asked by Andrew Lewer (Con) at Transport Questions on October 24 whether he would elaborate on plans to open the proposed Market Harborough line as part of the Oxford to Cambridge expressway he said: “I understand that the reopening is at a formative stage, but I am very supportive of it. Indeed, I support the reopening of many of the smaller lines that were closed as a result of the Beeching cuts under a Labour Government, and I should like to see as many reopened as possible.”

Does that mean that The East West Rail Link is driving this project?

Conclusion

Reopening of the Northampton and Market Harborough Line  could be a nice little earner for the East West Rail Link.

  • Freight trains between Southampton Docks and the Midlands and Yorkshire.
  • Stone trains between the North Midlands and London.
  • Passenger trains between Marylebone and Market Harborough and/or Leicester.
  • Passenger trains between Oxford and/or Reading and Market Harborough and/or Leicester.

These sections could be electrified.

  • Basingstoke and Reading
  • Didcot Packway and Oxford
  • Oxford and Milton Keynes
  • Northampton and Market Harborough

Much of the abandoned Electric Spine would have been created.





October 29, 2019 Posted by | Transport | , , , , , , , , , | 2 Comments

New Railway Station Between Hinckley And Nuneaton Receives Backing

The title of this post is the same as that of this article on Rail Technology Magazine.

This is the first paragraph of the article.

Plans for a new railway station between Hinckley and Nuneaton looks set to go ahead following backing from councillors.

The station will be called Nuneaton Parkway.

This page on Coventry Live gives some more information.

There is also a proposed station, to be called Nuneaton Parkway, situated off the A5 between Hinckley and Nuneaton.

This Google Map shows the area where the A5 crosses the Birmingham-Peterborough Line, that runs between Hinckley and Nuneaton..

This must surely be one of the best sites to build a new Parkway station in the UK.

  • The triangular site is a waste transfer station operated by Veolia Environmental Services UK.
  • It has a direct connection to the A5, which could be easily improved, with perhaps a roundabout.
  • Doing a crude estimate from the Google Map, I calculate that the site is about sixteen hactares, which is surely a good size for a Parkway station.
  • There’s even quite a lot of new housing within walking and cycling distance.

It would also appear that the station could be built on this site without major disruption to either road or rail traffic.

Train Services

Currently the train service passing the proposed site of Nuneaton Parkway, which stops at both Hinckley and Nuneaton stations is as follows.

  • An hourly CrossCountry service between Birmingham New Street and Leicester.
  • In addition there are four trains per day between Birmingham New Street and Stansted Airport and/or Cambridge.
  • All trains take seven minutes between Nuneaton and Hinckley.

But just under forty trains per day is not enough.

In my view, there should be a train at least every half-hour and preferably four trains per hour (tph) between Birmingham New Street and Leicester.

What About Coventry and Birmingham International?

Services between Nuneaton and Birmingham go via Coleshill Parkway and don’t call at Coventry and Birmingham International for the Airport, High Speed Two and the National Exhibition Centre.

So could there be a Birmingham New Street and Leicester service via Birmingham International, Coventry, Coventry Arena, Nuneaton, Nuneaton Parkway and Hinckley?

London, Liverpool and Manchester Via Nuneaton

Currently, the Nuneaton and London service is hourly and timed badly for connections at Nuneaton.

If it is intended that passengers will park at Nuneaton Parkway station and go to and from London, Liverpool or Manchester, the following must be arranged.

  • At least four tph calling at Nuneaton, Nuneaton Parkway and Hinckley.
  • At least two tph from West Midland Trains going between London Euston and Crewe calling at Nuneaton.
  • Perhaps one tph from Virgin Trains calling at Nuneaton.
  • A big improvement in cafes and waiting rooms at Nuneaton.

Note that times between Nuneaton and London Euston are as follows.

  • West Midlands Trains – 78 minutes
  • Virgin Trains – 69 minutes

Perhaps West Midlands Trains should be running trains with the same performance as Virgin?

Could Battery-Electric Trains Be Used Between Birmingham New Street And Leicester?

The route between Birmingham New Street and Leicester is not electrified, but two important stations; Birmingham New Street and Nuneaton are both wired, as is the route between Coventry and Birmingham New Street via Birmingham International.

Distances between Nuneaton and other stations, where independent power would be needed are.

  • Birmingham New Street via Coleshill Parkway – 21 miles.
  • Leicester – 19 miles or 38 miles return.
  • Coventry – 10 miles

These distances are all feasible for battery operation.

In Porterbrook Makes Case For Battery/Electric Bi-Mode Conversion, I talked about Porterbrook’s plan to convert redundant Class 350 trains into battery-electric trains.

  • They are four-car electric trains.
  • They were built within the last ten years.
  • They are currently used by West Midlands Trains.

In the related post, I estimated that these converted trains would have the following battery ranges for the power usages shown, if they were to be fitted with 400 kWh of batteries. I chose 400 kWh as this is the battery capacity of a Three-car Class 230 train.

  • 5 kWh per vehicle mile – 20 miles
  • 4 kWh per vehicle mile – 25 miles
  • 3 kWh per vehicle mile – 33.3 miles
  • 2 kWh per vehicle mile – 50 miles

In How Much Power Is Needed To Run A Train At 125 mph?, I calculated that.

  • A Class 801 train needs 3.42 kWh per vehicle mile to maintain 125 mph.
  • An IOnterCity125 train needs 2.83 kWh per vehicle mile to maintain 125 mph.
  • A Class 222 train needs 4.83 kWh per vehicle mile to maintain 125 mph.
  • A Class 170 train needs 3.15 kWh per vehicle mile to maintain 100 mph.

Looking at the last figure for the Class 170 train, I feel that a modern electric train must surely be as or more efficient and I’m justified to assume that a well-designed battery-electric train based on a Class 350 train, should be capable of a power usage of 3 k|Wh per vehicle mile, which would give a 33.3 mile range.

If more range was needed to handle Nuneaton and Leicester, the following could be done.

  • Install a bigger battery in the trains.
  • Install a charging station at Leicester.
  • Extend the electrificationfrom Nuneaton for a few miles.

I very much believe that within a few years, the technology exists to have 100 mph battery electric trains running between Birmingham and Leicester, getting a quick charge en route at Nuneaton.

Conclusion

My logical thinking leads me to the conclusion, that a high-frequency service between Birmingham New Street and Leicester could grow into a Crossrail-style service.

  • Six tph between Birmingham New Street and :Leicester.
  • Services split between Birmingham New Street and Nuneaton, with some trains going via Coleshill and others via Coventry and Birmingham International.
  • There could be extensions from Coventry to Leamington and Birmingham to Wolverhampton and Bromsgrove.
  • Centred on Nuneaton Parkway.
  • Possibly run by battery-electric trains.

Although the Crossrail branding is possibly overused these days.



September 16, 2019 Posted by | Transport | , , , , , | 1 Comment
