Is The Eastern Leg Of High Speed Two Under Threat?

This page on the High Speed Two web site is entitled HS2 Phase 2b Eastern Leg.

These are the opening three paragraphs.

Earlier this year the government made clear in its response to the Oakervee Review its commitment to Phase 2b of HS2, ensuring we boost capacity, improve connectivity between our regions and share prosperity.

As part of this, the government plans to present an Integrated Rail Plan for the North and Midlands by the end of the year, informed by an assessment from the National Infrastructure Commission, which will look at how to deliver HS2 Phase 2b, Northern Powerhouse Rail, Midlands Rail Hub and other rail programmes better and more effectively.

In the meantime, the government has asked HS2 Ltd to pause work on the Eastern Leg. We recognise that this causes uncertainty and our Eastern Leg community engagement teams remain in place to support you.

The page then says that the work on the Western Leg should proceed, with the aim of a Western Leg Bill in early 2022.

In Northern Powerhouse Rail – Significant Upgrades Of The East Coast Main Line From Leeds To Newcastle (Via York And Darlington) And Restoration Of The Leamside Line, I showed that the current and future upgrades to the East Coast Main Line, required by the East Coast Main Line, Northern Powerhouse Rail and High Speed Two, will greatly reduce the times on services from London Kings Cross to Doncaster, Yorkshire, the North East and Scotland.

I said this on timings on the East Coast Main Line.

  • London Kings Cross and Doncaster could be around an hour.
  • London Kings Cross and Leeds could be around one hour and thirty minutes, using the current Doncaster and Leeds time, as against the one hour and twenty-one minutes for High Speed Two.
  • London Kings Cross and York could be around one hour and twenty-three minutes, using the current Doncaster and York time, as against the one hour and twenty-four minutes for High Speed Two.
  • Timings between York and Newcastle would be the same fifty-two minutes as High Speed Two, as the track will be the limitation for both services.
  • High Speed Two’s timing for York and Newcastle is given as fifty-two minutes, with York and Darlington as twenty-five minutes.
  • London Kings Cross and Darlington could be around one hour and forty-nine minutes
  • London Kings Cross and Newcastle could be around two hours and sixteen minutes.
  • London Kings Cross and Edinburgh would be under three-and-a-half hours, as against the proposed three hours and forty-eight minutes for High Speed Two.

LNER’s Azuma cavalry will hold the fort for as long as is needed.

I’ll now look at how various stations, will be affected if the Eastern Leg of High Speed Two is not built, until a couple of decades in the future.

Leeds

Current Long Distance Services At Leeds Station

Leeds station has the following long distance services in trains per hour (tph)

  • CrossCountry – 1
  • LNER – 2
  • TransPennine Express – 5

It is a bit thin compared to say Birmingham or Manchester.

Northern Powerhouse Rail And Leeds

Northern Powerhouse Rail has plans for Leeds with these services to other Northern cities.

  • Hull – two tph in 38 minutes
  • Manchester – six tph in 25 minutes
  • Newcastle – four tph in 58 minutes
  • Sheffield – four tph in 28 minutes.

From what they have written, the following could also be possible.

  • Bradford – six tph in a few minutes
  • Liverpool – four or more tph in 51 minutes
  • Manchester Airport – four or more tph in 35 minutes

It is an ambitious plan.

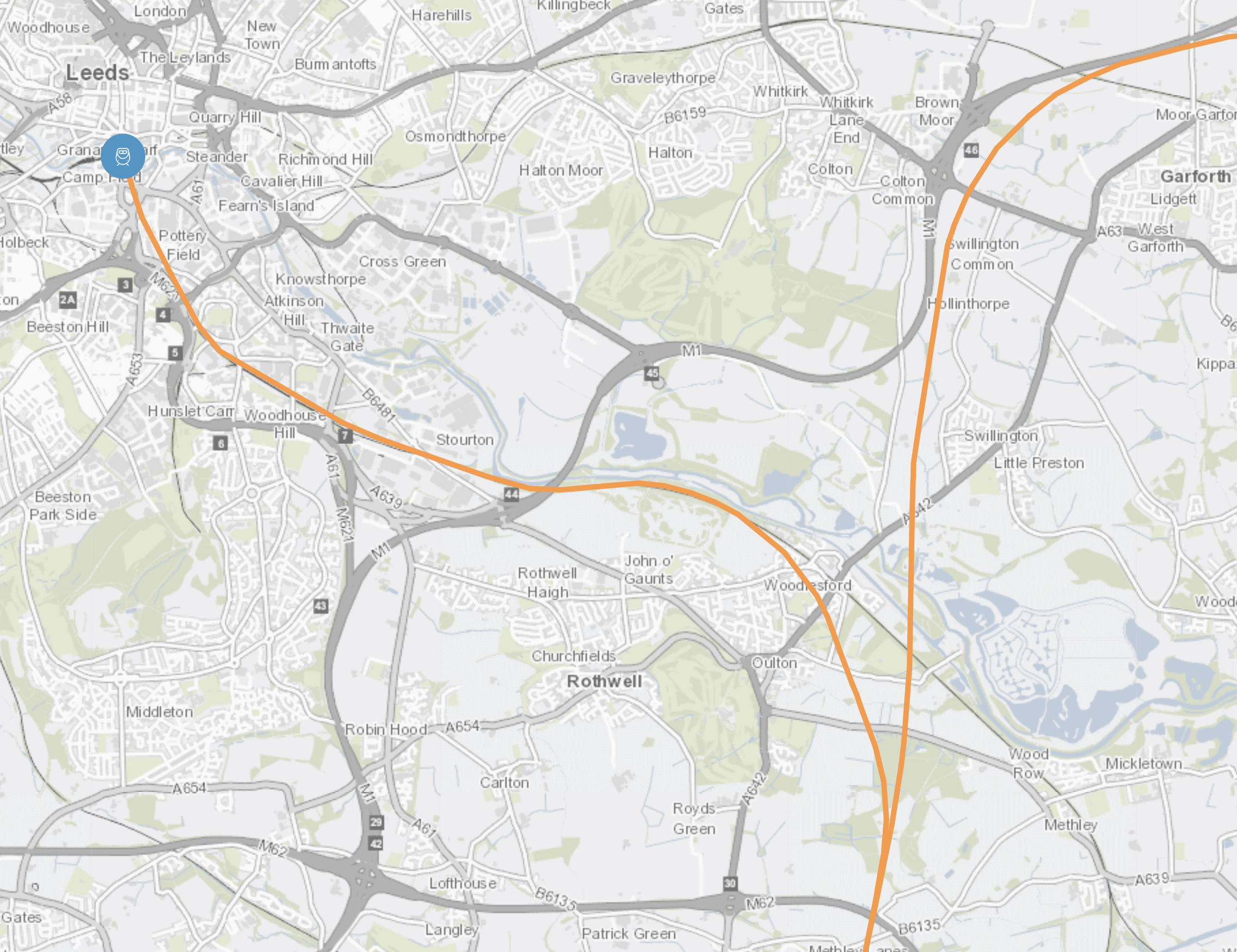

High Speed Two And Leeds

High Speed Two is planning to run the following trains to Leeds in every hour.

  • Birmingham Curzon Street and Leeds – 200 metre train
  • Birmingham Curzon Street and Leeds via East Midlands Hub – 200 metre train
  • London Euston and Leeds via Old Oak Common and East Midlands Hub – 200 metre train
  • London Euston and Leeds via Old Oak Common and East Midlands Hub – 400 metre train
  • London Euston and Leeds via Old Oak Common, Birmingham Interchange and East Midlands Hub – 400 metre train

Timings will be as follows.

  • Birmingham Curzon Street and Leeds – 49 minutes.
  • London Euston and Leeds – One hour and 21 minutes.

There will be about 1000 seats per hour between Birmingham Curzon Street and Leeds and 2500 seats per hour Between London Euston and Leeds.

High Speed Two And Leeds Via Manchester

This report on the Transport for the North web site, is entitled At A Glance – Northern Powerhouse Rail.

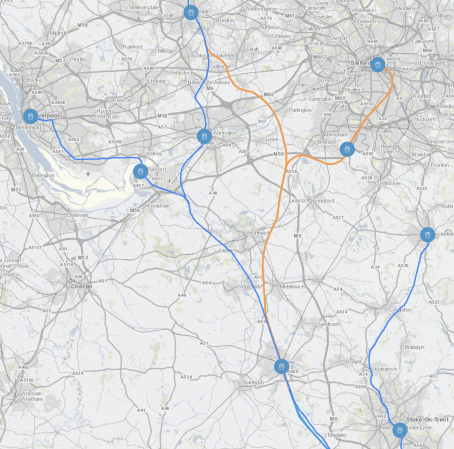

This map shows Transport for the North’s ideas for connections in the West linking Crewe, Liverpool, Manchester, Manchester Airport, Warrington and Wigan.

A black line goes East from Manchester to link it to Leeds via Huddersfield and Bradford.

  • This is proposed as a route shared between High Speed Two and Northern Powerhouse Rail.
  • High Speed Two are promising that London Euston and Manchester will be timed at one hour and eleven minutes.
  • London Euston and Manchester will have a frequency of three tph and will all be 400 metre High Speed Two Full Size trains, with about a thousand seats.
  • Northern Powerhouse Rail have an objective of a twenty-five minute journey time between Manchester and Leeds.

I would also build the Manchester and Leeds route with the following characteristics.

  • As a full-size tunnel capable of taking High Speed Two Full Size trains and the largest freight trains.
  • Intermediate and underground stations at Huddersfield and Bradford.
  • It could be built as a base tunnel, like the similarly-sized Gotthard base tunnel in Switzerland.
  • The Swiss tunnel has a maximum operating speed for passenger trains of 125 mph.

If it can be built for a reasonable cost and in a reasonable time-scale, it could be a way of doing the following.

  • Creating a straight 150 mph plus route across the Pennines, with a capacity of 18 tph.
  • Running high-capacity fast trains between London Euston and Leeds via Manchester Airport and Manchester.
  • Running freight trains between the two sides of the Pennines.
  • Creating a high frequency route between Liverpool and Hull via Manchester Airport, Manchester, Huddersfield and Bradford and Leeds.

The passenger service between Liverpool and Hull could be the world’s first high speed metro.

If the London Euston and Manchester trains, were to be extended to Leeds, London Euston and Leeds would take one hour and thirty-six minutes, which would only be fifteen minutes slower, than is promised for the route going via the Eastern Leg of High Speed Two.

London Kings Cross And Leeds

When the in-cab digital signalling is complete between London Kings Cross and Leeds, I am fairly confident that with a few other improvements and more zoom from the Azumas, that a London Kings Cross and Leeds time of one hour and fifty minutes will be possible.

But will two nine-car or pairs of five-car trains per hour (tph), be enough capacity? Especially, as pairs of five-car trains will split and join to serve a wider catchment area, which will harvest more passengers.

LNER will in a couple of years have an extra path every hour into Kings Cross.

I would feel that best use of this path would be to run between London Kings Cross and Edinburgh via Leeds and Newcastle.

  • Leeds and Newcastle could be the only intermediate stops.
  • Leeds would be the ideal place to change to Northern Powerhouse Rail for anywhere in the North of England.
  • My estimates, say it could run between London Kings Cross and Edinburgh in around three-and-a-half hours.
  • It would run non-stop between London Kings Cross and Leeds, Leeds and Newcastle and Newcastle and Edinburgh.

It would increase capacity, between the four major destinations on the route; London Kings Cross, Leeds, Newcastle and Edinburgh.

It could start running, once the digital signalling and current improvements to the East Coast Main Line are complete.

London St. Pancras And Leeds

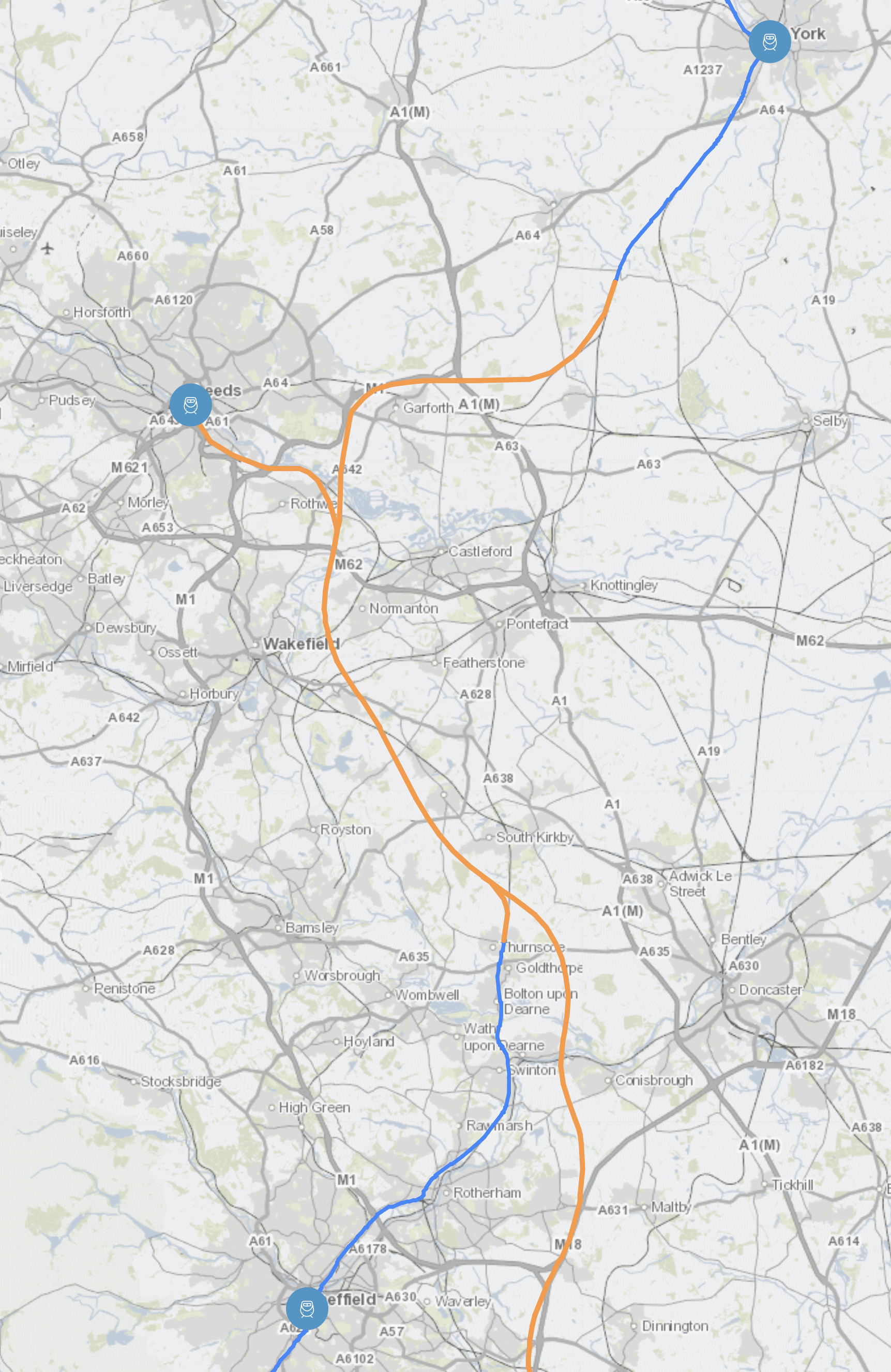

I discussed, Northern Powerhouse Rail’s plan for Sheffield and Leeds in Northern Powerhouse Rail – Connecting Sheffield To HS2 And On To Leeds.

This could see the following new infrastructure.

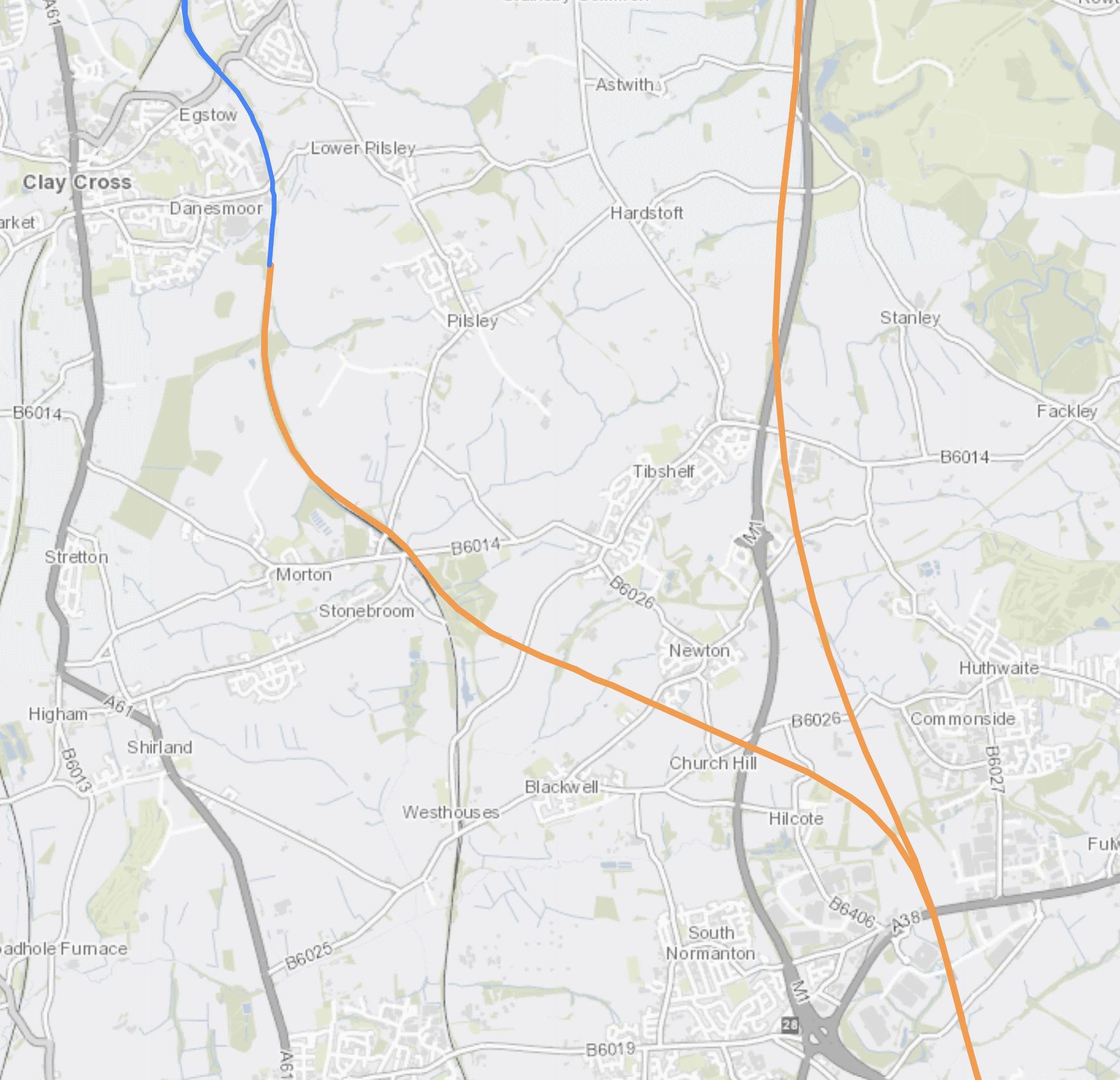

  • Electrification between Clay Cross North Junction and Sheffield station of the route shared by the Midland Main Line and High Speed Two.

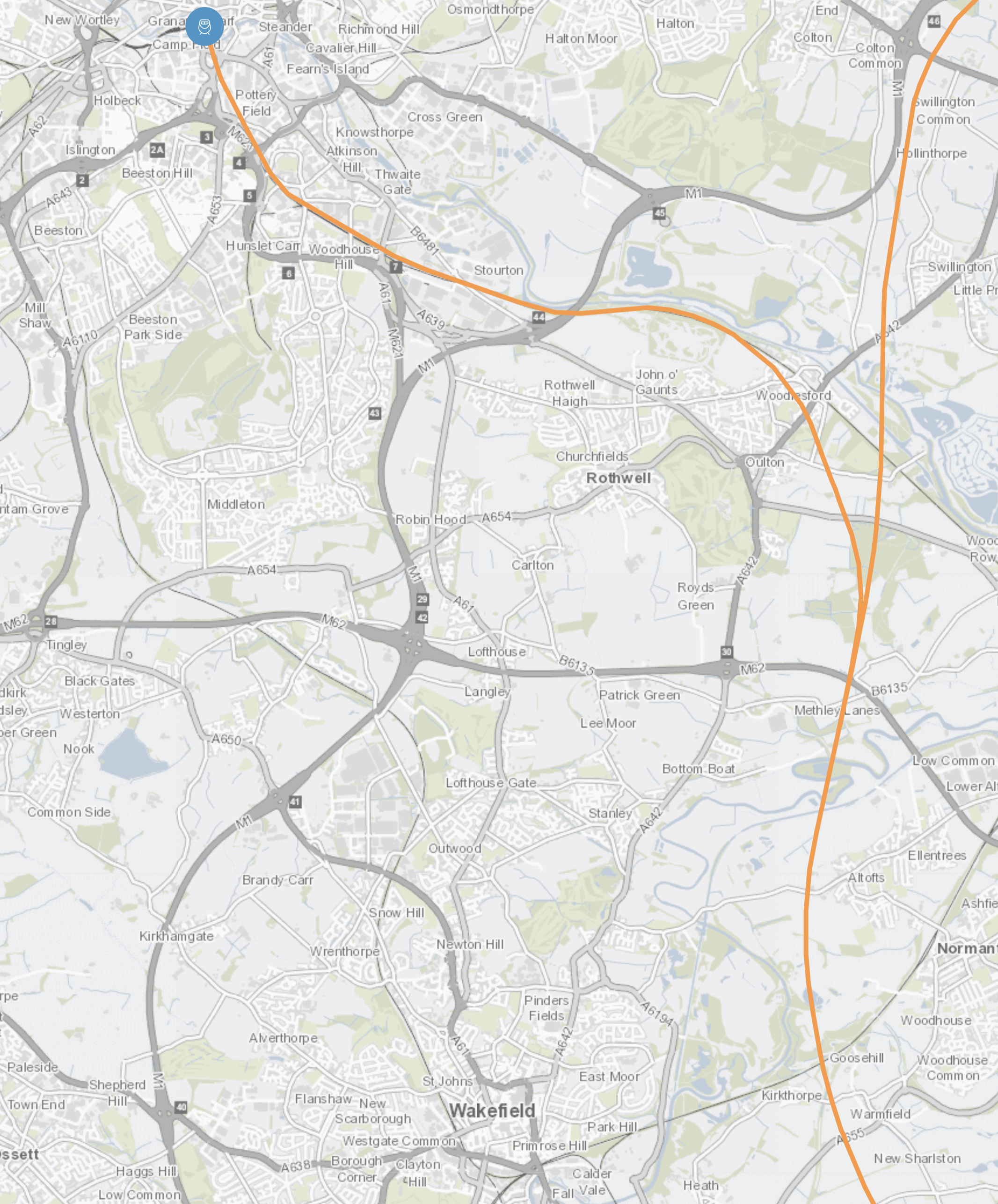

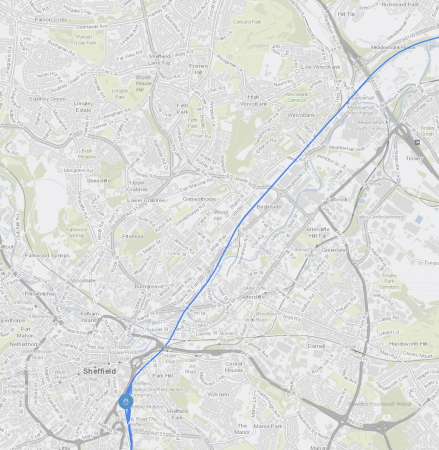

  • Electrification through Sheffield and on to Leeds, via the Wakefield Line

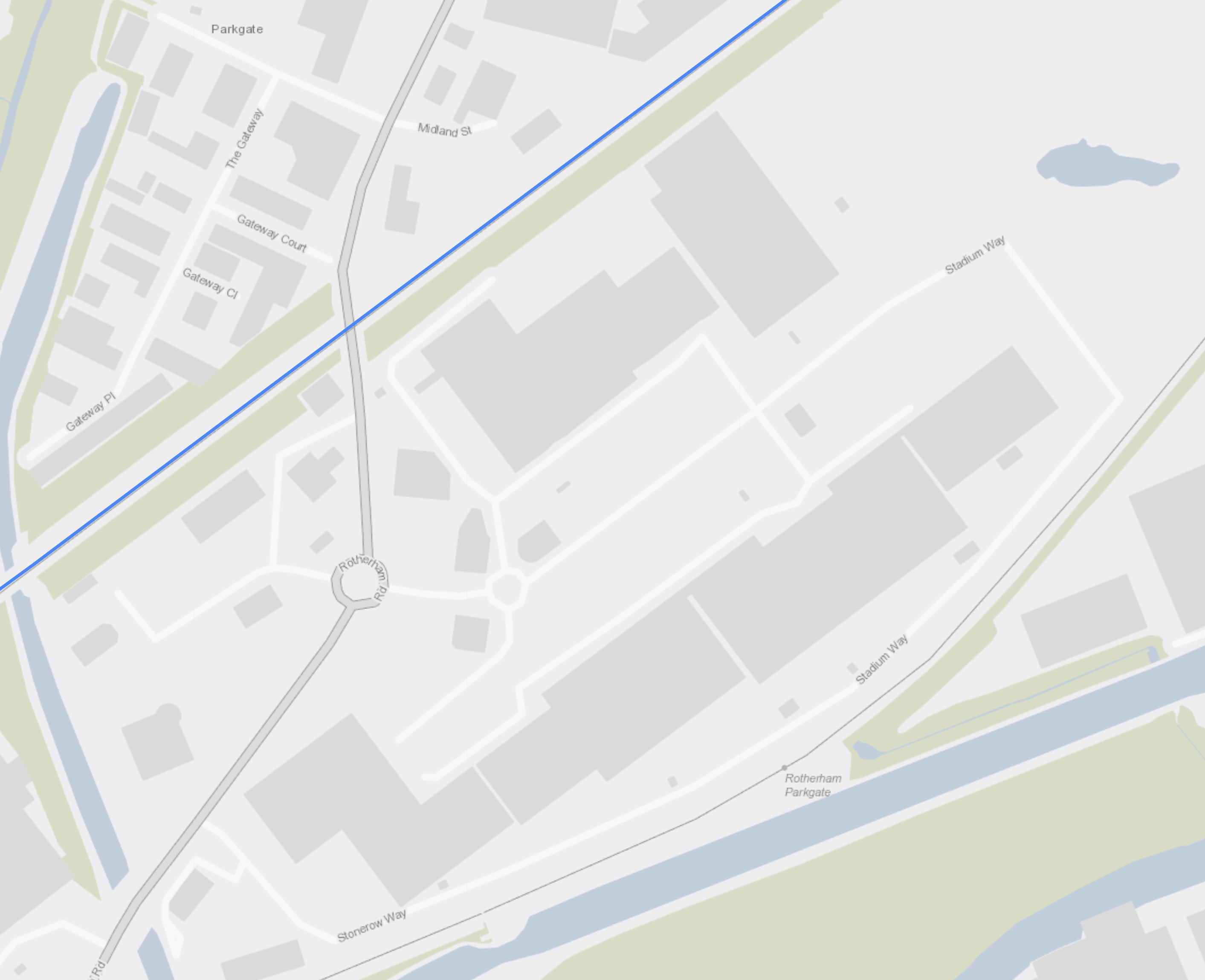

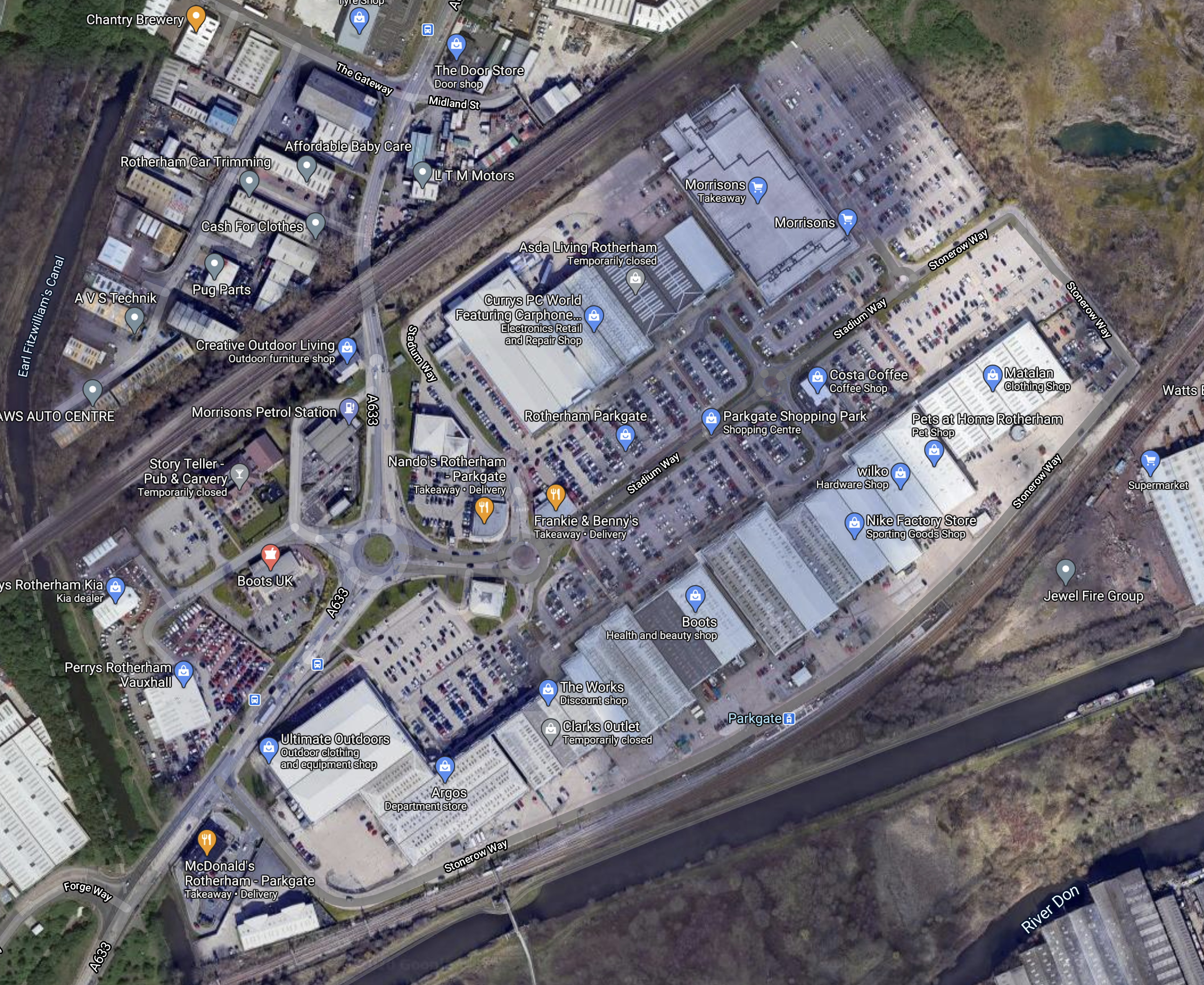

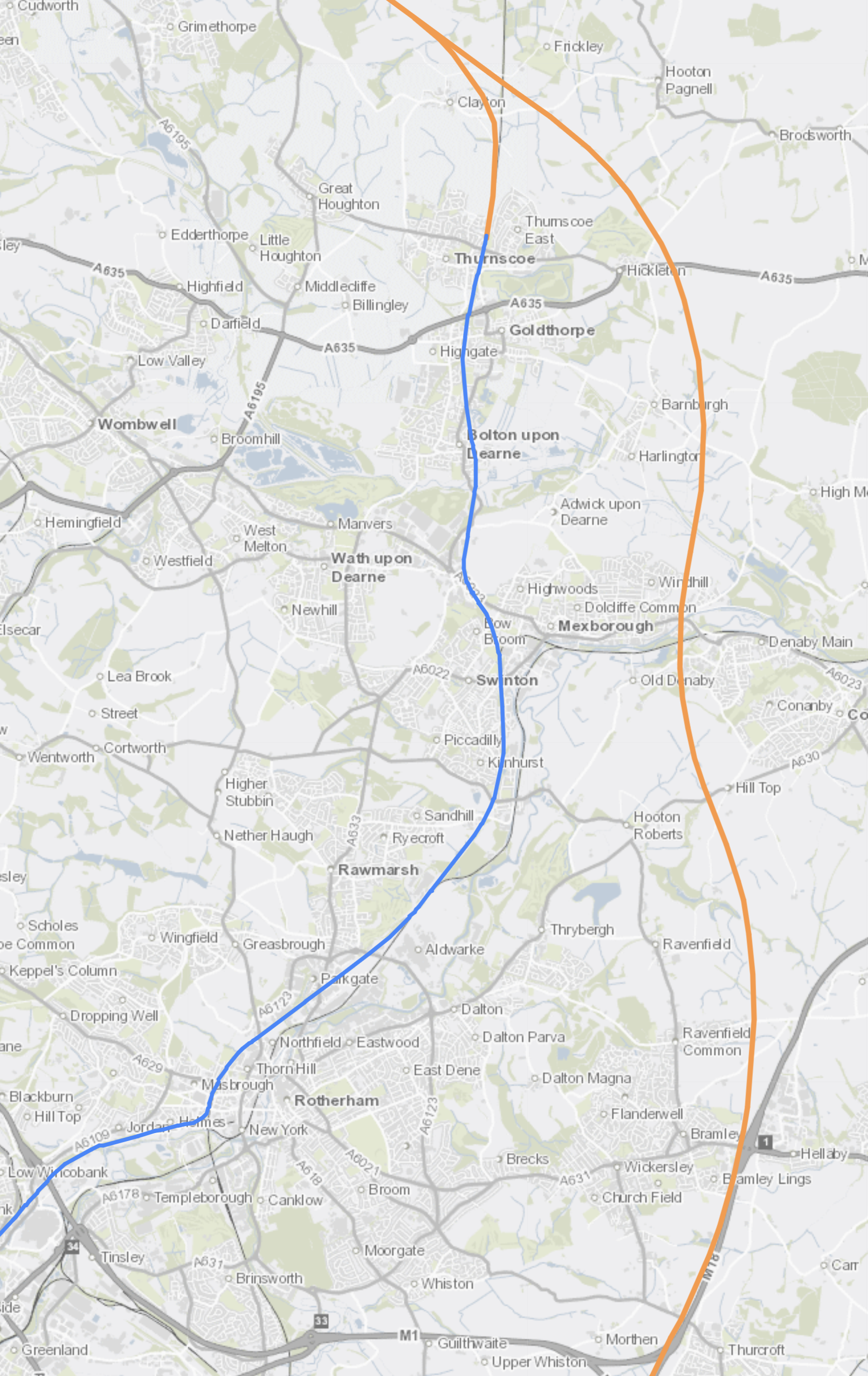

  • New stations for High Speed trains at Rotherham and Barnsley Dearne Valley.

I could see East Midlands Railway taking advantage of this route, with their new Class 810 trains and running a regular Leeds and St. Pancras service.

  • It would call at Wakefield Westgate, Barnsley Dearne Valley, Rotherham and Meadowhall. between Leeds and Sheffield stations.
  • It would take twenty-eight minutes between Leeds and Sheffield, if it met Northern Powerhouse Rail’s objective.
  • Perhaps one of the two tph between London St. Pancras and Sheffield could be extended to Leeds.

As the current time between London St. Pancras and Sheffield, is a few minutes under two hours, I can see a time of comfortably under two-and-a-half hours between London St. Pancras and Leeds.

A Summary Of Journey Times Between London And Leeds

I can summarise my estimates, between London and Leeds.

  • High Speed Two – Direct via Eastern Leg – One hour and twenty-one minutes.
  • High Speed Two – via Manchester – One hour and thirty-six minutes.
  • East Coast Main Line – via Doncaster – One hour and thirty minutes.
  • Midland Main Line – via Derby and Sheffield – Two hours and twenty minutes.

The direct High Speed Two route is the fastest., but others could be viable alternatives for some passengers.

Bradford

Consider.

  • Under current plans Bradford won’t be getting any high speed service from High Speed Two.
  • The best it can get under current plans is several direct services per day, between Bradford Forster Square and London Kings Cross in perhaps two hours.
  • The layout of the city and its two stations doesn’t give good connectivity.

Bradford, Harrogate, Huddersfield and Skipton could probably be served by trains to and from London Kings Cross that join and split at Leeds.

But if Northern Powerhouse Rail goes for a tunnel between Manchester and Leeds with Bradford as an underground station, it could be served by High Speed Two services going between London Euston and Leeds via Manchester.

I would estimate that if London Euston and Leeds via Manchester took around one hour and thirty-six minutes, London Euston and Bradford could take around an hour-and-a-half.

Darlington

I can summarise my estimates, between London and Darlington.

  • High Speed Two – Direct via Eastern Leg – One hour and forty-nine minutes.
  • High Speed Two – via Manchester and Leeds – Two hours and six minutes.
  • East Coast Main Line – via Doncaster – One hour and forty-nine minutes.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle; will speed up East Coast Main Line services to Darlington.

Edinburgh

I can summarise my estimates, between London and Edinburgh.

  • High Speed Two – Direct via Western Leg – Three hours and Forty minutes.
  • High Speed Two – via Manchester and Leeds – Three hours and forty-eight minutes.
  • East Coast Main Line – via Doncaster – Three hours and thirty minutes.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle; will speed up East Coast Main Line services to Newcastle.

Harrogate

Consider.

  • Under current plans Harrogate won’t be getting any high speed service from High Speed Two.
  • The best it can get under current plans is several direct services per day, between Harrogate and London Kings Cross in perhaps two hours.

Bradford, Harrogate, Huddersfield and Skipton could possibly  be served by trains to and from London Kings Cross that join and split at Leeds.

Huddersfield

  • If Huddersfield is served by underground platforms beneath the current Huddersfield station, a lot of what I said for Bradford would apply to Huddersfield.
  • The timings would probably be around an-hour-and-a-half from London Euston.

Bradford, Harrogate, Huddersfield and Skipton could possibly be served by trains to and from London Kings Cross that join and split at Leeds.

Hull

Hull is an interesting destination.

  • Reaching Hull from the current High Speed Two network will need a change at Leeds or another station.
  • Using Northern Powerhouse Rail’s objectives on timings, London Euston and Hull via Manchester on High Speed Two, would be a few minutes under two-and-a-half hours.
  • I strongly feel, that London Kings Cross and Hull via Selby could be reduced to below two hours.

Hull would also make a superb Eastern terminal station for both Northern Powerhouse Rail and a High Speed Two service from London via Manchester and Leeds.

You pays your money and takes your choice.

Middlesbrough

Reaching Middlesbrough from the proposed High Speed Two network will need a change at York or another station.

But a time of two hours and twenty minutes, should be possible using the East Coast Main Line via Doncaster.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle, will speed up East Coast Main Line services to Middlesbrough.

Newcastle

I can summarise my estimates, between London and Newcastle.

  • High Speed Two – Direct via Eastern Leg – Two hours and seventeen minutes.
  • High Speed Two – via Manchester and Leeds – Two hours and thirty-four minutes.
  • East Coast Main Line – via Doncaster – Two hours and sixteen minutes.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle; will speed up East Coast Main Line services to Newcastle.

Nottingham

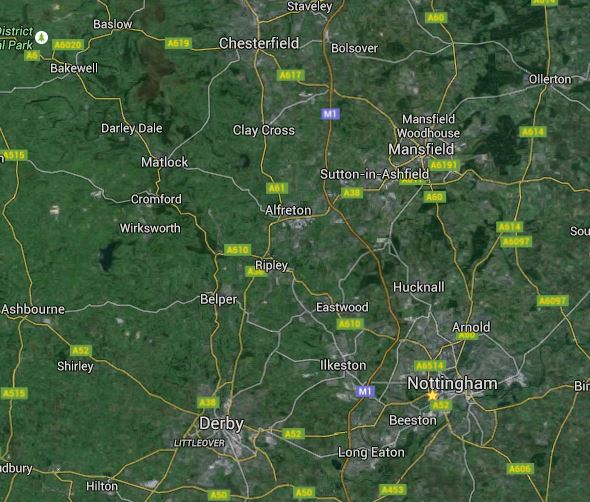

I will compare average speeds on the Midland Main Line between London St. Pancras and Nottingham and on the East Coast Main Line, between London Kings Cross and Leeds.

Currently.

  • London St. Pancras and Nottingham services, over the 126 mile route, take one hour and fifty minutes. which is an average speed of 69 mph.
  • London Kings Cross and Leeds services, over the 186 mile route, take two hours and thirteen minutes, which is an average speed of 94 mph.

Note.

  1. The two routes are of similar character and are fairly straight with large sections of 125 mph running and quadruple tracks.
  2. The East Coast Main Line to Leeds  is fully electrified, whereas the Midland Main Line is only partially electrified.
  3. Both routes have a small number of stops.
  4. In a few years time, services on both routes will be run by different members of the Hitachi AT-300 train family.

I don’t feel it would be unreasonable to assume that a London St. Pancras and Nottingham service could be run at an average speed of 94 mph, if the Midland Main Line were upgraded to the same standard as the East Coast Main Line.

This could mean a time of around one hour and twenty-one minutes between London St. Pancras and Nottingham, or a saving of twenty-nine minutes.

Is that possible?

  • The new Class 810 trains, will have four engines instead of the normal three for a five-car AT-300 train. Will they be able to be closer to the 125 mph line-speed on diesel power, where it is available on the Midland Main Line.
  • The trains will be able to use electrification between London St. Pancras and Market Harborough.
  • There have been hints, that more electrification may be installed on the Midland Main Line.
  • Hitachi have announced a battery electric version of the AT-300 train called a Regional Battery Train, where one or more of the diesel engines are replaced by battery packs.
  • The new trains will be ready to accept in-cab ERTMS digital signalling, so they could be able to run at up to 140 mph, if the track were to be upgraded.

I certainly feel, that substantial time savings could be possible between London St. Pancras and Nottingham.

Eighty-one minutes would be very convenient, as it would comfortably allow a three hour round trip, which would mean just six trains or more likely pairs of trains would be needed for the current two tph service.

Eighty-one minutes would not be the fifty-two minute service promised by High Speed Two!

But!

  • The new trains are planned to be introduced from 2023.
  • Who knows, when High Speed Two will arrive at the East Midlands Hub station?
  • They won’t need any new substantial infrastructure to replace the current trains.

I also suspect the new trains will have more seats, but, the capacity of the Class 810 train, has not been published.

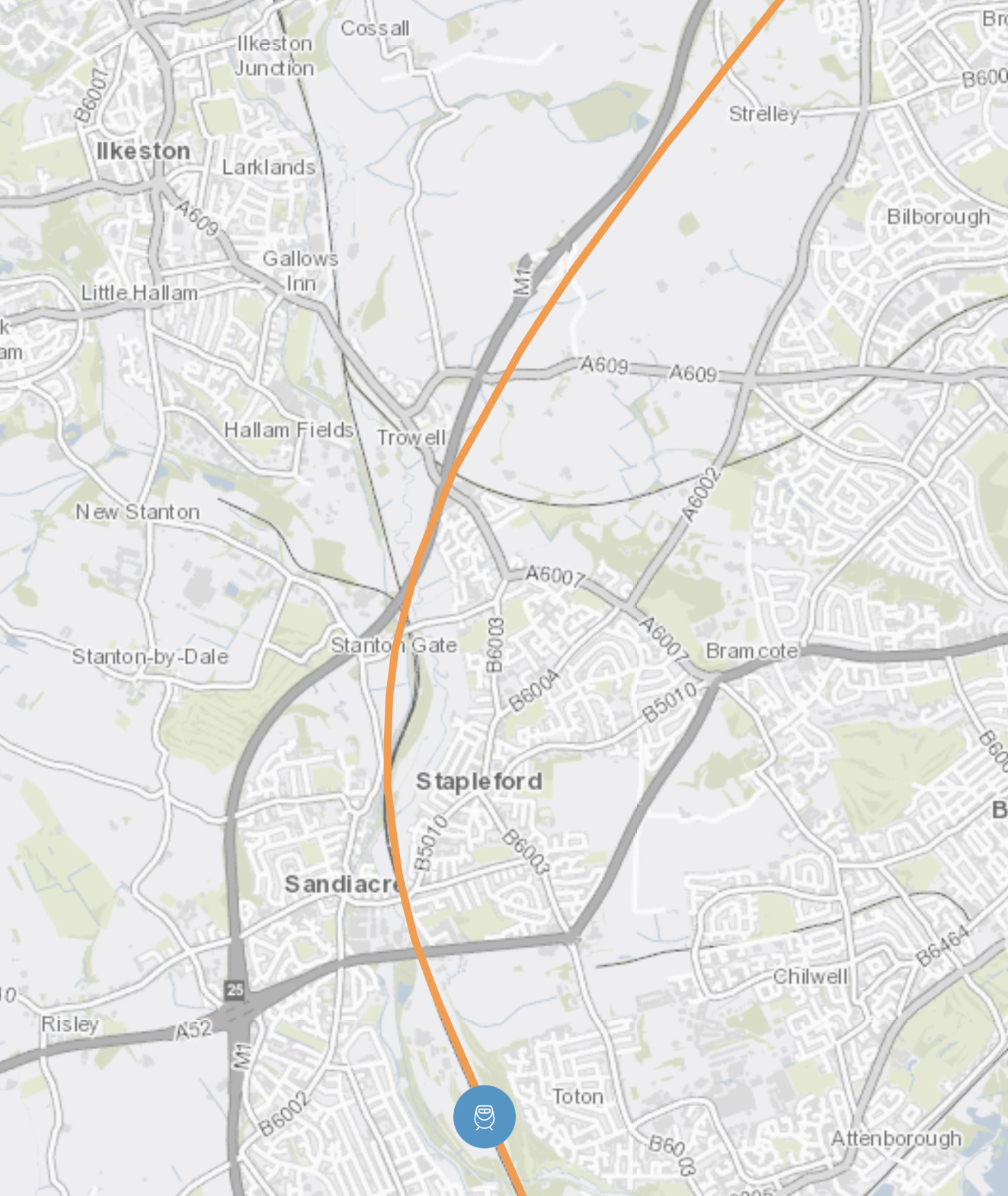

Nottingham could also be served by a high speed service from London Kings Cross via Grantham, which I estimate would take about one hour and twenty minutes.

Sheffield

A lot of what I said for Nottingham can be applied to Sheffield.

  • Currently, London St. Pancras and Sheffield services, over the 165 mile route, take two hours, which is an average speed of 82.5 mph.
  • High Speed Two is promising a journey time of one hour and twenty-seven minutes.
  • An average speed of 90 mph, would mean a journey time of one hour and fifty minutes.
  • This would allow a four hour round trip, which would mean just eight trains or more likely pairs of trains would be needed for the current two tph service.

It would be very convenient for the operator.

It looks like if pairs of trains were to be run on both the Nottingham and Sheffield routes, that twenty-eight trains would be needed to run both services.

This fits well with a fleet size of thirty-three trains.

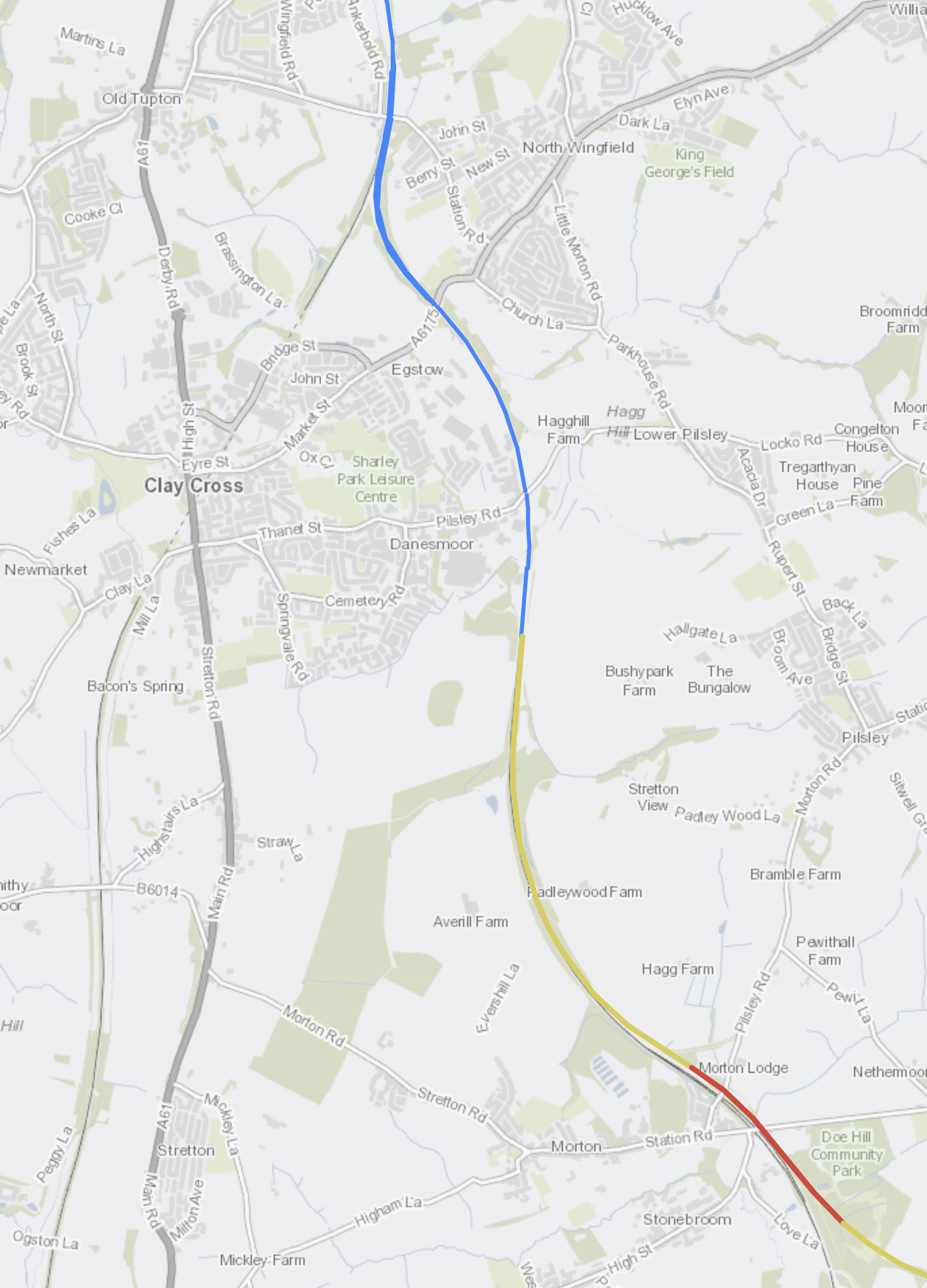

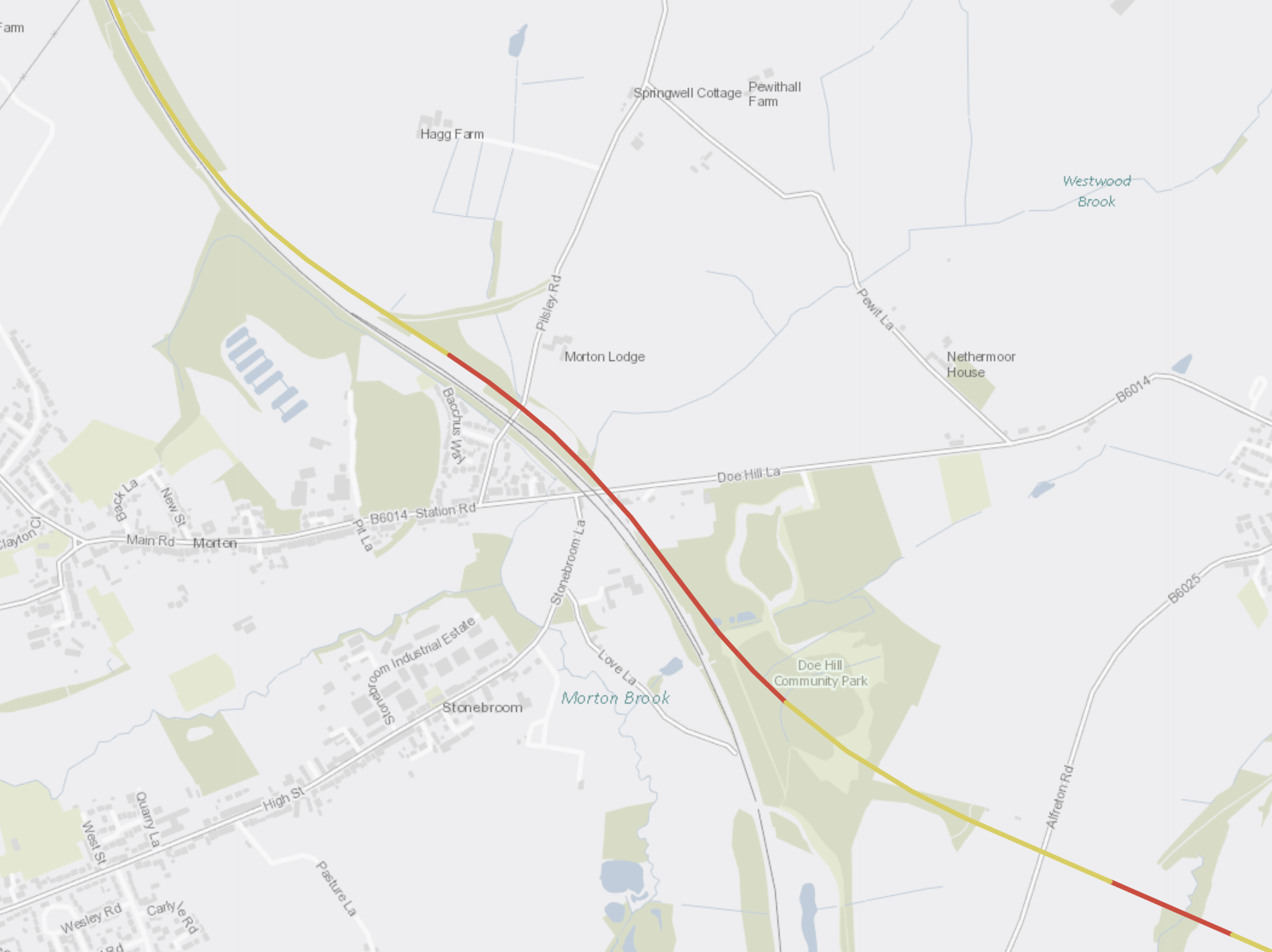

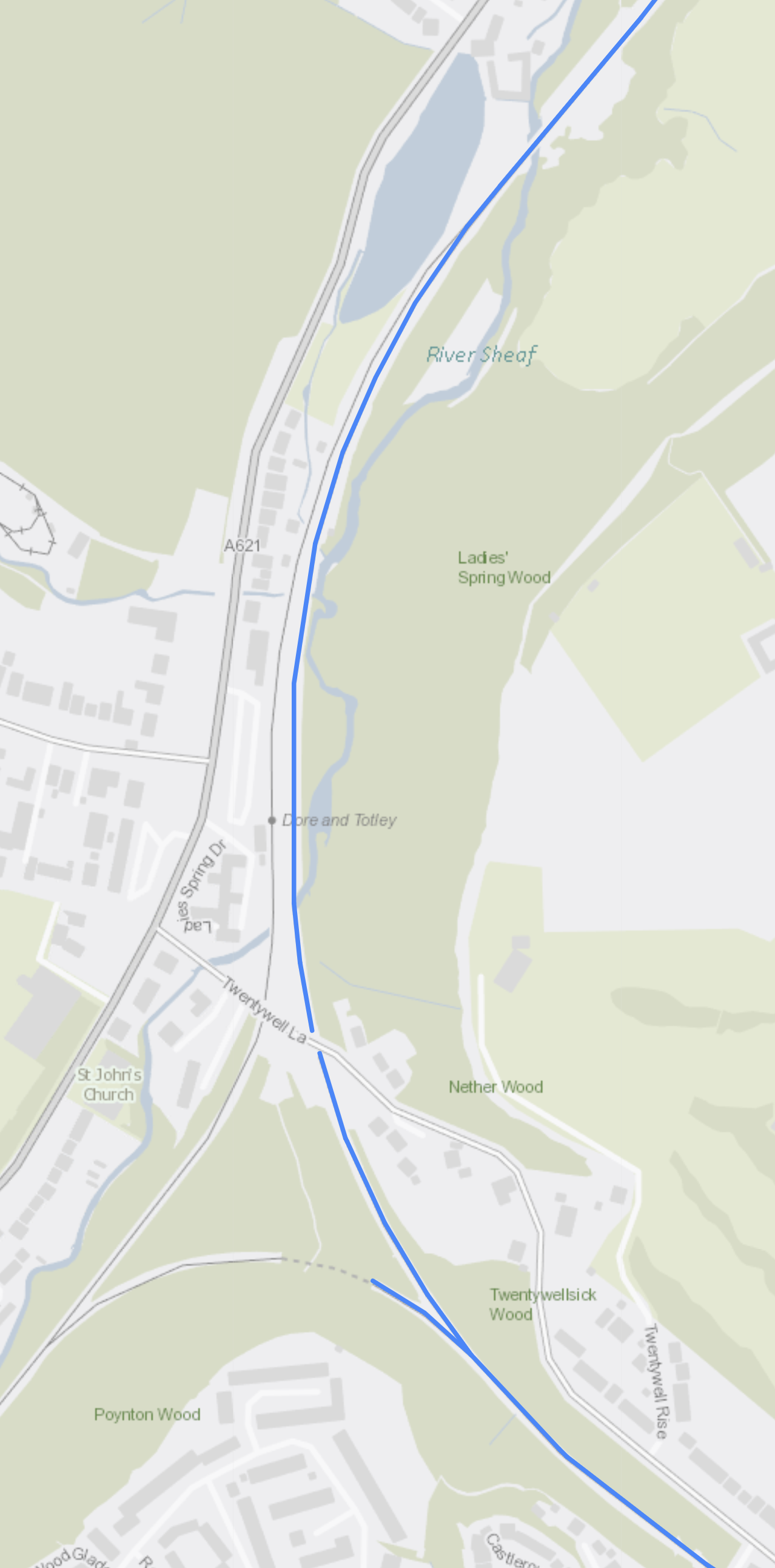

The only caveat, is that to get the required journey times, it might be necessary to rebuild and electrify the tracks, between Sheffield and Clay Cross North Junction.

  • These tracks will be shared with the future Sheffield Branch of High Speed Two.
  • It would only be 15.5 miles of double-track to rebuild and electrify.
  • It could be rebuilt to allow 140 mph running. Several minutes could be saved!

The electrification could allow Hitachi’s Regional Battery trains to be able to run the Sheffield service.

These trains would certainly be a way of avoiding the tricky electrification of the Derby and Clay Cross section of the route, which goes through the World Heritage Site of the Derwent Valley Mills.

Sheffield could also be served by a high speed service from London Kings Cross via Doncaster, which I estimate would take about one hour and thirty minutes.

Skipton

Consider.

  • Under current plans Skipton won’t be getting any high speed service from High Speed Two.
  • The best it can get under current plans is several direct services per day, between Skipton and London Kings Cross in perhaps two hours.

Bradford, Harrogate, Huddersfield and Skipton could possibly  be served by trains to and from London Kings Cross that join and split at Leeds.

Sunderland

Reaching Sunderland from the proposed High Speed Two network will need a change at York or another station.

But a time of two hours and thirty minutes, should be possible using the East Coast Main Line via Doncaster.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle, will speed up East Coast Main Line services to Sunderland.

York

I can summarise my estimates, between London and York.

  • High Speed Two – Direct via Eastern Leg – One hour and twenty-four minutes.
  • High Speed Two – via Manchester and Leeds – One hour and forty-two minutes.
  • East Coast Main Line – via Doncaster – One hour and twenty-four minutes.

Improvements on the East Coast Main Line, needed to enable and speed-up High Speed Two services to York, Darlington and Newcastle; will speed up East Coast Main Line services to York.

I believe strongly, that York would be about as fast from London, by either of the direct routes, but both would serve different intermediate destinations.

Conclusion

My first conclusion is a surprising one, but the promised timings from High Speed Two and the current timings in the timetable make it clear.

To achieve the required timings for High Speed Two, major improvements must be made to existing track and these improvements will mean that existing services will be competitive with High Speed Two on time.

These improvements fall into this category.

  • Improving the East Coast Main Line between York and Newcastle, will make East Coast Main Line services to York, Darlington, Durham and Newcastle competitive with High Speed Two services.
  • Improving the East Coast Main Line between York and Newcastle, may also mean that London Kings Cross and Edinburgh will be faster than the High Speed Two service between London Euston and Edinburgh.
  • Electrifying the route shared between Sheffield and Clay Cross North Junction, will speed up London St. Pancras and Sheffield services and make them more competitive with High Speed Two.

I suspect there may be similar mutual improvements on the Western leg of High Speed Two.

Other smaller conclusions from my analysis of the improvements include.

  • These improvements will create some extra capacity on the East Coast and Midland Main Lines, by removing bottlenecks and improving line speeds.
  • Electrification, even if it is only partial or discontinuous, will improve services on the Midland Main Line.
  • Some places like Harrogate, Middlesbrough and Skipton will never be served directly by High Speed Two, but are easily served by East Coast Main Line services from London Kings Cross.
  • Northern Powerhouse Rail is very much part of the North-South capacity for England.
  • In-cab ERTMS signalling will play a large part in increasing capacity and line speeds.

Perhaps in our planning of High Speed Two, we should plan all the routes in the North and Midlands in a much more holistic way.

If we look at the capacity between London and the North, I feel that with the addition of Phase 1 of High Speed Two to Birmingham in 2029-2033 and hopefully Phase 2a soon afterwards, that Phase 2b will not be needed for reasons of speed and capacity until years later.

So, I would pause most construction of the Eastern Leg of High Speed Two until Phase 1 and Phase 2a are complete.

I would make exceptions for the following.

  • Improvements to the shared section of the East Coast Main Line and High Speed Two, between York and Newcastle.
  • Building a high speed connection between Leeds and York for the use of Northern Powerhouse Rail and the East Coast Main Line.
  • Rebuilding and electrification of the shared section of the Midland Main Line and High Speed Two, between Clay Cross North Junction and Sheffield.
  • Improve and electrify the route between Sheffield and Leeds.

But I would continue with the design, as I feel that East of Leeds is very much sub-optimal at the present time.

The route of the Eastern leg of High Speed Two would be safeguarded.









December 7, 2020 Posted by | Transport | , , , , , , , , , , , , , , , , , | Leave a comment

Northern Powerhouse Rail – Connecting Sheffield To HS2 And On To Leeds

In this article on Transport for the North, which is entitled Northern Powerhouse Rail Progress As Recommendations Made To Government, one of the recommendations proposed for Northern Powerhouse Rail is connecting Sheffield to High Speed Two and on to Leeds.

Northern Powerhouse Rail’s Objective For The Sheffield and Leeds Route

Wikipedia, other sources and my calculations say this about the trains between Leeds and Sheffield.

  • The distance between the two stations is 39 miles
  • The current service takes around 40 minutes and has a frequency of one train per hour (tph)
  • This gives an average speed of 58.5 mph for the fastest journey.
  • The proposed service with Northern Powerhouse Rail will take 28 minutes and have a frequency of four tph.
  • This gives an average speed of 84 mph for the journey.

This last figure of 84 mph, indicates to me that a fast route will be needed.

But given experience of 100 mph lines in other parts of the UK, 100 mph trains and infrastructure could make this demanding objective of twenty-eight minutes between Sheffield and Leeds a reality

Connecting Sheffield To High Speed Two

Sheffield is to be accessed from a branch off the Main High Speed Two route to Leeds.

This map clipped from High Speed Two’s interactive map, shows the route of the Sheffield Branch, from where it branches North West from the main Eastern Leg of High Speed Two.

Note.

  1. Orange indicates new High Speed Two track.
  2. Blue indicates track that High Speed Two will share with other services.
  3. The orange route goes North to Leeds, along the M1
  4. The blue route goes North to Chesterfield and Sheffield, after skirting to the East of Clay Cross.
  5. The orange route goes South to East Midlands Hub station.

This second map, shows where the Erewash Valley Line joins the Sheffield Branch near the village of Stonebroom.

Note.

  1. Red is an embankment.
  2. Yellow is a cutting.
  3. The Sheffield Branch goes North-West to Clay Cross, Chesterfield and Sheffield
  4. The Sheffield Branch goes South-East to East Midlands Hub station.
  5. The Sheffield Branch goes through Doe Hill Country Park.
  6. The Sheffield Branch runs alongside the existing Erewash Valley Line, which goes South to Langley Mill, Ilkeston and the Derby-Nottingham area.

The Sheffield Branch and the Erewash Valley Line appear to share a route, which continues round Clay Cross and is shown in this third map.

Note

  1. Doe Hill Country Park is in the South-East corner of the map.
  2. The dark line running North-South is the A61.
  3. Running to the West of the A61 is the Midland Main Line, which currently joins the Erewash Valley Line at Clay Cross North junction.

High Speed Two and the Midland Main Line will share a route and/or tracks from Clay Cross North junction to Sheffield.

This fourth map, shows where the combined route joins the Hope Valley Line to Manchester to the South West of Sheffield.

Note.

  1. Sheffield is to the North East.
  2. Chesterfield is to the South East,
  3. Totley junction is a large triangular junction, that connects to the Hope Valley Line.

These are some timings for various sections of the route.

  • Clay Cross North Junction and Chesterfield (current) – 4 minutes
  • Clay Cross North Junction and Sheffield (current) – 17 minutes
  • Chesterfield and Sheffield (current) – 13 minutes
  • Chesterfield and Sheffield (High Speed Two) – 13 minutes
  • East Midlands Hub and Chesterfield (High Speed Two) – 16 minutes
  • East Midlands Hub and Sheffield (High Speed Two) – 27 minutes

As Class Cross North Junction and Sheffield are 15.5 miles, this means the section is run at an average speed of 53 mph.

Can I draw any conclusions from the maps and timings?

  • There would appear to be similar current and High Speed Two timings between Chesterfield and Sheffield.
  • The various junctions appear to be built for speed.

The Midland Main Line will be electrified from Clay Cross North Junction to Sheffield, so that High Speed Two trains can use the route.

What will be the characteristics of the tracks between Clay Cross North Junction and Sheffield?

  • Will it be just two tracks as it mainly is now or will it be a multi-track railway to separate the freight trains from the high speed trains?
  • Will it have a high enough maximum speed, so that East Midland Railway’s new Class 810 trains can go at their maximum speed of 140 mph?
  • Will it be capable of handling a frequency of 18 tph, which is the maximum frequency of High Speed Two?

Surely, it will be built to a full High Speed Two standard to future-proof the line.

Before finishing this section, I will answer a few questions.

Would It Be Possible For Class 810 Trains Fitted With Batteries To Run Between London St. Pancras And Sheffield?

East Midlands Railway’s new Class 810 trains could be fitted with batteries to become Regional Battery Trains with the specification, given in this Hitachi infographic.

Note.

  1. This would give the trains a range of 90 kilometres or 56 miles on batteries, if a number of diesel engines were exchanged for batteries.
  2. The trains would only be a few mph slower on batteries, than the current Hitachi trains on diesel.
  3. The Class 810 trains have four diesel engines. Is this to enable 125 mph running on diesel?

By perhaps replacing two diesel engines with batteries and using the remaining two diesel engines as range extenders or some other combination, I feel that Hitachi might be able to obtain a longer self-powered range for the train.

Consider.

  • Between Sheffield and Clay Cross North Junction will be fully-electrified and at 15.5 miles, it will be long enough to fully-charge the batteries on the train.
  • Between London St. Pancras and Market Harborough will be fully-electrified and at 83 miles, it will be long enough to fully-charge the batteries on the train.
  • The section between Market Harborough and Clay Cross North Junction is not electrified and is 66 miles.

I feel that Hitachi and their partner; Hyperdrive Innovation can design a battery electric Class 810 train, that can travel between London St. Pancras and Sheffield, without using a drop of diesel.

A great advantage of this approach, is that, as more electrification is added to the Midland Main Line, as it surely will be, the trains will be able to use the wires to reduce journey times.

I believe there are two sections on the Midland Main Line. where traditional electrification is less likely.

  • The bridge at the Southern end of Leicester station is low and would need to be rebuilt causing immense disruption to both road and rail in the city.
  • Between Derby and Alfreton is the World Heritage Site of the Derwent Valley Mills. Will electrification be fought by the heritage lobby?

Both sections may eventually be electrified at some far off date in the future.

Why Is There A Spur Of Electrification At Totley Junction?

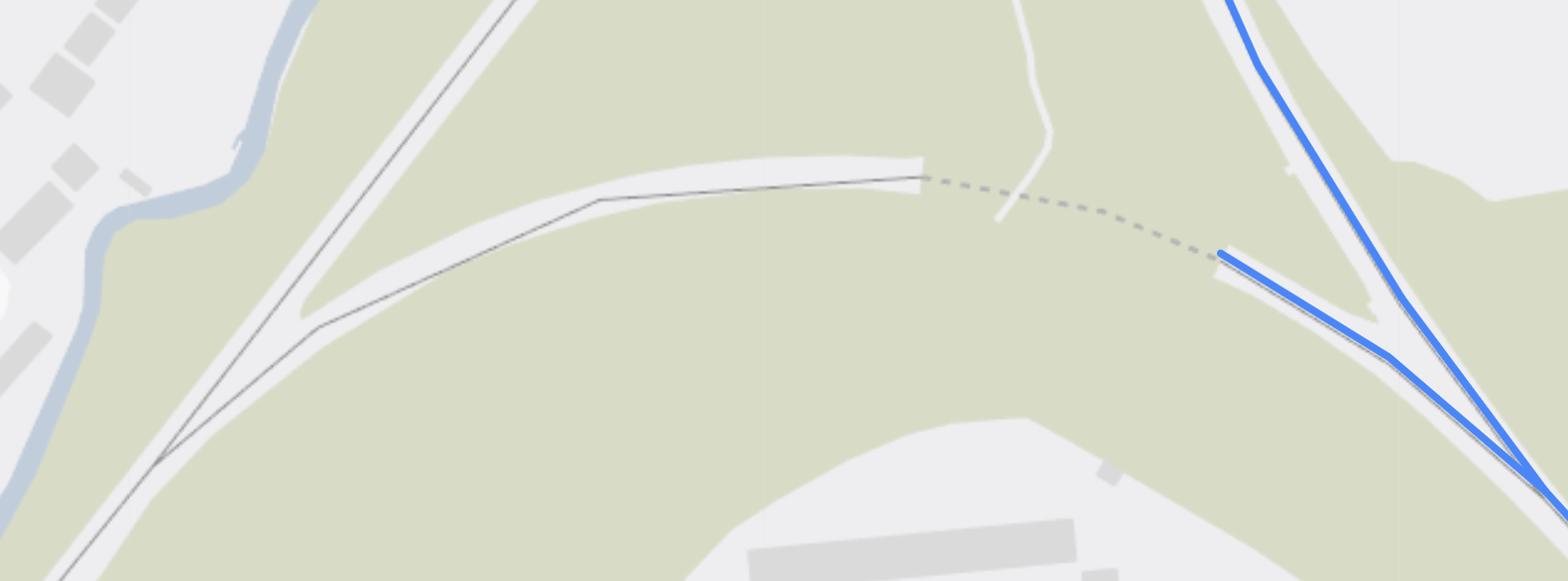

This map clipped from High Speed Two’s interactive map, shows the Southern Leg of Totley Junction, where the Hope Valley Line joins the Midland Main Line.

Note that a short length of electrification is shown, between the Midland Main Line and a tunnel on the Southern leg.

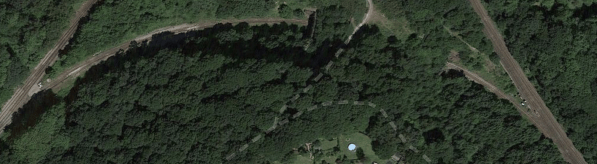

This Google Map shows the same area.

Note, that the line disappears into a tunnel.

  1. In Northern Powerhouse Rail -Significant Upgrades And Journey Time Improvements To The Hope Valley Route Between Manchester And Sheffield, I indicated, that running battery electric trains between Manchester and Sheffield would be a possibility and could be a way of meeting Northern Powerhouse Rail’s objectives for the route.
  2. A short length of electrification might help battery electric trains turn out to go South.
  3. I don’t think any passenger trains ever go that way now, but I have seen articles and heard complaints from passengers, that want a better service between Derby and/or Nottingham and Manchester.
  4. It might also help with the decarbonisation of freight trains to and from the quarries.

I also suspect, that if building High Speed Two in Manchester temporarily reduced the capacity of Manchester Piccadilly station, trains could use the Hope Valley Line to get to the city, as they have done previously, with Project Rio.

Accessing The Infrastructure Depot At Staveley

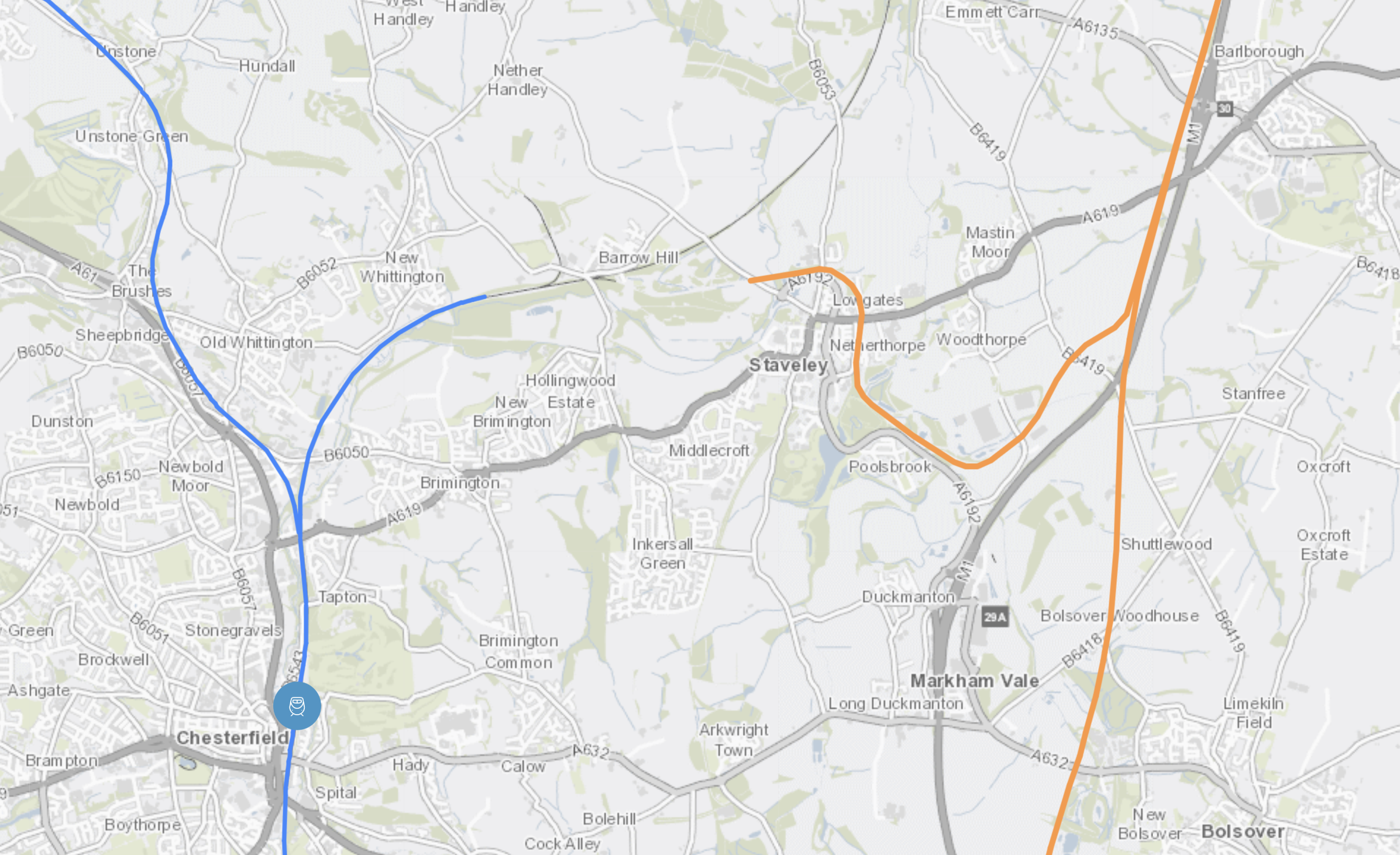

This map clipped from High Speed Two’s interactive map, shows the location of the infrastructure depot at Staveley.

Note.

  1. Chesterfield is shown by the large blue dot.
  2. High Speed Two’s Sheffield Branch runs North from Chesterfield station.
  3. High Speed Two’s Eastern Leg runs down the Eastern side of the map.
  4. Two spurs from East and West go towards each other and would meet to the North of the town of Staveley.

The infrastructure depot will be located where they meet.

The route from the Sheffield Branch uses the Barrow Hill Line, which might be reopened as another passenger route between Chesterfield and Sheffield.

I wrote about this idea in Reinstatement Of The Barrow Hill Line Between Sheffield And Chesterfield.

If the line is being upgraded and electrified as far as Barrow Hill for the Infrastructure Depot, would it be worthwhile to create a new electrified route into Sheffield?

I also wrote in Could East Midlands Railway’s Liverpool And Norwich Service Avoid A Reverse At Sheffield By Using the Barrow Hill Line?, that the Barrow Hill Line might be an alternative route for the Liverpool and Norwich service.

When the railway routes in the area of the Infrastructure Depot are developed, I wouldn’t be surprised to see some routes changed.

Between Sheffield And Meadowhall Stations

One of the original designs for High Speed Two had it calling at Meadowhall station.

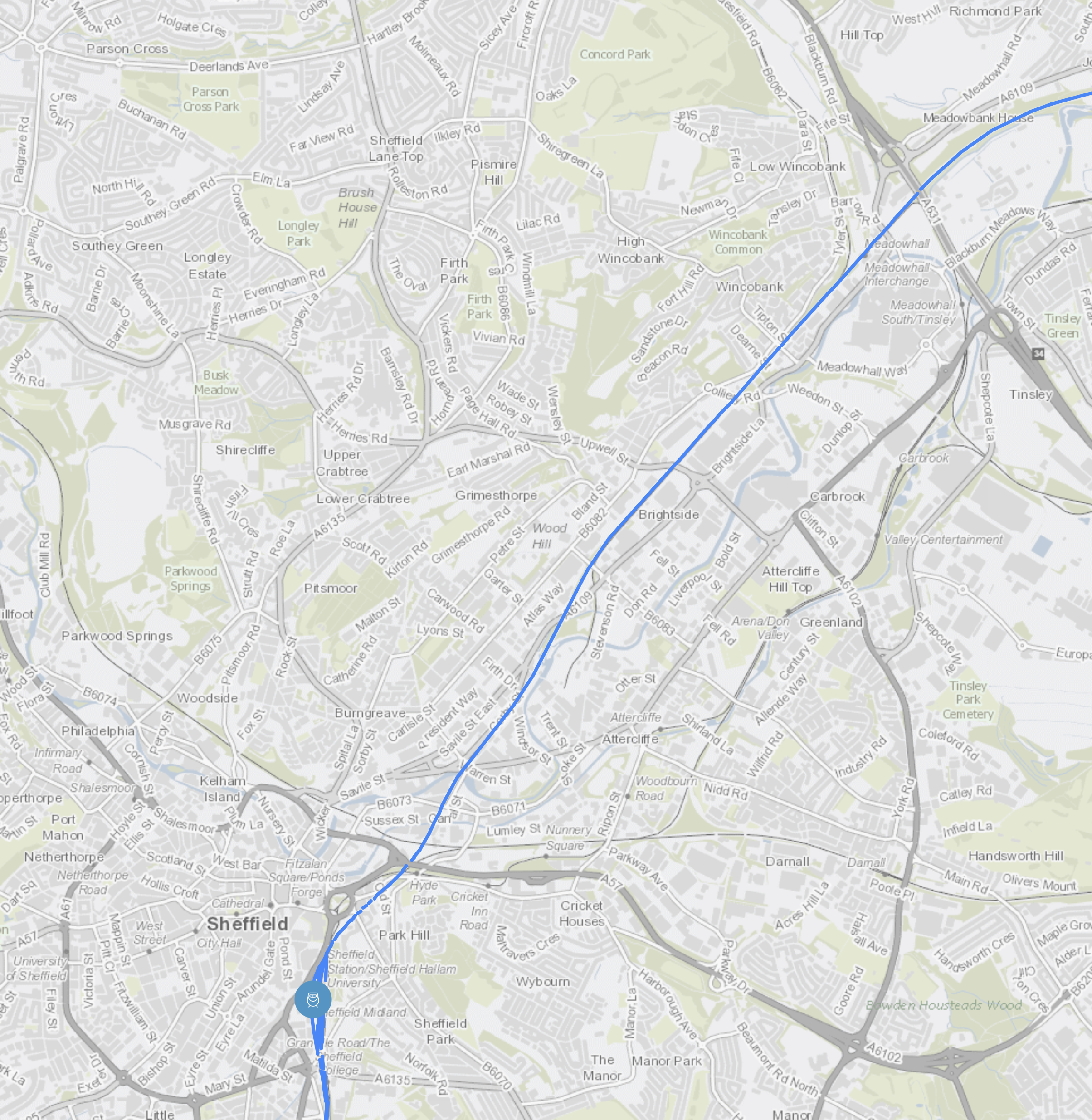

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two running across Sheffield.

Note.

  1. Sheffield station is the big Blue dot in the South-West corner of the map.
  2. The M1 runs across the North-East corner of the map.
  3. The railway between Sheffield and Meadowhall stations already exists.
  4. Sheffield and Meadowhall stations are 3.5 miles apart and trains take seven minutes.

Is there any reason, why High Speed Two trains shouldn’t serve both Sheffield and Meadowhall stations, by just taking the existing line across the city?

Taking The Wakefield Line Towards Leeds

In extending to Meadowhall, High Speed Two’s route seems to be taking the current Wakefield Line.

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two passing through Sheffield and Rotherham and then going towards Leeds.

Note.

  1. Orange indicates new High Speed Two track.
  2. Blue indicates track that High Speed Two shares with other lines.
  3. The Wakefield Line is shown in blue and has stations at Meadowhall, Swinton, Bolton-upon-Dearne, Goldthorpe and Thurscoe.
  4. The main High Speed Two leg to Leeds is shown in orange.

It looks to me, that High Speed Two are aiming to provide a route, so that trains going to Sheffield can extend the journey to Leeds.

As Leeds will have three tph to and from London, why is this service being extended to Leeds?

I will explore a few reasons why in the next few sub-sections.

It’s Convenient For Running Trains

Consider.

  • High Speed Two are saying London and Sheffield will be one hour and twenty-seven minutes.
  • Northern Powerhouse Rail have an objective of Leeds and Sheffield in twenty-eight minutes.
  • One hour and fifty-five minutes could be a convenient time for a London and Leeds service, as it could be a four hour round trip.

But High Speed Two are saying London and Leeds will be one hour and twenty-one minutes.

It looks to me, that it is a convenient way to serve Meadowhall, Rotherham, Bolton-upon-Dearne, Goldthorpe and Thurscoe stations

High Speed Two Through Rotherham

This map clipped from High Speed Two’s interactive map, clearly shows High Speed Two passing through Rotherham to the North of the Parkgate Shopping Park.

Note.

  1. High Speed Two is the bright blue line running North-East from the Western edge of the map.
  2. The grey blocks are the stores in the Shopping Park.
  3. The Rotherham Parkgate tram-train stop is marked.

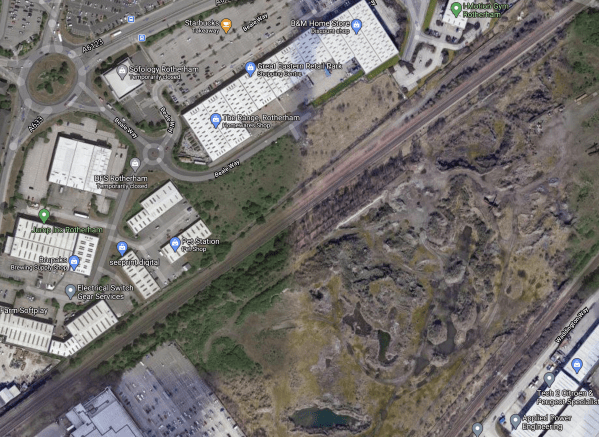

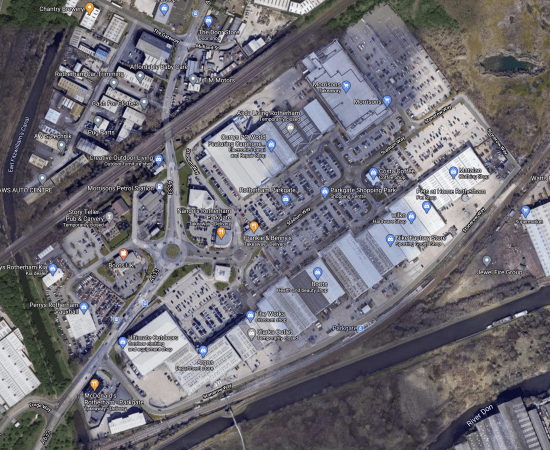

This Google Map shows a similar area.

To the East of the Parkgate Shopping Park, is a large brownfield site, as this Google Map shows.

Could Rotherham have a station on the line North of this site?

  • The rail line running SW-NE across this map is drawn in blue on High Speed Two’s interactive map.
  • Rotherham Masborough station used to be in this area.

If High Speed Two is supposed to be a railway for all the people, or at least as many as possible, surely there should be a station in the town.

High Speed Two Through Bolton-upon-Dearne

In July 2019, I wrote a post called Sheffield Region Transport Plan 2019 – A New Station At Barnsley Dearne Valley.

So have High Speed Two taken on this feature of the Sheffield Region Transport Plan 2019, to add another station to their list of destinations?

Approach To Leeds

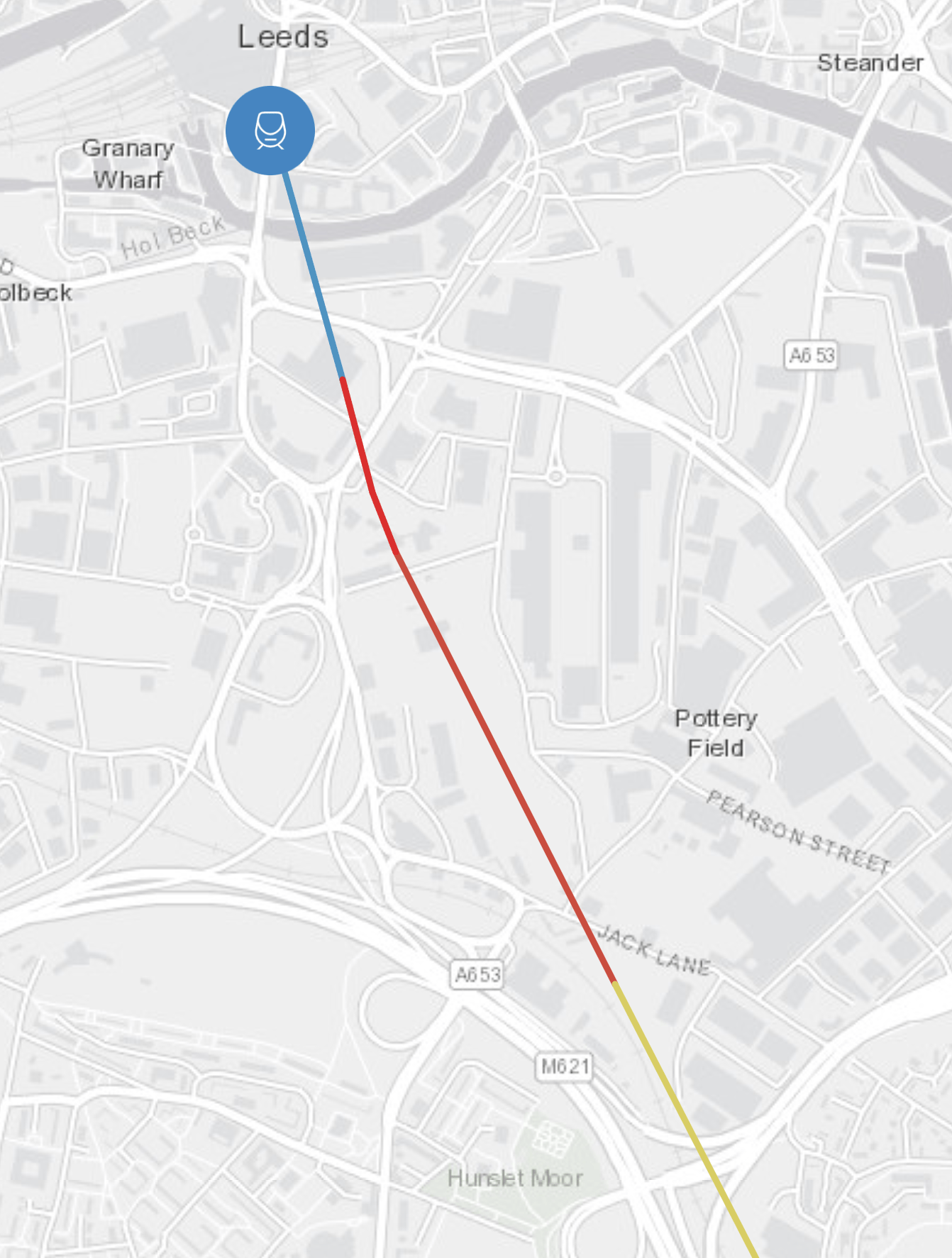

This map clipped from High Speed Two’s interactive map, clearly shows route High Speed Two will take to approach Leeds from the South East.

Note.

  1. Leeds station is the blue dot in the North West corner of the map.
  2. High Speed Two is shown in orange and continues North to York, where it joins the East Coast Main Line.
  3. Wakefield is in the middle at the bottom of the map and is on the Wakefield Line and the current route for LNER’s expresses from London.

It looks to me, that Leeds and Sheffield will eventually end up with two faster routes between the two cities.

  • An upgraded Wakefield Line
  • A route based on the Southern section of the Wakefield Line and the Eastern leg of High Speed Two route to Leeds.

If High Speed Two’s trains are to be able to get across Sheffield and call at Sheffield, Meadowhall, Rotherham and Barnsley Dearne Valley stations, then these conditions must be met.

  • The trains must be High Speed Two’s Classic-Compatible trains or a train to a similar specification.
  • Some platform lengthening might be needed to allow the two hundred metre long trains to call.
  • The Wakefield Line must be electrified between Sheffield and just North of Goldthorpe station, where it will be able to join the link to the Eastern leg of High Speed Two.

It would probably be sensible to electrify the Wakefield Line all the way to Fitzwilliam station, from where the line is electrified all the way to Leeds.

This would enable the following.

  • Electric trains to run between Sheffield and Leeds via Wakefield Westgate station.
  • Would Northern Powerhouse Rail’s objective of a twenty-eight minute journey be achieved?
  • East Midlands Railway could run their Class 810 trains between London St. Pancras and Leeds under electric power.
  • High Speed Two could serve Leeds before the Northern infrastructure of the Eastern leg of High Speed Two is complete.
  • High Speed Two could offer services to Wakefield, Barnsley and Rotherham via Sheffield.

I can see reasons for early upgrading of the Wakefield Line.

Conclusion

It appears that High Speed Two are planning an electrified route through Sheffield between Clay Cross North Junction on the Midland Main Line and Goldthorpe station on the Wakefield Line.

Once complete it would enable the following.

  • Rotherham and Barnsley to have direct electric services to and from the capital.
  • When East Midlands Railway introduce their new Class 810 trains, the electrification North of Clay Cross North Junction would mean faster services and less running on diesel power.
  • I believe these Class 810 trains could run between London and Sheffield, if their four diesel engines are replaced with batteries, which would power the trains between Clay Cross North Junction and Market Harborough.
  • The electrification at Sheffield would allow battery electric trains to work between Manchester and Sheffield as I outlined in Northern Powerhouse Rail -Significant Upgrades And Journey Time Improvements To The Hope Valley Route Between Manchester And Sheffield.

I think it is a good plan.

Project Management Recommendations

It is my view that the following projects should be started as soon as possible.

  • Electrification between Clay Cross North Junction and Sheffield station.
  • Electrification of the Wakefield Line between Sheffield and Fitzwilliam stations.
  • Provision of new stations at Rotherham and Barnsley Dearne Valley on the Wakefield Line.

These projects could deliver worthwhile improvements in services in a couple of years, rather than the tens of years for High Speed Two.









November 24, 2020 Posted by | Transport | , , , , , , , , , , , , , , , , , , , , , , | 3 Comments

A Trip To Grantham Station – 4th November 2020

I hadn’t intended to go to Grantham station, but that’s what I did on the last day before lockdown.

Over the last couple of weeks, I’ve been talking to a guy in Lincolnshire, who read Energy In North-East Lincolnshire, on this blog.

Last week, we both realised that we’d worked together in the 1970s, when he worked at a bank in the City, and I did some data analysis for the section, where he worked.

He is unwell with cancer at the moment and suggested I come down and see him in Skegness, where he now lives with his wife.

So I arrived at Grantham and found that the connecting train was running nearly an hour late and even then it was terminating at Boston.

After a quick exchange of texts, I told him the bad news and he gave me the good news, that his condition had improved and would be able to see me after Christmas and/or lockdown.

Luckily, I was able to change my ticket and took the next train back to London, after taking these pictures of the station.

I just had time to have a last drink of Aspall cyder before lockdown, in the station bar.

These are some thoughts.

Platform Layout At Grantham

The Wikipedia entry for Grantham station says this about the platforms.

It is composed of four platforms; platforms 1 and 2 are on the East Coast Main Line and are responsible for express services between London and Scotland. Platform 1 serves exclusively London King’s Cross via Peterborough and Stevenage; Platform 2 serves cities of northern England and Edinburgh. Platform 2, 3 and 4 are formed from a large island platform structure. Platform 3 is a bay platform at the northern end of the station that is used to allow local trains to reverse, while Platform 4 is a two-way platform that is used by East Midlands Railway. Only Platform 1 has amenities, including toilets, refreshments and a buffet.

This Google Map shows the station.

Note.

  1. Platforms are numbered 1 to 4 from East to West.
  2. Platforms 1 and 2 are long enough to take two five-car Class 800 trains working as a pair.
  3. Platform 4 may be long enough for these pairs of trains or could be made so.
  4. All trains to and from Nottingham call in Platform 4.
  5. Trains from Nottingham to Peterborough call in Platform 4 before crossing over to the down lines.
  6. There would appear to be no easy way for a Southbound train on the East Coast Main Line to access Platform 4.
  7. Platform 3 didn’t get much use on the day I visited.

There is also an avoiding line to allow freight and other passing trains to avoid going through the platforms.

Services Through Grantham Station

Services stopping at Grantham are as follows.

  • LNER – One tp2h – London Kings Cross and Harrogate via Stevenage, Grantham, Doncaster, Wakefield Westgate, Leeds
  • LNER – One tp2h – London Kings Cross and Bradford Forster Square via Stevenage, Grantham, Doncaster, Wakefield Westgate, Leeds
  • LNER – One tp2h – London Kings Cross and Lincoln via Stevenage, Peterborough, Grantham and Newark North Gate
  • LNER – One tp2h – London Kings Cross and York via Stevenage, Peterborough, Grantham, Newark North Gate, Retford and Doncaster.
  • Hull Trains – Five tpd – London Kings Cross and Hull via Stevenage, Grantham, Retford, Doncaster, Selby, Howden and Brough
  • Hull Trains – Two tpd – London Kings Cross and Beverley via Stevenage, Grantham, Retford, Doncaster, Selby, Howden, Brough, Hull and Cottingham.
  • East Midlands Railway – One tph – Liverpool Lime Street and Horwich via Peterborough and Nottingham
  • East Midlands Railway – One tph – Nottingham and Skegness

Note.

  1. tph is trains per hour
  2. tp2h is trains per two hours.
  3. tpd is trains per day.

Adding the services together, there is a frequent service between Stevenage, Peterborough, Grantham and Newark North Gate.

Train Timings Between London Kings Cross and Grantham

The fastest trains take 67 minutes between London Kings Cross and Grantham.

  • The distance is 105.5 miles
  • This would be an average speed of 94.5 mph.
  • The East Coast Main Line is being upgraded with in-cab digital ERTMS signalling, which will allow 140 mph running.
  • The works at Kings Cross station will have increased the station’s capacity.

I wouldn’t be surprised to see a time between London Kings Cross and Grantham, of under an hour, time-tabled in the near future.

Could There Be A London Kings Cross and Nottingham Service Via Grantham?

On this page on UK Rail Forums, this was posted in 2010.

According to today’s East Midlands news on BBC1, Network Rail is considering inviting tenders to run a faster service from Nottingham to London King’s Cross via Grantham, from 2014. The present service of around 1hr 45m is considered too slow by passengers.

How would this new service be reconciled with the much-publicised capacity constraints at Welwyn and at King’s Cross itself? Will the proposed possible service be diesel-powered under the wires from Grantham, or will the Grantham-Nottingham stretch be electrified? Interesting times.

Technology has changed since 2010 and the East Coast Main Line has improved.

  • King;s Cross station is being sorted.
  • Digital ERMTS signalling is coming to the East Coast Main Line
  • Hatachi’s new Class 800 trains have arrived and could go between Grantham and Nottingham on diesel power.
  • Grantham and Nottingham takes 35 minutes on a service with three stops, that’s timed for a Class 153 train.
  • Grantham and Nottingham is just over twenty miles.

As I said earlier, that I believe Grantham and London could be inside an hour, I wouldn’t be surprised to see a Nottingham and London Kings Cross service in under an-hour-and-a-half.

But it could be better than that?

Hitachi’s Regional Battery Train

This is the train that could unlock the potential of a London Kings Cross and Nottingham service.

This Hitachi infographic gives details of the train.

Note that the train has a range of 90 kilometres or 56 miles, at speeds of up to 100 mph.

The trains would be ideal for a London Kings Cross and Nottingham service.

  • They would charge the batteries, whilst using the electrification on the East Coast Main Line.
  • The battery range is such, that it would not need any charging between leaving Grantham and returning there from Nottingham.
  • They could travel at speeds of up to 140 mph on the East Coast Main Line, once the digital ERTMS  signalling is installed.
  • Stops could be at Stevenage, Peterborough and Grantham.

LNER’s five-car Class 800 trains, which are branded Azumas can be turned into Regional Battery Trains, by replacing the three diesel engines with battery packs.

I would suspect that times of around eighty minutes, between London Kings Cross and Nottingham, could be in order.

A Park-And-Ride For Nottingham And London

Nottingham has several Park-and-Ride sites, that are served by the trams. of the Nottingham Express Transit, which already calls at Nottingham station.

Would another site on the rail line between Grantham and Nottingham be useful?

This map shows. where the rail line crosses the A46, near its junction with the A52.

Note the Grantham and Nottingham line running across the top of the map and the big junction between the A52 and the A46.

It looks to be a good place for a Park-and-Ride station, if it was decided one needed to be built.

There might also be sites further in towards Nottingham, close to the racecourse or the Holme Pierpoint National Watersports Centre.

A Combined Nottinghamshire And Lincolnshire Service

I originally called this section a Combined Nottingham And Lincoln Service, but I don’t see why it can’t serve most of both counties.

Consider.

  • Birmingham, Brighton, Cambridge, Oxford and Southend get two services from the capital by different routes.
  • Hitachi’s Class 800 trains can Split/Join in around two minutes.
  • Running five-car Class 800 trains all the way between London Kings Cross and Lincoln is not a good use of a valuable train path on the East Coast Main Line.
  • Lincoln is just 16.5 miles and 24 minutes from the East Coast Main Line.
  • Nottingham is 22 miles and could be 20 minutes from the East Coast Main Line.
  • Both Lincoln and Nottingham would be in battery range for a return trip from the East Coast Main Line.
  • Platforms 1, 2 and 4, at Grantham are long enough to handle two Class 800 trains, running as a pair and regularly pairs call in Platforms 1 and 2.

I believe it would be possible for a pair of Regional Battery Trains to do the following.

  • Leave London Kings Cross and run to Grantham in an hour, stopping at Stevenage and Peterborough.
  • Stop in Platform 4 at Grantham station, where the trains would split.
  • One train would continue on the East Coast Main Line to Newark North Gate station, where it would leave the East Coast Main Line and go to Lincoln.
  • The other train would continue to Nottingham.

Note.

  1. Coming back, the process would be reversed with trains joining in Platform 1 or Platform 4 at Grantham.
  2. There may need to be some track and signalling modifications, but nothing too serious or challenging.

Connections to other parts of Nottinghamshire and Lincolnshire would be as follows.

  • Nottingham and Nottinghamshire would be connected using the Nottingham Express Transit and the Robin Hood and Maid Marian Lines from Nottingham station.
  • All stations between Grantham and Nottingham would be reached from either Grantham or Nottingham.
  • All stations to Boston and Skegness would be reached from Grantham.
  • All stations between Newark and Lincoln would be reached from either Lincoln or Newark.
  • All stations between Doncaster and Lincoln would be reached from either Doncaster or Lincoln.
  • All stations between Peterborough and Lincoln would be reached from either Lincoln or Peterborough.
  • All stations to Market Rasen, Grimsby Town and Cleethorpes would be reached from Lincoln.

Note.

  1. I feel that some Lincoln services could be extended to Cleethorpes via Market Rasen and Grimsby Town.
  2. Hopefully, a timetable could be developed, so that no connection was overly long.

Most of the distances are not unduly long and I would hope that most secondary services could be battery electric trains, which would be charged in the larger stations like Boston, Cleethorpes, Doncaster, Grantham, Lincoln, Mansfield, Nottingham, Peterborough, Sleaford, Spalding and Worksop.

Doncaster, Grantham and Peterborough already have 25 KVAC overhead electrification and this could be used to charge the trains, with possibly some small extensions.

The other stations will need a number of systems to charge the trains, as they pass through.

Some stations will be suitable for the installation of the standard 25 KVAC overhead electrification, but others will need specialised charging systems.

It appears that Adrian Shooter of Vivarail has just announced a One-Size-Fits-All Fast Charge system, that has been given interim approval by Network Rail.

I discuss this charger in Vivarail’s Plans For Zero-Emission Trains, which is based on a video on the Modern Railways web site.

There is more about Vivarail’s plans in the November 2020 Print Edition of the magazine, where this is said on page 69.

‘Network Rail has granted interim approval for the fast charge system and wants it to be the UK’s standard battery charging system’ says Mr. Shooter. ‘We believe it could have worldwide implications.’

Vivarail’s Fast Charge system must surely be a front-runner for installation.

What frequency of the Combined Nottinghamshire And Lincolnshire service would be needed and could be run?

Consider.

  • Currently, Lincoln is served with one tp2h with a five-car Class 800 train running the service.
  • The Lincoln service alternates with a one tp2h service to York, which also calls at Retford and Doncaster.
  • Work is progressing on increasing the number of high speed paths on the East Coast Main Line.

Obviously, an hourly service to both Nottingham and Lincoln would be ideal and would give most of the two counties an hourly service to and from London Kings Cross with a single change at either Doncaster, Grantham. Lincoln, Newark, Nottingham or Peterborough.

  • An hourly service might be difficult to timetable because of the York service.
  • But I don’t believe it would be impossible to setup.

Especially if after, the Eastern leg of High Speed Two opens, East Coast Main Line services from London Kings Cross to North of York are replaced in part, by High Speed Two services.

The Effect Of High Speed Two

High Speed Two will build a new station at Toton called East Midlands Hub station.

  • The station will be situated about halfway between Nottingham and Derby, with frequent connections to both cities.
  • There will be frequent services to Birmingham, Leeds, London, Newcastle and Sheffield.
  • I wouldn’t be surprised to see a direct service to Edinburgh and Glasgow from the station.
  • There will be a lot of economic growth around the station.

I very much feel, that a lot of passengers were travel to East Midlands Hub station for both long distance trains and to access the Derby-Nottingham area.

A Cambridge And Birmingham Service

In How Many Trains Are Needed To Run A Full Service On High Speed Two?, I proposed a Cambridge and Birmingham Curzon Street service.

This is what I said.

The obvious one is surely Cambridge and Birmingham

  • It would run via Peterborough, Grantham, Nottingham and East Midlands Hub.
  • It would connect the three big science, engineering and medical centres in the Midlands and the East.
  • It would use High Speed Two between Birmingham Curzon Street and East Midlands Hub.
  • It could be run by High Speed Two Classic-Compatible trains.

It might even be a replacement for CrossCountry’s Stansted Airport and Birmingham service.

Timings for the various legs could be.

  • Cambridge and Peterborough – CrossCountry – 49 minutes
  • Peterborough and Grantham – LNER – 19 minutes
  • Grantham and Nottingham -Best Estimate – 20 minutes
  • Nottingham and Birmingham Curzon Street – Midlands Rail Engine – 33 minutes

Note.

  1. This totals to two hours and one minute.
  2. The current service takes two hours and forty-four minutes.
  3. The Ely and Peterborough and Grantham and Nottingham legs are not electrified.

If the route were to be fully electrified or the trains were to be fitted with batteries, the time via High Speed Two, would surely be several minutes under two hours.

Conclusion

These objectives are possible.

  • An hourly service between London Kings Cross and Grantham, Lincoln, Newark and Nottingham.
  • A very much more comprehensive train service for Nottingham and Lincolnshire.
  • A two hour service between Cambridge and Birmingham.

Most of the services would be zero carbon.

No major infrastructure would be needed, except possibly completing the electrification between Nottingham and Ely, some of which is probably needed for freight trains anyway.

Alternatively, the High Speed Two Classic-Compatible trains could be fitted with batteries.



November 9, 2020 Posted by | Health, Transport | , , , , , , , , , , , , , , , , | 6 Comments

How Many Trains Are Needed To Run A Full Service On High Speed Two?

The latest High Speed Two schedule was published in the June 2020 Edition of Modern Railways.

The Two Train Classes

Two separate train classes have been proposed for High Speed Two.

Full-Size – Wider and taller trains built to a European loading gauge, which would be confined to the high-speed network (including HS1 and HS2) and other lines cleared to their loading gauge.

Classic-Compatible – Conventional trains, capable of high speed but built to a British loading gauge, permitting them to leave the high speed track to join conventional routes such as the West Coast Main Line, Midland Main Line and East Coast Main Line.

The Wikipedia entry for High Speed Two has a section entitled Rolling Stock, where this is said about the design.

Both types of train would have a maximum speed of at least 360 km/h (225 mph) and a length of 200 metres (660 ft); two units could be joined together for a 400-metre (1,300 ft) train. It has been reported that these longer trains would have approximately 1,100 seats.

These are some of my thoughts.

Seating Density

I would assume that this means that a single 200 metre train, will have a capacity of approximately 550 seats or a density of 2.75 seats per metre. How does that compare with other trains?

  • 9-car Class 801 train – 234 metres – 611 seats – 2.61 seats/metre
  • 7-car Class 807 train – 182 metres – 453 seats – 2.49 seats/metre
  • 9-car Class 390 train  – 217.5 metres – 469 seats – 2.16 seats/metre
  • 11-car Class 390 train  – 265.3 metres – 589 seats – 2.22 seats/metre
  • 12-car Class 745/1 train – 236.6 metres – 767 seats – 3.24 seats/metre
  • 16-car Class 374 train – 390 metres – 902 seats – 2.31 seats/metre

What I find strange with these figures, is that I feel most crowded and cramped in a Class 390 train. Could this be because the Pendelino trains are eighteen years old and train interior design has moved on?

But I always prefer to travel in a Hitachi Class 80x train or a Stadler Class 745 train.

I very much feel that a seating density of 2.75 seats per metre, designed using some of the best modern practice, could create a train, where travelling is a very pleasant experience.

Step-Free Access

I have travelled in high speed trains all over Europe and have yet to travel in one with step-free access.

Surely, if Stadler can give their trains step-free access everybody can.

The pictures shows step-free access on Stadler Class 745 and Class 755 trains.

If I turned up pushing a friend in a wheelchair, would I be able to push them in easily? Or better still will they be able to wheel themselves in?

A Greater Anglia driver once said to me, that they never have to wait anymore for wheelchairs to be loaded.

So surely, it is in the train operator’s interest to have step-free access, if it means less train delays.

Double-Deck Trains

In my view double-deck trains only have one only good feature and that is the ability to see everything, if you have a well-designed window seat.

I may be seventy-three, but I am reasonably fit and only ever travel on trains with airline-sized hand baggage. So I don’t find any problem travelling upstairs on a double-deck bus or train!

But it could have been, so very different, if my stroke had been a bit worse and left me blind or in a wheelchair for life.

I have seen incidents on the Continent, which have been caused by double-deck trains.

  • A lady of about eighteen in trying to get down with a heavy case dropped it. Luckily it only caused the guy she was travelling with, to roll unhurt down the stairs.
  • Luggage is often a problem on Continental trains because of the step-up into the train and access is worse on double deck trains.
  • I also remember on a train at Leipzig, when several passengers helped me lift a guy and his wheelchair out of the lower deck of a double-deck train, which was lower than the platform, as they often are with double-deck trains.

I am not totally against double-deck trains, but they must be designed properly.

Consider.

  • High Speed Two’s Full-Size trains will only use London Euston, Old Oak Common, Birmingham Interchange, Birmingham Curzon Street, Manchester Airport, Manchester Piccadilly, East Midlands Hub and Leeds stations.
  • All stations used by Full-Size trains will be brand-new or substantially rebuilt stations.
  • Someone sitting in a wheelchair surely has the same right to a view from the top-deck of a double-deck train as anybody else.
  • Jumbo jets seemed to do very well without a full-length top-deck.
  • The A 380 Superjumbo has been designed so that entry and exit on both decks is possible.

I feel if High Speed Two want to run double-deck trains, an elegant solution can surely be found.

A Crude Estimate On The Number Of Trains

This is my crude estimate to find out how many trains, High Speed Two will need.

Western Leg

These are the services for the Western Leg between London , Birmingham, Liverpool, Manchester, Edinburgh and Glasgow.

  • Train 1 – London Euston and Birmingham Curzon Street – 400 metre Full-Size – 45 minutes – 2 hour Round Trip – 4 trains
  • Train 2 – London Euston and Birmingham Curzon Street – 400 metre Full-Size – 45 minutes – 2 hour Round Trip – 4 trains
  • Train 3 – London Euston and Birmingham Curzon Street – 400 metre Full-Size – 45 minutes – 2 hour Round Trip – 4 trains
  • Train 4 – London Euston and Lancaster – Classic Compatible – 2 hours 3 minutes – 5 hour Round Trip – 5 trains
  • Train 4 – London Euston and Liverpool – Classic Compatible – 1 hours 34 minutes – 4 hour Round Trip – 4 trains
  • Train 5 – London Euston and Liverpool – Classic Compatible – 1 hours 34 minutes – 4 hour Round Trip – 4 trains
  • Train 6 – London Euston and Macclesfield – Classic Compatible – 1 hours 30 minutes – 4 hour Round Trip – 4 trains
  • Train 7 – London Euston and Manchester – 400 metre Full-Size – 1 hour and 11 minutes – 3 hour Round Trip – 6 trains
  • Train 8 – London Euston and Manchester – 400 metre Full-Size – 1 hour and 11 minutes – 3 hour Round Trip – 6 trains
  • Train 9 – London Euston and Manchester – 400 metre Full-Size – 1 hour and 11 minutes – 3 hour Round Trip – 6 trains
  • Train 10 – London Euston and Edinburgh – Classic Compatible – 3 hours 48 minutes – 8 hour Round Trip – 8 trains
  • Train 10 – London Euston and Glasgow – Classic Compatible – 3 hours 40 minutes – 8 hour Round Trip – 8 trains
  • Train 11 – London Euston and Edinburgh – Classic Compatible – 3 hours 48 minutes – 8 hour Round Trip – 8 trains
  • Train 11 – London Euston and Glasgow – Classic Compatible – 3 hours 40 minutes – 8 hour Round Trip – 8 trains
  • Train 12 – Birmingham Curzon Street and Edinburgh or Glasgow – Classic Compatible – 3 hours 20 minutes – 7 hour Round Trip – 7 trains
  • Train 13 – Birmingham Curzon Street and Manchester – 200 metre Full-Size – 41 minutes – 2 hour Round Trip – 2 trains
  • Train 14 – Birmingham Curzon Street and Manchester – 200 metre Full-Size – 41 minutes – 2 hour Round Trip – 2 trains

Note.

  1. I have assumed 400 metre Full-Size trains will be a pair of 200 metre trains.
  2. I think that trains 4 and 5 work an intricate dance with appropriate splitting and joining at Crewe.
  3. The full schedule will need 34 Full-Size trains and 56 Classic-Compatible trains

According to Wikipedia, the first order will be for 54 Classic-Compatible trains, so I would assume, that more trains will be ordered.

Eastern Leg

These are the services for the Eastern Leg between London , Birmingham, East Midlands Hub, Leeds, Sheffield, York and Newcastle.

  • Train 15 – Birmingham Curzon Street and Leeds – 200 metre Full-Size – 49 minutes – 2 hour Round Trip – 2 trains
  • Train 16 – Birmingham Curzon Street and Leeds – 200 metre Full-Size – 49 minutes – 2 hour Round Trip – 2 trains
  • Train 17 – Birmingham Curzon Street and Newcastle – Classic Compatible – 1 hour 57 minutes – 5 hour Round Trip – 5 trains
  • Train 18 – London Euston and Sheffield – Classic Compatible – 1 hour 27 minutes – 4 hour Round Trip – 4 trains
  • Train 18 – London Euston and Leeds – Classic Compatible – 1 hour 21 minutes – 3 hour Round Trip – 3 trains
  • Train 19 – London Euston and Leeds – 400 metre Full-Size – 1 hour and 21 minutes – 3 hour Round Trip – 6 trains
  • Train 20 – London Euston and Leeds – 400 metre Full-Size – 1 hour and 21 minutes – 3 hour Round Trip – 6 trains
  • Train 21 – London Euston and Sheffield – Classic Compatible – 1 hour 27 minutes – 4 hour Round Trip – 4 trains
  • Train 21 – London Euston and York – Classic Compatible – 1 hour 24 minutes – 3 hour Round Trip – 3 trains
  • Train 22 – London Euston and Newcastle – Classic Compatible – 2 hour 17 minutes – 5 hour Round Trip – 5 trains
  • Train 23 – London Euston and Newcastle – Classic Compatible – 2 hour 17 minutes – 5 hour Round Trip – 5 trains

Note.

  1. I have assumed 400 metre Full-Size trains will be a pair of 200 metre trains.
  2. Trains 15 and 16 work as a pair
  3. I think that trains 18 and 21 work an intricate dance with appropriate splitting and joining at East Midlands Hub.
  4. The full schedule will need 16 Full-Size trains and 29 Classic-Compatible trains

Adding the two legs together and I estimate that 50 Full-Size trains and 85 Classic-Compatible trains, will be needed to run a full schedule.

Trains Per Hour On Each Section

It is possible to make a table of how many trains run on each section of the High Speed Two network in trains per hour (tph)

  • London Euston (stops) – 1-11, 18-23 – 17 tph
  • London Euston and Old Oak Common – 1-11, 18-23 – 17 tph
  • Old Oak Common (stops) – 1-11, 18-23 – 17 tph
  • Old Oak Common and Birmingham Interchange – 1-11, 18-23 – 17 tph
  • Birmingham Interchange (stops) – 2, 3, 7, 11, 20 – 5 tph
  • Birmingham Curzon Street (stops) – 1-3, 12-14, 15-17 – 9 tph
  • Birmingham and Crewe – 4,5, 7-9, 10-14 – 10 tph
  • Crewe (stops) – 4,5 – 2 tph
  • Crewe and Liverpool – 4,5 – 2 tph
  • Crewe and Lancaster – 4, 10-12 – 4 tph
  • Crewe and Manchester – 7-9, 13, 14 – 5 tph
  • Crewe and Wigan via Warrington – 4 – 1 tph
  • Crewe and Wigan via High Speed Two (new route) – 10-12 – 3 tph
  • Lancaster (stops) 4 – 1 tph
  • Lancaster and Carlisle  – 10-12 – 3 tph
  • Carlisle and Edinburgh – 10-12 – 2.5 tph
  • Carlisle and Glasgow – 10-12 – 2.5 tph
  • Birmingham and Stoke – 6 – 1 tph
  • Stoke (stops) – 6 – 1 tph
  • Stoke and Macclesfield – 6 – 1 tph
  • Macclesfield (stops) – 6 – 1 tph
  • Birmingham and East Midlands Hub – 15-17, 18-20, 21-23 – 9 tph
  • East Midlands Hub (stops) – 15-17, 18-20, 21 – 7 tph
  • East Midlands Hub and Sheffield – 18, 21 – 2 tph
  • Sheffield (stops) – 18, 21 – 2 tph
  • Midlands Hub and Leeds – 15, 16, 18-20 – 5 tph
  • Leeds (stops) – 15, 16, 18-20 – 5 tph
  • East Midlands Hub and York – 17, 21-23 – 4 tph
  • York (stops) – 17, 21-23 – 4 tph
  • York and Newcastle – 17, 22, 23 – 3 tph
  • Newcastle (stops) – 17, 22, 23 – 3 tph

These are a few thoughts.

Capacity Of The Southern Leg

The busiest section is between London Euston and Birmingham Interchange, which handles 17 tph.

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives a path for recovery, according to the article.

Trains Serving Euston

The following train types serve London Euston station.

  • Full-Size – 8 tph
  • 400 metre Classic-Compatible – 5 tph
  • 200 metre Classic-Compatible – 4 tph

As a 200 metre long train needs the same track and platform resources as a 400 metre long train, by splitting and joining, it would appear that extra destinations could be served.

Platform Use At Euston

This page on the High Speed Two web site, gives details of Euston High Speed Two station.

HS2 will deliver eleven new 400m long platforms, a new concourse and improved connections to Euston and Euston Square Underground stations. Our design teams are also looking at the opportunity to create a new northerly entrance facing Camden Town as well as new east-west links across the whole station site.

So how will the eleven platforms be used?

Destinations served from London are planned to be as follows.

  • Birmingham Curzon Street – Full-Size – 3 tph
  • Edinburgh/Glasgow – Classic-Compatible – 2 tph
  • Lancaster – Classic-Compatible – 1 tph
  • Leeds – Full-Size – 2 tph – Classic-Compatible – 1 tph

Liverpool – Classic-Compatible – 2 tph

  • Macclesfield – Classic-Compatible – 1 tph
  • Manchester Piccadilly – Full-Size – 3 tph
  • Newcastle – Classic-Compatible – 2 tph
  • Sheffield – Classic-Compatible – 2 tph
  • York – Classic-Compatible – 1 tph

That is ten destinations and there will be eleven platforms.

I like it! Lack of resources is often the reason systems don’t work well and there are certainly enough platforms.

Could platforms be allocated something like this?

  • Birmingham Curzon Street – Full-Size
  • Edinburgh/Glasgow – Classic-Compatible
  • Leeds – Full-Size
  • Liverpool – Classic-Compatible – Also serves Lancaster
  • Macclesfield – Classic-Compatible
  • Manchester Piccadilly – Full-Size
  • Newcastle – Classic-Compatible
  • Sheffield – Classic-Compatible – Also serves Leeds and York

Note.

  1. No  platform handles more than three tph.
  2. There are three spare platforms.
  3. Each platform would only be normally used by one train type.
  4. Only Birmingham Interchange, East Midlands Hub, Leeds, Preston and York are not always served from the same platform.

Platform arrangements could be very passenger- and operator-friendly.

Platform Use At Birmingham Curzon Street

Birmingham Curzon Street station has been designed to have seven platforms.

Destinations served from Birmingham Curzon Street station are planned to be as follows.

  • Edinburgh/Glasgow – Classic-Compatible – 1 tph
  • Leeds – Full-Size – 2 tph
  • London Euston – Full-Size – 3 tph
  • Manchester Piccadilly – Full-Size – 2 tph
  • Newcastle – Classic-Compatible – 1 tph
  • Nottingham – Classic-Compatible – 1 tph

Note.

  1. The Nottingham service has been proposed by Midlands Engine Rail, but will be running High Speed Two Classic Compatible trains.
  2. That is six destinations and there will be seven platforms.

I like it! For the same reason as London Euston.

Could platforms be allocated something like this?

  • Edinburgh/Glasgow – Classic-Compatible
  • Leeds – Full-Size
  • London Euston – Full-Size
  • Manchester Piccadilly – Full-Size
  • Newcastle/Nottingham – Classic-Compatible

Note.

  1. No  platform handles more than three tph.
  2. There are two spare platforms.
  3. Each platform would only be normally used by one train type.
  4. Only East Midlands Hub is not always served from the same platform.

Platform arrangements could be very passenger- and operator-friendly.

Back-to-Back Services via Birmingham Curzon Street

The current plan for High Speed Two envisages the following services between the main terminals served by Full-Size trains.

  • London Euston and Birmingham Curzon Street – 3 tph – 45 minutes
  • London Euston and Leeds – 2 tph – 81 minutes
  • London Euston and Manchester Piccadilly – 3 tph – 71 minutes
  • Birmingham Curzon Street and Leeds – 2 tph – 40 minutes
  • Birmingham Curzon Street and Manchester Piccadilly – 2 tph – 41 minutes

Suppose a traveller wanted to go between East Midlands Hub and Manchester Airport stations.

Wouldn’t it be convenient if the Leeds to Birmingham Curzon Street train, stopped in Birmingham Curzon Street alongside the train to Manchester Airport and Piccadilly, so passengers could just walk across?

Or the two services could be run Back-to-Back with a reverse in Birmingham Curzon Street station?

Note.

  1. The current fastest times between Nottingham and Manchester Airport stations are around two-and-a-half hours, with two changes.
  2. With High Speed Two, it looks like the time could be under the hour, even allowing up to eight minutes for the change at Birmingham Curzon Street.

The design of the track and stations for High Speed Two, has some interesting features that will be exploited by the train operator, to provide better services.

Capacity Of The Western Leg Between Birmingham And Crewe

The section is between Birmingham and Crewe, will be running 10 tph.

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.

But where will they come from?

High Speed One copes well with a few interlopers in the shape of Southeastern’s Class 395 trains, which run at 140 mph, between the Eurostars.

High Speed Two is faster, but what is to stop an operator running their own Classic-Compatible trains on the following routes.

  • Birmingham Curzon Street and Liverpool via Crewe, Runcorn and Liverpool South Parkway.
  • Birmingham Curzon Street and Holyhead via Crewe, Chester and an electrified North Wales Coast Line.
  • Birmingham Curzon Street and Blackpool via Crewe, Warrington Bank Quay, Wigan North Western and Preston.
  • Birmingham Curzon Street and Blackburn and Burnley via Crewe, Warrington Bank Quay, Wigan North Western and Preston.

Note.

  1. If these trains were say 130 metres long, they could call at all stations, without any platform lengthening.
  2. I’m sure that the clever engineers at Hitachi and Hyperdrive Innovation could come up with battery electric Classic-Compatible train, that could run at 225 mph on High Speed Two and had a battery range to reach Holyhead, with a small amount of electrification.
  3. A pair of trains, could work the last two services with a Split/Join at Preston.

The advantages of terminating these service in Birmingham Curzon Street would be as follows.

  • A lot more places get a fast connection to the High Speed Two network.
  • Passengers can reach London with an easy change at Birmingham Curzon Street station.
  • They can also walk easily between the three Birmingham stations.

But the big advantage is the trains don’t use valuable paths on High Speed Two between Birmingham Curzon Street and London Euston.

Crewe Station

In the current Avanti West Coast timetable, the following trains pass through Crewe.

  • London Euston and Blackpool – 4 trains per day (tpd)
  • London Euston and Chester – 1 tph
  • London Euston and Edinburgh/Glasgow – 2 tph
  • London Euston and Liverpool – 1 tph
  • London Euston and Manchester Piccadilly – 1 tph

Most trains stop at Crewe.

In the proposed High Speed Two timetable, the following trains will pass through Crewe.

  • London Euston and Edinburgh/Glasgow – 2 tph
  • London Euston and Lancaster/Liverpool – 2 tph
  • London Euston and Manchester – 3 tph
  • Birmingham Curzon Street and Edinburgh/Glasgow  -1 tph
  • Birmingham Curzon Street and Manchester – 2 tph

Note.

  1. Only the Lancaster and Liverpool trains stop at Crewe station.
  2. North of Crewe there will be a three-way split of High Speed Two routes to Liverpool, Wigan and the North and Manchester Airport and Piccadilly.
  3. High Speed Two will loop to the East and then join the West Coast Main Line to the South of Wigan.
  4. High Speed Two trains will use the West Coast Main Line to the North of Wigan North Western station.

This map of High Speed Two in North West England was captured from the interactive map on the High Speed Two web site.





Note.

  1. The current West Coast Main Line (WCML) and Phase 2a of High Speed Two are shown in blue.
  2. Phase 2b of High Speed Two is shown in orange.
  3. The main North-South route, which is shown in blue, is the WCML passing through Crewe, Warrington Bank Quay and Wigan North Western as it goes North.
  4. The Western Branch, which is shown in blue, is the Liverpool Branch of the WCML, which serves Runcorn and Liverpool.
  5. High Speed Two, which is shown in orange, takes a faster route between Crewe and Wigan North Western.
  6. The Eastern Branch, which is shown in orange, is the Manchester Branch of High Speed Two, which serves Manchester Airport and Manchester Piccadilly.
  7. The route in the East, which is shown in blue, is the Macclesfield Branch of High Speed Two, which serves Stafford, Stoke-on-Trent and Macclesfield.

The route of Northern Powerhouse Rail between Manchester Airport and Liverpool has still to be finalised.

Liverpool Branch

Consider.

  • The Liverpool Branch will take  two tph between London Euston and Liverpool.
  • In the future it could take up to 6 tph on Northern Powerhouse Rail between Liverpool and Manchester Piccadilly via Manchester Airport.

I believe that Liverpool Lime Street station, after the recent updating can handle all these trains.

Manchester Branch

This document on the Government web site is entitled HS2 Phase 2b Western Leg Design Refinement Consultation.

It indicates two important recently-made changes to the design of the Manchester Branch of High Speed Two.

  • Manchester Airport station will have four High Speed platforms instead of two.
  • Manchester Piccadilly station will have six High Speed platforms instead of four.

These changes will help the use of these stations by Northern Powerhouse Rail..

Consider.

  • The Manchester Branch will be new high speed track, which will probably be built in a tunnel serving Manchester Airport and Manchester Piccadilly stations.
  • The Manchester Branch will terminate in new platforms.
  • The Manchester Branch will take  five tph between Birmingham Curzon Street or London Euston and Manchester Airport and Manchester Piccadilly.
  • In the future it could take up to six tph on Northern Powerhouse Rail between Liverpool and Manchester Piccadilly via Manchester Airport.
  • London Euston and Old Oak Common will be new stations on a tunnelled approach to London and will handle 18 tph.

If London Euston and Old Oak Common can handle 18 tph, I can’t see why Manchester Airport and Piccadilly stations can’t handle somewhere near a similar number of trains.

At the moment eleven tph have been allocated to the Manchester Branch.

I believe that if infrastructure for Northern Powerhouse Rail was designed so that as well as connecting to Manchester and Liverpool, it connected Manchester and the West Coast Main Line running North to Preston, Carlisle and Scotland, services to the following destinations would be possible.

  • Barrow
  • Blackburn
  • Blackpool
  • Edinburgh
  • Glasgow
  • Windermere

Note.

  1. Edinburgh and Glasgow would probably be a service that would alternate the destination, as it is proposed for High Speed Two’s Birmingham and Scotland service.
  2. There would probably be a need for a North Wales and Manchester service via Chester.
  3. All trains would be Classic-Compatible.

If the Manchester Branch were to be built to handle 18 tph, there would be more than enough capacity.

Crewe, Wigan And Manchester

My summing up earlier gave the number of trains between Crewe, Wigan and Manchester as follows.

  • Crewe and Manchester – 5 tph
  • Crewe and Wigan via Warrington  – 1 tph
  • Crewe and Wigan via High Speed Two (new route) – 3 tph

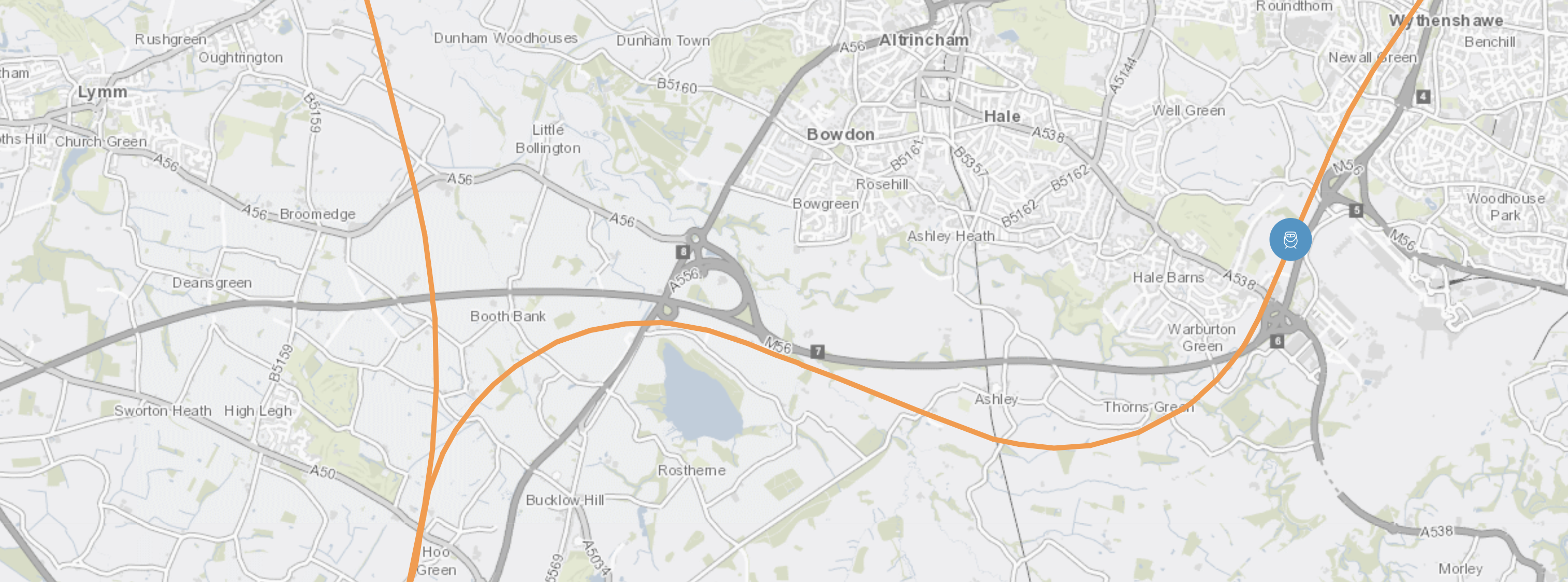

This map of High Speed Two where the Manchester Branch leaves the new High Speed Two route between Crewe and Wigan was captured from the interactive map on the High Speed Two web site.

Note.

  1. The Manchester Branch runs to the South of the M56,
  2. The large blue dot indicates Manchester Airport station.
  3. Wigan is to the North.
  4. Crewe is to the South.
  5. Manchester Piccadilly is to the North East.

I believe this junction will be turned into a full triangular junction, to connect Wigan directly to Manchester Airport and Manchester Piccadilly.

  • Barrow, Blackburn, Blackpool, Preston and Windermere could all have high speed connections to Manchester Airport and Manchester Piccadilly. Trains could be shorter Classic-Compatible trains.
  • A Manchester and Scotland service would take the same route.

Another pair of tracks could leave the junction to the West to create a direct route between Manchester Airport and Liverpool for Northern Powerhouse Rail, by sneaking along the  M56.

Suppose extra services were as follows.

  • Manchester and Barrow – 1 tph
  • Manchester and Blackburn – 1 tph
  • Manchester and Blackpool – 1 tph
  • Manchester and Liverpool – 6 tph
  • Manchester and Scotland – 1 tph
  • Manchester and Windermere – 1 tph

The frequencies from the junction would be as follows.

  • To and from Crewe – High Speed Two (Manchester) – 5 tph – High Speed Two (North) – 3 tph = 8 tph
  • To and from Liverpool – Northern Powerhouse Rail – 6 tph = 6 tph
  • To and from Manchester – High Speed Two – 5 tph – Northern Powerhouse Rail – 6 tph – Local – 4 tph – Scotland – 1 tph = 16 tph
  • To and from Wigan – High Speed Two – 3 tph – Local – 4 tph – Scotland – 1 tph = 8 tph.

Only the Manchester Branch would be working hard.

The Liverpool Connection

I indicated that another pair of tracks would need to extend the Manchester Branch towards Liverpool in the West for Northern Powerhouse Rail.

  • Would these tracks have a station at Warrington?
  • Would there be a connection to allow services between Liverpool and the North and Scotland?

It might even be possible to design a Liverpool connection, that avoided using the current Liverpool Branch and increased the capacity and efficiency of all trains to Liverpool.

Capacity Of The Western Leg Between Wigan And Scotland

The sections between  Crewe and Carlisle, will be running at the following frequencies.

  • Wigan and Lancaster – 4 tph
  • Lancaster and Carlisle  – 3 tph
  • Carlisle and Edinburgh  – 2.5 tph
  • Carlisle and Glasgow – 2.5 tph

Note.

  1. The unusual Scottish frequencies are caused by splitting and joining at Carlisle and alternate services to Edinburgh and Glasgow.
  2. Any local high speed services and a Scotland service from Manchester, will increase the frequencies.

Over this section the services will be running on an improved West Coast Main Line.

But in some cases the trains will be replacing current services, so the increase in total frequencies will be less than it first appears.

Avanti West Coast currently run the following Scottish services.

  • One tph – London Euston and Glasgow via the most direct route.
  • One tph – London Euston and alternately Edinburgh and Glasgow via Birmingham.

This means that effectively Glasgow has 1.5 tph and Edinburgh 0.5 tph from London Euston.

The capacity of the current eleven-car Class 390 trains is 145 First and 444 Standard Class seats, which compares closely with the 500-600 seats given in Wikipedia for High Speed Two trains. So the capacity of the two trains is not that different.

But High Speed Two will be running 2.5 tph Between London Euston and both Edinburgh and Glasgow.

I would expect, that Class 390 services to Scotland will be discontinued and replaced by High Speed Two services.

Capacity Of The Eastern Leg Between Birmingham And East Midlands Hub

The section is between Birmingham and East Midlands Hub, will be running 9 tph

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.

But where will they come from?

Midlands Engine Rail is proposing a service between Birmingham Curzon Street and Nottingham.

  • It will have a frequency of one tph.
  • It will be run by High Speed Two Classic-Compatible trains.
  • The journey will take 33 minutes.
  • It will run on High Speed Two infrastructure between Birmingham Curzon Street and East Midlands Hub.

If High Speed Two has been designed with this service in mind, I doubt it will be a difficult service to setup.

  • There might be enough capacity on High Speed Two  for two tph on the route,
  • It could possibly be extended to Lincoln.

It will also depend on the service timing being consistent with an efficient use of trains and platforms.

  • Thirty-three minutes is not a good timing, as it means twenty-seven minutes wait in a platform to get a round trip time, that suits clock-face time-tabling.
  • The current Lincoln and Nottingham service takes 56 minutes for 34 miles.
  • LNER’s London Kings Cross and Lincoln service travels the 16 miles between Lincoln and Newark in 25 minutes.
  • I estimate that after track improvements,  with a single stop at Newark Castle station, that Nottingham and Lincoln could be achieved in several minutes under fifty minutes.
  • This would enable a sub-ninety minute journey time between Birmingham Curzon Street and Lincoln, with enough time to properly turn the trains at both ends of the route.
  • The three hour round trip would mean that an hourly service would need three trains.

This is probably just one of several efficient time-tabling possibilities.

Are there any other similar services?

The obvious one is surely Cambridge and Birmingham

  • It would run via Peterborough, Grantham, Nottingham and East Midlands Hub.
  • It would connect the three big science, engineering and medical centres in the Midlands and the East.
  • It could be run by High Speed Two Classic-Compatible trains.

It might even be a replacement for CrossCountry’s Stansted Airport and Birmingham service.

Capacity Of The Eastern Leg Between East Midlands Hub And Sheffield

The section between East Midlands Hub and Sheffield, will be running 2 tph

As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.

But where will they come from?

This map of High Speed Two where the Sheffield Branch leaves the new High Speed Two route between East Midlands Hub and Leeds was captured from the interactive map on the High Speed Two web site.

Note.

  1. The main route of High Speed Two between East Midlands Hub, is shown in orange and follows the route of the M1 Motorway, towards the East of the map.
  2. The Sheffield Branch is new track to Clay Cross North Junction, where is takes over the Midland Main Line to Sheffield, which is shown in blue.
  3. The line going South in the middle of the map is the Erewash Valley Line, which goes through Langley Mill and Ilkeston stations.

I suspect Clay Cross to Sheffield will be an electrified high speed line, with a maximum speed of at least 140 mph.

Could the Erewash Valley Line have been used as an alternative route to Sheffield?

This map of High Speed Two captured from their interactive map, shows the connection of High Speed Two and the Erewash Valley Line to East Midlands Hub.

Note.

  1. East Midlands Hub is shown by the big blue dot.
  2. High Speed Two is shown in orange.
  3. The route to Leeds vaguely follows the M1 Motorway.
  4. The Erewash Valley Line goes North to the East of Ilkeston.

Would have been quicker and easier to electrify the Erewash Valley Line, as the High Speed Two route to Chesterfield and Sheffield?

  • Network Rail updated the route a few years ago.
  • It does not have the problems of electrification, through a World Heritage Site, as does the route through Derby.
  • It could surely handle two tph, even if they were High Speed Two Classic Compatible trains.
  • Sheffield will be just under ninety minutes from London by High Speed Two, as opposed to two hours now.

I suspect that it all comes down to saving a few minutes to Sheffield and the civic pride of having a High Speed Two connection.

So it looks like we’ll have the following capacity between East Midlands Hub and Sheffield.

  • Between East Midlands Hub and Clay Cross North Junction, there will be the High Speed Two capacity of 18 tph.
  • Between Clay Cross and Sheffield, there will probably be an upgraded capacity of perhaps 8-10 tph.

It seems a lot of capacity for just two tph.

Consider.

  • High Speed Two is planning to run three tph between Birmingham Curzon Street and East Midlands Hub
  • Midlands Rail Engine is planning to run one tph between Birmingham Curzon Street and East Midlands Hub
  • Four tph is considered a Turn-Up-And-Go service, and could exist between Birmingham Curzon Street and East Midlands Hub.
  • Sheffield and Leeds, both probably need a Turn-Up-And-Go service, to and from East Midlands Hub.
  • Semi-fast services between Sheffield and East Midlands Hub, calling at Chesterfield, Alfreton, Langley Mill and Ilkeston would be possible, by using the Erewash Valley Line.
  • The Maid Marian Line will join the Robin Hood Line in adding extra connectivity to East Midlands Hub Station.
  • Leeds and East Midlands Hub could have a six tph service courtesy of High Speed Two and Midlands Rail Engine.

Using High Speed Two’s web site, the following times should be possible.

  • Sheffield and East Midlands Hub – 27 minutes
  • Sheffield and Birmingham Curzon Street – 47 minutes.

Both services allow time for an efficient service.

There are certainly many options to create a Turn-Up-And-Go service between Sheffield and East Midlands Hub and also improve connections to other locations across the area.

Capacity Of The Eastern Leg Between East Midlands Hub And Leeds

The section is between East Midlands Hub and Leeds, will be running 5 tph

High Speed Two between Midlands Hub and Leeds is a totally new high speed line.

  • As the maximum capacity of High Speed Two is laid down in the Phase One Act as 18 tph, this gives plenty of room for more trains.
  • The Southern section of the leg closely follows the M1 Motorway.
  • Leeds, York and Newcastle will be 27, 36 and 93 minutes from East Midlands Hub, respectively.

This map of High Speed Two, which shows the route of the line in Yorkshire, was captured from the interactive map on the High Speed Two web site.

Note.

  1. Sheffield is marked by the blue dot in the South.
  2. Leeds is marked by the blue dot in the North West.
  3. York is marked by the blue dot in the North East.
  4. New routes are shown in orange.
  5. Upgraded routes are shown in blue.

The route seems to open up several possibilities for extra routes.

Leeds and Sheffield will be used by Northern Powerhouse Rail and there will be four tph, taking 28 minutes.

Leeds and Bedford via East Midlands Hub has been proposed by Midlands Rail Engine.

Services between Sheffield and the North via York must be a possibility.

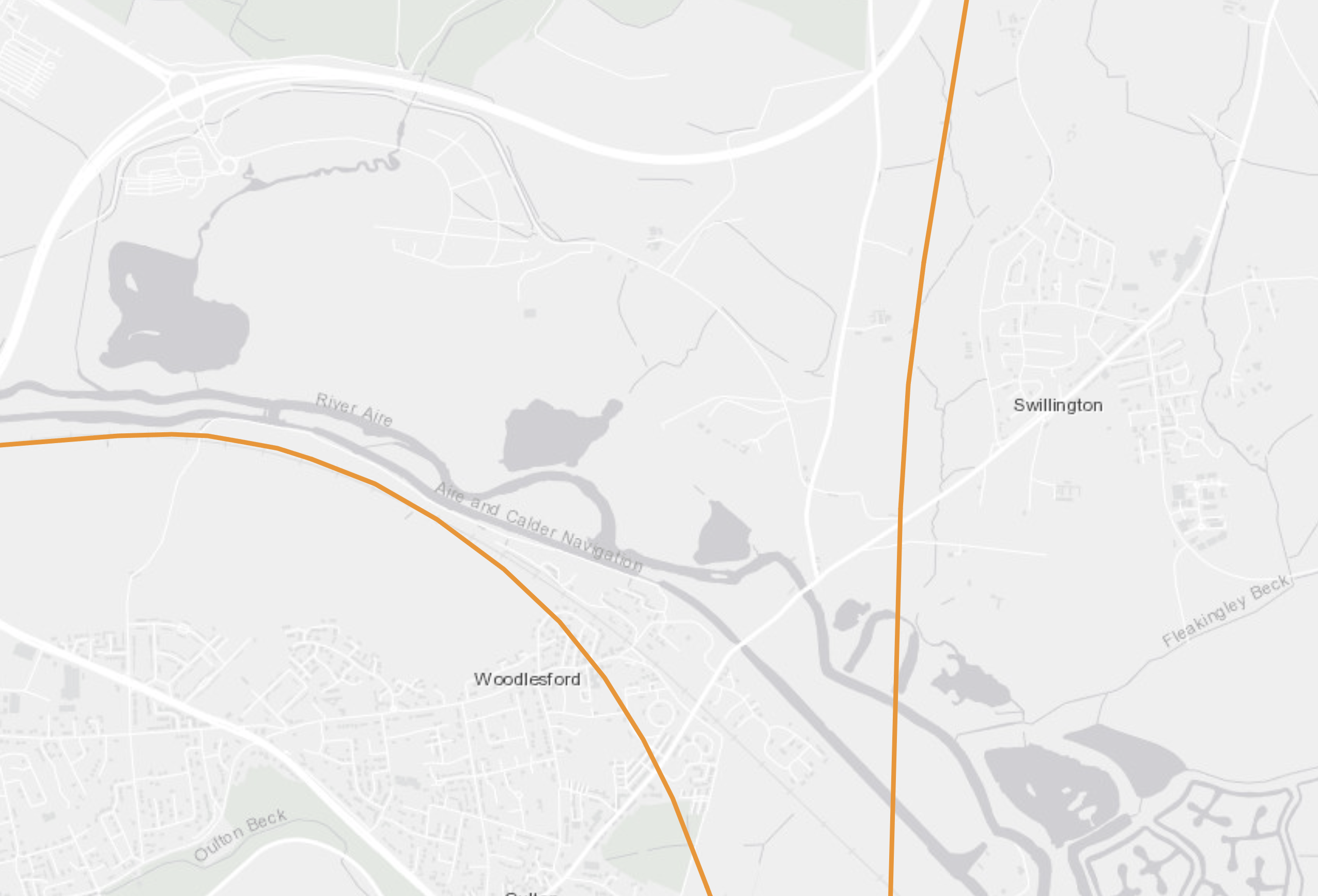

This map of High Speed Two, which shows the routes to the East of Leeds, was captured from High Speed Two’s interactive map.

I think that two things might be missing.

  • A full triangular junction would surely allow services between Leeds and the North via York.
  • A high speed connection to Hull.

We shall see in the future.

Capacity Of The Eastern Leg Between York And Newcastle

The section between  York and Newcastle, will be running at a frequency of 3 tph.

Over this section the services will be running on an improved East Coast Main Line.

Conclusion

I shall split the conclusions into various sections.

Route And Track Layout

I think there may be places, where the route and track layout might need to be improved.

  • The Manchester Branch probably needs a triangular junction with the Western Leg of High Speed Two.
  • How Liverpool is served by Northern Powerhouse Rail needs to be decided.
  • The approach to Leeds probably needs a triangular junction with the Eastern Leg of High Speed Two.
  • It is not clear how services will reach Hull.

Hopefully, these issues will become clear in the next year or so.

Capacity

The sections with the highest levels of capacity would appear to be the following.

  • London Euston and Birmingham Interchange.
  • The Manchester Branch
  • The section shared with the East Coast Main Line between York and Newcastle.
  • The section shared with the West Coast Main Line between Wigan and Scotland.

But on these sections extra trains can be run.

  • Birmingham and North West England
  • Birmingham and East Midlands Hub
  • East Midlands Hub and Leeds
  • East Midlands Hub and Sheffield
  • East Midlands Hub and York

I can see, this capacity being filled by high speed local services, like those proposed by Midlands Rail Engine.

Rolling Stock

The only comment, I will make, is that there could be a need for a shorter Classic-Compatible train to work local services.







October 22, 2020 Posted by | Design, Transport | , , , , , , , , , , , , , , , , , , , | 5 Comments

Beeching Reversal – Reconnecting Ashfield Communities Through The Maid Marian Line

This is one of the Beeching Reversal projects that the Government and Network Rail are proposing to reverse some of the Beeching cuts.

Around the turn of the Century, I started to use the Robin Hood Line fairly regularly, as I had clients in both Nottingham and Mansfield and found it easier to drive up from Suffolk and park in Nottingham and get the train to Mansfield. When the Nottingham Express Transit opened in 2004 to Hucknall station, I would change there for Mansfield.

I can remember thinking at the time and discussing it with my client, that British Rail had certainly been mistaken to close the rail line between Hucknall and Worksop via Mansfield.

I first talked about the Maid Marian Line in Expanding The Robin Hood Line, which I wrote in 2015, although, it hadn’t been named at the time.

In 2015, there was talk of two extensions.

A Proposed Branch To Ollerton

In my investigations into Ilkeston station, the Robin Hood Line kept cropping up and especially talk of a branch from the line to Ollerton.

Search Google News for Robin Hood Line and articles with titles like Chancellor backs Robin Hood line passenger plans are found in the Mansfield and Ashfield Chad. This is the start to the article.

The Chancellor George Osborne, has confirmed his backing for plans to open a passenger service on the Robin Hood line, from Shirebrook to Ollerton, including passenger stations at Ollerton and Edwinstowe.

Other Government figures like David Cameron and Patrick McLoughlin and important local councillors are also quoted saying similar things.

What is not said is that the line will serve the CentreParcs Sherwood Forest and that the rail line needed is currently fully maintained for driver training.

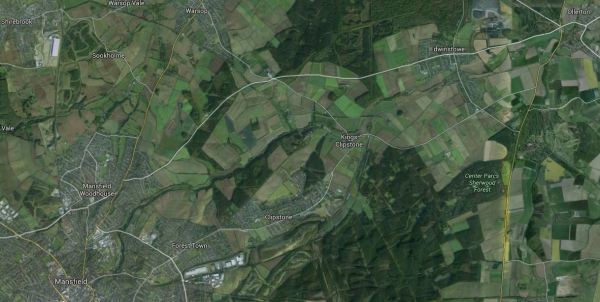

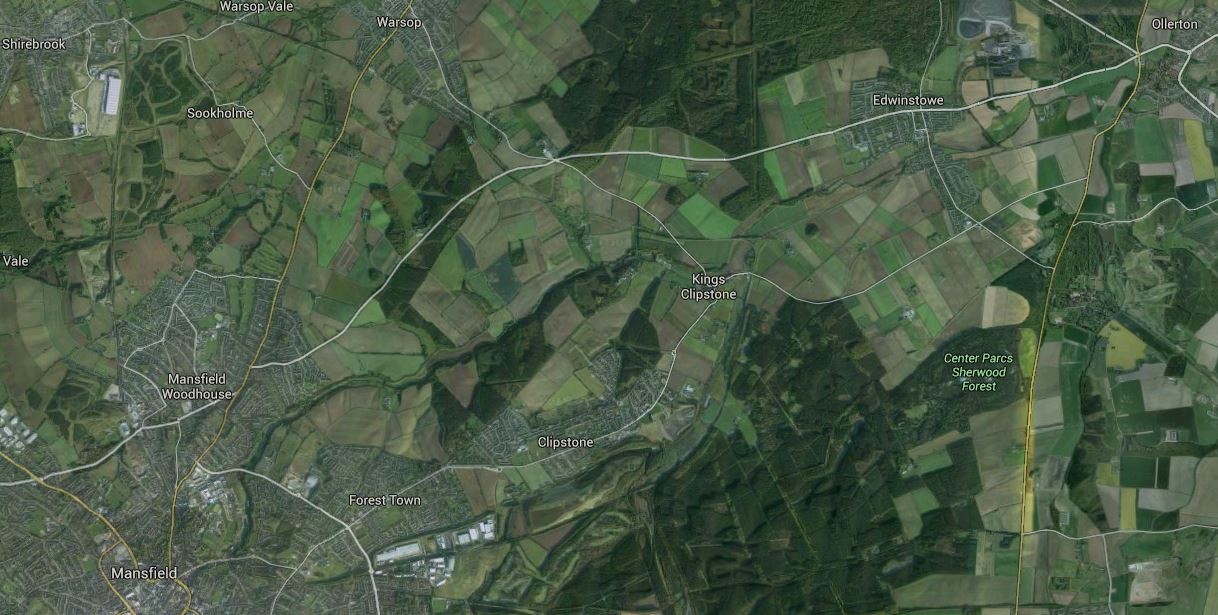

This Google Map shows the area.

The Ollerton branch turns off from the Robin Hood Line just North of Shirebrook station in the top left hand corner of the map and then makes it way to Ollerton by way of the South of Warsop and Edwinstowe and North of the CentreParcs Sherwood Forest.

The line probably illustrates the only environmentally-friendly use for coal, which is to keep rail lines open and in good condition, until we can find a better use for them.

There is an interesting section called Branch Lines in the Wikipedia entry for Shirebrook station. This is said.

Two branch lines are plainly visible veering off north of the bridge at the north end of Shirebrook station.

The double tracks branching off eastwards (i.e. to the right as viewed from the station) to the side of the signalbox joined the LD&ECR’s one-time main line to Lincoln, next stop Warsop. The branch only ever carried a regular passenger service for a few years in Edwardian times. It did, however, carry Summer holiday trains such as the Summer Saturdays Radford to Skegness in at least 1963. The branch’s main purpose was always freight traffic, with coal being overwhelmingly dominant.

In 2013 the line gives access to Thoresby Colliery and to the High Marnham Test Track.

There is some hope of reopening the line as a branch off the Robin Hood Line and reopening Warsop, Edwinstowe and Ollerton stations, providing an hourly service to Mansfield and Nottingham.

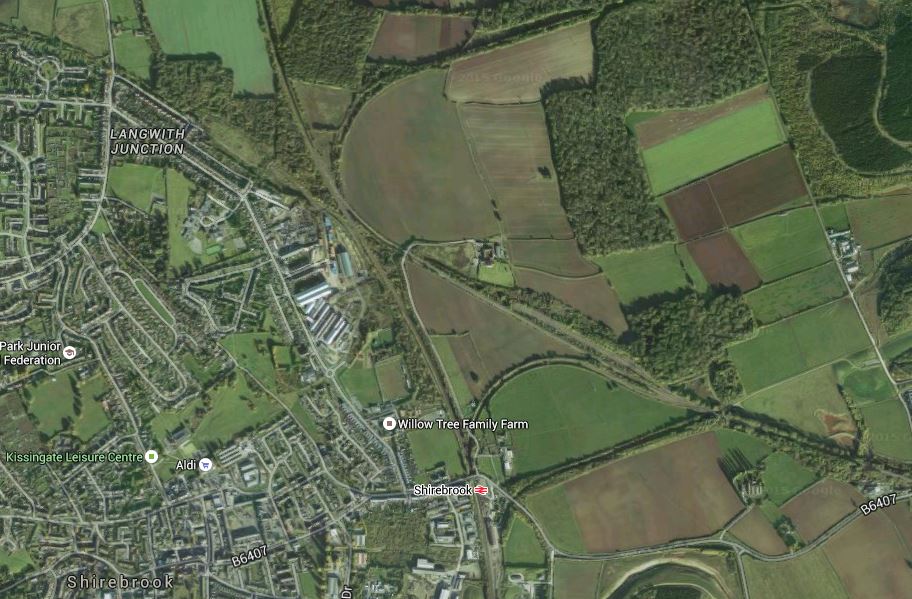

This Google Map shows Shirebrook station and the railway lines around it.

The junction of the Ollerton branch would appear to allow access to trains from or to either Nottingham and Mansfield in the South and Worksop in the North

It appears that there could be three stations; Warsop, Edwinstowe and Ollerton on a double-track branch.

Services To Derby

The area between Chesterfield, Mansfield and Nottingham is not very well connected to Derby.

If you want to go from Mansfield or Kirkby-in-Ashfield on the Robin Hood Line to Derby, you always have to change at Nottingham, with sometimes an extra change at East Midlands Parkway.

The Erewash Valley Line runs North-South a few miles to the West of the Robin Hood Line.

Despite being partially in Derbyshire, getting from stations like AlfretonLangley Mill and the soon-to-be-opened Ilkeston stations to Derby, you have to change at either Nottingham or Chesterfield.

Look at this Google Map of the area


There must be a better way of getting to Derby, than by changing trains in Nottingham or Chesterfield.

But what?

There are four main North-South routes in the area.

What seems to be missing is high-capacity East-West routes for both rail and road.

The Erewash Valley Line goes South to Long Eaton, which has several trains per hour direct to Derby, so this could be the key to getting to Derby.

In a Notes on Current Station section on the Wikipedia entry for Long Eaton station, this is said.

It is planned that both platforms will be extended by up to 10 metres by no later than 2012.

It is anticipated that developments along the Erewash line will result in changes for Long Eaton station. A plan drawn up in 2011 recommended a new Derby to Mansfield service via new stations at Breaston & Draycott, Long Eaton West (renamed from Long Eaton), Long Eaton Central, Stapleford & Sandiacre, Ilkeston, Eastwood & Langley Mill (renamed from Langley Mill), Selston & Somercotes and then to Pinxton via new trackbed connecting with the Mansfield line from Nottingham at Kirkby in Ashfield.

It strikes me that work at Long Eaton, the several new stations and improvements North of Langley Mill would enable direct services from Alfreton, Ilkeston and Langley Mill to both Derby and Mansfield. This service would also improve services from stations stations North of Mansfield to Derby.

A trackbed from Langley Mill to Kirkby in Ashfield is shown on Google Maps.

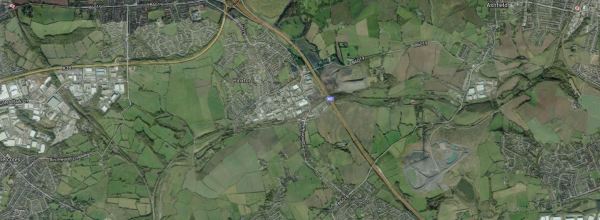

Langley Mill to Kirkby-in-Ashfield

Alfreton is the station at the top left and Kirkby-in-Ashfield is at the top right. The Erewash Valley Line from Langley Mill, enters at the bottom and splits with one branch going to Alfreton and the other going East to cross the M1 and join the Robin Hood Line south of Kirkby-in-Ashfield.

On an Ordnance Survey map, dated 2009, the railway is shown as a multiple track line, probably serving collieries and open cast coalfields.

It all sounds very feasible too! Especially, as the Erewash Valley is an area of high unemployment, low car ownership and a dependence on public transport.

Would Both Branches Of the Robin Hood Line Form The Maid Marian Line?

Consider.

  • The Ollerton Branch joins the Robin Hood Line to the North of Shirebrook station.
  • The Pye Bridge Branch joins the Robin Hood Line to the South of Kirkby-in-Ashfield station.
  • There are three statations between Shirebrook and Kirkby-in-Ashfield stations; Mansfield Woodhouse, Mansfield and Sutton Parkway.
  • The Pye Bridge Branch joins the Erewash Valley Line to the North of Langley Mill station.
  • From Langley Mill station, there are direct services to Nottingham station.
  • I am also fairly certain that a passenger train can travel between Langley Mill and Derby via Ilkeston and Long Eaton.

It would certainly be possible for a passenger service to run between Ollerton and Ilkeston.

  • It could terminate at either Derby or Nottingham.
  • When High Speed Two is built, it could call at East Midlands Hub station.

As Shirebrook, Mansfield Woodhouse, Mansfield, Sutton Parkway, Kirkby-in-Ashfield, Langley Mill, Ilkeston and Long Eaton, all have connections to Nottingham, I suspect the core service would terminate at Derby.

One MP Is Not Happy

This article on NottinghamshireLive is entitled Leaders In Row Over Plans To Reopen Maid Marian Line.

This is said.

A row has erupted over proposals to reopen the disused Maid Marian Line in Nottinghamshire.

Lee Anderson, MP for Ashfield, has hit out at Ashfield District Council saying residents in areas like Selston will be “left behind” under plans to reopen the line.

From reading the article, it looks like an extra station at Selston might defuse the row.

Conclusion

Consider.

  • This is a sound plan, that has been talked about for some years.
  • Except for three or four stations, there is little serious construction needed.
  • The line connects a large area to High Speed Two.

I feel that this could be one of the first schemes to be given the go-ahead to be built.



August 22, 2020 Posted by | Transport | , , , , , | 3 Comments

Could The Crewe And Derby Line Become A Much More Important Route?

On the Midlands Connect web site, they have a page, which is entitled Derby-Stoke-Crewe.

This is the introductory paragraph.

Our plans have the potential to increase passenger demand on the corridor by 72%, with faster, more frequent services.

They then give the outline of their plans, which can be summed up as follows.

  • Currently, the service is one train per hour (tph) and it takes 79 minutes.
  • The service frequency will go to two tph.
  • Twenty minutes could be saved on the second service by adjusting calling patterns.
  • Improved links at Crewe for High Speed Two. This must have been written before Stafford and Stoke got the High Speed Two service to Macclesfield.
  • East Midlands Railway are planning to extend the current Crewe and Derby service to Nottingham.

It seems a safe, and not overly ambitious plan.

These are my thoughts.

The Route

I have flown my virtual helicopter along the route and it appears to be double track all the way, except for a three mile section to the East of Crewe, that British Rail reduced to single track

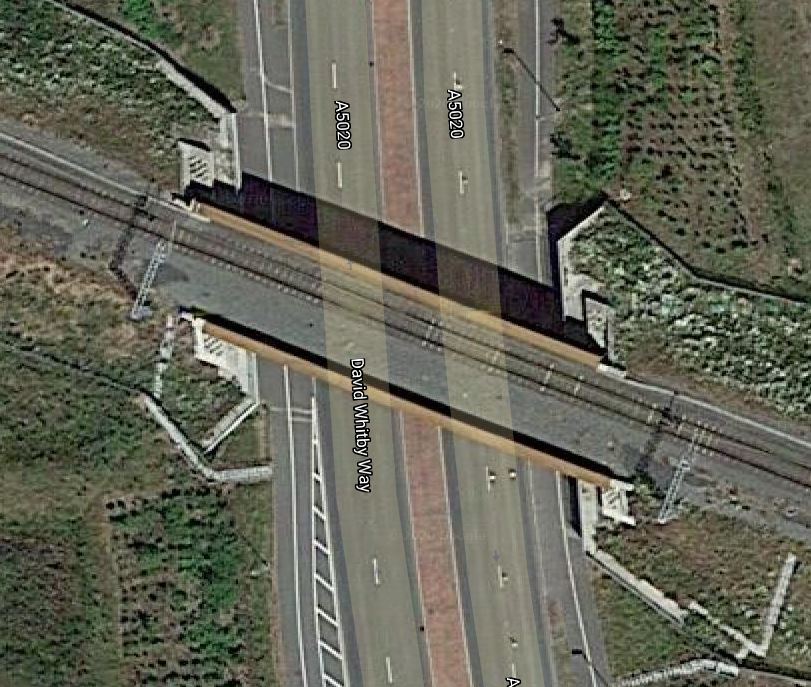

However, in recent years the A5020 was built under the railway and the new bridge appears to have space for the second track to be restored, as this Google Map shows.

Note.

  1. The single track appears to be electrified, from the shadows of the gantries at either end of the bridge.
  2. West Midlands Trains appear to run an electric service between Crewe and Stafford on this route.
  3. I suspect it’s also used as a diversion route for Avanti West Coast’s Manchester service via Stoke-on-Trent or for train positioning.

Will this route allow High Speed Two trains to run between Stoke-on-Trent and Manchester Piccadilly?

From picture and comments in a rail forum, I suspect that the route could be redoubled fairly easily.

  • The electrification runs for about 15.5 miles, between Crewe station and Stoke Junction, which is about half-a-mile on the other side of Stoke-on-Trent station.
  • Trains seem to be connected to the electrification for over twenty minutes, so it could be useful for charging a battery train, running between Stoke-n-Trent and Crewe stations.

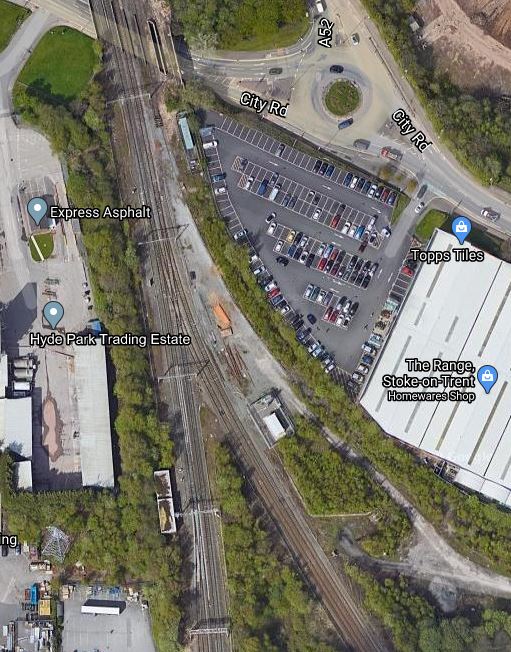

This Google Map shows Stoke Junction.

Note,

  1. Stoke-on-Trent station is to the North.
  2. The electrified railway going due South is the West Coast Main Line to Stone and Stafford stations.
  3. The line without electrification going off in a more South-Easterly direction is the line to Uttoxeter and Derby.

Following the route between Derby and Crewe, these are my observations.

  • There is a level crossing at Blythe Bridge station.
  • Most of the bridges over the route are modern, so I suspect will accept electrification.
  • The route would appear to have a speed limit of 70 mph, but I would suspect that this could be increased somewhat as it doesn’t look too challenging.
  • The route is 51 miles long, so a service that takes the current 79 minutes with nine stops, would average 38.7 mph.
  • The proposed time of 59 minutes, would average 51.8 mph

I suspect there could be more to come, as the timetable is probably written for a Class 153 train.

A Crewe And Nottingham Service

The Midlands Connect plan says the service will be the following.

  • Two tph
  • A slow train in 79 minutes.
  • A fast train in 59 minutes.
  • East Midlands Railway want to extend services to Nottingham.

It could be a fairly simple easy-to-use timetable.

Fast Trains

Consider.

  • Derby and Nottingham are 16 miles apart and fastest trains take between 19-22 minutes between the two cities.
  • When it opens, all trains would stop at East Midlands Hub station between Nottingham and Derby.
  • East Midlands Railway have a fleet that will include forty Class 170 trains.
  • I suspect that these 100 mph trains will be able to run between Crewe and Nottingham including the turnround in under 90 minutes.

This would mean that a fast hourly service would need three trains.

Slow Trains

Consider.

  • I wouldn’t be surprised to see the slower services continuing as now and not extending to Nottingham.
  • 79 minutes is probably a convenient time, which would give a ninety minute time for each leg between Derby and Crewe, when turnround is included.
  • Trains would be more of the Class 170 trains.

This would mean that a slow hourly service would need three trains.

Could Battery Electric Trains Be Used?

Consider.

  • I think it is likely that the route between Derby and East Midlands Parkway via East Midlands Hub station, will be electrified, in conjunction with Midland Main Line electrification.
  • Between Derby and Long Eaton stations via East Midlands Hub station is just under ten miles and takes ten minutes.
  • Nottingham and Crewe is 66 miles of which 25 miles in total could be electrified.
  • Derby and Crewe is 51 miles of which 15 miles are electrified.
  • The longest section without electrification is between Derby station and Stoke Junction, which is 35.5 miles.

Batteries would be charged in the following places.

  • Between Long Eaton and Derby stations.
  • During turnround at a fully-electrified Derby station.
  • Between Stoke-on-Trent and Crewe stations.
  • During turnround at a fully-electrified Crewe station.

That’s a lot better than with an electric car.

In Sparking A Revolution, I quoted this Hitachi-specification for a battery-electric train.

  • Range – 55-65 miles
  • Performance – 90-100 mph
  • Recharge – 10 minutes when static
  • Routes – Suburban near electrified lines
  • Battery Life – 8-10 years

I can’t see any problem with one of these trains or other battery-electric trains with a similar performance, running between Crewe and Nottingham or Derby via Stoke.

Could Hydrogen-Powered Trains Be Used?

I would suspect so, as the Alsthom Coradia iLint runs a similar route in Germany.

Connections To High Speed Two

Midlands Connect noted the route’s link to High Speed Two at Crewe.

But it also has other links to High Speed Two at Stoke-on-Trent and East Midlands Hub stations.

I suspect some stations like Uttoxeter or Alsager will have a choice of fast routes to London or Scotland.

Could Services Be Extended From Crewe?

In Connecting The Powerhouses, I talked about an article in the June 2017 Edition of Modern Railways, which proposed reopening the Midland Railway route between Derby and Manchester.

Some passengers and commentators fell a direct fast link is needed.

When High Speed Two is completed, the main route into Manchester Piccadilly will be a high speed spur from Crewe via Manchester Airport. Current plans include the following services.

  • One tph from London Euston via Old Oak Common and Birmingham Interchange.
  • Two tph from London Euston via Old Oak Common
  • Two tph from Birmingham Curzon Street

Note.

  1. All services will call at Manchester Airport.
  2. It is likely that Northern Powerhouse Rail will add six tph to Manchester Piccadilly from Liverpool via Warrington.
  3. Some services will extend through Manchester Piccadilly to Bradford, Doncaster, Huddersfield, Hull, Leeds, Newcastle, Sheffield and York.
  4. High Speed lines will probably have a capacity of up to eighteen tph.

The Birmingham Curzon Street, Liverpool and London Euston services would be eleven tph, so there would be more than enough capacity for an hourly train from Nottingham.

What would the service be like?

  • It would be between Nottingham and Manchester Piccadilly stations.
  • It could call at East Midlands Hub, Derby, Uttoxeter, Stoke-on-Trent, Kidsgrove, Crewe and Manchester Airport stations.
  • It would probably be hourly.

Timings could be as follows.

  • Nottingham and Manchester Airport – 87 minutes
  • Nottingham and Manchester Piccadilly – 91 minutes
  • Derby and Manchester Airport – 67 minutes
  • Derby and Manchester Piccadilly – 71 minutes
  • Stoke-on-Trent and Manchester Airport – 32 minutes
  • Stoke-on-Trent and Manchester Piccadilly – 36 minutes

The trains used on this and other local services that might need to use High Speed Two infrastructure would be performing a similar role as that of the Class 395 trains on High Speed One.

Possibilities must include.

  • A classic-compatible High Speed Two train.
  • A five-car AT-300 train, like East Midlands Railway’s Class 810 trains.
  • An updated Class 395 train.

All trains would need a battery capability with a range of 40 miles.

It should also be noted that in Options For High Speed To Hastings, I worked through the options needed to run high speed commuter services to Hastings.

This was the last sentence in that post.

It’s all about selling trains and a company that had a 140 mph or 225 kph high-speed electric train, that could do perhaps 25 miles or 40 kilometres on batteries, would have a valuable addition to their product range.

A train with a range of 50 miles on battery power, would be suitable for the following routes.

  • London St. Pancras and Hastings via Ashford International.
  • Manchester Piccadilly and Nottingham via Manchester Airport, Crewe, Derby and East Midlands Hub.
  • Manchester Piccadilly and Barrow-in-Furness via Manchester Airport, Warrington Bank Quay, Wigan North Western, Preston and Lancaster.
  • Manchester Piccadilly and Chester via Manchester Airport and Crewe.
  • Manchester Piccadilly and Shrewsbury via Manchester Airport and Crewe.

Charging might be needed at some of the terminal stations.



June 26, 2020 Posted by | Transport | , , , , , , , , , | 5 Comments

Splitting And Joining Of High Speed Two Trains

In Existing Stations Where High Speed Two Trains Will Call, I looked at how existing stations will need to be modified to handle the High Speed Two service pattern described in an article, which is entitled HS2 Minister Backs 18 tph Frequency, in the June 2020 Edition of Modern Railways.

The article states that splitting and joining of trains will take place at three stations; Carlisle, Crewe and East Midlands Hub.

To successfully split and join the pairs of 200 metre long High Speed Two trains, the following will be needed.

  •  400 metre long platforms, that can handle the pair of trains.
  • Excellent signage, so that passengers get into the right train and leave for the right destination.
  • Efficient crew methods, so that drivers are in the correct cabs at the right time.

For many years trains at Cambridge and several places South of London have successfully split and joined.

This video shows two Class 395 trains coupling and uncoupling automatically.

It;s impressive and I suspect High Speed Two’s trains will be equally good or even better at this procedure.

Why Is Split And Join Needed For High Speed Two?

According to the Modern Railways article, the full High Speed Two service will be as follows in trains per hour (tph) and trains per two hours (tp2h)

  1. 1 tph – London Euston and Birmingham Curzon Street via Old Oak Common (OOC) – 400 metres
  2. 2 tph – London Euston and Birmingham Curzon Street via OOC and Birmingham Interchange – 400 metres
  3. 1 tph – London Euston and Lancaster via OOC, Crewe, Warrington Bank Quay, Wigan North Western and Preston – London Euston and Liverpool Lime Street via OOC, Crewe and Runcorn – 200+200 metres with Split/Join at Crewe
  4. 1 tph – London Euston and Liverpool Lime Street via OOC, Crewe and Runcorn – 200 metres
  5. 1 tph – London Euston and Macclesfield via OOC, Stafford and Stoke-on-Trent – 200 metres
  6. 1 tph – London Euston and Manchester Piccadilly via OOC, Birmingham Interchange and Manchester Airport – 400 metres
  7. 2 tph – London Euston and Manchester Piccadilly via OOC and Manchester Airport – 400 metres
  8. 1 tph – London Euston and Edinburgh Waverley via OOC, Preston, Carlisle and Edinburgh Haymarket – London Euston and Glasgow Central via OOC, Preston and Carlisle – 200 +200 metres with Split/Join at Carlisle
  9. 1 tph – London Euston and Edinburgh Waverley via OOC, Birmingham Interchange, Preston, Carlisle and Edinburgh Haymarket – London Euston and Glasgow Central via OOC, Preston and Carlisle – 200 +200 metres with Split/Join at Carlisle
  10. 1 tp2h – Birmingham Curzon Street and Edinburgh Waverley via Wigan North Western, Preston, Lancaster, Oxenholme, Penrith and Edinburgh Haymarket – 200 metres
  11. 1 tp2h – Birmingham Curzon Street and Glasgow Central via Wigan North Western, Preston, Lancaster, Oxenholme, Penrith, Lockerbie and Motherwell – 200 metres
  12. 2 tph – Birmingham Curzon Street and Manchester Piccadilly via Manchester Airport – 200 metres
  13. 2 tph – Birmingham Curzon Street and Leeds via East Midlands Hub – 200 metres
  14. 1 tph – Birmingham Curzon Street and Newcastle via East Midlands Hub, Darlington and Durham – 200 metres
  15. 1 tph – London Euston and Sheffield via OOC and East Midlands Hub – London Euston and Leeds via OOC and East Midlands Hub – 200 + 200 metres with Split/Join at East Midlands Hub
  16. 1 tph – London Euston and Leeds via OOC and East Midlands Hub – 400 metres
  17. 1 tph – London Euston and Leeds via OOC, Birmingham Interchange and East Midlands Hub – 400 metres
  18. 1 tph – London Euston and Sheffield via OOC, East Midlands Hub and Chesterfield – London Euston and York via OOC and East Midlands Hub – 200 + 200 metres with Split/Join at East Midlands Hub
  19. 1tph – London Euston and Newcastle via OOC and York – 200 metres
  20. 1 tph – London Euston and Newcastle via OOC, York and Darlington – 200 metres

Note.

  1. Trains 10 and 11 share the same path in alternate hours.
  2. Birmingham Curzon Street is effectively a second Southern terminus.
  3. Seventeen tph leave London Euston and Old Oak Common for the North, of which eight are 400 metre trains, five are a pair of 200 metre trains and four are 200 metre trains.

As the five pairs of 200 metre trains Split/Join en route, this effectively means, that London Euston is served by twenty-two tph.

It would appear that Split/Join is important, as it allows the same number of train paths between London Euston and the North to support more services.

Could Any Other Trains Be Split And Joined?

I don’t see why not!

There are eight tph going North from London Euston and Old Oak Common, that are 400 metre long trains that don’t Split/Join

  • 3 tph – Birmingham Curzon Street
  • 2 tph – Leeds
  • 3 tph – Manchester Piccadilly

Note.

  1. Each 400 metre train would appear to have a capacity of around 1,100 passengers.
  2. Leeds is also served by another 200 metre train from London.

Effectively, this gives the following passenger capacities between London and the three major cities.

  • Birmingham – 3,300
  • Leeds – 2,750
  • Manchester – 3,300

If these capacities have been carefully predicted, performing a Split/Join on these trains might cause a shortage of capacity.

There are four single 200 metre trains, that could be doubled up for their run to the North.

  1. London Euston and Liverpool Lime Street via OOC, Crewe and Runcorn
  2. London Euston and Macclesfield via OOC, Stafford and Stoke-on-Trent
  3. London Euston and Newcastle via OOC and York
  4. London Euston and Newcastle via OOC, York and Darlington

In theory, these four trains could be doubled to provide extra services.

But there are two problems.

Where Would The Trains Split and Join?

  • Train 1 could Split/Join at Crewe.
  • Train 2 could Split/Join at Stafford, if the platforms were lengthened to accept a pair of 200 metre trains.
  • Trains 3 and 4 would need to stop at East Midlands Hub to Split/Join

It would appear that four extra trains could be run into London Euston, by running all single trains as pairs.

Where Would The Extra Services Terminate?

There are possibilities on the Western leg of High Speed Two.

  • An extra train for Liverpool Lime Street
  • An extra train for Lancaster
  • A direct train for the current Manchester Piccadilly via Wilmslow and Stockport
  • A direct train for Blackpool

But the Eastern leg of High Speed Two is more of a problem.

  • An extra train for Sheffield
  • A direct train for Hull.

Hull could be served via a new junction between High Speed Two and the Hull-Leeds Line to the North-West of Garforth or perhaps by extending a service from Sheffield.

Could Any Services North From Birmingham Curzon Street Be Split And Joined?

These 200 metre services go North from Birmingham Curzon Street station.

  1. 1 tp2h – Birmingham Curzon Street and Edinburgh Waverley via Wigan North Western, Preston, Lancaster, Oxenholme, Penrith and Edinburgh Haymarket
  2. 1 tp2h – Birmingham Curzon Street and Glasgow Central via Wigan North Western, Preston, Lancaster, Oxenholme, Penrith, Lockerbie and Motherwell
  3. 2 tph – Birmingham Curzon Street and Manchester Piccadilly via Manchester Airport
  4. 2 tph – Birmingham Curzon Street and Leeds via East Midlands Hub
  5. 1 tph – Birmingham Curzon Street and Newcastle via East Midlands Hub, Darlington and Durham.

Note that trains 1 and 2 share the same path in alternate hours.

There may be scope to double up some of these trains, to serve extra destinations in the North from Birmingham Curzon Street.

Conclusion

Split/Join is a powerful tool to increase the number of services without spending a fortune on new infrastructure.















June 14, 2020 Posted by | Transport | , , , , , | Leave a comment

Railway Lines Through East Midlands Hub Station

This Google Map shows the position of High Speed Two‘s East Midland Hub station to the West of Nottingham.

Note.

  1. In the North East Corner of the map, is a label saying Japanese Water Garden. Below that is a blue dot, which marks the Toton Lane tram stop.
  2. Three red arrows relate to Toton Ballast Sidings, Old Toton Sidings (Black Path) and Toton Sidings from North to South.
  3. Running to the West of the arrows is a double-track railway and beyond that are a large number of sidings.

This second Google Map shows some of the sidings.

The double track main line is the Erewash Valley Line.

It is sounds complicated this map from High Speed Two may help.

Note.

  1. High Speed Two is shown in orange, with the blue dot indicating the East Midlands Hub station.
  2. Nottingham station is to the North East.
  3. Attenborough station can be picked out on the line going to Nottingham station.
  4. The water is in the Trent Valley.
  5. Trent Junction is the large triangular junction to the West of High Speed Two.
  6. Two rail lines lead to the West from Trent junction; the northerly one goes to Derby by Long Eaton and the other is a freight line to Castle Donington and East Midlands Gateway.

It is worth looking at how the various passenger services go through the area.

  • CrossCountry – Cardiff and Nottingham goes via Derby, Long Eaton, Attenborough, Beeston and Nottingham
  • CrossCountry – Birmingham and Nottingham goes via Derby, Long Eaton, Attenborough, Beeston and Nottingham
  • East Midlands Railway – Leicester and Lincoln goes via East Midlands Parkway, Attenborough, Beeston and Nottingham
  • East Midlands Railway – Liverpool and Norwich goes via Alfreton, Langley Mill, Ilkeston and Nottingham
  • East Midlands Railway – Matlock and Newark Castle goes via Derby, Long Eaton, Attenborough, Beeston and Nottingham
  • East Midlands Railway – St. Pancras and Sheffield goes via East Midlands Parkway, Long Eaton and Derby
  • East Midlands Railway – St. Pancras and Nottingham goes via East Midlands Parkway, Attenborough, Beeston and Nottingham
  • Northern – Leeds and Nottingham goes via Alfreton, Langley Mill, Ilkeston and Nottingham.

Note.

  1. Not one service goes past the site of the new East Midlands Hub station.
  2. Most services to and from Nottingham seem to use the Attenborough and Beeston route
  3. Services between Derby and Nottingham go via the Long Eaton, Attenborough and Derby route.
  4. Services from the North use the Erewash Valley Line and turn East at Trowell for Nottingham.

It is fairly obvious that there needs to be a sort-out of services to fit in with the location of the new East Midlands Parkway station.

May 31, 2020 Posted by | Transport | , , , , , , | 5 Comments

Classic-Compatible High Speed Two Trains At East Midlands Hub Station

This article on Rail News, is entitled £2.7bn East Midlands Plan Unveiled For HS2 Links.

This is the first two paragraphs.

A bold plan costed at £2.7 billion for the area around the HS2 hub in the East Midlands has been published by a group of councils, transport bodies and East Midlands Airport.

The core of the scheme is the future East Midlands Hub at Toton, and the plan proposes direct access to the Hub from more than 20 cities, towns and villages in the East Midlands.

If you want to read the original report by Midlands Connect, there’s a download link on this page of their web site.

The original report has a section entitled Midlands Engine Rail, where this is said.

This project is fully integrated with Midlands Engine Rail, a rail improvement plan developed by Midlands Connect to revolutionise connectivity, mobility and productivity across the region. Midlands Engine Rail includes plans for two new HS2 classic-compatible services on an electrified Midland Main Line that will run direct from:

  • Bedford and Leeds via Leicester and East Midlands Hub
  • Nottingham and Birmingham Curzon Street via East Midlands Hub

These services can run on both electrified and high speed tracks, and would join the HS2 network at Toton, the HS2 East Midlands Hub, meaning that Nottingham and Leicester city centres are directly linked to HS2 without the need to change trains.

These improved connections will more than halve current journey times, with Leicester to Leeds dropping from 120 minutes to 46 minutes and Nottingham to Birmingham falling from 72 minutes to 33 minutes.

Note.

  1. Between Bedford and East Midland Hub stations, the Midland Main Line is or soon will be an almost a complete 125 mph rail line.
  2. It is likely, that with digital in-cab signalling, that faster running up to 140 mph may be permitted in places.
  3. Between Birmingham Curzon Street and East Midlands Hub stations, trains will use High Speed Two at up to 205 mph.
  4. Between Leeds and East Midlands Hub stations, trains will use High Speed Two at up to 205 mph.
  5. Leeds and Birmingham Curzon Street station will be new stations for High Speed Two.

The Classic-Compatible Trains

These are described in this section in Wikipedia, by this sentence.

The classic-compatible trains, capable of high speed but built to a British loading gauge, permitting them to leave the high speed track to join conventional routes such as the West Coast Main Line, Midland Main Line and East Coast Main Line. Such trains would allow running of HS2 services to the north of England and Scotland, although these non-tilting trains would run slower than existing tilting trains on conventional track. HS2 Ltd has stated that, because these trains must be specifically designed for the British network and cannot be bought “off-the-shelf”, these conventional trains were expected to be around 50% more expensive, costing around £40 million per train rather than £27 million for the captive stock.

The trains will have the same characteristics as the full-size trains.

  • Maximum speed of 225 mph.
  • Cruising speed of 205 mph on High Speed Two.
  • Length of 200 metres.
  • Ability to work in pairs.
  • A passenger capacity around 500-600 passengers.

It should be noted that one of these trains will be shorter than a pair of East Midlands Railway’s five-car Class 810 trains, which should avoid any serious platform lengthening on existing lines.

Bedford and Leeds via Leicester and East Midlands Hub

A few facts and thoughts.

  • The service is shown as stopping at Wellingborough, Kettering, Market Harborough, Leicester, Loughborough and East Midlands Hub.
  • The service frequency could be hourly.
  • This service could be more important, than it appears, as by the time High Speed Two opens to Leeds, the East West Railway will be open through Bedford.
  • Would a terminal platform need to be added at Bedford station? As the station could be rebuilt for the East West Railway, this shouldn’t be a problem.
  • Leeds will have a new High Speed Two station or at least new platforms in the existing station.
  • The Bedford and Leeds service would join High Speed Two at East Midlands Hub and go North.
  • The Leeds and Bedford service would leave High Speed Two at East Midlands Hub and go South.

Leeds and Leicester will take 46 minutes, with High Speed Two’s journey time calculator, indicating twenty-seven minutes between East Midlands Hub and Leeds stations.

According to an article in the June 2020 Edition of Modern Railways High Speed Two is planning to run the following services on the Eastern leg of High Speed Two between East Midlands Hub and Leeds.

  • Two tph – Birmingham Curzon Street and Leeds
  • Three tph – London Euston and Leeds

There will be a Turn-Up-And-Go six tph service between East Midlands Hub and Leeds stations.

If the Bedford and Leeds service was an hourly service, when added to the current East Midlands Railway Inter-City services, it would give the following calling frequencies.

  • Wellingborough – 2 tph
  • Kettering – 2 tph
  • Market Harborough – 3 tph
  • Leicester – 5 tph
  • Loughborough – 3 tph
  • East Midlands Parkway – 2 tph

The calling pattern can be adjusted to the number of passengers.

Nottingham and Birmingham Curzon Street via East Midlands Hub

A few facts and thoughts.

  • The service is shown as only stopping at East Midlands Hub.
  • The service frequency could be hourly.
  • The service would go between East Midlands Hub and Nottingham using the Trowell Curve route, which I discussed in Access To Toton – Scheme 6 – Trowell Curve.
  • Nottingham station has long terminal platforms that take a full-length Inter-City 125.
  • Birmingham Curzon Street will be a new High Speed Two station.
  • The Nottingham and Birmingham Curzon Street service would join High Speed Two at East Midlands Hub and go South.
  • The Birmingham Curzon Street and Nottingham service would leave High Speed Two at East Midlands Hub and go North.

Nottingham and Birmingham Curzon Street will take 33 minutes, with High Speed Two’s journey time calculator, indicating twenty minutes, between Birmingham Curzon Street and East Midlands Hub stations.

According to an article in the June 2020 Edition of Modern Railways High Speed Two is planning to run the following services on the Eastern leg of High Speed Two from Birmingham Curzon Street.

  • Two tph – East Midlands Hub and Leeds
  • One tph – East Midlands Hub, York, Darlington, Durham and Newcastle.

There will be a Turn-Up-And-Go four tph service between East Midlands Hub and Birmingham Curzon Street stations.

Midland Main Line Electrification

Midlands Connect is calling for full electrification of the Midland Main Line.

The problem is electrification through Leicester station, where there is a low bridge over the track.

In Discontinuous Electrification Through Leicester Station, I showed how the problem might be solved by discontinuous electrification and battery-equipped trains.

The Shared High Speed Two Path

If you look at the two previous sections you’ll see the following.

  • The Birmingham Curzon Street and Nottingham service would leave High Speed Two at East Midlands Hub and go North.
  • The Bedford and Leeds service would join High Speed Two at East Midlands Hub and go North.
  • The Leeds and Bedford service would leave High Speed Two at East Midlands Hub and go South.
  • The Nottingham and Birmingham Curzon Street service would join High Speed Two at East Midlands Hub and go South.



The two services are using the same path on High Speed Two.

I would design the East Midlands Hub, so that High Speed Two and classic services going in the same direction shared an island platform.

Southbound services would behave like this.

  • The Nottingham to Birmingham Curzon Street train would arrive in the High Speed Two face of the platform.
  • The Leeds to Bedford train would arrive in the classic face of the platform.
  • Passengers who needed to change would walk across the platform.
  • When ready both trains would go on their way.

Northbound services would do something similar.

It would be an efficient way to organise interchange between services.

  • Train design would have to ensure, that all trains using the island platform had similar and preferably step-free access.
  • If Greater Anglia and Merseyrail, can do step-free access, then no train designer has an excuse not to.
  • Surely every High Speed Two train that arrives at East Midlands Hub, should be paired with a Midland Main Line service, if the timetable allows it.

The money being spent on High Speed Two means that the British public, won’t accept anything less than perfect.

Are There Any Other Possible Destinations For Classic-Compatible High Speed Two Trains From East Midlands Hub Station?

I will put these in alphabetical order.

Bedford

Consider.

  • Bedford is already planned to have one classic-compatible service to and from Leeds.
  • One of East Midlands Railway’s St. Pancras services calls at Bedford.
  • Bedford has a four tph Thameslink service to a large proportion of Central London and the South East of England.
  • Bedford has direct services to Gatwick Airport.
  • Bedford station will be expanded to accommodate the East West Railway.
  • In a few years, Bedford will be connected to Milton Keynes, Oxford and Reading by the East West Railway.
  • When the East Midlands Hub station opens, Bedford will be connected to Cambridge, Ipswich and Norwich by the East West Railway.

I feel there is a need for a Turn-Up-And-Go four tph service between Bedford and East Midlands Hub stations.

I estimate that between Bedford and East Midlands Parkway stations  will have a journey time of around 60 minutes.

Cambridge

I believe that the East West Railway should be built to the same standard as the East Coast, Great Western, Midland and West Coast Main Lines.

  • Digitally signalled
  • 125 mph-capable
  • Electrified

This would enable classic-compatible services to be extended from Bedford to the UK’s Technology Powerhouse; Cambridge.

As Bedford and East Midlands Parkway could be 60 minutes, timings depend on the times of the East West Railway, between Bedford and Cambridge.

Edinburgh

Consider.

  • Edinburgh is an important city; financially and politically.
  • Edinburgh is planned to have a classic-compatible service from London via the West Coast Main Line.
  • Newcastle is planned to have a classic-compatible service from East Midlands Hub

The city must be a possibility for a classic compatible service from East Midlands Hub.

I estimate that Edinburgh and East Midlands Parkway will have a journey time of a few minutes over two hours

Hull

This clip of a map from the Transport for the North report shows a schematic of the rail links in Yorkshire.

Hull is important for various reasons.

  • It is large city.
  • It is the Eastern terminus of an increasing number of routes.
  • It is becoming a manufacturing centre for North Sea wind.
  • The city will be the terminus of Northern Powerhouse Rail across the Pennines from Liverpool, Manchester and Leeds.
  • Some reports have shown the city as a terminus of the Western leg of High Speed Two.

For these reasons, I will add Hull to the list.

I estimate that Hull and East Midlands Parkway will have a journey time of under an hour.

Lincoln

Looking forward to 2040, I wouldn’t bet against Lincoln being a very important city in the UK.

  • It has history.
  • It is becoming an important higher education centre.
  • It has lots of space.
  • Train operating companies like LNER and East Midlands Railway are improving services to the city.

But most importantly, as Aberdeen became Scotland’s centre for North Sea Oil and Gas, I believe that Lincoln could become England’s centre for North Sea renewable electricity and hydrogen.

I estimate that Lincoln and East Midlands Parkway will have a journey time of around an hour.

Milton Keynes

As I said for Cambridge, I believe that the East West Railway should be built to the same standard as the East Coast, Great Western, Midland and West Coast Main Lines.

This would enable classic-compatible services to be extended from Bedford to Milton Keynes.

As Bedford and East Midlands Parkway could be 60 minutes, timings depend on the times of the East West Railway, between Bedford and Milton Keynes.

Newcastle

As Newcastle already has a direct High Speed Two classic-compatible connection to and from East Midlands Hub station, this must be a possibility.

According to High Speed Two’s journey time calculator<, trains between Newcastle and East Midland Hub stations will take 96 minutes.

Northern Powerhouse Rail

The map I showed with Hull could indicate that a train could take High Speed Two to Leeds and then power its way across the Pennines calling at Leeds, Huddersfield, Manchester Piccadilly, Manchester Airport and Liverpool.

East Midlands Railway would have found a replacement for the Western part of their Liverpool and Norwich service, which is one of the worst railway services in the UK.

Oxford And Reading

As I said for Cambridge, I believe that the East West Railway should be built to the same standard as the East Coast, Great Western, Midland and West Coast Main Lines.

This would enable classic-compatible services to be extended from Bedford to Oxford and Reading.

As Bedford and East Midlands Parkway could be 60 minutes, timings depend on the times of the East West Railway, between Bedford and Oxford and Reading.

Peterborough

I think Peterborough could be an interesting possibility.

  • It is the gateway to the East of England.
  • It is a fully-electrified station.
  • It has seven platforms with space for more.
  • Most platforms could take a two hundred metre long train.

East Midlands Railway’s Liverpool and Norwich service, links Peterborough with Nottingham.

  • That section of the route is 52 miles long.
  • 29 miles of the route on the East Coast Main Line are electrified.
  • The 100 mph Class 158 trains take 67 minutes and 30 minutes to travel between the two stops at Grantham and Peterborough.
  • Some of LNER’s 125 mph electric Class 800 trains are timetabled to travel between the two stops at Grantham and Peterborough as fast as 18 minutes.

What time will be achievable on this short length of electrified track, when digital signalling is fully-deployed and 140 mph running is possible?

I can certainly see a bi-mode Class 801 train going between Peterborough and Nottingham in under an hour.

I also think that they could equal East Midlands Railway’s times to Nottingham going from Kings Cross via Grantham.

In Access To Toton – Scheme 6 – Trowell Curve, I advocated the following electrification, to allow battery-electric trains to work the Nottingham and Skegness service.

  • The Allington Chord between Bottesford and Ancaster stations.
  • The line linking the chord to Grantham station.

As Nottingham station will surely be electrified to allow classic-compatible High Speed Two trains to run between the station and Birmingham using High Speed Two, there will only be sixteen miles of double-track between Bottesford and Nottingham station without electrification.

I have just flown my helicopter along the route and there are one or two bridges and Netherfield station, that will need a rebuild, but it wouldn’t be the most challenging of electrifications.

Especially, as there is High Speed Two and the East Coast Main Line to provide power at both ends of the route.

But as it is only sixteen miles would they use battery-electric high-speed trains.

Surely, that is a crazy idea?

In Will High Speed Two’s Classic-Compatible Trains Have Battery Operation?, I explain why you would use such a concept to create an efficient train.

  • The batteries drive the train and they are charged from the electrification and regenerative braking.
  • Batteries would give a train recovery capability in case of overhead catenary failure.
  • Batteries would be used for depot movements.

In Will The Trains On High Speed Two Have Batteries For Regenerative Braking?, I do a calculation for the battery size needed for a 250 mph Spanish high speed train and the batteries are surprisingly small, at 100 kWh per carriage.

I firmly believe, that the mathematics say it is possible for a high speed train to use on-board battery power to perhaps do thirty miles at say 90 mph on a line without electrification.

Sheffield

As Sheffield station will have a direct High Speed Two connection to and from East Midlands Hub station, this must be a possibility.

According to High Speed Two’s journey time calculator, trains between Sheffield and East Midland Hub stations will take 27 minutes.

Note.

  1. An article in the June 2020 Edition of Modern Railways shows that the Eastern leg of High Speed Two is planned to have nine tph, against a theoretical limit of 18 tph.
  2. The Leeds-Bedford and Nottingham-Birmingham Curzon Street will use another path.
  3. Not all services would need to be hourly.
  4. Could some CrossCountry services be replaced with classic-compatible services?

I feel there is plenty of scope to develop more classic-compatible services along the Eastern leg of High Speed Two.











May 31, 2020 Posted by | Transport | , , , , , , , , , , , , , , , | 5 Comments

Access To Toton – Scheme 6 – Trowell Curve

In £2.7bn East Midlands Plan Unveiled For HS2 Links, a series of schemes are given, which improve access to the High Speed Two East Midlands Hub station.

Scheme 6 is defined like this.

The implementation of a minimum of four direct rail services per hour linking the HS2 East Midlands Hub station to Derby, Nottingham and Leicester stations, as well as Loughborough, Matlock, Mansfield, Newark, Alfreton and Grantham, made possible by the building of a new piece of infrastructure, the Trowell Curve, which will link to the Midland Mainline. These additional connections will also create direct links to Stoke-on-Trent, Crewe, Newark and Lincoln, by extending services on existing routes.

That is a comprehensive set of connections.

The Trowell Curve

This Google Map shows the location of the village of Trowell.

Note.

  1. The M1 Motorway running North-South up the map.
  2. The village of Trowell on the Western side of the motorway.
  3. Many people will have stopped at Trowell services on the motorway, which are just to the North of the top edge of the map.
  4. The North-South railway line  to the West of the village is the Erewash Valley Line, that runs North from the East Midlands Hub station at Toton to Ilkeston, Langley Mill, Alfreton, Clay Cross North Junction, Chesterfield and Sheffield.

There is also another railway line, that runs on the South Western side of the village and across the bottom of the map, that connects the Erewash Valley Line to Nottingham station.

Trains can go between Nottingham and the North, but there is no connection to go between Nottingham and the South.

It looks like the proposed Trowell Curve will add extra connectivity to the junction, so that all these directions are possible.

  • Nottingham to Ilkeston and the North.
  • Ilkeston and the North to Nottingham.
  • Nottingham to East Midlands Hub Station and the South.
  • East Midlands Hub Station and the South to Nottingham

The Trowell Chord will be double-track or bi-directional and must certainly improve connectivity.

East Midlands Hub Station

The East Midlands Hub station will link various bus, tram and train services to High Speed Two.

According to the latest reports in the June 2020 Edition of Modern Railways there will be nine high-speed trains per hour (tph) through the station of which seven tph will stop.

Destinations served would be.

  • Birmingham Interchange – 1 tph
  • Birmingham Curzon Street – 3 tph
  • Chesterfield – 1 tph
  • Darlington – 1 tph
  • Durham – 1 tph
  • Leeds – 5 tph
  • London Euston – 4 tph
  • Newcastle – 1 tph
  • Old Oak Common – 4 tph
  • Sheffield – 2 tph
  • York – 2 tph

As the capacity of High Speed Two has been said to be 18 tph, there must be the possibility for extra services to run on this leg of High Speed Two.

As four tph is considered by many to be a good Turn-Up-And-Go frequency and two tph a sensible minimum frequency, I can see another train between Birmingham Curzon Street and Newcastle with stops at East Midlands Hub, Leeds, Darlington and Durham.

The design has certainly left enough capacity for those that follow us!

Especially, as Wikipedia says that the new East Midlands Hub station will have eight platforms.

  • It would need a minimum of two through platforms for High Speed Two services
  • Would it need a terminating platform for High Speed Two services? Not for the currently proposed timetable.
  • It would need a minimum of two through platforms for East Midlands Railway’s Inter-City services.
  • Would it need a terminating platform for East Midlands Railway’s Inter-City services? Not for the currently proposed timetable.
  • There would probably be a need for two through platforms for local services.

On this crude look, eight platforms would appear to be more than enough.

Current Services Through The Area

In Railway Lines Through East Midlands Hub Station, I detailed where the new East Midlands Hub station is to be built and the rail services in the area.

After listing all the services I said this.

Note.

  1. Not one service goes past the site of the new East Midlands Hub station.
  2. Most services to and from Nottingham seem to use the Attenborough and Beeston route
  3. Services between Derby and Nottingham go via the Long Eaton, Attenborough and Derby route.
  4. Services from the North use the Erewash Valley Line and turn East at Trowell for Nottingham.

It is fairly obvious that there needs to be a sort-out of services to fit in with the location of the new East Midlands Parkway station.

So will the new Trowell Curve give the new station, the rail access it needs?

The Splitting Of The Norwich and Liverpool Service

I wrote about this in Abellio’s Plans For Norwich And Liverpool, where I said this about the basic plan.

Early in the new franchise the Liverpool – Nottingham section will transfer to another operator, which will enable the two halves of the service to better meet the needs of customers.

It will become two services.

  • Norwich and Derby via Nottingham, Trowell Curve, East Midland Hub and Long Eaton.
  • Nottingham and Crewe via Trowell Curve, East Midland Hub, Long Eaton and Derby.

The second service will go to another operator.

I said earlier, this change is for the needs of customers.

It will also have other effects.

  • It will add an extra service between Nottingham and Derby
  • It will remove the Norwich and Liverpool service from the Erewash Valley Line.

Has this change being driven by the need to provide good connections to High Speed Two?

Train Services To East Midlands Hub Station

The following sub-sections detail the service between various stations and the East Midlands Hub station.

Alfreton Station

Alfreton station on the Erewash Valley Line, is going through major changes to train services.

Currently, there are these two hourly services.

  • East Midlands Railway’s Liverpool and Norwich service.
  • Northern’s Leeds and Nottingham service.

Neither service currently goes through the site of East Midlands Hub station and East Midlands Railway will split the Liverpool and Norwich service, so it won’t go anywhere near Alfreton.

Consider.

  • Alfreton station probably needs at least a two tph service to East Midlands Hub station.
  • The Northern service might be able to go via East Midlands Hub station.
  • Both Alfreton and the East Midlands Hub station are on the Erewash Valley Line.
  • Trains could run between Alfreton and Nottingham via Langley Mill, Ilkeston, East Midlands Hub, Attenborough and Beeston.
  • Trains could run between Alfreton and Derby via Langley Mill, Ilkeston, East Midlands Hub, Long Eaton and Spndon.

Or would it be best to put in a bay platform at Alfreton station and run a shuttle service between Alfreton and the East Midlands Hub stations?

  • The minimum frequency would be two tph.
  • Up to four tph could probably be easily run.
  • Trains would call at all stations.
  • Extra stations could be added.
  • The distance between Alfreton and East Midlands Hub stations is around twenty miles, so a battery-electric train could be possible.

This Google Map shows Alfreton station.

I suspect a bay platform could be added. Or failing that, there could be a turnback siding to the North of the station.

Surely, a local train solution would be a spur to development in the area, especially if it connected to High Speed Two at East Midlands Hub station for High Speed Two.

Derby Station

Consider.

  • The current half-hourly East Midlands Railway services between St. Pancras and Sheffield, could not call at both the East Midlands Hub and Derby stations, unless it performed a reverse at East Midlands Hub station.
  • Two  hourly CrossCountry services, that call at both Derby and Nottingham could use a route via Long Eaton, East Midlands Hub and Trowell Curve.
  • An hourly East Midlands Railway service between Newark Castle and Matlock could use a route via Long Eaton, East Midlands Hub and Trowell Curve
  • The split service between Liverpool and Norwich would run two tph between Nottingham and Derby, via Long Eaton, East Midlands Hub and Trowell Curve, in both directions.

Six tph can be provided by existing services calling at the new East Midlands Hub station.

Grantham Station

Consider.

  • The current hourly East Midlands Railway service between Norwich and Liverpool, calls at Grantham station and could call at the East Midlands Hub, if it used the Trowell Curve route.
  • After the service has been split, the two sections will probably both go between Nottingham and Derby via long Eaton, East Midlands Hub and Trowell Curve.
  • The current hourly East Midlands Railway service between Nottingham and Skegness calls at Grantham station, but doesn’t pass the site of the East Midlands Hub station.
  • This service could be extended to the East Midlands Hub station using the Trowell Curve or the Beeston/Attenborough route, where it would terminate.

It appears relatively easy to give Grantham a two tph service to the East Midlands Hub station.

Ilkeston Station

Ilkeston station would be a stop on all services between the East Midlands Hub and Alfreton and Mansfield stations, so would have a frequent service to the East Midlands Hub station.

Langley Mill Station

Langley Mill station would be a stop on all services between the East Midlands Hub and Alfreton and Mansfield stations, so would have a frequent service to the East Midlands Hub station.

Leicester Station

Consider.

  • The current half-hourly East Midlands Railway services between St, Pancras and Nottingham, could call at both the East Midlands Hub and Leicester stations, if the trains used the Trowell Curve.
  • Any Ivanhoe Line services between Lincoln and Leicester, could call at both the East Midlands Hub and Leicester stations, if the trains used the Towell Curve.

Leicester would get a frequent train service from the East Midlands Hub station.

Lincoln Station

Lincoln is the Eastern terminal of Ivanhoe Line services. Currently, they run as far as Leicester, but by the time the East Midlands Hub station opens, the services will probably terminate at Burton-on-Trent. I wrote about this project, which is being promoted by the Restoring Your Railway Fund in Reinstatement Of The Ivanhoe Line.

I can see two tph between Lincoln and Burton-on-Trent.

  • Stations served could be Newark, Nottingham, East Midlands Hub, East Midlands Parkway, Loughborough, Leicester, Coalville and Ashby-de-la-Zouch.
  • The services would use the proposed Trowell Curve.
  • Services could be extended to Grimsby and Cleethorpes at the Lincoln end of the service.
  • Services would co-ordinate with East Midlands Railway’s Inter-City services to and from London with easy interchange at Leicester and or East Midlands Hub stations.
  • Trains could be five-car Class 810 trains to take full advantage of the 125+ mph running between Leicester and Trowell.
  • These trains have a shorter dwell time than many and timings could benefit.

Effectively, East Midlands Railway would have a second main line.

Loughborough Station

Consider.

  • East Midlands Railway currently has two Inter-City and one Ivanhoe Line service, that stop in Loughborough station and could stop at the East Midlands Hub station.

With another service, Loughborough could have four tph to and from the East Midlands Hub station.

Mansfield Station

This is where Maid Marion flashes her lashes and gets the engineers to reopen her line for passenger trains between North of the former Pye Corner station on the Erewash Valley Line and Kirkby-in-Ashfield station on the Robin Hood Line.

This Google Map shows the route.

Note.

  1. The M1 Motorway crossing the map from North-West to South-East.
  2. Pye Corner is in the South-West corner of the map.
  3. The Erewash Valley Line runs North-South through Pye Corner.
  4. Kirkby-in-Ashfield is the urban area in the North-East corner of the map.
  5. Kirkby-in-Ashfield station is shown by the usual red symbol.
  6. The Robin Hood Line runs North-South through Kirkby-in-Ashfeld station.

On a high-resolution screen, it’s possible to pick out the freight line, that will become the Maid Marian Line.

  • The Maid Marian Line is double-track.
  • According to Real Time Trains, the distance between Kirkby-in-Ashfield and Langley Mill stations is around nine miles.
  • A freight train took twenty-two minutes between the two stations.
  • As there are two tph on the Robin Hood Line, I think it would be reasonable to have a similar frequency on the Maid Marian Line.
  • Trains between the East Midlands Hub and Mansfield stations would pass Ilkeston, Langley Mill, Kirkby-in-Ashfield and Sutton Parkway stations.
  • Trains could terminate at Nottingham using the Attenborough route.
  • Trains could terminate at Derby using the Long Eaton route.

The Maid Marian Line could improve services from Derby, Mansfield, Nottingham and Worksop stations to the new East Midlands Hub station.

Matlock Station

Consider.

  • Matlock is currently served by an hourly service between Matlock and Newark Castle via Derby, Spondon, Long Eaton, Attenborough, Beeston, Nottingham and several other smaller stations, which is a service that goes past the site of the East Midlands Hub station.

If this service were to call at the East Midlands Hub station and be doubled in frequency, it would be a very valuable connecting service to and from the East Midlands Hub station.

To call at East Midlands Hub station, it would need to use the Trowell Curve.

Newark Station

Consider.

  • Newark is a calling point on the Ivanhoe Line service between Lincoln and Leicester.
  • Newark is currently served by an hourly service between Matlock and Newark Castle via Derby, Spondon, Long Eaton, Attenborough, Beeston, Nottingham and several other smaller stations, which is a service that goes past the site of the East Midlands Hub station.

Both services could be increased to two tph, so Newark might end up with a four tph service to Nottingham and East Midlands Hub stations with a two tph service to Derby and Lincoln.

Nottingham Station

Consider.

  • The current half-hourly East Midlands Railway services between St. Pancras and Nottingham could use the Trowell Chord route, as this would allow a call at the East Midlands Hub station.
  • Ivanhoe Line services between Lincoln and Leicester could also use the Trowell Chord route, which with a change at the hub station, would give Lincolnshire a faster service to and from London and Birmingham.
  • In Reinstatement Of The Ivanhoe Line, I wrote about plans to extend the Ivanhoe Line to Burton on Trent.
  • The split service between Liverpool and Norwich would run two tph between Nottingham and Derby, via Long Eaton and East Midlands Hub stations, in both directions.
  • If the Nottingham and Skegness service, were to be extended to East Midlands Hub, this would add extra services between Nottingham and East Midlands Hub stations.

The required four tph between the East Midlands Hub and Nottingham station could be provided by the diversion of existing services to call at the East Midlands Hub station and using the Trowell Curve.

Stoke-on-Trent And Crewe Stations

Consider.

  • Currently, there is an hourly East Midlands Railway service between Crewe and Derby, that calls at nine stations including Kidsgrove, Stoke-on-Trent and Uttoxeter.
  • There are also plans to split the Liverpool and Norwich service into two, with the Western half possibly becoming a Crewe and Nottingham service via Derby, East Midlands Hub and Long Eaton.

These two services could be arranged to give a two tph service between Nottingham, Long Eaton, East Midlands Hub and Derby in the South and Stoke-on-Trent and Crewe in the North.

Back-To-Back Services At East Midlands Hub Station

Running services through a station is always more efficient as terminating services in a station will need a bay platform or turnback facility of some sort.

In my analysis, I have proposed that these services might terminate at East Midlands Hub Station.

  • A possible shuttle service between East Midlands Hub and Alfreton stations.
  • The Maid Marian Line service between East Midlands Hub and Mansfield and Worksop stations.
  • The Nottingham and Skegness service could be extended to East Midlands Hub station.
  • The Crewe and Derby service could be extended to Nottingham via East Midlands Hub station.

Note.

  1. The splitting of the Liverpool and Norwich service will result in an overlap between Nottingham and Derby.
  2. Matlock and Newark services already run back-to-back through the area.

So would it be logical to join some services back-to-back through East Midlands Hub station?

s an example, the Maid Marian Line and Skegness services could be joined into one service.

Other services could follow the precedent of the splitting of the Liverpool and Norwich service.

  • Trains coming and going from the East terminate at Derby.
  • Trains coming and going from the West terminate at Nottingham.

If the following were arranged.

  • Grantham and Mansfield were back-to-back.
  • Alfreton and Crewe services terminated at Nottingham.
  • Norwich services terminated at Derby.

There would be seven tph between Nottingham and Derby via Long Eaton and East Midlands Hub stations.



Battery-Electric Operation

Consider.

  • Hitachi are claiming, that the battery-electric versions of their AT-300 trains, like the Class 810 trains will have a battery range of 55-65 miles and take ten minutes to recharge.
  • Nottingham and Derby are sixteen miles away and trains between the two cities, take as long as thirty minutes for the trip.
  • There will be high quality electrification at East Midlands Hub station.

In addition, station distances from the East Midlands Hub station are as follows.

  • Alfreton – 17 miles
  • Crewe – 55 miles – 35 miles without electrification (Derby and Stoke Junction)
  • Derby – 6 miles
  • Grantham – 20 miles
  • Ilkeston – 7 miles
  • Langley Mill – 10 miles
  • Lincoln – 43 miles
  • Mansfield – 23 miles
  • Matlock – 23 miles
  • Newark Castle – 26 miles
  • Nottingham – 10 miles
  • Skegness – 80 miles
  • Stoke-on-Trent – 42 miles – 35 miles without electrification (Derby and Stoke Junction)

I think the following would be possible on battery power.

  • Return journeys to Alfreton, Grantham, Ilkeston, Langley Mill, Mansfield, Matlock and Newark Castle.
  • Return journeys to Lincoln with a charge at the destination.
  • Return journeys to Crewe and Stoke using the electrification between Stoke Junction and Crewe.

Running battery-electric trains between East Midlands Hub and Skegness station would need a bit of ingenuity.

The building of the Allington Chord in 2005, may have opened up a way for battery-electric trains to be able to run between Nottingham and Skegness.

Consider.

  • Bottesford station is the station nearest to Grantham on the Western side of the East Coast Main Line and it is 15.3 miles from Nottingham.
  • Ancaster station is the station nearest to Grantham on the Eastern side of the East Coast Main Line and it is 28 miles from Nottingham.
  • The original route between Bottesford and Ancaster station caused delays on the main line, so it was replaced by two routes.
  • A modified version of the original route allows trains to call at Grantham station, where they reverse before continuing. The distance is 18.7 miles and typically takes 33 minutes
  • A double-track short cut under the East Coast Main Line is about 12.7 miles and typically takes 17 minutes.
  • The distance between Ancaster and Skegness is 46.7 miles.
  • The East Coast Main Line is electrified.

I wonder, if it were possibly to electrify the following tracks.

  • The direct double track between Ancaster and Bottesford stations.
  • The access lines from the Allington Chord into Grantham station.

Hopefully, as the tracks, were built in 2005, they shouldn’t be too challenging to electrify.

This would enable a train from East Midlands Hub to Skegness to use the following procedure.

  • Use the electrified line between East Midlands Hub and Nottingham stations, charging the battery en route.
  • Call at Nottingham station and lower the pantograph.
  • Leave Nottingham with a full battery.
  • Run between Nottingham and Bottesford stations on battery power.
  • Call at Bottesford station and raise the pantograph.
  • Use either of the electrified routes between Bottesford and Ancaster stations, charging the battery en route.
  • Call at Ancaster station and lower the paragraph.
  • Run between Ancaster and Skegness stations on battery power.

After charging the train at Skegness, the return would use the following procedure.

  • Leave Skegness with a full battery.
  • Run between Skegness and Ancaster on battery power.
  • Call at Ancaster and raise the paragraph.
  • Use either of the electrified routes between Ancaster and Bottesford stations, charging the battery en route.
  • Call at Bottesford station and lower the pantograph.
  • Run between Bottesford and Nottingham on battery power.
  • Call at Nottingham station and raise the pantograph.
  • Use the electrified line between Nottingham and East Midlands Hub stations, charging the battery en route.

It’s almost as if, the Allington Chord was designed for battery-electric trains.

Conclusion

The Trowell Curve with a little bit of help from a few friends can create a battery-electric network of local lines based on the three important stations of Nottingham, East Midlands Hub and Derby.









I







May 30, 2020 Posted by | Transport | , , , , , , , , , | 14 Comments
