BHP To Trial Battery Locos On Pilbara Iron Ore Network

The title of this post, is the same as that of this article on Railway Gazette.

The article summarised all the battery-electric locomotives ordered to bring the iron ore to the coast by mining companies; BHP, Fortescue, Rio Tinto and Roy Hill.

The article indicates some of the innovative operations that will be tried. This is a sentence from the article.

A key element will be to assess the potential for capturing regenerated braking energy on the loaded downhill runs, and storing it to power empty trains back uphill to the mines.

I would hope that the South Wales Metro, the Buxton branch and the East Kilbride branch will use similar energy conservation techniques.

January 26, 2022 Posted by | Energy, Transport/Travel | , , , , , , , , , | 7 Comments

The Future Of The Class 68 Locomotives

This post has been brought on by the comments to two posts I have written today.

Both Direct Rail Services and TransPennine Express are major users of Class 68 locomotives, with each having a fleet of fourteen locomotives.

In addition, Chiltern Railways has a smaller fleet of six locomotives.

  • Direct Rail Services use their locomotives for various passenger and freight duties, including the important one of moving nuclear material around the country.
  • TransPennine Express use their locomotives on their passenger services across the North of England.
  • Chiltern Railways use their locomotives on their passenger services between London and Birmingham and sometimes Oxford.

The design was a bespoke one by Stadler for Direct Rail Services and the first one entered service in 2014.

The picture shows one of TransPennine’s Class 68 locomotives at Scarborough. As the picture shows, they are a smart and purposeful-looking locomotive, that wouldn’t look out of place in the right livery on the front of the Royal Train.

It has some good features.

  • It is a 100 mph locomotive.
  • It seems to be well-liked by operators.
  • It can haul both passenger and freight trains.
  • It can act as a Thunderbird or rescue locomotive.

But they have three problems; emissions, noise and diesel.

This is from Wikipedia.

The locomotive’s propulsion system is compliant with Stage III A of the European emission standards, but not the more stringent Stage III B requirements.

But noise is a another problem and this has caused council action in Scarborough.

More important than emissions or noise, is the fact, that the locomotive is diesel-powered, so the fleet will probably have to be retired from the railway, at a time, when there is still useful life left in the locomotives.

The Class 68 locomotive is a member of the Stadler Eurolight  family, of which there are three versions.

All follow similar design principles, differing mainly in dimensions, with Spain, Taiwan and the UK ordering upwards of twenty-thirty locomotives.

The UKLight branch of the family has two other members.

The Class 88 locomotive is an electro-diesel version of the Class 68 locomotive and the development of the design is described in this extract from the Class 88 locomotive’s Wikipedia entry.

Amid the fulfillment of DRS’ order for the Class 68, Stadler’s team proposed the development of a dual-mode locomotive that could be alternatively powered by an onboard diesel engine or via electricity supplied from overhead lines (OHLE). Having been impressed by the concept, DRS opted to place an order for ten Class 88s during September 2013. Having been developed alongside the Class 68, considerable similarities are shared between the two locomotives, amounting to roughly 70 percent of all components being shared.

According to Wikipedia, the type had a smooth entry into service.

The Class 93 locomotive will be the next development of the UKLight branch of the family, when it is delivered in 2023.

It will be a tri-mode locomotive, that will be capable of being powered by 25 KVAC overhead electrification, an onboard diesel engine and batteries.

It will be a 110 mph locomotive.

It can haul both passenger and freight trains.

Rail Operations Group have ordered 30 locomotives.

This is the first paragraph of the section in Wikipedia called Specification.

The Class 93 locomotive has been developed to satisfy a requirement for a fast freight locomotive that uses electric power while under the wires, but is also capable of self-powered operations. Accordingly, it is capable of running on diesel engines, from overhead wires, or from its onboard batteries. These batteries, which occupy the space used for the braking resistors in the Class 88, are charged via the onboard transformer or regenerative braking; when the batteries are fully charged, the locomotive only has its friction brakes available. The diesel engine is a six-cylinder Caterpillar C32 turbocharged power unit, rated at 900 kW, conforming with the EU97/68 stage V emission standard. The batteries units are made of Lithium Titanate Oxide and use a liquid cooling solution, enabling rapid charge and discharge.

It is a truly agnostic locomotive, that can take its power from anywhere.

The last paragraph of the specification compares the locomotive to the Class 66 locomotive.

In comparison with the Class 66, the Class 93 can outperform it in various metrics. In addition to a higher top speed, the locomotive possesses greater acceleration and far lower operating costs, consuming only a third of the fuel of a Class 66 along with lower track access charges due to its lower weight. ROG has postulated that it presents a superior business case, particularly for intermodal rail freight operations, while also being better suited for mixed-traffic operations as well. Each locomotive has a reported rough cost of £4 million.

It is no ordinary locomotive and it will change rail freight operations in the UK.

I have a feeling that the Class 93 locomotive could be a lower-carbon replacement for the Class 68 locomotive.

But I also believe that what Stadler have learned in the development of the Class 93 locomotive can be applied to the Class 68 locomotive to convert them into zero-carbon locomotives.

It may be just a matter of throwing out the diesel engine and the related gubbins and replacing them with a large battery. This process seems to have worked with Wabtec’s conversion of diesel locomotives to FLXdrive battery-electric locomotives.



January 22, 2022 Posted by | Transport/Travel | , , , , , , , , , , , , , | 9 Comments

Wabtec’s 100% Electric Locomotive Trickle Suddenly Becomes International Flood

The title of this post, is the same as that of this article on Clean Technica.

This is the introductory paragraph.

Whelp, that was fast. The locomotive manufacturer Wabtec lit up the Intertubes last November when it debuted the new FLXdrive 100% electric locomotive in Pennsylvania, but that was just the beginning. The company has nailed down two clients in Australia for its carbon-free choo-choo while also locking in a spot on the new Europe’s Rail Joint Undertaking, which aims to green up railway systems throughout Europe.

It certainly has been quick.

Usually, only in times of war, do things go that fast.

But you could argue that climate change is as big a threat to the world than China, Iran, North Korea or Russia.

January 18, 2022 Posted by | Transport/Travel | , , , , , | 3 Comments

BHP Joins The Party On Electric Rail

The title of this post, is the same as that of this article on Australian Mining.

This is the introductory paragraph.

BHP will add four battery-electric locomotives to its Western Australian rail network, becoming the fourth major miner to improve rail decarbonisation efforts in Australia since mid-December.

These are some details of the locomotives.

  • Two are from Progress Rail and two are from Wabtec.
  • The locomotives have 14.5 MWh batteries.
  • The locomotives will be delivered by 2023.

BHP will also investigate the use of regenerative braking using the topography of the rail route.

With four companies going electric, it does seem that Australian mining, is very much driving the move to battery-electric heavy-haul freight.

Considering, that Wabtec only formally launched the FLXdrive concept in Pittsburgh in September last year, which I wrote about in FLXdrive ‘Electrifies’ Pittsburgh, that would appear to have been good going.



January 17, 2022 Posted by | Transport/Travel | , , , , , , , , | 4 Comments

Rio Tinto Orders Wabtec FLXdrive Battery Locomotives To Reduce Emissions

The title of this post, is the same as that of this press release from Wabtec.

This is the introductory paragraph.

Wabtec Corporation (NYSE: WAB) and Rio Tinto announced today an order for four FLXdrive battery-electric locomotives to support sustainable operations of the mining company’s rail network in the Pilbara region of Western Australia. The 100-percent, battery-powered locomotive will help Rio Tinto’s effort to achieve a 50-percent reduction in Scope 1 and 2 carbon emissions by 2030.

Some other points from the press release.

  • The locomotives have 7 MWh batteries.
  • The first locomotive will be delivered in 2023.
  •  The FLXdrive is anticipated to reduce the company’s fuel costs and emissions in percentage by double digits per train.

This paragraph describes how the FLXdrive locomotives will be used.

The mining company plans on using the locomotives in multiple applications including as a shunter in the railyard and ultimately in mainline service. In mainline operations, Rio Tinto currently uses three diesel-electric locomotives in a consist to pull trains with 240 cars hauling about 28,000 tons of iron ore. The FLXdrives will transition from the diesel locomotives in mainline service to form a hybrid consist, and recharge during the trip through regenerative braking and at charging stations. Wabtec’s next generation energy-management software system will determine the optimal times to discharge and recharge the batteries along to route ensuring the most fuel-efficient operation of the entire locomotive consist during the trip.

I can see this approach leading to even bigger fuel and emission savings.

Especially, if Wabtec developed a compatible locomotive, that was powered by hydrogen.

This was rumoured in FLXdrive ‘Electrifies’ Pittsburgh, where a partnership between Carnegie-Mellon University (CMU), Genesee & Wyoming and Wabtec to create the Freight Rail Innovation Institute was described.

Conclusion

There certainly seems to be a consensus between some of the world’s largest mining and rail companies about the  future of heavy freight trains to support the mining industry.





January 11, 2022 Posted by | Transport/Travel | , , , , , , , | 1 Comment

Canadian National Buys Battery Locomotive

The title of this post, is the same as that of this article on Railway Gazette.

This is the first paragraph.

Canadian National’s Bessemer & Lake Erie Railroad has purchased a Wabtec FLXdrive battery-electric freight locomotive, with financial support from the Pennsylvania Department of Environmental Protection’s Marine & Rail Freight Movers grant programme.

The locomotive is intended to work in multiple with diesel locomotives and this cuts fuel consumption, pollution and noise.

I described the locomotive in FLXdrive ‘Electrifies’ Pittsburgh and the more I learn about this locomotive the more I like it.

The locomotive numbered 3000, which appears in all Wabtec pictures is an example an ES44AC from the GE Evolution Series and was converted from a standard locomotive, that was in the test fleet.

Interestingly, Canadian National own several hundred of these locomotives, so they won’t be short of one to convert.

The diesel version would appear to be a 3.3 MW diesel locomotive.

In addition, this page on the Wabtec web site gives some details of the battery-electric locomotive.

  • The locomotive is powered by lithium-ion batteries.
  • There are around 20,000 battery cells
  • The batteries have their own air-conditioning
  • There is a sophisticated battery-management system.
  • The total battery size is 2.4 MWh
  • Power output is 4400 HP or 3.24 MW
  • Locomotive will run for 30-40 minutes at full power.
  • The locomotive has regenerative braking.
  • Operating speed is 75 mph

Note that running at 75 mph for 40 minutes would cover fifty miles.

It does look as if, the diesel-electric and the battery-electric conversion have similar power outputs. Could this be, as the traction system on both locomotives are identical? It’s just that one uses a diesel generator and the other uses batteries.

Although there must be differences in the traction systems, as the battery-electric locomotive has regenerative braking.

The battery-electric locomotive is designed to work in conjunction with one or two diesel locomotives, where a sophisticated computer system decides which engines power the train.

  • Wabtec are claiming a thirty percent reduction in fuel and emissions compared to an all-diesel setup.
  • Electric power will also be used in depots and sensitive areas.

I do think though, that this is a pragmatic solution to cut the carbon footprint of heavy-freight in North America.

But it could be a half-way solution, as Wabtec have hinted that they are working on hydrogen-powered locomotives.

I also feel it might be possible to convert some of the UK’s Class 66 locomotives into battery-electric locomotives for lighter freight duties or working in a pair with a Class 66 locomotive to reduce fuel consumption and emissions.

I discuss this in Could Class 66 Locomotives Be Converted Into Battery-Electric Locomotives?

Have CN Bought The Prototype?

There is also this article on the Green Car Congress, which is entitled CN Purchases Wabtec’s Battery-Electric Locomotive.

The article seems fairly certain they have.

So perhaps, they want to get on with the job and see what the locomotive can do?

November 5, 2021 Posted by | Transport/Travel | , , , , , , | 1 Comment

Wabtec and Mining’s Electric Evolution

The title of this post, is the same as that of this article on International Mining.

It is a fascinating article, that describes how Wabtec are applying similar technology to the very large trucks used in mining and quarrying, that have been used in railway locomotives for decades.

AC electric final drives, overhead electrification and autonomous systems are all detailed.

They also talk about power agnostic technology, that can handle electricity no matter how it is provided.

It looks to me, that electric power will decarbonise these important industries.

The Quarrying Paradox

In the UK, we quarry a lot of stone and aggregate in places like the Mendips and the Peak District.

So will the quarrying companies go down the electric route for their on-site operations?

If the electric systems from Wabtec and other companies work reliably and reduce pollution, costs and carbon emissions, I can see no reason, why they shouldn’t.

But then, you have just quarried thousands of tonnes of zero-carbon aggregate and Freightliner et al, then haul it to where it is needed using a Class 66 locomotive, that emits more pollution and carbon emissions, than you have saved.

We need zero-carbon heavy-haul freight locomotives, powered by hydrogen or batteries now!

October 22, 2021 Posted by | Energy, Hydrogen, Transport/Travel | , , , , , | 5 Comments

Freight On The East West Main Line

This page on the East West Main Line Partnership web site, describes their ambitions towards freight.

This is said.

The freight and logistics sector is one of the largest contributors to carbon emissions. Greater use of rail for freight and logistics provides additional resilience for the business community, while also acting on the need to achieve net zero.

Whilst not part of East West Rail, removing the bottlenecks on the Felixstowe to Midlands
corridor remains an immediate strategic priority for three sub-national transport bodies (England’s Economic Heartland, Transport East and Midlands Connect wrote to the Chancellor in this regard in July 2020).

However, the design and operation of the East West Main Line should take into account and contribute to the delivery of the requirements of the national rail freight strategy. In due course Great British Railways will have a statutory duty to consider the needs of rail freight and to take those needs into account in planning the future of the rail network.

It is therefore important that the East West Main Line is designed and delivered with the capability of supporting rail freight services without the need for additional works. In this regard due consideration must be given to ensuring that the impact on local communities of rail freight movements is minimised.

I have my thoughts.

Cutting Carbon Emissions In The Freight Sector

The obvious way to do this, would be to electrify every line in the country and purchase a new fleet of electric freight locomotives.

But the problems with this are the expense, disruption and timescale, it would take to replace all the locomotives and put up electrification on every line that might possibly be used by freight trains and  locomotives.

A solution is needed now, not in ten years.

But there are already solutions being demonstrated or developed that will cut carbon emissions from locomotives.

  • Stadler bi-mode Class 88 locomotives are already hauling freight trains and cutting emissions by using electric power where possible. But there are only ten of these locomotives.
  • The thirty Stadler tri-mode Class 93 locomotives on order for Rail Operations Group could or well be a game-changer. It is already known, that they will be able to cruise at 100 mph using electrification, so they will be able to mix it with the expresses on the Great Eastern Main Line. I suspect that these locomotives have been designed to be able to haul freight trains out of the Port of Felixstowe, by juggling the power sources.
  • In Freightliner Secures Government Funding For Dual-Fuel Project, I describe how Clean Air Power are converting a Class 66 locomotive to run on both diesel and hydrogen. This could be a very fruitful route, especially, if the diesel-electric Class 66 locomotives could be fitted with a pantograph to use electrification where it exists.
  • I have been very impressed with the work Wabtec have done to convert a large American diesel-electric locomotive into a battery electric locomotive. I wrote about it in FLXdrive ‘Electrifies’ Pittsburgh. In Could Class 66 Locomotives Be Converted Into Battery-Electric Locomotives?, I concluded that it might be possible to convert Class 66 locomotives into battery-electric locomotives using Wabtec’s technology.
  • In Powered By HVO, I talk about DB Cargo’s use of HVO to cut carbon emissions.

I am also sure that there are probably other solutions to decarbonise freight locomotives under development.

I would hope that over the next few years the amount of diesel fuel used in the freight sector will decrease significantly.

Improved Freight Routes

Currently, freight trains to and from Felixstowe take one of these routes.

  1. Via London – Using the Great Eastern Main Line, North London Line or Gospel Oak and Barking Line, and the West Coast Main Line.
  2. Via Nuneaton – Going via Bury St. Edmunds, Ely, Peterborough and Leicester before joining the West Coast Main Line at Nuneaton.
  3. Via Peterborough – Going via Bury St. Edmunds, Ely and Peterborough before taking the East Coast Main Line or the Great Northern and Great Eastern Joint Line via Lincoln.

The first two routes routes have capacity problems, whereas the third route has been improved by the use of the Great Northern and Great Eastern Joint Line.

Problems on the first two routes include

  • The Great Eastern Main Line is only dual-track.
  • The Great Eastern Main Line and the routes through London are at full capacity.
  • The route via Nuneaton does not have much electrification.

The East West Main Line will open up a new route directly across the country for some services, that currently go via the London or Nuneaton routes.

  • Felixstowe and Birmingham
  • Felixstowe and Glasgow
  • Felixstowe and Liverpool
  • Felixstowe and Manchester

These services could use the East West Main Line to connect with the West Coast Main Line at Bletchley, if the track were to be modified.

In addition services between Felixstowe and South Wales and the West Country could use the East West Main Line to Oxford and then join the Great Western Main Line at Didcot.

The East West Main Line could reduce the number of freight trains on these routes.

  • Great Eastern Main Line
  • North London Line
  • Gospel Oak and Barking Line
  • Peterborough and Leicester Line

The first three lines are certainly at capacity.

The Newmarket Problem

In Roaming Around East Anglia – Coldhams Common, I talked about previous plans of the East West Rail Consortium, who were the predecessor of the East West Main Line Partnership for the rail line between Chippenham Junction and Cambridge through Newmarket.

In this document on their web site, this is said.

Note that doubling of Warren Hill Tunnel at Newmarket and
redoubling between Coldham Lane Junction and Chippenham Junction is included
in the infrastructure requirements. It is assumed that most freight would operate
via Newmarket, with a new north chord at Coldham Lane Junction, rather than
pursuing further doubling of the route via Soham.

I have a feeling that if this plan were to be pursued, the Racing Industry in Newmarket wouldn’t be too keen on all the freight trains passing through the town.

Knowing the town and the racing industry and horses, as I do, I suspect that there will need to be serious noise mitigation measures through the town.

One would probably be a noise limit on the trains passing through, which might be very difficult for long freight trains, even if hauled by a much quieter battery-electric or hydrogen-powered locomotive.

Were the East West Main Line Partnership thinking of Newmarket, when they wrote the last sentence of the web page for freight.

In this regard due consideration must be given to ensuring that the impact on local communities of rail freight movements is minimised.

Newmarket is a unique town with a strong character and you shouldn’t take the town on lightly.

Related Posts

Birth Of The East West Main Line

Freight On The East West Main Line

Route Map Of The East West Main Line







October 8, 2021 Posted by | Hydrogen, Sport, Transport/Travel | , , , , , , , , , , , , , , , , , , , , , , , | 2 Comments

‘Dramatically More Powerful’: World’s First Battery-Electric Freight Train Unveiled

The title of this post, is the same as that of this article in The Guardian.

It is a good article about Wabtec’s new FLXdrive battery train and is very positive about it coming from a typical Guardian direction.

The article is a must-read.

I am beginning to feel that what Wabtec has done is to create a practical and affordable solution, that will cut carbon emissions in a difficult area, that produces the figures and also is understandable by diverse groups, like journalists, politicians and environmentalists. And they are backing it with academic research from a good university.

I also believe that the technology can be applied to existing locomotives as I outlined in Could Class 66 Locomotives Be Converted Into Battery-Electric Locomotives?.

Could this be another example of positive environmental change brought about by when the big beasts play their cards in the jungle?

Going green is a way of company survival! And Wabtec are going in that direction.

September 17, 2021 Posted by | Transport/Travel | , , , , , | Leave a comment

Could Class 66 Locomotives Be Converted Into Battery-Electric Locomotives?

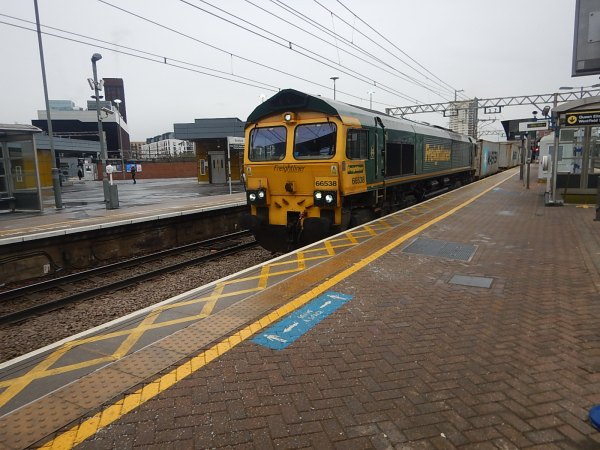

This picture shows a Freightliner Class 66 locomotive passing through Stratford with a multimodal freight train.

These are a few thoughts on converting some of the four hundred and eighty Class 66 locomotives into battery-electric locomotives.

An Estimate Of Performance Of A Battery Electric Class 66 Locomotive

In Iron Ore Miner Orders Heavy-Haul Battery Locomotive, I said this about a UK-sized locomotive based on Wabtec’s FLXdrive battery-electric technology.

I could envisage Wabtec designing a UK-sized battery-electric locomotive with these characteristics.

  • 2.5 MW power output, which is similar to a Class 66 locomotive.
  • A battery size of perhaps 1.8 MWh based on Wabtec’s  FLXdrive technology.
  • A pantograph to charge the batteries and also power the locomotive where electrification exists.
  • 75 mph operating speed.
  • Ability to work in tandem with a Class 66 locomotive.

All technology is under Wabtec’s control.

This locomotive could have a range of at least fifty miles on battery power, doing the sort of duties that Class 66 locomotives do!

So it would be able to take a multimodal container train out of the Port of Felixstowe to the electrification at Ipswich.

The Class 66 Locomotive Is Diesel-Electric

The Class 66 locomotive is a diesel-electric locomotive, where the diesel engine drives an alternator, which generates electricity, which then powers the six traction motors, which are arranged, so that there is one on each of the six axles.

This should make conversion easier, as the heavy lump of the engine and the alternator would be replaced with a large number of lithium-ion batteries.

Wabtec Has A Modular Battery System

This article on Railway Age gives a lot of detail and several pictures of the modular FLXdrive battery system.

  • Each module is a 4.9 kWh battery, that weighs 72.6 Kg.
  • Batteries are arranged into strings, which feed the traction motors.
  • There is a sophisticated control system, which ensures that a module failure doesn’t disable the locomotive.
  • The battery system is air-cooled.

I would expect that Wabtec could arrange a number of modules in the stripped out body of a Class 66 locomotive.

The FLXdrive Battery System Handles Regenerative Barking

The Railway Age article says this.

Battery charging while the FLXdrive is operating occurs through regenerative dynamic braking.

This will certainly improve efficiency.

Could A Pantograph Be Fitted To A Class 66 Locomotive?

This picture of a Class 66 locomotive was taken at Peterborough.

Note the 25 KVAC overhead electrification and the gap between the wires and the roof of the locomotive.

I don’t think it would the toughest job to design a pantograph for a Class 66 locomotive.

What Would Be The Use Of A Battery Electric Class 66 Locomotive With A Fifty Mile Range?

I believe that a surprising number of duties currently handled by Class 66 locomotives could be performed by a battery-electric Class 66 locomotive.

  • The locomotives would effectively be electric locomotives with a last fifty mile capability.
  • The number of possible duties will increase as electrification increases.
  • They would be ideal to support track maintenance activities.
  • They would be a zero-carbon locomotive with a low noise footprint.

As I said earlier, they should be able to haul a heavy intermodal train out of the Port of Felixstowe.

Would A Battery-Electric And A Diesel-Electric Class 66 Locomotive Working As A Pair Be Able to Handle The Heaviest Trains?

As the Americans and Canadians  have shown with more than one locomotive, where one is a battery-electric locomotive can reduce the carbon-emissions, the same rules must apply in the UK.

Conclusion

I am not a lover of the smelly, noisy and polluting diesel Class 66 locomotives, but it does look it could be possible to convert some into battery-electric locomotives.

I wouldn’t be surprised to see Wabtec convert some Class 66 locomotives into battery-electric locomotives.

I also believe, that conversion of Class 66 locomotives to battery-electric operation could be the most affordable way to help decarbonise rail freight.

September 16, 2021 Posted by | Transport/Travel | , , , , , | 22 Comments

« Previous Entries     Next Entries »
