Will Hitachi Announce A High Speed Metro Train?

As the UK high speed rail network increases, we are seeing more services and proposed services, where local services are sharing tracks, where trains will be running at 125 mph or even more.

London Kings Cross And Cambridge/Kings Lynn

This Great Northern service is run by Class 387 trains.

  • Services run between London Kings Cross and Kings Lynn or Cambridge
  • The Class 387 trains have a maximum operating speed of 110 mph.
  • The route is fully electrified.
  • The trains generally use the fast lines on the East Coast Main Line, South of Hitchin.
  • Most trains on the fast lines on the East Coast Main Line are travelling at 125 mph.
  • When in the future full digital in-cab ERTMS signalling is implemented on the East Coast Main Line, speeds of up to 140 mph should be possible in some sections between London Kings Cross and Hitchin.

I also believe that digital signalling may be able to provide a solution to the twin-track bottleneck over the Digswell Viaduct.

Consider.

  • Airliners have been flown automatically and safely from airport to airport for perhaps four decades.
  • The Victoria Line has been running automatically and safely at over twenty trains per hour (tph) for five decades. It is now running at over 30 tph.
  • I worked with engineers developing a high-frequency sequence control system for a complicated chemical plant in 1970.

We also can’t deny that computers are getting better and more capable.

For these reasons, I believe there could be an ERTMS-based solution to the problem of the Digswell Viaduct, which could be something like this.

  • All trains running on the two track section over the Digswell Viaduct and through Welwyn North station would be under computer control between Welwyn Garden City and Knebworth stations.
  • Fast trains would be slowed as appropriate to create spaces to allow the slow trains to pass through the section.
  • The driver would be monitoring the computer control, just as they do on the Victoria Line.

Much more complicated automated systems have been created in various applications.

The nearest rail application in the UK, is probably the application of digital signalling to London Underground’s Circle, District, Hammersmith & City and Metropolitan Lines.

This is known at the Four Lines Modernisation and it will be completed by 2023 and increase capacity by up to twenty-seven percent.

I don’t think it unreasonable to see the following maximum numbers of services running over the Digswell Viaduct by 2030 in both directions in every hour.

  • Sixteen fast trains
  • Four slow trains

That is one train every three minutes.

Currently, it appears to be about ten fast and two slow.

As someone, who doesn’t like to be on a platform, when a fast train goes through, I believe that some form of advanced safety measures should be installed at Welwyn North station.

It would appear that trains between London Kings Cross and King’s Lynn need to have this specification.

  • Ability to run at 125 mph on the East Coast Main Line
  • Ability to run at 140 mph on the East Coast Main Line, under control of full digital in-cab ERTMS signalling.

This speed increase could reduce the journey time between London Kings Cross and Cambridge to just over half-an-hour with London Kings Cross and King’s Lynn under ninety minutes.

The only new infrastructure needed would be improvements to the Fen Line to King’s Lynn to allow two tph, which I think is needed.

Speed improvements between Hitchin and Cambridge could also benefit timings.

London Kings Cross And Cambridge/Norwich

I believe there is a need for a high speed service between London Kings Cross and Norwich via Cambridge.

  • The Class 755 trains, that are capable of 100 mph take 82 minutes, between Cambridge and Norwich.
  • The electrification gap between Ely and Norwich is 54 miles.
  • Norwich station and South of Ely is fully electrified.
  • Greater Anglia’s Norwich and Cambridge service has been very successful.

With the growth of Cambridge and its incessant need for more space, housing and workers, a high speed train  between London Kings Cross and Norwich via Cambridge could tick a lot of boxes.

  • If hourly, it would double the frequency between Cambridge and Norwich until East-West Rail is completed.
  • All stations between Ely and Norwich get a direct London service.
  • Cambridge would have better links for commuting to the city.
  • London Kings Cross and Cambridge would be less than an hour apart.
  • If the current London Kings Cross and Ely service were to be extended to Norwich, no extra paths on the East Coast Main Line would be needed.
  • Trains could even split and join at Cambridge or Ely to give all stations a two tph service to London Kings Cross.
  • No new infrastructure would be required.

The Cambridge Cruiser would become the Cambridge High Speed Cruiser.

London Paddington And Bedwyn

This Great Western Railway service is run by Class 802 trains.

  • Services run between London Paddington and Bedwyn.
  • Services use the Great Western Main Line at speeds of up to 125 mph.
  • In the future if full digital in-cab ERTMS signalling is implemented, speeds of up to 140 mph could be possible on some sections between London Paddington and Reading.
  • The 13.3 miles between Newbury and Bedwyn is not electrified.

As the service would need to be able to run both ways between Newbury and Bedwyn, a capability to run upwards of perhaps thirty miles without electrification is needed. Currently, diesel power is used, but battery power would be better.

London Paddington And Oxford

This Great Western Railway service is run by Class 802 trains.

  • Services run between London Paddington and Oxford.
  • Services use the Great Western Main Line at speeds of up to 125 mph.
  • In the future if full digital in-cab ERTMS signalling is implemented, speeds of up to 140 mph could be possible on some sections between London Paddington and Didcot Parkway.
  • The 10.3 miles between Didcot Parkway and Oxford is not electrified.

As the service would need to be able to run both ways between Didcot Parkway and Oxford, a capability to run upwards of perhaps thirty miles without electrification is needed. Currently, diesel power is used, but battery power would be better.

Local And Regional Trains On Existing 125 mph Lines

In The UK, in addition to High Speed One and High Speed Two, we have the following lines, where speeds of 125 mph are possible.

  • East Coast Main Line
  • Great Western Main Line
  • Midland Main Line
  • West Coast Main Line

Note.

  1. Long stretches of these routes allow speeds of up to 125 mph.
  2. Full digital in-cab ERTMS signalling is being installed on the East Coast Main Line to allow running up to 140 mph.
  3. Some of these routes have four tracks, with pairs of slow and fast lines, but there are sections with only two tracks.

It is likely, that by the end of the decade large sections of these four 125 mph lines will have been upgraded, to allow faster running.

If you have Hitachi and other trains thundering along at 140 mph, you don’t want dawdlers, at 100 mph or less, on the same tracks.

These are a few examples of slow trains, that use two-track sections of 125 nph lines.

  • East Midlands Railway – 1 tph – Leicester and Lincoln – Uses Midland Main Line
  • East Midlands Railway – 1 tph – Liverpool and Norwich – Uses Midland Main Line
  • Great Western Railway – 1 tph – Cardiff and Portsmouth Harbour – Uses Great Western Main Line
  • Great Western Railway – 1 tph – Cardiff and Taunton – Uses Great Western Main Line
  • Northern – 1 tph – Manchester Airport and Cumbria – Uses West Coast Main Line
  • Northern – 1 tph – Newcastle and Morpeth – Uses East Coast Main Line
  • West Midlands Trains – Some services use West Coast Main Line.

Conflicts can probably be avoided by judicious train planning in some cases, but in some cases trains capable of 125 mph will be needed.

Southeastern Highspeed Services

Class 395 trains have been running Southeastern Highspeed local services since 2009.

  • Services run between London St. Pancras and Kent.
  • Services use Speed One at speeds of up to 140 mph.
  • These services are planned to be extended to Hastings and possibly Eastbourne.

The extension would need the ability to run on the Marshlink Line, which is an electrification gap of 25.4 miles, between Ashford and Ore.

Thameslink

Thameslink is a tricky problem.

These services run on the double-track section of the East Coast Main Line over the Digswell Viaduct.

  • 2 tph – Cambridge and Brighton – Fast train stopping at Hitchin, Stevenage and Finsbury Park.
  • 2 tph – Cambridge and Kings Cross – Slow train stopping at Hitchin, Stevenage, Knebworth, Welwyn North, Welwyn Garden City, Hatfield, Potters Bar and Finsbury Park
  • 2 tph – Peterborough and Horsham – Fast train stopping at Hitchin, Stevenage and Finsbury Park.

Note.

  1. These services are run by Class 700 trains, that are only capable of 100 mph.
  2. The fast services take the fast lines South of the Digswell Viaduct.
  3. South of Finsbury Park, both fast services cross over to access the Canal Tunnel for St, Pancras station.
  4. I am fairly certain, that I have been on InterCity 125 trains running in excess of 100 mph in places between Finsbury Park and Stevenage.

It would appear that the slow Thameslink trains are slowing express services South of Stevenage.

As I indicated earlier, I think it is likely that the Kings Cross and King’s Lynn services will use 125 mph trains for various reasons, like London and Cambridge in well under an hour.

But if 125 mph trains are better for King’s Lynn services, then they would surely improve Thameslink and increase capacity between London and Stevenage.

Looking at average speeds and timings on the 25 miles between Stevenage and Finsbury Park gives the following.

  • 100 mph – 15 minutes
  • 110 mph – 14 minutes
  • 125 mph – 12 minutes
  • 140 mph – 11 minutes

The figures don’t appear to indicate large savings, but when you take into account that the four tph running the Thameslink services to Peterborough and Cambridge stop at Finsbury Park and Stevenage and have to get up to speed, I feel that the 100 mph Class 700 trains are a hindrance to more and faster trains on the Southern section of the East Coast Main Line.

It should be noted, that faster trains on these Thameslink services would probably have better acceleration and and would be able to execute faster stops at stations.

There is a similar less serious problem on the Midland Main Line branch of Thameslink, in that some Thameslink services use the fast lines.

A couple of years ago, I had a very interesting chat with a group of East Midlands Railway drivers. They felt that the 100 mph Thameslink and the 125 mph Class 222 trains were not a good mix.

The Midland Main Line services are also becoming more complicated, with the new EMR Electric services between St. Pancras and Corby, which will be run by 110 mph Class 360 trains.

Hitachi’s Three Trains With Batteries

Hitachi have so far announced three battery-electric trains. Two are based on battery packs being developed and built by Hyperdrive Innovation.

Hyperdrive Innovation

Looking at the Hyperdrive Innovation web site, I like what I see.

Hyperdrive Innovation provided the battery packs for JCB’s first electric excavator.

Note that JCB give a five-year warranty on the Hyperdrive batteries.

Hyperdrive have also been involved in the design of battery packs for aircraft push-back tractors.

The battery capacity for one of these is given as 172 kWh and it is able to supply 34 kW.

I was very surprised that Hitachi didn’t go back to Japan for their batteries, but after reading Hyperdrive’s web site about the JCB and Textron applications, there would appear to be good reasons to use Hyperdrive.

  • Hyperdrive have experience of large lithium ion batteries.
  • Hyperdrive have a design, develop and manufacture model.
  • They seem to able to develop solutions quickly and successfully.
  • Battery packs for the UK and Europe are made in Sunderland.
  • Hyperdrive are co-operating with Nissan, Warwick Manufacturing Group and Newcastle University.
  • They appear from the web site to be experts in the field of battery management, which is important in prolonging battery life.
  • Hyperdrive have a Taiwanese partner, who manufactures their battery packs for Taiwan and China.
  • I have done calculations based on the datasheet for their batteries and Hyperdrive’s energy density is up with the best

I suspect, that Hitachi also like the idea of a local supplier, as it could be helpful in the negotiation of innovative applications. Face-to-face discussions are easier, when you’re only thirty miles apart.

Hitachi Regional Battery Train

The first train to be announced was the Hitachi Regional Battery Train, which is described in this Hitachi infographic.

Note.

  1. It is only a 100 mph train.
  2. The batteries are to be designed and manufactured by Hyperdrive Innovation.
  3. It has a range of 56 miles on battery power.
  4. Any of Hitachi’s A Train family like Class 800, 802 or 385 train can be converted to a Regional Battery Train.

No orders have been announced yet.

But it would surely be very suitable for routes like.

  • London Paddington And Bedwyn
  • London Paddington And Oxford

It would also be very suitable for extensions to electrified suburban routes like.

  • London Bridge and Uckfield
  • London Waterloo and Salisbury
  • Manchester Airport and Windermere.
  • Newcastle and Carlisle

It would also be a very sound choice to extend electrified routes in Scotland, which are currently run by Class 385 trains.

Hitachi InterCity Tri-Mode Battery Train

The second train to be announced was the Hitachi InterCity Tri-Mode Battery Train, which is described in this Hitachi infographic.

Note.

  1. Only one engine is replaced by a battery.
  2. The batteries are to be designed and manufactured by Hyperdrive Innovation.
  3. Typically a five-car Class 800 or 802 train has three diesel engines and a nine-car train has five.
  4. These trains would obviously be capable of 125 mph on electrified main lines and 140 mph on lines fully equipped with digital in-cab ERTMS signalling.

Nothing is said about battery range away from electrification.

Routes currently run from London with a section without electrification at the other end include.

  • London Kings Cross And Harrogate – 18.3 miles
  • London Kings Cross And Hull – 36 miles
  • London Kings Cross And Lincoln – 16.5 miles
  • London Paddington And Bedwyn – 13.3 miles
  • London Paddington And Oxford – 10.3 miles

In the March 2021 Edition of Modern Railways, LNER are quoted as having aspirations to extend the Lincoln service to Cleethorpes.

  • With all energy developments in North Lincolnshire, this is probably a good idea.
  • Services could also call at Market Rasen and Grimsby.
  • Two trains per day, would probably be a minimum frequency.

But the trains would need to be able to run around 64 miles each way without electrification. Very large batteries and/or charging at Cleethorpes will be needed.

Class 803 Trains For East Coast Trains

East Coast Trains have ordered a fleet of five Class 803 trains.

  • These trains appear to be built for speed and fast acceleration.
  • They have no diesel engines, which must save weight and servicing costs.
  • But they will be fitted with batteries for emergency power to maintain onboard  train services in the event of overhead line failure.
  • They are planned to enter service in October 2021.

Given that Hyperdrive Innovation are developing traction batteries for the other two Hitachi battery trains, I would not be the least bit surprised if Hyperdrive were designing and building the batteries for the Class 803 trains.

  • Hyperdrive batteries are modular, so for a smaller battery you would use less modules.
  • If all coaches are wired for a diesel engine, then they can accept any power module like a battery or hydrogen pack, without expensive redesign.
  • I suspect too, that the battery packs for the Class 803 trains could be tested on an LNER Class 801 train.

LNER might also decide to replace the diesel engines on their Class 801 trains with an emergency battery pack, if it were more energy efficient and had a lighter weight.

Thoughts On The Design Of The Hyperdrive innovation Battery Packs

Consider.

  • Hitachi trains have a sophisticated computer system, which on start-up can determine the configuration of the train or whether it is more than one train running as a longer formation or even being hauled by a locomotive.
  • To convert a bi-mode Class 800 train to an all-electric Class 801 the diesel engines are removed. I suspect that the computer is also adjusted, but train formation may well be totally automatic and independent of the driver.
  • Hyperdrive Innovation’s battery seem to be based on a modular system, where typical modules have a capacity of 5 kWh, weighs 32 Kg and has a volume of 0.022 cu metres.
  • The wet mass of an MTU 16V 1600 R80L diesel engine commonly fitted to AT-300 trains of different types is 6750 Kg or nearly seven tonnes.
  • The diesel engine has a physical size of 1.5 x 1.25 x 0.845 metres, which is a volume of 1.6 cubic metres.
  • In How Much Power Is Needed To Run A Train At 125 mph?, I calculated that a five-car Class 801 electric train, needed 3.42 kWh per vehicle-mile to maintain 125 mph.
  • It is likely, than any design of battery pack, will handle the regenerative braking.

To my mind, the ideal solution would be a plug compatible battery pack, that the train’s computer thought was a diesel engine.

But then I have form in the area of plug-compatible electronics.

At the age of sixteen, for a vacation job, I worked in the Electronics Laboratory at Enfield Rolling Mills.

It was the early sixties and one of their tasks was at the time replacing electronic valve-based automation systems with new transistor-based systems.

The new equipment had to be compatible to that which it replaced, but as some were installed in dozens of places around the works, they had to be able to be plug-compatible, so that they could be quickly changed. Occasionally, the new ones suffered infant-mortality and the old equipment could just be plugged back in, if there wasn’t a spare of the new equipment.

So will Hyperdrive Innovation’s battery-packs have the same characteristics as the diesel engines that they replace?

  • Same instantaneous and continuous power output.
  • Both would fit the same mountings under the train.
  • Same control and electrical power connections.
  • Compatibility with the trains control computer.

I think they will as it will give several advantages.

  • The changeover between diesel engine and battery pack could be designed as a simple overnight operation.
  • Operators can mix-and-match the number of diesel engines and battery-packs to a given route.
  • As the lithium-ion cells making up the battery pack improve, battery capacity and performance can be increased.
  • If the computer, is well-programmed, it could reduce diesel usage and carbon-emissions.
  • Driver conversion from a standard train to one equipped with batteries, would surely be simplified.

As with the diesel engines, all battery packs could be substantially the same across all of Hitachi’s Class 80x trains.

What Size Of Battery Would Be Possible?

If Hyperdrive are producing a battery pack with the same volume as the diesel engine it replaced, I estimate that the battery would have a capacity defined by.

5 * 1.6 / 0.022 = 364 kWh

In an article in the October 2017 Edition of Modern Railways, which is entitled Celling England By The Pound, Ian Walmsley says this in relation to trains running on the Uckfield Branch, which is not very challenging.

A modern EMU needs between 3 and 5 kWh per vehicle mile for this sort of service.

As a figure of 3.42 kWh per vehicle-mile to maintain 125 mph, applies to a Class 801 train, I suspect that a figure of 3 kWh or less could apply to a five-car Class 800 train trundling at around 80-100 mph to Bedwyn, Cleethorpes or Oxford.

  • A one-battery five-car train would have a range of 24.3 miles
  • A two-battery five-car train would have a range of 48.6 miles
  • A three-battery five-car train would have a range of 72.9 miles

Note.

  1. Reducing the consumption to 2.5 kWh per vehicle-mile would give a range of 87.3 miles.
  2. Reducing the consumption to 2 kWh per vehicle-mile would give a range of 109.2 miles.
  3. Hitachi will be working to reduce the electricity consumption of the trains.
  4. There will also be losses at each station stop, as regenerative braking is not 100 % efficient.

But it does appear to me, that distances of the order of 60-70 miles would be possible on a lot of routes.

Bedwyn, Harrogate, Lincoln and Oxford may be possible without charging before the return trip.

Cleethorpes and Hull would need a battery charge before return.

A Specification For A High Speed Metro Train

I have called the proposed train a High Speed Metro Train, as it would run at up to 140 mph on an existing high speed line and then run a full or limited stopping service to the final destination.

These are a few thoughts.

Electrification

In some cases like London Kings Cross and King’s Lynn, the route is already electrified and batteries would only be needed for the following.

  • Handling regenerative braking.
  • Emergency  power in case of overhead line failure.
  • Train movements in depots.

But if the overhead wires on a branch line. are in need of replacement, why not remove them and use battery power? It might be the most affordable and least disruptive option to update the power supply on a route.

The trains would have to be able to run on both types of electrification in the UK.

  • 25 KVAC overhead.
  • 750 VDC third rail.

This dual-voltage capability would enable the extension of Southeastern Highspeed services.

Operating Speed

The trains must obviously be capable of running at the maximum operating speed on the routes they travel.

  • 125 mph on high speed lines, where this speed is possible.
  • 140 mph on high speed lines equipped with full digital in-cab ERTMS signalling, where this speed is possible.

The performance on battery power must be matched with the routes.

Hitachi have said, that their Regional Battery trains can run at up to 100 mph, which would probably be sufficient for most secondary routes in the UK and in line with modern diesel and electric multiple units.

Full Digital In-cab ERTMS Signalling

This will be essential and is already fitted to some of Hitachi’s trains.

Regenerative Braking To Batteries

Hitachi’s battery electric  trains will probably use regenerative braking to the batteries, as it is much more energy efficient.

It also means that when stopping at a station perhaps as much as 70-80% of the train’s kinetic energy can be captured in the batteries and used to accelerate the train.

In Kinetic Energy Of A Five-Car Class 801 Train, I showed that at 125 mph the energy of a full five-car train is just over 100 kWh, so batteries would not need to be unduly large.

Acceleration

This graph from Eversholt Rail, shows the acceleration and deceleration of a five-car Class 802 electric train.

As batteries are just a different source of electric power, I would think, that with respect to acceleration and deceleration, that the performance of a battery-electric version will be similar.

Although, it will only achieve 160 kph instead of the 200 kph of the electric train.

I estimate from this graph, that a battery-electric train would take around 220 seconds from starting to decelerate for a station to being back at 160 kph. If the train was stopped for around eighty seconds, a station stop would add five minutes to the journey time.

London Kings Cross And Cleethorpes

As an example consider a service between London Kings Cross and Cleethorpes.

  • The section without electrification between Newark and Cleethorpes is 64 miles.
  • There appear to be ambitions to increase the operating speed to 90 mph.
  • Local trains seem to travel at around 45 mph including stops.
  • A fast service between London Kings Cross and Cleethorpes would probably stop at Lincoln Central, Market Rasen and Grimsby Town.
  • In addition, local services stop at Collingham, Hykeham, Barnetby and Habrough.
  • London Kings Cross and Newark takes one hour and twenty minutes.
  • London Kings Cross and Cleethorpes takes three hours and fifteen minutes with a change at Doncaster.

I can now calculate a time between Kings Cross and Cleethorpes.

  • If a battery-electric train can average 70 mph between Newark and Cleethorpes, it would take 55 minutes.
  • Add five minutes for each of the three stops at Lincoln Central, Market Rasen and Grimsby Town
  • Add in the eighty minutes between London Kings Cross and Newark and that would be  two-and-a-half hours.

That would be very marketing friendly and a very good start.

Note.

  1. An average speed of 80 mph would save seven minutes.
  2. An average speed of 90 mph would save twelve minutes.
  3. I suspect that the current bi-modes would be slower by a few minutes as their acceleration is not as potent of that of an electric train.

I have a feeling London Kings Cross and Cleethorpes via Lincoln Central, Market Rasen and Grimsby Town, could be a very important service for LNER.

Interiors

I can see a new lightweight and more energy efficient interior being developed for these trains.

In addition some of the routes, where they could be used are popular with cyclists and the current Hitachi trains are not the best for bicycles.

Battery Charging

Range On Batteries

I have left this to last, as it depends on so many factors, including the route and the quality of the driving or the Automatic Train Control

Earlier, I estimated that a five-car train with all three diesel engines replaced by batteries, when trundling around Lincolnshire, Oxfordshire or Wiltshire could have range of up to 100 miles.

That sort of distance would be very useful and would include.

  • Ely and Norwich
  • Newark and Cleethorpes
  • Salisbury and Exeter

It might even allow a round trip between the East Coast Main Line and Hull.

The Ultimate Battery Train

This press release from Hitachi is entitled Hitachi And Eversholt Rail To Develop GWR Intercity Battery Hybrid Train – Offering Fuel Savings Of More Than 20%.

This is a paragraph.

The projected improvements in battery technology – particularly in power output and charge – create opportunities to replace incrementally more diesel engines on long distance trains. With the ambition to create a fully electric-battery intercity train – that can travel the full journey between London and Penzance – by the late 2040s, in line with the UK’s 2050 net zero emissions target.

Consider.

  • Three batteries would on my calculations give a hundred mile range.
  • Would a train with no diesel engines mean that fuel tanks, radiators and other gubbins could be removed and more or large batteries could be added.
  • Could smaller batteries be added to the two driving cars?
  • By 2030, let alone 2040, battery energy density will have increased.

I suspect that one way or another these trains could have a range on battery power of between 130 and 140 miles.

This would certainly be handy in Scotland for the two routes to the North.

  • Haymarket and Aberdeen, which is 130 miles without electrification.
  • Stirling and Inverness, which is 111 miles without electrification, if the current wires are extended from Stirling to Perth, which is being considered by the Scottish Government.

The various sections of the London Paddington to Penzance route are as follows.

  • Paddington and Newbury – 53 miles – electrified
  • Newbury and Taunton – 90 miles – not electrified
  • Taunton and Exeter – 31 miles – not electrified
  • Exeter and Plymouth – 52 miles – not electrified
  • Plymouth and Penzance – 79 miles – not electrified

The total length of the section without electrification between Penzance and Newbury  is a distance of 252 miles.

This means that the train will need a battery charge en route.

I think there are three possibilities.

  • Trains can take up to seven minutes for a stop at Plymouth. As London and Plymouth trains will need to recharge at Plymouth before returning to London, Plymouth station could be fitted with comprehensive recharge facilities for all trains passing through. Perhaps the ideal solution would be to electrify all lines and platforms at Plymouth.
  • Between Taunton and Exeter, the rail line runs alongside the M5 motorway. This would surely be an ideal section to electrify, as it would enable battery electric trains to run between Exeter and both Newbury and Bristol.
  • As some trains terminate at Exeter, there would probably need to be charging facilities there.

I believe that the date of the late 2040s is being overly pessimistic.

I suspect that by 2040 we’ll be seeing trains between London and Aberdeen, Inverness and Penzance doing the trips without a drop of diesel.

But Hitachi are making a promise of London and Penzance by zero-carbon trains, by the late-2040s, because they know they can keep it.

And Passengers and the Government won’t mind the trains being early!

Conclusion

This could be a very useful train to add to Hitachi’s product line.







March 9, 2021 Posted by | Transport | , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , | Leave a comment

Alstom To Join Stagecoach’s Southeastern Franchise Bid

The title of this post is the same as that of this article in Global Rail News.

This is the first two paragraphs.

Stagecoach has announced that Alstom is to become part of its bid for the new Southeastern franchise.

The move, which is subject to approval by the Department for Transport (DfT), will make Alstom a 20 per cent shareholder in the new train operating company.

I think the pairing of a train manufacturer with a train operator could be something that we’ll see more often. Remember that two of Abellio’s UK franchises; Greater Anglia and West Midlands Trains, have placed substantial orders for Bombardier Aventras.

UK rail franchises are not very similar, with often a mixture of different types of route.

In the case of the Southeastern franchise, there are the following.

  • High speed commuter routes.
  • Intense metro services.
  • Long-distance commuter routes.
  • Branch lines with low frequencies.
  • Extensions over lines without electrification.

Having a train manufacturer involved in the process, must help in formulating a high-class bid.

So how will Alstom’s expertise help in the formulation of the bid?

Highspeed Commuter Trains

The current fleet of Class 395 trains will need to be expanded, as the new franchise will be offering extra services to Hastings and Eastbourne, with the possible addition of a second London terminal.

The easy route would be to go to Hitachi and order some extra Class 395 trains. But these would have to be built with some method of using the Marshlink Line, which is not electrified. In Hitachi’s Thoughts On Battery Trains, I discussed Hitachi’s published thoughts on using battery trains on this line.

I don’t doubt that Hitachi could provide the trains.

Alstom have a lot of expertise in high speed trains and would have no problem producing a train with the following performance.

  • 140 mph on high speed lines.
  • 100 mph on third rail DC lines.

Could they have done the calculations and found that their hydrogen power technology could drive a train from Ashford to Ore at the 60 mph operating speed of the Marshlink Line?

In an article in the October 2017 Edition of Modern Railways, which is entitled Celling England By The Pound, Ian Walmsley says this in relation to trains running on the Uckfield Branch.

A modern EMU needs between 3 and 5 kWh per vehicle mile for this sort of service.

If I assume that the extra trains will be five cars and will be efficient enough to need only 3 kWh per vehicle mile for the 25 miles without electrification of the Marshlink Line, this gives an energy requirement of 375 kWh.

  • Electrification between London and Ashford would charge the batteries at the Ashford end.
  • Electrification between Hastings and Eastbourne would charge the batteries at the Hastings end.
  • Hydrogen-power would continuously top up the batteries en-route between Ore and Ashford.
  • Electrification at Ashford and Hastings would probably be able to do a lot of the acceleration to the 60 mph operating speed.
  • Rye station could be electrified to make the stop easier.

Only Alstom know what size of battery and hydrogen power-pack would be needed.

If they could produce a high speed train, that could extend its range by the use of hydrogen power, it would be a very public demonstration of the capabilities of the technology.

Commuter Fleet Replacement

A lot of the current fleet is coming to the end of its life and I would expect the new franchise will replace the trains. A proportion of the trains also have an operating speed of 75 mph and are lacking in some of the features passengers like.

So perhaps, Alstom would be looking forward to building trains for the new franchise.

They’ve even got a suitable design in Siemens Class 707 train, that was built for South West Trains, which was run by Stagecoach.

Conclusion

It looks to me, that Alstom have two trains; one in reality and one on the drawing board, that could enable Stagecoach to put forward a creditable bid for the Southeastern franchise.

But these trains will not be one-off specials for the Southeastern franchise.

The high speed train with a range extended by hydrogen would be a unique bi-mode train for 125 mph routes like the East Coast Main Line, Great Western Main Line, Midland Main Line and West Coast Main Line.

Think.

  • London Euston to Chester
  • London Euston to Barrow-in-Furness
  • London Kings Cross to Hull
  • London Kings Cross to Sunderland
  • London Paddington to Oxford

And that’s just the UK!

London St. Pancras to Hastings and Eastbourne would be the ideal route for a demonstrator. Especially, for the French!

The commuter unit may not be as unique, but the Siemens design is proven and it would be a competitor to Bombardier’s Aventra.



February 6, 2018 Posted by | Transport | , , | Leave a comment

Hitachi’s Thoughts On Battery Trains

On page 79 of the January 2018 Edition of Modern Railways, Nick Hughes, who is the Sales Director of Hitachi Rail Europe outlines how the manufacturer is embracing the development of battery technology.

He is remarkably open.

Hitachi’s Battery Development

Nick Hughes says this.

Hitachi has for many years seen great potential in battery technology.

We began studying on train storage energy systems in 2003. Working jointly qith operational partners in Japan and in the UK, we developed a realistic solution based on a lithium-ion battery, that could store the braking energy and reuse it for the traction.

Then came our V-train 2 (nicknamed the Hayabusa), which was tested on the Great Central Railway in 2007, using hybrid battery/diesel power and regenerative charging. This was the world’s first high-speed hybrid train.

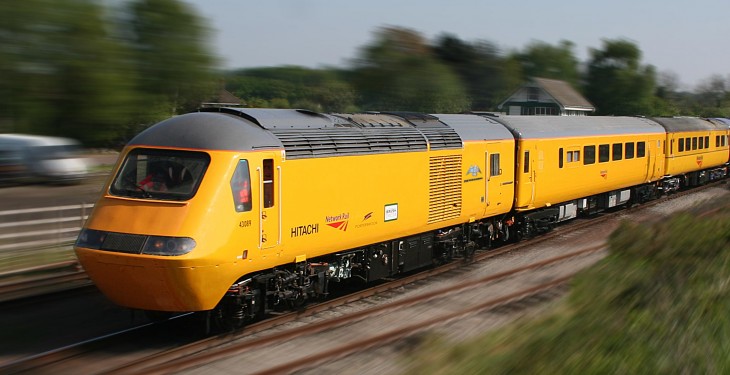

This picture show the Hayabusa running in the UK.

If you think it looks familiar, you are right! It’s a modified Class 43 locomotive from an InterCity 125. The locomotive; 43089, is still in service with East Midlands Trains. But without the batteries!

When the remaining members of the  team, who had developed the InterCity 125 in the 1970s, saw these pictures, I suspect it was celebrated with a call for a few swift halves!

BEMU In Japan

Nick Hughes goes on to outline the status of Battery Electric Multiple Units (BEMUs) in Japan, where Hitachi launched a train called the DENCHA  in 2016, on the Chikuhi line.

  • The train has a range of up to 50 km on batteries.
  • DENCHA is popular with passengers.
  • The train won a prestigious award.

I don’t know what it is with battery trains, but the Bombardier/Network Rail BEMU Trial was also liked by those who rode the train. As was I!

Nick Hughes Prediction

Nick Hughes follows his description of the DENCHA, with this.

I can picture a future when these sorts of trains are carrying out similar types of journeys in the UK, perhaps by installing battery technology in our Class 395s to connect to Hastings via the non-electrified Marshlink Line from Ashford for example.

This would massively slice the journey time and heklp overcome the issue of electrification and infrastructure cases not stacking up. There are a large number of similar routes like this all across the country.

It is a prediction, with which I could agree.

Renewable Energy And Automotive Systems

Nick Hughes finishied by saying that he believes storing power from renewable energy and the development of automotive systems will drive battery technology and its use.

Conclusion

It is the most positive article about battery trains, that I have read so far!

December 21, 2017 Posted by | Energy Storage, Transport | , , , | 4 Comments

Could Class 800/801 Trains Work Southeastern Highspeed Services?

Southeastern Highspeed services are run by Class 395 trains.

These trains are capable of the following.

  1. 140 mph running on HS1.
  2. Running on third-rail lines.
  3. Joining and separating in under a couple of minutes.

As the electric Class 801 trains are also members of Hitachi’s A-train family, I’m sure that they could built to a similar specification.

  • The trains are capable of 140 mph on suitable lines.
  • Rhird-rail gear can probably be easily added.
  • The joining and separating is in the specification.

So I think the answer to my question must be in the afformative.

November 10, 2017 Posted by | Transport | , , , | Leave a comment

Filming Trains On Rochester Bridge

This weekend, I’ve been involved in helping a Japanese company take video of Class 395 trains for one of their corporate clients.

These pictures show the filming at Rochester on the magnificent Rochester Bridge over the River Medway.

September 18, 2017 Posted by | Transport | , , | Leave a comment

Filiming Trains At Rochester

I took these pictures at Rochester.

The station is new, as the last picture shows.

I filmed from the North side of the station from a probable development site, where people were working dogs and jogging.

The camera was a top of the range Nikon Coolpix

September 15, 2017 Posted by | Transport | , | Leave a comment

Thoughts On Highspeed to Hastings

Since I wrote Kent On The Cusp Of Change – Highspeed To Hastings, a couple of months ago, several things have happened.

And Now There Are Three!

Trenitalia has pulled out of bidding for the new Southeastern franchise as reported in this article in the International Rail Journal.

This leaves just three bidders.

  • A joint venture of Abellio, East Japan Railway Company and Mitsui
  • Govia
  • Stagecoach

The same joint venture were recently awarded the West Midlands franchise.

The new franchise will be awarded in August 2018, with services starting in December 2018.

Electrification Has Been Abandoned

Major electrification schemes have been abandoned, so I suspect it will be even more unlikely that Ashford to Hastings will be electrified.

The Aventras Are Coming

Class 345 trains have started to appear on Crossrail and it is my opinion that they are a fine train.

In An Exciting New Aventra, I laid out the philosophy of the new trains and in How Long Will It Take Bombardier To Fulfil Their Aventra Orders?, I discussed how Bombardier will build the trains, at a rate of twenty-five carriages a month.

The rate comes from this article in The Guardian, which is entitled Full speed ahead for train builders as minister pulls plug on electrification, where I found this useful nugget of information, from the General Manager of Bombardier’s Derby plant.

Building trains in an “ergonomically correct” fashion, he says, means completing and testing the carriage’s constituent parts, then assembling them, rather than wiring them up afterwards – and also takes the risk away from a production line which boasts a rate of 25 carriages per week.

It sounds like Bombardier’s engineers have been drinking and swapping ideas, with Toyota’s production engineers a few miles down the road at Burnaston.

The New South Eastern Franchise

So do we have any clues as to what the new South Eastern franchise will be doing?

South Western Railway

South Western Railway‘s routes have a similar pattern to those of the South Eastern franchise, with an intense suburban network and longer distance services.

You could also argue that Greater Anglia isn’t much different.

Both these other franchises have are replacing their suburban trains with new 100 mph trains with all the trimming like wi-fi and toilets.

Both have chosen a mix of five and ten-car Aventras.

This would appear to give the following advantages.

  • The 100 mph trains with excellent acceleration and smooth regenerative braking help to make services faster and more frequent.
  • A near identical fleet will help maintenance and crew training.
  • It is easier to get the train-platform interface better, if only one class of train calls at a station.
  • Platform compatibility with Crossrail and Crossrail 2.

I suspect that the new South Eastern franchise will think on similar lines.

The Networkers Must Be Going

Southeastern currently has a total of 674 Networker carriages, most of which will surely be moved on by the new franchise holder.

I believe that these trains with their 75 mph speed and average performance, is not high enough for efficient timetabling of services and that consequently the new franchise holder will probably replace these trains with 100 mph units.

One choice would be to use a mix of new five and ten-car Aventras as chosen by Greater Anglia and South Western Railway. Replacing Networker carriages with the same number of Aventra carriages would take around six months of production at Bombardier.

The Aventras must be high on the list of new trains, as some of the new trains, may have to use the same platforms as Crossrail, if the line is extended from Abbey Wood station.

The Extra High Speed Trains

To serve Hastings and increase the number of Highspeed services, the new franchise holder, will have to obtain some more trains that can use High Speed 1.

Some of these trains will need the ability to travel on the Marshlink Line between Ashford and Hastings.

Consider.

  • It probably wouldn’t be a good idea to have two different types of trains working to Ashford on High Speed 1.
  • Class 800 trains, which are closely related to the Class 395 trains have onboard diesel power and might have energy storage to handle regenerative braking.
  • Class 395 trains are getting towards ten years old and are approaching the need for a refresh.
  • Hitachi have built trains with onboard energy storage in Japan.
  • Diesel fuel might not be allowed in the tunnels of High Speed 1.
  • Hitachi would probably be very disappointed to not get this order.

More Class 395 trains fitted with either onboard energy storage must be the favourite.

Conclusion

Kent will get Aventras to improve suburban services and more Class 395 trains with batteries for Highspeed services.



September 7, 2017 Posted by | Energy Storage, Transport | , , , , | 1 Comment

The Automatic Splitting And Joining Of Trains

Hitachi And Automatic Splitting And Joining Of Trains

The Hitachi Class 395 train was the first train in the UK  to be able to automatically split and join in service.

In The Impressive Coupling And Uncoupling Of Class 395 Trains, I linked to this video.

Impressive isn’t it?

In Do Class 800/801/802 Trains Use Batteries For Regenerative Braking?, I quoted this comment from a public on-line Hitachi document.

Because the coupling or uncoupling of cars in a trainset occurs during commercial service at an intermediate station, the automatic coupling device is able to perform this operation in less than 2 minutes.

This is definitely in line with Class 395 train performance.

This document from the Hitachi web site talks about the design of Hitachi’s Class 385 trains for Scotland. This is said.

The lead and rear railcars have an automatic coupler at the front and walk-through gangway hoods. When train sets are coupled together, the hoods fit together as part of the automatic coupling operation to provide access between train sets, meaning that passengers and staff are able to move freely from one train set to another.

Obviously, Hitachi have got automatic splitting and joining of trains spot on!

Current Split/Join Services

There are several places in the UK network, where splitting and joining of trains is used.

  •  Southeastern Highspeed do it at Ashford.
  • Great Northern Kings Lynn do it at Cambridge.
  • Southern do it at Haywards Heath.
  • Virgin Trains do it at Crewe.
  • South West Trains do it at Southampton.

But currently only the Class 395 trains can do it automatically.

The in-service entry of the Class 800 trains will change everything, as it will make a lot more new routes possible.

Virgin Trains East Coast

Currently, Virgin Trains East Coast (VTEC) run two trains per hour (tph) between Kings Cross and Leeds. In the Peak, some services are extended to Bradford Forster Square, Skipton and Harrogate, where the last route is not electrified.

Will some services to Leeds be run by two five-car Class 800/801 trains working together as a ten-car train?

  • Class 800 trains are electro-diesel which could work to Harrogate under diesel power.
  • Class 801 trains are all-electric, which could work all electrified routes from Leeds.

At Leeds the two trains could separate, with each train going to a different destination. Reading Hitachi’s published documents, the split would take under two minutes at Leeds and I don’t think there would be a restriction of a Class 800 and a Class 801 working together between Kings Cross and Leeds using the overhead electrification.

VTEC gets advantages by using this split and join approach.

  • Frequencies and train length to the eventual destinations can be adjusted to what the market will sustain.
  • Extra expensive train paths between the split/join station and London are not needed.
  • Between the split/join station and London, the train can usually run using electrification.
  • Costs are probably saved, if only a half-train is run to some destinations, as track access charges are based on weight.
  • A five-car electro-diesel could probably access more routes than a nine-car train.

This is the fleet that VTEC have ordered.

  • Class 800 – 10 x five-car
  • Class 800 – 13 x nine-car
  • Class 801 – 12 x five-car
  • Class 801 – 30 x nine-car

These Class 800 and Class 801 trains give VTEC all sorts of of possibilities.

The backbone of the service which is a half-hourly service to Edinburgh probably needs about 35 nine-car trains, some of which would be electro-diesels to work North of the electrification to Aberdeen and Inverness.

But that still leaves quite a few five-car trains available for other services.

Great Western Railway

Great Western Railway (GWR) will probably use their Class 800/801802 trains in a similar manner.

This is the fleet that GWR have ordered.

  • Class 800 – 36 x five-car
  • Class 800 – 21 x nine-car
  • Class 802 – 22 x five-car
  • Class 802 – 14 x nine-car

Note that the electro-diesel Class 802 train is similar to the Class 800, but with the engines tuned for more power and larger fuel tanks, so it can handle Devon and Cornwall routes easier.

I think that given the number of five-car trains on order and the lack of promised electrification, I think that GWR will be using splitting and joining  in some surprising places, to make sure that as many routes as possible get the new trains.

The Stadler Flirt

This article on Railway Technology describes the Stadler Flirts built for Swiss Federal Railways. This is said.

The train consists of articulated train sets, which contains light rail cars attached semi-permanently sharing a common bogie. The trains are available in two to six car combinations with two to six motorised axles. The automatic couplers, installed at both the ends of the trains, permit connection and disconnection of up to four train cars easily and quickly.

Does this mean that two trains can split and join like the Hitachi trains?

The Bombardier Aventra

The Aventra is a train that has been designed to have everything that customers might need. This is the description of the train in Wikipedia.

The train has been designed to be lighter and more efficient, with increased reliability. It will have lightweight all-welded bodies, wide gangways and doors to shorten boarding times in stations, and ERTMS. The design incorporates FlexxEco bogies which have been used in service on Voyagers and newer Turbostars. The gangway is designed to allow maximum use of the interior space and ease of movement throughout the train.

As Hitachi have published a lot of their thinking on Class 800/801 trains on the Internet, I would find it astounding that Bombardier and the other train building companies haven’t read it.

There have been four orders for the Aventras so far, which total over two thousand carriages.

Two of these orders are for mixed fleets of five-car and ten-car trains.

Are these trains and half-trains just like with the Hitachi trains?

If the answer is in the affirmative, I think it is very likely that Aventras will have the capability of splitting and joining automatically.

Greater Anglia

Greater Anglia has a complex route structure that fans out from a very busy electrified core into Liverpool Street on both their main lines.

They have ordered 89 x five-car and 22 x ten-car of Class 720 trains.

Many of their outer-suburban routes currently run twelve-car services and as their two main lines are only double-track, I can see a lot of five car trains working in pairs.

In Harlow Council Leader Jon Clempner Hopes Crossrail 2 Will Extend To Town, I suggested that Greater Anglia might use splitting and joining on the West Anglia Main Line to get four tph on the Hertford East Branch.

It may not be practical in that case, but Greater Anglia have several electrified branches.

South Western Railway

South Western Railway have a similar route structure to Greater Anglia, with a very busy electrified core into Waterloo.

They have ordered 30 x five-car and 60 x ten-car of Aventra trains.

In Waterloo Upgrade August 2017 – Virginia Water Station, I talked about used splitting and joining to provide a better service on the Waterloo to Reading Line and the Chertsey Branch.

However, I think that most services will be run by ten-car trains given the make-up of the fleet.

The five-cars could generally run on routes where the capacity only needs five-car trains or the infrastructure wouldn’t allow anything longer.

They could then split and join to maximise the capacity and use only one path from the split/join station to Waterloo.













August 6, 2017 Posted by | Transport | , , , , , , , | 3 Comments

Could South Western Railway Use Class 395 Trains Instead Of The Proposed Class 442 Trains?

In When Do Mark 3 Coaches Accept The Inevitable?, I mused about why South Western Railway were using refurbished Class 442 trains on the routes betweenLondon and Portsmouth.

The reasons for using these refurbished trains include.

  • They could be very powerful trains if they were retractioned.
  • The Portsmouth Direct Line is very challenging.
  • The trains might become 100 mph plus trains, which could save minutes on journey times and aid timetabling.

|The current Class 444 and Class 450 trains working the route may be 100 mph trains, but could it be that the required performance improvements need a more powerful and/or faster train?

I suspect too, that as the trains are based on legendary Mark 3 coaches, the interiors can be refurbished to a high standard with everything passengers need and want.

In Ultimate Class 395 Train, which is part of my analysis into Kentish routes in Kent On The Cusp Of Change, I proposed upgrades to a new batch of Class 395 trains.

  • Batteries To Enable Working To Hastings For The New Southeastern Franchise
  • Wi-Fi And 4G Capability
  • Up To 125 mph Capability On 750 VDC Third-Rail Electrification

Would these trains be an alternative to the Class 442 trains for the Portsmouth Direct Line even using batteries to handle the topography of the line, regenerative braking and save energy?

If they were working a line like the Portsmouth Direct Line, where acceleration and power is probably more important than outright speed, the trains could be rated accordingly. The operating speed on the line is currently 90 mph, but how much time would be saved with perhaps a 110 mph train and some or all of the line able to handle speeds of 100 mph plus?

The choice of refurbished Class 442 trains, which are claimed to save five minutes on fast services and seven minutes on slow ones, says a lot about what is possible between London and Portsmouth.

But would a Class 395 train, similar to those needed on Kentish routes without the 25 KVAC capability be an off-the-shelf new train that could give the same or even better journey time improvements?

July 4, 2017 Posted by | Transport | , , , | Leave a comment

Kent On The Cusp Of Change – Ultimate Class 395 Train

The Kent On The Cusp Of Change article in the July 2017 Edition of Modern Railways talks about the need for more Class 395 trains.

The Class 395 train has the following features.

  • 140 mph capability on 25 KVAC overhead electrification
  • 100 mph capability on 750 VDC third-rail electrification
  • Six-cars
  • The ability for trains to couple and uncouple automatically in a couple of minutes.
  • Modern interiors.

Upgrades, that I can see in a new batch of trains are discussed in the next three sections.

Batteries To Enable Working To Hastings For The New Southeastern Franchise

The Modern Railways article  says this about the Highspeed service to Hastings.

What form the new trains would take is asnother question; Kent County Council is keen on Class 800s, to give bi-mode capsability over the Romney mashes so that Hastings and Bexhill could be given a high-speed service to London via Ashford.

However, question marks continue to hang over any such service: there is some doubt as to whether diesel tanks would be allowed in the London tunnels of HS1 (so battery electric could be an option)

It should be noted that, Hitachi have experience in the field of battery electric trains and I think that their engineers will find a solution to bridge the twenty-six miles of the Marshlink Line, between Ashford International and Ore stations, that is not electrified.

The key could be that a passing loop is needed at Rye station for efficient operation of the trains. As Rye is under sixteen miles from Ashford and under eleven miles from Ore, it might be feasible to electrify the passing loop, so that trains could have a quick battery top-up, whilst stopping at Rye station.

Electrification around the station in a town like Rye would mean safety would be easier to ensure, than in some of the remoter parts of Romney Marsh.

Wi-Fi And 4G Capability

These facilities will probably be required of the bidders for the new franchise.

Up To 125 mph Capability On 750 VDC Third-Rail Electrification

The Class 395 trains can obviously go safely at a lot higher speed and Network Rail have the knowledge and engineering to turn 100 mph lines into ones with an operating speed of 125 mph, if  the topography of the line is suitable.

125 mph wouldn’t probably be needed but the ability to run at 110 mph might be particularly useful on various of the lines in Kent.

In a Network Rail document about the East Kent lines, Network rail says this.

Increase speed to rolling stock and signalling capability.

As the East Kent Re-Signalling Project seems to be improving the signalling, the faster Class 395 trains would set the desired operating speed.

Network Rail have been particularly successful in upgrading the speed of the Midland Main Line in recent years, so with a faster third-rail train available, they might be able to speed up services on the East Kent Lines.

I doubt all of this has not occurred to Hitachi and the other train manufacturers.

It should also be born in mind that High Speed One is not unique amongst dedicated high speed lines in the world and other countries and operators must want to mix high speed long distance and commuter services on the high speed lines.

So if Hitachi can demonstrate their skills between London and Kent on the way to the iconic Channel Tunnel, it can’t be at all bad for the company.

It also probably means, that the companies bidding to take over the Southeastern franchise will get a good deal for extra Class 395 trains.

Or would Bombardier come up with an Aventra with a 140 mph capability on High Speed One?

Other Applications Of Class 395 Trains

Most of the third-rail electric trains south of the Thames like the Class 377 trains are 100 mph trains.

But as there is a need for more and faster services South of the Thames, there will probably be a need for a faster train.

This probably explains why South Western Railway are bringing the Class 442 trains back into service on the Portsmouth Direct Line, as these trains are capable of more than 100 mph.

An alternative might have been to buy some Class 395 trains with a 110 mph or higher capability on third-rail lines.

Conclusion

The next versions of Class 395 trains and trains of similar performance from other manufacturers will not be limited to High Speed One and Kent.

Hitachi can easily create a third-rail train with a capability of running at over 110 mph and if Network Rail upgrade the tracks and signalling to accommodate higher speeds, we could see improved services all across the South of England.

Routes where they would bring improvement include.

  • Waterloo to Portsmouth
  • Waterloo to Southampton, Bournemouth, Poole and Weymouth
  • Ashford to Southampton via Brighton and Portsmouth.

As energy storage gets better will we be seeing Waterloo to Salisbury run by electric trains, using battery power to and from Basingstoke?

See Also

These are related posts.

To know more read Kent On The Cusp Of Change in the July 2017 Edition of Modern Railways.



July 1, 2017 Posted by | Transport | , , , , | 19 Comments
