Huddersfield Station – 30th September 2025

This press release on the Network Rail Media Centre is entitled Huddersfield Station Set To Reopen Next Week With New Temporary Layout.

As it is now next week, I went to have a look at the progress today.

I made a mistake and got on a Grand Central Train, which meant, I had to change at York.

Speeding past Drax power station on the Selby Diversion, I took these pictures.

We were only in a 125 mph diesel, so we couldn’t take advantage of the 160 mph running, that the East Coast Main Line’s new signalling might allow on this section. The Wikipedia entry for the Selby Diversion, says this about the possible speeds.

The line was the first purpose-built section of high-speed railway in the UK having a design speed of 125 mph; however, research by British Rail in the 1990s indicated that the route geometry would permit up to 160 mph operation, subject to the necessary overhead line equipment and signalling upgrades. The new line also avoided the speed restriction over the swing bridge at Selby. The former ECML route, the NER’s 1871 York and Doncaster branch line, was closed from Selby northwards.

As the Selby Diversion opened in 1983, I wouldn’t be surprised that the calculations were performed on British Rail Research’s Pace 231-R, which was similar to the one I used at ICI and the pair, that NASA used calculate how to land Apollo on the moon.

When I eventually got to Huddersfield, I took these pictures.

Note.

  1. In I’ve Just Glimpsed The Future Of Train Travel Across The North Of England And I Like It, there are pictures of Huddersfield station, that were taken on the 21st August, soon after the work started.
  2. In Huddersfield Station – 15th December 2023, there are pictures of Huddersfield before the work started.
  3. Much of the work seems to have been done at the Western end of the station to lengthen the platform on the Penistone Line to Sheffield.
  4. Platform 2 for the Penistone Line has also been renumbered Platform 1.

Work still to be carried out at Huddersfield station, includes refurbishing the roof, installing the electrification and adding a couple of new platforms.

These are my thoughts.

Which Platforms Will Be Electrified?

This OpenRailwayMap shows the proposed electrification in Huddersfield station.

Note.

  1. The blue arrow in the North-East corner of the map indicates Huddersfield atation.
  2. The two red-and-black tracks going diagonally across the map are the Hudderfield Line.
  3. The red-and-black colour, indicates that the two tracks will be electrified.
  4. South of these two tracks, the Penistone Line sneaks into Platform 1 at Huddersfield station.
  5. The Penistone Line goes to Sheffield in a South-Westerly direction.
  6. There appears to be a crossover, so that trains from the Penistone Line can use both Platforms 1 and 2 in Huddersfield station.
  7. The OpenRailwayMap appears to show planned electrification between Stalybridge and Leeds stations.
  8. To the East of Leeds planned electrification is shown as far as Micklefield and Church Fenton stations.

Once installed, this electrification will create a complete electrified route across the Pennines from Liverpool Lime Street in the West to the East Coast Main Line in the East.

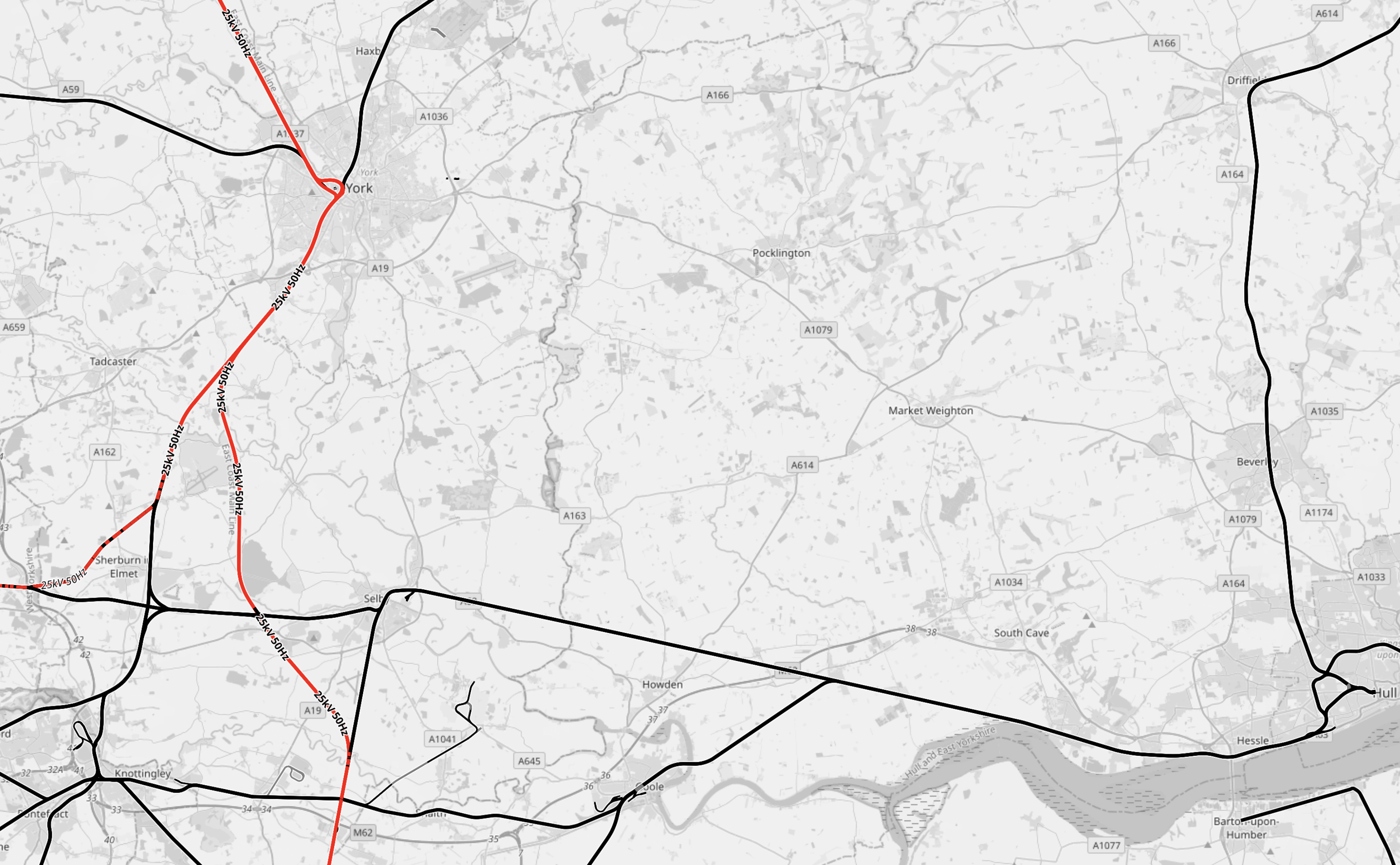

This OpenRailwayMap shows the planned electrification between Micklefield and Hull stations.

Note.

  1. Red tracks are electrified.
  2. Black tracks are not electrified.
  3. York is in the North-West corner of the map, with the electrified East Coast Main Line going through the station North-South.
  4. South of York, the East Coast Main Line now splits.
  5. The Western branch includes an electrified line to Micklefield station, Neville Hill depot and Leeds station.
  6. The Eastern Branch is the Selby Diversion, which is an electrified 160 mph line, that avoids the Selby coalfield.
  7. Running West-East across the map is the unlectrified Micklefield and Hull Line, which goes via Selby.
  8. Hull is in the South-East corner of the map.
  9. Hull is 42 miles from Micklefield and 36.1 miles from the Temple Hirst junction on the Selby Diversion, so it is within range of battery-electric trains, with charging at Hull station.
  10. Hitachi’s battery-electric Class 802 trains, used by Hull Trains and TransPennine Express, which are currently on test, should certainly be able to serve Hull.

Hull can become an electrified station, without the expense and disruption of full electrification.

How Long Is Platform 1 At Huddersfield Station?

This OpenRailwayMap shows the new Platform 1 at Huddersfield station.



Note.

The blue arrow indicates Huddersfield station.

  1. The three darker orange lines indicate the two through platforms 2 and 3, and the reconfigured bay platform 1.
  2. There is a cross-over between platforms 1 and 2, which connects Platform 2 to the Penistone Line.
  3. In the South-West corner of the map is a hundred metre scale.
  4. Using the scale, I estimate that the length of the bay platform 1 is around 120 metres.
  5. In the last two rows of pictures in the gallery of this post, a three car Class 150 train is shown in Platform 1.
  6. A three car Class 150 train is approximately sixty metres long.

Looking at the pictures, I wouldn’t be surprised if the new platform has been designed to take two three-car Class 150 trains. It would certainly take a pair of two-car Class 150 trains.

Other trains and their lengths that might use the platform include.

  • Class 170 – three-car – 70.85 metres
  • Class 195 – two-car – 48.05 metres
  • Class 195 – three-car – 71.40 metres
  • Class 195 – 2 x two-car – 96.10 metres
  • Class 810 – five-car – 120 metres

The Class 810 uses 24 metre cars, so that a pair of trains, will fit in St. Pancras. But with perhaps selective door opening could a single Class 810 train run a St. Pancras and Huddersfield service, perhaps with a split and join at Sheffield.

Electrification Across The Pennines

The TransPennine Route will be electrified between Liverpool Lime Street and Micklefield stations, once the current works between Huddersfield and Leeds are complete.

Sections without electrification include.

  • Bradford Interchange and Doncaster – 52.1 miles
  • Cleethorpes and Doncaster – 52.1 miles
  • Harrogate and Leeds – 18.3 miles
  • Hazel Grove and Doncaster – 52.6 miles
  • Hull and Micklefield – 42 miles
  • Hull and Temple Hirst junction – 36.1 miles
  •  Saltburn and Northallerton – 28.1 miles
  • Sunderland and Northallerton – 46.8 miles
  • Scarborough and York – 42.1 miles

I expect that Hitachi trains with batteries or CAF’s tri-mode trains will be able to handle these routes in a low-carbon manner.

Electrification Between Stalybridge And Huddersfield

This section is shown as being electrified on OpenRailwayMap.

But as it is only 18 miles and includes the Standedge Tunnels will the route use battery-electric trains?

October 1, 2025 Posted by | Computing, Transport/Travel | , , , , , , , , , , , , , , , , , , , , , , , , , , , , , | Leave a comment

I’ve Just Glimpsed The Future Of Train Travel Across The North Of England And I Like It

Yesterday, I had an appointment at Liverpool Lime Street station at four o’clock, so as I hadn’t seen the works for the TransPennine Upgrade for some time, I decided to go the long way round with a change of train from LNER to TransPennine Express at Leeds.

These sections document my day.

London King’s Cross To Leeds In An InterCity 225

I took these pictures on the journey.

Note.

  1. The 31 InterCity 225 trains were built around 1990.
  2. They have a capacity of 535 seats, whereas the newer Hitachi Class 801 trains have a capacity of 611 seats. Both trains are nine cars with both First and Standard seats.
  3. There is more of a step-up and step-down when entering or leaving the trains, compared to the best of today’s trains.
  4. They are now being phased out in favour of ten new CAF tri-mode Class 897 trains, which should be entering service in 2027.
  5. No details are available of the seating capacity of these trains, but they could be between 650 and 700, so they could maximise capacity on any LNER route.

Yesterday, the InterCity 225 performed well, although the windows at the seat where I sat, were rather dirty.

Changing Trains At Leeds Station

I changed to TransPennine Exzpress at Leeds station.

  • At least, Leeds station, is one of the few in the UK, with a ticket office behind the barrier. Reading station please note this.
  • But, I did have to walk across the bridge from one side of the station to the other.

In the end, I caught the TransPennine Express with about thirty seconds to spare.

Between Leeds And Huddersfield Stations

I took these pictures between Leeds and Huddersfield stations.

Note.

  1. Dewsbury and Huddersfield stations is about eight miles and takes about eight minutes.
  2. It is virtually a continuous building site, where extra tracks are being inserted.
  3. Three stations are being rebuilt.
  4. Overhead electrification is being installed. But except for approaching Huddersfield, there’s not much to be seen.
  5. OpenRailwayMap gives the maximum speed between Dewsbury and Huddersfield stations as between 60-75 mph.

The ride on my Class 803 train was very quiet and smooth. Was it on battery power or was I sitting in a coach without a diesel engine underneath?

Huddersfield Station

I took these pictures at Huddersfield station.

Note.

  1. Huddersfield station is Grade I Listed.
  2. There is a pub in each wing.
  3. I had a beer in the West Wing.
  4. There are currently three main through platforms and three bay platforms.
  5. Extensive works, which will be part of the TransPennine Upgrade,  will include electrification, a new roof, a new footbridge, and two extra through platforms.

Huddersfield station will be the jewel in the Costa del Yorkshire.

The Platforms At Huddersfield Station

This OpenRailwayMap shows the platforms in Huddersfield station.

Note.

  1. The red and black tracks are being electrified.
  2. Of the current platforms, Platforms 1, 4 and 8 will be electrified.
  3. The two bay platforms; 5 and 6, will be converted into through platforms.
  4. Platform 2 is the bay platform in the South-West corner of the map, that is used by the shuttle train from Sheffield.

I am sure extra platforms could be electrified as required, as there must be a good electrical connection at Huddersfield station.

A Tram-Train Service Between Huddersfield And Sheffield Stations

This OpenRailwayMap shows platform 2 at Huddersfield station.

Note.

  1. Platform 2 is the black track at the right of the two through tracks, that are being electrified.
  2. Platform 2 is a bay platform close to the Head of Steam pub.
  3. I estimate that the platform is about 90 metres long.
  4. I suspect Platform 2 could be lengthened if required.
  5. Sheffield’s Class 399 tram/trains are 37.2 metres long, so a pair should fit in Platform 2.
  6. The Class 398 tram/trains can run on battery power and climb hills in South Wales.
  7. Platform 2 at Huddersfield station could be electrified to charge the tram/trains.
  8. There could be a significant height difference between Huddersfield and Sheffield stations of about 40 metres, which could be used to charge tram/trains on the way down.
  9. I feel with some track improvements, that a four trains per hour (tph) service could be run.

The service would call at Meadowhall, Chapeltown, Elsecar, Wombwell, Barnsley, Dodworth, Silkstone Common, Penistone, Denby Dale, Shepley, Stocksmoor, Brockholes, Honley, Berry Brow and Lockwood

The Pair Of Cranes In Huddersfield Station

These can’t be missed in the pictures. But why two massive cranes?

With an old roof to be taken down and a new roof and a footbridge to be lifted into place, I believe Network Rail have decided to bring in two of largest mobile cranes available in the UK, so that all the lifting doesn’t delay the project.

Between Huddersfield And Stalybridge Stations

I took these pictures between Huddersfield and Stalybridge stations.

Note.

  1. The Class 802 train was running freely along a well-laid track.
  2. There are four stations between Huddersfield and Stalybridge; Slaithwaite, Marsden, Greenfield and Mossley(Manchester).
  3. The stations were in reasonable condition, but some needed new footbridges and a bit of refurbishment.
  4. There was virtually no signs of any foundations for electrification.

This map shows the route.

Note.

  1. The pink tracks are the Manchester Metrolink.
  2. The red tracks are electrified at 25 KVAC overhead.
  3. The red and black tracks are being electrified.
  4. Huddersfield is indicated by the blue arrow in the North-East corner of the map.
  5. Stalybridge station is in the South-West corner of the map.
  6. The pink track in the South-West corner of the map is the Manchester Metrolink branch to Ashton-under-Lyme.
  7. The route between Huddersfield and Stalybridge is shown as it will will be fully electrified.
  8. Huddersfield and Stalybridge is 18 miles.
  9. There are three short tunnels between Huddersfield and Stalybridge.

I wonder, if it would be more affordable to not put up wires between Huddersfield and Stalybridge and use battery-electric passenger trains and hydrogen freight locomotives?

Stalybridge Station

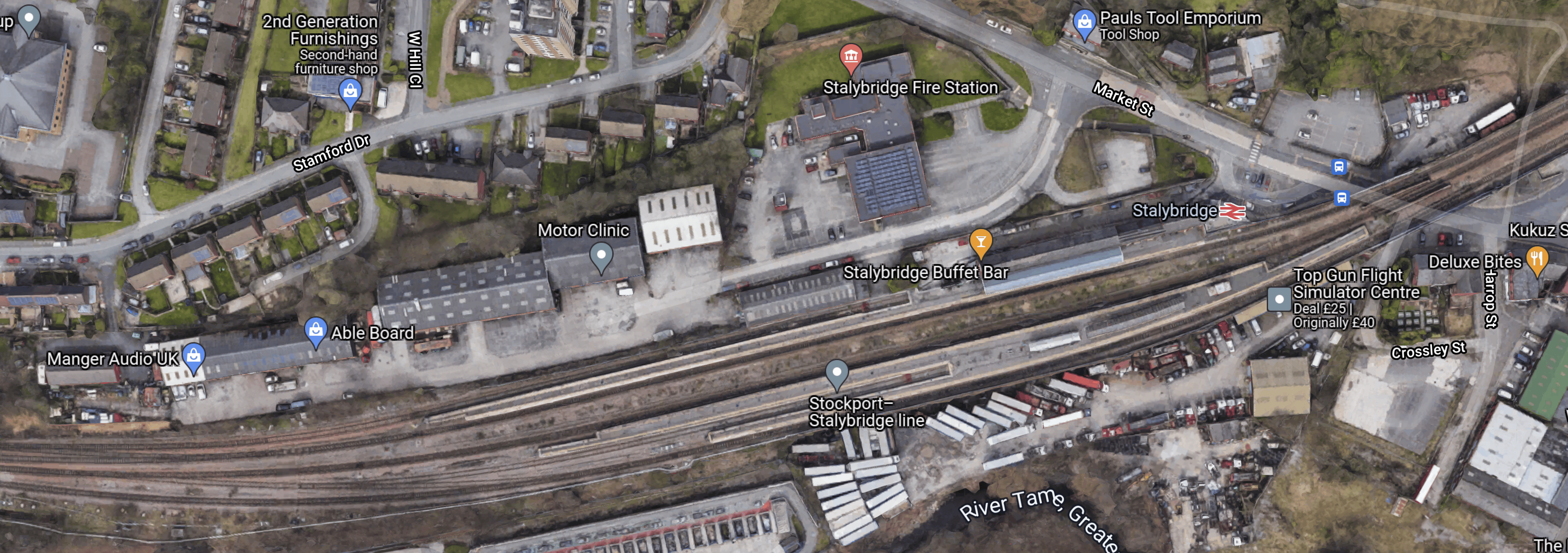

I took these pictures at Stalybridge station.

The station is fully-electrified and has direct services to Huddersfield, Hull, Leeds, Liverpool, Manchester Piccadilly, Manchester Victoria, Newcastlle, Wigan and York.

Will Liverpool Lime Street And Newcastle Be Fully Electrified?

Consider.

  • Liverpool Lime Street and Newcastle stations is 180.8 miles.
  • Newcastle and Church Fenton stations is 91.4 miles and is fully-electrified.
  • Liverpool Lime Street and Stalybridge stations is 39.4 miles and is fully-electrified.

This means that the gap between Church Fenton and Stalybridge stations is just fifty miles.

Real Time Trains indicate that the current Class 802 trains on the route run on diesel between Stalybridge and York stations, which is 60.8 miles.

  • Changing power in Stalybridge and York stations means if anything goes wrong passengers can be easily rescued.
  • From what I saw on Thursday, it looks like electrification will be completed between Neville Hill depot and Huddersfield.

I wouldn’t be surprised, if they just electrified to the West of Stalybridge and the East of Huddersfield.

That would mean that the 18 miles between Stalybridge and Huddersfield would be run on batteries.

  • But it would also avoid electrifying three tunnels.
  • How much disruption would be saved, by not electrifying the tunnels?
  • Freight trains would use something like a bi-mode Class 99 locomotive, but it would only need a range of 18 miles on diesel.

I can also see improvised bi-mode locomotives being used like this combination of a Class 66 and Class 90 locomotives.

It was certainly doing its job, when I saw the combination at Shenfield.

August 24, 2025 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , , , , | 3 Comments

Completing Northern Powerhouse Rail

The Northern Powerhouse Rail/High Speed Two Connection To Manchester Airport Station

This OpenRailwayMap shows the rail connections that terminate at Manchester Airport station.

Note.

  1. The two runways are clearly shown.
  2. Manchester Airport station is indicated by the blue arrow near the top of the map.
  3. The orange tracks are rail lines.
  4. The green lines are Manchester Metrolink tracks.
  5. Rail and tram services approach the airport station from the East.
  6. The red dotted line is the current proposed path of Northern Powerhouse Rail/High Speed Two
  7. The black dotted line appears to be an extension of the tram line to the airport.

This second OpenRailwayMap shows the lines around the airport station to a larger scale.

Note.

  1. Manchester Airport station is indicated by the blue arrow at the bottom of the map.
  2. The orange tracks are rail lines.
  3. The green lines are Manchester Metrolink tracks.
  4. The red dotted line is the current proposed path of Northern Powerhouse Rail/High Speed Two.
  5. The Manchester Metrolink now makes a loop around the Airport.

I think the following will happen.

  • A large proportion of passengers and staff travelling between Manchester Airport and Manchester City Centre will use Northern Powerhouse Rail/High Speed Two.
  • Passengers and staff, who live locally will use the Manchester Metro loop.
  • Northern Powerhouse Rail/High Speed Two will replace some of the current train services.
  • Some services on the Castlefield Corridor will migrate to Northern Powerhouse Rail/High Speed Two.

There could be as many as twelve trains per hour (tph) between Manchester Airport and Manchester City Centre on Northern Powerhouse Rail/High Speed Two. But a new urban line like that, which was mostly in a tunnel could probably handle 20 tph.

Manchester Airport And Crewe

This OpenRailwayMap shows the railways between Manchester Airport and Crewe stations.

Note.

  1. Manchester Airport station is indicated by the blue arrow at the top of the map.
  2. The orange tracks are rail lines.
  3. The red track going down the left hand side of the map is the West Coast Main Line.
  4. The green lines are Manchester Metrolink tracks.
  5. The red dotted line is the current proposed path of Northern Powerhouse Rail/High Speed Two.
  6. Crewe station is at the bottom of the map in the middle.

There could be as many as 12 tph between Manchester Airport and Crewe.

Manchester Airport And Manchester Piccadilly

This OpenRailwayMap shows the railways between Manchester Airport and Manchester Piccadilly stations.

Note.

  1. Manchester Airport station is in the South-West corner of the map.
  2. The orange tracks are existing rail lines.
  3. The green lines are Manchester Metrolink tracks.
  4. The red dotted line going up the middle of the map is the current proposed path of Northern Powerhouse Rail/High Speed Two.
  5. Manchester Piccadilly station is at the Northern end of Northern Powerhouse Rail/High Speed Two.

This OpenRailwayMap shows the City Centre between Manchester Piccadilly and Manchester Victoria stations.

Note.

  1. Manchester Piccadilly station is in the South-East corner of the map.
  2. The red dotted lines creeping into the map is the current proposed path of Northern Powerhouse Rail/High Speed Two.
  3. All the platforms in Manchester Piccadilly station can be picked out, with the Castlefield Corridor breaking away to the West.
  4. The current plans will need demolition of buildings to the North of Manchester Piccadilly station.
  5. Manchester Victoria station is in the North-West corner of the map.
  6. The green line of the Manchester Metrolink route picks out the walking route between Manchester’s two main stations.
  7. About halfway between Manchester Piccadilly and Manchester Victoria stations is the open space of Piccadilly Gardens.

This Google Map shows Piccadilly Gardens.

Note.

  1. The Manchester Metrolink running through.
  2. There are two Metrolink stops ; Market Street and Piccadilly Gardens, in the area.
  3. It appears any stop on the Manchester Metrolink can be reached with no more than a single change from one of these two stops.

Looking at the map showing Victoria and Piccadilly stations, I wonder, if a Lizzie Line of the North could be built under Manchester City Centre.

  • There would be underground platforms at Piccadilly station, with two through platforms and two to terminate trains from the South.
  • Local services from Piccadilly station could continue as now, although services to Manchester Airport could be simplified.
  • There would be an underground station at Piccadilly Gardens with two through platforms , to connect with an expanded Manchester Metrolink, buses and walking routes.
  • There would be underground platforms at Victoria station, with two through platforms and two to terminate trains from the East.
  • Local services from Victoria could continue as now.
  • There could be as many as 12 tph between Manchester Victoria, Piccadilly Gardens, Manchester Piccadilly and Manchester Airport.

Just as the Lizzie Line was slotted into London, with the minimum of disruption, I am fairly certain, a similar but smaller construction process could be carried out in Manchester City Centre.

  • Manchester doesn’t have an Underground to avoid.
  • The stations could be very similar to each other and like Custom House station on the Lizzie Line, they could be built with giant concrete Lego.
  • There would only be four stations to create.
  • The tunnel would be about fifteen miles at most.
  • The tunnel would not need to be electrified as the trains could run on batteries.

As a Manchester Rail Tunnel has been talked about for decades, I suspect there is a big knowledge base of ground conditions, which would help with the design and construction.

Between Manchester Victoria And Leeds

Consider.

  • The electrification between Manchester Victoria and Stalybridge stations has recently been switched on.
  • Part of the electrification between Leeds and York stations has been switched on.
  • Full electrification is being installed between Leeds and Manchester Victoria stations.

This OpenRailwayMap shows the Huddersfield Line between Manchester Victoria station and a few miles short of Huddersfield station.

Note.

  1. Manchester Victoria station is indicated by the blue arrow in the South-West corner of the map.
  2. Huddersfield station is just off the map in the North-East corner.
  3. Manchester Victoria and Stalybridge stations is fully electrified and shown in red.
  4. Stalybridge and Huddersfield stations is being electrified and is shown as black and red dotted.
  5. Electrification between Huddersfield and Leeds is underway under the TransPennine Upgrade.

This section will be completed, when the Manchester City Centre Rail Tunnel is connected to the Huddersfield Line.

Connecting The Manchester City Centre Rail Tunnel To The Huddersfield Line

This Google Map shows where the Huddersfield Line crosses the M60 Motorway to the West of Ashton-under-Lyme.

Note.

  1. The newly-electrified Huddersfield Line runs across the map.
  2. The M60 Motorway is on the left.
  3. There are facilities for athletics, cricket and football.

I wouldn’t be surprised if the Eastern portal of the Manchester City Centre Rail Tunnel was in this area.

But looking at Google  Maps between this site and Manchester Victoria, there are other sites.

Conclusion

I now feel that it is possible to create a Northern Powerhouse Rail/High Speed Two route using a tunnel under Manchester.

Obviously, there is more work to be done.

August 15, 2025 Posted by | Transport/Travel | , , , , , , , , , , , , , , | 3 Comments

Adding Southport And Stalybridge Via Atherton To The Bee Network

This article on the Railway Gazette has a list of the lines, that will be transferred between Northern Rail and the Bee Network.

Included in the list is this line.

Southport And Stalybridge Via Atherton.

I think this route could be the following.

  • The Eastern terminal would be Stalybridge.
  • The Northern terminal would be Southport.
  • Intermediate stations would be Meols Cop, Bescar Lane, New Lane, Burscough Bridge, Parbold, Appley Bridge, Gathurst, Wigan Wallgate, Hindley, Daisy Hill, Hag Fold, Atherton, Walkden, Swinton, Salford Crescent, Salford Central, Manchester Victoria and Ashton-under-Lyne
  • The route is partly electrified with 25 KVAC overhead.
  • Mich of the route has a 75 mph operating speed.

Currently, this service runs hourly, by a slightly different route to that proposed.

This is my thought.

Battery-Electric Trains

Consider.

  • The route could be ideal for battery-electric trains.
  • Central Manchester and Stalybridge will soon be electrified.
  • A charging station could be added at Southport station.

Merseyrail’s Class 777 trains or something similar would surely do nicely.



March 27, 2023 Posted by | Transport/Travel | , , , , | 3 Comments

Stalybridge Station – 16th December 2021

In my meandering along the TransPennine Route brought me to Stalybridge station.

This Google Map shows the station.

As the pictures and the maps show, there is space at Stalybridge station.

Timings Between Manchester Victoria And Huddersfield

There are these trains between Manchester Victoria and Huddersfield.

  • Liverpool Lime Street and Scarborough – stops at Stalybridge
  • Manchester Airport and Redcar Central
  • Liverpool Lime Street and Edinburgh
  • Manchester Airport and Newcastle.

That is four trains per hour (tph) between Manchester Victoria and Huddersfield.

  • They take around 9-14 minutes between Manchester Victoria and Stalybridge.
  • They take around 31-32 minutes between Manchester Victoria and Huddersfield.
  • As Manchester Victoria and Stalybridge is 7.7 miles, the average speed on this section is 33-51 mph
  • As Manchester Victoria and Huddersfield is 25.7 miles, the average speed on this section is 48-50 mph

In this Transport for the North report , which is entitled At A Glance – Northern Powerhouse Rail, an objective of twenty-five minutes is given for Manchester and Leeds.

One possible way to achieve this time stated in the report is stated as.

Diggle upgrades akin to a new line.

Diggle is between Greenfield station and the Standedge tunnels.

Assuming a constant average speed between Manchester Victoria and Leeds, the twenty-minutes objective for this route means a timing of fifteen minutes between Manchester Victoria and Huddersfield.

I estimate that this would need an average speed of well over 100 mph to get anywhere near the required fifteen minutes.

But by rebuilding the line between Manchester Victoria and Huddersfield to High Speed Two construction standards, it appears to be possible.

Timings Between Manchester Piccadilly And Huddersfield

There are these trains between Manchester Piccadilly and Huddersfield.

  • Manchester Piccadilly and Huddersfield – stops at Stalybridge, Mossley, Greenfield, Marsden and Slaithwaite.
  • Manchester Piccadilly and Hull – stops at Stalybridge

That is two tph between Manchester Piccadilly and Huddersfield.

The direct train is a few minutes slower, but the stopping train is nearly ten minutes slower.

I feel some time improvements will be possible, but the Manchester Victoria services will probably be faster.

Conclusion

It is possible, there could be a unique high speed line between Manchester Victoria and Huddersfield through the Victorian tunnels at Standedge.

  • One possibility, I can see is to have two fast tracks for the main TransPennine expresses and a third bi-directional third-track to accommodate the stopping services.
  • The double track express route could probably handle six tph, as the only stops between Manchester Victoria and Huddersfield is two tph that stop at Stalybridge.
  • Operating speeds on the fast tracks could be up to perhaps 160 mph on slab track.
  • All trains stop at Huddersfield.
  • A single bi-directional track between Stalybridge and Huddersfield could easily handle two tph.

There would be engineering challenges, but I feel it would be possible.

December 18, 2021 Posted by | Transport/Travel | , , , , , | 50 Comments

Beeching Reversal – Stockport And Ashton Line

This is one of the Beeching Reversal projects that the Government and Network Rail are proposing to reverse some of the Beeching cuts.

I came across this railway, when I was writing Macclesfield Station And High Speed Two, as I felt the Stockport and Stalybridge Line could be a useful connection to the proposed High Speed Two terminus at Macclesfield station.

This article on the Quest Media Network is entitled Proposals For New Rail Link Between Ashton And Stockport.

This paragraph described the political backing.

The Labour politicians are backing a bid to the ‘Restoring Your Railway Fund’, which will distribute £500 million of funds to reinstate axed local services and restore stations.

The bid was put forward by Transport for Greater Manchester (TfGM) and Stockport Council, but also has the backing of Tameside Council.

Not fans of Boris, I would presume!

These paragraphs describe the proposals

It proposes two options – a heavy rail service between Stockport and Manchester Victoria via Denton and Reddish South, and a light rail service connecting with the existing Manchester-Ashton Metrolink line at Ashton Moss in the north, and with the proposed Stockport-East Didsbury line in the south.

The proposals also open possibilities of new stations along the line at Audenshaw, Thornley Lane and Heaton Norris.

These are my thoughts.

Macclesfield As A Terminal

As I said in conjunction with High Speed Two, I believe that Macclesfield station would make a good terminal, where a Stockport-facing platform could be built, which would give step-free access to the hourly High Speed Two train to Stoke, Stafford and London.

Manchester Victoria And Stockport

This route map, which has been clipped from Wikipedia, shows the route between Manchester Victoria and Stockport stations.

Note.

  1. The connection to Manchester Victoria station joins at Denton Junction.
  2. There are possible stations at Denton, Reddish South and Heaton Norris.
  3. Trains to Macclesfield station take the West Coast Main Line from Stockport station.
  4. At Stalybridge there is a connection to the Huddersfield Line for Huddersfield and Leeds.

Realtimetrains devolves this extra information.

  • Manchester Victoria and Stockport are twelve miles apart via Denton.
  • It is a busy freight route with upwards of a couple of trains per hour (tph)
  • There used to be a station at Miles Platting.

It is a comprehensive route and deserves a lot more than a simple hourly service to Manchester Victoria station.

Battery Electric Trains

Consider.

  • Macclesfield, Manchester Victoria and Stockport stations are all fully electrified.
  • About twelve miles of track are not electrified.
  • Manchester Victoria and Macclesfield stations are twenty-four miles apart.
  • I estimate a four-car 100 mph battery electric train like a Class 350 train would do the trip in close to 25 minutes.

It looks like an ideal route for a battery electric train to me.

Two trains would be needed to run a two tph service, with no extra infrastructure.

Conclusion

Develop a service between Manchester Victoria and Macclesfield stations using battery electric trains, with at least a frequency of two tph.



July 15, 2020 Posted by | Transport/Travel | , , , , , , , | 3 Comments

Warning As Electricity Cables Are Switched On In Manchester

The title of this post is the same as that of this article on Rail Advent.

This is the first paragraph.

Network Rail has warned members of the public to stay off the railway as new high voltage equipment goes live on the line between Stalybridge and Manchester Victoria.

It now looks like electric the current service between Stalybridge and Wigan North Western stations can now be run more efficiently by a Class 769 train, when these enter service.

If Network Rail were to get their skates on and electrify between Bolton and Wigan North Western stations via Lostock Junction, the talybridge and Wigan North Western Route could be run by electric traction.

This electrification of the Lostock Junction route, would also allow the Wigan North Western and Alderley Edge service to be run by electric traction.

Looking at Google Maps of the route, it appears that gantries are being or have been erected.

July 23, 2019 Posted by | Transport/Travel | , , , | 6 Comments

Wigan North Western To Alderley Edge And Stalybridge

The following two services were started from Wigan North Western station in May 2018.

Both services are hourly and cross-Manchester services. I rode both of them on Friday afternoon.

These two routes are not fully-electrified and it was intended that they would use new Class 769 bi-mode trains, which can use diesel on sections without electrification.

But the Class 769 trains are still under test, so there was a selection of good and not-so-good rolling stock.

  • One four-car train was two refurbished Class 156 trains working together.
  • Another was a pair of refurbished Class 150 trains.
  • And a third was a Class 150 train pulling a Pacer.

The diesel trains trundled into Manchester at speeds between sixty and eighty mph.

At least the four-car trains were the right size for the route and although full, the trains weren’t by any means over-full!

The arrival of the Class 769 trains would increase the quality and operating speed of the rolling stock.

I also went into Manchester on Saturday in a Class 319 train.

This electric train was doing up to ninety mph on the fully-electrified route via Newton-le-Willows.

As the Class 769 trains are based on Class 319 trains on electrified sections of the routes, they will be able to speed along and shorten journey times.

Wigan North Western And Alderley Edge

On this route approximately 9.5 miles of the 34.5 miles route is not electrified and journeys take 78 minutes.

As between Bolton and Alderley Edge is now fully electrified, I wonder what will be time between Wigan North Western and Alderley Edge.

If the service is under the hour, this could mean a reduction in the number of trains needed to work the route.

Wigan North Western And Stalybridge

On this route approximately 17 miles of the 27.8 miles route is not electrified and journeys take 59 minutes.

Because this service spends more time on diesel, the speed-up might not be as easy to achieve.

Conclusion

I predict that the Class 769 trains will be welcomed by passengers, operators and staff, as they will speed up services.



February 24, 2019 Posted by | Transport/Travel | , , , , | 1 Comment

Stalybridge Station – 22nd February 2019

I took these pictures, when I visited Stalybridge station earlier this year.

Note that there appears to be no electrification.

But there is an extremely good real ale hostelry.

February 22, 2019 Posted by | Food, Transport/Travel | , , , | 1 Comment

Does A New Service Start Between Wigan North Western And Alderley Edge Stations Using Class 769 Trains On May 20th?

On the Wikipedia entry for Class 769 trains, this is said about the introduction into service of the trains by Northern.

Scheduled to begin entering service in May 2018, Northern plans to deploy its Class 769 units on the Windermere branch line and also their Manchester Airport to Windermere, Wigan North Western to Alderley Edge and Wigan North Western to Stalybridge services

I have looked at the National Rail timetable for the 19th of May and looked up getting between Wigan North Western and Alderley Edge station involves a change at Manchester Piccadilly station.

But look at the journey on the 21st of May and there is an hourly direct train.

  • First train – 08:50
  • Last train – 19:50
  • Journey time – 78 minutes

The train will stop at Hindley, Westhoughton, Bolton, Salford Crescent, Deansgate, Manchester Oxford Road, Manchester Piccadilly, Levenshulme, Heaton Chapel, Stockport, Cheadle Hulme, Handforth and Wilmslow.

In the other direction, the service is as follows.

  • Hourly
  • First train – 06:49
  • Last train – 19:48
  • Journey time – 70 minutes

It is an ideal route for a Class 769 train.

  • Between Wigan North Western and Bolton is not electrified.
  • I also suspect that Bolton and Salford Crescent won’t have the wires completed by the 20th of May.

Manchester will be getting another cross-city service courtesy of a thirty-year-old electric train, with a couple of diesel engines slung underneath.

Wigan North Western And Stalybridge

An hourly service from Wigan North Western to Stalybridge also appears to be in the timetable from the 21st of May.

  • First train – 08:08
  • Last train – 22:50
  • Journey time – 59 minutes

The trains will stop at Hindley, Westhoughton, Bolton, Moses Gate, Farnworth, Kearsley (Manchester), Salford Crescent, Salford Central, Manchester Victoria and Ashton-under-Lyne.

In the other direction, the service is as follows.

  • First train – 06:30
  • Last train – 21:29
  • Journey time – 63-66 minutes

It is another ideal route for a Class 769 train.

  • Between Wigan North Western and Salford Central not fully electrified.

As the current service between Wigan Wallgate and Stalybridge seems to have been discontinued, it looks like Pacers and elderly diesels are being replaced by electric trains.

Conclusion

It looks to me, that as the electrification through Bolton and Salford Crescent, that Northern are doing the best they can with what they have available.

I estimate that Northern will need around six trains to run these two services, one of which is new and the other a change of terminus from Wallgate to North Western at Wigan.





April 10, 2018 Posted by | Transport/Travel | , , , , , , | 4 Comments

« Previous Entries
