Should High Speed Two’s Macclesfield And London Service Call At Birmingham Interchange?

Connecting Manchester City Centre to the High Speed Two network will be a major undertaking.

  • It looks increasingly likely that High Speed Two and Northern Powerhouse Rail will have a shared line running from the main High Speed Two route through Crewe to Manchester Piccadilly via Manchester Airport.
  • Between Manchester Airport and Manchester Piccadilly will be in a high speed tunnel.
  • Northern Powerhouse Rail will connect Liverpool Lime Street and Warrington to Manchester Airport and Manchester Piccadilly.
  • There will be a major problem keeping train services running between Manchester and Birmingham, London and the South.

But just at Project Rio kept Manchester connected during the rebuilding of the West Coast Main Line in the early years of this century, I believe that a similar creditable alternative route may be starting to evolve.

Avanti’s Additional Class 807 Trains Will Be Delivered

These trains will allow additional services and release some Class 390 trains to reinforce other services.

Avanti West Coast’s Future West Coast Main Line Service

The small fleet of Class 807 trains are needed to provide extra services on the West Coast Main Line.

  • But if these trains are successful, will more be used as replacements for the nearly twenty-years-old Class 390 trains?
  • Will they also be given more traction power to double as the classic-compatible trains for High Speed Two.
  • Other operators might also like to purchase a high capacity 200 metre long high speed train, which would share routes used by High Speed Two.

In Thoughts On Class 807 Trains And High Speed Two’s Classic-Compatible Trains, I discuss the design of extra trains for High Speed Two and the West Coast Main Line.

Surely, though having similar trains handling both roles on the West Coast Main Line and High Speed Two, would be an advantage to Avanti West Coast?

London And Manchester Services

Currently, there are these services between London Euston and Manchester Piccadilly stations.

  • Via Milton Keynes Central, Stoke-on-Trent and Stockport
  • Via Stoke-on-Trent, Macclesfield and Stockport
  • Via Stafford, Crewe, Wilmslow and Stockport

All services have a frequency of one train per hour (tph)

High Speed Two plans to run these services between the South and the Manchester area.

  • 1 tph – 200 metres – London Euston and Wigan North Western via Old Oak Common, Crewe and Warrington Bank Quay
  • 1 tph – 200 metres – London Euston and Macclesfield via Old Oak Common, Stafford and Stoke.
  • 1 tph – 400 metres – London Euston and Manchester Piccadilly via Old Oak Common, Birmingham Interchange and Manchester Airport
  • 2 tph – 400 metres – London Euston and Manchester Piccadilly via Old Oak Common and Manchester Airport
  • 2 tph – 200 metres – Birmingham Curzon Street and Manchester Piccadilly via Manchester Airport
  • 1 tph – 200 metres – Birmingham Curzon Street and Wigan North |Western

Note.

  1. I have included Wigan North Western, as it has good connections to North Manchester.
  2. Services can’t go via Manchester Airport until the tunnel is completed.
  3. The 400 metre services will need to use dedicated High Speed Two tracks, so will need to use the tunnel via Manchester Airport.

Wigan and Macclesfield stations will not be requiring major rebuilding, during the construction of High Speed Two. That should mean the stations will not need to be closed for long periods.

  • Macclesfield station could probably handle up to three tph from the South.
  • Wigan North Western station could probably handle two tph from the South.
  • Work in the Manchester Piccadilly area, may well close the station at times.

I suspect Macclesfield and Wigan North Western could be very useful alternative stations for travelling to and from the South.

Manchester And Birmingham Via Macclesfield

I can see that there could be difficulties for some passengers, if they found themselves at Macclesfield wanting to go to the Birmingham area.

A solution would be for the Macclesfield and London service to stop at Birmingham Interchange, which will be extremely well-connected.

Birmingham Interchange

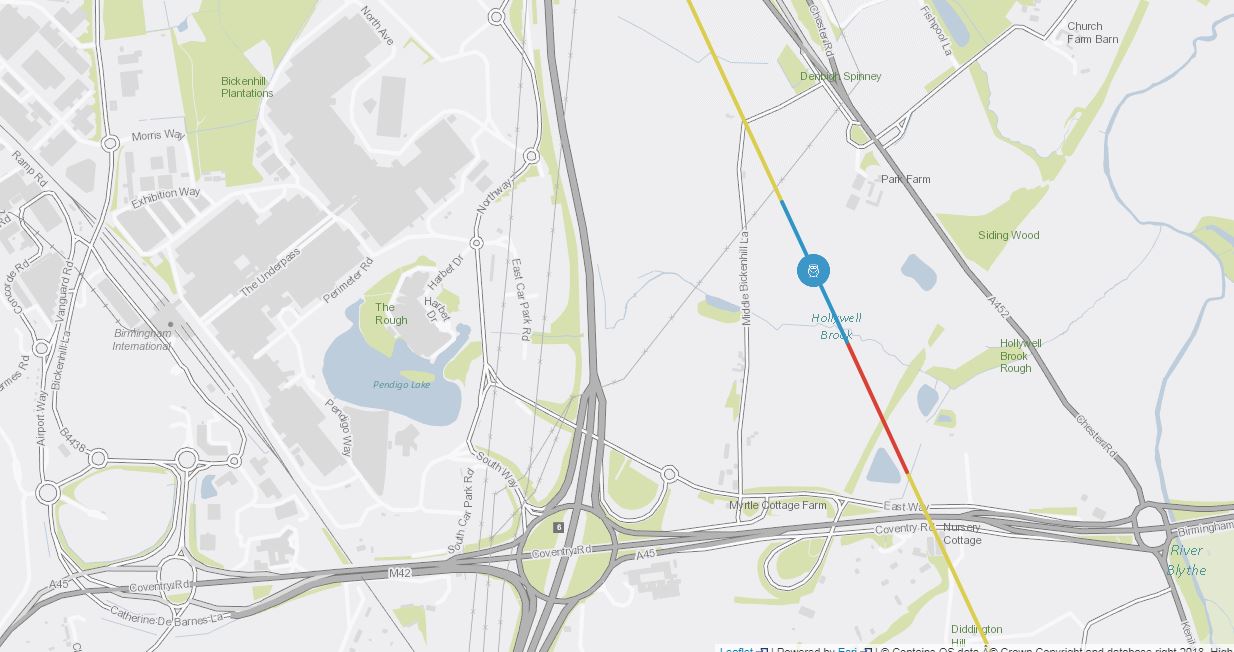

This map from High Speed Two, shows Birmingham Interchange and Birmingham International stations.

Note.

  • Birmingham Interchange station is marked by the blue dot.
  • Birmingham International station is to the West of the M42.

The two stations will be connected by an automatic people mover.

Destinations and their frequencies available from Birmingham Interchange, when High Speed Two is complete will include.

  • 2 tph – Birmingham Curzon Street
  • 1 tph – Carlisle
  • 1 tph – East Midlands Hub
  • 1 tph – Edinburgh Haymarket
  • 1 tph – Edinburgh Waverley
  • 1 tph – Glasgow Central
  • 1 tph – Leeds
  • 5 tph – London Euston
  • 1 tph – Manchester Airport
  • 1 tph – Manchester Piccadilly
  • 5 tph – Old Oak Common
  • 1 tph – Preston

It looks like if you miss your train to many important cities at Birmingham Interchange, it will be an hour to wait for the next train.

Destinations and their frequencies available from Birmingham International are currently.

  • 8 tph – Birmingham New Street
  • 1 tph – Bournemouth
  • 1 tph – Crewe
  • 0.5 tph to Edinburgh Waverley
  • 0.5 tph to Glasgow Central
  • 7 tph – London Euston
  • 1 tph – Macclesfield
  • 1 tph – Manchester Piccadilly
  • 1 tph – Reading
  • 1 tph – Shrewsbury
  • 1 tph – Southampton
  • 1 tph – Stafford
  • 1 tph – Stoke-on-Trent
  • 2 tph – Wolverhampton

Note that 0.5 tph is one train per two hours.

These two lists can be combined.

  • 10 tph – Birmingham Curzon Street/New Street
  • 1 tph – Bournemouth
  • 2 tph – Carlisle
  • 1 tph – Crewe
  • 1 tph – East Midlands Hub
  • 1.5 tph – Edinburgh Haymarket
  • 1.5 tph – Edinburgh Waverley
  • 1.5 tph – Glasgow Central
  • 1 tph – Leeds
  • 12 tph – London Euston
  • 1 tph – Macclesfield
  • 1 tph – Manchester Airport
  • 2 tph – Manchester Piccadilly
  • 5 tph – Old Oak Common
  • 1 tph – Preston
  • 1 tph – Reading
  • 1 tph – Shrewsbury
  • 1 tph – Southampton
  • 1 tph – Stafford
  • 1 tph – Stoke-on-Trent
  • 2 tph – Wolverhampton

This list is surely missing Bristol, Cardiff, Liverpool, Sheffield and Newcastle.

Conclusion

We should not underestimate the importance of Macclesfield and Wigan North Western stations in getting to and from Manchester during the building of High Speed Two.

July 15, 2020 Posted by | Transport/Travel | , , , , , , , , , , | Leave a comment

Beeching Reversal – Stockport And Ashton Line

This is one of the Beeching Reversal projects that the Government and Network Rail are proposing to reverse some of the Beeching cuts.

I came across this railway, when I was writing Macclesfield Station And High Speed Two, as I felt the Stockport and Stalybridge Line could be a useful connection to the proposed High Speed Two terminus at Macclesfield station.

This article on the Quest Media Network is entitled Proposals For New Rail Link Between Ashton And Stockport.

This paragraph described the political backing.

The Labour politicians are backing a bid to the ‘Restoring Your Railway Fund’, which will distribute £500 million of funds to reinstate axed local services and restore stations.

The bid was put forward by Transport for Greater Manchester (TfGM) and Stockport Council, but also has the backing of Tameside Council.

Not fans of Boris, I would presume!

These paragraphs describe the proposals

It proposes two options – a heavy rail service between Stockport and Manchester Victoria via Denton and Reddish South, and a light rail service connecting with the existing Manchester-Ashton Metrolink line at Ashton Moss in the north, and with the proposed Stockport-East Didsbury line in the south.

The proposals also open possibilities of new stations along the line at Audenshaw, Thornley Lane and Heaton Norris.

These are my thoughts.

Macclesfield As A Terminal

As I said in conjunction with High Speed Two, I believe that Macclesfield station would make a good terminal, where a Stockport-facing platform could be built, which would give step-free access to the hourly High Speed Two train to Stoke, Stafford and London.

Manchester Victoria And Stockport

This route map, which has been clipped from Wikipedia, shows the route between Manchester Victoria and Stockport stations.

Note.

  1. The connection to Manchester Victoria station joins at Denton Junction.
  2. There are possible stations at Denton, Reddish South and Heaton Norris.
  3. Trains to Macclesfield station take the West Coast Main Line from Stockport station.
  4. At Stalybridge there is a connection to the Huddersfield Line for Huddersfield and Leeds.

Realtimetrains devolves this extra information.

  • Manchester Victoria and Stockport are twelve miles apart via Denton.
  • It is a busy freight route with upwards of a couple of trains per hour (tph)
  • There used to be a station at Miles Platting.

It is a comprehensive route and deserves a lot more than a simple hourly service to Manchester Victoria station.

Battery Electric Trains

Consider.

  • Macclesfield, Manchester Victoria and Stockport stations are all fully electrified.
  • About twelve miles of track are not electrified.
  • Manchester Victoria and Macclesfield stations are twenty-four miles apart.
  • I estimate a four-car 100 mph battery electric train like a Class 350 train would do the trip in close to 25 minutes.

It looks like an ideal route for a battery electric train to me.

Two trains would be needed to run a two tph service, with no extra infrastructure.

Conclusion

Develop a service between Manchester Victoria and Macclesfield stations using battery electric trains, with at least a frequency of two tph.



July 15, 2020 Posted by | Transport/Travel | , , , , , , , | 3 Comments
