Birmingham Airport Connectivity

On the Midlands Connect web site, they have a page, which is entitled Birmingham Airport Connectivity.

This is the introductory paragraph.

By using capacity released by HS2 and investing in new track south of Birmingham Airport, we can improve connections from the south of England, East Midlands, Yorkshire and the North East.

The page contains this helpful map.

It looks like Midlands Connect are thinking about improving the Reading and Newcastle service.

Points made on the page and related articles, like this one on Rail News  include.

  • Birmingham Airport has plans to increase passenger numbers to 18 million by 2033.
  • Coventry and Leamington Spa via Kenilworth will be double-tracked.
  • High Speed Two will release capacity in the area.
  • It will open up rail capacity between Birmingham and Solihull.
  • There will be a new service between Birmingham Moor Street and Oxford via Solihull and Warwick Parkway.
  • It will improve local connections to Birmingham Airport.
  • Birmingham and Reading services will be increased to two trains per hour (tph)
  • The Government is being asked to chip in £20 million.

These are my thoughts.

Birmingham Airport

Birmingham Airport can become a true Heart of England Airport.

I feel that the future of aviation will be very different to the past.

  • COVID-19 and the future pandemics, that we will endure from the East and the Americas, will mean that flying will be a very different experience with hygiene and social distancing to the fore.
  • Smaller aircraft, for flights up to 500 miles, will be odd-looking zero-carbon machines with exotic power systems.
  • Larger aircraft will be energy efficient planes powered by aviation biofuels produced from household and industrial waste, and biomass.
  • Boeing 747s and Airbus A380s will only be talked about in tales from older people to the young.
  • Airports will be important rail hubs to more than just the local area.

Wikipedia also says this about expansion of Birmingham Airport.

Plans for a second runway (a third when demand requires) on the other side of the M42 and a new terminal complex and business park have been published, and they could help to create around 250,000 jobs. It has been estimated that if these plans went ahead, the airport could handle around 70,000,000 passengers annually, and around 500,000 aircraft movements.

This Google Map shows the Airport.

Note the M42 motorway passing North-South to the East of the Airport.

Could Birmingham Airport develop towards Birmingham Interchange and High Speed Two?

It is worth looking at the distance to other airports.

  • Aberdeen – 328 miles
  • Amsterdam – 280 miles
  • Dublin – 199 miles
  • Frankfurt – 478 miles
  • Geneva – 558 miles
  • Paris – 304 miles

All could be within range of an electric aircraft like the under-development Eviation Alice.

I believe that large airports will develop low-noise zero-carbon secondary runways.

Birmingham Airport is well-situated to take advantage.

Adding A Second Track Between Leamington Spa And Coventry

This section of track is about ten miles long, with probably under half only single-track.

This Google Map shows the single-track through the new Kenilworth station.

And these are pictures I took soon after the station opened.

It is certainly one of the best of the current crop of new small stations.

I don’t think that adding a second track will be the most challenging of projects.

It should be noted that the Leamington Spa and Nuneaton service could be a candidate for a battery electric train.

  • The route is twenty miles long
  • Nuneaton and Coventry stations are fully electrified.
  • There might be possibilities to extend this service at either or both ends.
  • Nuneaton and Leicester are nineteen miles apart and a new Nuneaton Parkway station is proposed for the route. I wrote about this station in New Railway Station Between Hinckley And Nuneaton Receives Backing.
  • Leamington Spa and Stratford-upon-Avon are fifteen miles apart and would need a reverse at Leamington Spa.

A battery electric train might give a faster and more passenger-friendly service, if the passenger numbers and forecasts would support an extended service.

A Birmingham Moor Street And Oxford Service

This Google Map shows Birmingham Moor Street station.

Note.

  1. The two Northern through platforms on the Snow Hill Lines, that continue under Birmingham to Birmingham Snow Hill station.
  2. At least two, but possibly three bay platforms, that can take Chiltern Railway’s longest trains.
  3. There is more space for possibly another two bay platforms to be reinstated or built.

Birmingham Moor Street station will also be a short walk from High Speed Two’s Birmingham Curzon Street station.

This Google Map shows Oxford station.

Note.

  1. Birmingham Moor Street station is to the North via Banbury and Warwick Parkway stations.
  2. The two long through platforms capable of taking a nine-car train.
  3. There are two bay platforms to the East of the two through platforms, at the Northern end of the station.
  4. The bay platforms handle Chiltern’s services from London Marylebone and could also handle the proposed service to Birmingham Moor Street.

Consider this about the proposed Birmingham Moor Street and Oxford service.

  • The service could stop at Solihull, Warwick Parkway, Warwick, Leamington Spar and Banbury, as was thought necessary.
  • I estimate that Birmingham Moor Street and Oxford are 66 miles apart and that a 100 mph train would take around 66 minutes.
  • Birmingham Moor Street and Banbury are 43 miles apart.
  • Oxford and Banbury are 23 miles apart.

With these timings and a few minutes to reverse at each end of the route, I would estimate that a 2.5 hour round trip would be possible.

But, I also think, that with charging facilities or short lengths of electrification at Birmingham Moor Street, Banbury and Oxford stations, this service could be run by battery electric trains.

  • A three hour round trip should be possible.
  • Three trains would be needed to provide an hourly service.
  • Oxford, Banbury, Leamington Spa and Warwick would have a direct connection to High Speed Two.

It should also be noted

  • Birmingham Moor Street and Stratford-upon-Avon stations are only 25 miles apart and the journey rakes 46 minutes
  • Banbury and Stratford-upon-Avon are 35 miles apart. and the journey takes 57 minutes.
  • Leamington Spa and Nuneaton are 20 miles apart and the journey takes 36 minutes.

There would appear to be tremendous potential for battery electric services between Birmingham and Oxford.

How many tourists would a Birmingham and Oxford service via Stratford-upon-Avon attract?

Improving The Reading And Newcastle Service

Currently, this is a one tph service between Reading and Newcastle stations.

  • It is run by CrossCountry.
  • Intermediate stops include Oxford, Banbury, Leamington Spa, Birmingham New Street, Derby, Sheffield, Doncaster, York, Darlington and Durham.
  • It appears that the full journey takes four-and-a-half hours.

It looks like to run a two tph service would need as many as twenty trains.

There is an alternative route after High Speed Two opens.

  • High Speed Two – Newcastle and Birmingham Curzon Street – 118 minutes
  • Walk – Curzon Street and New Street – 10 minutes
  • CrossCountry – Birmingham New Street and Reading – 90 minutes

This saves about forty-five minutes.

You could even do a double change.

  • High Speed Two – Newcastle and East Midlands Hub – 96 minutes
  • High Speed Two – East Midlands Hub and Birmingham Interchange – 17 minutes
  • Walk – Birmingham Interchange and Birmingham International – 10 minutes
  • CrossCountry – Birmingham International and Reading – 78 minutes

This gives a time of around three hours and twenty minutes.

High Speed Two certainly saves time.

But look at this map clipped from the High Speed Two web site.

Note.

  1. The blue dot shows the location of Curzon Street station.
    The West Coast Main Line running into New Street station, is just to the South of Curzon Street station.
    New Street station can be picked out to the West of Curzon Street station.

This Google Map shows a close-up of the current Curzon Street station site.

The same pattern of rail lines going past the Curzon Street site into New Street station can be picked out.

Surely, a connection could be made to allow trains from a couple of platforms in Curzon Street station to terminate trains from the West Coast Main Line.

To improve services between Newcastle and Reading, trains would do the following.

  • Run on the current East Coast Main Line infrastructure between Newcastle and York. Station stops could be Durham, Darlington and York.
  • Switch to new High Speed Two infrastructure South of York.
  • Run on High Speed Two infrastructure to Birmingham Curzon Street station. Station stops could be Sheffield, Chesterfield and East Midlands Hub.
  • The train would reverse at Birmingham Curzon Street station.
  • Switch to the West Coast Main Line outside Birmingham Curzon Street station.
  • Run on the West Coast Main Line to Birmingham International station.
  • Take the route currently used by CrossCountry between Birmingham International and Reading. Station stops could be Leamington Spa, Warwick Parkway, Banbury and Oxford stations.

Timings would be as follows.

  • Newcastle and Birmingham Curzon Street – 118 minutes – From High Speed Two web site.
  • Birmingham Curzon Street and Reading – 90 minutes – Current CrossCountry timing.

Note.

  1. This saves about an hour over the current CrossCountry timings.
  2. It could use classic-compatible High Speed Two trains.
  3. Between Birmingham Curzon Street and Newcastle, it follows the same route as one of the current proposed High Speed Two services.
  4. The service could be extended to Edinburgh from Newcastle.
  5. The service could be extended to Southampton from Reading
  6. As there are only twelve tph planned to be running on the Eastern leg of High Speed Two, against a total capacity of eighteen tph, it should be possible to accommodate the extra service or services.

This would surely be a very useful High Speed Two service.

Conclusion

It is a comprehensive package of measures, some of which could have a high cost benefit ratio.









July 17, 2020 Posted by | Transport | , , , , , , , , , , , , , , , , | 7 Comments

Should Phase One Of High Speed Two Go To Birmingham Or Crewe?

The important Crewe station is currently planned to be reached from London in Phase 2a of High Speed Two, with the first train scheduled for 2027, according to Wikipedia.

There have been changes over the years and the delivery of the line at Crewe was brought forward by a few years, so that now it is just twelve months after the line opened to Birmingham.

So is it better that Phase 1 of High Speed Two goes to Birmingham or Crewe?

The Route Of High Speed Two Between Birmingham And Crewe

This map clipped from the High Speed Two web site, shows the route between Birmingham and Crewe.

Note.

  1. Phase 1 is shown in dark blue
  2. Phase 2a is shown in a lighter blue.
  3. Phase 2b is shown in orange.
  4. Crewe is in the North-West corner of the map.
  5. Of the two routes in the middle Phase 2a is to the East with the West Coast Main Line to the West.
  6. Birmingham is in the South-East Corner of the map, where two stations are shown; Birmingham Curzon Street in the West and Birmingham Interchange slightly to the South.

This second map, shows High Speed Two to the East of Birmingham.

Note.

  1. The colours are the same.
  2. The Eastern leg to Nottingham and Leeds, which is shown in orange, goes off to the North-East.

This third map shows the route around Lichfield.

Note.

  1. Phase 1 is shown in dark blue
  2. Phase 2a to Crewe is the branch going North and is shown in a lighter blue.
  3. The other branch going to the North West is the existing West Coast Main Line.

This fourth map shows the routes between Lichfield and Crewe

Note

  1. The colours are the same.
  2. Phase 2a of High Speed Two is the straighter route to the East.
  3. The more curvy route is the existing West Coast Main Line.

This fifth map shows the section of the route through Crewe.

Note.

  1. At the North of the map, the blue line is the West Coast Main Line and the orange line is the High Speed Two route to Manchester.
  2. Through Crewe the two lines share a route and may even share tracks.
  3. At the South of the map the High Speed Two route is on the East, with the West Coast Main Line to the West.

Click here to access High Speed Two’s interactive map, that I used to obtain these maps.



Phase One Services

Currently the following services are planned for Phase One of High Speed Two.

  • Three trains per hour (tph) – Birmingham Curzon Street, via Old Oak Common (OOC) and Birmingham Interchange.
  • Three tph – Birmingham Interchange via OOC.
  • Two tph – Liverpool Lime Street via OOC, Stafford (1tph), Crewe (1tph) and Runcorn
  • Three tph – Manchester Piccadilly via OOC, Wilmslow (1tph) and Stockport
  • One tph – Preston via OOC, Crewe, Warrington Bank Quay and Wigan North Western
  • One tph – Glasgow Central via OOC and Preston

Summing these up, the following totals are calculated.

  • 6 tph – Birmingham Interchange
  • 2 tph – Crewe
  • 2 tph – Preston

Most other stations get two tph or less.

Birmingham Or Crewe?

In the following sections I will discuss various points.

Service Between Euston And Stafford

There is an interesting point shown up by the maps and the proposed services for Phase One.

Trains using High Speed Two won’t be able to call at Stafford unless they take a diversion along the West Coast Main Line. So after Phase 2a has been built between Lichfield and Crewe, Stafford could lose its High Speed Two service, unless they use the classic route.

Birmingham Interchange Station

Birmingham Interchange station will be unaffected by the decision of the terminus of Phase 1 of High Speed Two.

  • It will be a Parkway station, with probably lots of parking.
  • It will be connected to the National Exhibition Centre, Birmingham International station and Birmingham Airport by means of a people mover.
  • All High Speed Two services go through the station and six tph are proposed to stop in Phase 1.
  • The West Midlands Metro could serve the station.
  • It will be thirty-eight minutes from London. Stansted Airport is fifty and Gatwick is around thirty!

I suspect that the time to and from London and a four-hundred metre long train every ten minutes, will mean that this will be a very busy station.

  • Will Londoners treat Birmingham Airport, as a London Airport?
  • Motorways to the East of Birmingham could mean the West Midlands treats the station as a Park-and-Ride station for London.
  • Birmingham International station is a well-connected station with five platforms.

This station could become the busiest in the UK.

Birmingham Curzon Street Station

Birmingham Curzon Street station will be an unusual station for the UK, in that will be a city-centre terminal station running East-West, with services going both North and South, using a junction with the main High Speed Two.

  • It will have seven platforms.
  • It will be a short walk to Birmingham Moor Street station.
  • It will have a stop on the West Midlands Metro line between Digbeth and Grand Central

Birmingham are hoping the station will be a catalyst for redevelopment of the area around the station.

After Phase 2 of High Speed Two services to the South are planned to include.

  • Three tph – Euston via Birmingham Interchange and OOC.
  • One tph – Birmingham Interchange direct

The hourly shuttle between the two stations makes up the service between them to a Turn-Up-And-Go frequency of four tph.

After Phase 2 of High Speed Two services to the North are planned to include.

  • One tph – Stafford or Crewe direct
  • One tph – Manchester Piccadilly via Crewe and Manchester Interchange
  • Two trains per day – Preston via Crewe, Manchester Interchange and Wigan North Western
  • Two trains per day – Carlisle via Manchester Interchange, Wigan North Western and Preston.
  • One tph – Glasgow via Warrington Bank Quay, Wigan North Western, Preston and Carlisle.
  • One tph – Edinburgh via Crewe, Warrington Bank Quay, Wigan North Western, Preston and Carlisle.
  • One tph – Leeds via East Midlands Hub
  • One tph – York via East Midlands Hub and Sheffield
  • One tph – Newcastle via York

Summing up four tph go via the Western leg and Crewe to the North and three tph go via the Eastern leg and East Midlands Hub.

I suspect it is all about balancing the services between the three legs of High Speed Two.

  • London and Birmingham
  • Birmingham and North West England and Scotland
  • Birmingham and North East England.

High Speed Two has been designed for fifteen tph running into Euston, so if all parts of the route can handle that number of trains, there must be a lot of scope to add extra services.

Birmingham Curzon Street with its seven platforms would balance all the services and probably help to sort things out in times of disruption.

Between Birmingham International Station And Lichfield

The maps show that this section must be built to connect High Speed Two to the West Coast Main Line just to the North of Lichfield Trent Valley station on the Trent Valley Line, as there is no other possible connection between the two routes.

This map clipped from the High Speed Two map, shows where the two lines join.

It is obviously designed for speed.

I estimate that the distance between Birmingham Interchange and this junction is not far short of twenty miles.

Between Lichfield And Crewe Station

Along the West Coast Main Line, the distance is around forty-two miles, but the straighter route proposed for High Speed Two could be a few miles shorter and several minutes faster.

If Phase 1 of High Speed Two were not to be built, trains would have to share the West Coast Main Line through Stafford station.

Currently, Stafford station can have as many as fifteen tph through the station.

Phase 1 of High Speed Two will have these trains going North of Birmingham Interchange station.

  • Two tph – Liverpool Lime Street
  • Three tph – Manchester Piccadilly
  • One tph – Preston
  • One tph – Glasgow Central

Which is a total of seven tph, with one tph stopping at Stafford.

I doubt they could all be squeezed through Stafford.

There would certainly be no space for any trains starting at Birmingham Curzon Street.

This is a very simple example of the capacity problems on the West Coast Main Line, which can only be solved by extra tracks to the North.

Crewe Station

Consider these points about Crewe station.

  • It is not of a design that reflects its status.
  • Currently, it handles 23 tph, that go all over the North West and much further.
  • Phase 1 of High Speed Two would add another seven tph
  • New services are planned.
  • A rebuilding of the station would surely improve both capacity and operational efficiency.
  • Looking at the fifth of the maps, it appears that the West Coast Main Line and High Speed Two share a corridor , if not tracks, through Crewe station.

For all these reasons, I am convinced that if High Speed Two passes through, then the station will need a rebuild.

So it looks like whether High Speed Two goes ahead or not, Crewe station will need an expensive rebuild.

Extra High Speed Two Services Through Crewe

Once Phase 2a has been completed, this will allow some extra Phase 2 services to be run along the route from Euston.

  • Two tph from one tph – Glasgow Central via OOC, Birmingham Interchange (1tph), Preston and Carstairs
  • Two tph – Edinburgh via OOC, Birmingham Interchange (1tph), Preston, Carstairs and Edinburgh Haymarket

I suspect these might run as a pair of trains as far as Carstairs and split and join there.

There will also be extra services between Birmingham Curzon Street, Crewe and Stafford to Edinburgh, Glasgow, Liverpool Lime Street, Manchester Piccadilly and Preston.

It is worth noting, that when all the services going North from Birmingham are summarised, you get the following.

  • Four tph – Manchester Piccadilly
  • Three tph – Liverpool Lime Street
  • One tph – Preston
  • Four tph – Glasgow/Edinburgh
  • One tph – Stafford or Crewe

It looks a bit complicated North of Crewe, but it will create a frequent service between Crewe and Scotland.

High Speed To Chester

It should also be noted, that if between Crewe and Chester were to electrified, High Speed Two trains could serve Chester.

  • Chester is a major rail interchange for the Border areas between England and Wales, North Wales and the Wirral.
  • It is also connected to Merseyrail.
  • Chester is an important tourist destination, with the city centre close to the station.

Electrification might also allow battery-electric versions of Avanti’s new Hitachi trains to serve some of their routes, without using diesel.

This simple example of Chester, says to me that opening High Speed Two to Crewe could allow extra services to be developed.

Conclusion

It appears from this analysis, that the only advantage of not building Phase 2a is that about forty miles of line between Lichfield and Crewe can be pushed back for a few years.











January 20, 2020 Posted by | Transport | , , , , , , | 2 Comments

A Glimpse Of 2035

Today, I was on the first direct train between London and Dublin.

I arrived at Euston early for the eight o’clock departure time and took my seat in First Class of the train built by Spanish company Talgo at Longannet in Fife.

The train appeared to be little different to the High Speed Two trains, that I have ridden extensively since they started running in 2029.

What differences there were, were in the decor and colour schemes, with the train wrapped in a rainbow of colours reflecting the red, white and blue of the UK and the orange, white and green of the Irish Republic.

We left on time and after a brief stop at Old Oak Common to pick up passengers we were soon speeding towards Birmingham whilst eating breakfast. I had requested a gluten-free Full English and the quality showed how far railway food has come in the two decades.

Birmingham at 08:40

Running at 225 mph, the spectacular Birmingham International station was reached on time at 08:40 and there were quite a few passengers who both left and joined.

Birmingham International

Since Heathrow’s plans for a third runway crashed in the planning process and the opening of Gatwick’s second runway, High Speed Two has enabled long distance travellers to use Birmingham Airport, which since the opening of High Speed Two in 2029 and its subsequent extensions to Manchester and Leeds, has grown at a fast pace.

As a jokey advert shown around the world by Visit Britain said, London now has three main airports; London South (Gatwick), London West (Heathrow) and London North (Birmingham).

On a recent trip to the Gambia, I used Birmingham Airport for both flights and coming back, I was in my house in East London, around an hour after I set foot in the terminal at the Airport.

High Speed Two and the expanded Birmingham Airport have certainly  improved the economics of Birmingham and the wider West Midlands.

Crewe Before 09:00

Next stop was Crewe station, which from today has been renamed Crewe International, to indicate that you can get trains to England, Scotland, Wales and now Ireland.

The station is unrecognisable from the tired Victorian station, I first passed through in 1965 on my way to Liverpool University for the first time.

Like Birmingham and the West Midlands, the area around Crewe has benefited immensely from the arrival of High Speed Two in 2030 and the continuing expansion of Manchester Airport.

From today, Crewe is now served by these trains in both directions, in each hour.

  • London – Belfast and Dublin
  • London – Glasgow (2 trains)
  • London – Liverpool (2 trains)
  • London – Lancaster

The ticketing and capacity is such, that Crewe now has a genuine turn-up and-go service to the capital, which is just under an hour away.

Preston At 09:20

The train was now on the upgraded West Coast Main Line and the train was limited to 140 mph, but Preston was reached on time, just eighty minutes from London.

When High Speed Two opened to Crewe in 2030, the journey time was a few minutes longer, but improvements to trains, tracks and signalling in the intervening years, had reduced the time.

On the journey from Crewe, the train had passed the massive construction site of the new Central Lancashire station, or as Scouse comedians have dubbed it – Wigan International.

This new  station will be a hub linking the following.

  • The West Coast Main Line
  • High Speed Three between Liverpool and Manchester.
  • The M6 and M62 motorways
  • Manchester Metrolink
  • Merseyrail

The station should have probably been built years earlier, when High Speed Three opened in 2029, but all forecasts of the number of passengers who would use the new High Speed Lines, were much lower than they were in practice.

Preston station like Crewe is a station  that has been rebuilt to handle two of the 200 metre long trains running as a pair.

These long platforms are now used at Preston to join and split some services, to give Blackpool, Blackburn and Burnley three fast services per day to and from London, in under two hours.

Carlisle At 10:20

We sped through the Lake District at 140 mph, to reach Carlisle in under two and a half hours from London.

It should be noted that timings North of Crewe have improved over the last couple of decades.

  • All passenger trains running on the fast lines North of Crewe are capable of matching the speed of the High Speed Two trains
  • Some of these trains used for services between Liverpool/Manchester and Glasgow/Edinburgh were built by Talgo to High Speed Two standards.
  • The few freight trains running in the day are now hauled by 125 mph electric locomotives.
  • The continuous upgrading of the Cumbrian Coast, Settle-Carlisle and Tyne Valley Lines has also allowed some trains to divert away from the West Coast Main Line.

Effectively, the West Coast Main Line North of Crewe has become a high-capacity 140 mph line.

Belfast At 11:30

When I saw that it was planned that trains would reach Belfast from London in the same time that it takes to go between London and Glasgow, I didn’t believe it would be possible.

But we arrived at the Belfast Parkway station on the outskirts of the City on time.

The journey between where we left the now-electrified Glasgow and South Western Line just to the West of Gretna to the bridge across the North Channel had been nearly all at 140 mph and there was little interruption before we ventured onto the bridge to Northern Ireland.

A few minutes later we were waiting to continue our journey at Belfast Parkway.

There had been political arguments about the gauge of the tracks on the thirty mile section between Scotland and Belfast.

But in the end the engineers got their way.

  • There is a standard gauge line as far as Belfast Parkway.
  • From Belfast Parkway, there is Irish gauge for the rest of the journey.

There would be no change of train at Belfast Parkway, as the Talgo High Speed Trains have had the ability to change gauge at a slow speed for thirty years.

Dublin At 13:30

This has been the slowest part of the journey, but we pulled into Dublin on time to a lot of celebrations.

Conclusion

This route has been a long time coming, since it was first seriously proposed in 2018.

There will be improvement in the next few years.

  • A service between Edinburgh and Dublin via Glasgow and Belfast starts next year.
  • The West Coast Main Line North of Crewe will allow faster and more trains.
  • The EU are funding and building a High Speed Line from the Irish border to Dublin.
  • This Irish High Speed Line will be linked to a new deep water port at Shannon.

I can see London to Belfast in three hours and London to Dublin in four.









November 15, 2018 Posted by | Transport | , , , , , , | 14 Comments

Plans Revealed For £10bn High-Speed Railway To Connect Britain’s Busiest Airports, HS1 and HS2

The title of this post is the same as this article on Global Rail News.

This is the first two paragraphs.

Developers are submitting plans for a new high-speed line to the UK’s Department for Transport (DfT) in response to a call for market-led proposals.

Named ‘HS4Air’, the proposed £10 billion railway will connect HS1 at Ashford to HS2 North West of London with stops at Heathrow and Gatwick airports and a spur connection to the Great Western main line.

This map from Expedition Engineering shows the route.

To minimise environmental disruption, the following should be noted.

  • There is a North-South tunnel under Heathrow Airport.
  • HS4Air follows the M25 to the South-West of London.
  • Several miles of the route between Heathrow and Gatwick is in tunnel to the West of Horsham.
  • There is a West-East tunnel under Gatwick Airport.
  • The Ashford to Tonbridge Line would become part of HS4Air.

There will also be stations at Ashford, Tonbridge, Gatwick and Heathrow.

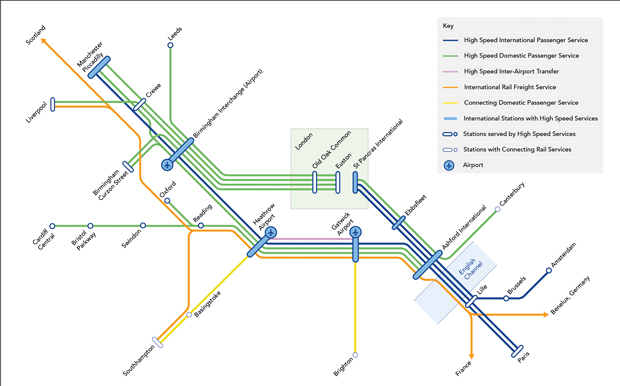

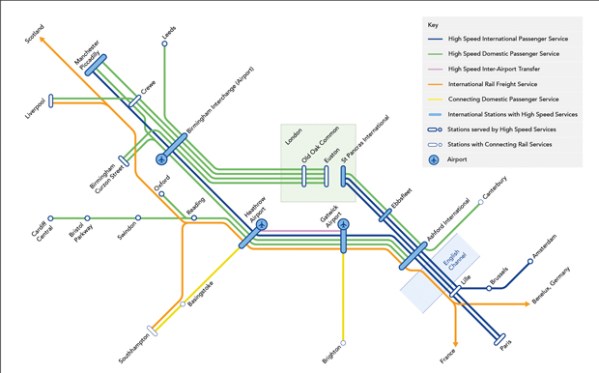

This further diagram from Expedition Engineering shows the various possible routes.

Note the following about HS4Air.

  • Four major airports; Gatwick, Heathrow, Birmingham and Manchester, will be connected to the Channel Tunnel.
  • Wikipedia suggests, that the line could be extended to a reopened Manston Airport.
  • A Paris to Manchester passenger service via Gatwick, Heathrow and Birmingham, is proposed.
  • High-speed connecting services from Cardiff, Oxford and Manchester to Ashford are proposed.
  • HS2’s major interchanges of Birmingham International and Crewe, are served.
  • Freight routes from Liverpool and Southampton to the Channel Tunnel will be enabled.

It looks a good basis to connect the rest of the UK to the services through the Channel Tunnel.

The article also gives some sample journey times.

  • Ashford-Gatwick: 25 minutes
  • Manchester-Heathrow: 1 hour 10 mins
  • Heathrow-Gatwick: 15 minutes;
  • Cardiff-Heathrow: 1 hour 40 mins
  • Birmingham-Paris: 3 hours
  • Manchester-Paris: 3 hours 40 minutes (My Estimate)

Intriguingly, the Manchester-Paris time, is the same as Eurostar’s current time between London and Amsterdam.

Conclusion

The plan seems to be well-thought out and it gives a good increase in connectivity from Wales, the West Country and the Midlands and North of England to Heathrow, Gatwick and the Channel Tunnel.

But I can see a few problems.

  • Will the residents of the North Downs accept a high-speed railway through their area?
  • If freight routes from Liverpool and Southampton to the Channel Tunnel are established, will residents object to masses of noisy freight trains?
  • Will there be pressure for more tunnels?

On the other hand Expedition Engineering are saying that needed extensions to the UK’s electricity grid can be laid underground along the same route.

July 25, 2018 Posted by | Transport | , , , , , , , , | 6 Comments

Birmingham International Station Set For £286m Revamp

The title of this post, is the same as that, of this article on Railway Technology Magazine.

This paragraph, explains the objectives of the revamp.

The plans would see the existing station be transformed into a multi-modal transport exchange, bringing together existing rail, future high speed rail, air, trams, buses, rapid transit, private vehicles, taxis, bicycles by 2025.

Birmingham seems to be growing in ambition.

This Google Map shows Birmingham Airport, the National Exhibition Centre and Birmingham International station in the middle.

Transport hubs based around an international airport will become increasingly common.

  • Heathrow Airport is improving rail access with Crossrail and a possible Western rail access.
  • Gatwick Airport is improving rail access as I wrote about in The Rise Of Gatwick Airport.
  • Manchester Airport is improving, rail and tram access.

But we still need more.

To get to many airports, the only convenient way is to drive. Which in these days is not acceptable.

May 3, 2018 Posted by | Transport | , | Leave a comment

Work Starts On £225m Luton Airport Automated People-Mover

The title of this post is the same as that of this article on Global Rail News.

This is said about the contractors.

A VolkerFitzpatrick-Kier joint venture is the project’s civil works contractor and Doppelmayr Cable Car UK is supplying the APM system.

Note that Doppelmayr Cable Car  built the Emirates Air-Line and the AirRail Link at Birmingham Airport.

This video shows the proposed system at Luton Airport.

It appears to be very similar to the Birmingham system.

This Google Map shows the position of the terminal at Luton Airport Parkway station.

The terminal is in Bartlett Square, which is indicated by the red arrow in the top right corner.

My initial thought, is that it could be a long walk for some.

April 18, 2018 Posted by | Transport | , , , , | Leave a comment

Birmingham Airport Mulls Plan For Terminal Inside HS2 Station

This is the title of an article in Construction News.

This Google Map shows Birmingham Airport, the current Birmingham International station, the NEC, with the M42 Motorway going North-South down the Eastern side.

Currently, it is planned that the Birmingham Interchange station for HS2, would be on the other side of the M42 to the NEC.

Surely, the Construction News headline is indicating that something better can be done.

In an ideal world, Birmingham Airport would have one station for HS2, West Coast Main Line and local train and tram services, with a step-free lift/escalator connection between all platforms and both Departures and Arrivals at the Airport.



May 19, 2017 Posted by | Transport | , , , , | Leave a comment
