Eversholt Rail And Vivarail To Develop Class 321 BEMU

The title of this post, is the same as that of this press release from Eversholt Rail.

These three paragraphs introduce the project.

Eversholt Rail and Vivarail have signed an agreement aimed at developing battery power – and range extension – to the Class 321 ‘Renatus’ fleet.

The 30 unit ‘Renatus’ fleet is a product of £65m investment in AC traction, air conditioning and upgraded interior. Completed in 2019, it provides a high-quality passenger experience, proven reliability in intensive operations and is widely compatible on the UK network. This fleet is currently operating on the Greater Anglia network until the introduction of their new trains is completed.

Eversholt Rail and Vivarail are committed to supporting the UK Government’s ambition to decarbonise its rail sector by 2050, and the Scottish Government’s objective of doing so by 2035. This proven and reliable fleet is an excellent fit in terms of characteristics, fleet size and availability for conversion to a Battery Electric Multiple Unit (BEMU). Vivarail, as the designers and manufacturers of the UK’s only battery and hybrid trains currently in passenger service are well positioned to progress this development.

This paragraph talks about the design objectives.

We will be working together to develop a design to integrate battery technology to provide between 20 to 30 miles of self-propulsion. Enabling the fleet to operate on non-electrified or partly electrified routes would offer the opportunity to increase the range of modern, low-carbon options to accommodate passenger demand; to enable fleet cascades; to improve the passenger experience; and to bring air quality and decarbonisation benefits to local areas.

I have a few thoughts on what I have read so far.

Vivarail’s Technology

In Battery Class 230 Train Demonstration At Bo’ness And Kinneil Railway, I talked about a ride in the battery version of Vivarail’s Class 230 train.

The train impressed me, as it did others that day.

I know that the train is late on being introduced on the Borderlands Line in Wales, but then all bi-mode or tri-mode trains seem to be having software problems.

In D-Train Order For Marston Vale Confirmed, I talked about the technicalities of Vivarail’s battery train.

Battery Prototype

The article also gives more details of the battery prototype.

  • The train has four battery rafts, each with a capacity of 106 kWh
  • Range is up to fifty miles with a ten minute charge at each end of the journey.
  • Range will increase as battery technology improves.
  • The train is charged using a patented automatic charging point.
  • The batteries will have a seven-year lifespan, backed by a full warranty.
  • Battery rafts would appear to be interchangeable with the diesel generators.
  • Hydrogen power will be used within the next few years.

The specification seems comprehensive and it would appear there is a high degree of innovative automation and well-thought-out electrical engineering.

Train Energy Consumption

The train has the following characteristics.

  • Two cars
  • 424 kWh of battery capacity.
  • 50 mile range

This gives a consumption 4.24 kWh/per car/per mile.

In an article in the October 2017 Edition of Modern Railways, which is entitled Celling England By The Pound, Ian Walmsley says this in relation to trains running on the Uckfield Branch, which is probably not much more taxing than the Marston Vale Line.

A modern EMU needs between 3 and 5 kWh per vehicle mile for this sort of service.

I am surprised that the Class 230 train lies in the 3-5 kWh range, but then I’m not sure of the weights of the two trains.

I estimate two-car units to weigh as follows.

  • Class 230 train plus batteries – Around 50 tonnes.
  • Electrostar – Around 90 tonnes
  • Aventra – Around 80 tonnes

I shall get some better figures, when I actually see the trains, as the weight is on the side.

Note.

I should say, that I have met some of Vivarail’s designers and I have been impressed.

They were also very complimentary about the D78 Stock, where it appears no expense was spared by Transport for London to keep them up to scratch.

I will apply Ian Walmsley’s rule in the extract to the Class 321 train.

  • Four cars
  • Thirty miles
  • As the Class 321 Renatus has a modern traction system, I’ll assume it is efficient and uses 3 kWh per vehicle mile for a gentle short branch line.
  • These figures would need a 360 kWh battery.

If the consumption was 5 kWh per vehicle mile, it would be a 600 kWh battery.

Under Train Space

There is plenty of space under a Class 321 train, as these pictures show.

My design would see a battery under each car, if that were possible to even out the weight.

The Renatus Interior

These pictures show the Renatus train and interior.

Not bad for a train approaching its mid-thirties.

Will The Train Have Third-Rail Shoe Gear?

I have read the technical documents for Porterbrook’s Class 769 train, which this is based on the Class 319 train.

In the Wikipedia entry for the Class 319 train, this is said,

Class 321 passenger units and Class 325 postal units were developed from the Class 319 design, using similar traction equipment and the same steel body design, with revised cab designs. The 325 units used a Networker style cab design.

It looks like except for cosmetic differences in the drivers cab, the Class 319, Class 321 and Class 325 trains are identical under the skin.

Does this mean that like the Class 319 train, Class 321 trains can be fitted with third-rail shoes?

It should be noted, that if the trains can be fitted with third-rail shoes, then Vivarail’s Fast Charge system can be used to charge the train.

Could Other Trains Be Converted?

It certainly looks like in addition to the Class 321 trains, both the Class 319 and Class 325 trains can be converted to battery-electric power.

These three trains are all members of British Rail’s Mark 3 family, which were designed before computers were used in structural design to be able to withstand the force of a twenty-four tonne cement truck falling on them from a bridge. On the 5th of November 2010, this nightmare scenario happened in the Oxshott Rail Accident and no-one was killed.

So to avoid the scrapyard, trains based on the Mark 3 coach, like the Class 320, Class 322, Class 455 and Class 456 trains will be happy to sign up to the Eversholt Rail and Vivarail conversion process.

  • The Class 320 trains are three-cars, so would offer another type of train.
  • The Class 322 trains are four-cars, were built for the Stanstead Express.
  • The Class 455 trains are four-cars with third-rail gear, so would offer another type of train.
  • The Class 456 trains are two-cars with third-rail gear, so would offer another type of train.

In SWR Says Farewell To ‘456’s, I talk about converting the two-car Class 456 trains after Mark Hopwood, who is now a big cheese at Great Western Railway, suggested the conversion to create a useful two-car battery-electric train.

If you doubt, the quality of the bodies and interiors of these trains from another era, I suggest you go to Liverpool Street station and take a ride in one of Greater Anglia’s Class 321 Renatus trains.

As there are six classes that could be converted, various different types of train can be converted to suit an operator’s needs.

Main Line Speed

Most of these trains are 100 mph trains, with drivers telling me, that they have superb brakes to handle stopping from that speed.

However, Class 455 and Class 456 trains are only 75 mph trains, with some of the Class 320 trains being only 90 mph trains.

Accidents And Incidents

As far as I can tell, none of these trains has had a serious accident, that has resulted in the death of a passenger.

Even the Oxshott Rail Accident only resulted in two serious and five minor injuries, with one of the serious injuries being the driver of the cement truck.

It is a remarkable safety record.



Possible Routes

I will do these on a company-by-company basis, as all companies needs are different.

c2c

c2c is an all-electric company.

I doubt there is a possibility of the company needing any battery-electric trains.

Chiltern Railways

Chiltern Railways is an all-diesel company.

They effectively have three different types of motive power and the solutions for each will be different.

  • Six Class 68 locomotives haul Chiltern’s flagship main line services. As there are thirty-four of these modern locomotives in operation in the UK, I would suspect their manufacturer; Stadler will come up with a zero-carbon solution for application to these locomotives. I suspect they will become hydrogen-powered.
  • Workhorses are 28 Class 168 trains totalling eighty-five carriages. One has been converted to hybrid operation by Rolls-Royce mtu and I suspect that Rolls-Royce mtu have a plan to make all these trains zero-carbon by 2030.
  • There are also 39 Class 165 trains, which are diesel Networkers, dating from the 1990s.

I suspect that as the Networkers are the oldest in the fleet, these might be replaced with new rolling stock or some cascaded Turbostars.

I also wonder, whether Chiltern’s owner; Deutsche Bahn is watching the development of the Rolls-Royce mtu solution as it could be very applicable in Germany.

Govia Thameslink Railway

Govia Thameslink Railway is an all-electric railway except for two services, where diesel multiple units are used.

  • Eastbourne and Ashford International – 25.4 miles one-way – Charge at Eastbourne and Ashford International using existing electrification or a charger.
  • London Bridge and Uckfield – 25 miles one way – Charge at Hurst Green and Uckfield using existing electrification or a charger.

Note.

  1. The trains would need a third-rail capability.
  2. The company also has a fleet of nineteen forty-year-old Class 313 trains, which are used on Coastway services.
  3. The Class 321 BEMUs could take over all Coastway services between Ashford International and Portsmouth, which would probably make things easier for the operator, with respect to staff training.

The addition of a fleet of Class 321 BEMUs or similar would surely be a sensible move to improve Govia Thameslink Railway services.

Great Western Railway

This article on Railway Gazette is entitled GWR Seeks Input To Decarbonisation Plan.

This is the first four paragraphs.

Great Western Railway is to undertake a market engagement exercise to support its development of a decarbonisation plan including a move away from diesel traction.

The operator is seeking industry input to inform the creation of a Future Fleet & Depot Proposal, setting out ‘affordable’ options for decarbonisation whilst improving and aligning services to future customer needs.

This could include automated rapid battery charging and innovative approaches to energy supply.

The Future Fleet & Depot Proposal will be submitted to the Department for Transport. If accepted by DfT, GWR would then begin procurement of rolling stock and supporting infrastructure. It envisages that this could get underway in September 2024.

It looks a good plan.

In Converting Class 456 Trains Into Two-Car Battery Electric Trains, I opened the post with this quote from Mark Hopwood who at the time was the interim Managing Director of South Western Railway and in Special Train Offers A Strong Case For Reopening Fawley Line, I quote him as saying the following about the trains for the Fawley Branch Line.

However, SWR’s Mark Hopwood favours a much bolder plan. “We’d have to take a decision, once we knew the line was going ahead. But my personal belief is that we should be looking for a modern environmentally-friendly train that can use third-rail electricity between Southampton and Totton and maybe operate on batteries down the branch line.”

Pressed on whether that would mean Vivarail-converted former-London Underground stock, Hopwood ads. “It could be. Or it could be a conversion of our own Class 456, which will be replaced by new rolling stock very shortly. But I don’t think this is the time to use old diesels.

Mark Hopwood is so right about using old diesels and he has moved on to be Managing Director of Great Western Railway.

Could Mr. Hopwood be a driving force behind the decarbonisation of the Great Western Railway?

These trains will be possibilities for battery-electric trains.

  • Newbury and Bedwyn – Four cars – 13.3 miles one way – Charge at Newbury using existing electrification
  • West Ealing and Greenford – Two cars – 2.5 miles one-way – Charge at West Ealing
  • Slough and Windsor & Eton Central – Four cars – 2.8 miles one-way – Charge at Slough using existing electrification
  • Maidenhead and Marlow – Two cars – 7.1 miles one way – Charge at Maidenhead using existing electrification – Four car trains could run between Bourne End and Paddington
  • Twyford and Henley-on-Thames – Four cars – 4.6 miles one-way – Charge at Twyford using extended existing electrification – Trains could run to Paddington
  • Reading and Gatwick Airport – Four cars – 17.4 and 12.1 mile sections without electrification – Charge on existing third-rail electrification
  • Reading and Redhill – Four cars – 17.4 and 12.1 mile sections without electrification – Charge on existing third-rail electrification
  • Reading and Basingstoke – Four cars – 13.6 miles one-way – Charge at Reading using existing electrification
  • Didcot Parkway and Oxford – Four cars – 10.3 miles one-way – Charge at Didcot Parkway using existing electrification
  • Didcot Parkway and Banbury – Four cars – 33 miles one-way – Charge at Didcot Parkway using existing electrification – Charger or electrification needed at Banbury
  • Cardiff Central and Portsmouth Harbour – Probably needs electrification in the Bristol area.
  • Cardiff Central and Taunton – Probably needs electrification in the Bristol area.
  • Weston-super-Mare and Severn Beach – Two/Four cars – 45 miles one-way – Charge at Bristol Temple Meads, Weston-super-Mare and Severn Beach
  • Bristol Temple Meads and Avonmouth – Two/Four cars – 16.6 miles one-way – Charge at Bristol Temple Meads and Avonmouth
  • Bristol Temple Meads and Filton Abbey Wood – Four cars – 4.4 miles one-way – Charge at Bristol Temple Meads
  • Great Malvern and Westbury – Probably needs electrification in the Bristol area.
  • Gloucester and Weymouth – Probably needs electrification in the Bristol area.
  • Swindon and Westbury – Two/Four cars  32.5 miles one-way – Charge at Swindon and Westbury
  • Exmouth and Paignton – Four cars – 39.5 miles one-way – Charge at Exeter St. Davids, Exmouth and Paignton
  • Exeter Central and Barnstaple – Two/Four cars – 39.6 miles one-way – Charge at Exeter St. Davids and Barnstaple
  • Exeter Central and Okehampton – Two/Four cars – 25.6 miles one-way – Charge at Exeter St. Davids and Okehampton
  • Plymouth and Gunnislake – Two cars – 14.6 miles one-way – Charge at Plymouth and Gunnislake
  • Liskeard to Looe – Two cars – 8.3 miles one-way – Charge at Liskeard
  • Par and Newquay – Two cars – 20.8 miles one-way – Charge at Par and Newquay
  • Truro and Falmouth Docks – 11.8 miles one-way – Charge at Truro
  • St Erth and St Ives – 4.2 miles one-way – Charge at St. Erth

Note.

  1. Many of the charging stations could be standard systems that are available from companies like Furrer+Frey and Vivarail.
  2. Or alternatively, a short length of 25 KVAC overhead electrification could be erected.
  3. I suspect major stations like Bristol Temple Meads, Exeter St. Davids and Plymouth will be electrified.
  4. There probably needs to be more electrification in the Bristol area.
  5. Mark Hopwood’s nose, that said two-car trains will be needed, is probably right.
  6. Some of the trains would need a third-rail capability.

I suspect that with appropriate charging or electrification nearly all of Great Western Railways services can be run using battery-electric trains.

It does appear that Eversholt Rail Group and Vivarail have got the specification of the trains very close to the ideal, with respect to Great Western Railway’s needs.

Southeastern

Southeastern is a fully-decarbonised train operating company, with respect to passenger services.

But it wants to reopen the Hoo Branch, which will need some self-powered trains. I wrote about this in Effort To Contain Costs For Hoo Reopening.

The Class 321 BEMU would surely be a possibility to extend London and Gravesend services, by a distance of about a dozen miles to a new station at Hoo.

These trains would need a third-rail capability.





August 17, 2022 Posted by | Transport/Travel | , , , , , , , , | 5 Comments

Class 321 Renatus Trains At Wickford And On The Crouch Valley Line

This article on Rail Advent indicated that the platform extension at Wickford station had been completed, so that five-car Class 720 trains can work the Crouch Valley Line.

This morning I went to look at the progress and took these pictures.

Note.

  1. Platform 1 has been extended at the London end.
  2. The two trains working the branch were Class 321 Renatus trains.
  3. The stations on the branch seemed to have been spruced up.

I suspect Greater Anglia are expecting a lot more commuters and visitors.

  • But then the area is getting a lot more housing.
  • There are fast direct trains to and from London Liverpool Street on a railway with refurbished electrification.
  • Burnham-on-Crouch is one of the foremost yachting towns.
  • Remember the area is not far from Snowgoose Country.
  • The new Wallasea wetlands that were created with the tunnel spoil from Crossrail’s tunnels is not far away.

This Google map shows Burnham-on-Crouch and Wallasea Wetlands.

Note.

  1. Burnham-on-Crouch with its station in the North-West corner of the map.
  2. Wallasea Wetlands are marked by the red arrow.

I don’t think it will be long before an appropriately-powered ferry is provided across the River Crouch.

I also have some thoughts.

The Class 321 Renatus Trains

The Class 321 Renatus trains may be a 2017 conversion of a 1990-built British Rail Class 321 train, but that doesn’t mean they are a cheap and nasty conversion.

So until all the Class 720 trains are in service, they are a more than adequate stand-in.

I was told that the Class 720 trains will be in service on the branch in September.

The Snow Goose

The Snow Goose is one of the great books of the Twentieth Century, written by the American; Paul Gallico.

This summary of the plot is from Wikipedia.

The Snow Goose is a simple, short written parable on the regenerative power of friendship and love, set against a backdrop of the horror of war. It documents the growth of a friendship between Philip Rhayader, an artist living a solitary life in an abandoned lighthouse in the marshlands of Essex because of his disabilities, and a young local girl, Fritha. The snow goose, symbolic of both Rhayader (Gallico) and the world itself, wounded by gunshot and many miles from home, is found by Fritha and, as the human friendship blossoms, the bird is nursed back to flight, and revisits the lighthouse in its migration for several years. As Fritha grows up, Rhayader and his small sailboat eventually are lost in the Dunkirk evacuation, having saved several hundred men. The bird, which was with Rhayader, returns briefly to the grown Fritha on the marshes. She interprets this as Rhayader’s soul taking farewell of her (and realizes she had come to love him). Afterwards, a German pilot destroys Rhayader’s lighthouse and all of his work, except for one portrait Fritha saves after his death: a painting of her as Rhayader first saw her – a child, with the wounded snow goose in her arms.

It is not a book, you’d expect an American to write about the dark days of World War II in the UK.

But as Christopher Nolan showed in his film, Dunkirk was the battle in World War II, that stiffened up the sinews and summoned up the blood.

Wickford Station

The pictures show that Wickford station is being rebuilt.

I would think it needs a speed-free bridge.



June 28, 2021 Posted by | Transport/Travel | , , , , , , , , , , | Leave a comment

Is There Nothing A Class 319 Train Can’t Do?

If a train every goes into orbit round the world, it will be highly-likely that it will be a Class 319 train!

Electric Trains In North-West England

The fleet of eighty-six trains entered service in 1987 on Thameslink  and now twenty-seven are plying their trade on the electrified routes around the North-West of England.

  • You don’t hear many complaints about them being called London’s cast-offs.
  • Passengers fill them up in Blackpool, Liverpool, Manchester and Preston.
  • They still do 100 mph where possible.
  • They seem to be reliable.
  • They are not the most attractive of trains.

But handsome is as handsome does!

Drivers have told me, that although the suspension may be a bit soft for the bumpy route across Chat Moss, the trains do have superb brakes.

Bi-Mode Class 769 Trains

Nearly thirty of the trains are being converted into bi-mode Class 769 trains for working partially-electrifired routes and although these are running late, they should be in service this year.

Rail Operations Group

Two Class 769 trains have been ordered to be fast logistics trains by Rail Operations Group.

Wikipedia says the trains will be used to transport mail.

But if you read the history of the Rail Operations Group, they make the assets sweat and I’ve read the trains will still have seats, so they might do some other rail operations.

The Hydrogen-Powered Class 799 Train

And now comes the Class 799 train!

This is a demonstrator to prove the concept of conversion to hydrogen power.

The fact that the train now has it’s own number must be of some significance.

Alstom are converting Class 321 trains into Class 321 Breeze trains.

  • The conversion will reduce passenger capacity, due to the large hydrogen tank
  • It will have a 1,000 km range.
  • It will have regenerative breaking.
  • It will have a new AC traction package
  • It will probably have the interior of a Class 321 Renatus train.

The conversion will obviously build on Alstom’s experience with the Alstom Coradia iLint train and Eversholt’s experience with the Renatus.

When it comes to the Class 799 train, the following will apply.

  • Porterbrook have all the experience of creating the bi-mode and dual-voltage Class 769 train.
  • Birmingham University’s Birmingham Centre For Railway Research And Education (BCRRE) are providing the expertise to design and convert the Class 319 train to hydrogen power.
  • I also wouldn’t be surprised to find out, that the BCRRE has applied some very extensive mathematical modelling to find out the performance of a hydrogen-powered Class 319 train or HydroFLEX train.
  • The conversion could be based closely on Class 769 experience and sub-systems,

Could the main purpose be to demonstrate the technology and ascertain the views of train operators and passengers on hydrogen power?

The most important question, is whether the Class 799 train, will have the same passenger capacity as the original Class 319 train?

If it does, then BCRRE must have found a way to store the hydrogen in the roof or under the floor.

It should be noted, that it was only in September 2018, that the contract to develop the Class 799 train was signed and yet less than a year later BCRRE and Porterbrook will be demonstrating the train at a trade show.

This short development time, must mean that there is not enough time to modify the structure of the train to fit a large hydrphen tank inside, as Alstom are proposing.

A smaller hydrogen tank could be placed in one of three places.

  • Underneath the train.
  • On the roof.
  • Inside the train, if it is small enough to fit through the train’s doors.

Note.

  1. I doubt that anybody would put the tank inside the train for perceived safety reasons from passengers.
  2. On the roof, would require substantial structural modifications. Is there enough time?

So how do you reduce the size of the hydrogen tank and still store enough hydrogen in it to give the train a useful range?

In Better Storage Might Give Hydrogen The Edge As Renewable Car Fuel, I indicated technology from Lancaster University, that could store four times as much hydrogen in a given size of tank.

This reduced tank size would make the following possible.

  • The hydrogen tank, the fuel cell and the batteries could be located underneath the four-cars of the Class 319 train.
  • The seating capacity of the Class 799 train could be the same as that of a Class 319 train.

Clever electronics would link everything together.

If BCRRE succeed in their development and produce a working hydrogen-powered Class 799 train, how would the technology be used?

Personally, I don’t think we’ll see too many hydrogen-powered Class 799 trains, running passengers on the UK network.

  • The trains are based on a thirty-year-old train.
  • The interiors are rather utilitarian and would need a lot of improvement, to satisfy what passengers expect.
  • Their market can probably be filled in the short-term by more Class 769 trains.

But I do believe that the technology could be applied to more modern trains.

A Hydrogen-Powered Electrostar

Porterbrook own at least twenty four-car Electrostar trains, which have been built in recent years.

Six Class 387 trains, currently used by c2c, may come off lease in the next few years.

Could these trains be converted into a train with the following specification?

  • Modern train interior, with lots of tables and everything passengers want.
  • No reduction in passenger capacity.
  • 110 mph operating speed using electrification.
  • Useful speed and range on hydrogen power.
  • ERTMS capability, which Porterbrook are fitting to the Class 387 trains to be used by Heathrow Express.

It should be born in mind, that a closely-related Class 379 train proved the concept of a UK battery train.

  • The train was converted by Bombardier.
  • It ran successfully for three months between Manningtree and Harwich.
  • The interior of the train was untouched.

But what was impressive was that the train was converted to battery operation and back to normal operation in a very short time.

This leads me to think, that adding new power sources to an Electrostar, is not a complicated rebuild of the train’s electrical system.

If the smaller hydrogen tank, fuel cell and batteries can be fitted under a Class 319 train, I suspect that fitting them under an Electrostar will be no more difficult.

I believe that once the technology is proven with the Class 799 train, then there is no reason, why later Electrostars couldn’t be converted to hydrogen power.

  • Class 387 trains from c2c, Great Northern and Great Western Railway.
  • Class 379 trains, that will be released from Greater Anglia by new Class 745 trains.
  • Class 377 trains from Southeastern could be released by the new franchise holder.

In addition, some Class 378 trains on the London Overground could be converted for service on the proposed West London Orbital Railway.

A Hydrogen-Powered Aventra

If the Electrostar can be converted, I don’t see why an Aventra couldn’t be fitted with a similar system.

Conclusion

A smaller hydrogen tank, holding hydrogen at a high-density would enable trains to be converted without major structural modifications or reducing the passenger capacity.

The development of a more efficient method of hydrogen storage, would open up the possibilities for the conversion of trains to electric-hydrogen hybrid trains.

















June 13, 2019 Posted by | Transport/Travel | , , , , , , , , , , , , , , | 1 Comment

Norwich-In-Ninety Is A Lot More Than Passengers Think!

But, I very much expect that Greater Anglia know what they are doing.

This post describes a trip to Norwich that used two Norwich-In-Ninety services, using Class 90 locomotives and Mark 3 coaches.

I came up to Norwich on the 1100 train, which was timed to get in at 1230. According to the driver, there were signalling problems at Manningtree, which meant we arrived in Norwich twenty-one minutes late.

I was going on to Cromer or Lowestoft. So by the time I’d had a cider and bought a ticket, I didn’t leave Norwich until 1345 for Cromer. But I did have time by the sea to take a few pictures and have a coffee and a gluten-free scone, before getting the return train to Norwich.

Back at Norwich, I had a choice of two trains.

  • The 1700 stopping at just Ipswich and Norwich
  • The 1703 stopping at Diss, Stowmarket, Ipswich and a few other places.

I was booked on the 1700, from where I’m writing this note on my phone.

These are some of my observations.

Operating Speed

I have just travelled between Norwich and Ipswich in thirty minutes, with Speedview on my phone reading within a couple of mph of 100 mph all the way from where we got to operating speed South of Norwich to where we slowed for Ipswich station.

Diss, Stowmarket and Needham Market stations were passed at almost 100 mph

Ipswich to Colchester was at a slower 90 mph, but then from Marks Tey to just before Chelmsford, the train was back to around 100 mph.

Speeds between 70 and 90 mph were held from Chelmsford to Liverpool Street, which was reached at 1830 as scheduled.

Acceleration

I got the impression, that the acceleration of the train wasn’t up to the operating speed. Certainly, it didn’t seem to accelerate as fast as an InterCity 125,

But then we’re talking about a powerful Class 90 locomotive with 3730 kW pulling eight Mark 3 coaches. Perhaps it was having an off day?

In an InterCity 125, there is nearly 2,640 kW to accelerate the same number of similar coaches to 125 mph.

But these are similar numbers compared to a four-car Class 755 train running on electrical power, which according to Stadler’s data sheet is 2,600 kW, which is 86% more power than an InterCity 125.

As there are two power-bogies each must be good for 1,300 kW.

Typical four-car electric Flirts seem to have around 2-3,000 kW, according to various Stadler data sheets.

Flirts seem to be seriously powerful trains and I can understand why some Norwegian Flirts are capable of 125 mph running. This is said in Wikipedia about the Norwegian Flirts.

All trains have five cars. However, in contrast to previous five-car FLIRTs they will have a third powered bogie giving them a maximum power output of 4,500 kW (6,000 hp) and a top speed of 200 km/h (120 mph).

If that extract is saying that each bogie can provide up to 1,500 kW, then Class 745 trains with four bogies have 6,000 kW.

If they were Class 755 train-sized bogies, then Class 745 trains, then the trains have 5,200 kW.

For comparison, an eleven-car Class 390/1 train has 5,950 kW.

With these figures, I feel it is reasonable to assume, that Class 745 trains, will accelerate to operating speed faster than the current forty-year-old BR stock.

  • They appear to have a lot more power, than the current trains.
  • Their aluminium bodies probably mean they weigh less, than the steel-bodies of the current trains.
  • Their aerodynamics are probably more advanced.
  • They probably have sophisticated technology that stops wheel slip, controls the train in a smooth manner and assists the driver.
  • The rolling dynamics will be no worse than that of the current trains.

Some conclusions can be drawn about the current trains and their operation.

  • A Class 90 locomotive with only 930 kW has sufficient power to keep an eight-car train running at 100 mph. It looks like the figure  is around 1.2 kWh per car per mile.
  • They must be in top condition.
  • The drivers probably know the route like the back of their hand and can coax the required performance from their ageing charges.

BR’s forty-year-old design must still be seriously good and the trains get the TLC they need.

Passing Stations At 100 mph

Diss, Stowmarket, Needham Market, Marks Tey, Kelvedon, Hatfield Peverel and Ingatestone stations were all passed within a few mph of 100 mph, with Maningtree and Colchester stations passed at around 85-90 mph.

Obviously, this must be allowed and not having to slow means that the speed is not degraded.

The only station where there was a substantial slowing was Chelmsford, where the train slowed to about 60 mph.

The Current Norwich-in-Ninety Services

These are the current ninety minutes services between Liverpool Street and Norwich.

  • 0900 – Norwich to Liverpool Street
  • 1100 – Liverpool Street to Norwich
  • 1700 – Norwich to Liverpool Street
  • 1900 – Liverpool Street to Norwich

Only one train is needed that starts and finishes in Norwich, where it is stabled overnight.

Serving The Intermediate Stations

Both the 1100 train to Norwich and the 1700 to Liverpool Street only stop at Ipswich.

But leaving a couple of minutes behind was another Class 90 locomotive/Mark 3 coach set stopping at more stations.

  • Going North, the train takes nineteen minutes longer, with stops at Colchester, Manningtree, Ipswich and Diss.
  • Going South, this train takes ten minutes longer, with stops at Diss, Stowmarket, Ipswich, Colchester and Stratford.

I suspect that when the Bombardier Class 720 trains have been delivered, these might be used for the stopping trains.

How Many Trains Will Be Needed?

It appears that the slower trains are currently timetabled to take between 111 and 115 minutes.

If a round trip can be done in four hours, then two trains per hour (tph), will require eight Class 745 trains.

As there are ten trains on order, this means the following.

  • Eight trains will be used to run the two tph stopping service.
  • One train will be needed for the Norwich-in-Ninety service.

This leaves one train as a spare or in maintenance.

Cromer And Back In A Day

In the four-and-a-half hours, I was in Norwich, I was able to take a train to Cromer, take a few pictures, have a quick lunch and then return to Norwich.

This is possible using the slower trains, but the fast trains can give you another hour in Norwich.

Obviously, this hour will be available for many journeys and must surely open up many possibilities for frequent travellers on the route.

How Reliable Is The Norwich-in-Ninety Service?

There have been twenty services in the first week of the service..

  • Fourteen have been on-time or a couple of minutes early.
  • Five have been under ten minutes late.
  • One was late by more than ten minutes.

That last train was twenty-two minutes late and I was on it, on the first Wednesday of the service.

I shall update this table, until I get bored with it!

Can The Timetable Be Changed?

The way the timetable is set out is an interesting solution to trying to be all things to all passengers.

  • There is a basic two tph service, which stops between London and Norwich according to a simple pattern.
  • Four services per day, with two in each direction, are delayed by two or three minutes.
  • The original departure times are taken by a fast train, that only stops at Ipswich.
  • These four departure times, are arranged, so that the services can be handled by a single fast train shuttling between Liverpool Street and Norwich
  • The fast train starts in Norwich at 0900 in the morning and returns to Norwich and its depot at 2030. The train can then have a good service after a hard day’s work!

Obviously, Greater Anglia have all the passenger data, so they have probably laid out a fast timetable, that will reflect current passenger numbers.

But as time goes on, this timetable can be augmented.

At present, they are using their express trains for both the two tph and the fast services.

These will be changed to Class 745 trains during the remainder of this year.

The venerable Class 90 locomotives and their Mark 3 coaches have blazed the trail and made everybody’s dream of Norwich-in-Ninety a reality, but now it is up to Greater Anglia’s new trains to fully develop the timetable.

  • If they are successful in attracting passengers more services will do Norwich in ninety and Ipswich in sixty.
  • The back-up stopping service running behind the fast train could be run by a new Class 720 train, which have a similar 100 mph operating speed.
  • Several services per day, using Class 755 trains, will be running between Lowestoft and London and augmenting the fast service between London and Ipswich.

Interestingly, as I left Norwich for Cromer, there was a Class 321 Renatus at Norwich station in Platform 2 Checking with Real Time Trains, this other relic from British Rail, but refurbished to a modern standard for passengers and performance, formed the 1400 express to London and arrived on time after seven stops.

It looks to me that Greater Anglia have a creditable back-stop, if there should be any unforeseen problems with the new trains.

But it also shows that the stopping service that follows the Norwich-in-Ninety service can be run by a 100 mph electric multiple unit.

This would surely release Class 745 trains to run more fast services.

An Improved Ipswich And Norwich Service

Greater Anglia have said that there will be three tph between London and Norwich and that one may or will be run the new Class 720 trains.

The only section of the Great Eastern Main Line, that won’t have four tph will be between Ipswich and Norwich. So could we see a 100 mph local service between two rivals.

Yesterday’s Class 321 Renatus did Norwich to Ipswich in forty-one minutes.

  • The route is fully-electrified.
  • Class 720 or Class 321 Renatus trains could be used.
  • Trains would stop at Diss, Stowmarket and Needham Market stations.
  • The rail line is not busy North of Stowmarket.
  • The bottleneck of Trowse bridge South of Norwich is to be replaced.

Running four tph between Ipswich and Norwich would be a lot more affordable, than improving the capacity on the mainly single-carriageway A140.

Would Faster Running Be Possible North Of Ipswich?

There are two major problems on the Great Eastern Main Line to the North of Ipswich.

  • Trowse Bridge to the South of Norwich.
  • Haughley Junction, where the Cambridge and Norwich routes divide to the North of Stowmarket.

Both projects have been kicked into the long grass more times than most, but it does look, that these two bottlenecks could be fixed in the next few years.

I also observed the following between Ipswich and Norwich.

  • The line wasn’t busy North of Stowmarket.
  • The train had no difficulty maintaining 100 mph.
  • The quality of the overhead electrification gantries might suggest a need for replacement.
  • There are some level crossings, that have no place on a 100 mph main line.

Would it be advantageous to update the line, so that higher speeds were possible?

I suspect that both the Class 745 and Class 720 trains could handle perhaps 110 mph with modifications, that are proven or planned with similar trains.

Conclusion

I had an exhilarating ride yesterday and it is a foretaste for the greatest improvement in transport for East Anglia in my lifetime.





May 22, 2019 Posted by | Transport/Travel | , , , , , , , , , , | 6 Comments

My First Ride In An Alstom Coradia iLint

I’m finally, riding in a hydrogen-powered Alstom Coradia iLint train through the German countryside.

Not as quiet as the two battery trains, I’ve ridden, but that’s because It feels to me that the traction motors are crudely under the passengers and cardan shafts are used to drive the wheels!

Battery electric trains with regenerative braking should be virtually free of any mechanical noise. Both the Class 379 and Class 230 battery demonstrators were almost silent. As electricity generated from hydrogen doesn’t appear to generate much noise, then a hydrogen-powered train can also be almost silent.

From talking to fellow passengers, it would appear that the train has been very reliable in service.

Alstom are proving hydrogen would work well in a train designed for that purpose, but updating a DMU with a mechanical transmission, possibly isn’t the way to go.

Class 321 Breeze Train

I think that the Class 321 Breeze train will be quieter and faster.

It appears too, that if Alstom’s conversion follows the design of the Class 321 Renatus, the train will have a totally flat floor.

Come to think of it, I can’t think of a train running in the UK, that doesn’t have a totally flat floor!

The iLint, like the Lint has several sets of steps.

These are not acceptable in a modern train, bus or tram.

Lint 41 And iLint Compared

It is interesting to compare the iLint with the current diesel Lint 41s on the route.

  • The iLint is faster and may accelerate better.
  • The iLint is based on the bigger Lint 54, so it has more seats and two doors instead of one on each side of the cars.
  • The newer iLint appears to have a higher quality interior.

I feel that the iLint will be quicker on a real.route.

The Future Of Buxtehude And Cuxhaven

Currently, to go between Buxtehude and Cuxhaven and back to Buxtehude takes around five hours. So that means the current hourly service needs five trains.

But if the iLint could do a round trip in four hours, the number of trains would be teduced to four.

If to increase capacity, all trains were pairs of iLints, the number of trains required would be eight.

Supposing it was required to double frequency, this would mean sixteen trains would be needed!

And how many trains have been ordered? Sixteen!

Coincidence or good planning?

Publicising The Achievement

When Bombardier created the Class 379 IPEMU, they made certain that there was a lot of local publicity including a report on BBC Look East.

I made a point of asking local residents about the train and no-one had heard of it. Although, I must say that students who regularly used the train, were very much in favour.

This was the only information, I found about the train.

It was only in German, which I can read,. But surely, such an important achievement deserves better publicity and explanation in perhaps German, English and French.

Conclusion

Alstom have proved that hydrogen-power is possible in a smaller train, suitable for regional routes.

My reservations are totally about the Lint, which is an inferior train compared to many others that I’ve ridden in the UK and Europe.

I wouldn’t like to use the train in a wheel-chair!

The next generation of purpose-built trains with hydrogen power will be much better!



March 29, 2019 Posted by | Transport/Travel | , , , , , | 8 Comments

Alstom And Eversholt Rail Develop Hydrogen Train For Britain

The title of this post, is the same as that of this article in the International Rail Journal.

This is the first paragraph.

Alstom confirmed on September 11 that it is working with British rolling stock leasing company Eversholt Rail to refit class 321 EMUs with hydrogen tanks and fuel cells for hydrogen operation, in response to the British government’s challenge to eliminate diesel operation on the national network by 2040.

Other points about the conversion of Class 321 trains include.

  • Alstom will convert trains in batches of fifteen.
  • The first trains could be ready by 2021.
  • Up to a hundred trains could be converted..
  • A range of up to 1000 km on a tank of hydrogen.
  • A maximum speed of 160 kph.

The article also suggests that the Tees Valley Line and Liverpool to Widnes could be two routes for the trains.

A few points of my own.

  • Fifteen is probably a suitable batch size considering how Class 769 trains have been ordered.
  • Hydrogen is produced in both areas for the possible routes and could be piped to the depots.
  • In Runcorn it is plentiful supply from the chlorine cell rooms of INEOS and that company is thinking of creating a pipeline network to supply the hydrogen to users with high energy needs.
  • As the maximum speed of the hydrogen train is the same as the current Class 321 trains, I would suspect that it is likely that the hydrogen-powered train will not have an inferior performance.
  • I’ve now travelled in Class 321 Renatus trains on three occasions and in common with several passengers I’ve spoken to, I like them.
  • I hope the Class 321 Hydrogen trains have as good an interior!

I very much feel that there is a good chance that the Class 321 Hydrogen could turn out to be a good train, powered by a fuel, that is to a large extent, is an unwanted by-product of the chemical industry.

A Comparison Between The Alstom Coradia iLint And The Class 321 Hydrogen

It is difficult for me to compare the Alstom Coeadia iLint or even a bog-standard iLint , as I’ve never rode in either.

Hopefully, I’ll ride the iLint in the next few weeks.

The following statistics are from various sources on the Internet

  • Cars – 321 – 4 – iLint – 2
  • Electric Operation – 321 – Yes – iLint – Not Yet!
  • Loading Gauge – 321 – UK – iLint – European
  • Operating Speed – 321 – 160 kph – iLint – 140 kph
  • Range – 321 – 1000 km. – iLint – 500-800 km.
  • Seats – 321 – 309 – iLint – 150-180

Although the Class 321 Hydrogen will be a refurbished train and the iLint will be new, I suspect passengers will just both trains as similar, given the experience with refurbished trains in the UK.

In some ways, they are not that different in terms of performance and capacity per car.

But the Class 321 Hydrogen does appear to have one big advantage – It can run at up to 160 kph on a suitable electrified line, This ability also means the following.

  • Hydrogen power is not the sole way of charging the battery.
  • On some routes, where perhaps a twenty kilometre branch line, which is not electrified, is to be served, the train might work as a battery-electric train.
  • A smaller capacity hydrogen power unit could be fitted for charging the battery, when the train is turned back at a terminal station and for rescuing trains with a flat battery.
  • The depot and associated filling station, doesn’t have to be where the trains run most of their passenger services.

I also suspect that a Class 321 hydrogen could run on the UK’s third-rail network after modification, if required.

If you were an operator choosing between the two trains, you would probably find that because of your location, there would be a strong preference for one of the two trains.

I also doubt we’ll see iLints running in the UK because of the loading gauge problem.

Will the platform height scupper the running of Class 321 Hydrogen trains in Europe?

In Riding Docklands Light Railway Trains In Essen, I reported on seeing redundant Docklands Light Railway trains running in Essen.

For this reason, I wouldn’t totally rule out Class 321 Hydrogen trains invading Europe!



September 14, 2018 Posted by | Transport/Travel | , , , , , , , | 4 Comments

More Thoughts On Aberdeen Crossrail

In A Crossrail For Aberdeen, I put down my initial thoughts for Aberdeen Crossrail.

Now that I’ve been to Aberdeen and travelled on most of the Aberdeen Crossrail route between Inverurie and Montrose stations, I can add more thoughts.

I shall express my thoughts in generally a Southerly direction.

Inverurie Station

Currently, this is a two-platform station on a passing loop.

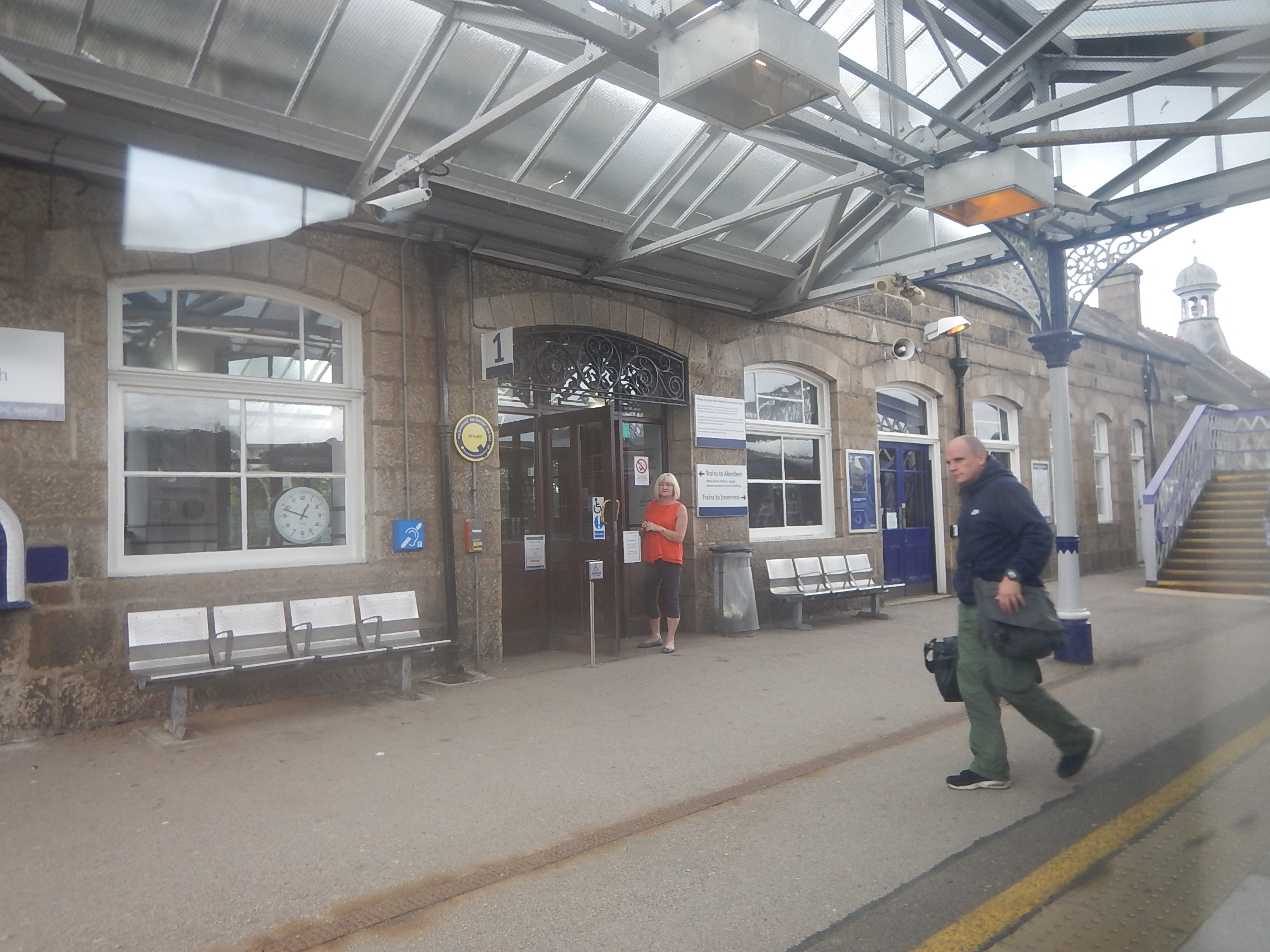

This picture gives a flavour of the station, which is Grade B Listed.

You can just see, the rather elderly iron footbridge across the tracks.

I suspect that platform usage will be as follows.

  • Platform 1 – All through trains to and from the West and Inverness.
  • Platform 2 – All trains starting or terminating at Inverurie.

If platform 2 is to be in regular use, then there will be pressure to improve the footbridge.

Double Track From Inverurie To Aberdeen

Most of this section seems to be single track, with passing loops at Inverurie and Dyce stations.

The only difficult bit is probably where the track goes under the new Aberdeen Western By-Pass.

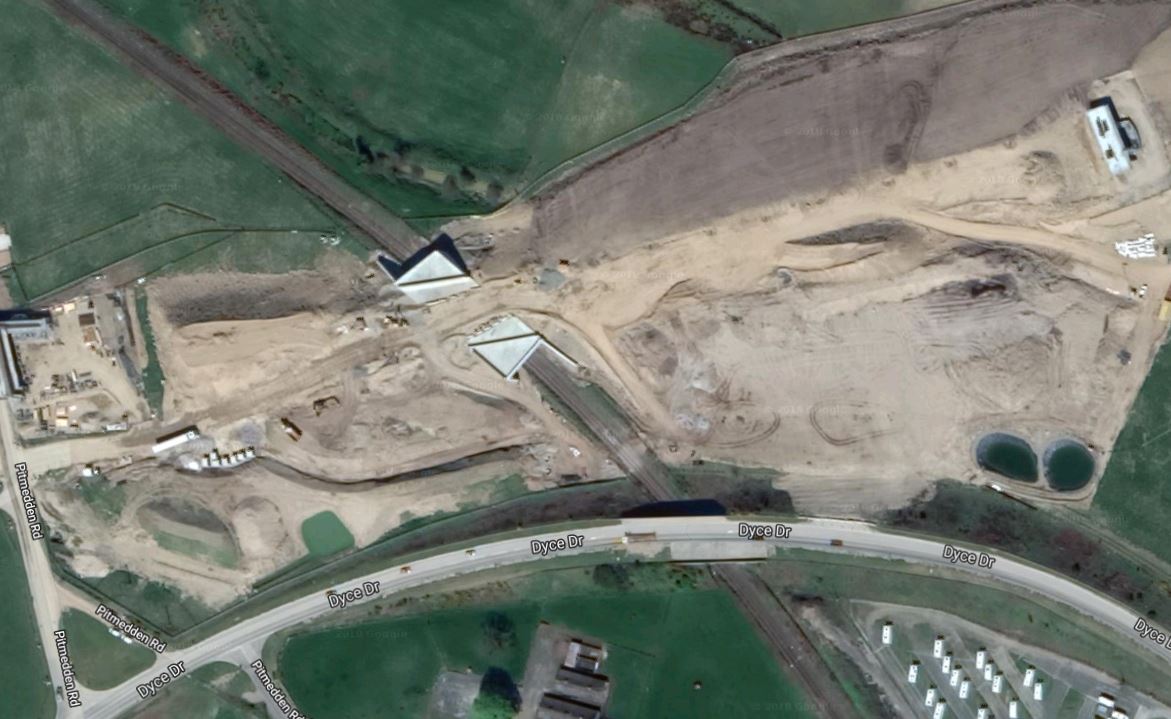

This Google Map shows where they cross to the West of Dyce station.

The difficulty is not the engineering, but the insolvency of Carrilion, who were the contractor for the road.

Dyce Station

These pictures show Dyce station, where I changed from train to bus.

I’m pretty sure that once the track is complete, Dyce station will only need a small amount of work.

Aberdeen Station

Aberdeen station is not only a transport hub with a bus station, but it is also connected directly to the Union Square development.

It is certainly ready for Aberdeen Crossrail.

InterCity 125s

In my travels up and down between, Aberdeen, Montrose, Stonehaven and Dundee, it surprised me, how many journeys were made on an InterCity 125.

I’ve read somewhere, that one of the reasons, ScotRail are bringing in shortened InterCity 125s, is that passengers tend to use these faster trains on journeys like those between Stonehaven and Aberdeen.

Although the shorterned InterCity 125s will be limited to 100 mph, their bags of grunt, will mean good acceleration and surely faster times between Aberdeen and Dundee, Edinburgh, Glasgow and Stirling.

Trains For Aberdeen Crossrail

I timed the InterCity 125s at 100 mph on large sections of the route between Aberdeen and Montrose, as this picture of the SpeedView App on my phone shows.

I think this means, that any trains working passenger services on the Edinburgh-Aberdeen and Glasgow-Aberdeen Lines must be capable of continuous operation at 100 mph.

As Wikipedia gives the operating speeds of both lines as being this figure, it does appear that Aberdeen Crossrail will be a fast local service, very much in line with the performance of services from London to Basingstoke, Brighton, Chelmsford and Oxford.

Initially, I suspect that ScotRail will be using Class 170 trains to provide the stopping service on Aberedeen Crossrail. Class 158 trains could also provide the service, but their 90 mph operating speed may not be enough.

ScotRail certainly have enough Class 170 trains, but I suspect that running two-car trains between Montrose and Inverurie stations, which stop everywhere will not have enough capacity. So a pair of trains will need to be used for each service.

In A Crossrail for Aberdeen, I said this under Frequency Issues.

The route of Inverrurie to Montrose has been deliberately chosen.

  • Inverurie to Aberdeen takes around 23 minutes.
  • Montrose to Aberdeen takes around 35 minutes.

So with slightly faster trains and line speed, than currently used, it should be possible for a train to go from Inverurie to Montrose and back in two hours to include a few minutes to turn the train round.

A two hour round trip means that a train leaving Inverurie at say 06:00 in the morning, will if all goes well, be back in Inverurie to form the 08:00 train.

How convenient is that?

This means that one tph will need two trains, two trph will need four trains and four tph will need eight trains.

These figures would be doubled if four-car trains were to be run on the route.

I feel that four-car trains will be needed on all services on Aberdeen Crossrail, if some of the passenger loading I saw, were to increase. As it surely will do, if they have a more convenient and much better quality service.

Passengers will also see the lots of seats on the shortened InterCity 125s, speeding past and will want some of that.

Two two-car trains working as a four-car train can provide the capacity, but in my view they are not what passengers want, as they can’t circulate in the train to find a preferred seat.

I also think, that at least two tph should run between Montrose and Inverurie stopping at all stations.

This would require four four-car trains.

ScotRail doesn’t at present have any suitable four-car trains.

Will It Be Hydrogen Trains For Aberdeen Crossrail?

Trains will need to be independently powered, as I think it unlikely that the route will be electrified.

I’m sure that CAF, Stadler or another manufacturer, will be happy to supply a small fleet of four-car diesel trains.

But would Abellio want to introduce more diesel trains, when they have enough Class 170 trains to provide a pretty good four-car service

Class 769 trains, which are bi-mode could be used, but they only do around 90 mph on diesel.

I am led to the conclusion, that the only suitable train available to a reasonable time-scale will be Alstom’s proposed conversion of a Class 321 train, running on hydrogen.

  • The trains are capable of 100 mph using electric power.
  • I would be very surprised if these trains couldn’t do 100 mph on hydrogen power.
  • The new interiors fitted under the Renatus project, are a quality upgrade, as I said in A Class 321 Renatus.
  • The trains could be available from 2020.

There is plenty of wind in the Aberdeen area to generate the hydrogen.

Conclusion

Aberdeen Crossrail will become a two trains per hour service using four-car trains.

I wouldn’t be surprised if those trains are Alstom’s Class 321 trains, powered by hydrogen.

August 15, 2018 Posted by | Transport/Travel | , , , , , | Leave a comment

Northern’s Latest Class 319 Trains

I took these pictures of the interior of a couple of Northern’s latest Class 319 trains.

The train companies certainly seem to be improving their refurbishments, as these posts show.

Personally, I hope I stick around long enough to get a ride in the following trains, that are in the line for substantial rebuilding.

And of course, I want a ride in one of Great Western Railway or ScotRail’s short-formation InterCity 125.

Will We See Any Other Substantial Rebuilds?

It would be unfair not to ask this question.

I think it would be reasonable to say that if refurbishment of the quality that has been applied to Class 319 and Class 321 trains, then train owners and their engineers could probably bring the Networkers and Voyagers, up to scratch.

If nothing else, batteries could be fitted to harness the braking energy and use if for hotel power on the train.

Bombardier have hinted, they will be doing this to Voyagers and I wrote about it in Have Bombardier Got A Cunning Plan For Voyagers?

August 2, 2018 Posted by | Transport/Travel | , , , | 2 Comments

A Class 321 Renatus

I finally got to ride in a Class 321 Renatus today.

Quite frankly I was impressed.

  • The seats were more comfortable than those in a Class 700 train.
  • There was wi-fi.
  • There were plugs to charge a phone or a laptop everywhere.
  • There was air-conditioning.
  • There was a new Universal Access Toilet.
  • There was new lighting.

Generally, the trains also seemed to have more space.

Will Alstom’s hydrogen-powered version of the Class 321 train have interiors as good as these?

July 25, 2018 Posted by | Transport/Travel | , , | 5 Comments
