Northern Cities And COVID-19

If you look at the official Government statistics for the total number of cases of COVID-19, as of May 3rd, the number of cases in the two major cities in the North West as follows.

  • Leeds – 1463 out of a city population of 789,194 (0.18%) and a metro population of 2,638,127 (0.05%)
  • Liverpool – 1454 out of a city population of 494,814 (0.29%) and a metro population of 2,241,000 (0.06%)
  • Manchester – 1154 out of a city population of 547,627 (0.21%) and a metro population of 3,748,274 (0.03%)
  • Newcastle – 939 out of a city population of 300,196 (0.31%) and a metro population of 1,650,000 (0.06%)
  • Nottingham – 537 out of a city population of 321,500 (0.17%) and a metro population of 1,610,000 (0.03%)
  • Sheffield – 2191 out of a city population of 582,506 (0.38%) and a metro population of 1,569,000 (0.14%)

Note.

  1. All populations come from Wikipedia.
  2. Why is Liverpool 40% worse than Manchester?
  3. Why is Sheffield the worst?

I will add a few smaller towns andcities.

  • Blackpool – 465 out of an urban population of 139,720 (0.33%)
  • Caldervale – 252 out of an urban population of 200,100 (0.13%)
  • Hull – 469 out of a city population of 260,645 (0.18%)
  • Middlesbrough – 566 out of an urban population of 174,700 (0.32%)
  • Stoke-on-Trent – 509 out of a city population of 255,833 (0.20%)
  • York – 315 out of a city population of 209,893 (0.15%)

I’d like to see full statistics plotted on a map or a scatter diagram.

The latter is a very powerful way to plot data and often they highlight data points that lie outside the underlying pattern of the data.

May 4, 2020 Posted by | Health, World | , , , , , , , , , , , | 3 Comments

Fuelling The Change On Teesside Rails

The title of this post, is the same as that of an article in Edition 895 of RAIL Magazine.

The article is based on an interview with Ben Houchen, who is the Tees Valley Mayor.

Various topics are covered.

Hydrogen-Powered Local Trains

According to the article, the Tees Valley produces fifty percent of UK hydrogen and the area is already secured investment for fuelling road vehicles with hydrogen.

So the Tees Valley Combined Authority (TVCA) is planning to convert some routes to hydrogen.

The Trains

Ten hydrogen-powered trains will be purchased or more likely leased, as the trains will probably be converted from redundant electrical multiple units, owned by leasing companies like Eversholt Rail and Porterbrook.

The RAIL article says that the first train could be under test in 2021 and service could be started in 2022.

That would certainly fit the development timetables for the trains.

Lackenby Depot

A depot Will Be Created At Lackenby.

  • The site is between Middlesbrough and Redcar.
  • It already has rail and hydrogen connections.

This Google Map shows the area.

Note the disused Redcar British Steel station, which is still shown on the map.

I remember the area from the around 1970, when I used to catch the train at the now-closed Grangetown station, after visits to ICI’s Wilton site. It was all fire, smoke, smells and pollution.

Darlington Station

Darlington station will also be remodelled to allow more services to operate without conflicting with the East Coast Main Line.

Wikipedia says this under Future for Darlington station.

As part of the Tees Valley Metro, two new platforms were to be built on the eastern edge of the main station. There were to be a total of four trains per hour, to Middlesbrough and Saltburn via the Tees Valley Line, and trains would not have to cross the East Coast Main Line when the new platforms would have been built. The Tees Valley Metro project was, however, cancelled.

It does sound from reading the RAIL article, that this plan is being reinstated.

Would services between Bishop Auckland and Saltburn, use these new platforms?

Saltburn And Bishops Auckland Via Middlesbrough and Darlington

Currently, the service is two trains per hour (tph) between Saltburn and Darlington, with one tph extending to Bishop Auckland.

  • I estimate that the current service needs five trains.
  • If a two tph service were to be run on the whole route, an extra train would be needed.
  • I suspect, the limitations at Darlington station, stop more trains being run all the way to Bishops Auckland.

I could also see extra stations being added to this route.

The Mayor is talking of running a service as frequent as six or eight tph.

These numbers of trains, will be needed for services of different frequencies between Saltburn and Darlington.

  • 2 tph – 6 trains
  • 4 tph – 12 trains
  • 6 tph – 18 trains
  • 8 tph – 24 trains

As the London Overground, Merseyrail and Birmingham’s Cross-City Line, find four tph a more than adequate service, I suspect that should be provided.

After updating, Darlington station, should be able to handle the following.

  • Up to six tph terminating in one of the new Eastern platforms, without having to cross the East Coast Main Line.
  • Two tph between Saltburn and Bishops Auckland could use the other platform in both directions.

I would suspect that the design would see the two platforms sharing an island platform.

Alternatively, trains could continue as now.

  • Terminating trains could continue to use Platform 2!
  • Two tph between Saltburn and Bishops Auckland stopping in Platforms 1 (Eastbound) and 4 (Westbound)

This would avoid any infrastructure changes at Darlington station, but terminating trains at Darlington would still have to cross the Southbound East Coast Main Line.

If the frequencies were as follows.

  • 4 tph – Saltburn and Darlington
  • 2 tph – Saltburn and Bishop Auckland

This would require fourteen trains and give a six tph service between Saltburn and Darlington.

Ten trains would allow a two tph service on both routes.

There would be other services using parts of the same route, which would increase the frequency.

Hartlepool And The Esk Valley Line Via Middlesbrough

This is the other route through the area and was part of the cancelled Tees Valley Metro.

  • Service is basically one tph, with six trains per day (tpd) extending to Whitby.
  • A second platform is needed at Hartlepool station.
  • There is a proposal to add a Park-and-Ride station between Nunthorpe and Great Ayton stations.
  • One proposal from Modern Railways commentator; Alan Williams, was to simplify the track at Battersby station to avoid the reverse.
  • Currently, trains between Whitby and Middlesbrough are timetabled for around 80-100 minutes.
  • Hartlepool and Middlesbrough takes around twenty minutes.

Substantial track improvements are probably needed to increase the number of trains and reduce the journey times between Middlesbrough and Whitby.

But I believe that an hourly service between Hartlepool and Whitby, that would take under two hours or four hours for a round trip, could be possible.

This would mean that the hourly Hartlepool and Whitby service would need four trains.

Providing the track between Nunthorpe and |Whitby could be improved to handle the traffic, this would appear to be a very feasible proposition.

Nunthorpe And Hexham Via Newcastle

There is also an hourly service between Nunthorpe and Hexham, via Middlesbrough, Stockton, Hartlepool, Sunderland and Newcastle, there would be two tph.

  • It takes around two hours and twenty minutes.
  • I estimate that five trains would be needed for the service.
  • I travelled once between Newcastle and James Cook Hospital in the Peak and the service was busy.
  • A new station is being built at Horden, which is eight minutes North of Hartlepool.
  • The service could easily access the proposed fuelling station at Lackenby.
  • It would reduce carbon emissions in Newcastle and Sunderland stations..

Surely, if hydrogen power is good enough for the other routes, then it is good enough for this route.

Hartlepool Station

Hartlepool Station could become a problem, as although it is on a double track railway, it only has one through platform, as these pictures from 2011 show.

Consider.

  • There is no footbridge, although Grand Central could pay for one
  • There is a rarely-used bay platform to turn trains from Middlesbrough, Nunthorpe and Whitby.

This Google Map shows the cramped site.

The final solution could mean a new station.

Nunthorpe Park-And-Ride

This Google Map shows Nunthorpe with thje bEsk Valley Line running through it.

Note.

  1. Gypsy Lane and Nunthorpe stations.
  2. The dual-carriageway A171 Guisborough by-pass running East-West, that connects in the East to Whitby and Scarborough.
  3. The A1043 Nunthorpe by-pass that connects to roads to the South.

Would where the A1043 crosses the Esk Valley Line be the place for the Park-and-Ride station?

The new station could have a passing loop, that could also be used to turn back trains.

Battersby Station

Alan Williams, who is Chairman of the Esk Valley Railway Development Company, is quoted in the RAIL article as saying.

If you’re going to spend that sort of money we’d much rather you spent it on building a curve at Battersby to cut out the reversal there.

Williams gives further reasons.

  • Battersby is the least used station on the line.
  • It’s in the middle of nowhere.
  • The curve would save five minutes on the overall journey.

This Google Map shows Battersby station and the current track layout.

Note.

  1. The line to Middlesbrough goes through the North-West corner of the map.
  2. The line to Whitby goes through the North-East corner of the map.

There would appear to be plenty of space for a curve that would cut out the station.

LNER To Teesside

LNER, the Government and the TVCA are aiming to meet a target date of the Second Quarter of 2021 for a direct London and Middlesbrough service.

Middlesbrough Station

Middlesbrough Station will need to be updated and according to the RAIL article, the following work will be done.

  • A new Northern entrance with a glass frontage.
  • A third platform.
  • Lengthening of existing platforms to take LNER’s Class 800 trains.

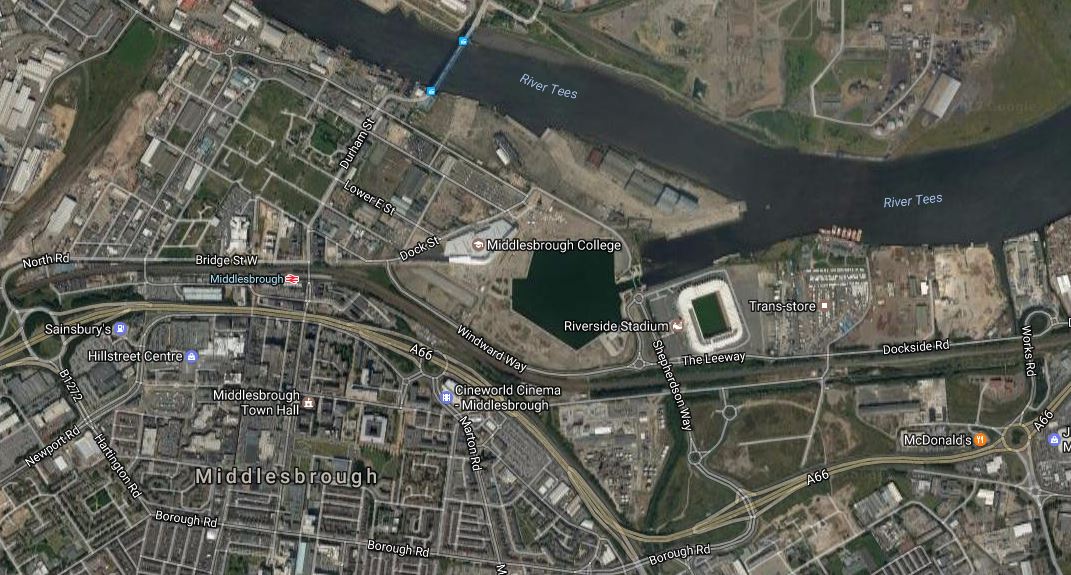

This Google Map shows the current layout of the station.

From this map it doesn’t look to be the most difficult of stations, on which to fit in the extra platform and the extensions.

It should also be noted that the station is Grade II Listed, was in good condition on my last visit and has a step-free subway between the two sides of the station.

Journey Times

I estimate that a Kings Cross and Middlesbrough time via Northallerton would take aroud two hours and fifty minutes.

This compares with other journey times in the area to London.

  • LNER – Kings Cross and Darlington – two hours and twenty-two minutes
  • Grand Central – Kings Cross and Eaglescliffe – two hours and thirty-seven minutes.

I also estimate that timings to Redcar and Saltburn would be another 14 and 28 minutes respectively.

Frequencies

Currently, LNER run between three and four tph between Kings Cross and Darlington, with the competing Grand Central service between Kings Cross and Eaglescliffe having a frequency of five trains per day (tpd).

LNER have also started serving secondary destinations in the last month or so.

  • Harrogate, which has a population of 75.000, is served with a frequency of six tpd.
  • Lincoln, which has a population of 130,000 is now served with a frequency of six tpd.

Note that the RAIL article, states that the Tees Valley has a population of 750,000.

I feel that Middlesbrough will be served by a frequency of at least five tpd and probably six to match LNER’s new Harrogate and Lincoln services.

Will LNER’s Kings Cross and York Service Be Extended To Middlesbrough?

Cirrently , trains that leave Kings Cross at six minutes past the hour end up in Lincoln or York

  • 0806 – Lincoln
  • 0906 – York
  • 1006 – Lincoln
  • 1106 – York
  • 1206 -Lincoln
  • 1306 – York
  • 1406 – Lincoln
  • 1506 – York
  • 1606 – Lincoln
  • 1906 -Lincoln

It looks to me that a pattern is being developed.

  • Could it be that the York services will be extended to Middlesbrough in 2021?
  • Could six Middlesbrough trains leave Kings Cross at 0706, 0906, 1106, 1306, 1506 and 1706 or 1806?
  • York would still have the same number of trains as it does now!

LNER certainly seem to be putting together a comprehensive timetable.

Could Middlesbrough Trains Split At Doncaster Or York?

I was in Kings Cross station, this afternoon and saw the 1506 service to York, go on its way.

The train was formed of two five-car trains, running as a ten-car train.

If LNER employ spitting and joining,, as some of their staff believe, there are surely, places, where this can be done to serve more destinations, without requiring more paths on the East Coast Main Line.

  • Splitting at Doncaster could serve Hull, Middlesborough and York.
  • Splitting at York could serve Scarborough, Middlesborough and Sunderland.

Scarborough might be a viable destination, as the town has a population of over 100,000.

Onward To Redcar And Saltburn

One of the changes in the December 2019 timetable change, was the extension of TransPennine Express’s Manchester Airport and Middlesbrough service to Redcar Central station.

The RAIL article quotes the Mayor as being pleased with this, although he would have preferred the service to have gone as far as Saltburn, which is a regional growth point for housing and employment.

But the extra six miles would have meant the purchase of another train.

Redcar Central Station

This Google Map shows Redcar Central station and its position in the town.

It is close to the sea front and the High Street and there appears to be space for the stabling of long-distance trains to Manchester Airport and perhaps, London.

TransPennine seem to be using their rakes of Mark 5A coaches on Redcar services, rather than their Class 802 trains, which are similar to LNER’s Azumas.

Surely, there will be operational advantages, if both train operating companies ran similar trains to Teesside.

Saltburn Station

Saltburn station is the end of the line.

This Google Map shows its position in the town.

Unlike Redcar Central station, there appears to be very little space along the railway and turning back trains might be difficult.

There may be good economic reasons to use Saltburn as a terminal, but operationally, it could be difficult.

Will Redcar And Saltburn See Services To and From London?

Given that both towns will likely see much improved services to Middlesbrough, with at least a service of four tph, I think it will be unlikely.

But we might see the following.

  • LNER using Redcar as a terminus, as TransPennine Express do, as it might ease operations.
  • An early morning train to London and an evening train back from the capital, which is stabled overnight at Redcar.
  • TransPennine Express using Class 802 trains on their Redcar service for operational efficiency, as these trains are similar to LNER’s Azumas.

It would all depend on the passenger numbers.

A High-Frequency Service Between York And Teesside

After all the changes the service between York and Teesside will be as follows.

  • LNER will be offering a train virtually every two hours between York and Middlesbrough.
  • Grand Central will be offering a train virtually every two hours between York and Eaglescliffe, which is six miles from Middlesbrough.
  • TransPennine Express will have an hourly service between York and Redcar via Middlesbrough.
  • There will be between three and four tph between York and Darlington.

All services would connect to the hydrogen-powdered local services to take you all over Teesside.

Could this open up tourism without cars in the area?

Expansion Of The Hydrogen-Powered Train Network

Could some form of Hydrogen Hub be developed at Lackenby.

Alstom are talking of the hydrogen-powered Breeze trains having a range of over six hundred miles and possibly an operating speed of 100 mph, when using overhead electrification, where it is available.

In Breeze Hydrogen Multiple-Unit Order Expected Soon, I put together information from various articles and said this.

I am fairly certain, that Alstom can create a five-car Class 321 Breeze with the following characteristics.

  • A capacity of about three hundred seats.
  • A smaller three-car train would have 140 seats.
  • A near-100 mph top speed on hydrogen-power.
  • A 100 mph top speed on electrification.
  • A 1000 km range on hydrogen.
  • Regenerative braking to an on-board battery.
  • The ability to use 25 KVAC overhead and/or 750 VDC third rail electrification.

The trains could have the ability to run as pairs to increase capacity.

The distance without electrification to a selection of main stations in the North East from Lackenby is as follows.

  • Newcastle via Middlesbrough and Darlington – 21 miles
  • Newcastle via Middlesbrough and Durham Coast Line – 53 miles.
  • York via Northallerton – 27 miles
  • Doncaster via Northallerton and York – 27 miles
  • Leeds via Northallerton and York – 52 miles
  • Sheffield via Northallerton, York and Doncaster – 45 miles

I am assuming that the trains can use the electrification on the East Coast Main Line.

From these figures it would appear that hydrogen-powered trains stabled and refuelled at Lackenby could travel to Doncaster, Newcastle, Leeds, Sheffield or York before putting in a days work and still have enough hydrogen in the tank to return to Lackenby.

Several things would help.

  • As hydrogen-powered trains have a battery, with a battery range of thirty miles all these main stations could be reached on battery power, charging on the East Coast Main Line and at Lackenby.
  • Electrification between Darlington and Lackenby.
  • Electrification between Northallerton and Eaglescliffe.

I am fairly certain that a large proportion of the intensive network of diesel services in the North East of |England from Doncaster and Sheffield in the South to Newcastle in the North, can be replaced with hydrogen-powered trains.

  • Trains could go as far West as Blackpool North, Carlisle, Manchester Victoria, Preston and Southport.
  • Refueling could be all at Lackenby, although other refuelling points could increase the coverage and efficieny of the trains.
  • Green hydrogen could be produced by electrolysis from the massive offshore wind farms off the Lincolnshire Coast.
  • Hydrogen-powered trains would be ideal for re-opened routes like the proposed services from Newcastle to Blyth and Ashington.

The hydrogen-powered trains on Teesside could be the start of a large zero-carbon railway network.

The Alstom Breeze And The HydroFlex Would Only Be The Start

As I said earlier, the initial trains would be conversions of redundant British Rail-era electrical multiple units.

Thirty-year-old British Rail designs like the Class 319 and Class 321 trains based on the legendary Mark 3 carriages with its structural integrity and superb ride, may have been state-of-the-art in their day, but engineers can do better now.

  • Traction and regenerative braking systems are much more energy efficient.
  • Train aerodynamics and rolling resistance have improved, which means less energy is needed to maintain a speed.
  • Interior design and walk-through trains have increased capacity.
  • Crashworthiness has been improved.

Current Bombardier Aventras, Stadler Flirts or Siemens Desiros and CAF Civities are far removed from 1980s designs.

I can see a design for a hydrogen-powered train based on a modern design, tailored to the needs of operators being developed.

A place to start could be an electric CAF Class 331 train. or any one of a number of Aventras.

  • From the visualisation that Alstom have released of their Breeze conversion of a Class 321 train, I feel that to store enough hydrogen, a large tank will be needed and perhaps the easiest thing to do at the present time would be to add an extra car containing the hydrogen tank, the fuel cells and the batteries.
  • Alstom have stated they’re putting the fuel cells on the roof and the batteries underneath the train.

Although, it is not a hydrogen train, Stadler have developed the Class 755 train, with a power car in the middle of the train.

Stadler’s approach of a power car, must be working as they have received an order for a hydrogen-powered version of their popular Flirts, which I wrote about in MSU Research Leads To North America’s First Commercial Hydrogen-Powered Train.

I think we can be certain, that because of the UK loading gauge, that a hydrogen-powered train will be longer by about a car, than the equivalent electric train.

I can see a certain amount of platform lengthening being required. But this is probably easier and less costly than electrification to achieve zero-carbon on a route.

Batteries can be distributed under all cars of the train, anywhere there is space., But I would suspect that fuel cells must be in the same car as the hydrogen tank, as I doubt having hydrogen pipes between cars would be a good idea.

Alstom have resorted to putting hydrogen tanks and fuel cells in both driving cars and they must have sound reasons for this.

Perhaps, it is the only way, they can get the required power and range.

As I understand it, the Alstom Breeze draws power from three sources.

  • The electrification if the route is electrified.
  • The electricity generated by regenerative braking.
  • The hydrogen system produces electricity on demand, at the required level.

Energy is stored in the batteries, which power the train’s traction motors and internal systems.

The electrical components needed for the train are getting smaller and lighter and I feel that it should be possible to put all the power generation and collection into a power car, that is somewhere near the middle of the train. Stadler’s power car is short at under seven metres, but there is probably no reason, why it couldn’t be the twenty metres, that are typical of UK trains.

Suppose you took a four-car version of CAF’s Class 331 train, which has two driver cars either side of a pantograph car and a trailer car.

This has 284 seats and by comparison with the three-car version the trailer car has eighty. As the pantograph car is also a trailer, I’ll assume that has eighty seats too! Until I know better!

Replacing the pantograph car with a hydrogen car, which would be unlikely to have seats, would cut the seats to 204 seats, but a second trailer would bring it back up to 284 seats.

I actually, think the concept of a hydrogen car in the middle of a four-car electric train could work.

  • The five-car hydrogen train would have the same capacity as the four-car electric version.
  • The train would need an updated software system and some rewiring. Bombardier achieved this quickly and easily with the train for the Class 379 BEMU trial.
  • There are several types of four-car electrical multiple units, that could possibly be converted to five-car hydrogen-powered multiple units.
  • Some five-car electrical multiple units might also be possible to be converted.

Obviously, if an existing train can be adapted for hydrogen, this will be a more cost effective approach.

Conclusion

Overall, the plans for rail improvements on Teesside seem to be good ones.

I’m looking forward to riding LNER to Teesside and then using the network of hydrogen-powered trains to explore the area in 2022.

My only worry, is that, if the network is successful, the many tourists visiting York will surely increase the numbers of day visitors to Whitby.

This is a paragraph from the RAIL article.

Alan Williams says that the EVRDC’s long-term objective is to see the Esk Valley served at intervals of roughly every two hours, equating to eight return trains per day, but with Northern and NYMR services sharing the single line between Grosmont and Whitby, introducing further Middlesbrough trains during the middle of the day, brings the conversation back to infrastructure.

He goes on to detail what is needed.

January 8, 2020 Posted by | Transport | , , , , , , , , , , , , , , , , , | 5 Comments

The Shape Of Train Services To Come

Today, I went to Lincoln, which as I reported in LNER To Put Lincoln On The Rail Map, is now a city, that has five trains per day to and from London.

It actually appears that from the timetable change on December 15th, 2019, the LNER timetable will be as follows.

  • On Mondays to Saturdays, there will be six trains per day (tpd) in both directions.
  • On Sundays, there will be five tpd in both directions.
  • Services stop at Stevenage, Peterborough, Grantham and Newark Northgate.
  • All direct services are under two hours, by at least a couple of minutes.
  • Indirect services with a change at Newark are generally no more than ten minutes over two hours, with some under two hours.
  • All direct trains would appear to be five-car Class 800 trains.

I can’t see any cause for passenger complaint.

On The 10:06 To Lincoln

Today is a Friday and I had expected more people on this direct service to Lincoln Central station.

As this was the first direct Friday service at this time to Lincoln, perhaps the word has been slow to get around?

The train arrived on time in Lincoln, although it had been a few minutes late at Grantham.

I asked several people, including a knowledgeable journalist, if Lincoln had ever had a two-hourly service from London and all said the answer was never!

On The 13:23 From Lincoln

This train was very close to maximum capacity with only a few empty seats.

The only problem was a young Lady, although I hasten to add she didn’t behave like a lady, who was sitting on the other side of the carriage.

She was constantly shouting into her phone and using the F-word to boot.

An elderly gentleman politely asked her to calm it down and it made no difference.

I did say to the very large guy, who looked like a prop forward opposite me, that will you ram her phone down her throat or shall I? All it got was a few laughs all round.

Perhaps her mother, didn’t wash her mouth out with soap often enough?

Catering

The train had a buffet and we had a visit from the trolley on the way to Lincoln.

Coming back, there was no trolley, but the train might have been too busy to get it through.

First Class

Five-car Class 800 trains have forty-five First Class and two hundred and seventy Standard Class seats.

Given that some train companies are reducing the number of First Class seats, I wonder if LNER will follow suit on the service to and from Lincoln and perhaps replace them with Second Class seats.

Performance And Train Times

The journey is effectively in two parts.

  • 120 miles between Kings Cross and Newark, which is electrified.
  • 16 miles between Newark and Lincoln, which is not electrified.

A two hour trip between Kings Cross and Lincoln is an average of around sixty-eight mph.

The current two hour schedule is not a convenient time for an operator running a service. Something more under two hours would make timetabling easier.

Suppose, the train took an hour and forty minutes to do the trip and that twenty minutes were to be allowed for turnround and any short delays of a few minutes. This would enable a two-hourly clockface timetable, with a train both ways every two hours.

This would need an overall average speed of 81 mph, including all the stops.

Would this average speed be possible?

In the next few aub-sections, I’ll discuss various factors.

The Class 800 Trains

Consider.

  • The Class 800 trains have fast acceleration and deceleration.
  • Each stop currently takes about two minutes and probably with better systems and staff training could be improved.
  • Most of the time on the electrified East Coast Main Line, the trains are running at speeds in excess of 110 mph and at times up to 125 mph.
  • The trains can run at 140 mph with in-cab digital signalling, as their cousins; the Class 395 trains do on High Speed One.
  • Between Newark and Lincoln, the trains will be slowed by the maximum linespeed.
  • The trains will be running on diesel between Newark and Lincoln.
  • The next generation of AT300 trains are being designed for the Midland Main Line.

These trains will only get better.

In Thoughts On The Next Generation Of Hitachi High Speed Trains, I laid out my thoughts about how they will develop.

One development will be battery-electric trains and these will use battery power between Newark and Lincoln. This will mean that the trains would only need one diesel engine for emergencies like overhead line failure.

The 140 mph East Coast Main Line

Digital in-cab signalling is planed to be installed on the East Coast Main Line between London and Doncaster.

This will allow the following.

  • Closer control of the trains.
  • 140 mph running, where track and traffic allow.
  • More trains per hour (tph)

It was originally planned to be operational by 2020.

It should be noted that High Speed Two is planned to run at eighteen tph. Surely, the slower East Coast Main Line could allow an increase in frequency.

I estimate that this higher speed running could save upwards of ten minutes between Kings Cross and Newark.

Improvements Between Newark And Lincoln

Wikipedia says this about the line between Newark and Lincoln.

The line between Newark and Lincoln is currently only cleared for 50–70-mile-per-hour (80–100 km/h) speeds. Nottinghamshire County Council has paid for a study into 90-mile-per-hour (140 km/h) running.

From my helicopter, the line looks to be all double-track, fairly straight, in good condition, with signs of recent improvements. But there are also up to a dozen level crossings.

With improvements, I suspect that a 90 mph linespeed will be possible.

Summing Up Performance

My mathematical nous, feels that with the digital signalling and other improvements, that the required four hour round trip would be possible.

If this can be achieved, then just two trains would be needed to run a one train every two hours and between Kings Cross and Lincoln.

Other Services

The Wikipedia entry for LNER, says this about the services to Lincoln and other new destinations in the North.

An expanded service to Lincoln began on 21 October 2019 when four terminating services at Newark Northgate were extended into Lincoln. This is in addition to the sole one train per day service, which in all, now provides five out and back workings to and from London King’s Cross. LNER also plans for December 2019 timetable change that a sixth return service to London from Lincoln will be introduced and 5 extra services on a Saturday will begin from 7 December 2019. From December 2019, LNER will introduce a Harrogate to London service 6 times a day. LNER expects to introduce two-hourly services to Bradford and a daily service to Huddersfield in May 2020 when more Azuma trains have been introduced. The Middlesbrough service is expected to begin in December 2021 after infrastructure work required to run the service is completed.

That looks like a comprehensive increase in service to Bradford, Harrogate, Huddersfield and Middlesbrough

Conclusion

LNER seem to have made a good start on the increased service levels to Lincoln.

Harrogate would appear to be next!

It will be interesting to follow both places, to see if they benefit from an improved train service.

But I can certainly see a day in the not too distant future, when LNER’s or other operator’s Azumas and other 140 mph trains are running to multiple destinations via the East Coast Main Line.





October 25, 2019 Posted by | Transport | , , , , , , , | 3 Comments

Bombardier’s 125 Mph Electric Train With Batteries

In Bombardier Bi-Mode Aventra To Feature Battery Power, I said this.

The title of this post is the same as this article in Rail Magazine.

A few points from the article.

  • Development has already started.
  • Battery power could be used for Last-Mile applications.
  • The bi-mode would have a maximum speed of 125 mph under both electric and diesel power.
  • The trains will be built at Derby.
  • Bombardier’s spokesman said that the ambience will be better, than other bi-modes.
  • Export of trains is a possibility.

Bombardier’s spokesman also said, that they have offered the train to three new franchises. East Midlands, West Coast Partnership and CrossCountry.

It has struck me, that for some applications, that the diesel engines are superfluous.

In the July 2018 Edition of Modern Railways, in an article entitled Bi-Mode Aventra Details Revealed.

In a report of an interview with Bombardier’s Des McKeon, this is said.

Conversion to pure electric operation is also a key design feature, with the ability to remove the diesel engines and fuel tanks at a later date.

So why not swap the diesel engines and add an equal weight of extra batteries?

Batteries would have the following uses.

Handling Energy Generated By Regenerative Braking

Batteries would certainly be handling the regenerative braking.

This would give efficiency savings in the use of electricity.

The total battery power of the train, would have to be large enough to handle all the electricity generated by the regenerative braking.

In the Mathematics Of A Bi-Mode Aventra With Batteries, I calculated the kinetic energy of the train.

I’ll repeat the calculation and assume the following for a pure electric train.

  • The train is five cars, with say four motored cars.
  • The empty train weighs close to 180 tonnes.
  • There are 430 passengers, with an average weight of 90 Kg each, with baggage, bikes and buggies.
  • This gives a total train weight of 218.7 tonnes.
  • The train is travelling at 200 kph or 125 mph.

These figures mean that the kinetic energy of the train is 94.8 kWh. This was calculated using Omni’s Kinetic Energy Calculator.

My preferred battery arrangement would be to put a battery in each motored car of the train, to reduce electrical loses and distribute the weight. Let’s assume four of the five cars have a New Routemaster-sized battery of 55 kWh.

So the total onboard storage of the train could easily be around 200 kWh, which should be more than enough to accommodate the energy generated , when braking from full speed..

Traction And Hotel Power

Battery power would also be available to move the train and provide hotel power, when there is no electrification.

In an article in the October 2017 Edition of Modern Railways, which is entitled Celling England By The Pound, Ian Walmsley says this in relation to trains running on the Uckfield Branch, which is not very challenging.

A modern EMU needs between 3 and 5 kWh per vehicle mile for this sort of service.

As the Aventra is probably one of the most modern of electric multiple units, I suspect that an Aventra will be at the lower end of this range.

An Intelligent Computer

The train’s well-programmed computer would do the following.

  • Choose whether to use electrification or battery power to power the train.
  • Decide when the battery could be charged, when electrification power was being used.
  • Arrange, that when a train stopped at a station without electrification, the batteries were as full as possible.
  • Manage power load, by shutting off or switching equipment to a low energy mode, when the train was running on batteries.
  • Raise and lower the pantograph as required.

The computer could take account of factors such as.

  • Passenger load and total weight.
  • Route and train’s position.
  • Weather.
  • Future signals.

The computer would only be doing a similar job that is done by those in the flight control systems of aircraft.

Although, trains run in less dimensions and don’t need to be steered.

How Far Would This Train Go On Batteries?

This is question of the same nature as how long is a piece of string?

It depends on the following.

  • The severity of the route.
  • The size of the batteries.
  • The load on the train.
  • The number of stops.
  • Any delays from slow-moving trains.
  • The timetable to be used.

I would expect that train manufacturers and operating companies will have a sophisticated mathematical model of the train and the route, that can be run through various scenarios.

With modern computers you could do a Monte-Carlo simulation, trying out millions of combinations, which would give a very accurate value for the battery size to have a near hundred percent chance of being able to run the route to the timetable.

After all if you ran out of power with a battery train, you stop and the train has to be rescued.

Suppose you were going to run your 125 mph Electric Train With Batteries from Kings Cross to Middlesbrough.

  • You would need a battery range of about fifty miles, to go between Northallerton and Middlesbrough stations and come back.
  • You would also need to have enough power to provide hotel power in Middlesbrough station, whilst the train was turning back.

Certain things could be arranged so that the service runs smoothly.

  1. The train must leave the East Coast Main Line with a fully-charged battery.
  2. The train must leave the East Coast Main Line as fast as possible.
  3. The train should have a minimum dwell time at all the intermediate stops.
  4. The train could be driven very precisely to minimise energy use.

Some form of charging system could also be provided at Middlesbrough. Although it could be difficult as there are only two platforms and trains seem to turn round in a very short time of six minutes

Electrification could also be extended for two hundred metres or so, at Northallerton junction to ensure points 1 and 2 were met.

Effectively, trains would be catapulted at maximum energy towards Middlesbrough.

Points 3 and 4 require good signalling, a good Driver Advisory System and above all good driving and operation.

What Other Routes Could Use 125 mph Electric Trains With Batteries?

Use your imagination!









August 29, 2018 Posted by | Transport | , , , , | 3 Comments

£690 Million Competition For Local Authorities To Tackle Urban Congestion And Get Local Transport Networks Moving Again

This quote is directly from today’s budget and is the real joker in the pack.

Is the £690 million all for one project, or is it to be split between say thirty ones of £20 million or so.

What I like about it, is that several towns and cities will come forward with very good well-structured schemes.

Schemes, I’ve seen in Europe that I like include.

In some ways the Kassel tram-train system is the most impressive.  I sat in a cafe and watched trams and large trams (tram-trains) cross in front of me. Passengers would get off and on and then when their next tram or tram-train arrived they would board and go on their way.

When you see Kasssel, you realise what an opportunity was missed in Manchester, where tram-trains could come into Piccadilly station, take to the streets and pass through Piccadilly Gardens and then go to Victoria station, where they took to the tracks again.

If we look at the cost of the latest Manchester Metrolink extension to the Trafford Centre, it is disclosed in this article in Railway Technology Magazine at £350 million.

So you could get two tram lines for the whole £690 million. Or one line and a lot of tram-trains, trams or trains.

  • Large central squares are rare in the UK compared to Europe.
  • Birmingham has one, but it’s already got a local transport network. It was also have their version of Seville’s trams.
  • Liverpool has the waterfront, but it’s buying new trains.
  • Nottingham has one, but like Birmingham has a tram network.

The interesting one is Middlesbrough.

This Google Map shows the town centre.

Note the railway passing through the town with the Grade II Listed Middlesbrough station to the North of the town centre.

One line through the station is the Tees Valley Line from Saltburn on the Coast to Bishop Auckland a few miles inland.

If this line were to be run by tram-trains or at least modern trains  (London Overground Class 172 (?)) that looked like trams, they could go walk-about through the gardens and the shops in the centre of the town and have stops by the shops in the centre, the Town Hall and the Riverside stadium.

Stops on the line would include Redcar, Darlington and Newton Aycliffe.

Branches from the line go all over the area to Hartlepool, Stockton, Whitby and Sunderland and Newcastle via the Durham Coast Line.

A lot of people will have fun with this competition.

Places to watch would include.

  • Brighton to Hove along the front.
  • Southend.
  • Portsmouth to Southampton
  • Cardiff
  • Milton Keynes
  • Huddersfield
  • Leeds-Bradford and the Airport.

Some of the schemes that don’t get funding could even be picked up by the various infrastructure funds, that are always looking for investments.

Spreadsheet Phil has had an idea with vision!

The size of the fund could bring forward some very innovative ideas, other than the usual by-passes, car-parks and more of the same shops.



March 8, 2017 Posted by | Transport | , | 2 Comments

Class 319 Flex Trains And Reopening Newcastle To Ashington

In Reopening Newcastle To Ashington, I suggested that Class 319 Flex trains might be useful in reopening the route to passenger trains.

This map is taken from on the South East Northumberland Rail User Group (SENRUG) web site.

ashingtonnewcastle

The East Coast Main Line is shown in red, with the proposed reopened line in a thick orange.

I have since heard from SENRUG and this is a summary of their e-mail.

  • The line from Newcastle to Ashington takes freight along its entire length.
  • The route between Newcastle and Bedlington and the Choppington Branch is a diversionary route for HSTs.
  • The new Hitachi Class 800 trains will be able to use the Bedlington-Choppington route.
  • SENRUG are promoting Ashington to Butterwell as an extension to the route and a further HST diversion.

The e-mail finishes with this sentence.

Northern tell us the reason why they don’t want electric trains on the Morpeth branch (which is wired) is because they need to consolidate maintenance expertise at Heaton Depot and need flexibility to switch units around from route to route. Thus any new stock for the Ashington route also has to travel on the 3 other routes, all of which also take freight and inter-city type services.

Come in the Class 319 Flex train, the Teessiders, Tynesiders and Wearsiders need you!

  • Newcastle-Morpeth would be run using electric power, with all other lines from Newcastle  using two 390kW rail-proven MAN diesel engines.
  • The trains have a performance as good if not better than a Class 156 train.
  • The trains are four-car and meet all regulations.
  • Back-to-back services through Newcastle, such as Ashington to Sunderland or Middlesborough and Morpeth to Hexham, would be possible.
  • The trains could also work Middlesbrough – Newcastle – Hexham – Carlisle via the Leamside Line, if Northern wanted to open the line in 2019.
  • Northern get their route flexibility from Newcasstle, as the trains could work any route from the city.
  • The standard Class 319 trains have mixed it with big freight trains for thirty years on the Bedpan (Bedford to Brighton via St. Pancras).
  • They can go anywhere that an HST or a Class 156 train can go. So does that include some lines of the Metro?
  • When on the East Coast Main Line, they can up pantograph and cruise at 100 mph, just as they do on the West Coast Main Line now.
  • If any lines have steep gradients, the trains are designed for the 1-in-60 climb up to Buxton after a United-City Derby.

But the biggest advantage of the train, must be that as planners have ideas for new services, so long as the track and signalling are up-to-scratch, it’s just a case of Have Track, Will Travel!

As Northern were part of the writing of the specification for the Class 319 Flex train, I can’t believe that they didn’t take what they could do in the North East into account.

Consider.

  • Northern are developing a similar network using a mix of Class 319 and Class 319 Flex trains linking Blackpool, Liverpool, Manchester and Preston, based at Allerton Depot in Liverpool.
  • There have been proposals for new stations on the East Coast Main Line between Newcastle and Berwick-on-Tweed. 100 mph Class 319 trains would be ideal for a stopping service between Newcastle and Berwick.
  • Are there possibilities to run services into North Yorkshire?
  • Class 319 Flex trains could work Newcastle to Carlisle.
  • Bishop Auckland, Northallerton, Saltburn, Sunderland and Whitby could be worked from Midlesbrough.

Northern could stable an appropriate mix of Class 319 and Class 319 Flex trains at a convenient depot, deploying as required using the electrified East Coast Main Line.

Could Northern be developing an electric hub concept, as what could happen in the North East could mirror what is happening in the North West?

  • Central depot on an electrified main line, with good high-speed electrified connections to all routes served.
  • A number of four-car 100 mph electric trains- At present they have a total of thirty Class 319 trains.
  • A number of four-car 100 mph bi-mode trains. – At present they have a number of Class 319 Flex trains in development.
  • New routes could be developed using the bi-mode Flex trains.
  • If electrification happens on a route, the electric trains might take over.

But Northern have forty-three Class 331 electric trains on order.

These are three and four car 100 mph trains.. Northern probably have plans for these trains, but they could supplement the fleet at either hub, as routes get more numerous and passenger numbers increase.

A similar electric hub could develop at Leeds.

It looks to be a very flexible philosophy.

At some point in the future, it could happen that all Class 319 trains are the Flex variant and they work in tandem with a bog-standard four-car 100 mph electric multiple unit.



March 7, 2017 Posted by | Transport | , , , , , | 1 Comment

York Potash Haven’t Wasted Much Time

This article in the Teeside Gazette is entitled York Potash jobs: How to apply at massive project expected to employ more than 1,000. The first paragraph is.

York Potash project boss pledge: ‘If we can employ every single one of our team from the local area – then we will’

In my book a thousand jobs is good news, so why is only the local paper reporting it?

October 22, 2015 Posted by | World | , , , | Leave a comment

Will The Fight Continue Over Potash On The York Moors?

This article on Grough is entitled Campaigners fight on as North York Moors potash mine formally approved.

As the mine could employ upwards of a couple of thousand people, have the campaigners sent personal letters to all the redundant steelworkers explaining how it is more important that they are unemployed?

How can people be so selfish?

October 21, 2015 Posted by | Uncategorized, World | , , , | Leave a comment

An Open Letter To George Osborne About Teeside

I should say, I have no connection to Teeside, except that I quite like the area.

There is little that can be done about SSI Redcar, other than hope for a miracle, as there is so much steel being produced in the world, that the price will only get lower and the plant will get less and less economic.

I also live in Dalston, which since the arrival of the London Overground five years ago, has very much gone up in the world! And in some ways, like employment, gone up for those at all levels in society.

So I very much feel, that improving a railway and other forms of public transport, can only make an area more attractive for investment, employment, living and leisure.

Teeside has been lobbying for a Metro for years, to link the knit the area together.

There is only one way that this can be provided in the absolutely necesary short time-scale.

The railway line between Newton Aycliffe and Middlebrough should be electrified, as soon as possible. Immediately, this would enable.

  • The new trains being produced at Newton Aycliffe by Hitachi, to get to the East Coast Main Line under their own power.
  • Direct electric train services between Middlesbrough, Darlington and all points North and South from Edinburgh to London on the East Coast Main Line.

Northern Rail or their successor have been mandated in the new Invitation to Tender for the franchise to provide 120 new carriages to replace the disgusting Pacer trains.

Some of these new carriages should be the IPEMU variant of the new Aventra trains, being produced by Bombardier at Derby, which could by the use of the electrification at Middlesbrough and on the East Coast Main Line and the trains on-board batteries be able to run on the following routes.

  • Saltburn to Bishop Auckland via Middlesbrough and the Tees Valley Line
  • Hexham to Nunthorpe via the Tyne Valley Line, Newcastle, Sunderland, the Durham Coast Line, Hartlepool and Middlesbrough.
  • Middlesbrough to Whitby could be done later.

The faster electric trains would increase capacity, decrease journey times and improve frequencies.

The only construction needed for the new trains, would be a small amount of platform lengthening and adjustments to the track and signalling.





September 29, 2015 Posted by | Transport | , , , , , | 3 Comments

The Creation Of The Tees Valley Metro

James Cook station is the first project that could be thought of as part of the proposal to create a Tees Valley Metro, which is described in Wikipedia like this.

The Tees Valley Metro is a project to upgrade the Tees Valley Line and sections of the Esk Valley Line and Durham Coast Line to provide a faster and more frequent service. In the initial phases the services will be heavy rail mostly along existing alignments. The later phase may introduce tram-trains to allow street running.

Tram-trains could be ideal for the line and perhaps if they ran past the Riverside stadium could be used to provide a stop there.

The proposed layout of the metro is powerful in that it links the East Coast Main Line at Darlington and the possibly soon-to-be-electrified Middlesbrough station to a number of both local heavy rail lines and a couple of heritage ones, opening up the area for all sorts of business, leisure and employment opportunities.

If Newton Aycliffe becomes a major train building centre as Hitachi hope, then surely that area could become an important destination on the Tees Valley Metro.

This Google Earth image shows the Tees Valley Line through Middlesbrough.

Middlesbrough

Middlesbrough

Note Middlesbrough station at the west (left) and South Bank station at the east, at the top of the image.

The current Tees Valley Line threads its way between the two stations, on the north side of the main A66 road, passing close to the Riverside stadium.

The Esk Valley Line to James Cook, Nunthorpe and Whitby  branches off from this line between Middlesbrough station and the stadium and goes off in a generally south-easterly direction alongside the A172 road.





March 15, 2015 Posted by | Transport | , , , | 4 Comments
