Shooter Urges Caution On Hydrogen Hubris

The title of this post is the same as that of an article in the January 2021 Edition of Modern Railways.

This is the first paragraph.

Vivarail Chairman Adrian Shooter has urges caution about the widespread enthusiasm for hydrogen technology. In his keynote speech to the Golden Spanner Awards on 27 November, Mr. Shooter said the process to create ‘green hydrogen’ by electrolysis is ‘a wasteful use of electricity’ and was skeptical about using electricity to create hydrogen to then use a fuel cell to power a train, rather than charging batteries to power a train. ‘What you will discover is that a hydrogen train uses 3.5 times as much electricity because of inefficiencies in the electrolysis process and also in the fuel cells’ said Mr. Shooter. He also noted the energy density of hydrogen at 350 bar is only one-tenth of a similar quantity of diesel fuel, severely limiting the range of a hydrogen-powered train between refuelling.

Mr. Shooter then made the following points.

  • The complexity of delivering hydrogen to the railway depots.
  • The shorter range available from the amount of hydrogen that can be stored on a train compared to the range of a diesel train.
  • He points out limitations with the design of the Alstom Breeze train.

This is the last paragraph.

Whilst this may have seemed like a challenge designed purely to promote the battery alternatives that Vivarail is developing, and which he believes to be more efficient, Mr. Shooter explained: ‘I think that hydrogen fuel cell trains could work in this country, but people just need to remember that there are downsides. I’m sure we’ll see some, and in fact we should because competition improves the breed.’

i think Mr. Shooter may have made several good points.

These are my thoughts.

Creating Green Hydrogen

I haven’t done an analysis of the costs of creating green hydrogen from electrolysis, but I have a feeling, that electrolysis won’t be the only way to create large amounts of carbon-free hydrogen, in a few years.

These methods are currently available or under development or construction.

  • The hydrogen tram-buses in Pau have a personal electrolyser, that provides hydrogen at 350 bar.
  • London’s hydrogen buses will be provided with hydrogen from an electrolyser at Herne Bay by truck. Will the trucks be hydrogen-powered?

Some industrial processes like the Castner-Kellner process create hydrogen as a by-product.

In Shell Process To Make Blue Hydrogen Production Affordable, I describe the Shell Blue Hydrogen Process, which appears to be a way of making massive amounts of carbon-free hydrogen for processes like steel-making and cement production. Surely some could be piped or transported by truck to the rail depot.

In ITM Power and Ørsted: Wind Turbine Electrolyser Integration, I describe how ITM Power and Ørsted plan to create the hydrogen off shore and bring it by pipeline to the shore.

Note.

  1. The last two methods could offer savings in the cost of production of carbon-free hydrogen.
  2. Surely, the delivery trucks if used, must be hydrogen-powered.
  3. The Shell Blue Hydrogen Process uses natural gas as a feedstock and converts it to hydrogen using a newly-developed catalyst. The carbon-dioxide is captured and used or stored.
  4. If the local gas network has been converted to hydrogen, the hydrogen can be delivered to the depot or filling station through that gas network.

I very much feel that affordable hydrogen can be supplied to bus, train, tram or transport depot. For remote or difficult locations. personal electrolysers, powered by renewable electricity, can be used, as at Pau.

Hydrogen Storage On Trains

Liquid hydrogen could be the answer and Airbus are developing methods of storing large quantities on aircraft.

In What Size Of Hydrogen Tank Will Be Needed On A ZEROe Turbofan?, I calculated how much liquid hydrogen would be needed for this ZEROe Turbofan.

I calculate that to carry the equivalent amount of fuel to an Airbus A320neo would need a liquid hydrogen tank with a near 100 cubic metre capacity. This sized tank would fit in the rear fuselage.

I feel that in a few years, a hydrogen train will be able to carry enough liquid hydrogen in a fuel tank, but the fuel tank will be large.

In The Mathematics Of A Hydrogen-Powered Freight Locomotive, I calculated how much liquid hydrogen would be needed to provide the same amount of energy as that carried in a full diesel tank on a Class 68 locomotive.

The locomotive would need 19,147 litres or 19.15 cubic metres of liquid hydrogen, which could be contained in a cylindrical tank with a diameter of 2 metres and a length of 6 metres.

Hydrogen Locomotives Or Multiple Units?

We have only seen first generation hydrogen trains so far.

This picture shows the Alstom Coradia iLint, which is a conversion of a Coradia Lint.

It is a so-so train and works reasonably well, but the design means there is a lot of transmission noise.

This is a visualisation of an Alstom Breeze or Class 600 train.

Note that the front half of the first car of the train, is taken up with a large hydrogen tank. It will be the same at the other end of the train.

As Mr. Shooter said, Alstom are converting a three-car train into a two-car train. Not all conversions live up to the hype of their proposers.

I would hope that the next generation of a hydrogen train designed from scratch, will be a better design.

I haven’t done any calculations, but I wonder if a lighter weight vehicle may be better.

Hydrogen Locomotives

I do wonder, if hydrogen locomotives are a better bet and easier to design!

  • There is a great need all over the world for zero-carbon locomotives to haul freight trains.
  • Powerful small gas-turbine engines, that can run on liquid hydrogen are becoming available.
  • Rolls-Royce have developed a 2.5 MW gas-turbine generator, that is the size of a beer-keg.

In The Mathematics Of A Hydrogen-Powered Freight Locomotive, I wondered if the Rolls-Royce generator could power a locomotive, the size of a Class 68 locomotive.

This was my conclusion.

I feel that there are several routes to a hydrogen-powered railway locomotive and all the components could be fitted into the body of a diesel locomotive the size of a Class 68 locomotive.

Consider.

  • Decarbonising railway locomotives and ships could be a large market.
  • It offers the opportunities of substantial carbon reductions.
  • The small size of the Rolls-Royce 2.5 MW generator must offer advantages.
  • Some current diesel-electric locomotives might be convertible to hydrogen power.

I very much feel that companies like Rolls-Royce and Cummins (and Caterpillar!), will move in and attempt to claim this lucrative worldwide market.

In the UK, it might be possible to convert some existing locomotives to zero-carbon, using either liquid hydrogen, biodiesel or aviation biofuel.

Perhaps, hydrogen locomotives could replace Chiltern Railways eight Class 68 locomotives.

  • A refuelling strategy would need to be developed.
  • Emissions and noise, would be reduced in Marylebone and Birmingham Moor Street stations.
  • The rakes of carriages would not need any modifications to use existing stations.

It could be a way to decarbonise Chiltern Railways without full electrification.

It looks to me that a hydrogen-powered locomotive has several advantages over a hydrogen-powered multiple unit.

  • It can carry more fuel.
  • It can be as powerful as required.
  • Locomotives could work in pairs for more power.
  • It is probably easier to accommodate the hydrogen tank.
  • Passenger capacity can be increased, if required by adding more coaches.

It should also be noted that both hydrogen locomotives and multiple units can build heavily on technology being developed for zero-carbon aviation.

The Upward Curve Of Battery Power

Sparking A Revolution is the title an article in Issue 898 of Rail Magazine, which is mainly an interview with  Andrew Barr of Hitachi Rail.

The article contains a box, called Costs And Power, where this is said.

The costs of batteries are expected to halve in the next years, before dropping further again by 2030.

Hitachi cites research by Bloomberg New Energy Finance (BNEF) which expects costs to fall from £135/kWh at the pack level today to £67/kWh in 2030 and £47/kWh in 3030.

United Kingdom Research and Innovation (UKRI) are predicting that battery energy density will double in the next 15 years, from 700 Wh/l to 1400 Wh/l in 2-35, while power density (fast charging) is likely to increase four times in the same period from 3 kW/kg to 12 kW/kg in 2035.

These are impressive improvements that can only increase the performance and reduce the cost of batteries in all applications.

Hitachi’s Regional Battery Train

This infographic gives the specification of Hitachi Regional Battery Train, which they are creating in partnership with Hyperdrive Innovation.

Note that Hitachi are promising a battery life of 8-10 years.

Financing Batteries

This paragraph is from this page on BuyaCar, which is entitled Electric Car Battery Leasing: Should I Lease Or Buy The Batteries?

When you finance or buy a petrol or diesel car it’s pretty simple; the car will be fitted with an engine. However, with some electric cars you have the choice to finance or buy the whole car, or to pay for the car and lease the batteries separately.

I suspect that battery train manufacturers, will offer similar finance models for their products.

This paragraph is from this page on the Hyperdrive Innovation web site.

With a standardised design, our modular product range provides a flexible and scalable battery energy storage solution. Combining a high-performance lithium-ion NMC battery pack with a built in Battery Management System (BMS) our intelligent systems are designed for rapid deployment and volume manufacture, supplying you with class leading energy density and performance.

I can envisage that as a battery train ages, every few years or so, the batteries will get bigger electrically, but still be the same physical size, due to the improvements in battery technology, design and manufacture.

I have been involved in the finance industry both as a part-owner of a small finance company and as a modeller of the dynamics of their lending. It looks to me, that train batteries could be a very suitable asset for financing by a fund. But given the success of energy storage funds like Gore Street and Gresham House, this is not surprising.

I can envisage that battery electric trains will be very operator friendly, as they are likely to get better with age and they will be very finance-friendly.

Charging Battery Trains

I must say something about the charging of battery trains.

Battery trains will need to be charged and various methods are emerging.

Using Existing Electrification

This will probably be one of the most common methods used, as many battery electric services will be run on partly on electrified routes.

Take a typical route for a battery electric train like London Paddington and Oxford.

  • The route is electrified between London Paddington and Didcot Junction.
  • There is no electrification on the 10.4 miles of track between Didcot Junction and Oxford.

If a full battery on the train has sufficient charge to take the train from Didcot Junction to Oxford and back, charging on the main line between London Paddington and Didcot Junction, will be all that will be needed to run the service.

I would expect that in the UK, we’ll be seeing battery trains using both 25 KVAC overhead and 750 VDC third rail electrification.

Short Lengths Of New Strategic Electrification

I think that Great Western Railway would like to run either of Hitachi’s two proposed battery electric trains to Swansea.

As there is 45.7 miles pf track without .electrification, some form of charging in Swansea station, will probably be necessary.

The easiest way would probably be to electrify Swansea station and perhaps for a short distance to the North.

This Google Map shows Swansea station and the railway leading North.

Note.

  1. There is a Hitachi Rail Depot at the Northern edge of the map.
  2. Swansea station is in South-West corner of the map.
  3. Swansea station has four platforms.

Swansea station would probably make an excellent battery train hub, as trains typically spend enough time in the station to fully charge the batteries before continuing.

There are other tracks and stations of the UK, that I would electrify to enable the running of battery electric trains.

  • Leeds and York, which would enable carbon-free London and Edinburgh services via Leeds and help TransPennine services. This is partially underway.
  • Leicester and East Midlands Parkway and Clay Cross North Junction and Sheffield – These two sections would enable EMR InterCity services to go battery electric.
  • Sheffield and Leeds via Meadowhall, Barnsley Dearne Valley and the Wakefield Line, which would enable four trains per hour (tph) between Sheffield and Leeds and an extension of EMR InterCity services to Leeds.
  • Hull and Brough, would enable battery electric services to Hull and Beverley.
  • Scarborough and Seamer, would enable electric services services to Scarborough and between Hull and Scarborough.
  • Middlesbrough and Redcar, would enable electric services services to Teesside.
  • Crewe and Chester and around Llandudno Junction station – These two sections would enable Avanti West Coast service to Holyhead to go battery electric.
  • Shrewsbury station – This could become a battery train hub, as I talked about for Swansea.
  • Taunton and Exeter and around Penzance, Plymouth and Westbury stations – These three sections would enable Great Western Railway to cut a substantial amount of carbon emissions.
  • Exeter, Yeovil Junction and Salisbury stations. – Electrifying these three stations would enable South Western Railway to run between London and Exeter using Hitachi Regional Battery Trains, as I wrote in Bi-Modes Offered To Solve Waterloo-Exeter Constraints.

We will also need fast chargers for intermediate stations, so that a train can charge the batteries on a long route.

I know of two fast chargers under development.

I believe it should be possible to battery-electrify a route by doing the following.

  • Add short lengths of electrification and fast charging systems as required.
  • Improve the track, so that trains can use their full performance.
  • Add ERTMS signalling.
  • Add some suitable trains.

Note.

  1. I feel ERTMS  signalling with a degree of automatic train control could be used with automatic charging systems, to make station stops more efficient.
  2. In my view, there is no point in installing better modern trains, unless the track is up to their performance.

January 4, 2021 Posted by | Energy, Hydrogen, Transport | , , , , , , , , , , , , , , , , , , , , , , , , , | 2 Comments

No News On Hydrogen Trains For The Midland Main Line

In April 2019, I wrote Hydrogen Trains To Be Trialled On The Midland Main Line, which was based on an article on Railway Gazette that is entitled Bimode And Hydrogen Trains As Abellio Wins Next East Midlands Franchise.

I said this in my post.

Abellio will be taking over the franchise in August this year and although bi-mode trains were certain to be introduced in a couple of years, the trialling of hydrogen-powered trains is a surprise to me and possibly others.

This is all that is said in the article.

Abellio will also trial hydrogen fuel cell trains on the Midland Main Line.

It also says, that the new fleet will not be announced until the orders are finalised.

Nothing has been heard since about the hydrogen train trial for the Midland Main Line.

But there have been several related developments, that might have implications for the trial.

East Midlands Railway Has Ordered Hitachi Class 810 Trains For EMR InterCity Services

Class 810 trains are Hitachi’s latest offering, that are tailored for the Midland Main Line.

The trains will have a few differences to the current Class 800,/801/802 trains.

But will they be suitable for conversion to hydrogen power?

Consider.

  • The Hitachi trains have a comprehensivecomputer system, that looks at the train and sees what power sources are available and controls the train accordingly.
  • Trains have already been ordered in five, seven and nine-car lengths. I have read up to twelve-car trains are possible in normal operation. See Do Class 800/801/802 Trains Use Batteries For Regenerative Braking?
  • Hydrogen train designs, with a useful range of several hundred miles between refuelling, seem to need a hydrogen tank, that takes up at least half of a twenty metre long carriage.
  • The Hitachi train design has pantographs on the driver cars and can support diesel generator units in the intermediate cars, as it does in current trains.
  • The Japanese are researching hydrogen trains.
  • The five-car Class 802 trains have 2,100 kW of installed generator power.

I think that Hitachi’s engineers can build another carriage, with the following characteristics.

  • It could be based on a Motor Standard car.
  • The passenger seats and interior would be removed or redesigned in a shorter space.
  • Powered bogies would be as required.
  • It would contain a hydrogen tank to give sufficient range.
  • Appropriately-sized batteries and fuel-cells would be inside or under the vehicle.
  • Regenerative braking would help to recharge the batteries.
  • There would probably be no diesel generator unit.

There would need to be a walkway through the car. Stadler have shown this works in the Class 755 train.

A Hydrogen Power car like this would convert a five-car bi-mode diesel-electric train into a six-car hydrogen-electric hybrid train. Or they might just replace one Motor Standard car with the Hydrogen Power Car to create a five-car hydrogen-electric hybrid train, if the longer train would cause problems in the short platforms at St. Pancras.

  • The computer system would need to recognise the Hydrogen Power Car and control it accordingly. It would probably be very Plug-and-Play.
  • The weight of the train could probably be reduced by removing all diesel generator units.
  • The passenger experience would be better without diesel power.
  • The range away from the wires would probably be several hundred miles.

The drivers and other staff would probably not need massive retraining.

What Do I Mean By Appropriately-Sized Batteries And Fuel Cells?

I can’t be sure,, but I suspect the following rules and estimates hold.

  • The batteries must be large enough to more than hold the kinetic energy of a full five-car train, running at the full speed of 140 mph.
  • I estimate that the kinetic energy of the train,will be around 200 kWh, so with a contingency, perhaps battery capacity of between 400-500 kWh would be needed.
  • Currently, a 500 kWh battery would weigh five tonnes, which is of a similar weight to one of the diesel generator units, that are no longer needed.
  • In How Much Power Is Needed To Run A Train At 125 mph?, I estimated that the all-electric Class 801 train, needs 3.42 kWh per vehicle mile to maintain 125 mph. This means that travelling at 125 mph for an hour would consume around 2,000 kWh or an output of 2,000 kW from the fuel cell for the hour.
  • Note that 1 kg of hydrogen contains 33.33 kWh of usable energy, so the hydrogen to power the train for an hour at 125 mph, will weigh around sixty kilograms.

From my past experience in doing chemical reaction calculations in pressure vessels, I think it makes the concept feasible. After all, it’s not that different to Alstom’s Breeze.

I would assume, that the train manufacturers can do a full calculation, to a much more accurate level.

Applying The Concept To Other Hitachi Trains

Once proven, the concept could be applied to a large number of Hitachi bi-mode trains. I suspect too, that it could be applied to all other Hitachi A-train designs, that are in service or on order, all over the world.

In the UK, this includes Class 385, Class 395 and Class 80x trains.

Bombardier Have Said That They’re Not Interested In Hydrogen Power

But Electrostars and Aventras have the same Plug-and-Play characteristic as the Hitachi train.

I wouldn’t be surprised to find that Bombardier have a Hydrogen Power Car design for an Aventra. All that it needs is an order.

They could also probably convert a five-car Class 377 train to effectively a four-car train, with a Hydrogen Power Car in the middle. This would be ideal for the Uckfield Branch and the Marshlink Lines. I suspect it could be done to meet the timescale imposed by the transfer of the Class 171 trains to East Midlands Railway.

There must be an optimal point, where converting an electric multiple unit, is more affordable to convert to hydrogen, than to add just batteries.

But then everybody has been dithering about the Uckfield and Marshlink trains, since I started this blog!

Stadler Have Shown That a Gangway Through A Power Car Is Acceptable To Passengers In The UK

Stadler’s Class 755 trains seem to be operating without any complaints about the gangway between the two halves of the train.

Stadler Have Two Orders For Hydrogen-Powered Trains

These posts describe them.

Stadler also have a substantial order for a fleet of battery Flirt Akku in Schleswig Holstein and they are heavily involved in providing the rolling stock for Merseyrail and the South Wales Metro, where battery-powered trains are part of the solution.

It looks to me, that Stadler have got the technology to satisfy the battery and hydrogen train market.

The Driver’s View Of Stadler

It’s happened to me twice now; in the Netherlands and in the UK.

  • Both drivers have talked about hydrogen and Stadler’s trains with the engine in the middle.
  • They like the concept of the engine.
  • The English driver couldn’t wait to get his hands on the train, when he finished his conversion.
  • Both brought up the subject of hydrogen first, which made me think, that Stadler are telling drivers about it.

Or does driving a hydrogen-powered vehicle as your day job, score Greta points in the pub or club after work?

Could The Hydrogen Train On The Midland Main Line Be A Stadler?

Greater Anglia and East Midlands Railway are both controlled by Abellio or Dutch Railways.

In The Dutch Plan For Hydrogen, I laid out what the Dutch are doing to create a hydrogen-based economy in the North of the country.

Stadler are going to provide hydrogen-powered for the plan.

In addition.

  • Greater Anglia have bought a lot of Class 755 trains.
  • A lot of Lincolnshire and Norfolk is similar to the North of the Netherlands; flat and windy.
  • One of these trains with a hydrogen PowerPack, could be an ideal train for demonstrating hydrogen on rural routes like Peterborough and Doncaster via Lincoln.

But the promise was on the Midland Main Line?

Conclusion

Hydrogen trains seem to be taking off!

Even if there’s been no news about the trial on the Midland Main Line.



January 12, 2020 Posted by | Hydrogen, Transport | , , , , , , , , , | 3 Comments

HS2 Way Out In Front In Tunnel Design For High-Speed Rail

The title of this post is the same as that of this article on Rail Engineer.

The article describes how Arup and Birmingham University are using physical and computer modelling to obtain the ultimate profiles of both tunnel portal and train nose to both increase train performance and reduce train noise as the trains enter tunnels.

They are even using a huge shed at the former British Rail Research Centre in Derby!

The biggest problem, is that there are aerodynamic effects, as the trains enter the tunnels at very high speeds, which result in what are inevitably called sonic booms, that disturb the local residents.

Because the new trains and tunnel portals are being developed together, there must be a greater chance, they will meet the objectives.

Collateral Benefits

Get the design right and there will be other benefits.

Lower Power In The Cruise

In How Much Power Is Needed To Run A Train At 125 mph?, I said this.

I have found this on this page on the RailUKForums web site.

A 130m Electric IEP Unit on a journey from Kings Cross to Newcastle under the conditions defined in Annex B shall consume no more than 4600kWh.

This is a Class 801 train.

  • It has five cars.
  • Kings Cross to Newcastle is 268.6 miles.
  • Most of this journey will be at 125 mph.
  • The trains have regenerative braking.
  • I don’t know how many stops are included

This gives a usage figure of 3.42 kWh per vehicle mile.

This figure is not exceptional and I suspect that good design of the train’s nose will reduce it, especially as the design speed of High Speed Two will be 360 kph or 224 mph.

Reduced Noise

Stand on a Crossrail platform at say Southall or West Drayton stations and listen to the Class 801 trains passing.

They are only doing about 100 mph and they are certainly not quiet! Noise comes from a variety of sources including aerodynamics, overhead wires and running gear.

Could the nose and profile of high speed trains also be designed to minimise noise, when cruising at high speeds?

Reduced Pantograph Noise

Travelling at up to 360 kph, pantograph noise could be a serious problem.

The only way to cut it down, would be to lower the pantograph in sensitive areas and run the train on battery power.

But if the trains energy consumption could be cut to a much lower level, it might be possible for the cruise to be maintained on battery power alone.

Consider a journey between Euston and Birmingham.

  • The train would accelerate away from Euston and go in a tunnel to Old Oak Common.
  • Batteries could be charged whilst waiting at Euston and in the run to Old Oak Common.
  • Accelerating away from Old Oak Common would bring the train to 360 kph as fast as possible.
  • It would now cruise virtually all the way to Birmingham Interchange at 360 kph.
  • At the appropriate moment the pantograph would be lowered and the train would use the kinetic energy to coast into Birmingham Interchange.
  • There would probably be enough energy in the batteries to take the train into Birmingham Curzon Street station after the stop at Birmingham Interchange.

One technology that will massively improve is the raising and lowering of the pantograph at speed.

So could we see much of the long non-stop intermediate section being run on batteries with the pantograph down. If power is needed, it would raise to power the train directly. If the raising and lowering was efficient, then it might be able to use the pantograph only in tunnels.

Could It Be Possible To Dispence With Wires Outside Of Tunnels?

Probably not on the first phase of High Speed Two, but consider.

  • High Speed Two is designed to have a lot of tunnels.
  • Arup and Birmingham may come up with even better aerodynamic designs.
  • Pantograph raising and lowering will get faster and extremely reliable.
  • Battery technology will hold more electricity for a given weight and volume.
  • Dispensing with visible wires could reduce the problems of getting planning permissions.
  • Noise and visible intrision will be reduced.

I believe there will come a time, when high speed railways could be built without visible overhead electrification.

The only places, where electrification would be used would be in tunnels and stations.

Are There Any Other Applications Of This Research?

These are a few thoughts.

Hitachi Trains For The Midland Main Line

I’m suspicious, that the research or similar research elsewhere, might have already produced a very handy result!

In an article in the October 2019 Edition of Modern Railways, which is entitled EMR Kicks Off New Era, more details of the new Hitachi bi-mode trains for East Midlands Railway (EMR) are given.

This is said.

The first train is required to be available for testing in December 2021 with service entry between April and December 2022.

The EMR bi-modes will be able to run at 125 mph in diesel mode, matching Meridian performance in a step-up from the capabilities of the existing Class 80x units in service with other franchises. They will have 24 metre vehicles (rather than 26 metres), a slightly different nose to the ‘800s’ and ‘802s’, and will have four diesel engines rather than three.

Could the new nose have been designed partly in Birmingham?

Consider.

  • Hitachi’s bi-modes for EMR InterCity could be running at up to 225 kph in a few years.
  • The Midland Main Line between Derby and Chesterfield goes through a number of tunnels in a World Heritage Site.
  • Hitachi have collaborated with UK research teams before, including on the Hyabusa.
  • Hitachi and Bombardier are submitting a joint bid for High Speed Two trains, which is based in Birmingham.

It should be noted that when the Tōkaidō Shinkansen opened in 1964 between Tokyo and Osaka average speed was 210 kph.

So are Hitachi aiming to provide EMR InterCity with almost Shinkansen speeds on a typical UK main line?

Arup and Birmingham University, certainly have the capability to design the perfect nose for such a project.

Aventras

Did the research team also help Bombardier with the aerodynamics of the Aventra?

I’m pretty certain, that somebody did, as these trains seem to have a very low noise signature, as they go past.

Talgo

Tsalgo are building a research centre at Chesterfield.

Will they be tapping in to all the rail research in the Midlands?

Conclusion

It looks to me, that there is some world-class research going on in Birmingham and we’ll all benefit!

October 4, 2019 Posted by | Transport | , , , , , , , , , , | Leave a comment

Bombardier And Hitachi Come Up With Similar Car Lengths

In an article in the October 2019 Edition of Modern Railways, which is entitled EMR Kicks Off New Era, more details of the new Hitachi bi-mode trains for East Midlands Railway are given.

This is said.

The first train is required to be available for testing in December 2021 with service entry between April and December 2022.

The EMR bi-modes will be able to run at 125 mph in diesel mode, matching Meridian performance in a step-up from the capabilities of the existing Class 80x units in service with other franchises. They will have 24 metre vehicles (rather than 26 metres), a slightly different nose to the ‘800s’ and ‘802s’, and will have four diesel engines rather than three.

I will examine this extract further.

Car Length

If you look at Bombardier’s Class 720 train, the five-car trains are 122 metres long, giving a 24 metre car length.

The ten car Class 720 train is 243 metres long, which is a similar length to three Class 360 trains running as a twelve-car train and only a few metres longer than three Class 321 trains running together.

This must be good for Greater Anglia’s train renewal, as it will minimise expensive platform lengthening.

It looks to me, that two of the new EMR InterCity trains running as a pair will be of a similar length to a twelve-car formation of Class 360 trains.

Consider.

  • As trains for EMR InterCity and EMR Electrics will share platforms at some stations, platform lengthening will again be minimised.
  • If you divide 240 by 10, you usually get the same answer of 24.
  • But if 26 metre cars were to be used, a nine-car EMR bi-mode would be 234 meres long. and two five-car trains working together would be 260 metres long.
  • Twelve-car Class 700 trains are 242.6 metres long.

These points lead me to believe that 24 metre cars are a better length for the Hitachi trains as ten-car formations are the same length as twelve-car formations of many of the UK’s older multiple units.

Maximum Speed On Diesel

Consider.

  • Various places on the Internet say that the maximum speed on diesel of a Class 800 train is 118 mph.
  • Maximum speed of a train is probably more determined by the aerodynamic drag of the train, which is proportional to the square of the speed.
  • So if a Class 800 train needs 3 * 560 kW to maintain 118 mph, it will need 1885 kW or 12.2 percent more power to maintain 125 mph
  • A fourth 560 kW diesel engine will add 33.3 percent more power.

This rough calculation shows that a fourth engine will allow the train to more than  attain and hold 125 mph on the same track where a Class 800 train can hold 118 mph.

But adding a fourth engine is a bit of a crude solution.

  • It will add more dead weight to the train.
  • It will be useful when accelerating the train, but probably not necessary.
  • It will add more noise under the train. Especially, if four cars had engines underneath.
  • It could cause overheating problems, which have been reported on the current trains.

I’ll return to this later.

Aerodynamics

Power required to maintain 125 mph can be reduced in another much more subtle way; by improving the aerodynamics.

  • I have stood on a platform, as an Aventra has silently passed at speed. It is very quiet, indicating that the aerodynamics are good.
  • But then Bombardier are an aerospace company as well as a train builder.

I’ve no idea if a Bombardier Class 720 train has less aerodynamic drag, than a Hitachi Class 800 train, but I’m sure that aerodynamic wizards from Formula One could improve the aerodynamics of the average modern train.

Could better aerodynamics explain why the EMR InterCity bi-modes are stated to have a different nose?

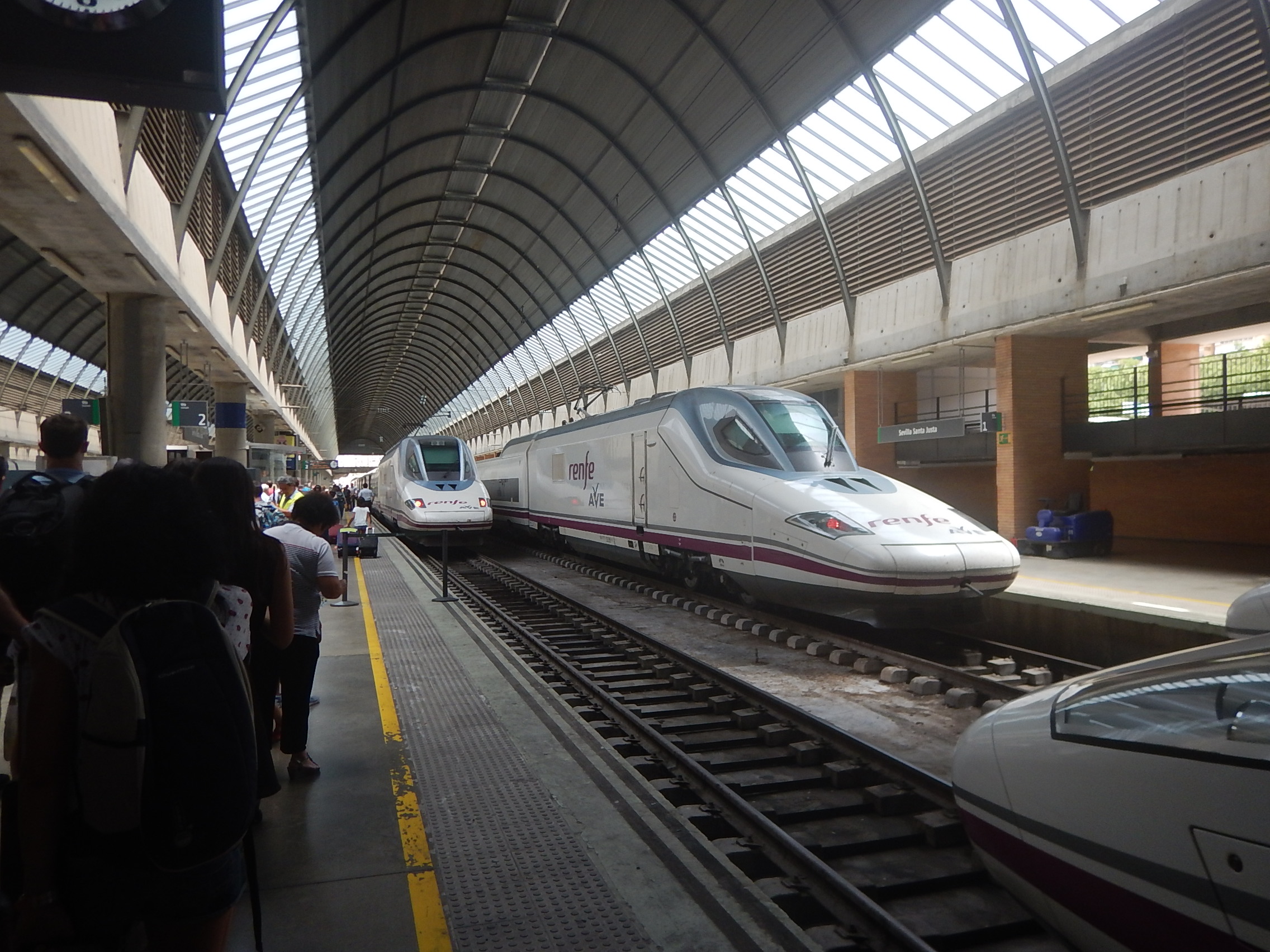

Look at the noses on these Spanish High Speed trains, which were built by Talgo!

Are they more aerodynamic? Do they exert a higher down-force making the train more stable?

They certainly are different and they obviously work., as these are very fast trains.

Incidentally, these trains, are nicknamed pato in Spanish, which means duck in English.

Aerodynamic drag is proportional to a drag coefficient for the object and the square of the speed.

Let’s assume the following.

  • The drag coefficient for the current train is d.
  • The drag coefficient for the train with the aerodynamic nose is a.
  • The terminal velocity of the train with the aerodynamic nose is v.

If the current Class 800 train travels at 118 mph on full power of 1680 kW, what speed would the train with an improved aerodynamic nose do on the same power, for various values of a?

If the new nose gives a five percent reduction in aerodynamic drag, then a = 0.95 * d, then the maximum speed of the train will be given by this formula

d * 118 * 118 = .0.95 * d * v* v

Solving this gives a speed of 121 mph.

Completing the table, I get the following.

  • A one percent reduction in drag gives 119 mph
  • A two percent reduction in drag gives 119 mph
  • A three percent reduction in drag gives 120 mph
  • A four percent reduction in drag gives 120 mph
  • A five percent reduction in drag gives 121 mph
  • A six percent reduction in drag gives 122 mph
  • A seven percent reduction in drag gives 122 mph
  • An eight percent reduction in drag gives 123 mph
  • A nine percent reduction in drag gives 124 mph
  • A ten percent reduction in drag gives 124 mph
  • An eleven percent reduction in drag gives 125 mph

I can certainly understand why Talgo have developed the duck-like nose.

The conclusion is that if you can achieve an eleven percent reduction in drag over the current train, then with the same installed power can raise the speed from 118 mph to 125 mph.

Why Have A Fourth Engine?

If aerodynamics can make a major contribution to the increase in speed under diesel, why add a fourth engine?

  • It might be better to fit four slightly smaller engines to obtain the same power.
  • It might be better to put a pair of engines under two cars, rather than a single engine under four cars, as pairs of engines might share ancillaries like cooling systems.
  • Extra power might be needed for acceleration.
  • Four engines gives a level of redundancy, if only three are needed to power the train.

I wouldn’t be surprised to find out, that Hitachi are having a major rethink in the traction department.

Will The Trains Have Regenerative Braking To Batteries?

I would be very surprised if they don’t, as it’s the only sensible way to do regenerative braking on diesel power.

Will The Trains Be Built Around An MTU Hybrid PowerPack?

This or something like it from Hitachi’s diesel engine supplier; MTU, is certainly a possibility and it would surely mean someone else is responsible for all the tricky software development.

It would give the following.

  • Regenersative braking to batteries.
  • Appropriate power.
  • Easier design and manufacture.
  • MTU would probably produce the sophisticated power control system for the train.
  • MTU could probably produce a twin-engined PowerPack

Rolls Royce MTU and Hitachi would all add to the perception of the train.

I would rate Hitachi using MTU Hybrid PowerPacks quite likely!

Would Two Pairs Of Engines Be Better?

The current formation of a five-car Class 800 train is as follows.

DPTS-MS-MS-MC-DPTF

Note.

  1. Both driver cars are trailers.
  2. The middle three cars all have generators, that are rated at 560 kW for a Class 800 train and 700 kW for a Class 802 train.
  3. Take a trip between Paddington and Oxford and you can feel the engines underneath the floor.
  4. The engines seem to be reasonably well insulated from the passenger cabin.

The system works, but could it be improved.

If I’m right about the aerodynamic gains that could be possible, then it may be possible to cruise at 125 mph using a power of somewhere around 1,800 kW or four diesel generators of 450 kW each.

Putting a diesel generator in four cars, would mean one of the driver cars would receive an engine, which might upset the balance of the train.

But putting say two diesel generators in car 2 and car 4 could have advantages.

  • A Class 800 train has a fuel capacity of 1,300 litres, which weighs 11.06 tonnes. and is held in three tanks. Would train dynamics be better with two larger tanks in car 2 and 4?
  • Could other ancillaries like cooling systems be shared between the two engines?
  • Could a substantial battery pack be placed underneath car 3, which now has no engine and no fuel tank?
  • As the engines are smaller will they be easier to isolate from the cabin?

The only problem would be fitting two generators underneath the shorter 24 metre car.

What size of battery could be fitted in car 3?

  • According to this datasheet on the MTU web site, the engine weighs between five and six tonnes.
  • I think this weight doesn’t  include the generator and the cooling systems.
  • Removing the fuel tank would save 3.7 tonnes

I suspect that a ten tonne battery could replace the diesel engine and its support systems in car 3..

On current battery energy densities that would be a battery of around 1000 kWh.

In How Much Power Is Needed To Run A Train At 125 mph?, I estimates that an electric  Class 801 train needs 3.42 kWh per vehicle mile to maintain 125 mph.

This would give a range of almost sixty miles on battery power.

The battery would also enable.

  • Regenerative braking to batteries, which saves energy at station stops.
  • Diesel engines would not need to be run in stations or sensitive areas.
  • Battery power could be used to boost acceleration and save diesel fuel.

You can almost think of the battery as an auxiliary engine powered by electrification and regenerative braking, that can also be topped up from the diesel generators.

It should also be noted, that by the time these trains enter service, the Midland Main Line will be electrified as far as Kettering and possibly Market Harborough.

This will enable the following.

  • Trains will leave the electrification going North with a full battery.
  • As Nottingham is less than sixty miles from Kettering and the trains will certainly have regeneratinve braking, I would not be surprised to see Northbound services to Nottingham being almost zero-carbon.
  • A charging station at Nottingham would enable Southbound services to reach the electrification, thus making these services almost zero-carbon.
  • Trains would be able to travel between Derby and Chesterfield, which is only 23 miles, through the World Heritage Site of the Derwent Valley Mills, on battery power.
  • Corby and Melton Mowbray are just 26 miles apart, so the bi-mode trains could run a zero-carbon service to Oakham and Melton Mowbray.
  • Trains could also run between Corby and Leicester on battery power.
  • If and when the Northern end of the route is electrified between Sheffield and Clay Cross North Junction in conjunction with High Speed Two, the electrification gap between Clay Cross North Junction and Market Harborough will be under seventy miles, so the trains should be able to be almost zero carbon between London and Sheffield.

It does appear that if a battery the same weight as a diesel generator, fuel tank and ancillaries is placed in the middle car, the services on the Midland Main Line will be substantially zero-carbon.

What Would Be The Size Of |The Diesel Engines?

If the battery can be considered like a fifth auxiliary engine, I would suspect that the engines could be much smaller than the 560 kWh units in a Class 800 train.

Improved aerodynamics would also reduce the power needed to maintain 125 mph.

There would also be other advantages to having smaller engines.

  • There would be less weight to accelerate and lug around.
  • The noise from smaller engines would be easier to insulate from passengers.
  • Engines could be used selectively according to the train load.
  • Engines might be less prone to overheating.

The mathematics and economics will decide the actual size of the four engines.

Earlier, I estimated that a 10-11 % decrease in the trains aerodynamic drag could enable 124-5 mph with 1680 kW.

So if this power was provided by four engines instead of three, they would be 420 kW engines.

Conclusion

The Hitachi bi-modes for East Midlands Railway will be very different trains, to their current Class 80x trains.

September 26, 2019 Posted by | Transport | , , , , , , , , , | Leave a comment

Brand-New Bi-Mode Trains For Long Term Use By Abellio East Midlands Railway

This page on the Department for Transport web site is an interactive map of the Abellio’s promises for East Midlands Railway.

These trains are proposed for working on several routes and some of their features are given.

In this section, I will try to ascertain, what they will be like.

These trains will replace the interim Mark 4 Coach/Class 43 locomotive sets on the Midland Main Line from April 2022.

They will also be used on the following services.

  • London – Lincoln.
  • London – Oakham – Melton Mowbray
  • London – Leeds – York

Features include.

  • More reliable service
  • Improved comfort
  • Passenger information system
  • Free on-board Wi-Fi
  • At-seat power sockets
  • USB points
  • Air conditioning
  • Tables at all seats
  • increased luggage space
  • On-board cycle storage

I think it wouldn’t be speculating too much, to expect that shorter versions of these trains would also be used on other routes of the franchise.

I also think, that these trains will have other properties.

Ability To Run At 125 mph On Both Electric And Diesel Power

Bombardier, Hitachi and Stadler are proposing or have built fast bi-mode trains, which run at the same speed on both diesel and electric power.

  • Bombardier are proposing a 125 mph Aventra with batteries.
  • Hitachi’s 125 mph Class 800 trains are running at 125 mph on electric power, but can they achieve the 125 mph on diesel needed for the Midland Main Line?
  • Stadler’s 100 mph Class 755 trains, will be running between London and Norwich at this speed from next month.

As parts of the Midland Main Line, that will not be electrified by 2022, to have a 125 mph operating speed, it is essential that the trains can do this speed on either power source.

Ability To Switch Power Source At Line Speed

Some trains do this, but others don’t!

To run as fast a timetable as possible, it is essential. Hitachi’s Class 800 trains can do it!

240 Metre Long Trains

Consider.

  • The notes on the interactive map, says that Corby services will be this length in the Peak.
  • 240 metre long platforms will be needed at St. Pancras for Corby services.
  • Thameslink services are already this length.

These points lead me to the conclusion, that the new bi-mode trains can be up to 240 metres long.

Passenger Capacity

A seven-car Class 222 train has the following properties.

  • 236 Standard Class seats.
  • 106 First Class seats.
  • 161.8 metres long

As the interiors of the existing and proposed trains seem similar with lots of tables and comfort, adjusting for the longer bi-mode train gives the following numbers of seats.

  • 349 Standard Class seats.
  • 157 First Class seats

There will be a large increase in the number of seats.

Step-Free Access Between Train And Platform

Stadler are the masters of this and are providing it on Merseyrail and on the Great Eastern Main Line.

Other companies will have to follow suit!

Hitachi in particular and surprisingly seem to design their trains with a big step.

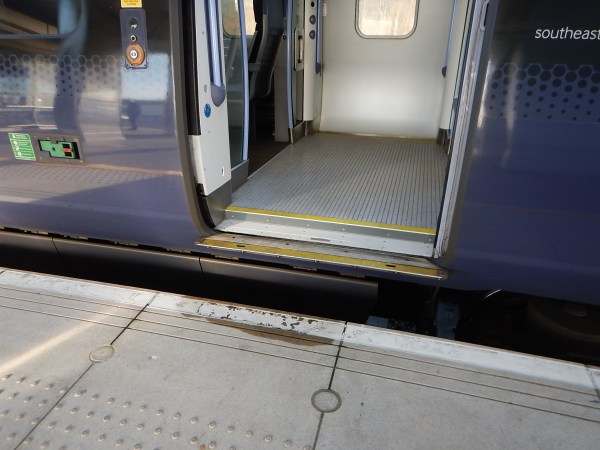

This picture shows the step up into a Class 395 train at St. Pancras station. It is unacceptable!

Step-free access improves the dwell time of trains at stations and is essential on any high-frequency service.

Digital Signalling

This will be essential to run the trains faster and closer together, so that more services can be run between London and the Midlands,

140 mph Running

IDigital signalling could even enable 140 mph running on sections of the route.

Improved Dwell Times

The performance of these trains and easy access, will mean that every station stop will be faster and will enable two pssenger benefits.

  • Journeys will be faster by a few minutes.
  • It will be possible to add extra station stops, with only a small penalty of overall journey times.

I doubt passengers will be unhappy.

High Speed Two Compatibility

High Speed Two should reach the East Midlands Hub station in 2032 and Sheffield station in 2034.

Between Clay Cross North Junction and Sheffield, High Speed Two and Midland Main Line services will use the same sixteen mile electrified railway.

Good project management probably says that this joint electrified line is created early, by say 2025. This would obtain maximum benefit to the City of Sheffield and the surrounding area.

As it is likely, that the new bi-mode trains will still be in service to past 2034, whatever is decided, these bi-modes must be able to run on High Speed Two infrastructure.

Conclusion

Even if, the current  service pattern of two trains per hour to Derby, Chesterfield, Nottingham and Sheffield is maintained, there will be a large increase in capacity.

But if a fully-digital railway is created with 125 mph trains, I can see the Midland Main Line becoming one of the finest high speed railways in the world, that has been created by updating a classic rail line built in the Nineteenth Century.

Operating speed and capacity will be up there with the East Coast and West Coast Main Lines.

I can see Derby, Nottingham and Sheffield having a four trains per hour service from London in times of 75, 90 and 120 minutes respectively.

By comparison, High Speed Two is looking at a sub-ninrty ,minute time between London and Sheffield.

April 15, 2019 Posted by | Transport | , , , , | Leave a comment
