Could The Bombardier Voyagers Be Converted To Hydrogen Power?

Avanti West Coast, CrossCountry and East Midlands Trains all run versions of Bombardier Voyager trains.

  • There are 103 sets in service.
  • Lengths are four, five and seven cars.
  • They are 125 mph trains.
  • They are powered by one Cummins QSK19 diesel engine in each car.

Given Cummins’s enthusiasm for hydrogen could these diesel engines be converted to hydrogen power, so the trains could run long distance routes on zero-carbon power?

If there is no need for them in the UK, there are probably lots of places in the world that would like them!

April 8, 2023 Posted by | Hydrogen, Transport/Travel | , , , , , , , , , | 12 Comments

Thoughts On High Speed Two

These are a few thoughts about High Speed Two, after the reports of major changes today.

This article on the BBC is entitled HS2 Line Between Birmingham And Crewe Delayed By Two Years.

This is the sub-heading.

The Birmingham to Crewe leg of high speed railway HS2 will be delayed by two years to cut costs.

These are the three opening paragraphs.

Some of the design teams working on the Euston end of the line are also understood to be affected.

Transport secretary Mark Harper blamed soaring prices and said it was “committed” to the line linking London, the Midlands and North of England.

HS2 has been beset by delays and cost rises. In 2010, it was expected to cost £33bn but is now expected to be £71bn.

Delivering The Benefits Of High Speed Two Early

It is my belief that with a large project taking a decade or more , it is not a bad idea to deliver some worthwhile benefits early on.

The Elizabeth Line opened in stages.

  • The new Class 345 trains started replacing scrapyard specials in 2017.
  • The rebuilt Abbey Wood station opened in 2017.
  • Paddington local services were transferred to the Elizabeth Line in 2019.
  • Outer stations reopened regularly after  refurbishment from 2018.
  • The through line opened in May 2022.

There’s still more to come.

Some projects wait until everything is ready and everybody gets fed up and annoyed.

Are there any parts of High Speed Two, that could be completed early, so that existing services will benefit?

In 2020, the refurbishment of Liverpool Lime Street station and the tracks leading to the station was completed and I wrote about the station in It’s A Privilege To Work Here!, where this was my conclusion.

Wikipedia says this about Liverpool Lime Street station.

Opened in August 1836, it is the oldest still-operating grand terminus mainline station in the world.

I’ve used Lime Street station for fifty-five years and finally, it is the station, the city needs and deserves.

I’ve been to grand termini all over the world and Lime Street may be the oldest, but now it is one of the best.

Are there any stations, that will be served by High Speed Two, that should be upgraded as soon as possible to give early benefits to passengers, staff and operators?

Avanti West Cost have solved the problem of the short platforms at Liverpool South Parkway station, by ordering shorter Class 807 trains. Will High Speed Two lengthen the platforms at this station?

A good project manager will need to get all the smaller sub-projects in a row and work out what is the best time to do each.

Digital Signalling

I would assume, as this will be needed for High Speed Two services in the West Coast Main Line to the North of Crewe, this is surely a must for installing as early as possible.

If the existing trains could run for a hundred miles at 140 mph, rather than the current 125 mph, that would save five worthwhile minutes.

Trains could run closer together and there is the possibility of organising services in flights, where a number of trains run together a safe number of minutes apart.

Remove Bottlenecks On Classic Lines, That Could Be Used By High Speed Two

I don’t know the bottlenecks on the West Coast Main Line, but there are two on the East Coast Main Line, that I have talked about in the past.

Could ERTMS And ETCS Solve The Newark Crossing Problem?

Improving The North Throat Of York Station Including Skelton Bridge Junction

Hopefully, the digital signalling will solve them.

Any bottlenecks on lines that will be part of High Speed Two, should be upgraded as soon as possible.

Birmingham And Crewe

I will start by looking at the leg between Birmingham and Crewe.

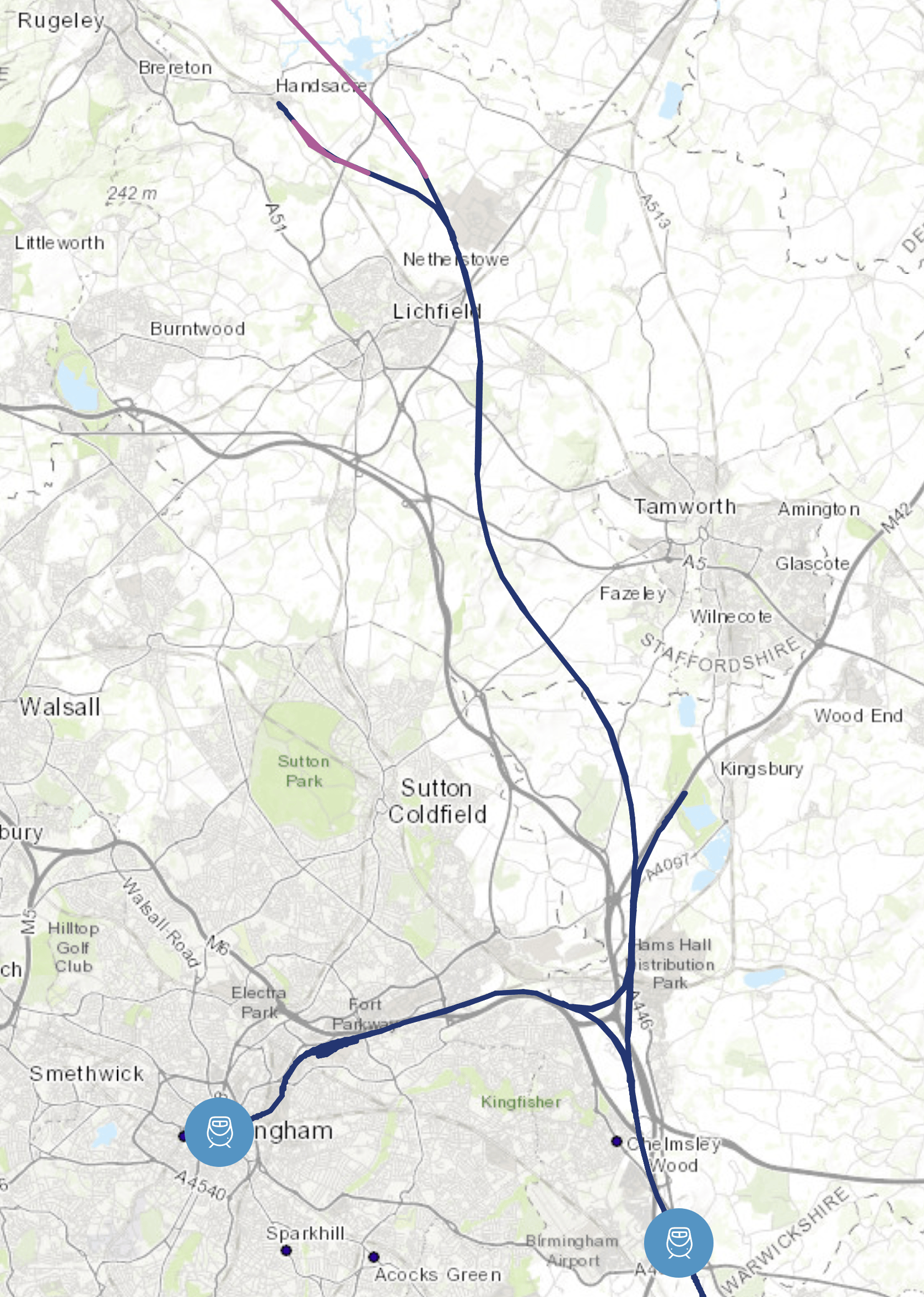

This section of the HS2 map shows High Speed Two between Birmingham and Lichfield.

Note.

  1. The blue circle on the left at the bottom of the map is Birmingham Curzon Street station.
  2. The blue circle on the right at the bottom of the map is Birmingham Interchange station.
  3. The High Speed Two to and from London passes through Birmingham Interchange station.
  4. The branch to Birmingham Curzon Street station connects to the main High Speed Two at a triangular junction.
  5. North of the triangular junction, High Speed Two splits.
  6. The Eastern branch goes to East Midlands Parkway station.
  7. The Northern branch goes to Crewe, Liverpool Lime Street, Manchester Piccadilly, Preston and Scotland.

At the top of the map, the Northern branch splits and lines are shown on this map.

Note.

  1. The junction where the Northern and Eastern branches divide is in the South-East corner of the map.
  2. To the North of Lichfield, the route divides again.
  3. The Northern purple line is the direct line to Crewe.
  4. The shorter Southern branch is a spur that connects High Speed Two to the Trent Valley Line, which is the current route taken by trains between London Euston and Crewe, Liverpool Lime Street, Manchester Piccadilly, Preston and Scotland.
  5. Crewe station is in the North-West corner of the map.

The route between the junction to the North of Lichfield and Crewe is essentially two double-track railways.

  • High Speed Two with a routine operating speed of 205 mph.
  • The Trent Valley Line with a routine operating speed of 140 mph.
  • High Speed Two Classic-Compatible trains can run on all tracks.
  • High Speed Two Full-Size trains may be able to run on the Trent Valley Line at reduced speed.
  • Eighteen trains per hour (tph) is the maximum frequency of High Speed Two.

I feel in an emergency, trains will be able to use the other route.

Will This Track Layout Allow An Innovative Build?

Suppose the link to the Trent Valley Line was built first, so that High Speed Two trains from London for Crewe, Liverpool Lime Street, Manchester Piccadilly, Preston and Scotland, could transfer to the Trent Valley Line as they do now.

  • All lines used by High Speed Two services North of the junction, where High Speed Two joins the Trent Valley Line would be updated with digital signalling and 140 mph running. This will benefit current services on the line. For instance Euston and Liverpool/Manchester services could be under two hours.
  • The current services would be replaced by High Speed Two services run by High Speed Two Classic-Compatible trains.
  • The direct High Speed Two route between Lichfield and Crewe would now be built.
  • When this section of High Speed Two is complete, High Speed Two services would use it between Lichfield and Crewe.
  • As the direct route would be built later, this would delay the building of the Birmingham and Crewe high-speed route.

Currently, trains run the  41.8 miles between Lichfield and Crewe in 28 minutes, which is an average speed of 89.6 mph.

I can build a table of average speeds and times for Lichfield and Crewe.

  • 100 mph – 25.1 minutes – 2.9 minutes saving
  • 110 mph – 22.8 minutes – 5.2 minutes saving
  • 120 mph – 20.9 minutes – 7.1 minutes saving
  • 125 mph – 20.1 minutes – 7.9 minutes saving
  • 130 mph – 19.3 minutes  – 8.7 minutes saving
  • 140 mph – 17.9 minutes – 10.1 minutes saving
  • 160 mph – 15.7 minutes – 12.3 minutes saving
  • 180 mph – 13.9 minutes – 14.1 minutes saving
  • 200 mph – 12.5 minutes – 15.5 minutes saving

Note.

  1. Even a slight increase in average speed creates several minutes saving.
  2. Times apply for both routes.

I believe that a 125 mph average should be possible on the Trent Valley route, which may be enough for Euston and Liverpool/Manchester services to be under two hours.

Improving Classic Lines Used By High Speed Two North Of Lichfield

Real Time Trains shows these figures for a Glasgow Central to Euston service.

  • Glasgow and Lichfield Trent Valley is 298.2 miles.
  • Glasgow and Lichfield Trent Valley takes five hours.

This is an average speed of 59.6 mph.

Note.

  1. The average speed is low considering the trains are capable of cruising at 125 mph and 140 mph with digital signalling.
  2. High Speed Two services between Euston and Glasgow will use the classic network, to the North of Lichfield.

I can build a table of average speeds and times for Glasgow and Lichfield.

  • 100 mph – 179 minutes – 121 minutes saving
  • 110 mph – 163 minutes – 157 minutes saving
  • 120 mph – 149 minutes – 151 minutes saving
  • 125 mph – 143 minutes – 157 minutes saving
  • 130 mph – 138 minutes  – 162 minutes saving
  • 140 mph – 128 minutes – 172 minutes saving

This table illustrates why it is important to improve all or as many as possible of classic lines used by High Speed Two to enable 140 mph running, with full digital signalling. Obviously, if 140 mph is not feasible, the speed should be increased to the highest possible.

Routes that could be updated include.

  • London Euston and Glasgow Central
  • London Euston and Liverpool Lime Street
  • London Euston and Manchester Piccadilly (all routes)
  • London Euston and Blackpool
  • London Euston and Holyhead
  • London Euston and Shrewsbury

Not all these routes will be served by High Speed Two, but they could be served by 140 mph trains.

What Times Would Be Possible?

The InterCity 225 was British Rail’s ultimate electric train and these two paragraphs from its Wikipedia entry, describe its performance.

The InterCity 225 was designed to achieve a peak service speed of 140 mph (225 km/h); during a test run in 1989 on Stoke Bank between Peterborough and Grantham, an InterCity 225 was recorded at a speed of 162 mph (260.7 km/h). Its high speed capabilities were again demonstrated via a 3hr 29mins non-stop run between London and Edinburgh on 26 September 1991. British regulations have since required in-cab signalling on any train running at speeds above 125 mph (201 km/h) preventing such speeds from being legally attained in regular service. Thus, except on High Speed 1, which is equipped with cab signalling, British signalling does not allow any train, including the InterCity 225, to exceed 125 mph (201 km/h) in regular service, due to the impracticality of correctly observing lineside signals at high speed.

The InterCity 225 has also operated on the West Coast Main Line (WCML). In April 1992, one trainset achieved a new speed record of two hours, eight minutes between Manchester and London Euston, shaving 11 minutes off the 1966 record. During 1993, trials were operated to Liverpool and Manchester in connection with the InterCity 250 project.

  • The fastest London Euston and Manchester Piccadilly services appear to be two hours and six minutes tomorrow, with stops at Nuneaton and Stoke-on-Trent.
  • The fastest London King’s Cross and Edinburgh service is four hours seventeen minutes tomorrow.

It does appear that British Rail’s 1980s-vintage InterCity 225 train did very well.

Trains that would be able to run at 140 mph with updated signalling include.

  • Alstom Class 390
  • Hitachi Class 800, 801, 802, 803, 805, 807 and 810
  • British Rail InterCity 225
  • High Speed Two Classic-Compatible.

All are electric trains.

Could High Speed Two, West Coast Main Line and East Coast Main Line Services Be Run By  High Speed Two Classic-Compatible Trains?

I don’t see why not!

  • They would be able to use short stretches of High Speed Line like Lichfield and Crewe.
  • LNER and CrossCountry could also use the trains.
  • High Speed Two is providing the framework and it’s there to be used, provided the paths are available.

This graphic shows the preliminary schedule.

It only shows ten trains going through Crewe, so there could be up to eight spare high speed paths between Birmingham and Crewe.

Could High Speed Two Classic-Compatible Trains Be Used To Advantage On The East Coast Main Line?

I published this extract from the Wikipedia entry for the InterCity 225 earlier.

The InterCity 225 was designed to achieve a peak service speed of 140 mph (225 km/h); during a test run in 1989 on Stoke Bank between Peterborough and Grantham, an InterCity 225 was recorded at a speed of 162 mph (260.7 km/h). Its high speed capabilities were again demonstrated via a 3hr 29mins non-stop run between London and Edinburgh on 26 September 1991.

The London and Edinburgh run was at an average speed of around 112 mph.

I wonder what time, one of LNER’s Class 801 trains, that are all-electric could do, once the new digital signalling has been fully installed on the route? I suspect it would be close to three hours, but it would depend on how long the trains could run at 140 mph.

It should be noted that the Selby Diversion was designed for 160 mph, when it was built by British Rail in the 1980s.

In Are Short Lengths Of High Speed Line A Good Idea?, I look at the mathematics of putting in short lengths of new railway, which have higher speeds, where this was part of my conclusion.

I very much feel there is scope to create some new high speed sections on the current UK network, with only building very little outside of the current land used by the network.

I would love to know what some of Network Rail’s track experts feel is the fastest time possible between London and Edinburgh that can be achieved, by selective upgrading of the route.

If some of the trains were High Speed Two Classic-Compatible Trains, with a top speed of 205 mph, provided the track allowed it, there could be some interesting mathematics balancing the costs of track upgrades, new trains with what passengers and operators need in terms of journey times.

Could High Speed Two Classic-Compatible Trains Be Used To Advantage On The West Coast Main Line?

Much of what I said about the East Coast Main Line would apply to the West Coast Main Line.

But in addition, the West Coast Main Line will be a superb place to test the new High Speed Two Classic-Compatible Trains.

I believe, that before High Speed Two opens, we’ll see High Speed Two Classic-Compatible Trains, carrying passengers between Euston and Avanti West Coast’s destinations.

Could High Speed Two Be Split Into Two?

Consider.

  • Under earlier plans, the East Coast Main Line to the North of York, will be used by High Speed Two.
  • With digital signalling the East Coast Main Line will support continuous running at 140 mph for long sections of the route.
  • The East Coast Main Line has a recently-rebuilt large Southern terminal at King’s Cross with eleven platforms and good suburban services and excellent connections to the London Underground.
  • The East Coast Main Line has a very large Northern terminal at Edinburgh Waverley with twenty platforms and good local train connections.
  • There are large intermediate stations on the East Coast Main Line at Doncaster, Leeds, Newcastle, Peterborough and York. All these stations have good local train connections.
  • The East Coast Main Line has important branches to Cambridge, Harrogate, Huddersfield, Hull King’s Lynn, Lincoln, Middlesbrough, Nottingham, Scarborough, Sheffield, Skegness and Sunderland.

We are talking about an asset, that needs improving rather than sidelining.



Could High Speed Two Be A One-Nation Project?

Over three years ago, I wrote Could High Speed Two Be A One-Nation Project? and tried to answer the question in the title.

But now the core network is better defined, perhaps it is time to look at extending the High Speed network again.

The next few sections look at possible extensions.

Serving Chester And North Wales

I looked at this in Could High Speed Two Trains Serve Chester And North Wales?, which I have updated recently.

This was my conclusion.

It looks to me, that when High Speed Two, think about adding extra destinations, Chester and Holyhead could be on the list.

I also suspect that even without electrification and High Speed Two services, but with the new Class 805 trains, the route could be a valuable one for Avanti West Coast.

These are current and promised times for the two legs to Holyhead.

  • Euston and Crewe – 90 minutes – Fastest Class 390 train
  • Euston and Crewe – 55 minutes – High Speed Two Classic-Compatible train from Wikipedia
  • Crewe and Holyhead – 131 minutes – Fastest Class 221 train
  • Crewe and Holyhead – 70 minutes – 90 mph average speed
  • Crewe and Holyhead – 63 minutes – 100 mph average speed
  • Crewe and Holyhead – 57 minutes – 110 mph average speed
  • Crewe and Holyhead – 53 minutes – 120 mph average speed
  • Crewe and Holyhead – 45 minutes – 140 mph average speed

Note.

  1. I have assumed that Crewe and Holyhead is 105.5 miles.
  2. The operating speed of the North Wales Coast Line is 90 mph.
  3. In the following estimates,  I have assumed a change of train at Crewe, takes 6 minutes.

I think there are several options to run fast services to Chester and North Wales.

Pre-HS2 – Class 805 all the way

I believe this train will match the following.

  • The fastest Class 390 train between Euston and Crewe.
  • The fastest Class 221 train between Crewe and Holyhead.

This would give a time of 3 hours 41 minutes.

Pre-HS2 – Class 805 all the way, but with perhaps less stops and some track improvement

I believe this train will match the following.

  • The fastest Class 390 train between Euston and Crewe.
  • 110 mph train Crewe and Holyhead.

This would give a time of 2 hours 27 minutes.

Pre-HS2 – Class 805 all the way, but with perhaps less stops and Crewe and Holyhead uprated largely to 125 mph

I believe this train will match the following.

  • The fastest Class 390 train between Euston and Crewe.
  • 120 mph train Crewe and Holyhead.

This would give a time of 2 hours 23 minutes.

Pre-HS2 – Class 805 all the way, but with perhaps less stops and Crewe and Holyhead Crewe and Holyhead electrified and uprated to 140 mph

I believe this train will match the following.

  • The fastest Class 390 train between Euston and Crewe.
  • 140 mph train Crewe and Holyhead.

This would give a time of 2 hours 15 minutes.

After-HS2 – High Speed Two Classic-Compatible train to Crewe, the Class 805 train to Holyhead

I believe this train will match the following.

  • The fastest High Speed Two Classic-Compatible train between Euston and Crewe.
  • The fastest Class 221 train between Crewe and Holyhead.

This would give a time of 3 hours 12 minutes.

After-HS2 – High Speed Two Classic-Compatible train to Crewe, the Class 805 train to Holyhead, but with perhaps less stops and some track improvement

I believe this train will match the following.

  • The fastest High Speed Two Classic-Compatible train between Euston and Crewe.
  • 110 mph train Crewe and Holyhead.

This would give a time of 1 hours 58 minutes.

After-HS2 – High Speed Two Classic-Compatible train to Crewe, the Class 805 train to Holyhead, but with perhaps less stops and Crewe and Holyhead uprated largely to 125 mph

I believe this train will match the following.

  • The fastest High Speed Two Classic-Compatible train between Euston and Crewe.
  • 120 mph train Crewe and Holyhead.

This would give a time of 1 hours 54 minutes.

After-HS2 – High Speed Two Classic-Compatible train to Crewe, Class 805 train to Holyhead, but with perhaps less stops and Crewe and Holyhead electrified and uprated to 140 mph

I believe this train will match the following.

  • The fastest High Speed Two Classic-Compatible train between Euston and Crewe.
  • 140 mph train Crewe and Holyhead.

This would give a time of 1 hours 46 minutes.

After-HS2 – High Speed Two Classic-Compatible train all the way, but with perhaps less stops and Crewe and Holyhead electrified and uprated to 140 mph

I believe this train will match the following.

  • The fastest High Speed Two Classic-Compatible train between Euston and Crewe.
  • 140 mph train Crewe and Holyhead.

This would give a time of 1 hours 40 minutes.

From these estimates, I have come to these conclusions.

  • A sub-two and a half-hour service can be attained with the new Class 805 trains and some improvements to the tracks along the North Wales Coast Line.
  • A sub-two hour service can be attained with a High Speed Two Classic-Compatible train to Crewe and a Class 805 train to Hplyhead along a 140 mph electrified North Wales Coast Line.
  • If the North Wales Coast Line is electrified, the journey from London Euston, Birmingham Interchange, Crewe, Chester, Liverpool and Manchester would be zero-carbon.

We should be looking to building a zero-carbon fast passenger ferry for sailing between Holyhead and Dublin.

  • The current fastest ferries appear to take three hours and 15 minutes, which means that a six-hour low-carbon journey between London Euston and Dublin, should be possible with the new Class 805 trains, prior to the opening of High Speed Two.
  • A five-hour journey after the opening of High Speed Two to Crewe and electrification of the North Wales Coast Line should be possible.

If the advanced zero-carbon ferry could knock an hour off the journey, four hours between London and Dublin along a spectacular coastal railway with a fast sea voyage, would be a route that would attract passengers.

  • High Speed Two would need to be opened to Crewe.
  • The North Wales Coast Line would need to be upgraded to a 140 mph digitally-signalled line.
  • The North Wales Coast Line would need to be electrified.
  • Full electrification may not be needed, as discontinuous electrification will have advanced to provide zero-carbon running, in a more affordable and less disruptive manner.
  • Trains could either be High Speed Two Classic-Compatible trains all the way from London or there could be a change at Crewe to Class 805 trains.
  • The ferry would use the best zero-carbon and operational technology.

The improvement and electrification of the North Wales Coast Line could be planned to take place in a relaxed manner, so that journey times continuously got quicker.

I would start the improvement of the North Wales Coast Line, as soon as possible, as all these improvement will be used to advantage by the new Class 805 trains.

Serving West And South West England And South Wales

Suppose you want to go between Glasgow and Cardiff by train, after High Speed Two has opened.

  • You will take one of the half-hourly High Speed Two Classic-Compatible trains between Glasgow Central and London.
  • Three and a half-hours later, you will get off the train in one of the below ground platforms at Old Oak Common station.
  • A short ride in an escalator or lift and you will be in the Great Western Railway station at ground level.
  • From here, fifty minutes later, you will be in Cardiff.

The journey will have taken four hours and twenty minutes.

This may seem a long time but currently Glasgow and Cardiff by train takes over seven hours by train.

  • Glasgow and Bristol Temple Meads takes eight hours, but using High Speed Two and GWR will take 5 hours.
  • Glasgow and Cheltenham Spa takes six hours, but using High Speed Two and GWR will take 5 hours and 30 minutes.
  • Glasgow and Penzance takes twelve hours, but using High Speed Two and GWR will take 8 hours and 33 minutes.
  • Glasgow and Swansea takes nearly nine hours, but using High Speed Two and GWR will take 6 hours and 9 minutes.

The High Speed Two route only has one simple change, whereas some routes now have up to four changes.



















Conclusion

March 10, 2023 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , , , , | 97 Comments

Could Chiltern Go Battery-Electric?

In the October 2022 Edition of Modern Railways, there is an article, which is entitled Chiltern Considers Turbo Future, with a sub-title of Battery Replacement Could Be On The Cards.

These are the first two paragraphs.

In early September Chiltern Railways was preparing to launch a market sounding exercise to consider options for the future of the Class 165 Turbo DMU fleet.

The operator has 28×2-car and 11×3-car ‘165s’. which operate alongside its more modern Class 168 DMUs and its loco-hauled sets. The market sounding exercise will consider two options for the future of the fleet – some sort of hybrid conversion, or outright replacement.

The Class 165 Trains

The Class 165 trains were built in 1990-1991.

  • Maximum Speed – 75 mph
  • Prime Movers – One per car, Perkins 2006-TWH
  • 2-car Trains – 28
  • 3-car Trains – 11

One is being converted to a diesel/battery hybrid.

The Class 168 Trains

The Class 168 trains were built in 1998-2004.

  • Maximum Speed – 100 mph
  • Prime Movers – One per car, MTU 6R 183TD13H
  • 2-car Trains – 9
  • 3-car Trains – 8
  • 4-car Trains – 11

One has been converted to a diesel/battery hybrid.

Conversion To Hybrid Operation

If this proves to be feasible, it will surely be the more affordable of the two options.

But it does leave Chiltern with a mixed fleet with two types of train with different maximum speeds and these lengths.

  • 2-car Trains – 37
  • 3-car Trains – 19
  • 4-car Trains – 11

Would a fleet of similar trains, with perhaps a maximum speed of 100 mph, be better operationally?

Battery-Electric Operation

The Modern Railways article introduces the concept of battery-electric operation with this paragraph.

If a replacement fleet is considered the best option for the Turbo units, the replacements could take the form of a straight battery EMU, taking advantage of recent advances in ‘fast charge’ technology.

The article also says this about battery technology and electrification.

There is optimism that advances in battery technology will provide a smooth pathway to decarbonise Chiltern’s operations – the company serves the only non-electrified London terminus.

In the longer-term, it is hoped electrification from Birmingham to Banbury as part of a strategy to decarbonise CrossCountry and freight services would enable Chiltern to run a battery EMU on London to Birmingham duties, running under battery power as far north as Banbury and switching to overhead wires from there, both powering the unit and enabling the batteries to be recharged.

The Modern Railways article looked at each route and I will do this in more detail.

London Marylebone And Aylesbury via High Wycombe

London Marylebone and Oxford would be under battery operation for 40 miles.

Trains would be charged at London Marylebone and Aylesbury stations.

London Marylebone And Aylesbury Vale Parkway

London Marylebone and Oxford would be under battery operation for 41 miles.

Trains would be charged at London Marylebone and Aylesbury Vale Parkway stations.

It might be better to electrify between Aylesbury and Aylesbury Vale Parkway stations.

London Marylebone And Banbury

London Marylebone and Oxford would be under battery operation for 69 miles.

Trains would be charged at London Marylebone and Banbury stations.

Leamington Spa And Birmingham Moor Street

Assuming the Birmingham and Banbury section of the route is electrified, this route will be electrified.

London Marylebone And Birmingham Moor Street Or Birmingham Snow Hill

Assuming the Birmingham and Banbury section of the route is electrified, this route can be considered to be in two sections.

  • London Marylebone and Banbury – Battery operation – 69 miles
  • Banbury and Birmingham – Electric operation – 42 miles

Trains would be charged at London Marylebone station and on the electrified section.

London Marylebone And Gerrards Cross

London Marylebone and Oxford would be under battery operation for 19 miles or 38 miles both ways.

Trains would be charged at London Marylebone station.

London Marylebone And High Wycombe

London Marylebone and Oxford would be under battery operation for 28 miles or 56 miles both ways.

Trains would be charged at London Marylebone station.

London Marylebone And Oxford

London Marylebone and Oxford would be under battery operation for 66.8 miles.

Trains would be charged at London Marylebone and Oxford stations.

London Marylebone And Stratford-upon-Avon

Assuming the Birmingham and Banbury section of the route is electrified, this route can be considered to be in two sections.

  • London Marylebone and Banbury – Battery operation – 69 miles
  • Banbury and Hatton Junction – Electric operation – 26 miles
  • Hatton Junction and Stratford-upon-Avon – Battery operation – 9 miles

Trains would be charged at London Marylebone station and on the electrified section.

Chiltern’s Mainline Service

Chiltern’s Mainline service between London and Birmingham is run by either a Class 68 locomotive pulling a rake of six Mark 3 coaches and a driving van trailer or two or three Class 168 trains.

As the locomotive-hauled train is about eight coaches, it could surely be replaced by two four-car multiple units working together.

I believe that if Chiltern obtained a fleet of four-car battery electric trains, this would be the most efficient fleets for all their routes.

Charging At London Marylebone Station

I took these pictures at Marylebone station today.

Note.

  1. It is a surprisingly spacious station and I feel that Furrer+Frey or some other specialist company could add some form of charging to the platforms.
  2. Charging would probably performed using the train’s pantograph.

It appears that the turnround time in Marylebone is typically twelve minutes or more, which should be adequate to fully charge a train.



Conclusion

Both solutions will work for Chiltern.

But I prefer the new battery-electric train, which has some crucial advantages.

  • Battery-electric trains will be quieter than hybrid trains.
  • Marylebone station has a noise problem and battery-electric trains are very quiet.
  • Chiltern have ambitions to built new platforms at Old Oak Common and to serve Paddington. This could be easier with a battery electric train.

Rhe only disadvantage is that Banbury and Birmingham would need to be electrified.





September 25, 2022 Posted by | Transport/Travel | , , , , , , , , , , , | 5 Comments

York And Church Fenton Electrification

This news item from Network Rail is entitled Yorkshire’s First New Electric Railway In 25 Years Set To Cut Carbon And Slash Journey Times.

This section summarised the work

Work began on the York to Church Fenton electrification scheme in October 2019, and to date has delivered:

  • 17 kilometres of new, more reliable track, ready to run faster trains
  • An innovative 65-metre-wide under-track crossing
  • 270 new steel masts, which carry the overhead electric wires

When the new wires are energised, they will allow more environmentally friendly hybrid trains to run along this section at speeds of up to 125mph – that’s 30mph faster than they currently run.

This OpenRailwayMap shows between York and Church Fenton.

Note.

red lines indicate 25 KVAC overhead electrification.

York is in the North-East corner of the map.

Church Fenton is in the South-West corner of the map.

The track marked in red going South is the Selby Diversion, which was built in 1983 to avoid the Selby coalfield. It joins the York and Church Fenton route at Colton Junction.

The Colton Junction and Church Fenton section is marked in red and black, indicating this section is being electrified.

This second OpenRailwayMap shows between Church Fenton and Neville Hill TMD in the East of Leeds.

Note.

  • Church Fenton is in the North-East corner of the map.
  • Neville Hill TMD is the big black blob in the middle of the West edge of the map.
  • The route marked in red and black will probably be the next to be electrified.
  • Between Leeds and Neville Hill is electrified.

Electrification of Church Fenton and Neville Hill TMD means that the electrification between Leeds and York would be complete.

These services use this route between Leeds and York.

  • TransPennine Express – 1 tph – Liverpool Lime Street and Newcastle
  • TransPennine Express – 1 tph – Manchester Airport and Redcar Central
  • CrossCountry – 1 tph – Plymouth and Edinburgh Waverley

In addition, the new electrified route will have other effects.

Electric trains will have direct electrified access to Neville Hill TMD from York.

Micklefield is only 42 miles from Hull and with charging at Hull, I suspect TransPennine’s Manchester Piccadilly and Hull service could go battery-electric.



July 12, 2022 Posted by | Transport/Travel | , , , , | 15 Comments

Discontinuous Electrification Through Derwent Valley Mills

One big problem area of electrification on the Midland Main Line could be North of Derby, where the railway runs through the World Heritage Site of the Derwent Valley Mills. There might be serious objections to electrification in this area.

But if electrification were to be installed between Leicester and Derby stations, the following would be possible.

  • The Midland Main Line would be electrified at East Midlands Hub station.
  • Power could be taken from High Speed Two’s supply at East Midland Hub station, even if High Speed Two is not built in full.
  • Battery-electric trains could do a return trip to Nottingham from an electrified East Midlands Parkway station, as it’s only sixteen miles in total.

I am sure, that Hitachi’s Class 810 trains could be upgraded to have a of perhaps twenty-five miles on battery power, as this fits with Hitachi’s statements.

North of Derby, there would be electrification on the following sections.

  • Derby station and South of the heritage-sensitive section at Belper station.
  • Sheffield station and North of the heritage-sensitive section at Duffield station.

Milford Tunnel, which has Grade II Listed portals and is part of the World Heritage Site would not be electrified.

Belper and Duffield stations are 2.6 miles or 4.8 kilometres apart.

I believe it could be arranged that there would be no electrification in the sensitive section, where the Heritage Taliban might object.

The Hitachi Intercity Battery Hybrid Train

Hitachi will start testing their Intercity Battery Hybrid Train next year.

The train is described in this Hitachi infographic.

Note that is has a gap-jumping range of 5 km, which would handle the gap between Belper and Duffield stations.

CrossCountry Services Between Derby And Sheffield

CrossCountry operate the following services between Derby and Sheffield through Milford Tunnel and the World Heritage Site.

  • Plymouth and Edinburgh Waverley/Glasgow Central
  • Southampton/Reading and Newcastle

CrossCountry would need new trains and one of the current Hitachi Class 802 trains could handle this route and use electrification where it exists.

A five kilometre gap will be no big obstacle to designing a battery-electric train for these CrossCountry services.

Freight Trains

In Will Zero-Carbon Freight Trains Be Powered By Battery, Electric Or Hydrogen Locomotives?, I came to this conclusion.

In the title of this post, I asked if freight locomotives of the future would be battery, electric or hydrogen.

I am sure of one thing, which is that all freight locomotives must be able to use electrification and if possible, that means both 25 KVAC overhead and 750 VDC third rail. Electrification will only increase in the future, making it necessary for most if not all locomotives in the future to be able to use it.

I feel there will be both battery-electric and hydrogen-electric locomotives, with the battery-electric locomotives towards the less powerful end.

Hydrogen-electric will certainly dominate at the heavy end.

These locomotives would be able to handle the section of the Midland Main Line through Derwent Valley Mills.



December 30, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , | 7 Comments

How Feasible Is A High Speed Line Between Birmingham And Nottingham?

In Red Wall Commuters To Get Rail Revolution, I indicated that the Department of Transport is considering creating three new high speed lines in the Midlands and the North of England.

One is proposed between Birmingham and East Midlands Parkway, which is described in the original article in The Sunday Times like this.

A 42-mile line from Birmingham to East Midlands Parkway, just south of Nottingham. This is expected to cut journey times between the two cities from 72 minutes to 27 minutes.

There is a currently, a CrossCountry service between Nottingham and Birmingham New Street stations.

  • The frequency is two trains per hour (tph)
  • Trains are generally three- or four-car formations of Class 170 diesel trains.
  • All trains stop at Tamworth, Burton-on-Trent and Derby.
  • Some trains stop at Wilnecote, Willington, Spondon, Long Eaton and Beeston
  • The services take upwards of seventy-one minutes.

Note.

  1. The frequency between Birmingham New Street and Derby is four tph.
  2. Trains reverse at Derby which takes seven minutes.
  3. Three tph stop at Burton-on-Trent.

I feel that the current service is very much a compromise, which is trying to handle three services.

  • A fast train between Birmingham and Nottingham.
  • A fast train between Birmingham and Derby.
  • A local service between Nottingham and Derby.

High Speed Two will be providing a non-stop service between Birmingham Curzon Street and East Midlands Hub stations.

  • The frequency will be three tph.
  • There will also be an hourly train between Birmingham Interchange and East Midlands Hub station.
  • The services will take twenty minutes or slightly less from Interchange.

The services will only get you to East Midlands Hub station.

In addition after High Speed Two opens Midlands Connect are planning to run a direct service between Nottingham and Birmingham Curzon Street stations.

  • The frequency will be one tph.
  • The service will use High Speed Two Classic Compatible trains.
  • The only stop will be East Midlands Hub station.
  • The service will take thirty-three minutes.

So how does a new high speed line connect Birmingham and Nottingham in twenty-seven minutes?

Consider.

  • The route between Birmingham New Street and North Stafford Junction is 35.9 miles
  • At North Stafford junction a double-track freight line leads to the East.
  • The freight line passes to the North of East Midlands Airport and South of Long Eaton station before joining the Midland Main Line at Trent junction to the North of East Midlands Parkway station.
  • Trains can pass straight into Nottingham via Beeston.
  • Nottingham is just 6.7 miles to the East of Trent junction and East Midlands Parkway is just a mile South of Trent junction.
  • South Stafford junction to Trent junction is probably about seven miles.

I believe that this is the route that will be upgraded to create a high speed line between Birmingham and Nottingham.

  • Part of the route between Tamworth and Burton-on-Trent was upgraded to 125 mph running by British Rail.
  • Between Birmingham New Street and North Stafford Junction is used by CrossCountry services between Birmingham and Derby and Nottingham.
  • I believe that the route can be fully electrified and upgraded, so that most of the route could be suitable for 125 mph running.
  • The Midland Main Line is already capable of handling trains at 125 mph.

This should make it possible for services to run between Birmingham New Street and Nottingham in the required twenty-seven minutes.

I will answer a few questions.

Could The Trains Serve Birmingham Curzon Street In Birmingham?

In Birmingham Airport Connectivity, I said this

But look at this map clipped from the High Speed Two web site.

Note.

  1. The blue dot shows the location of Curzon Street station.
    The West Coast Main Line running into New Street station, is just to the South of Curzon Street station.
    New Street station can be picked out to the West of Curzon Street station.

This Google Map shows a close-up of the current Curzon Street station site.

The same pattern of rail lines going past the Curzon Street site into New Street station can be picked out.

Surely, a connection could be made to allow trains from a couple of platforms in Curzon Street station to terminate trains from the West Coast Main Line.

Possible services could include.

  • London Euston and Birmingham Curzon Street via Watford Junction, Milton Keynes, Rugby and Coventry
  • Cardiff and Birmingham Curzon Street via Bristol Parkway, Swindon, Oxford and Milton Keynes.
  • Cambridge and Birmingham Curzon Street via Bristol Parkway, Bedford and Milton Keynes.

There are a lot of possibilities to give High Speed Two much bigger coverage.

I also suspect that the proposed Nottingham and Birmingham service could terminate in Birmingham Curzon Street.

Could High Speed Two Classic Compatible Trains Run Between Birmingham And Nottingham?

As High Speed Two Classic Compatible Trains would have the same loading gauge as current trains, I don’t see why not.

Could A London Euston And Nottingham Service Be Run With A Reverse At Birmingham Curzon Street?

These are prospective times for High Speed Two.

  • London Euston and Birmingham Curzon Street – 45 minutes
  • London Euston and East Midlands Hub – 52 minutes

Note that East Midlands Hub and Nottingham could take at least twenty minutes.

And this is a current timing.

  • London St. Pancras And Nottingham – 95 minutes

It is possible calculate the time for London Euston to Nottingham with a reverse at Birmingham.

  • London Euston and Birmingham Curzon Street – 45 minutes
  • Reverse at Birmingham Curzon Street – 3 minutes
  • Birmingham Curzon Street and Nottingham – 27 minutes

This would give a time of 75 minutes between London Euston and Nottingham.

It does look to me, that the fastest route between London and Nottingham, will be to to go via Birmingham and the proposed new high speed route.

So the answer to the question in the title of this section is a Yes!

Could A London Euston And Sheffield Service Be Run With A Reverse At Birmingham Curzon Street?

These are prospective times for High Speed Two.

  • London Euston and Birmingham Curzon Street – 45 minutes
  • London Euston and East Midlands Hub – 52 minutes
  • London Euston and Sheffield – 87 minutes

And these are current timings.

  • London St. Pancras And Derby- 85 minutes
  • London St. Pancras And Sheffield- 118 minutes
  • Birmingham New Street And Derby- 33 minutes
  • Birmingham New Street And Sheffield- 75 minutes

It is possible calculate the time for London Euston to Sheffield with a reverse at Birmingham.

  • London Euston and Birmingham Curzon Street – 45 minutes
  • Reverse at Birmingham Curzon Street – 3 minutes
  • Birmingham Curzon Street and Sheffield – 75 minutes

This would give a time of 123 minutes between London Euston and Sheffield.

I wonder what time could be achieved between London Euston and Sheffield could be achieved with improvements to the following lines.

  • The CrossCountry Route between North Stafford junction and Derby station.
  • The Midland Main Line between Derby and Sheffield.

I would expect that the improvement to these routes would include.

  • At least almost full electrification.
  • Removal of level crossings.
  • Full digital signalling.
  • Upgrading to 140 mph running.

I could see the following service improvements.

  • A substantial reduction of the times between Birmingham and Sheffield.
  • Derby and Burton-on-Trent would get a fast service to London Euston via High Speed Two.
  • Derby and Burton-on-Trent would get a fast service to Birmingham probably with a frequency of 4 tph.
  • CrossCountry services between Birmingham and Sheffield would be faster.

Derby and Burton-on-Trent would get a much better train service.

Could Burton-on-Trent, Derby, Nottingham And Sheffield Be served By Trains Splitting And Reversing At Birmingham Curzon Street?

These are prospective frequencies for High Speed Two.

  • Burton-on-Trent – No trains
  • Chesterfield  1 tph
  • Derby – No trains
  • East Midland Hub – 7 tph
  • Nottingham – 0 tph
  • Sheffield – 2 tph

Suppose there were two tph between London and Birmingham Curzon Street, that split into two trains in Birmingham.

  • One train could go to Nottingham and call at Tamworth and Burton-on-Trent.
  • The other train could go to Sheffield and call at Tamworth, Burton-on-Trent, Derby and Chesterfield.

This would give the following frequencies from London on High Speed Two.

  • Burton-on-Trent – 2 tph
  • Chesterfield  – 2  tph
  • Derby – 2 tph
  • Nottingham – 2 tph
  • Sheffield – 2 tph

Note that I am ignoring the Eastern Leg of High Speed Two in this analysis.

Could We Go For The Full Burton?

In the previous sections, I suggested serving Nottingham and Sheffield from Euston using High Speed Two with a reverse at Birmingham Curzon Street, where the train would split into two trains, with one train going to Sheffield and the other going to Nottingham.

But could the split be at a rebuilt Burton station?

Consider.

  • Burton station could become an Eastern terminus of Birmingham’s Cross-City Line.
  • Burton station could become the Western terminus of the Ivanhoe Line to Leicester.
  • If the Cross Country Route is upgraded, Burton station would have fast connections to Birmingham, Derby, Chesterfield, Sheffield and Leeds,
  • If the new Birmingham and Nottingham route is created, this would mean fast connections to Nottingham and possibly Lincoln.

Burton-on-Trent could become the passenger rail hub for the Mid Midlands.

I

November 14, 2021 Posted by | Transport/Travel | , , , , , , , , , , , | Leave a comment

Electrification Between Clay Cross North Junction And Sheffield Station

Long term readers of this blog, will have noticed that I make regular references to this proposed electrification, that is part of High Speed Two’s proposals to connect Sheffield to the new high speed railway.

So I thought I would bring all my thoughts together in this post.

Connecting Sheffield To High Speed Two

Sheffield is to be accessed from a branch off the Main High Speed Two route to Leeds.

This map clipped from High Speed Two’s interactive map, shows the route of the Sheffield Branch, from where it branches North West from the main Eastern Leg of High Speed Two.

Note.

  1. Orange indicates new High Speed Two track.
  2. Blue indicates track that High Speed Two will share with other services.
  3. The orange route goes North to Leeds, along the M1
  4. The blue route goes North to Chesterfield and Sheffield, after skirting to the East of Clay Cross.
  5. The orange route goes South to East Midlands Hub station.

This second map, shows where the Erewash Valley Line joins the Sheffield Branch near the village of Stonebroom.

Note.

  1. Red is an embankment.
  2. Yellow is a cutting.
  3. The Sheffield Branch goes North-West to Clay Cross, Chesterfield and Sheffield
  4. The Sheffield Branch goes South-East to East Midlands Hub station.
  5. The Sheffield Branch goes through Doe Hill Country Park.
  6. The Sheffield Branch runs alongside the existing Erewash Valley Line, which goes South to Langley Mill, Ilkeston and the Derby-Nottingham area.

The Sheffield Branch and the Erewash Valley Line appear to share a route, which continues round Clay Cross and is shown in this third map.

Note

  1. Doe Hill Country Park is in the South-East corner of the map.
  2. The dark line running North-South is the A61.
  3. Running to the West of the A61 is the Midland Main Line, which currently joins the Erewash Valley Line at Clay Cross North junction.

High Speed Two and the Midland Main Line will share a route and/or tracks from Clay Cross North junction to Sheffield.

This fourth map, shows where the combined route joins the Hope Valley Line to Manchester to the South West of Sheffield.

Note.

  1. Sheffield is to the North East.
  2. Chesterfield is to the South East,
  3. Totley junction is a large triangular junction, that connects to the Hope Valley Line.

These are some timings for various sections of the route.

  • Clay Cross North Junction and Chesterfield (current) – 4 minutes
  • Clay Cross North Junction and Sheffield (current) – 17 minutes
  • Chesterfield and Sheffield (current) – 13 minutes
  • Chesterfield and Sheffield (High Speed Two) – 13 minutes
  • East Midlands Hub and Chesterfield (High Speed Two) – 16 minutes
  • East Midlands Hub and Sheffield (High Speed Two) – 27 minutes

As Class Cross North Junction and Sheffield are 15.5 miles, this means the section is run at an average speed of 53 mph.

Can I draw any conclusions from the maps and timings?

  • There would appear to be similar current and High Speed Two timings between Chesterfield and Sheffield.
  • The various junctions appear to be built for speed.

The Midland Main Line will be electrified between Clay Cross North Junction and Sheffield, so that High Speed Two trains can use the route.

What will be the characteristics of the tracks between Clay Cross North Junction and Sheffield?

  • Will it be just two tracks as it mainly is now or will it be a multi-track railway to separate the freight trains from the high speed trains?
  • Will it have a high enough maximum speed, so that East Midland Railway’s new Class 810 trains can go at their maximum speed of 140 mph?
  • Will it be capable of handling a frequency of 18 tph, which is the maximum frequency of High Speed Two?

Surely, it will be built to a full High Speed Two standard to future-proof the line.

Current Passenger Services Between Clay Cross North Junction And Sheffield Station

These trains use all or part of the route between Cross North Junction And Sheffield stations.

  • CrossCountry – Plymouth and Edinburgh via Derby, Chesterfield, Sheffield and Leeds – 1 tph
  • East Midlands Railway – London St. Pancras and Sheffield via Derby and Chesterfield – 2 tph
  • East Midlands Railway – Liverpool Lime Street and Norwich via Stockport, The Hope Valley Line, Sheffield and Chesterfield – 1 tph
  • Northern Trains – Manchester Piccadilly and Sheffield via the Hope Valley Line – 1 tph
  • Northern Trains – Leeds and Nottingham via Meadowhall, Sheffield and Chesterfield – 1 tph
  • TransPennine Express – Manchester Airport and Cleethorpes via Stockport, the Hope Valley Line and Sheffield – 1 tph

Note.

  1. tph is trains per hour.
  2. High Speed Two is currently planning to run two tph to Sheffield, which will run between Cross North junction and Sheffield stations.
  3. The services on the Hope Valley Line run on electrified tracks at the Manchester end.

These services can be aggregated to show the number of trains on each section of track.

  • Hope Valley Line between Manchester and Totley junction – 3 tph
  • Totley junction and Sheffield station – 7 tph
  • Totley junction and Clay Cross North junction via Chesterfield – 4 tph

Adding in the High Speed Two services gives these numbers.

  • Hope Valley Line between Manchester and Totley junction – 3 tph
  • Totley junction and Sheffield station – 9 tph
  • Totley junction and Clay Cross North junction via Chesterfield – 6 tph

This report on the Transport for the North web site, is entitled At A Glance – Northern Powerhouse Rail. It states that Transport for the North’s aspirations for Manchester and Sheffield are four tph with a journey time of forty minutes.

Adding in the extra train gives these numbers.

  • Hope Valley Line between Manchester and Totley junction – 4 tph
  • Totley junction and Sheffield station – 10 tph
  • Totley junction and Clay Cross North junction via Chesterfield – 6 tph

This level of services can be accommodated on a twin-track railway designed to the right high speed standards.

Freight Services Between Clay Cross North Junction And Sheffield Station

The route is used by freight trains, with up to two tph on each of the three routes from Totley junction.

And these are likely to increase.

Tracks Between Clay Cross North Junction And Sheffield Station

I am absolutely certain, that two tracks between Clay Cross North junction And Sheffield station will not be enough, even if they are built to High Speed Two standards to allow at least 140 mph running under digital signalling.

Battery Electric Trains

The only battery-electric train with a partly-revealed specification is Hitachi’s Regional Battery Train, which is described in this Hitachi infographic.

Note.

  1. The train is a 100 mph unit.
  2. Ninety kilometres is fifty-six miles.

I would expect that battery-electric trains from other manufacturers like Alstom, CAF and Siemens would have similar performance on battery power.

In Thoughts On CAF’s Battery-Electric Class 331 Trains, I concluded CAF’s approach could give the following ranges.

  • Three-car battery-electric train with one battery pack – 46.7 miles
  • Four-car battery-electric train with one battery pack – 35 miles
  • Four-car battery-electric train with two battery packs – 70 miles

I was impressed.

These are my thoughts on battery-electric trains on the routes from an electrified Sheffield.

Adwick

Sheffield  and Adwick is 22.7 miles without electrification

I am sure that battery-electric trains can handle this route.

If the battery range is sufficient, there may not need to be charging at Adwick.

Bridlington

Sheffield and Bridlington is 90.5 miles without electrification, except for a short section through Doncaster, where trains could top up batteries.

I am sure that battery-electric trains can handle this route.

But there would need to be a charging system at Hull, where the trains reverse.

An alternative would be to electrify Hull and Brough, which is just 10.4 miles and takes about twelve minutes.

Derby Via The Midland Main Line

Clay Cross North junction and Derby is 20.9 miles without electrification.

I am sure that battery-electric trains can handle this route.

Gainsborough Central

Sheffield  and Gainsborough Central is 33.6 miles without electrification

I am sure that battery-electric trains can handle this route.

But there will need to be a charging system at Gainsborough Central.

Huddersfield Via The Penistone Line

This is a distance of 36.4 miles with electrification at both ends, after the electrification between Huddersfield and Westtown is completed.

I am sure that battery-electric trains can handle this route.

Hull

Sheffield and Hull is 59.4 miles without electrification, except for a short section through Doncaster, where trains could top up batteries.

I am sure that battery-electric trains can handle this route.

But there will probably need to be a charging system at Hull.

An alternative would be to electrify Hull and Brough, which is just 10.4 miles and takes about twelve minutes.

Leeds Via The Hallam Or Wakefield Lines

This is a distance of 40-45 miles with electrification at both ends.

I am sure that battery-electric trains can handle this route.

Lincoln

Sheffield and Lincoln Central is 48.5 miles without electrification

I am sure that battery-electric trains can handle this route.

But there will probably need to be a charging system at Lincoln Central.

Manchester Via The Hope Valley Line

This is a distance of forty-two miles with electrification at both ends.

I am sure that battery-electric trains can handle this route.

Nottingham

Clay Cross North junction and Nottingham is 25.1 miles without electrification

I am sure that battery-electric trains can handle this route.

But there may need to be a charging system at Nottingham.

York

This is a distance of 46.4 miles with electrification at both ends.

I am sure that battery-electric trains can handle this route.

Is London St. Pancras And Sheffield Within Range Of Battery-Electric Trains?

In the previous section, I showed that it would be possible to easily reach Derby, as Clay Cross North junction and Derby is 20.9 miles without electrification.

  • Current plans include electrifying the Midland Main Line as far North as Market Harborough.
  • Market Harborough is 82.8 miles from London St. Pancras
  • Derby is 128.3 miles from London St. Pancras

So what would be the best way to cover the 45.5 miles in the middle?

One of the best ways would surely be to electrify between Derby and East Midlands Parkway stations.

  • Derby and East Midlands Parkway stations are just 10.2 miles apart.
  • Current services take around twelve-fourteen minutes to travel between the two stations, so it would be more than enough time to charge a battery-electric train.
  • Power for the electrification should not be a problem, as Radcliffe-on-Soar power station is by East Midlands Parkway station. Although the coal-fired power station will soon be closed, it must have a high class connection to the electricity grid.
  • The East Midlands Hub station of High Speed Two will be built at Toton between Derby and Nottingham and will have connections to the Midland Main Line.
  • An electrified spur could connect to Nottingham station.

I have flown my virtual helicopter along the route and found the following.

  • Three overbridges that are not modern and built for large containers and electrification.
  • Two level crossings.
  • One short tunnel.
  • Two intermediate stations.
  • Perhaps half-a-dozen modern footbridges designed to clear electrification.

I’ve certainly seen routes that would be much more challenging to electrify.

I wonder if gauge clearance has already been performed on this key section of the Midland Main Line.

If this section were to be electrified, the sections of the Midland Main Line between London St. Pancras and Sheffield would be as follows.

  • London St. Pancras and Market Harborough – Electrified – 82.8 miles
  • Market Harborough and East Midlands Parkway – Not Electrified – 35.3 miles
  • East Midlands Parkway and Derby – Electrified – 10.2 miles
  • Derby and Clay Cross North junction – Not Electrified – 20.9 miles
  • Clay Cross North junction and Sheffield – Electrified – 15.5 miles

Note.

  1. The World Heritage Site of the Derwent Valley Mills is not electrified, which could ease the planning.
  2. Leicester station with its low bridge, which could be difficult to electrify, has not been electrified.
  3. Under thirty miles of electrification will allow battery-electric trains to run between London St. Pancras and Sheffield, provided they had a range on batteries of around forty miles.

Probably, the best way to electrify between East Midlands Parkway and Derby might be to develop a joint project with High Speed Two, that combines all the power and other early works for East Midlands Hub station, with the electrification between the two stations.

Will The Class 810 Trains Be Converted To Battery-Electric Operation?

Hitachi’s Class 8xx trains tend to be different, when it comes to power. These figures relate to five-car trains.

  • Class 800 train – 3 x 560 kW diesel engines
  • Class 801 train – 1 x 560 kW diesel engine
  • Class 802 train – 3 x 700 kW diesel engines
  • Class 803 train – All electric – No diesel and an emergency battery
  • Class 805 train – 3 x 700 kW diesel engines (?)
  • Class 807 train – All electric – No diesel or emergency battery
  • Class 810 train – 4 x 700 kW diesel engines (?)

Note.

  1. These figures relate to five-car trains.
  2. Class 807 train are seven-car trains.
  3. Where there is a question mark (?), the power has not been disclosed.
  4. Hitachi use two sizes of diesel engine; 560 kW and 700 kW.

It was generally thought with the Class 810 train to be used on the Midland Main Line, will be fitted with four engines to be able to run at 125 mph on diesel.

But are they 560 kW or 700 kW engines?

  • A Class 802 train has an operating speed of 110 mph on diesel, with 2100 kW of installed power.
  • To increase speed, the power will probably be related to something like the square of the speed.

So crudely the power required for 125 mph would be 2100*125*125/110/110, which works out at 2712 kW.

Could this explain why four engines are fitted? And why they are 700 kW versions?

Interestingly, I suspect, Hitachi’s five-car trains have two more or less identical driver cars, except for the passenger interiors, for the efficiency of manufacturing and servicing.

So does that mean, that a fifth engine could be fitted if required?

There probably wouldn’t be a need for five diesel engines, but as I also believe that the Hyperdrive Innovation battery packs for these trains are plug-compatible with the diesel engines, does that mean that Hitachi’s trains can be fitted with five batteries?

Suppose you wanted to run a Class 810 train at 125 mph to clear an electrification gap of forty miles would mean the following.

  • It would take 0.32 hours or 19.2 minutes to cross the gap.
  • In that time 2800 kW of diesel engines would generate 896 kWh.
  • So to do the same on batteries would need a total battery capacity of 896 kWh.
  • If all diesel engines were replaced, each battery would need to be 224 kWh

A battery of this size is not impractical and probably weighs less than the at least four tonnes of the diesel engine it replaces.

Conclusions

Electrification between Clay Cross North Junction and Sheffield station is an important project that enables the following.

  • A high proportion of diesel services to and from Sheffield to be converted to battery-electric power.
  • With electrification between Derby and East Midlands Parkway, it enables 125 mph battery-electric trains to run between London St. Pancras and Sheffield.
  • It prepares Sheffield for High Speed Two.

It should be carried out as soon as possible.





















September 5, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , | 2 Comments

New Rail Service From Newcastle To Edinburgh To Stop At These Northumberland Stations

The title of this post, is the same as that of this article on the Chronicle Live.

Details of the service are as follows.

  • It will be run by TransPennine Express.
  • It starts in December 2021.
  • It will run five times per day (tpd)
  • It will call at Cramlington, Morpeth, Widdrington, Alnmouth, Berwick-upon-Tweed, Reston and Dunbar.

It is planned to run at least until May 2023.

These are my thoughts.

What Trains Will TransPennine Express Use?

The service will probably need a single train, if it was run by a dedicated fleet of trains, that just shuttled between Edinburgh and Newcastle. TransPennine could use either an electric  Class 802 train or a diesel Class 185 train.

The diesel train might not be a good idea for operational reasons as TransPennine’s current services to Newcastle and Edinburgh use Class 802 trains.

But this service wouldn’t need a Class 802 train, as the route is fully electrified, so TransPennine might use a Class 800 train, if one were available from another company in the First Group.

TransPennine could also extend selected Manchester Airport and Newcastle services to Edinburgh, which might be the most efficient ways of using both trains and platforms in Newcastle.

This would give those using the intermediate stations between Edinburgh and Newcastle a service to and from Manchester Airport and the intervening stations, with a change at Newcastle, which would involve staying on the same train.

I’d organise the service as five tpd between Manchester Airport and Edinburgh with calls at Manchester Piccadilly, Manchester Oxford Road, Manchester Victoria, Huddersfield, Dewsbury, Leeds, York, Northallerton, Darlington, Durham, Chester-le-Street, Newcastle, Cramlington, Morpeth, Widdrington, Alnmouth, Berwick-upon-Tweed, Reston and Dunbar.

The big advantage of this, is that TransPennine could use the existing Class 802 trains, although they may need one more.

Reston Station

It looks like it will be a much needed service, that will get the new Reston station up and running.

I suspect that,  passenger numbers at Reston station will determine the calling pattern after May 2023.

Will Other Services Continue?

TransPennine Express only has one service that stops between Newcastle and Edinburgh and that is the hourly service between Liverpool Lime Street and Edinburgh stations and that only stops at Morpeth.

I doubt this service will be changed, although after May 2023, it may make some extra stops depending on passenger numbers on the new service.

It should be noted that CrossCountry and LNER call irregularly at Alnmouth, Berwick-upon-Tweed and Dunbar.

As LNER are in rather a mess over their new timetable, I suspect that after May 2023, there could be a bit of a sort out of services.

How Will The New Service Fit With The Reopened Northumberland Line?

Initially the Northumberland Line will run as far as Ashington and won’t open until 2023 at the earliest.

But plans exist to extend the Northumberland Line to Morpeth.

The new service would fit well with an extended Northumberland Line service.

How Will The New Service Fit With East Coast Trains New London And Edinburgh Service?

East Coast Trains will be running a new Open Access service between London and Edinburgh from this autumn.

  • It will have a frequency of 5 tpd.
  • It will stop at Newcastle, Morpeth and Stevenage.
  • It will offer one way fares of £25.

East Coast Trains are another First Group company.

As both services are five tpd in both directions, will the two services co-ordinate stops, so that passengers between say London and Reston can take advantage?

Going North, the stopping train could follow the East Coast Trains express and going South the stopping train would be a few minutes in front of the express.

This would also help with maximising capacity between Edinburgh and Newcastle on the busy East Coast Main Line.

Conclusion

This new stopping service between Edinburgh and Newcastle looks to be a simple solution to improve passenger services for intermediate stations between the two important cities.



September 3, 2021 Posted by | Transport/Travel | , , , , , , , , , , , | 3 Comments

Improving The Cross Country Route

The Cross Country Route is one of the UK’s forgotten railway lines.

  • It runs between York and Bristol Temple Meads.
  • Intermediate stations include Leeds, Wakefield Westgate, Rotherham Central, Meadowhall, Sheffield, Chesterfield, Derby, Burton-on-Trent, Tamworth, Birmingham New Street, University, Bromsgrove, Worcestershire Parkway, Cheltenham Spa and Bristol Parkway.
  • At the Northern end trains can swap to the electrified East Coast Main Line and can extend services to Edinburgh and Aberdeen.
  • At the Southern end trains can swap to the Great Western Main Line and extend services to Taunton, Exeter, Plymouth and Penzance.
  • Trains can also swap to the South Wales Main Line in the Bristol area, to serve Cardiff and South Wales.
  • Operating speeds are generally around 100 mph, but there are sections of 125 mph running.
  • Some sections of the route have 25 KVAC overhead electrification.

I very much believe that it is a route that is ripe for improvement.

These are my thoughts.

Extra And Rebuilt Stations

Recently, Worcestershire Parkway station has been opened on the route.

Bromsgrove station was rebuilt and reopened in 2016.

Derby station was remodelled in 2018.

In addition, there are aspirations for other mew stations and station improvements on the route.

I can see more station improvements and additions on the Cross Country Route.

New Trains

Most services are run by CrossCountry, who only use diesel trains.

Their core services are as follows.

Plymouth And Edinburgh uses the route between York and Bristol Temple Meads. The service runs under wires North of Leeds and at Bristol Parkway and at Birmingham New Street.

Southampton Central And Newcastle uses the route between York and Birmingham New Street. The service runs under wires North of Leeds and at Reading and at Birmingham New Street.

Bournemouth and Manchester Piccadilly uses the route at Birmingham New Street. The service runs under wires North of Birmingham New Street.

Bristol Temple Meads and Manchester Piccadilly uses the route between Bristol Temple Meads and Birmingham New Street. The service runs under wires at Bristol Parkway and North of Birmingham New Street.

Cardiff Central and Nottingham uses the route between Gloucester and Derby. The service runs under the wires West of Bristol Parkway and at Birmingham New Street.

Birmingham New Street and Nottingham uses the route between Birmingham New Street and Derby. The service runs under the wires at Birmingham New Street.

Birmingham New Street and Stansted Airport does not use the route. The service runs under the wires at Birmingham New Street and around Cambridge and Peterborough.

Birmingham New Street and Leicester does not use the route. The service runs under the wires at Birmingham New Street.

Note.

  1. Several services run under wires for sufficient time to charge a battery-electric train.
  2. Several services turn in stations for sufficient time to charge a battery-electric train.
  3. At least six or possibly seven of the services run for at least fifty miles on tracks that can handle 125 mph running. Some of this track will be upgraded to 140 mph with digital signalling.

This Hitachi infographic shows the Hitachi Intercity Tri-Mode Battery Train.

I believe that Hitachi could produce a version of this train, that would partially meet CrossCountry’s need for a new fleet to reduce their carbon footprint.

For the purpose of this analysis, I will assume this about the trains.

  • Battery power will always be used in stations.
  • The trains have a battery range of around forty miles at 100 mph.
  • Running at 125 mph will need 25 KVAC overhead electrification.

This table shows the current electrification status of the Cross Country Route.

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Birmingham New Street – 96.6 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles- Not Electrified

The trains would appear to still need to use diesel on some parts of the route.

Or Hitachi ABB Power Grids could install short lengths of 25 KVAC overhead electrification to top up the trains’ batteries in appropriate places.

I believe CrossCountry could decarbonise this route using battery-electric trains and discontinuous electrification.

This would surely refresh the line and attract passengers, but would the trains speed up the service?

  • Birmingham New Street and Leeds is 116.4 miles and currently takes just under two hours at an average speed of 59.3 mph in a Class 221 train.
  • Several sections of line between Birmingham New Street and Leeds can sustain 125 mph running.
  • London Liverpool Street and Norwich is 114.5 miles and has regularly been achieved by British Rail-era electric trains in ninety minutes on a 100 mph line, which is an average speed of 76 mph.
  • Averaging 76 mph between Birmingham New Street and Leeds would give a time of 92 minutes.

For these and other reasons, I am fairly sure that a battery-electric train capable of running at 125 mph with fast acceleration could run between Birmingham New Street and Leeds in under ninety minutes, with the addition of some discontinuous electrification.

  • There is currently one tph between Birmingham New Street and Leeds, which also serves Sheffield.
  • There is also one tph between Birmingham New Street and Sheffield by a different route.
  • There is two tph between Birmingham New Street and Nottingham.
  • My calculations indicate that the Nottingham and Sheffield services would take under an hour to and from Birmingham New Street, with the Leeds service taking thirty minutes longer.

In normal circumstances no diesel would be used.

Track Improvements And Discontinuous Electrification

This table shows the current electrification status of the Cross Country Route.

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Birmingham New Street – 96.6 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles – Not Electrified

Solutions will have to be found to decarbonise a lot of the route.

I have flown my virtual helicopter from Tamworth to Sheffield and this part of the route seems to the sort of route that could be upgraded to a full 125 mph line, as it is fairly straight and some sections already allow trains to travel at this speed.

As the 15.5 miles between Clay Cross North Junction and Sheffield will be updated and electrified for High Speed Two’s spur into Sheffield sometime in the future, I would feel that as updating this section benefits High Speed Two, the Midland Main Line, the Cross Country Route and the Hope Valley Line, that this section should be rebuilt as necessary and electrified, as soon as is practically possible.

I believe that Clay Cross North Junction and Sheffield is one of the most important routes in the country to be electrified, if not the most important.

This table shows the electrification status of the Cross Country Route after electrification of Clay Cross North Junction and Sheffield.

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Sheffield – 18.8 miles – Not Electrified
  • Sheffield and Clay Cross North junction – 15.5 miles – Electrified
  • Clay Cross North junction and Birmingham New Street – 62.1 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles – Not Electrified

It looks that by electrifying the 15.5 miles between Sheffield and Clay Cross North junction, the gap of 18.8 miles between South Kirby junction and Sheffield could be easily bridged by a battery-electric train.

The section between Clay Cross North junction and Birmingham New Street can be split into three.

  • Clay Cross North junction and Derby – 20.9 miles
  • Derby and Tamworth – 23.9 miles
  • Tamworth and Birmingham New Street – 17.3 miles

If Hitachi ABB Power Grids installed discontinuous electrification at Derby and Tamworth, this should bridge the gap to the electrification at Birmingham.

As some of this section can sustain 125 mph running, it may be better to fully electrify part of the route.

This table shows the electrification status of the route would become

  • York and South Kirby junction- 45.4 miles – Electrified
  • South Kirby junction and Sheffield – 18.8 miles – Not Electrified
  • Sheffield and Clay Cross North junction – 15.5 miles – Electrified
  • Clay Cross North junction and Derby – 20.9 miles – Not Electrified
  • Derby and Tamworth – 23.9 miles – Not Electrified
  • Tamworth and Birmingham New Street – 17.3 miles – Not Electrified
  • Birmingham New Street and Bromsgrove – 16 miles – Electrified
  • Bromsgrove and Bristol Parkway – 69.8 miles – Not Electrified
  • Bristol Parkway and Bristol Temple Meads – 4.8 miles – Not Electrified

I have also flown my virtual helicopter from Bromsgrove to Westerleigh junction, where the Cross Country Route joins the electrified Great Western Main Line, about 4.5 miles East of Bristol Parkway station.

It looks to me that this Southern short section of electrified line would be able to charge a battery-electric train so that it could reach Bristol Temple Meads station.

But the sixty-plus miles of route without electrification between Bromsgrove and Westerleigh junction would be too far to travel without some electrification.

This could either be full electrification or discontinuous using the methods proposed by Hitachi ABB Power Grids.

It certainly looks to me, that Hitachi’s technology or similar, that I talked about in Solving The Electrification Conundrum could be used to run battery-electric trains between York and Bristol Temple Meads on the Cross Country Route.

Digital Signalling

I would assume this will be installed on the route, to give more precise control of trains on the more complicated sections of the route.

East Coast Main Line Improvements

There are several improvements to the North of York, that will reduce journey times on all services using the East Coast Main Line.

These could contribute time saving of up to ten minutes, according to High Speed Two’s Journey Planner and current timetables.

Comparison With The Proposed Eastern Leg Of High Speed Two

With all the talk about possible cancellation of the Eastern Leg of High Speed Two could an improved Cross Country Route be used in the interim?

I will look at a few timings from Birmingham.

Birmingham And Leeds

A fully-developed High Speed Two is claiming forty-nine minutes, as against the one hour and fifty-eight minutes today.

I have stated that ninety minutes is an attainable time on a 116.4 mile journey, where a good proportion of 125 mph running will be possible, sustained by electrification.

But with full electrification, more 125 mph running and even some 140 mph running under the control of digital signalling, I suspect that ninety minutes is only an upper limit to the journey time between Birmingham and Leeds.

High Speed Two are saying they will run two tph between Birmingham and Leeds, which is twice the current frequency.

I could see that an improved frequency on the Cross Country Route could be very convenient, if it increased the frequency between the two cities to four tph.

Is it going to annoy passengers, that services will leave from two different stations in Birmingham and if you go to the wrong one, you’ll have to wait thirty minutes for the next train?

Birmingham And Middlesbrough

Times between Birmingham and Middlesbrough will be determined by adding a Leeds and Middlesbrough time to the Birmingham and Leeds times.

The best time between Leeds and Middlesbrough today is one hour and 23 minutes, which I suspect will lose a few minutes due to East Coast Main Line improvements North of York.

This gives using High Speed Two to Leeds a time of two hours and eight minutes, as against two hours and forty-nine minutes using an improved Cross Country Route.

Birmingham And Newcastle

A fully-developed High Speed Two is claiming one hour and  fifty-seven minutes, as against the three hours and twenty-six minutes today.

Based on the current and possible times between Birmingham at Leeds using CrossCountry, I feel times to stations North of Leeds will be reduced by at least twenty-eight minutes, putting the Birmingham and Newcastle time a few minutes under three hours.

Birmingham And Nottingham

A fully-developed High Speed Two is claiming twenty minutes to East Midlands Hub, which when adding in the tram to Nottingham City Centre will be thirty-five minutes..

,Current services are one hour and ten minutes today.

On an improved Cross Country Route, with with battery-electric trains and some 125 mph running, I can see this time shrink to under an hour, even with the reverse at Derby.

Midlands Connect are also proposing a high speed service between Birmingham Curzon Street and Nottingham station, which will take thirty-three minutes.

High Speed Two are saying they will run three tph between Birmingham and East Midlands Hub, which compares with two tph using the Cross Country Route.

Birmingham And Sheffield

A fully-developed High Speed Two is claiming fifty-seven minutes, as against the one hour and fifteen minutes today.

I have stated that an hour is an attainable time on this route, with battery-electric trains and some 125 mph running.

A time of an hour would be very competitive with the Eastern Leg of High Speed Two.

High Speed Two are saying they will run two tph between Birmingham and Sheffield with a change at East Midlands Hub, which compares with two tph using the Cross Country Route.

Conclusion

A fully developed East Coast Main Line will give High Speed Two a good run for its money on services between London and Yorkshire, North East England and Scotland. I indicated my thoughts and conclusions in What Is Possible On The East Coast Main Line?.

I also believe that an improved Cross Country Route could give the Eastern Leg of High Speed Two a very good run for its money.

Perhaps, we should safeguard the route of Eastern Leg of High Speed Two for building later to increase capacity when it is needed, but in the interim we should upgrade the following routes.

  • Cross Country Route
  • East Coast Main Line
  • Midland Main Line
  • Northern Powerhouse Rail
  • West Coast Main Line

These routes should have at least these minimum standards.

  • All passenger trains electric or battery-electric.
  • All freight locomotives electric, battery-electric or hydrogen-electric.
  • Where possible all lines should allow 125 mph running.
  • Universal in-cab digital signalling
  • There should be sections of 140 mph running, where possible.

We will need the Eastern Leg of High Speed Two in the future, but we don’t need it in the next few years.











August 26, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , | 4 Comments

Thoughts On The Eastern Leg Of High Speed Two

These are a few thoughts on the Eastern Leg of High Speed Two.

Serving The North-East Quarter Of England From London

In Anxiety Over HS2 Eastern Leg Future, I gave a table of timings from London to towns and cities in the North-East quarter of England from Lincoln and Nottingham Northwards.

I’ll repeat it here.

  • Bradford – Will not be served by High Speed Two – One hour and fifty-four minutes
  • Cleethorpes – Will not be served by High Speed Two – Two hours and fifty-one minutes
  • Darlington – One hour and forty-nine minutes – One hour and forty-nine minutes
  • Doncaster – Will not be served by High Speed Two – One hour
  • Edinburgh – Three hours and forty minutes via Western Leg – Three hours and thirty minutes.
  • Grimsby – Will not be served by High Speed Two – Two hours and thirty-six minutes
  • Harrogate – Will not be served by High Speed Two – One hour and fifty-two minutes
  • Huddersfield – Will not served by High Speed Two – Two hours and eight minutes
  • Hull – Will not be served by High Speed Two – One hour and fifty minutes
  • Leeds – One hour and twenty-one minutes – One hour and thirty minutes
  • Lincoln – Will not be served by High Speed Two – One hour and fifty-one minutes
  • Middlesbrough – Will not be served by High Speed Two – Two hours and twenty minutes
  • Newcastle – Two hours and seventeen minutes – Two hours and sixteen minutes
  • Nottingham – One hour and seven minutes – One hour and fifty minutes
  • Scarborough – Will not be served by High Speed Two – Two hours and fifty-seven minutes
  • Sheffield – One hour and twenty-seven minutes – One hour and twenty-seven minutes
  • Skipton – Will not be served by High Speed Two – Two hours and seven minutes
  • Sunderland – Will not be served by High Speed Two – Two hours and thirty minutes
  • York – One hour and twenty-four minutes – One hour and twenty-four minutes

Note.

  1. I have included all destinations served by Grand Central, Hull Trains and LNER.
  2. I have included Nottingham and Sheffield for completeness and in case whilst electrification is installed on the Midland Main Line, LNER run services to the two cities.
  3. I suspect LNER services to Bradford, Harrogate, Huddersfield and Skipton will split and join at Leeds.

There are a total of nineteen destination in this table.

  • Twelve are not served by High Speed Two.
  • Six are not more than fifteen minutes slower by the East Coast Main Line.

Only Nottingham is substantially quicker by High Speed Two.

Serving The North-East Quarter Of England From Birmingham

Fenland Scouser felt the above table might be interesting to and from Birmingham with or without the Eastern Leg of High Speed Two.

I think, I can give more information than that and it should be possible to give for each destination the following.

  • Whether of not the route exists on High Speed Two.
  • Time on High Speed Two from Birmingham.
  • Time on High Speed Two and Northern Powerhouse Rail from Birmingham via Manchester
  • Time by current trains from Birmingham

In the following table, the fields are in the order of the previous table.

  • Bradford – No direct route – No time – One hour and three minutes – Two hours and twenty-seven minutes
  • Cleethorpes – No direct route – No time – Three hours and eight minutes – Three hours and eighteen minutes
  • Darlington – Route Exists – One hour and twenty-three minutes – One hour and forty minutes – Two hours and fifty-five minutes
  • Doncaster – No direct route – No time – One hour and thirty-six minutes – Two hours and nineteen minutes
  • Edinburgh- Route Exists – Three hours and fourteen minutes – Four hours – Four hours and thirteen minutes
  • Grimsby – No direct route – No time – Two hours and fifty-three minutes – Three hours and three minutes
  • Harrogate – No direct route – No time – One hour and twenty-eight minutes – Three hours
  • Huddersfield – No direct route – No time – Fifty-six minutes – Two hours and eleven minutes
  • Hull – No direct route – No time – One hour and forty-four minutes – Three hours and two minutes
  • Leeds – Route Exists – Forty-nine minutes – One hour and six minutes – One hour and fifty-nine minutes
  • Lincoln – No direct route – No time – Two hours and fifty-three minutes – Two hours and thirteen minutes
  • Middlesbrough – No direct route – No time – Two hours and twenty-nine minutes – Three hours and thirty-two minutes
  • Newcastle – No direct route – No time – Two hours and four minutes – Three hours and twenty-six minutes
  • Nottingham – Route Exists – Fifty-seven minutes – Two hours and fifty-five minutes – One hour and ten minutes
  • Sheffield – Route Exists – Thirty-five minutes – One hour and thirty-four minutes – One hour and fifteen minutes
  • Skipton – No direct route – No time – One hour and forty-three minutes – Two hours and fifty-two minutes
  • Sunderland – No direct route – No time – Two hours and fifty-nine minutes – Three hours and fifty-eight minutes
  • York – Route Exists – Fifty-seven minutes – One hour and twenty-eight minutes – Two hours and twenty-seven minutes

Note.

  1. No time means just that!
  2. One of the crucial times is that Birmingham Curzon Street and Leeds is just an hour and six minutes via High Speed Two and Northern Powerhouse Rail. This time gives good times to all destinations served from Leeds.
  3. Nottingham and Sheffield are both around an hour and fifteen minutes from Birmingham New Street, by the current trains.

I’ll now look at some routes in detail.

Birmingham And Leeds

The time of one hour and six minutes is derived from the following.

  • Birmingham Curzon Street and Manchester Piccadilly by High Speed Two – Forty-one minutes
  • Manchester Piccadilly and Leeds by Northern Powerhouse Rail – Twenty-five minutes

It would be seventeen minutes slower than the direct time of forty-nine minutes.

But it is quicker than the current time of one hour and fifty-nine minutes

Note.

  1. As Manchester Piccadilly will have a time to and from London of one hour and eleven minutes, Leeds will have a time of one hour and twenty-six minutes to London via Northern Powerhouse Rail and Manchester.
  2. If the Eastern Leg is built, The London and Leeds time will be one hour and twenty-one minutes.
  3. The Eastern Leg would therefore save just five minutes.

The Northern Powerhouse route could probably mean that Huddersfield, Bradford and Hull would be served by High Speed Two from London.

Manchester Airport, Manchester Piccadilly and Leeds would be connected by a tunnel deep under the Pennines.

  • Manchester Piccadilly, Huddersfield and Bradford could be underground platforms added to existing stations.
  • Piccadilly and Leeds would have a journey time of under 25 minutes and six trains per hour (tph).
  • The tunnel would also carry freight.
  • It would be modelled on the Gotthard Base Tunnel in Switzerland.

I wrote full details in Will HS2 And Northern Powerhouse Rail Go For The Big Bore?

Birmingham And Nottingham

The time of two hours and fifty-five minutes is derived from the following.

  • Birmingham Curzon Street and Manchester Piccadilly by High Speed Two – Forty-one minutes
  • Manchester Piccadilly and Leeds by Northern Powerhouse Rail – Twenty-five minutes
  • Leeds and Nottingham – One hour and forty-nine minutes

It would be one hour and fifty-eight minutes slower than the direct time of fifty-nine minutes.

The current time of one hour and ten minutes is much quicker.

Birmingham And Sheffield

The time of two hours and thirty-four minutes is derived from the following.

  • Birmingham Curzon Street and Manchester Piccadilly by High Speed Two – Forty-one minutes
  • Manchester Piccadilly and Leeds by Northern Powerhouse Rail – Twenty-five minutes
  • Leeds and Sheffield – One hour and twenty-eight minutes

It would be one hour and fifty-nine minutes slower than the direct time of thirty-five minutes.

The current time of one hour and fifteen minutes is much quicker.

Conclusions On The Timings

I am led to the following conclusions on the timings.

The building of the Eastern Leg of High Speed Two gives the fastest times between Birmingham and Leeds, Nottingham and Sheffield.

But if the Eastern Leg of High Speed Two is not built, then the following is true, if Northern Powerhouse Rail is created between Manchester and Leeds.

The time of an hour and six minutes between Birmingham Curzon Street and Leeds is probably an acceptable time.

This time probably enables  acceptable times between Birmingham Curzon Street and destinations North of Leeds.

But with Nottingham and Sheffield the current CrossCountry service is faster than the route via Manchester.

The speed of the CrossCountry services surprised me, but then there is a section of 125 mph running between Derby and Birmingham, which is used by CrossCountry services between Birmingham New Street and Leeds, Nottingham and Sheffield.

This table gives details of these services.

  • Birmingham New Street and Leeds – 116,4 miles – One hour and 58 minutes – 59.3 mph
  • Birmingham New Street and Nottingham – 57.2 miles – One hour and 14 minutes – 46.4 mph
  • Birmingham New Street and Sheffield – 77.6 miles – One hour and 18 minutes – 59.7 mph

Note.

  1. The Leeds and Sheffield services are run by 125 mph Class 220 trains.
  2. The Notting service is run by 100 mph Class 170 trains.
  3. All trains are diesel-powered.

As there is 125 mph running between Derby and Birmingham, the train performance probably accounts for the slower average speed of the Nottingham service.

CrossCountry And Decarbonisation

Consider.

  • CrossCountry has an all-diesel fleet.
  • All train companies in the UK are planning on decarbonising.
  • Some of CrossCountry’s routes are partially electrified and have sections where 125 mph running is possible.

The only standard train that is built in the UK that would fit CrossCountry’s requirements, would appear to be one of Hitachi’s 125 mph trains like a bi-mode Class 802 train.

  • These trains are available in various lengths
  • Hitachi will be testing battery packs in the trains in the next year, with the aim of entering service in 2023.
  • Hitachi have formed a company with ABB, which is called Hitachi ABB Power Grids to develop and install discontinuous electrification.

When CrossCountry do replace their fleet and run 125 mph trains on these services several stations will be connected to Birmingham for High Speed Two.

The route between Leeds and Birmingham via Sheffield is part of the Cross Country Route, for which electrification appears to have planned in the 1960s according to a section in Wikipedia called Abortive British Rail Proposals For Complete Electrification,

I suspect that the following times could be achieved with a frequency of two tph

  • Birmingham New Street and Leeds – 90 minutes
  • Birmingham New Street and Nottingham – 60 minutes
  • Birmingham New Street and Sheffield – 60 minutes

It is not the Eastern Leg of High Speed Two, but it could do in the interim.

Electrification Of The Midland Main Line

I don’t believe that the Midland Main Line needs full electrification to speed up services to Derby, Nottingham and Sheffield, but I believe that by fitting batteries to Hitachi’s Class 810 trains, that will soon be running on the line and using the Hitachi ABB Power Grids system of discontinuous electrification, that the route can be decarbonised.

I would also apply full digital in-cab signalling to the Midland Main Line.

Conclusion

We will need the Eastern Leg of High Speed Two at some time in the future, but if we do the following we can do more than cope.

  • Create Northern Powerhouse Rail between Manchester and Leeds, so that High Speed Two can serve Leeds and Hull via Manchester.
  • Decarbonise CrossCountry with some 125 mph battery-electric trains.
  • Electrify the Midland Main Line.

I would also deliver as much as possible before Phase 1 and 2a of High Speed Two opens.



August 24, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , | 4 Comments

« Previous Entries     Next Entries »
