Would A Mutant Many-Parent Child Help To Solve London’s Transport Problems?

London needs to increase the capacity of its public transport system, as the City continues to get larger and larger.

Current Major Projects

There are only three major rail projects ongoing in London at the present time.

The Bank Station Upgrade

The Bank Station Upgrade appears to be progressing well, albeit perhaps it’s a bit late due to the pandemic.

It is a complex project and from what I have heard and observed, it has been well designed and planned.

The Barking Riverside Extension

As with the Bank Station Upgrade the Overground extension to the new Barking Riverside station, appears to be going reasonably well.

But compared to that project, it is a relatively simple project, built mainly in the open air, with no tunneling.

Crossrail

Crossrail is in trouble, after what many believe was a very good tunnelling phase of the project.

But then tunnels under London usually seem to go well. I can remember the Victoria Line tunnelling and many other under London since the 1960s and all of these tunnels seem to have been dug without trouble. As I write, there don’t seem to be any tunneling problems with the Thames Tideway Tunnel.

Crossrail now has been reduced to a series of station builds and rebuilds, some of which are as large as the Bank Station Upgrade, with other ongoing projects like the testing of trains and systems.

So why are some of these stations running late in their delivery?

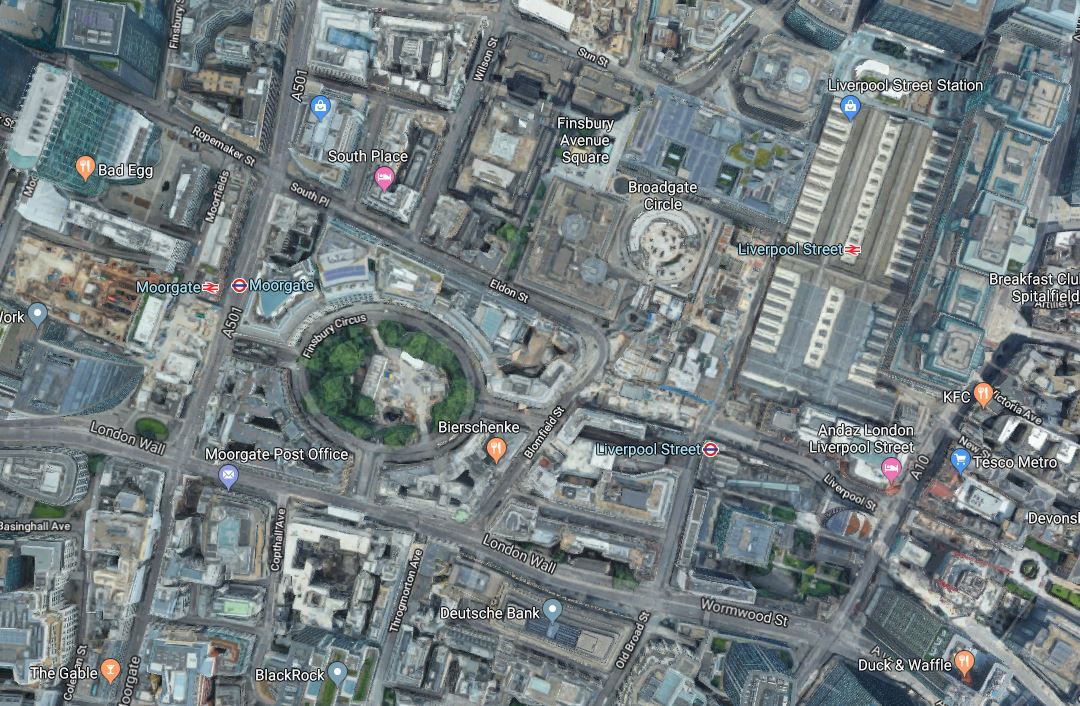

If you walk along the route of Crossrail in the City of London and through Clerkenwell and the West End, it is one massive building side as developers raise massive clusters of new developments around and above the Crossrail stations.

The picture shows Farrington station’s Eastern entrance, with a new development on top.

This one wasn’t a big one, but it went up in record time.

These buildings are often funded by Sovereign Wealth Funds, who want their buildings finished ASAP and as they have bottomless pockets, they are prepared to pay more to get the builders and tradesmen they need.

And where did they get the workers from? Other projects, including Crossrail.

This problem happened in Aberdeen at the height of the oil boom in the last century.

I also think that Brexit worsened the problem, as workers from mainland EU moved to large projects closer to home, like Stuttgart 21 and the new Berlin Brandenburg airport, that were both very much in trouble and could have been offering premium salaries as well!

The solution would have been to phase developments so that the limited pool of workers was not exhausted.

But that probably wouldn’t have suited the developers and politicians for all sorts of reasons.

  • An uncompleted building doesn’t bring in money and jobs.
  • Early completion must improve chances of letting the building.
  • Delaying the building would probably have meant fewer holidays for politicians in exotic locations.

Hopefully, a comprehensive enquiry into the lateness of Crossrail will provide answers.

High Speed Two

High Speed Two is to my mind a London local project. But only in a secondary way!

  • Rebuilding Euston station will improve Underground connections and interchange at Euston and Euston Square stations.
  • It is claimed by High Speed Two, that the rebuilt Euston station will create 16000 jobs and 2200 homes.
  • High Speed Two will enable massive development at Old Oak Common, with tens of thousands of homes and jobs.
  • Old Oak Common station will be a very important rail hub in North-West London.

With seventeen trains per hour (tph) between Euston and Old Oak Common will High Speed Two attract local traffic?

  • I suspect High Speed Two between Manchester Airport and Manchester Piccadilly and between Birmingham Interchange and Birmingham Curzon Street will also attract local traffic.
  • I’ve used TGVs between Nice and Antibes.
  • Tourists might visit, just like they did and still do at the Olympic Park.
  • Many Londoners will join High Speed Two at Old Oak Common.

Some wag will suggest putting it on the Tube Map. But is it such a stupid idea?

Where Does London Need More Rail Services?

Having lived in London on and off for over seventy years, I feel the worst areas for rail links are probably.

  • North West London
  • South East London
  • South Central London between Wimbledon and Croydon.
  • South West London

Note.

  1. Over the years, there is no doubt that East and North London have improved considerably, with the development of the East London, North London and Gospel Oak to Barking Lines.
  2. Thameslink has been improved in North London and now it is being supported with improvements to the Northern City Line. Both routes now have new Siemens trains, which give a whole new dimension to using ironing-boards as seats.
  3. Crossrail will produce major improvements in West, East and South East London.
  4. Building of a new Penge Interchange station, which I wrote about in Penge Interchange could improve routes to and from South East London.
  5. Hopefully the work in recent years at Waterloo will improve suburban services out of Waterloo. In An Analysis Of Waterloo Suburban Services Proposed To Move To Crossrail 2, I showed that four tph could be run to Chessington South, Epsom, Hampton Court and Shepperton stations.

It looks like North West and South Central London are missing out.

How Can Services Be Improved In North West London?

There are radial routes from the centre of London to the suburbs.

Starting from the North and going to the West, there are the following lines.

When I used to live at Cockfosters as a child,  to visit my many cousins in North West London, there was no alternative but to use a bus and take well over an hour each way.

There are now some circular rail routes in London but nothing in the North West of the capital.

The Dudding Hill Line And The West London Orbital Railway

But there is the little-used freight route called Dudding Hill Line.

  • It runs between Cricklewood on the Midland Main Line and Acton Central on the North London Line.
  • It is four miles of double-track railway.

This YouTube video shows a cab ride from Acton to Cricklewood.

Plans exist to turn it into the West London Orbital Railway, which will run two services.

  • West Hampstead and Hounslow via Cricklewood, Neasden, Harlesden, Old Oak Common Lane, Acton Central, South Acton, Lionel Road, Brentford, Syon Lane and Isleworth
  • Hendon and Kew Bridge via Brent Cross West, Neasden, Harlesden, Old Oak Common Lane, Acton Central, South Acton

Note.

  1. The proposed frequency of both services is four tph.
  2. There would be some stations to be built, but the track exists.
  3. There would be no new tunnels.
  4. The route is technically feasible.
  5. The route would connect West London to High Speed Two.
  6. There would be little disruption whilst it was built.
  7. The services could be run by dual-voltage battery-electric trains charged on the electrification at both ends of the route.
  8. The scheme represents a high value for money, with a benefit-cost ratio (BCR) of 2.2.

On the other hand, the scheme has two serious problems, as far as the current London Mayor is concerned.

  • Transport for London has no money, partly because of London’s Fare Freeze.
  • The project is not in South London.

This important and value-for-money project will not be built, whilst Sadiq Khan is still Mayor of London.

Harlesden Interchange

I believe that if we get the interchanges right on the West London Orbital Railway correct we can do things like.

  • Increase the benefit cost ratio.
  • Link the route to South London to make the Mayor a bit happier about the North London Scheme.

This Google Map shows Harlesden station.

Note.

  1. The Bakerloo Line/Watford DC Line running North-West/South-East through Harlesden station.
  2. The West Coast Main Line in the Southern section of the map.
  3. The Dudding Hill Line running North-South across the map.

Platforms will be built on the Dudding Hill Line to connect that would probably be new or extended platforms in the current Harlesden station to enable interchange between the West London Orbital and the Watford DC Lines.

I also think there is a possibility that platforms could be added to the slow tracks of the West Coast Main Line, so that suburban services into London Euston can also connect to the West London Orbital Line.

It would also enable a connection between Southern’s Clapham Junction and Milton Keynes service and the West London Orbital Railway.

Looking at this from various angles, I think that an architect good at designing three-dimensional structures could develop a quality Harlesden Interchange station.

Neasden Interchange

Like Harlesden, Neasden is another possibility for a comprehensive interchange.

This Google Map shows Neasden station.

Note.

  1. There are a lot of lines going through Neasden station.
  2. The Dudding Hill Line goes across the South-East corner of the map.
  3. There is plenty of space in the area.

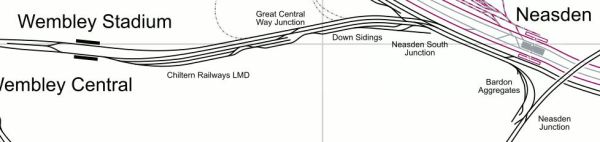

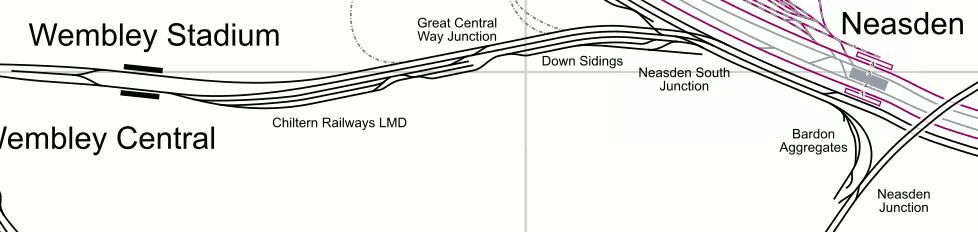

This map from cartometro.com shows the lines in the area.

Note.

  1. The Dudding Hill Line is indicated by the former Dudding Hill station.
  2. The red tracks are Metropolitan Line tracks.
  3. The silver tracks are Jubilee Line tracks.
  4. The Southerly pair of lines through Neasden and Dollis Hill stations are Chiltern’s lines into Marylebone.
  5. The Chiltern tracks divide to the West of Neasden station, with the Aylesbury line following the other tracks and the Chiltern Main Line diverging to the West.
  6. London’s largest Underground Depot at Neasden, lies to the North-West in an area of London noted for few merits with the North Circular Road passing through.

I wonder, if the station and the depot offers a unique opportunity to offer large scale additions to London’s housing stock over the top of a rebuilt station and depot.

This Google Map shows the wider area.

Note.

  1. Much of the depot appears to be open-air stabling for trains.
  2. The North Circular Road passes North-South between the depot and Neasden station.
  3. The Dudding Hill Line cuts across the South-East corner of the map.
  4. This corner of the map is labelled as Dudden Hill.
  5. According to Wikipedia, Dudding Hill is considered a more genteel spelling of Dudden Hill and could be as old as 1544.

It looks as if it would be relatively easy to develop over the top of the depot to create housing, industrial or commercial properties.

But why stop there and cover both the North Circular Road and the six tracks through Neasden station?

Neasden station could be rebuilt into a station with platforms on the following lines.

  • Metropolitan Line
  • Jubilee Line
  • Chiltern Lines
  • Dudding Hill Lines

Note.

  1. I estimate that Chiltern has a train about every six minutes, so some could stop.
  2. There might be space for a bay platform for Chiltern.

Neasden could be a major housing and transport hub.

  • There could be large amounts of parking.
  • Road access would be good.
  • It would have good rail connections.
  • It could have a bus interchange.
  • London needs housing.

It might even be an alternative to Chiltern’s plan for a West Hampstead Interchange.

The Mayor of London, Transport for London and the Borough of Brent need to be bold!

Improvements To Chiltern’s Routes

Chiltern Railways have some plans that could improve services in North West London.

Using The Acton-Northolt Line

Wikipedia says this about using the Acton-Northolt Line to access new platforms at Old Oak Common station.

Upgrading the Acton–Northolt line (formerly the “New North Main Line”) to new platforms at Old Oak Common. This upgrade will also extend to London Paddington to increase capacity on the Chiltern Main Line as there is no room to expand the station at Marylebone.

This scheme has merit.

  • The platforms would be connected to the Chiltern Main Line along the route of a partly-disused railway.
  • The route could be double-tracked.
  • There must be space for at least two new platforms.
  • The new platforms could easily handle four tph.
  • There may be a case for some new stations.

The scheme could add valuable extra capacity for Chiltern.

A Chiltern Metro

Wikipedia says this about a  proposed metro service between Marylebone and West Ruislip stations.

  • The Metro would have a frequency of four tph.
  • It would call at Wembley Stadium, Sudbury & Harrow Road, Sudbury Hill Harrow, Northolt Park and South Ruislip.
  • The service would require a reversing facility at West Ruislip.
  • There would need to be passing loops at Sudbury Hill Harrow, and  Wembley Stadium.

Given that the Chiltern Metro was first proposed over a decade ago, perhaps the concept could be increased in scope.

  • Housing and other developments along the route may suggest that a station further out like High Wycombe might be a better terminal.
  • ERTMS in-cab digital signalling is likely to be installed at some time, which would decrease headways between trains and allow more services.
  • Electrification is likely in some form before 2040 and this will improve train performance.
  • If Neasden station were to be rebuilt, as a comprehensive transport and residential development, I believe that this Metro service should also call at Neasden, as it would complement the West London Orbital Railway.

I believe that a review of the Chiltern Metro may mean, that an improved version is worth building.

Improvements To The Milton Keynes And Clapham Junction Service

I feel that this service could be key in improving services between North London and South London via the West London Line and High Speed Two’s station at Old Oak Common.

Currently, this service is as follows.

  • It runs between Milton Keynes and Clapham Junction stations.
  • It has a frequency of one tph.
  • It calls at Bletchley, Leighton Buzzard, Tring, Berkhamsted, Hemel Hempstead, Watford Junction, Harrow & Wealdstone, Wembley Central, Shepherd’s Bush, Kensington (Olympia), West Brompton and Imperial Wharf stations.
  • The service used to extend to South Croydon via Wandsworth Common, Balham, Streatham Common, Norbury, Thornton Heath, Selhurst and East Croydon.
  • It uses Class 377 trains.
  • It shares parts of the route with the London Overground.

I also think it has various issues and questions with respect to the future.

  • The Class 377 trains are only 100 mph units, whereas the outer suburban trains on the West Coast Main Line are 110 mph Class 350 trains, which will soon be replaced by 110 mph Class 730 trains. Do the slower trains cause timetabling problems?
  • Is one tph enough?
  • The route doesn’t serve High Speed Two at Old Oak Common station.
  • Is the service run by the right operator?
  • What is the ideal Southern terminal?

These are my thoughts on the various issues.

The Service As A North-South Link

A friend, who lives in South London has told me, that if you go to an event at Wembley stadium the route is busy.

On the other hand, I’ve used it at midday on a Tuesday and found the trains empty.

But developed properly it could connect the following.

  • Milton Keynes Central
  • Bletchley for the East West Rail Link
  • Watford for the West Coast Main Line to the North
  • Wembley Central for Wembley Stadium and other entertainments
  • Willesden Junction for the North London Line

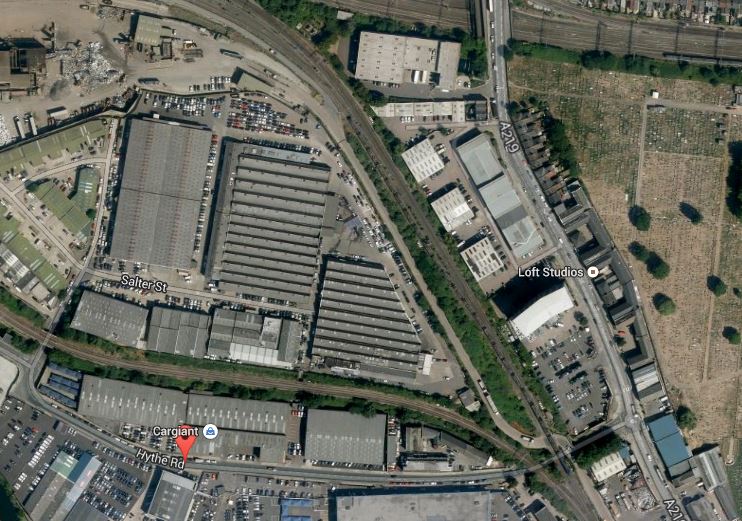

  • Hythe Road for High Speed Two, Crossrail and the Great Western Railway
  • Shepherd’s Bush for the shopping.
  • Clapham Junction for most of South London and the South of England

It would be a very useful cross-London route to complement Thameslink and the East London Line.

The Frequency

The current Milton Keynes and Clapham Junction has a frequency of one tph.

This may be enough for some parts of the route, as other services also provide services.

But many would argue, that perhaps South of Watford Junction, the service needs to be increased to connect the area to Old Oak Common and Clapham Junction.

I feel that High Speed Two, Crossrail and the Great Western Railway give so much connectivity, that between Clapham Junction and Willesden Junction needs a frequency of at least eight tph.

As the North London Line and the Watford DC Line are working at a frequency of four tph, this could indicate that a four tph direct service Watford Junction and Clapham Junction be ideal. Perhaps, it could continue North to Milton Keynes with a frequency of two tph.

The Trains

I am absolutely certain, that the full service needs to be operated by dual voltage trains, that are capable of running at 110 mph.

The Class 350/1 trains of West Midlands Trains would probably be ideal for the full service.

  • They are dual voltage trains.
  • They are 110 mph trains.
  • They have a long distance interior.

They are being replaced with new Class 730 trains, so would be available.

If some services were running only as far North as Watford Junction, these could be either Class 378 or Class 710 trains of the London Overground.

The Connection To The West London Line And High Speed Two

This map from Wikipedia by Cnbrb shows the latest iteration of the lines at Old Oak Common station.

Note.

  1. The green route is taken by the Milton Keynes and Clapham Junction trains.
  2. The bright blue is High Speed Two.
  3. The purple is Crossrail.
  4. The orange is the Overground
  5. Hythe Road station is proposed for the West London Line to connect to Old Oak Common station for High Speed Two.
  6. Hythe Road station will have a bay platform to turn trains from the South.
  7. Old Oak Common Lane station is proposed for the North London Line to connect to Old Oak Common station for High Speed Two.

But where is the connection between the Milton Keynes and Clapham Junction service and Old Oak Common station for High Speed Two?

  • Access from the South is not a problem as the Overground can be used to Hythe Road station.
  • Extra services from the South can be run to and from the bay platform at Hythe Road station.
  • Access from the East is not a problem as the Overground can be used to Hythe Road station.
  • How do passengers go between say Wembley Central and Heathrow?

In addition for access from the West is the Overground can be used to Old Oak Common Lane station.

But as things stand at the moment the Milton Keynes and Clapham Junction service bypasses Hythe Road station and the only ways to go from Milton Keynes to Old Oak Common station for either High Speed Two, Crossrail or the Great Western is to do one of the following.

  • Change to the Watford DC Line at Watford Junction, Harrow & Wealdstone or Wembley Central and then change to the Overground at Willesden Junction for either Old Oak Common Lane or Hythe Road station.
  • Continue South to Shepherd’s Bush station, cross over to the other platform and then come back to Hythe Road station.
  • Go via Euston station. OK for High Speed Two, but not for Crossrail or the Great Western.

They cannot be serious!

I hope that there is a cunning plan to enable the Milton Keynes and Clapham Junction service to connect.

Whilst on the subject of connections at Old Oak Common, where is the promised connection of Crossrail to the West Coast Main Line?

Were all these connections just kicked into the long grass and quietly forgotten, as they were deemed too difficult and/or expensive?

I think serious questions need to be asked about the design of Crossrail and High Speed Two at Old Oak Common.

Why weren’t Crossrail and High Speed Two designed to connect directly to the London Overground at Willesden Junction station perhaps by the use of a North South people mover serving the following lines?

  • Bakerloo, Watford DC, West Coast Main and West London Orbital Lines at a rebuilt Harlesden station.
  • London Overground at the high-level Willesden Junction station.
  • High Speed Two
  • Crossrail and the Great Western Railway
  • The new Chiltern platforms.
  • Central Line at East Acton station.

Note.

  1. Hythe Road and Old Oak Common stations would not be needed.
  2. The Milton Keynes and Clapham Junction service would call additionally at the rebuilt Harlesden station.

The current design of Old Oak Common stinks like a horse designed by a committee!

The Northern Terminal

I suggested earlier that some trains use Watford Junction and others use Milton Keynes Central.

Both stations have the capacity and the connectivity.

The Southern Terminal

In the last ten years, South Croydon, East Croydon and Clapham Junction have been used as the Southern terminal.

Thameslink seems to have chosen its various terminals to satisfaction of the travelling public, so perhaps the same method or personnel should be used.

The Operator

The Gibb Report said that this service should be transferred to the London Overground and I wrote about this proposal in Gibb Report – East Croydon – Milton Keynes Route Should Be Transferred To London Overground.

This is one suggestion, but I do wonder, if it should be transferred to West Midlands Trains and run in conjunction with their West Coast Main Line services.

  • The service needs 110 mph trains.
  • Timetabling and operation should be easier.
  • London Overground trains don’t have a long-distance interior.

On the other hand, trains running between Watford Junction and Clapham Junction would probably be better if they were London Overground trains.

Conclusion

I believe that by using the current network and some modern trains and signalling, the passenger services to the West of the capital can be substantially improved.









May 1, 2021 Posted by | Transport | , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , | 12 Comments

London Will Still Need Crossrail 2 To Deal With HS2 Influx, London Mayor Predicts

The title of this post, is the same as that of this article on Building.

This is the first paragraph.

Sadiq Khan says he expects mothballed scheme will eventually get built.

I don’t disagree that it will eventually get built, but it will be long after both Sadiq Khan and myself have gone.

You might think, that as I live in Dalston, I would be very much in favour of Crossrail 2 being built as soon as possible.

But then, I’m a duck-and-diver and there will always be a quick route to get to Euston.

I currently use four routes regularly and coming home, if it’s late or I want to get home quickly to cook supper say, I can take a taxi for a reasonable price.

The easiest way is actually to walk about two hundred metres and get a 73 bus to directly outside Euston station.

I very much feel we need to improve access in London to High Speed Two and that this can be done by making sure several smaller projects are completed before High Speed Two opens.

Improved Underground Connections At Euston Station

This page on the High Speed Two web site, says this about the station layout and Underground connections at the rebuilt station.

HS2 will deliver eleven new 400m long platforms, a new concourse and improved connections to Euston and Euston Square Underground stations. Our design teams are also looking at the opportunity to create a new northerly entrance facing Camden Town as well as new east-west links across the whole station site.

I would suspect that connection to the Underground will have step-free options.

I wrote about Underground connections at Euston station in Ian Publishes Details Of Future Developments At Euston And Euston Square Underground Stations.

The developments certainly look comprehensive and include a new entrance in Gordon Street on the South side of Euston Road.

Note.

  1. The view is looking North.
  2. A tunnel from this entrance will lead to the Eastern ends of the platforms at Euston Square station, where it appears there will be at least escalator access.
  3. The tunnel will also lead into Euston station.
  4. It is a simple improvement, that shouldn’t be too challenging.

This diagram shows the layout of the tunnel.

It looks to me to be a neat design, that could be installed between Gordon Street and Euston Square stations without disturbing the traffic on the busy Euston Road.

Once the subway and the Gordon Street entrance were built, there would have these benefits.

  • There would be a step-free route between Euston and Euston Square stations.
  • It would be a shorter walk  in an air-conditioned tunnel, rather than currently along the very polluted Euston Road.
  • It would be the fastest way to transfer between Euston and Kings Cross or St. Pancras stations.
  • It would give excellent access to the other London terminal stations of Liverpool Street, Moorgate and Paddington.
  • It would give step-free access to Crossrail at Farrington, Liverpool Street, Moorgate, Paddington and Whitechapel
  • With a change at Farringdon or Liverpool Street to Crossrail, it would offer the fastest route to Canary Wharf.
  • The Gordon Street entrance would improve walking routes between Euston station and University College London and other buildings on the South side of Euston Road.

I also suspect that as this project is part of the rebuilding of Euston station for High Speed Two, that it will be completed before Euston station opens for High Speed Two.

If possible, it should be built much sooner to improve access between Euston station and the sub-surface lines.

Once open, even without other improvements at Euston station, this subway would improve access to Euston station by a very substantial amount.

Camden Town Station Upgrade

In 2015, I went to see an exhibition about the proposed expansion of Camden Town station and wrote The Camden Town Station Upgrade Exhibition.

I believe this upgrade should be delivered before High Speed Two opens around the end of this decade.

But due to the financial problems of Transport for London, this project has now been kicked into the long grass.

The Wikipedia entry for Camden Town station, states that upgrading the station will take four years.

Northern Line Split

The completion of the Camden Town Station Upgrade will enable the splitting of the Northern Line into two separate lines, after the completion of the Northern Line Extension to Battersea and the Bank Station Upgrade.

  • Northern Line West – Edgware to Battersea Power Station via Camden Town, Euston, Charing Cross and Waterloo.
  • Northern Line East – High Barnet to Morden via Camden Town, Euston, Kings Cross, Moorgate, Bank and London Bridge.

Each branch will be running at least 24 trains per hour (tph) and will significantly increase capacity between High Speed Two and other terminal stations and the City of London.

The Northern Line should be split into two lines by the time High Speed Two opens, but with no start date in sight for the Camden Town Station Upgrade, this might not be possible.

Victoria Line Improvements

The Victoria Line or Dear Old Vicky probably won’t be able to help much, but I do think it would be feasible to improve the three most inadequate stations on the line.

I doubt the money can be found to carry out these improvement projects, that are essential, but very much smaller than the Camden Town Station Upgrade.

Sub-Surface Lines Improvements

The big project on the Circle, District, Hammersmith & City and Metropolitan Lines is the Four Lines Modernisation (4LM) project.

  • It is an upgrade of the trains, track, electrical supply, and signalling systems.
  • This will add 27 % more capacity in the Peak.
  • As anybody will know, who has been to a major event at Wembley Stadium, the new S8 Stock trains, that have been running for a few years now, have an almost infinite capacity.
  • Incidentally, the S8 Stock trains hold 1350 passengers, which is not far short of the 1500 that each Crossrail Class 345 train can hold.
  • Euston Square station will have a step-free connection from the rebuilt Euston station complex.

Most of the Modernisation will be completed by 2023.

I believe that the sub-surface lines will become the main method to get to and from the upgraded Euston station, until Crossrail 2 is built.

  • There will be direct trains to around seventy stations from Euston Square station.
  • With a change at Paddington to Crossrail, there is a route to Heathrow Airport and Reading.
  • With a change at Farringdon or Liverpool Street to Crossrail, there is a route to East London, Canary Wharf and South East London.
  • With a change at Farringdon to Thameslink, there are routes to over a hundred stations.
  • With a change at Whitechapel to the East London Line, there are routes to North, East and South London.

When you consider that the Metropolitan Line opened in 1863 and was the first passenger-carrying underground railway in the world, hasn’t it done well?

When the Euston Square station upgrade is complete, I will probably use that route to get home from Euston, changing on to a bus at Moorgate, which stops close to my house.

Old Oak Common Station

High Speed Two’s Old Oak Common station is introduced like this on this page on the High Speed Two web site.

Old Oak Common is a new super hub set to be the best connected rail station in the UK.

This map from Transport for London shows the various lines at the station.

Note.

  1. The bright blue line is High Speed Two.
  2. The purple line is the Great Western Main Line and Crossrail.
  3. I suspect that the interchange between these three lines will be a good one.
  4. Will all Great Western services stop at Old Oak Common station?
  5. The orange lines are London Overground services, with two new stations; Old Oak Common Lane and Hythe Road close to the main Old Oak Common station.
  6. The green line is the Southern service between Milton Keynes and South Croydon.
  7. The red line is the Central Line and it could be joined to the main station.
  8. There are plans for a West London Orbital Railway, from Brent Cross and West Hampstead in the North to Hounslow and Kew Bridge in the West, that would call at the main Old Oak Common station.

Old Oak Common station could be well connected to most of London, through its Crossrail. London Overground and West London Orbital connections.

It is my view that these three smaller projects must be completed before the opening of High Speed Two.

  • Hythe Road station
  • Old Oak Common Lane station
  • West London Orbital Railway.

None of these three projects would be very challenging.

Chiltern Railways And High Speed Two

Chiltern Railways already have a London Marylebone and Birmingham Moor Street service

Birmingham Moor Street station will be close to High Speed Two’s Birmingham Curzon Street station.

Plans exist for a second London terminus for Chiltern Railways close to the main Old Oak Common station.

  • Could Chiltern Railways become a partner for High Speed Two on routes like between Leeds and Banbury?
  • They could certainly bring passengers to Old Oak Common from Buckinghamshire, Oxfordshire and Warwickshire.
  • One of my principles on High Speed Two, is that it should be a One-Nation railway.

Old Oak Common would be a very different station to Marylebone with its very useful Crossrail. London Overground and West London Orbital connections.

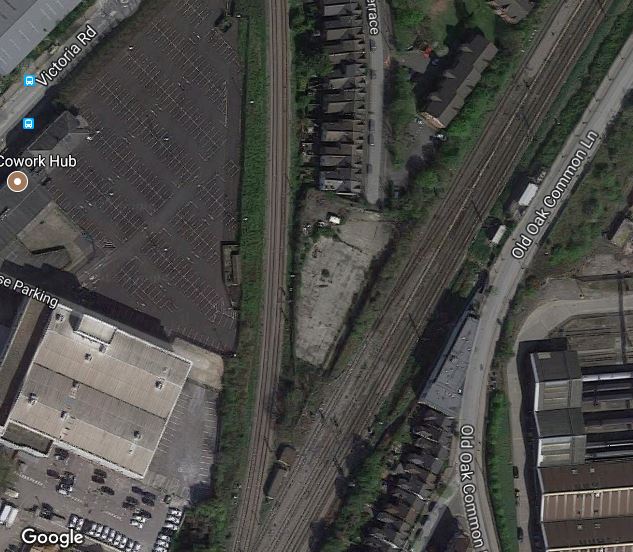

The terminal for Chiltern Railways at Old Oak Common is another project that should be completed before the opening of High Speed Two.

The Duality Of Euston and Old Oak Common Stations

Euston and Old Oak Common stations could almost be considered to be one station.

  • All High Speed Two trains terminating or starting at Euston also call at Old Oak Common station.
  • They will be just five minutes apart.
  • Both stations have comprehensive networks of connections.
  • Taken together the connections from both stations cover most of London and the South East.

There could be advantages for both operators and passengers.

  • Would a ticket to and from London Terminals be usable at both stations?
  • For some London destinations, passengers might prefer to use one terminal or the other.
  • By changing at Old Oak Common to Crossrail will probably be the fastest way to Heathrow, the West End, the City, Canary Wharf and other places.
  • Passengers could make the decision about the London terminal to use en route.
  • Operators sometimes put the cleaning crew on the train at the last station before the terminal to save time in the turnround. The closeness of the two stations would enable this.

I think the London end of High Speed Two has been designed to make it easy for the operator and passengers.

The Losers If Crossrail 2 Isn’t Built

Crossrail 2 will provide better access to High Speed Two and the London terminals of Euston, Kings Cross, St. Pancras and Victoria for parts of London and the South East.

Victoria Line Passengers

The Victoria Line will have interchanges with Crossrail 2 at the following stations.

  • Tottenham Hale
  • Euston and Kings Cross St. Pancras on the Victoria Line and Euston St. Pancras on Crossrail 2
  • Victoria

Note.

  1. Crossrail 2 will relieve capacity on the Victoria Line between Tottenham Hale and Victoria
  2. There will be a very comprehensive interchange at Euston St. Pancras to serve High Speed Two, Eurostar and classic lines out of Euston, Kings Cross and St. Pancras.

From what has been disclosed about the connrection between Euston and Euston Square stations transfer between Euston and Kings Cross and St. Pancras will be a lot easier than it is now.

This reworking of the poor connection to Euston Square station might take some pressure off the Victoria Line.

It might also might be possible to squeeze more trains down Dear Old Vicky.

Passengers On The Suburban Lines Into Waterloo

The suburban lines into Waterloo will go into tunnel at Wimbledon and connect directly to Victoria, Euston, St. Pancras and Kings Cross.

This will be superb access for South West London to four major London terminals.

Without Crossrail 2, passengers  will have to use one of these routes to get to and from Euston.

  • Change at Waterloo to the Northern Line.
  • Change at Waterloo to the Bakerloo Line and then at Oxford Circus to the Victoria Line.
  • Change at Vauxhall to the Victoria Line.

Could it be, that the Northern Line Extension should be extended to Clapham Junction station, as it is an aspiration over a safeguarded route under Battersea Park?

In An Analysis Of Waterloo Suburban Services Proposed To Move To Crossrail 2, I showed it was possible to run a Crossrail 2 schedule of four tph into Waterloo station, if the following were done.

  • More platform capacity in Waterloo.
  • Modern high-performance 100 mph trains like Class 707 trains or Aventras.
  • Some improvements to track and signals between Waterloo and Wimbledon stations.
  • Wimbledon station would only need minor modifications.
  • A measure of ATC between Waterloo and Wimbledon stations.

This would not be a large project

Passengers In Balham And/Or Tooting

Crossrail 2 is planned to run between Wimbledon and Victoria via the following stations.

Note.

  1. Crossrail 2 should take pressure off the Northern Line.
  2. Public Opinion is against King’s Road Chelsea station. How will their cleaners, cooks and nannies get to work? Especially, as the roads in the area are already jammed by Chelsea tractors.
  3. The original route favoured Balham to give an interchange with National Rail. Tooting Broadway also has geological problems for the tunneling.
  4. On the other hand, Sadiq Khan supports the route through Tooting Broadway, which better serves his former constituency.

This Map from cartometro.com shows the rail lines in the area.

Note.

  1. Balham station in the North is an interchange station between the Northern Line and National Rail, with a possible four National Rail platforms.
  2. Tooting Broadway is a simple through station on the Northern Line.
  3. The next station after Wandsworth Common towards London is Clapham Junction.
  4. Transport for London have been advocating a new Streatham Common station, that would be an interchange between the lines through Streatham Common and those through Streatham.
  5. Streatham and Tooting stations are on the Wimbledon Loop Line, which only carries two tph in both directions.

Since I have been writing this blog, there have been several ideas to make better use of the National Rail lines in this area.

There was even a plan that I wrote about in 2016 called The Streatham Virtual Tube.

  • Trains would run through Streatham Common, Streatham, Streatham, Hill, Balham, Wandsworth Common, Clapham Junction and into Victoria.
  • Trains could also go North from Clapham Junction to Old Oak Common for High Speed Two.
  • The Streatham Common Interchange would be built. This would give a useful interchange to the Wimbledon Loop Line.
  • There would be four tracks through Streatham.
  • A tunnel would be build to allow trains to go through both Streatham and Streatham Hill stations.
  • It would have an interchange at Balham with the Northern Line.
  • It could have an interchange at Clapham Junction with an extended Battersea Branch of the Northern Line.
  • Suppose it had a frequency of perhaps six or even ten tph.

I think it might work, but it shows what can be done, with a bit of out-of-the-box thinking.

Passengers In Dalston And Hackney

One of the entrances to the proposed massive double-ended Crossrail 2 station at Dalston will be at the end of my road and very close to where my mother used to work and where her mother was actually born.

East London had not had major rail improvements since the 1950s and 1960s, when most of the lines into Liverpool Street were electrified and the Southbury Loop was reopened.

But since the creation of the Overground in 2007 from the remains of the ill-performing Silverlink, with the addition of new trains and ticketing and a good clean, there has been a series of smaller projects that have been completed, in and around East and North London.

Note.

  1. There have also numerous smaller upgrades like the addition of lifts to several stations.
  2. Stations between Stratford and Shenfield have been upgraded for Crossrail.
  3. There has also been considerable upgrades to the electrification, which in some places was not in the best of condition.
  4. Most lines have a frequency of four tph or more.

Some may feel that East London has done well with rail improvements in the last few years.

I would agree in some ways, but would counter by saying that before the Overground was created, East London’s were in a terrible state and their state today is a excellent example of what can be achieved by good design, planning and execution, without spending vast sums.

East London and the boroughs of Enfield, Hackney, Haringey, Newham and Waltham Forest in particular, now have a good rail network, that is going to get a lot better with the addition of Crossrail.

  • The North London Line is about half a mile to the North of where I live and can walk to two stations or get a bus to another three.
  • Crossrail will be a couple of miles to the South with station entrances at Moorgate, Liverpool Street, Whitechapel and Stratford.
  • There are four electrified railway lines with new trains, which run North-South with connections to the two East-West lines.
  • Although my quickest way to Crossrail will be a bus from close to my house to outside Moorgate station.
  • I suspect that everybody in the Borough of Hackney and the Eastern part of Islington will be able to get to a Crossrail station in well under thirty minutes.
  • In addition, from where I live the Gospel Oak to Barking Line runs a couple of miles North of the North London Line.

I believe that Dalston’s success over the last decade has been a collateral benefit of its comprehensive rail system, supported by lots of shiny new buses.

Does Dalston want Crossrail 2? Probably, Yes!

Does Dalston need Crossrail 2? Possibly, No!

Do other areas of large cities need Dalstonisation of their railway and bus systems? Absolutely!

I certainly don’t regret moving to Dalston!

Note that one of the reasons I’m so keen on the West London Orbital Railway is that it could do the same for North West London, as the Overground and the Lea Valley Lines have done for North East London.

Passengers Along The Lea Valley

Crossrail 2 will connect the Lea Valley Lines to Dalston and on to Central London.

It will involve the following changes to the West Anglia Main Line.

  • Four-tracking of the route at least as far as Broxbourne.
  • A junction South of Tottenham Hale station will connect the route to a tunnel to Dalston.
  • Level crossings at Brimsdown, Enfield Lock and Cheshunt will be removed.
  • Like Crossrail, stations would be substantially step-free.
  • The signalling will be upgraded to full in-cab digital ERTMS signalling, that is used by Crossrail and Thameslink under London.

This would enable 10-15 tph running between Tottenham Hale and Broxbourne stations.

With all the development going on around Cambridge and possible expansion of Stansted Airport, I believe that even if Crossrail 2 is not build, then there will be pressure to four-track the West Anglia Main Line, remove the level crossings and improve the stations and signalling.

If this were to be done, then there is an interim plan that could be implemented that I wrote about, four years ago in Could A Lea Valley Metro Be Created?

I envisaged the following.

  • Updating the West Anglia Main Line to four-tracks and a standard suitable for Crossrail 2.
  • Using the double-track loop at Stratford  as the Southern terminal, for some of the trains.
  • Updating the Victoria Line stations. The major interchange at Tottenham Hale station has already been improved substantially.
  • Providing an appropriate service between Stratford and Broxbourne stations.
  • Terminating some Stansted and Cambridge services in the Stratford Loop, as Stratford has better connections to South London and Kent than Liverpool Street.
  • Integrating Lea Valley Metro, London Overground and Greater Anglia services to Bishops Stortford, Cambridge and Hertford North stations.

Note.

  1. All services connect to Crossrail and the Central Line at the Southern end.
  2. Services to Liverpool Street connect to National Rail services, the Lea Valley Lines of the London Overground and the Circle, District and Metropolitan Lines.
  3. Services to Stratford connect to National Rail services, the North London Line of the London Overground and the Jubilee Line.
  4. Could alternate trains serve Liverpool Street and Stratford?
  5. Could splitting services between Liverpool Street and Stratford mean that the largest proportion of routes have just a single change?

As Transport for London and the train operating companies know where passengers want to go and actually go, I’m sure that a service pattern, that is acceptable to all could be created.

Conclusion

Crossrail 2 is quoted as being a £33 billion project.

I believe that with a good review lots of money could be saved and other smaller projects could be planned and executed to handle the expected increase in the number of passengers.

I would do the following.

  • Camden Town station – Upgrade
  • Chiltern Railways – Build their connection to Old Oak Common station
  • Euston Station – Improve connections to Euston and Euston Square Underground stations.
  • Northern Line – Extend the Battersea branch to Clapham Junction
  • Northern Line – Split Into Two Lines
  • Overground – Build Old Oak Common Lane and Hythe Road stations
  • Southern – Build the new Streatham Common station and implement The Streatham Virtual Tube.
  • South Western Railway – Run four tph on all proposed Crossrail 2 routes into Waterloo station
  • Victoria Line – Upgrade Highbury & Islington, Oxford Circus and Walthamstow Central stations and increase the frequency if possible
  • West Anglia Main Line – Upgrade ready for Crossrail 2 and develop the Lea Valley Metro

All of these projects would have their own benefits, whether Crossrail 2 is built or not!

Only when the needs of all passengers have been assessed in a few years, should we make a decision about Crossrail 2.













March 27, 2021 Posted by | Transport | , , , , , , , , , , , , , , , , , , , , , , , | 7 Comments

Extra Intermediate Stations On Crossrail

Various groups and councils regularly ask if there could be an extra station on Crossrail, that would be convenient for their needs.

Can Extra Stations Be Accommodated In The Timetable?

There is not much point in building an extra station, if it means that a realistic timetable can’t be achieved.

Every station stop will introduce a delay intro the timetable. The train may only be stationary for thirty seconds or so, but there is extra time in the braking and acceleration either side of the stop.

But the Class 345 trains have been designed so that the times to execute a station stop are minimised.

Rapid Acceleration And Deceleration

The trains have been designed with eight motored cars out of a total of nine.

  • This high-proportion of powered axles gives the trains acceleration and deceleration, which is fast, but well within the levels for passenger safety and comfort.
  • The trains also have regenerative braking, which is powerful and smooth.
  • At times on the current service between Liverpool Street and Shenfield, I have noticed the trains waiting at stations for a couple of minutes, to allow the timetable to catch up.

These trains have the performance to execute a station stop in the smallest time possible.

Wide Doors And Spacious Lobbies

The trains have been designed with wide double doors and spacious lobbies.

This enables fast unloading and loading of passengers at each station.

Level Access Between Train And Platform

Trains and platforms could be arranged, so that all passengers can embark and disembark as fast as possible.

Precision Driving And Automatic Train Control

As much of the route uses modern digital signalling and the trains have a comprehensive driver assistance system, the trains should be driven to a high degree of precision.

Conclusion

All of these factors will make it possible to execute station stops very quickly.

Thus, if it is desired to add a new station stop, the stop might only add a few minutes to the timetable.

You wouldn’t want to add half a dozen stops between Stratford and Shenfield, but the odd stop here and there shouldn’t be a problem!

Could Extra Stations Be Added In The Tunnels?

I would hope that Crossrail’s design process wouldn’t have left out an important station in the Underground sections of the line.

In my lifetime only one station has been added to a line after it opened, except on an extension. That station was Pimlico on the Victoria Line, but that was a late addition to the project and opened within fourteen months of the opening of the rest of the line.

I think, that I can safely say that from the history of London’s extensive network of underground railways, that it would be extremely unlikely to add a new underground station to Crossrail.

But I think though the following could happen.

New Entrances To Existing Stations

Even these will be extremely unlikely, if Crossrail have done their planning thoroughly.

But then there are massive property developments, sprouting up all over Central London.

One of London’s latest signature office developments, the Norman Foster-designed Bloomberg London will incorporate an entrance to Bank Underground station.

Hopefully, the entrance will open soon.

Bank station’s new step-free entrance will also incorporate a massive office development on the top.

If a property developer is spending around a billion pounds on a development, and it can be connected to a station, they will seriously look at doing it.

I can’t believe that no new developments will want to have an entrance to a Crossrail station.

The New Museum Of London

The current site of the Museum of London is too small and difficult to find. The Museum is planning to move to Smithfield and will be very close to Farringdon station.

There is a massive over-site development on top of the station, that I wrote about in TfL Gives Go Ahead To Build Above Farringdon Station.

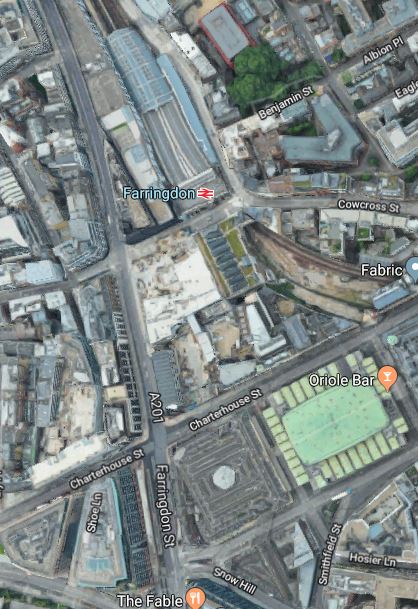

This Google Map shows the relationship between the station and the new site of the museum.

Note.

  1. The  building with the light-green roof is the Poultry Market.
  2. Thameslink runs under the Poultry Market.

The basement of this Poultry Market together with the site to its West and the triangular site to the South, will be transformed into the new Museum of London.

Much of the space between the Poultry Market and Farringdon station is a Crossrail work-site and whole area is ripe for development, which must surely incorporate some form of connection between the Museum and Farringdon station.

Farringdon, which for many years was just a meat market surrounded by a lot of low grade buildings, should evolve into a visitor attraction in its own right.

For a better look at the current state of the area, visit A Detailed Look At The Space Between Farringdon Station And The New Museum Of London Site.

As a Friend of the Museum of London, I am looking forward to what will happen!

The Liverpool Street-Moorgate Mega -Station

I don’t think many, who use Liverpool Street and Moorgate stations understand what will happen when Crossrail opens.

This visualisation shows the below-ground elements of the Crossrail station, that will connect the two current stations.

Note.

  1. On the right is the Central Line, which is shown in red and continues South to Bank station under Bishopsgate.
  2. On the left is the Northern Line, which is shown in black and continues South to Bank station.
  3. The Circle, Hammersmith and City and Metropolitan Lines, which are shown in yellow.
  4. Crossrail is in blue.
  5. The ventilation and evacuation shaft for Crossrail in Finsbury Circus.

This Google Map shows the area of the stations.

Note Finsbury Circus in the middle.

I would not be surprised if some redevelopment has access into this mega-station complex, that stretches either side of Finsbury Circus.

This access needn’t be below ground, as I strongly believe that the City of London will become virtually traffic-free in the next ten years.

Missing Interchanges

One of the omissions in the design of Crossrail, is the lack of a link to both the Piccadilly and Victoria Lines.

Consider.

By 2024, these two lines will be running at least thirty-six trains per hour (tph) in both directions.

The capacity of Crossrail in each direction could be thirty tph each carrying 1500 passengers or 45,000.

Dear Old Vicky’s current trains hold 876 passengers, so if she achieves the magic forty tph, which I believe she will, then this equates to just over 35,000.

Siemens will surely ensure, that the capacity of the Piccadilly Line will at least be as high, as that of the Victoria Line.

It is just amazing to think what might be squeezed out of twentieth-century infrastructure, some of which is over a hundred years old.

Oxford Circus Station And The Hanover Square Entrance To Bond Street Crossrail Station

This is the easy interchange between Crossrail and the Victoria Line.

  • Oxford Circus station is full-to-bursting and will be rebuilt in the next few years, with wider platforms, more escalators and full step-free access.
  • I also think, that provision of an easy walking route to the Hanover Square entrance of Bond Street station will be provided, either by pedestrianising much of the area or perhaps building a pedestrian tunnel with travelators.
  • It is probably less than two hundred metres to walk on the surface.

Coupled with some property development along the route, there must be possibilities for an innovative scheme, that would ease passengers on routes between Paddington and Heathrow and North and East London.

I took these pictures, as I walked between Oxford Circus Tube station and Hanover Square.

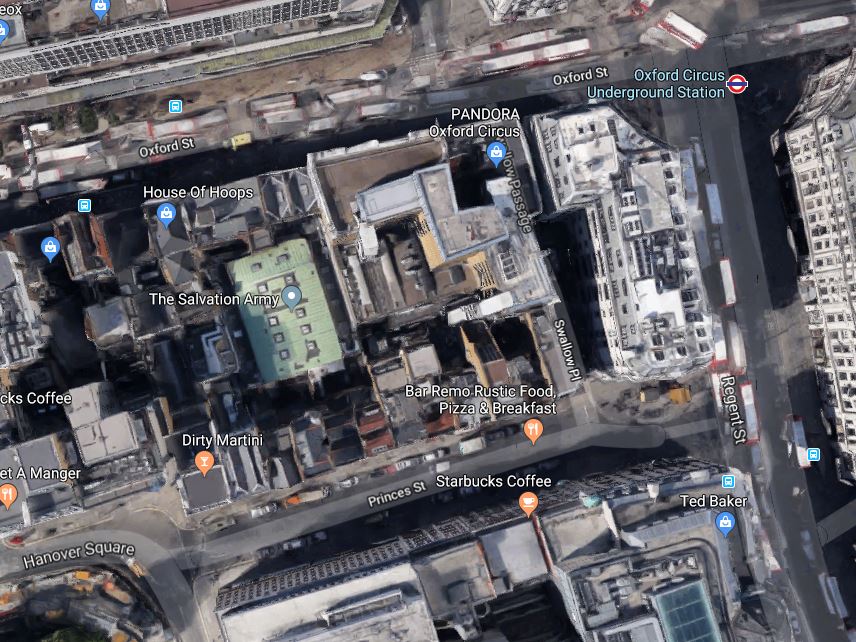

This Google Map shows the route from Oxford Circus station to Hanover Square.

In the simplest scheme, part-pedestrianisation of Hanover Square and Princes Street  might just do it!

  • A new entrance to Oxford Circus station could also be constructed in the middle of a large pedestrian area, at the shut off junction of Princes Street and Regent Street.
  • A short tunnel would connect the new entrance, to the rebuilt.Oxford Circus station.
  • Walking wouldn’t be long, with the possibility of a wait in the gardens in the centre of Hanover Square.
  • Appropriate retail outlets could be placed along Princes Street.
  • Crossings with lights would enable pedestrians to cross into and out of the gardens.

Was this always Transport for London’s plan to link Crossrail to the Victoria Line?

It’s certainly feasible and works with little or no construction.

The Importance Of Finsbury Park Station

Finsbury Park station has two direct routes to Crossrail; Thameslink to Farringdon and the Northern City Line to Moorgate and could have a third if the Victoria Line has a better connection at Oxford Circus/Bond Street.

Passengers needing to use Crossrail from the Northern reaches of the Piccadilly Line could walk across the platform to the Victoria Line and then use the Oxford Circus/Bond Street connection.

It is not a perfect route, but if Finsbury Park were to be upgraded to a passenger-friendly interchange, it would be a lot better.

So it looks like, it will be Vicky to the rescue again.

Never in the field of urban transport was so much owed by so many to a single railway built on the cheap.

Interchange Between Crossrail And The Piccadilly Line At Holborn Station

Consider.

  • Holborn station is due to be rebuilt with a second entrance in the next few years.
  • Crossrail passes under Holborn station.
  • After rebuilding, Holborn station will probably offer the best interchange to an East-West route from the Piccadilly Line.
  • To add extra platforms on Crossrail, would probably mean long closures on the line.

It is one of those projects, that can be done, but not without immense disruption.

But at some point in the future, it is a link that could be added, so I wouldn’t be surprised to see the expanded Holborn station will have provision for a link to Crossrail.

New Surface Stations On Crossrail

Usually, when you look at old maps of railway lines there are a number of places, where stations used to be.

However, between Reading and Shenfield stations, there is no station that has been closed. There is a site for Crowlands station that was planned near Romford, in the early twentieth century, but was never built. No-one is suggesting it should be opened now.

So where are stations planned or proposed?

Old Oak Common Station

In fifteen years or so, Old Oak Common station could be one of the most important non-terminal on Crossrail.

Current plans say that the following lines will call at the station.

  • Crossrail
  • Great Western Railway
  • High Speed Two

In addition the following lines may call.

  • London Overground
  • West London Orbital Railway
  • Chiltern Main Line

It could become a very comprehensive interchange station.

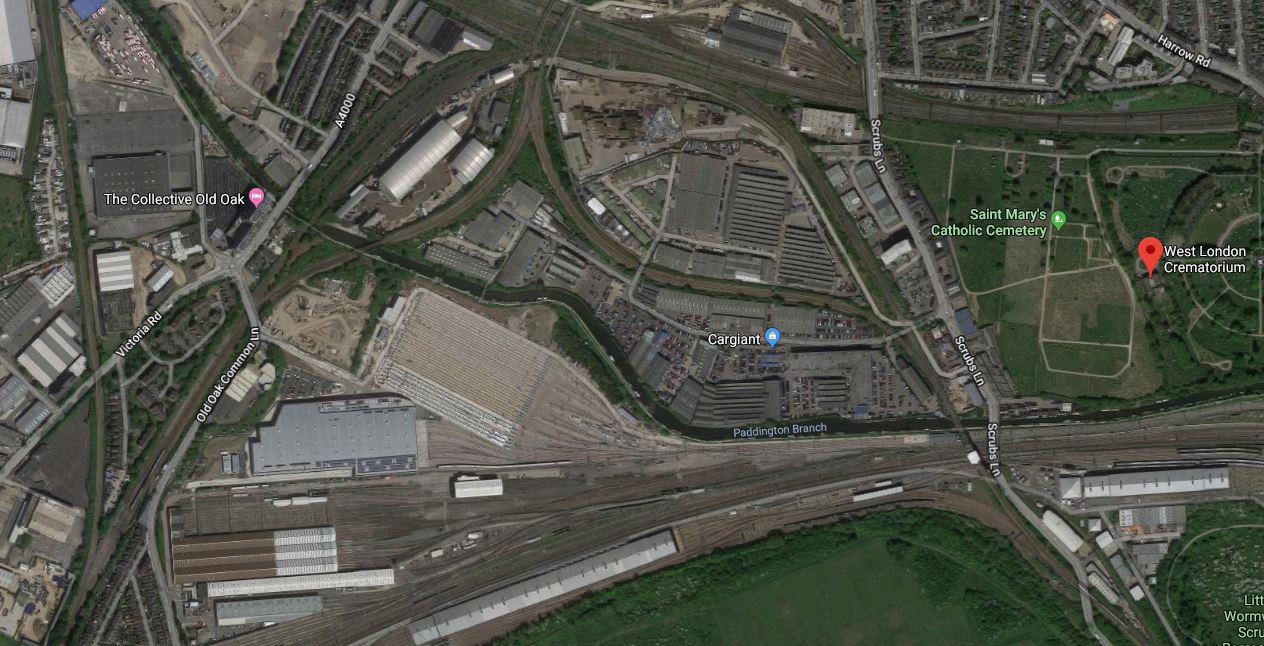

This Google Map shows the vast Old Oak Common site.

Note.

  1. The Grand Union bisecting the site in an East-West direction.
  2. The inverted-Y of the Overground, with North London Line to Richond going South-West and the West London Line to Shepherds Bush going South-East.
  3. The Great Western Main Line going East-West across the bottom of the map.
  4. The West Coast Main Line  going East-West across the top of the map.
  5. The Dudding Hill Line going North-South at the Western side of the map.

Between the Grand Union Canal and the Great Western Main Line, there are currently four rail depots. From South to North, they are.

  • Hitachi’s North Pole depot, where they service the Class 800 trains for Great Western Railway.
  • The Heathrow Express depot.
  • The Great Western Railway depot.
  • Crossrail’s main depot.

The Heathrow Express depot is due to be demolished to make way for the new Old Oak Common station.

Wikipedia says this about the station.

The High Speed 2 line will be below ground level at the Old Oak Common site, with the parallel Great Western Main Line and Crossrail tracks on the surface to the south.

This map from Wikipedia, shows how the lines connect.

A few points.

  • Considering that the High Speed Two tracks are below the surface and the Crossrail and Great Western tracks will be on the surface, I am fairly sure that a simple clean interchange will be created.
  • The different levels will also mean that if say there were to be a Crossrail branch to Watford or High Wycombe, then the High Speed Two tracks are well out of the way.
  • The High Speed Two platforms will be almost four hundred metres long, with the Crossrail and Great Western platforms probably about half as long. This should give lots of scope to create good connections to the other lines through the station.
  • The new Old Oak Common Lane station will be on the North London Line between Stratford and Richmond stations, will be the way I access High Speed Two from Dalston and it will be 350 metres West of the main station.
  • The West London Orbital Railway could have a station on the Dudding Hill Line, which runs to the West of, but close to Old Oak Common Lane station.
  • The new Hythe Road station will be on the West London Line between Stratford and Clapham Junction stations and will be 1100 metres from the main station.
  • Hythe Road station will incorporate a turnback platform for services from Clapham Junction. It would be ideal for a service between Gatwick Airport and High Speed Two.
  • It should not be forgotten that there is going to be a large number of houses built around Old Oak Common.

It looks to me that if I took the wrong train from Dalston Kingsland station to get a High Speed Two train to Birmingham or the North, I might end up at the wrong end of my double-length High Speed Two train, with a walk of up to 1100+400+350 = 1850 metres to get to the required place on my train.

I would hope that the High Speed Two station would have some form of high-tech people mover, that stretched across the station site. It could be like a cable car without the cable.

Hopefully, the designers of Old Oak Common station will create what needs to be one of the best stations in the world.

London City Airport Station

Wikipedia says this about adding a station for London City Airport.

Although the Crossrail route passes very close to London City Airport, there will not be a station serving the airport directly. London City Airport has proposed the re-opening of Silvertown railway station, in order to create an interchange between the rail line and the airport. The self-funded £50m station plan is supported ‘in principle’ by the London Borough of Newham. Provisions for re-opening of the station were made in 2012 by Crossrail. However, it is alleged by the airport that Transport for London is hostile to the idea of a station on the site, a claim disputed by TfL.

In 2018, the airport’s chief development officer described the lack of a Crossrail station as a “missed opportunity”, but did not rule out a future station for the airport. The CEO stated in an interview that a station is not essential to the airport’s success

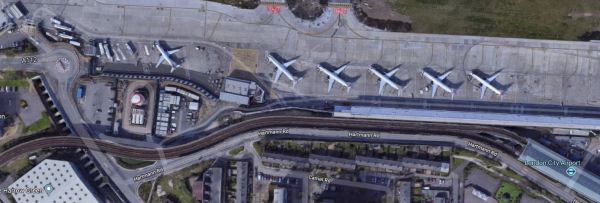

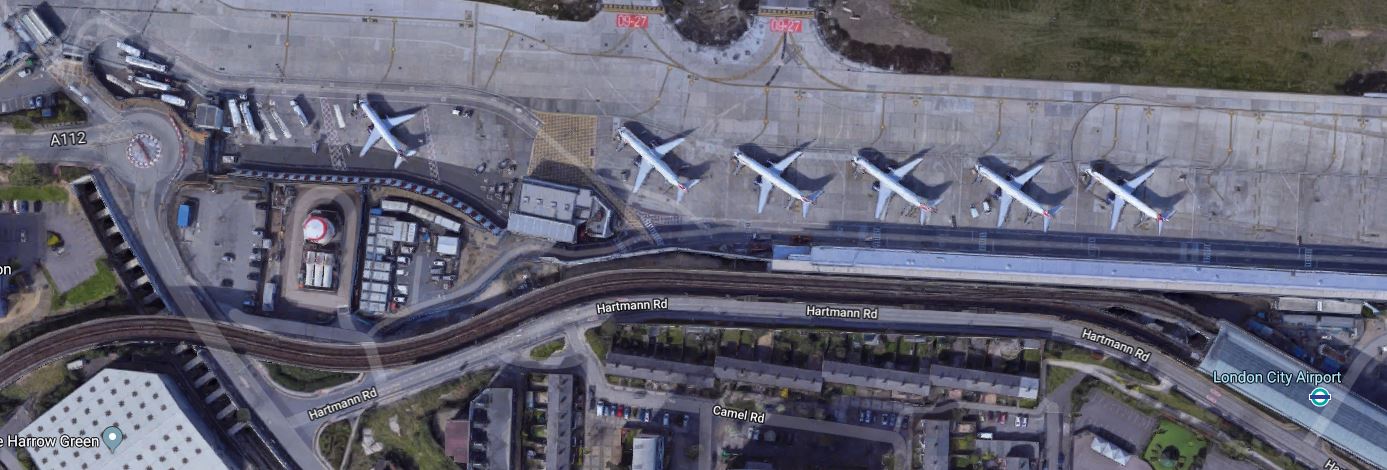

This Google Map shows the Western end of the terminal at London City Airport and the Docklands Light Railway running to the station at the Airport.

The Southern portal of Crossrail’s Connaught Tunnel can be seen under the DLR at the left end of this map, due to the concrete buttresses across the cutting rebuilt for Crossrail.

Surely, it would not be the most difficult of designs to build a station, somewhere in this area, where the former Silvertown station once stood.

I said more about this station in August 2017 in Action Stations On Crossrail Howler.

I will be very surprised if this station isn’t built.

Ladbroke Grove Station

If Ladbroke Grove station is built, it will because of property development. Wikipedia says this about current plans.

At a site just to the east of the Old Oak Common site, Kensington and Chelsea Council has been pushing for a station at North Kensington / Kensal off Ladbroke Grove and Canal Way, as a turn-back facility will have to be built in the area anyway. Siting it at Kensal Rise, rather than next to Paddington itself, would provide a new station to regenerate the area. Amongst the general public there is a huge amount of support for the project and then-mayor of London Boris Johnson stated that a station would be added if it did not increase Crossrail’s overall cost; in response, Kensington and Chelsea Council agreed to underwrite the projected £33 million cost of a Crossrail station, which was received very well by the residents of the Borough. Transport for London (TfL) is conducting a feasibility study on the station and the project is backed by National Grid, retailers Sainsbury’s and Cath Kidston, and Jenny Jones (Green Party member of the London Assembly).

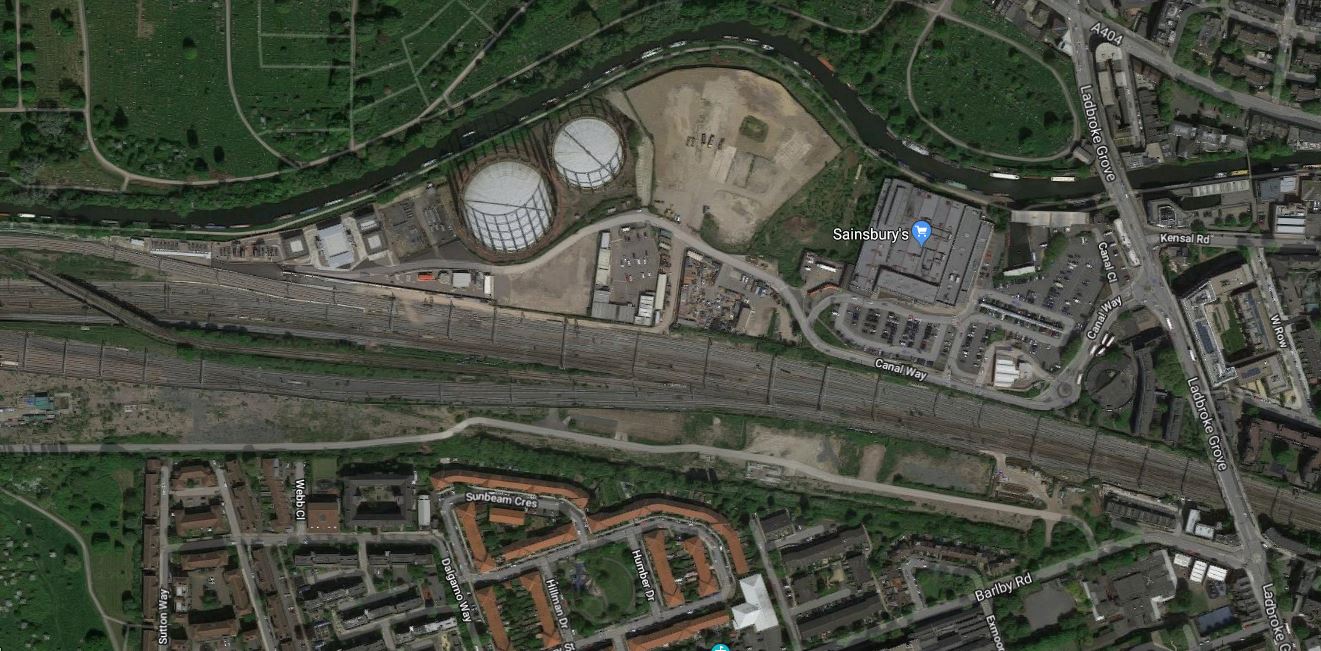

This Google Map shows the wider area.

Note.

  1. Ladbroke Grove is the road running North-South at the right side of the map.
  2. Canal Way is the twisting road running North of the railway.
  3. Sainsbury’s supermarket is North of Canal Way.
  4. The cleared site of the old Kensal gasworks is earmarked for housing.

The Crossrail tracks are on the North side of the railway, so access from a station to the housing could be very easy.

Conclusion

Crossrail is not even open yet and it looks like when it does, it will start a large number of projects to expand its scope.

Some will be about extending the system, some about better transport links and other about property development.

Crossrail will be an unlimited opportunity for London and the South East.

November 19, 2018 Posted by | Transport | , , , , , , , , | 2 Comments

How Will Chiltern Railways Serve Old Oak Common?

Whilst writing A Proposal For Two London Overground Stations At Old Oak Common, I got to thinking about how Chiltern Railways would use Old Oak Common station as a second London terminus, to relieve pressure on Marylebone station.

Lines At Old Oak Common

This map from TfL shows the lines in the area and the location of the proposed two new stations; Hythe Road and Old Oak Common Lane, for the London Overground.

Hythe Road station will be on the  West London Line between Willesden Junction and Shepherd’s Bush stations.

Old Oak Common Lane station will be on the North London Line between Willesden Junction and Acton Central stations.

How Will Chiltern Serve Old Oak Common?

Search the Internet for “Chiltern Railways Old Oak Common” and you find little of substance.

So exactly how will Chiltern Railways get trains to the station complex?

Using The Acton-Northolt Line

The Acton-Northolt Line is a logical route from Northolt Junction on the Chiltern Main Line to Old Oak Common.

But there could be problems with the Acton-Northolt Line.

  1. It will be on top of the tunnel taking HS2 out of London and building HS2 might be difficult.
  2. It is partly single track and would need to be doubled.
  3. It might be difficult to find space to build the station at Old Oak Common around the platforms for HS2, Crossrail and the Great Western Main Line.
  4. Getting tracks to the Northern part of the site for a Chiltern station there, might be difficult.

Points 1 and 2 would probably combine together to delay the Chiltern extension until after HS2 or at least the tunnel, is substantially complete.

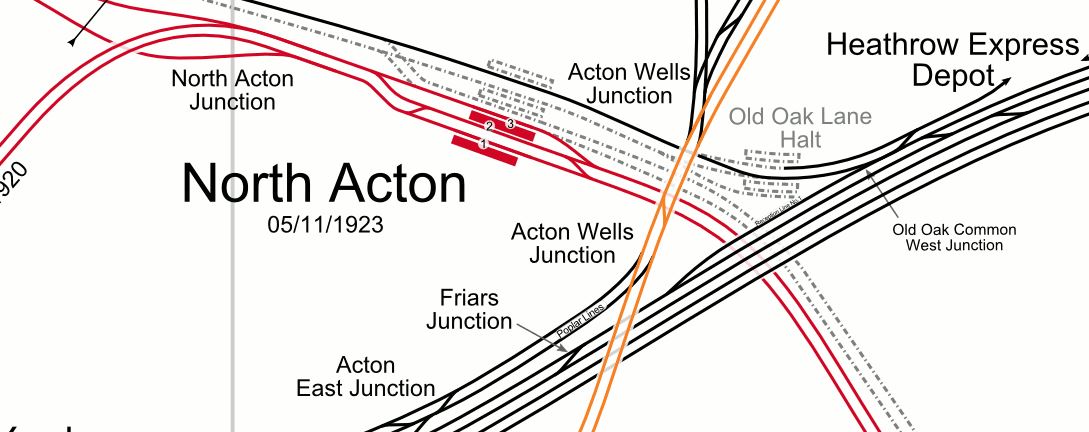

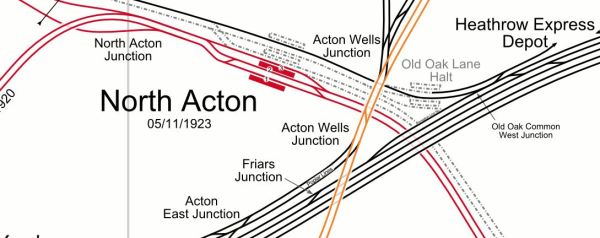

This map from carto.metro.free.fr illustrates the problem of finding a place for the station.

Note.

  1. The Great Western Railway is the multi-track in black .
  2. The single track shown in black North of North Action station is the Acton-Northolt Line.
  3. Old Oak Common Lane station is just to the North of Acton Wells Junction.
  4. The curves to connect the Acton-Northolt Line to the North London Line would be very tight.

The preferred position for the station is probably in the area of the current Heathrow Express Depot.

An alternative position for the station could be at North Acton station.

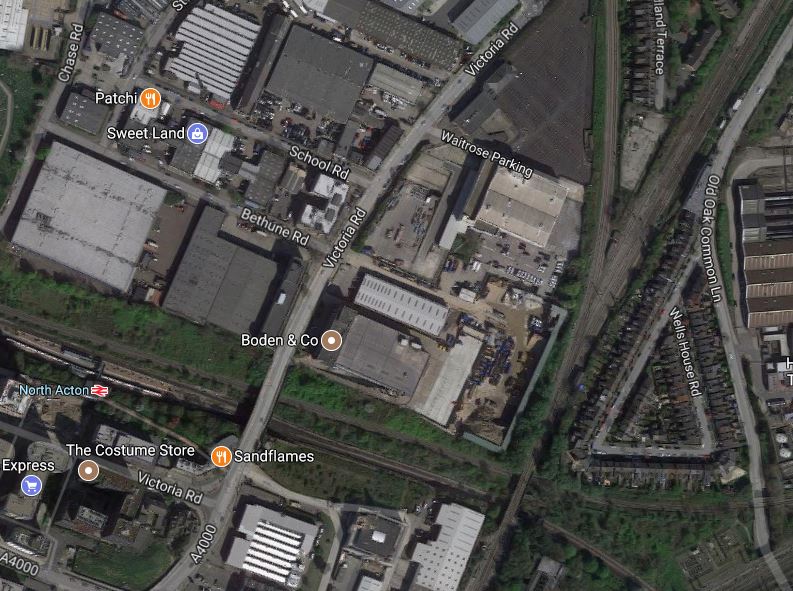

This Google Map shows North Acton station and its relation to the proposed Old Oak Common Lane station.

Old Oak Common Lane station would be located North of the Junction, where the Dudding Hill Line and the North London Line split, in the top-right corner of the map.

The rebuilt North Acton station could have the following characteristics.

  • Two or possibly three, Chiltern platforms could be built North of the current Central Line platforms.
  • The station could have a walking route or moving walkway to connect it to Old Oak Common Lane station and the main Old Oak Common complex.
  • It would also fulfil the aims of politicians to link the Central and North London Lines.

It could be a viable alternative with valuable over-site development.

I took these pictures from the bridge, where Victoria Road passes over the Central Line and Acton-Northolt Lines.

Note.

  1. The pictures were taken looking East towards Old Oak Common.
  2. The single-track Acton-Northolt Line is in the shrubbery on the left.
  3. The Acton-Northolt Line is about two or three metres higher than the Central Line.
  4. The greyish-blue bridge in the distance carries the North London Line over the cutting.

North Acton station is on the other side of the bridge.

It strikes me that the various levels give possibilities for an improved Central Line layout and a couple of platforms for Chiltern Railways.

Advantages and Problems Of Using The Acton-Northolt Line

The advantages of using this route could include.

  • It could open up development sites along the route.
  • New stations could be developed at Hanger Lane, Perivale, Greenford, Northolt, South Ruislip, Ruislip Grdens and West Ruoslip.
  • The new double-track line could be electrified without disrupting existing services.
  • It connects the Chiltern Main Line to HS2 and Crossrail.
  • It could enable a Crossrail extension along the Acton-Northolt Line.

The big problem could be doubling the Acton-Northolt Line and building the station, whilst the tunnelling work for HS2 was proceeding.

The Acton-Northolt Line And HS2

I do hope that HS2 is not being designed to block future use of the Acton-Northolt Line.

In fact, I hope the reverse is true and creation of a double-track Acton-Northolt Line is part of the specification for HS2.

Using The Dudding Hill Line

There is a connecting chord between the Chiltern Main Line and the Dudding Hill Line at Neasden.

This map from carto.metro.free.fr shows how trains would get between Wembley Stadium station and the Dudding Hill Line.

Note.

  1. The Dudding Hill Line is the line crossing all the tracks to the South of Neasden.
  2. The route would mean that Chiltern trains would be sent to their destination; Marylebone or Old Oak Common at Neasden.

The biggest problem may be where to put the station, as the Dudding Hill Line passes slightly to the West of the Old Oak Common complex.

But look at TfL’s visualisation for Old Oak Common Lane station.

The Dudding Hill Line is shown in the visualisation running under the pedestrian and cycle route to Victoria Road.

This Google Map shows the area in detail.

Note.

  1. The North London Line goes North-East.
  2. The proposed Old Oak Common Lane station would be built where the road is closest to the North London Line.
  3. The Dudding Hill Line goes North.

There would appear to be a site ripe for development to the West of the Dudding Hill Line.

Advantages and Problems Of Using The Dudding Hill Line

The advantages of using this route could include.

The station could be built in combination with London Overground’s proposed Old Oak Common Lane station.

  • There is a lot of space for the station.
  • No new track is required, although the Dudding Hill Line would need upgrading.
  • Good connections to HS2 and Crossrail will be built for Old Oak Common Lane station.
  • Thestation on the Dudding Hill Line could also be used by the proposed West London Orbital Railway.
  • Construction would not be a difficult job and would not affect existing services.
  • The site would not be affected by HS2.

The problems are mainly about connectivity to other lines, but well-designed connections to Crossrail and the Central Line would solve a lot of these problems.

Conclusion

There are at least two feasible options for a Chiltern station in the Old Oak Common area.





October 22, 2017 Posted by | Transport | , , , , , , | 4 Comments

A Proposal For Two London Overground Stations At Old Oak Common

Transport for London published this proposal a few weeks ago, but it’s only now that I’ve found time to document it here.

TfL’s Proposal

This document on Tfl’s web site, gives full details of their proposals.

The Location Of The Stations

This map from TfL shows the location of the two stations.

Hythe Road station will be on the  West London Line between Willesden Junction and Shepherd’s Bush stations.

Old Oak Common Lane station will be on the North London Line between Willesden Junction and Acton Central stations.

This Google Map shows the area.

Three features on both maps link them together.

  • The Grand Union Canal.
  • The layout of the two Overground Lines that meet at the distinctive Willesden High Level Junction.
  • The long silver-roofed North Pole Depot at the bottom of the maps.

Note from the Google Map, how much space is available.

Are Two New Stations Needed?

There are various factors at work here.

More Stations And Entrances Shorten Journey Times

Research has shown that the more routes you give passengers, the quicker and easier the journeys.

Old Oak Common Is A Large Site

25,500 new homes and 65,000 jobs are being created in the Old Oak Common/Park Royal area and two new stations are probably needed.

The North And West London Lines Pass Separately Through The Site

Two separate stations give direct services to the following.

  • West and South-West London via the North London Line.
  • North and North-East London via the North London Line.
  • Clapham Junction for South London via the West London Line.

Some might argue, that a new spur from Willesden High Level Junction, where the two lines divide direct to the combined HS2 and Elizabeth Line station, may be a better and cheaper option.

But this would only provide a connection to North and North-East London. Connections to the latter area, are also provided by the Elizabeth Line with a change of train at Liverpool Street or Stratford.

Conclusion About Two Stations

I’m convinced, that two Overground stations are needed and I suspect eventually, there will be other stations.

Hythe Road Station

TfL’s proposal for Hythe Road station would be built to the North of the existing embankment of the West London Line, which would be demolished.

This visualisation is from the TfL document.

It would appear to be reminiscent of Shoreditch High Street station, but built at ground-level.

Conclusion About Hythe Road Station

It is an inherently simple proposal, that can be built around an existing rail line, so it shouldn’t create too many construction problems.

Old Oak Common Lane Station

TfL’s proposal for Old Oak Common Lane station would incorporate an overbridge extending westwards to Victoria Road, to allow pedestrians and cyclists to cross the railway.

This map from the TfL document shows the location of the station.

And this Google Map shows roughly the same area.

The line breaking off to the North is the Dudding Hill Line, which is an important part of a proposal for a new railway line in West London, which I wrote about in New Railway Line For West London Proposed.

This visualisation is from the TfL document.

Note.

  • The bridge for cyclists and pedestrians to Victoria Road.
  • The Dudding Hill Line passing under the bridge.

It very much looks like Old Oak Common Lane station could have platforms on the Dudding Hill Line, which would be a very important addition to the West London Orbital Railway proposal.

Cnclusion About Old Oak Common Lane Station

TfL’s proposal looks comprehensive and reasonably simple to build.

It also includes provision to connect to the proposed West London Orbital Railway.

What Else Would I Do?

Here are my thoughts.

An East-West People Mover

The only one thing I would definitely add, is some form of people mover stretching East-West across the whole Old Oak Common site.

My preferred option would be to use a high-level moving walkway perhaps enclosed in a glass tunnel, which would stretch from Victoria Road in the West to perhaps Wormwood Scrubs Park in the East.

Escalators and lifts would give step-free connections to Old Oak Common Lane, HS2, Elizabeth Line and Hythe Road stations.

We’re not getting any younger!

Terminal Platforms

Both stations could have terminal platforms in the visualisations.

But they would surely be a good idea to allow extra services to be run to and from the major station complex.

Both new stations will have a platform on each track.

Would it be a good idea to have a third platform, that could be used as a bay platform in both directions?

A Terminal Platform At Hythe Road Station

The West London Line currently has a Milton Keynes to East Croydon service and this must mean that services to the West Coast and Brighton Main Lines are possible from a Hythe Road station.

  • Trains to the South could go to Clapham Junction, East Croydon, Gatwick and any desired station South of London.
  • Trains to the North could go to Wembley Central, Watford and Milton Keynes.

A stopping service on the West Coast Main Line would be complementary to HS2. Take for instance, sports or music fans going to an event at Wembley Stadium.

A Terminal Platform At Old Oak Common Lane Station

The only passenger services on the North London Line are London Overground services, between Stratford and Eichmond, but surely a terminal platform at Old Oak Common Lane station could be useful in providing some needed services.

If the West London Orbital Railway is created, this will add eight trains per hour after Acton Central. This might be too many trains for the route, so perhaps there would be a need to turn-back some trains from Stratford at Old Oak Common Lane?

A terminal platform at Old Oak Common Lane station might be used for an extended Gospel Oak to Barking service.

Building The Stations

I haven’t had a good look at the sites of the two stations and I don’t know the area well.

But I do have the feeling that both these stations can be built independently without affecting any other projects.

So they could be built at any convenient time in the development of this large site.









October 21, 2017 Posted by | Transport | , , , , , , , | 1 Comment
