TransPennine Express Explores Further Fleet And Capacity Expansion Options

The title of this post, is the same as that of this article on Railway Gazette.

This is the first paragraph.

First TransPennine Express is hopeful that it will be able to issue a call for expressions of interest in the provision of additional bi-mode trains before the end of March. This follows ‘a healthy level of interest’ in its existing call for expressions of interest in the supply of bi-mode locomotives to replace the Class 68s which work with its MkVa coaches.

I wrote about the expressions of interest to replace the Class 68 locomotives with new bi-mode locomotives in Suppliers Sought For New Bi-Mode Locomotives For TransPennine Express And Great Western Railway.

This was my conclusion in the related post.

When I saw First Group’s proposals, I thought that they were over ambitious.

But after doing a few simple calculations, I think they can decarbonise some, but not all of the TransPennine Express services and the Night Riviera.

So do First Group want to complete the decarbonisation of  TransPennine Express services?

These are my thoughts.

The Train Fleet Specification

The Railway Gazette article makes these points about the new bi-mode trains.

  • The trains could be existing or new bi-modes.
  • It would be desirable for the trains to have a long-term electric-only option.
  • Options for this would include removing the diesel engines or converting the trains to battery-electric operation.
  • Hydrogen is not mentioned.
  • A fleet size of twenty-five trains is mentioned.
  • The possibility of electric-only trains in the future is mentioned..
  • Five-cars, with the ability to lengthen to six- or seven-cars.
  • 200 km/h operation.

There is nothing unusual in the specification.

Will They Be Existing Or New Trains?

I doubt that there are any existing 200 km/h bi-modes in the UK, that are not wanted by their current operators.

I am very certain they will be new trains.

Could The Trains Be Hitachi Class 802 Trains?

The trains sound very much like Hitachi Class 802 trains, that are in service with TransPennine Express, Great Western Railway and Hull Trains, all of whom are First Group companies.

  • Long-term, the diesel engines can be removed or replaced with batteries.
  • The battery option is under development and should be on test this year.
  • The trains can be lengthened to as long as twelve cars, so six- and seven-car trains would be possible.

Hitachi will obviously show interest in this possible order.

Will These Trains Replace the Class 185 Trains?

Consider.

  • TransPennine Express have 51 three-car Class 185 trains.
  • This is a total of 153 cars.
  • On some routes they work singly and on others they work in pairs.
  • A three-car Class 185 train has 167 Standard Class and 15 First Class seats or 60.7 seats per car.
  • A pair of Class 185 trains have 334 Standard Class and 30 First Class seats.
  • A five-car TransPennine Express Class 802 train has 318 Standard Class and 24 First Class seats or 68.4 seats per car.
  • It would appear that a Class 802 train is not that far short of the capacity of a pair of Class 185 trains.
  • Some of the TransPennine services are very crowded.

I suspect that twenty-five five-car trains be able to handle the the workload of the Class 185 trains.

If a small amount of extra capacity were needed, some of the new trains could be six-cars.

In this section, I have assumed the new trains will be Class 802 trains, but any train manufacturer pitching for this order would adjust the capacity to the needs of TransPennine Express.

The Railway Gazette article says this.

TPE continues to explore opportunities for new services in the north of England, and the move could also feed into government plans for the removal of older and more costly to operate diesel trains elsewhere on the network, should any rolling stock become surplus to requirements at TPE.

So where could the Class 185 trains be used in the future?

Recently, MTU Hybrid PowerPacks have replaced the transmission on a Class 168 train, which reduces carbon emissions and fuel consumption and makes the train quieter and more passenger-friendly, as it doesn’t use diesel in stations.

The Class 185 trains are only fifteen years old and I suspect that MTU have designed the Hybrid PowerPack, so that it can replace the Cummins engine in trains like these.

The conversion could be done as a rolling program, so that any future operator would start with diesel and go hybrid a train at a time.

There has been speculation, that the trains may end up on the East West Railway and I wrote about this in East West Railway Company To Start Second Phase Of Rolling Stock Procurement.

But the East West Railway may prefer to use zero-carbon trains on a route, where there is electrification in places on the route.

Alternatively, South Western Railway run 10 two-car Class 158 trains and 30 three-car Class 159 trains between London Waterloo and Exeter.

  • South Western Railway is another First Group company.
  • The Class 185 trains could provide a capacity increase.
  • The Class 185 trains are 100 mph trains, whereas the Class 158/159 trains are only capable of 90 mph.

The London Waterloo and Exeter Route could be electrified in the future and I am pretty sure, that the Class 185 trains with a hybrid transmission could be a good stand-in until this happens.

Other Train Manufacturers

I believe that Hitachi are in pole position for this order, just because they are an established supplier to both TransPennine Express and First Group.

But twenty-five five-car trains would be a very worthwhile order, so I suspect that companies like Alstom, CAF, Siemens, Stadler and Talgo will also express interest.

Conclusion

Buying extra bi-mode trains will take TransPennine Express further along the route to full decarbonisation.









March 15, 2022 Posted by | Transport/Travel | , , , , , , , , , , , | 5 Comments

Suppliers Sought For New Bi-Mode Locomotives For TransPennine Express And Great Western Railway

The title of this post, is the same as that of this article on Rail Advent.

These three paragraphs give a summary of the proposed fleet of locomotives required by First Group for their two operations.

TransPennine Express is looking for expressions of interest from suppliers for a fleet of at least 15 bi-mode locomotives for use on with its Mk5 carriages.

The provision released by First Group is for up to 30 bi-mode locomotives, with an additional 5 for use on Great Western Railway’s Sleeper Service.

The operators say that the new locomotives must have the capability to be powered by overhead wires as well as being able to operate with an alternate traction mode, IE Diesel or Battery, where routes are not yet electrified or for use as a contingency.

I have also read the detailed proposal, which can be downloaded from this page of the First Group web site.

  • The locomotives must be capable of hauling a train at 100 mph.
  • First Group are putting a high emphasis on environmental impact of the locomotives.
  • The locomotives must be compatible with the latest emission regulations.
  • The locomotives must be low-noise.
  • The locomotives must be capable of hauling seven coaches, including a driving van trailer.

Nothing in the request for proposals would appear to be too challenging.

I have some thoughts.

The Number Of Locomotives For TransPennine Express

Currently, TransPennine Express has a fleet of fourteen Class 68 locomotives and enough coaches and driving van trailers to create thirteen rakes of Mark 5A coaches.

So why do TransPennine Express talk of up to thirty locomotives?

  • Fifteen locomotives would handle the current services, so thirty could cover new services or more services on the current locomotive-hauled routes.
  • Manchester Airport and Cleethorpes and Manchester Piccadilly and Hull are run by Class 185 diesel  trains, which will need replacing at some future time.
  • First Group probably know the costs of running Class 802 trains and locomotives with rakes of coaches better than anyone , so are they thinking about swapping some Class 802 trains for locomotives with rakes of coaches?

The last point would be one for the accountants.

But I am led to the conclusion, that TransPennine Express could be expanding and also decarbonising the long routes still operated by Class 185 trains.

The Number Of Locomotives For Great Western Railway

Currently, Great Western Railway has a fleet of four Class 57 locomotives to haul the Night Riviera.

Five replacement locomotives would probably be enough.

Could A Battery-Electric Locomotive Handle The TransPennine Express Requirement?

Currently, there are gaps in the electrification of the TransPennine network.

  • Manchester Victoria and Stalybridge – 7.7 miles – Electrification in progress
  • Stalybridge and Huddersfield – 18 miles
  • Huddersfield and Dewsbury – 8 miles – Electrification in progress
  • Dewsbury and Leeds – 9.1 miles
  • Leeds and York – 25.6 – Electrification in progress
  • Northallerton and Redcar – 28.8 miles
  • Manchester Piccadilly and Stalybridge – 7.5 miles
  • Leeds and Hull – 51.8 miles
  • Doncaster and Cleethorpes – 72.1 miles
  • Scarborough and York – 42 miles
  • Doncaster and Sheffield – 18.7 miles
  • Sheffield and Stockport – 36.8 miles – Rumoured to be electrified

Note.

  1. Many gaps are quite small.
  2. The longest gaps are on easy routes.
  3. Sheffield will be electrified for the Midland Main Line.
  4. A length of electrification at Scunthorpe could ease Doncaster and Cleethorpes.

I feel that a battery-electric locomotive with a range of a hundred miles hauling seven coaches, would be able to handle all the TransPennine routes.

If the train could run the routes with an electricity consumption of 4 kWh per vehicle-mile, seven coaches would need 4 * 8 * 100 = 3.2 MWh of battery storage.

Note.

  1. A 3.2 MWh battery would weigh around 3.2 tonnes, which would be less than the diesel engine in a Class 68 locomotive.
  2. Regenerative braking to batteries could be used to improve range.
  3. In How Much Power Is Needed To Run A Train At 125 Or 100 mph?, I calculated that an InterCity 125 needs 1.81 kWh per vehicle mile to maintain 100 mph.

I am fairly certain, that a well-designed efficient battery-electric locomotive would be able to handle all of the routes for TransPennine Express.

Could A Battery-Electric Locomotive Handle The Night Riviera?

I have just looked up the Southbound Night Riviera on Real Time Trains.

  • It leaves Paddington at 23:50.
  • It is typically eight coaches and a Class 57 locomotive.
  • The train is planned to run at 75 mph.
  • The first 53 miles between Paddington and Newbury are electrified.
  • There is a stop of one hour and 39 minutes at Exeter.
  • Newbury and Exeter is 120.4 miles
  • Exeter and Penzance is 130.8 miles

The Northbound Night Riviera only has a five minute stop at Exeter and two minutes stops at Totnes, Newton Abbott and Taunton.

A battery-electric locomotive would need a range of 140 miles hauling eight coaches.

  • Some stops like Plymouth may need to be lengthened by a few minutes to charge the batteries.
  • Extra stops of perhaps five minutes could be added to top-up the batteries.
  • The train would be limited to 75 mph, which would improve efficiency.
  • It might even be prudent to electrify the uphill track of some of the steeper parts of the route.

But think of the marketing advantages of a zero-carbon sleeper train!

Conclusion

When I saw First Group’s proposals, I thought that they were over ambitious.

But after doing a few simple calculations, I think they can decarbonise some, but not all of the TransPennine Express services and the Night Riviera.

January 22, 2022 Posted by | Transport/Travel | , , , , , , , , , | 9 Comments

New Rail Service From Newcastle To Edinburgh To Stop At These Northumberland Stations

The title of this post, is the same as that of this article on the Chronicle Live.

Details of the service are as follows.

  • It will be run by TransPennine Express.
  • It starts in December 2021.
  • It will run five times per day (tpd)
  • It will call at Cramlington, Morpeth, Widdrington, Alnmouth, Berwick-upon-Tweed, Reston and Dunbar.

It is planned to run at least until May 2023.

These are my thoughts.

What Trains Will TransPennine Express Use?

The service will probably need a single train, if it was run by a dedicated fleet of trains, that just shuttled between Edinburgh and Newcastle. TransPennine could use either an electric  Class 802 train or a diesel Class 185 train.

The diesel train might not be a good idea for operational reasons as TransPennine’s current services to Newcastle and Edinburgh use Class 802 trains.

But this service wouldn’t need a Class 802 train, as the route is fully electrified, so TransPennine might use a Class 800 train, if one were available from another company in the First Group.

TransPennine could also extend selected Manchester Airport and Newcastle services to Edinburgh, which might be the most efficient ways of using both trains and platforms in Newcastle.

This would give those using the intermediate stations between Edinburgh and Newcastle a service to and from Manchester Airport and the intervening stations, with a change at Newcastle, which would involve staying on the same train.

I’d organise the service as five tpd between Manchester Airport and Edinburgh with calls at Manchester Piccadilly, Manchester Oxford Road, Manchester Victoria, Huddersfield, Dewsbury, Leeds, York, Northallerton, Darlington, Durham, Chester-le-Street, Newcastle, Cramlington, Morpeth, Widdrington, Alnmouth, Berwick-upon-Tweed, Reston and Dunbar.

The big advantage of this, is that TransPennine could use the existing Class 802 trains, although they may need one more.

Reston Station

It looks like it will be a much needed service, that will get the new Reston station up and running.

I suspect that,  passenger numbers at Reston station will determine the calling pattern after May 2023.

Will Other Services Continue?

TransPennine Express only has one service that stops between Newcastle and Edinburgh and that is the hourly service between Liverpool Lime Street and Edinburgh stations and that only stops at Morpeth.

I doubt this service will be changed, although after May 2023, it may make some extra stops depending on passenger numbers on the new service.

It should be noted that CrossCountry and LNER call irregularly at Alnmouth, Berwick-upon-Tweed and Dunbar.

As LNER are in rather a mess over their new timetable, I suspect that after May 2023, there could be a bit of a sort out of services.

How Will The New Service Fit With The Reopened Northumberland Line?

Initially the Northumberland Line will run as far as Ashington and won’t open until 2023 at the earliest.

But plans exist to extend the Northumberland Line to Morpeth.

The new service would fit well with an extended Northumberland Line service.

How Will The New Service Fit With East Coast Trains New London And Edinburgh Service?

East Coast Trains will be running a new Open Access service between London and Edinburgh from this autumn.

  • It will have a frequency of 5 tpd.
  • It will stop at Newcastle, Morpeth and Stevenage.
  • It will offer one way fares of £25.

East Coast Trains are another First Group company.

As both services are five tpd in both directions, will the two services co-ordinate stops, so that passengers between say London and Reston can take advantage?

Going North, the stopping train could follow the East Coast Trains express and going South the stopping train would be a few minutes in front of the express.

This would also help with maximising capacity between Edinburgh and Newcastle on the busy East Coast Main Line.

Conclusion

This new stopping service between Edinburgh and Newcastle looks to be a simple solution to improve passenger services for intermediate stations between the two important cities.



September 3, 2021 Posted by | Transport/Travel | , , , , , , , , , , , | 3 Comments

WYCA To Discuss Latest Plans For £24.2m White Rose Rail Station

The title of this post, is the same as that of this article on Rail Technology Magazine.

I briefly commented on this proposed station in Is There Going To Be Full Electrification Between Leeds And Huddersfield?, where I said this.

White Rose Station

There are plans to build a new White Rose station in the next couple of years at the White Rose Centre..

This would be between Morley and Cottingley stations.

This station will surely increase the passenger numbers on the Huddersfield Line.

This Google Map shows the White Rose Centre.

The Huddersfield Line runs North-South alongside the Centre and there must be plenty of space for a new White Rose station.

From Wikipedia and other sources, the following seems to be on the agenda for the station.

  • Two platforms.
  • Ability to take six-car trains, with a possibility to extend to eight-cars.
  • Two trains per hour (tph) in both directions.
  • Up to 340,000 passengers per year.

These are my thoughts.

Will White Rose Station Be Electrified?

The Rail Technology Magazine article has a visualisation of the new White Road station and very swish it looks too!

But it doesn’t show any electrification through the station.

This document on the Network Rail web site is entitled Overhead Line Electrification – Huddersfield to Westtown (Dewsbury).

This is the first paragraph.

We’re proposing to electrify the railway between Huddersfield and Westtown (Dewsbury) – and right through to Leeds.

This will enable train operators to use electric – or bi-mode (hybrid) trains – along this section of the route.

I am pretty certain, this paragraph can be interpreted, as saying that Leeds and Huddersfield will be connected by a fully-electrified railway.

This Google Map shows the current Ravensthorpe station, where the line to and from Wakefield joins the Huddersfield and Leeds Line.

This document on the Network Rail web site is entitled Scheme Proposals – Huddersfield to Westtown (Dewsbury).

It indicates that the triangle of land between the two lines will be used for a sub-station to provide power for the electrification.

It says this.

We propose to build an electricity substation within the Ravensthorpe and Westtown area, to provide power for the electrification of the railway (known as traction power). To facilitate this work, a temporary construction compound which will provide essential welfare facilities for staff will be established in an area of land occupying the current landfill site to the east of Ravensthorpe Station. Access to the facilities will be made via Forge Lane or the existing Thornhill Power Station access road. In addition, Northern Powergrid will be undertaking extensive works to their overhead network within the Ravensthorpe area.

This looks like a convenient place to build a sub-station.

  • Northern Powergrid would be able to combine one of their projects, with one for Network Rail.
  • It looks like the location of the sub-station gives both good road and rail access.

It would also be ideal to provide power to the line to Wakefield Kirkgate station, which is only ten miles away.

Services At White Rose Station

Currently, the following services would appear to go through the site of White Rose station.

  • Northern Trains – Wigan Wallgate and Leeds
  • TransPennine Express – Huddersfield and Leeds
  • TransPennine Express – Liverpool Lime Street and Edinburgh
  • TransPennine Express – Liverpool Lime Street and Scarborough
  • TransPennine Express – Manchester Airport and Newcastle
  • TransPennine Express – Manchester Airport and Redcar Central
  • TransPennine Express – Manchester Piccadilly and Hull

Note.

  1. All services are one tph.
  2. The first two services are stopping services, that stop at the two stations, that will be either side of White Rose station; Cottingley and Morley.
  3. Dewsbury station, which will be three stations away, has a service of three tph.

There may also be an LNER service between London and Huddersfield via Leeds, which might go through White Rose station.

When sources like Wikipedia, say the station will get two tph, they are probably basing this on the two stopping services.

Does White Rose Station Need A Direct Manchester Airport Service?

I think if the station becomes important, it will certainly need a direct service to Manchester Airport.

If one of TransPennine’s Manchester Airport services stopped at White Rose station it would give a direct fast hourly service to Manchester Airport.

  • It would take about eighty minutes on current timings.
  • In addition the service would call at Manchester Piccadilly, Leeds and York.

In my view it would be a very useful service.

Does White Rose Station Need A Direct London Service?

The reasoning for Manchester Airport, would probably apply to London.

Consider.

  • Leeds currently has a two tph LNER service to London.
  • I believe that LNER’s Leeds and London service could be uprated to three tph.
  • Huddersfield should be getting a daily service or perhaps better to London.
  • White Rose station is only planned to have a two tph service to Leeds.

I think there is scope to improve the service between White Rose and London.

  • Stopping services between Leeds and Huddersfield should connect conveniently with the London trains at Leeds.
  • If a third tph between Leeds and Huddersfield stopped at White Rose, that might help.
  • Perhaps, some or all services between Huddersfield and London, should stop at White Rose.

It would all depend on the needs of passengers, once the station opened.

White Rose Station And Elland Road Stadium

This Google Map shows the distance between the White Rose Centre and Elland Road stadium.

Note.

  1. Elland Road stadium is in the North-East of the map
  2. The White Rose Shopping Centre is towards the South of the map.
  3. The Huddersfield Line runs down the Western side of the White Rose shopping centre.
  4. Cottingley station in North-West corner of the map is the nearest station to Elland Road stadium.
  5. I estimate it is about a mile-and-a-half walk, which is typical for many football grounds.

Would it be sensible on match days to run longer trains to White Rose station?

I also feel, that thought be given to the walking route between White Rose Station and Elland Road Stadium.

Would it also be better, if the new station was towards the North of the shopping centre?

Platform Length At White Rose Station

Platform length at White Rose station is stated that it will initially take six-car trains, with a possibility to extend to eight-cars.

Consider the lengths of trains likely to call at White Rose station.

To handle pairs of three-car Class 185, Class 195 and Class 331 trains, it looks like 150 metre long platforms will be needed.

But to handle pairs of four-car  Class 195 and Class 331 trains, it looks like 200 metre long platforms will be needed.

I suspect that because of the proximity of Elland Road and there is a lot of shopping in the build up to Christmas, that a thorough analysis of platform length should be done, before White Rose station is built.

Will A Cross-Leeds Service Serve White Rose Station?

If you look at Birmingham, Cardiff, Glasgow, Liverpool, London, Manchester and Newcastle, suburban lines fan out all around the city.

If you look at Leeds, you find the following routes.

  • Bradford – West – Electrified
  • Harrogate -North – No Electrification
  • Dewsbury and Huddersfield – South-West – Electrification planned
  • Ilkley – North – Electrified
  • Skipton – North-West – Electrified
  • Wakefield – South-East – Electrified
  • York and Selby – North-East and East – No Electrification

It appears to me, that the suburban routes are better on the Western side of the City, with more electrification in operation or planned.

The planned electrification between Leeds and Huddersfield via White Rose station can only make matters more uneven.

The Rail Technology Magazine article also says this.

The Investment Committee will also consider plans for a new £31.9m parkway rail station at Thorpe Park on the Leeds to York section of the Transpennine route.

Wikipedia says that proposed Thorpe Park station, will be built on the Selby Line to the East of Leeds, in the Thorpe Park are of the city. Wikipedia also says this about the operation of the station.

It would be served by trains from the west of Leeds which would normally terminate at Leeds station; by continuing eastwards to this station, it is hoped that extra capacity for through trains would be created at Leeds. The station would also form the first phase of electrifying the railway line to the east of Leeds. As a parkway station (an early name was East Leeds Parkway), the intention would be to allow for a park-and-ride service and the plans include parking for 500 cars.

This Google Map shows the area where the station could be built.

Note.

  1. The Selby Line curving across the Northern side of the map.
  2. Cross Gates station is the next station to the West.
  3. Going East on the Selby Line, you pass through Garforth, East Garforth and Micklefield stations before the line divides for York to the North and Selby and Hull to the East.
  4. The M1 Motorway passing to the East of Leeds.

Other features of the proposed station and the area include.

  • Wikipedia says that the station will have two island platforms and the ability to handle inter-city trains.
  • The route through the station would be electrified.
  • High Speed Two could be routed to go close to the station.

Currently, the following services would appear to go through the site of Thorpe Park station.

  • CrossCountry – Plymouth and Edinburgh/Glasgow
  • LNER – Leeds and Edinburgh
  • Northern Trains – Blackpool North and York
  • Northern Trains – Halifax and Hull
  • Northern Trains – Leeds and York
  • TransPennine Express – Liverpool Lime Street and Edinburgh
  • TransPennine Express – Liverpool Lime Street and Scarborough
  • TransPennine Express – Manchester Airport and Newcastle
  • TransPennine Express – Manchester Airport and Redcar Central
  • TransPennine Express – Manchester Piccadilly and Hull

Note.

  1. Most of these trains are one tph.
  2. I believe that LNER, when they get extra paths on the East Coast Main Line, could run a London, Leeds and Edinburgh service to increase frequency to the two Northern destinations to three tph.
  3. All the TransPennine Express services will pass through White Rose, Leeds and Thorpe Park stations.

I can see a high-capacity Leeds Crossrail service emerging.

These could be some example frequencies.

  • Leeds and York – 6 tph
  • Leeds and Thorpe Park – 10 tph
  • Leeds and Hull – 2 tph
  • Leeds and Huddersfield – 6 tph
  • Leeds and Manchester Victoria/Piccadilly – 6 tph
  • Leeds and Manchester Airport – 2 tph
  • Leeds and White Rose – 4 tph

A four-track electrified route could be developed through Leeds station.

Are Two Platforms Enough At White Rose Station?

Superficially White Rose and Thorpe Park stations seem aimed at similar purposes in different parts of Leeds.

But White Rose station will only have two platforms and it appears that Thorpe Park could have four.

So does White Rose station need more platforms?

Conclusion

White Rose and Thorpe Park stations could be the start of something very big in Leeds.





February 2, 2021 Posted by | Transport/Travel | , , , , , , , , , | 3 Comments

East West Railway Company To Start Second Phase Of Rolling Stock Procurement

The title of this post, is the same as that of this press release from East West Rail.

These are the three introductory paragraphs.

East West Railway Company (EWR Co) is to restart market engagement with potential train suppliers, as its rolling stock procurement process enters a new phase.

The move follows an initial phase of procurement activity, which EWR Co concluded earlier in the year. A new PIN Notice has been published today to restart engagement with potential suppliers, which includes a set of technical specifications taking account of feedback from the market gained during the initial procurement phase.

This procurement aims to secure a short-term, interim solution to leasing a small fleet of self-powered trains for the Western Section of East West Rail.

The press release has a link to the Prior Information Notice or PIN Notice on the EU database.

along with all the usual contact and other details, this is said about the specification.

The East West Railway Company (EWR Co.) is looking to leasing a fleet of 12 or 14 x 3 car self-powered units with modifications including European Train Control System (‘ETCS’) Level 2 and Driver Controlled Operation (‘DCO’) capability, supported by a full maintenance package (under a ‘wet’ lease). These units will ensure timely operation of EWR’s Western Section Phase 2 between Oxford, Milton Keynes, Bedford and Aylesbury. The lease duration would be 4 years, with an option to extend for 2 years.

The date of the notice is the 10th of November 2020, so it has been recently updated.

I commented on these trains in March 2020, when I wrote EWR Targets Short-Term Fleet Ahead Of Possible Electrification.

In the intervening eight months, a lot have things have happened.

Awareness Of Green Issues

The Covid-19 pandemic has arrived, with all its ferocity and seems to be moving people in the direction of thinking about green issues and zero-carbon transport.

Type “build back greener UK” into Google and you get lots of articles. Some feature Boris Johnson, like this article on Business Green, which is entitled Boris Johnson To Pledge To ‘Build Back Greener’.

I don’t think the public, myriad engineers and scientists and a good selection of politicians will find it appropriate for the East West Railway to use any rolling stock, that is not zero-carbon and powered by renewable energy.

Hitachi Have Launched The Regional Battery Train In Conjunction With Hyperdrive Innovation

In July 2020, I wrote Hyperdrive Innovation And Hitachi Rail To Develop Battery Tech For Trains.

Hitachi had been talking for some time, that they were developing battery electric trains for the UK, but this was the first news of a route to their design, manufacture and into service.

Hitachi also published this YouTube video and this infographic of the train’s specification.

They have also called the train, the Hitachi Regional Battery Train.

My estimate is that Oxford and Bedford are under fifty miles apart, so if Hitachi’s train could be charged at both ends of the route, one of their trains could provide a self-powered service between Oxford and Bedford.

It seems that Hitachi have an off-the-shelf train, that fits the specification for the trains required by East West Railway.

Vivarail Have Launched A Fast Charge System

Battery electric trains, like electric vehicles are not much use, if you can’t charge them when it is needed.

The initial Service Pattern of the East West Railway is given in the Wikipedia entry of the East West Railway.

  • Two trains per hour (tph) – Oxford and Milton Keynes Central via Oxford Parkway, Bicester Village, Winslow and Bletchley.
  • One tph – Oxford and Milton Keynes via Oxford Parkway, Bicester Village, Winslow, Bletchley, Woburn Sands and Ridgemont.
  • One tph – Aylesbury and Milton Keynes Central via Aylesbury Vale Parkway, Winslow and Bletchley.

There are four terminal stations.

  • Aylesbury – No electrification
  • Bedford – Full Electrification
  • Milton Keynes Central – Full Electrification
  • Oxford – No electrification

The existing electrification could be used at Bedford and Milton Keynes Central, whereas some type of charging system, would be needed at Aylesbury and Oxford.

It appears that Adrian Shooter of Vivarail has just announced a One-Size-Fits-All Fast Charge system, that has been given interim approval by Network Rail.

I discuss this charger in Vivarail’s Plans For Zero-Emission Trains, which is based on a video on the Modern Railways web site.

There is more about Vivarail’s plans in the November 2020 Print Edition of the magazine, where this is said on page 69.

‘Network Rail has granted interim approval for the fast charge system and wants it to be the UK’s standard battery charging system’ says Mr. Shooter. ‘We believe it could have worldwide implications.’

Vivarail’s Fast Charge system would surely be a front-runner for installation at Aylesbury and Oxford, if battery electric trains were to be run on the East West Railway.

Choosing A Train

East West Rail have said the following about the train specification.

  • Three cars
  • Self-powered
  • European Train Control System (‘ETCS’) Level 2 and Driver Controlled Operation (‘DCO’) capability
  • Available on a wet lease, that includes a full maintenance package

The press release from East West Rail and other documents mentions between twelve and fourteen trains will be leased.

In Trains Needed For The East West Railway, I calculated that the proposed services could need around eight or nine trains.

This must mean one of three things.

  • There are plans for extra services.
  • There are plans for the proposed services to be extended.
  • Trains will run some services in pairs.

Because, of the last reason, the trains must have the ability to run in pairs.

As sections of the East West Railway are being built for 100 mph operation, the trains must also have a 100 mph capability.

When I talked briefly about green issues earlier, I said that I felt the trains should be zero-carbon, which would rule out diesel.

That leaves two options for self-powered operation; battery electric or hydrogen.

So what trains fit the specification?

British Rail Era Trains

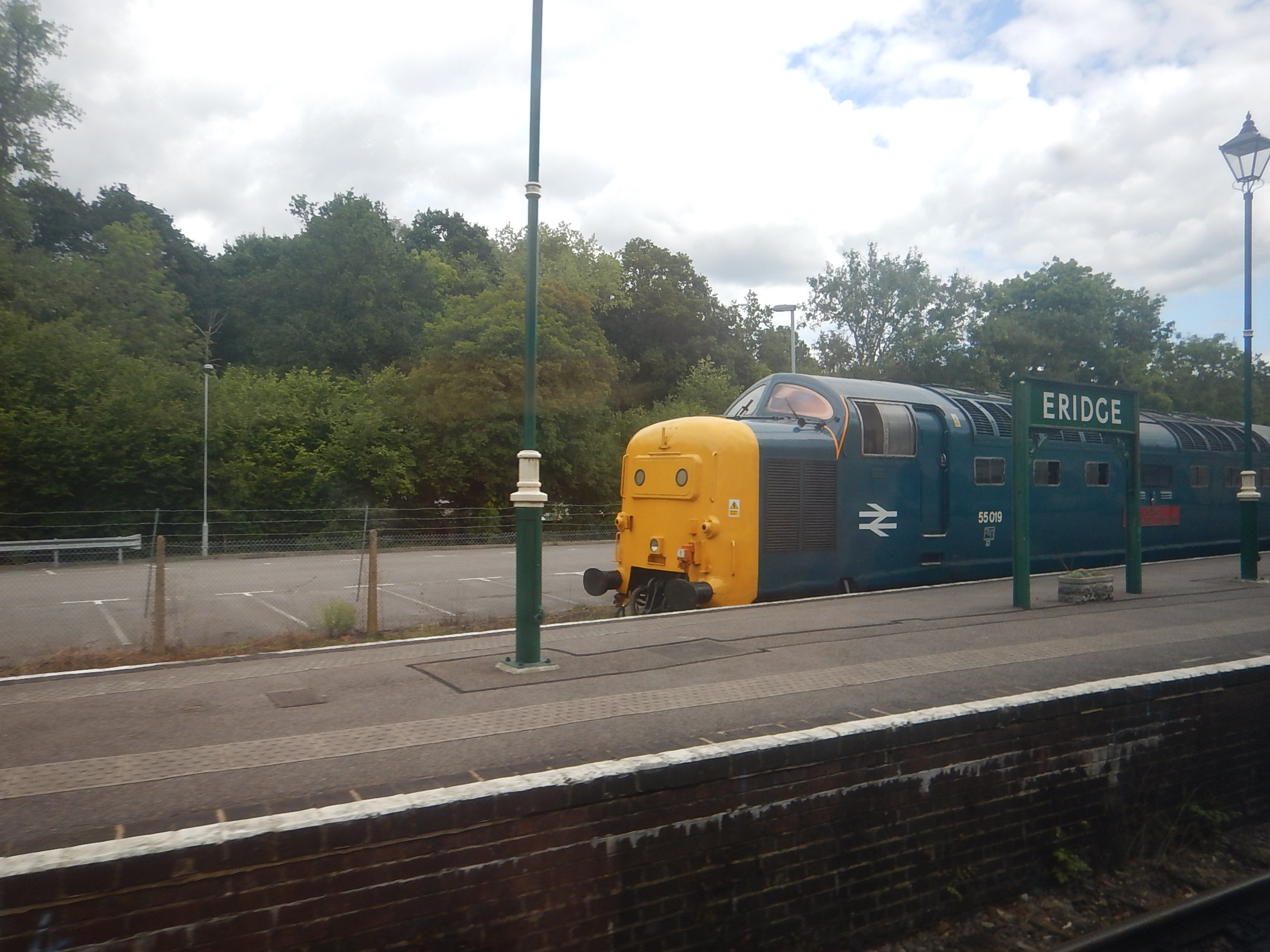

A large number of British Rail era trains could be suitable for updating for interim use on the East West Railway.

I even suspect, some fantasist will suggest using shortened versions of InterCity 125 trains, as are used in South-West England and Scotland.

But let’s be serious and not insult the intelligence of the three world-leading universities on the final route of the East West Railway.

A lot of money is also being spent on this railway and tarted-up forty-year-old trains would not encourage people to use the new railway.

Class 170 Trains

There are eighty-seven three-car Class 170 trains with various operators, some of which will be surplus to requirements, as they are being replaced with new trains.

But they are diesel, so surely they don’t fit my perceived need for zero-carbon trains.

That would have been true until a couple of weeks ago, when as I wrote in Vivarail’s Plans For Zero-Emission Trains, Adrian Shooter of Vivarail disclosed an audacious plan to convert, diesel trains into zero-carbon battery electric trains.

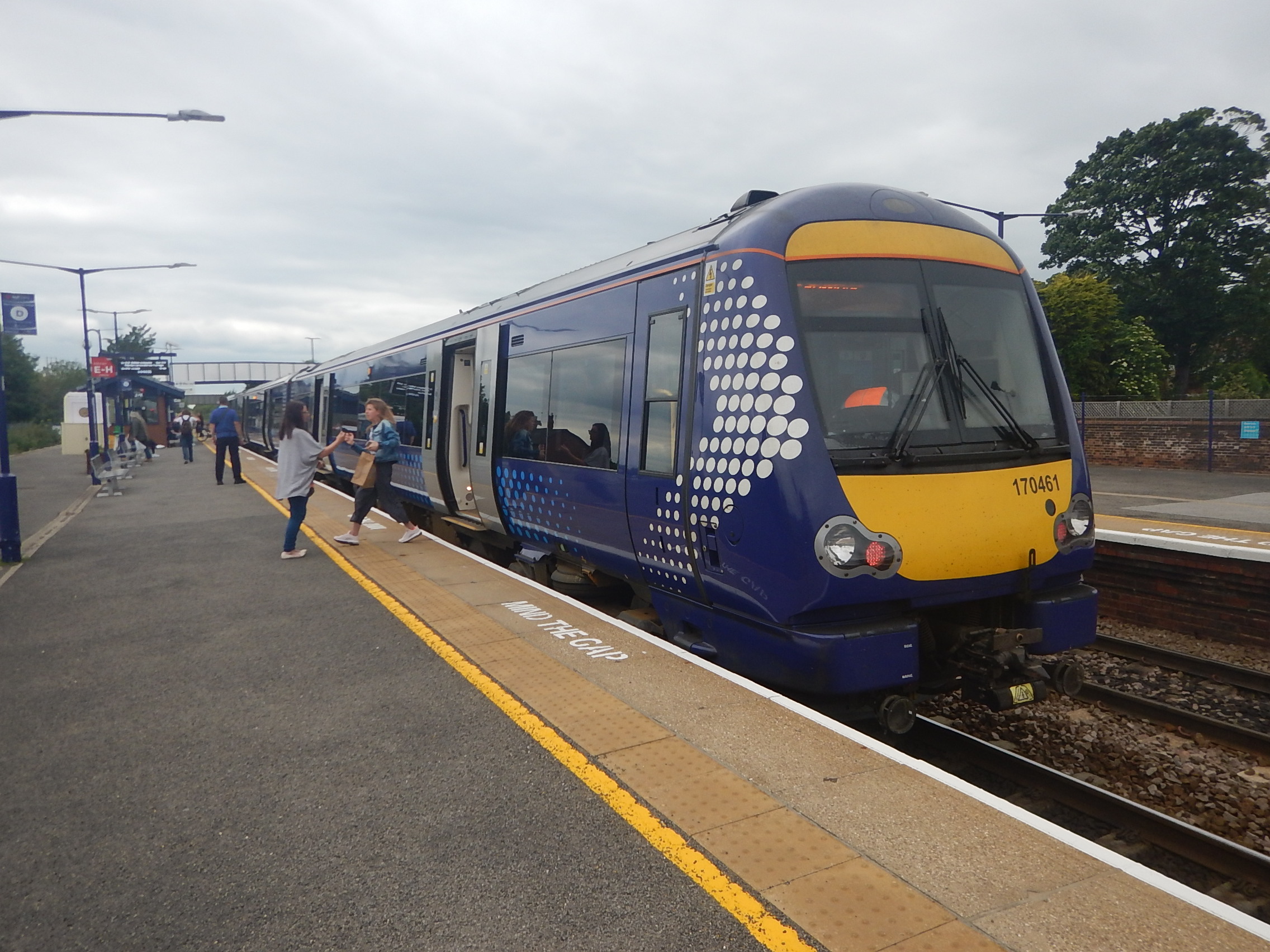

Class 170 trains like this were on the list of possible conversions.

  • They 100 mph trains.
  • Some are three-cars.
  • They meet all the disability regulations.
  • They have been used for services much longer than Oxford and Bedford.

They could also start the service as diesel trains and gradually converted to battery electric, if this would be better for operation.

Class 175 Trains

The three-car 100 mph Class 175 trains could be a possibility as there are fifteen trains, but they have two problems.

  • They are powered by diesel.
  • They probably won’t be available until 2023.

So I think they can be ruled out.

Class 185 Trains

All the fifty-one Class 185 trains are currently in service with TransPennine Express. They are due to release fifteen trains in 2021 and it was thought that these trains were in prime position for becoming the interim trains for East West Railway.

  • They 100 mph trains.
  • Some are three-cars.
  • They meet all the disability regulations.
  • They have been used for services much longer than Oxford and Bedford.
  • The fleet is the right size.

But then the Department of Transport decided to change their plans for the Liverpool and Norwich service.

I wrote about one journey on the overcrowded section of this service in Mule Trains Between Liverpool And Norwich.

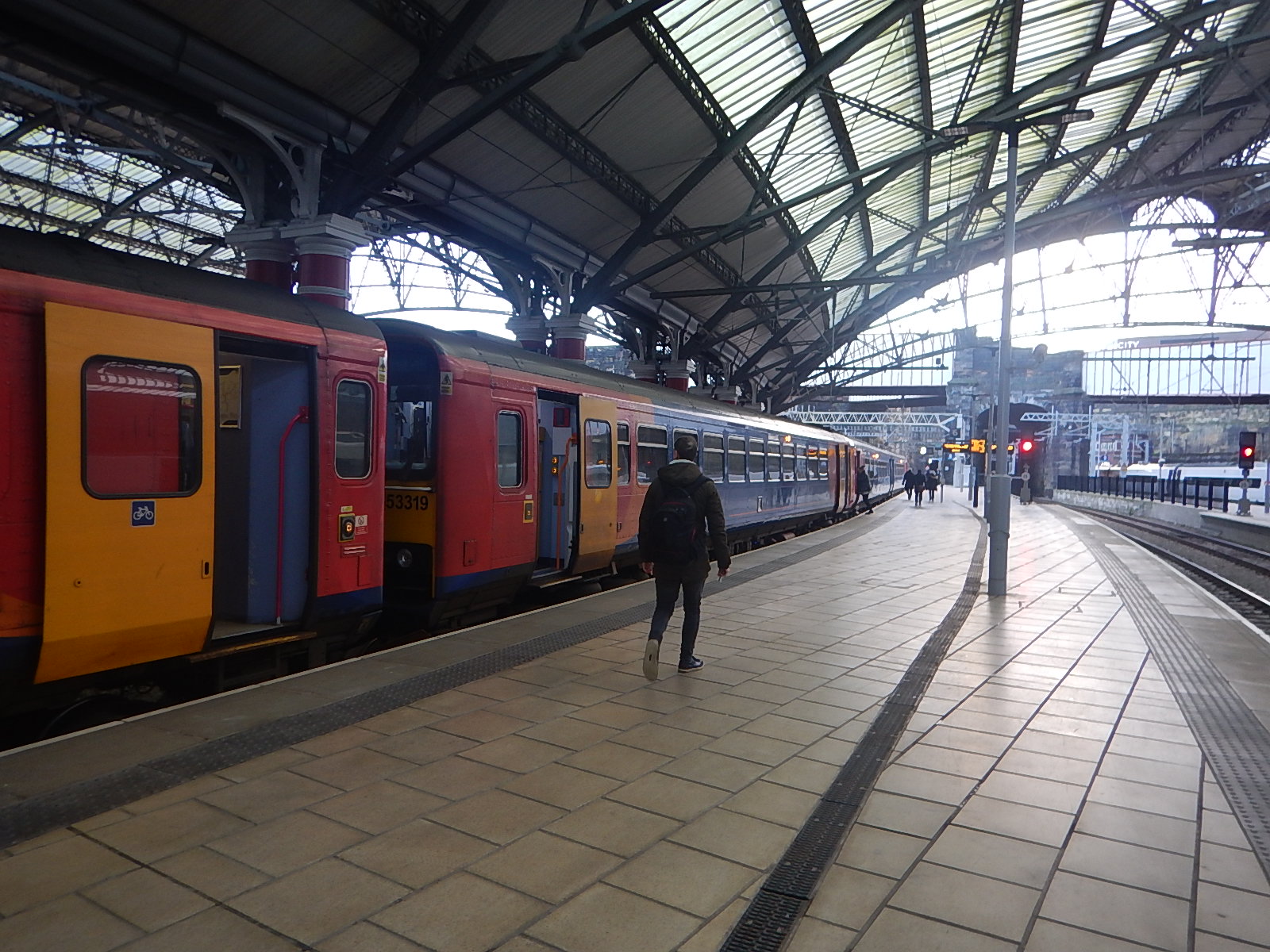

The picture shows the inadequate train formed of an assorted collection of Class 153 trains, I took from Liverpool to Sheffield.

The service is now being split at Nottingham and East Midlands Railway will receive the released Class 185 trains for the Liverpool and Nottingham portion of the service.

A fleet of these Class 185 trains will surely offer more comfort on a very busy service.

So it is looking unlikely that Class 185 trains will be used on the East West Railway.

Class 220, 221 and 222 Trains

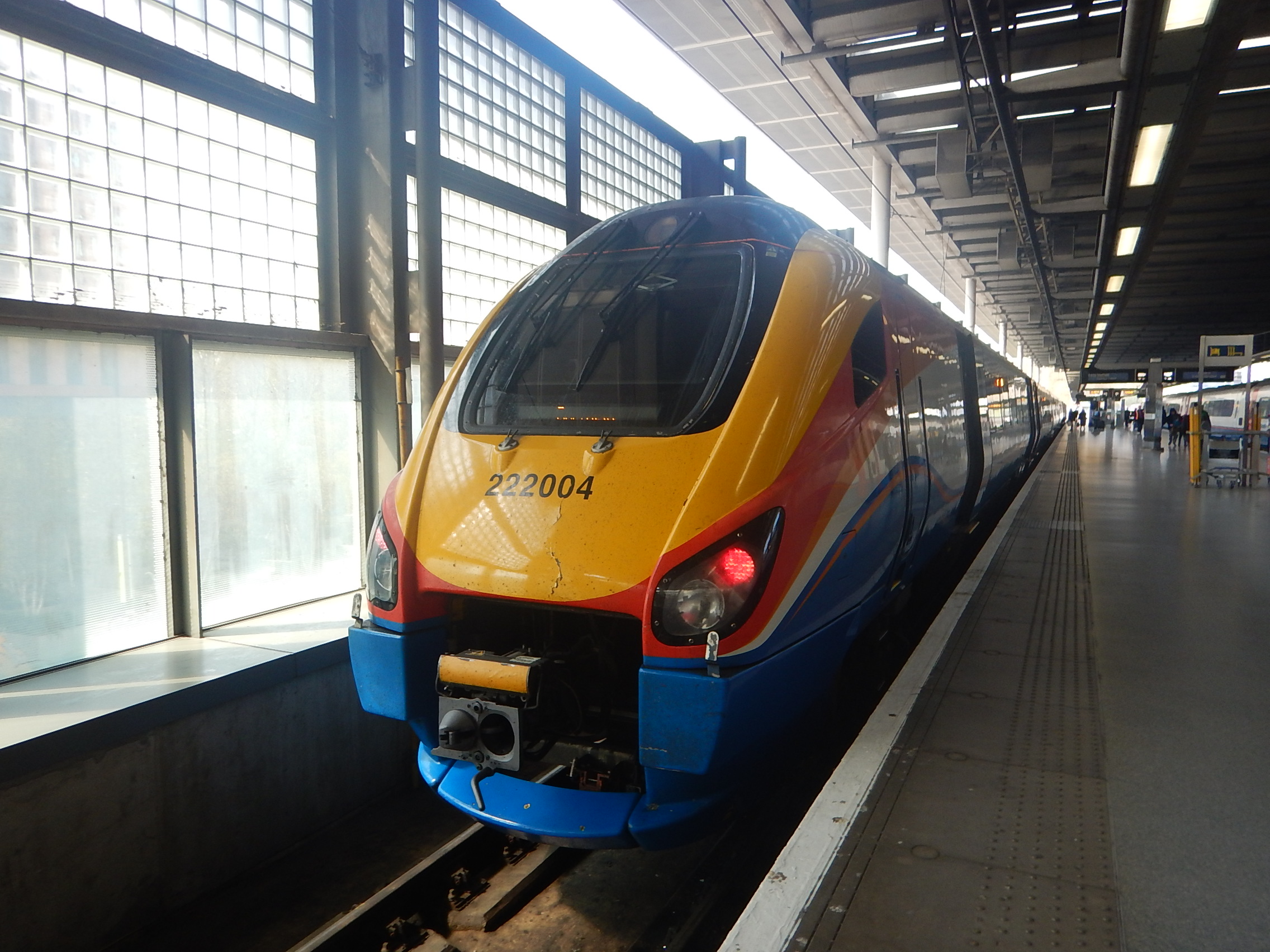

These three fleets of Voyager trains could be a possibility, as they can be shortened to three-car trains.

But they have disadvantages.

I think it is unlikely, that these trains will be used on the East West Railway.

Class 350 Trains

There are thirty-seven Class 350 trains, that were built only twelve years ago, that have been retired. The owner; Porterbrook are planning to convert them into battery electric versions, which they have called BatteryFLEX trains.

Unfortunately, they are four-cars and unlike other trains, it doesn’t appear that they can be shortened to three cars.

Class 375, 377, 379 and 387 Trains

These four fleets of Electrostar trains could be a possibility for running as battery electric trains.

  • Some are three-car trains and four-car trains can be converted to three-car trains, by simply removing a car.
  • They are 100 mph trains.
  • Bombardier converted a Class 379 train for battery operation and I have heard or seen no adverse reports from either passengers, rail staff or journalists.
  • They can work in multiple formations.
  • They are all wired for dual-voltage operation.
  • Pantographs wells have already been fitted to trains that normally work using 750 VDC third-rail electrification.

The picture shows the Class 379 train, that was converted to battery electric operation.

The Class 379 trains, also have the advantage, that there is a fleet of thirty trains, that are being replaced by Greater Anglia, who are homeless.

If I were the owner of the Class 379 trains, I’d do the following.

  • Convert them all into battery electric trains.
  • Shuffle cars around to get a mix of three-, four- and five-car trains to match market opportunities.
  • Make them compatible with Vivarail’s Fast Charge system.
  • Do a licensing deal with Vivarail, so I could supply the chargers.

This plan has some big advantages.

  • Battery electric operation of the Class 379 trains has been successfully proven.
  • Some Class 379 trains are already available for conversion, as they have been replaced by Greater Anglia.
  • The trains could easily be delivered in time for the opening of the East West Railway.
  • The trains would not need to be replaced, if the East West Railway was to be fully electrified in the future.
  • If I leased out all the Class 379 trains, I’m fairly sure that I could acquire some other Electrostars to convert.

The trains would surely be ideal for the Uckfield Branch and Ashford and Hastings, which are to be run by battery electric trains.

  • The order for these services is still to be announced.
  • This use would be a trial application of the highest quality.
  • I suspect that five-car trains would be ideal for these Southern routes.
  • In Battery Electrostars And The Uckfield Branch, I estimated that Southern would need twelve five-car trains for the Uckfield Branch and four trains for the Ashford and Hastings service.

It looks to me, the thirty four-car Class 379 trains could be converted into the following battery electric trains.

  • Twelve five-car trains for the Uckfield Branch.
  • Four four-car trains for Ashford and Hastings.
  • Fourteen three-car trains for the East West Railway.

Using battery electric Class 379 trains for the East West Railway, the Uckfield Branch and Ashford and Hastings. looks from the engineering, numbers and financial points of view to be a very efficient proposition.

Class 385 Trains

As I indicated earlier, Hitachi have the technology to create a Class 385 train with a battery capability.

  • They appear to be talking to ScotRail.
  • Are they talking to Vivarail about using their Fast Charge system?
  • As the trains would be new, East West Railway would get trains to their specification.

Battery electric Class 385 trains must be a serious proposition.

Class 600 Trains

The Class 600 train could be an interesting possibility.

The trains can be powered by both hydrogen and overhead or third-rail electrification.

  • The trains are three-cars long.
  • They are 100 mph trains.
  • First in-service dates are scheduled for 2024, which could be convenient.
  • The trains will have a state-of-the-art Renatus interior.
  • They will not need charging and could probably be refuelled as infrequently as only once per day.

I am not worried, by the train being powered by hydrogen, but because of the large tanks in the train, the passenger capacity will be lower, than a diesel, electric or battery electric train of a similar length.

I suspect though, that Alstom will be pitching for the order.

Aventras

In this article in Global Rail News from 2011, which is entitled Bombardier’s AVENTRA – A new era in train performance, gives some details of the Aventra’s electrical systems. This is said.

AVENTRA can run on both 25kV AC and 750V DC power – the high-efficiency transformers being another area where a heavier component was chosen because, in the long term, it’s cheaper to run. Pairs of cars will run off a common power bus with a converter on one car powering both. The other car can be fitted with power storage devices such as super-capacitors or Lithium-ion batteries if required. The intention is that every car will be powered although trailer cars will be available.

Unlike today’s commuter trains, AVENTRA will also shut down fully at night. It will be ‘woken up’ by remote control before the driver arrives for the first shift

This was published over nine years ago, so I suspect Bombardier have refined the concept.

Bombardier have not announced that any of their trains have energy storage, but I have my suspicions, that both the Class 345 and Class 710 trains use super-capacitors or Lithium-ion batteries, as part of their traction system design.

I believe that Bombardier, have the ability to build an Aventra to this specification.

  • Three-cars
  • 100 mph running
  • Sixty mile range on battery power.
  • Dual voltage.
  • Ability to work in pairs.

Like the Hitachi trains, they would be new build.

CAF

CAF have proposed a battery electric train based on the Class 331 train, which I wrote about in Northern’s Battery Plans.

It is a four-car development of the three-car Class 331 trains.

Can it be built as a three-car train to fit the specification?

Conclusion

There are some good candidates sir supplying an interim fleet of trains for the East West Railway.

My money’s on one of the following.

  • New Hitachi Class 385 trains
  • Converted Class 379 trains.
  • New Aventras

All would be battery electric trains.

But there is a change that Alstom’s Class 600 hydrogen trains could be used.













November 14, 2020 Posted by | Hydrogen, Transport/Travel | , , , , , , , , , , , , , | 10 Comments

Geo-located Advertising

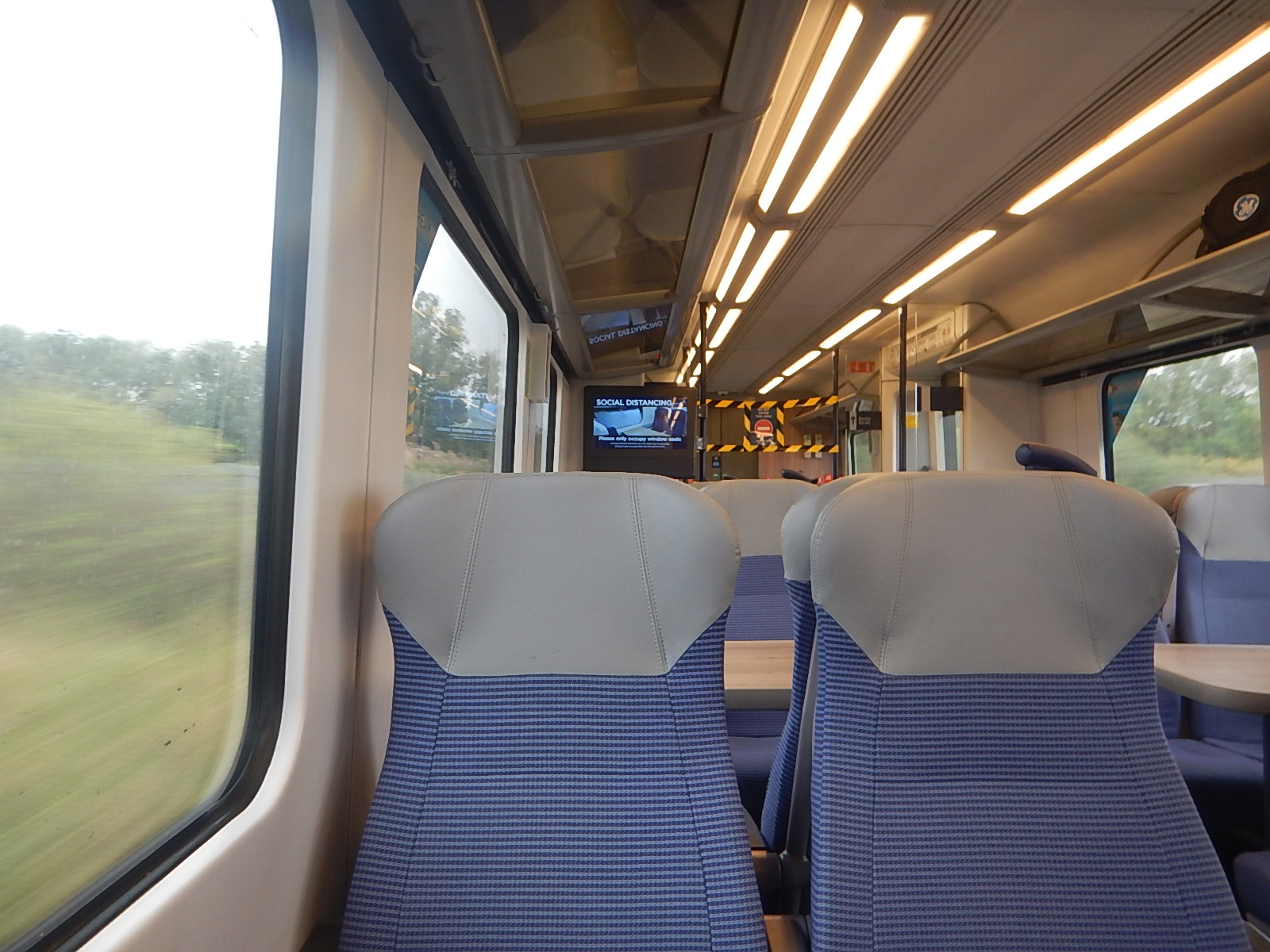

I took this picture on the TransPennine Express service from Cleethorpes to Doncaster.

We were approaching Habrough station at the time, and I’d just seen an advert on the screen for Habrough Taxis.

It must have been displayed because of the location of the train. Very useful for everybody!

September 20, 2020 Posted by | Transport/Travel | , , , | Leave a comment

Cleethorpes Station – 16th September 2020

On Wednesday, I took a trip on the South Humberside Main Line from Doncaster to Cleethorpes and back.

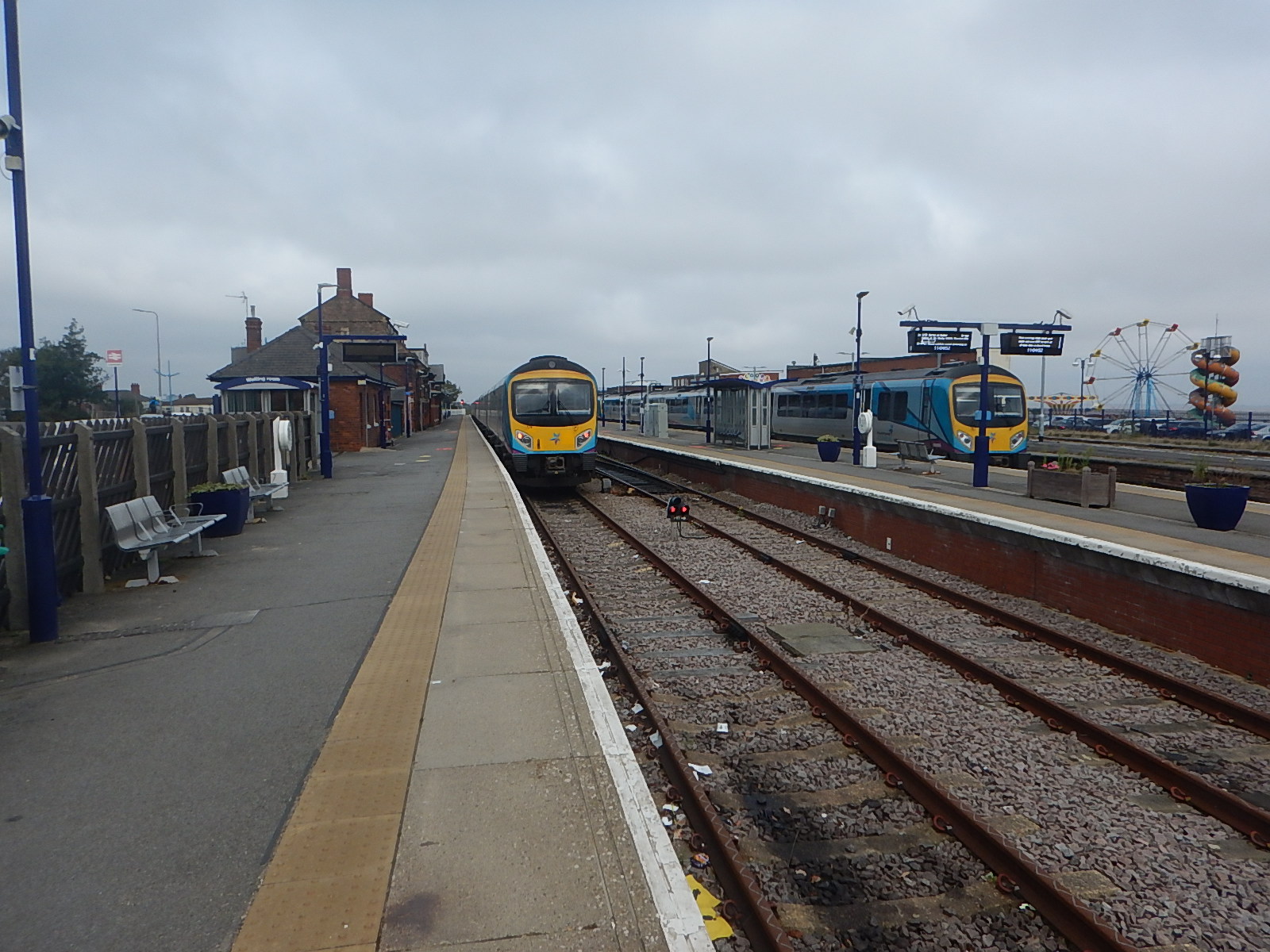

Cleethorpes station is a terminal station on the beach, with cafes not far away.

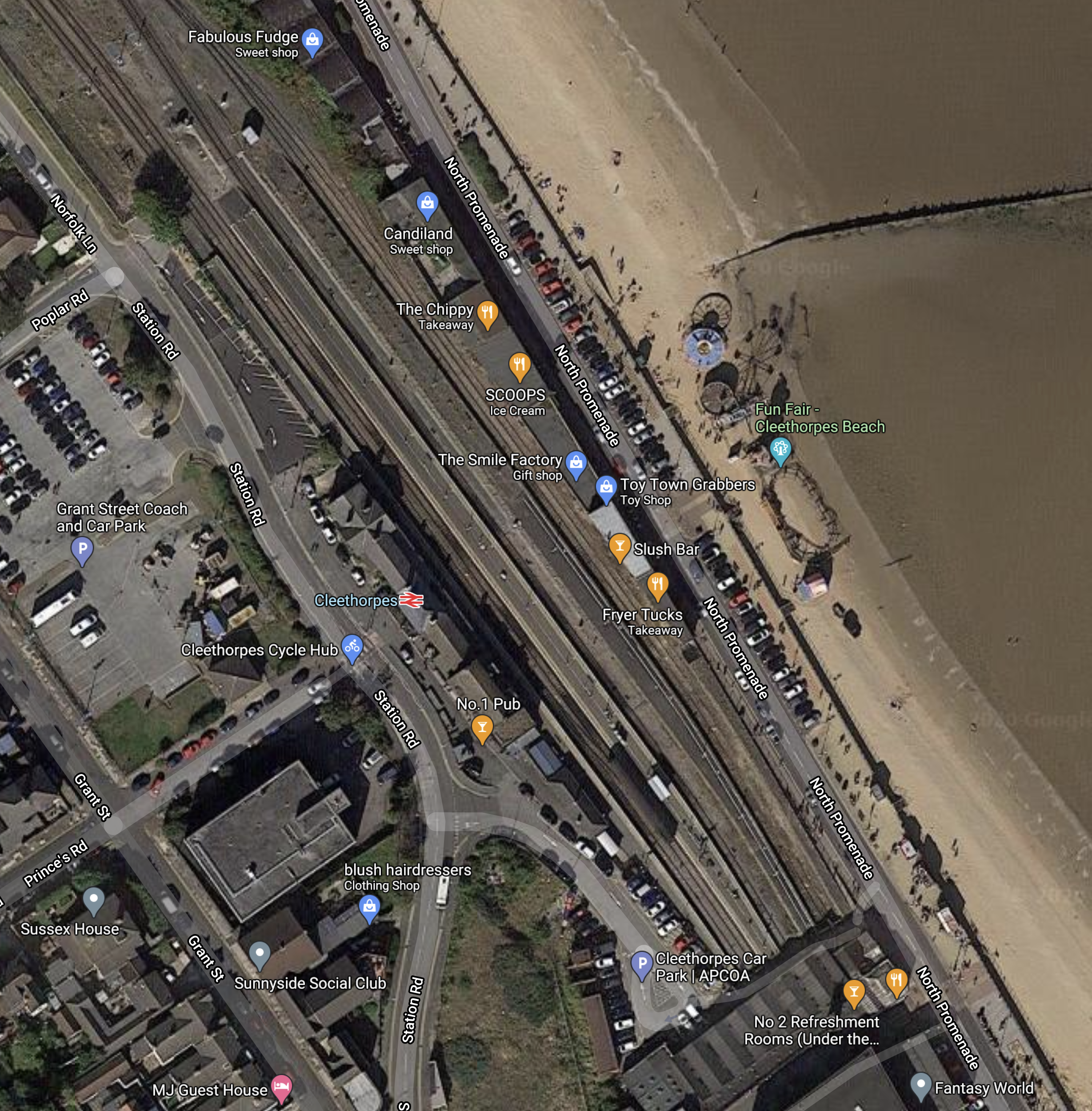

This Google Map shows the station and its position on the sea-front and the beach.

The station organisation was a bit shambolic at present, probably more to do with COVID-19 than anything else, but the station and the train services could be developed into something much better, when the good times return, as they surely will.

Improving The Station Facilities

The original station building is Grade II Listed and although it is only only a three-platform station, there used to be more platforms.

Five platforms or even six would be possible, if there were to be a need.

But as the station has wide platforms, is fully step-free and has most facilities passengers need, most of the improvements would involve restoring the original station building for a productive use.

The Current Train Service

The main train service is an hourly TransPennine Express service between Cleethorpes and Manchester Airport stations via Grimsby Town, Scunthorpe, Doncaster, Sheffield and Manchester Piccadilly.

The trains are Class 185 trains, which are modern diesel multiple units, which entered service in 2006.

There is also a two-hourly service along the Barton Line to Barton-upon-Humber station.

It should be noted that all services to and from Cleethorpes, call at Grimsby Town station.

Could The TransPennine Service Be Run By Battery Electric Trains?

The route between Cleethorpes and Manchester Airport can be split into the following legs.

  • Cleethorpes and Grimsby Town – Not Electrified – 3,25 miles – 8 minutes
  • Grimsby Town and Habrough – Not Electrified – 8 miles – 12 minutes
  • Habrough and Doncaster – Not Electrified – 41 miles – 56 minutes
  • Doncaster and Sheffield – Not Electrified – 19 miles – 29 minutes
  • Sheffield and Stockport – Not Electrified – 37 miles – 41 minutes
  • Stockport and Manchester Piccadilly – Electrified – 6 miles – 10 minutes
  • Manchester Piccadilly and Manchester Airport – Electrified – 11 miles – 12 minutes

Note.

  1. At the Manchester end of the route, trains are connected to the electrification for at least 44 minutes.
  2. The longest non-electrified leg is the 52 miles between Cleethorpes and Doncaster stations.
  3. Doncaster is a fully-electrified station.

This infographic shows the specification of a Hitachi Regional Battery Train.

TransPennine Express has a fleet of nineteen Class 802 trains, which can have their diesel engines replaced with battery packs to have a train with the following performance.

  • 125 mph operating speed, where electrification exists.
  • 56 mile range at up to 100 mph on battery power.
  • 15 minute battery charge time.
  • Regenerative braking to battery.
  • They are a true zero-carbon train.

What infrastructure would be needed, so they could travel between Cleethorpes and Manchester Airport stations?

  • If between Cleethorpes and Habrough stations were to be electrified, this would give at least 20 minutes of charging time, plus the time taken to turn the train at Cleethorpes. This would surely mean that a train would leave for Manchester, with a full load of electricity on board and sufficient range to get to Doncaster and full electrification.
  • If between Doncaster and Sheffield were to be electrified, this would give at least 25 minutes of charging time, which would be enough time to fully-charge the batteries, so that Grimsby Town in the East or Stockport in the West could be reached.

I suspect that Doncaster and Sheffield could be an early candidate for electrification for other reasons, like the extension of the Sheffield tram-train from Rotherham to Doncaster.

Could The Cleethorpes And Barton-on-Humber Service Be Run By Battery Electric Trains?

Cleethorpes And Barton-on-Humber stations are just 23 miles apart.

This is probably a short enough route to be handled on and out and back basis, with charging at one end by a battery electric train. Vivarail are claiming a sixty mile range for their battery electric Class 230 trains on this page of their web site.

If between Cleethorpes and Grimsby Town stations were to be electrified, this would mean that a range of only forty miles would be needed and the batteries would be charged by the electrification.

A full hourly service, which is surely needed, would need just two trains for the service and probably a spare.

Cleethorpes And London King’s Cross Via Grimsby Town, Market Rasen, Lincoln Central And Newark North Gate

The Wikipedia entry for Cleethorpes station has references to this service.

This is the historical perspective.

In the 1970s Cleethorpes had a twice daily return service to London King’s Cross, typically hauled by a Class 55 Deltic.

That must have been an impressive sight.

And this was National Express East Coast’s plan.

In August 2007, after National Express East Coast was awarded the InterCity East Coast franchise, it proposed to start services between Lincoln and London King’s Cross from December 2010 with one morning service and one evening service extending from Lincoln to Cleethorpes giving Cleethorpes a link to London and calling at Grimsby Town and Market Rasen. These services were to be operated using the Class 180s but was never introduced. These services were scrapped when East Coast took over the franchise.

It came to nothing, but LNER have been running up to five trains per day (tpd) between London King’s Cross and Lincoln.

I will split the route into legs.

  • London King’s Cross and Newark North Gate- Electrified – 120 miles
  • Newark North Gate and Lincoln Central – Not Electrified – 16,5 miles
  • Lincoln Central and Market Rasen – Not Electrified – 15 miles
  • Market Rasen and Habrough – Not Electrified – 21 miles
  • Habrough and Grimsby Town – Not Electrified – 8 miles
  • Grimsby Town and Cleethorpes – Not Electrified – 3.25 miles

Note that a  round trip between Newark North Gate and Lincoln Central is thirty-three miles.

This means it would be possible for one of LNER’s Class 800 trains, that had been fitted with a battery pack and converted into one of Hitachi’s Regional Battery trains, would be able to run a London King’s Cross and Lincoln Central service without using a drop of diesel or needing a charge at Lincoln Central station.

Would it be possible to extend this service to Grimsby Town on battery power?

I suggested earlier that between Cleethorpes and Habrough should be electrified.

As Newark North Gate and Habrough stations are 52.5 miles apart, it would be rather tight for a battery electric train to cover the whole route without an extra charge somewhere.

Possible solutions could be.

  • Fit a bigger battery in the trains.
  • Extend the electrification at Newark North Gate station.
  • Extend the electrification at Habrough station.

I;m sure that there is a solution, that is easy to install.

Conclusion

If between Habrough and Cleethorpes station were to be electrified, these services could be run by battery electric trains.

  • Cleethorpes and Manchester Piccadilly
  • Cleethorpes and Barton-on-Humber
  • Cleethorpes and London King’s Cross

Note.

  1. The Manchester and London services would be run by Hitachi Regional Battery Trains converted from Class 800 and Class 802 trains.
  2. The Barton service could be run by a Vivarail Class 230 train or similar.

The first two services would be hourly, with the London service perhaps 1 or 2 tpd.

Cleethorpes would be well and truly on the rail network.

September 18, 2020 Posted by | Health, Transport/Travel | , , , , , , , , , , | 1 Comment

Irish Rail Seeks Second-Hand DMUs To Boost Fleet Capacity

The title of this post is the same as that of this article on the Internation Railway Journal.

Ireland needs more capacity on its railways and the preferred solution appears to be some second-hand DMUs.

It is likely, they will come from Great Britain.

  • We are replacing some DMUs with new fleets.
  • The Irish have a similar restricted loading gauge.
  • The trains will need to be converted from standard to Irish gauge.

The article mentions that Class 185 trains are likely candidates.

Yet again, the stupid decision of the British Government in the Railway Regulation (Gauge) Act 1846, is costing the Irish good money.

February 15, 2019 Posted by | Transport/Travel | , , | 2 Comments
