Will High Speed Two’s Classic-Compatible Trains Have Battery Operation?

I believe it is very likely, that High Speed Two’s new classic-compatible trains will have battery capabilities.

  • Batteries would handle energy generated by regenerative braking.
  • Batteries would give a train recovery capability in case of overhead catenary failure.
  • Batteries would be used for depot movements.
  • Batteries would probably improve the energy efficiency of the trains.

Effectively, the batteries would power the train and would be topped-up by the electrification and the regenerative braking.

But would they be able to give the trains a route extension capability on lines without electrification?

Consider.

  • Battery technology is getting better with energy capacity per kilogram increasing.
  • Batteries will be full, when the train leaves the electrification.
  • These trains will be as light as possible.
  • Trains will not be running at speeds in excess of perhaps 100 mph without electrification.
  • Fast charging can be provided at station stops.

I think, that trains could be able to do at least 40 to 50 miles on a full charge.

Fast Charging Technology

The most promising fast-charging technology is Vivarail’s system of using a length of conventional third-rail connected to a bank of batteries. When the train connects with the third-rail, electricity flows to the batteries on the train.

There are also others working on systems that use short lengths of overhead electrification.

Both systems can be totally automatic and safe.

Example Routes

These are three possible example routes.

Aberdeen And Edinburgh

These are the distances between stops on the route between Aberdeen and Edinburgh.

  • Aberdeen and Stonehaven – 12 miles
  • Stonehaven and Montrose – 24 miles
  • Montrose and Arbroath – 14 miles
  • Arbroath and Dundee – 17 miles
  • Dundee and Leuchars – 8 miles
  • Leuchars and Kirkaldy – 25 miles
  • Kirkcaldy and Inverkeithing – 13 miles
  • Inverkeithing and Edinburgh – 13 miles

It is a total of 130 miles without electrification.

The route is also generally flat and mainly along the coast.

Inverness And Edinburgh

These are the distances between stops on the route between Inverness and Strirling.

  • Inverness and Aciemore- 35 miles
  • Aviemore and Kingussie – 12 miles
  • Kingussie and Pitlochry – 43 miles
  • Pitlochry and Perth – 30 miles
  • Perth and Gleneagles – 15 miles
  • Gleneagles and Stirling – 17 miles

It is a total of 152 miles without electrification.

As there are some steep gradients, there may be a need for some electrification in certain sections of the route.

Holyhead And Crewe

These are the distances between stops on the route between Holyhead and Crewe

  • Holyhead and Bangor – 25 miles.
  • Bangor and Llandudno Junction – 16 miles
  • Llandudno Junction and Colwyn Bay – 4 miles
  • Colwyn Bay and Rhyl – 10 miles
  • Rhyl and Prestatyn – 4 miles
  • Prestatyn and Flint – 14 miles
  • Flint and Chester – 13 miles
  • Chester and Crewe – 21 miles

It is a total of 105 miles without electrification.

The route is also generally flat and mainly along the coast.

A Stepping-Stone Approach

I believe there is a design of fast charger, that in say a three minute stop can charge the battery sufficient to get to the next station. The electrification might continue for perhaps a couple of hundred metres from the station on the tracks where the trains are accelerating.

A train making a stop at a station would do the following.

  • As it approaches the stop, the train’s kinetic energy is turned into electricity by the regenerative braking.
  • This energy is stored in the batteries.
  • In the station, the batteries are charged from the fast charger or electrification.
  • Whilst stopped, the batteries provide the power for the train’s systems.
  • Accelerating away would use the batteries or electrification if it is installed.

The train’s computer would monitor the batteries and control the various power systems and sources to run the train in the most efficient manner.

This sequence would be repeated at each stop as the train progressed to its destination.

Extra Electrification

In the section on the challenging Edinburgh and Inverness route, I said that some gradients would probably need to be electrified to maintain progress.

But there are other sections, where electrification has been suggested.

  • Stirling and Perth
  • Crewe and Chester

So could we be seeing a mixture of electrification and charging stations on routes to allow electric trains to serve routes, where full electrification is impossible for practical, scenic, heritage or cost reasons?

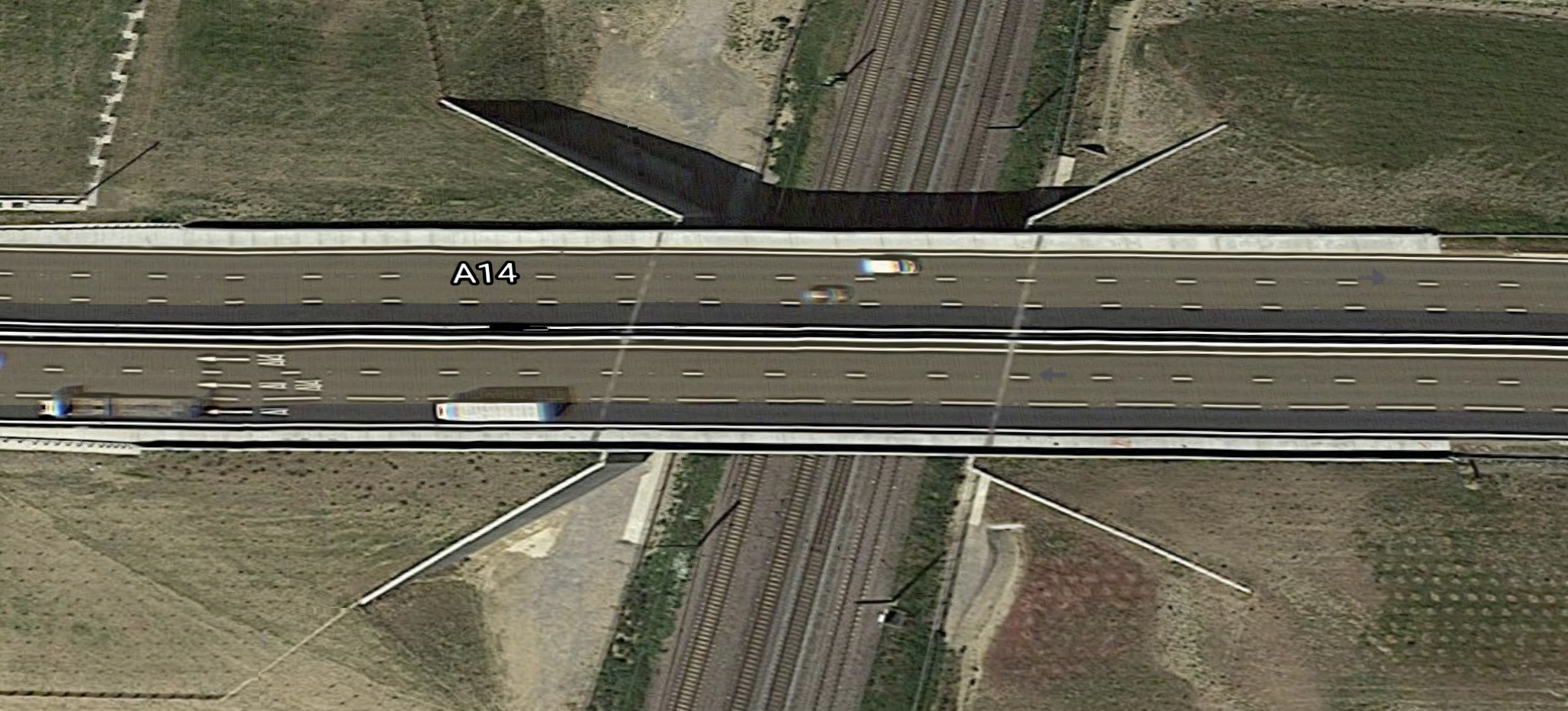

The South Wales Metro is to use discontinuous electrification to save the cost of rebuilding innumerable bridges.

Conclusion

I believe that engineers can design high speed trains, that will be able to run on existing lines using battery power to serve the remoter parts of Great Britain.
