Track Monitoring System To Be Tested On Chiltern Line

The title of this post, is the same as that of this article on Railway Gazette.

This is the first paragraph.

Network Rail is to undertake in-service trials with DB Systemtechnik’s CTM2·0 continuous track monitoring system on a Chiltern Railways MkIII driving van trailer operating in passenger service between London Marylebone and Birmingham.

This seems to me to be a good idea.

  • The German system appears to be comprehensive and has been in service for seven years.
  • There is a lot of space in the back of a driving van trailer.
  • It probably can do much of the work of the New Measurement Train, but more often.

It could surely be applied to other routes.



The picture shows the driving van trailers on the London-ends of a pair of InterCity 225s at King’s Cross.

Some Open Access Operators are also looking at the possibility of running short InterCity 225 sets.

It would also be possible to create extra Measurement Trains, by coupling an instrumented driving van trailer to an appropriate locomotive and a couple of coaches.

As a Control Engineer, who has analysed a lot of data in his working life, it could improve rail safety by testing rail lines more often.

October 25, 2021 Posted by | Transport/Travel | , , , , | Leave a comment

Open Access Operators And The Lumo Model

In the UK, there are only three established Open Access operators, who run UK train services.

  • Grand Central
  • Heathrow Express
  • Hull Trains

From the 25th of October, they will be joined by Lumo.

We probably don’t think of Heathrow Express as an Open Access operator and as it is effectively a short distance special service with new trains between Heathrow and Paddington, it has its own business model, that may or may not survive.

But how will Lumo and their bold new business model affect Grand Central, Hull Trains and any future Open Access operators?

Grand Central Trains

Grand Central is a well-established Open Access operator.

  • They run services between London King’s Cross and Bradford Interchange, Sunderland and several other convenient en-route stations.
  • They are owned by Deutsche Bahn.
  • They also regularly seem to apply for new routes and extra services.

But they have a big problem fast catching up on them; they have a diesel-only fleet and need to decarbonise.

I also think that all express passenger services on the East Coast Main Line will at some date need to be run by 140 mph trains capable of running with full digital signalling and a degree of Automatic Train Operation.

In Lumo: Why Won’t The New Train Service Stop At Yorkshire Stations?, I said that to continue to be successful, they probably need to embrace the Lumo model and acquire new trains.

I will repeat what I said in the related post.

This would entail.

  • The ten diesel Class 180 trains would be replaced by new electric trains.
  • The trains would need a 140 mph capability under digital signalling to fit in with the plans of Network Rail, LNER and Lumo to create a top-class high-speed high-capacity East Coast Main Line.
  • The trains would need a battery capability as Grand Central’s routes are not fully electrified.
  • They could copy Lumo’s green marketing philosophy, ticketing and catering offering.

As to the trains, I’m sure that Hitachi could offer a version of their Intercity Tri-Mode Battery Train, the specification of which is shown in this Hitachi infographic.

The trains would need a range of fifty miles on battery-power.

I have some other thoughts.

Financing

If you look at the finances of decarbonising Grand Central, they would need a new fleet of ten trains, which as Lumo’s fleet of five trains are reported to be costing £100 million, so that figure can be at least doubled.

There would also be costs for the two charging systems at Bradford Interchange and Sunderland. But at least there are several possible solutions for charging systems, so the price will probably not be more than a few million, if that.

Will Deutsche Bahn be prepared to stump up the extra finance?

A Service To Cleethorpes

In the Wikipedia entry for Grand Central, there is a section which is entitled London Kings Cross to Cleethorpes, which outlines a proposed service.

  • It would split and join with the London King’s Cross and Bradford service at Doncaster.
  • It would call at Crowle, Scunthorpe, Barnetby, Habrough and Grimsby.
  • Doncaster and Cleethorpes is 52.1 miles and should be in range of a Battery-electric train with a charging system at Cleethorpes.

Using current times from LNER and TransPennine Express, I estimate that Hitachi Intercity Tri-Mode Battery Trains could travel between London and Cleethorpes in around two hours and twenty minutes.

With digital signalling on the East Coast Main Line to the South of Doncaster, the overall time could be much closer to two hours.

This could be a very viable service with battery-electric trains capable of running at 140 mph on the East Coast Main Line and for sixty miles at 100 mph on battery power.

Maximising The Use Use Of Train Paths By The Use Of Splitting And Joining

The proposed service to Cleethorpes is a classic use of splitting and joining, which enables two separate services to run a large part of their routes together.

  • On the East Coast Main Line, it means that maximum use can be made of the paths available.
  • Splitting and joining is part of the specification for the Hitachi trains and they do it automatically in under two minutes.
  • LNER are already talking about using the technique to serve various destinations from Leeds.

I wouldn’t rule out Grand Central’s two services working as a pair between London King’s Cross and Doncaster, where they would split and join.

Conclusion On Grand Central Trains

Decarbonisation with high-speed battery-electric trains could ensure the future of Grand Central Trains.

Hull Trains

Hull Trains is another well-established Open Access operator.

  • They run services between London King’s Cross and Hull and Beverley.
  • They have a fleet of five bi-mode Class 802 trains.
  • The company is part of First Group.

Hull Trains don’t have the decarbonisation problem of Grand Central Trains, as I suspect Hitachi will come up with a solution to turn Class 802 trains into a battery-electric train with a range of perhaps seventy miles on battery power.

  • Beverley and Temple Hirst junction is a distance of 44.3 miles and is the only section of the route without electrification.
  • Charging of the batteries will be needed at the Eastern end and probably would be best handled by a short length of electrification in Hull station or between Hull and Brough stations.

The Class 802 trains are also ready for updating to run under the new digital signalling of the East Coast Main Line.

First Harrogate Trains

First Harrogate Trains was a subsidiary of Hull Trains, which hoped to run the following services.

  • London King’s Cross and Harrogate via York
  • London King’s Cross and Cleethorpes via Peterborough, Spalding and Lincoln

Both these services could be run in conjunction with the current service with an appropriate split and join.

Conclusion On Hull Trains

As both Hull Trains and Lumo share London King’s Cross and are both owned by First Group, I would expect that both train operators would share some services, methods and ideas.

There may be advantages if Hull Trains’s Class 802 trains and Lumo’s Class 803 trains could run each other’s services.

Grand Union

Grand Union is a prospective open access operator who are proposing to operate train services from England to Wales and Scotland.

They are proposing two services.

London Paddington and Cardiff Central via Reading, Bristol Parkway, Severn Tunnel Junction, Newport and Cardiff Parkway, with a possible extension later to Swansea andLlanelli or Carmarthen.

London Euston and Stirling via Milton Keynes Central, Nuneaton, Crewe, Preston, Carlisle, Lockerbie, Motherwell, Whifflet, Greenfaulds and Larbert.

Note.

  1. London Paddington and Cardiff Central is fully electrified, but there is no electrification West of Cardiff Central.
  2. Cardiff Central and Swansea are 45.7 miles apart.
  3. London Euston and Stirling is fully electrified.

Currently, the rolling stock for both services is proposed to be a tri-mode Class 93 locomotive hauling a rake of Mark 4 coaches and a driving van trailer.

The locomotive should be capable of handling the routes to Stirling and Cardiff using the electrification alone.

When the Cardiff route is extended, Grand Union would intend to use Class 802 trains, which could be fitted with batteries to serve Swansea, where the batteries would be charged.

There is no sign as yet, that the Office of Rail and Road have approved any of their possible services, but both services might be improved with some Lumo-style thinking.

Alliance Rail Holdings

Alliance Rail Holdings, which is a sister company to Grand Central, is ultimately owned by Deutsche Bahn, seems to have several ideas for new services, but only seems to have got approval to one.

They were given approval some years ago to run a service between London Euston and Blackpool North.

  • Calls would be made at Poulton-le-Fylde, Kirkham and Wesham, Preston, Nuneaton and Milton Keynes Central.
  • There will be six trains per day.
  • Trains would be InterCity 225 trains.
  • The approval is for seven years from 2018.

But because of the pandemic it hasn’t run.

Conclusion

The Lumo model will affect all these services.







September 12, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , | 3 Comments

Grand Union Plans ‘93s’ To Stirling

The title of this post, is the same as an article in the August 2021 Edition of Modern Railways.

This is the first paragraph.

Grand Union Trains hopes to use tri-mode Class 93 locomotives ordered by Rail Operations (UK) Ltd on its proposed Stirling to London Euston open access service – if it is approved by the Office of Rail and Road.

The article also says that they will be using nine-car rakes of Mark 4 coaches and a driving van trailer.

  • Full-length InterCity 225 trains have the same formation.
  • A full-length InterCity 125 can carry 406 Standard Class and 129 First Class passengers.
  • InterCity 225 trains are hauled by a Class 91 locomotive, which is rated at 4.8 MW.
  • A Class 93 locomotive has a rating of 4 MW on electricity.

As the Class 93 locomotive has a maximum speed of 110 mph, as opposed to the 125 mph of the Class 91 locomotive, the reduced power is probably enough.

Th following sections give more information from the article.

Planned Route

This sentence from the article gives the route.

If approved, trains will call at Greenfaulds, Whifflet and Motherwell on their way south from Stirling, then Lockerbie, Carlisle, Preston, Crewe and Nuneaton before arrival in London.

The route appears to be fully-electrified.

Planned Timetable

More details of the planned service are also revealed.

  • Trains will be approximately every three hours.
  • There will be four trains per day in each direction.
  • The first train South will leave Stirling at 05:15
  • The first train North will leave Euston at 07:30.

That will be a total of around 3,500 seats per day or over a million seats per year.

Planned Start Date

A start date around the end of 2022 is suggested, but it does say that delivery of the Class 93 locomotives could make this tight.

But it does appear that gauge clearance for the service is in hand.

Conclusion

I like this service proposal and I think the Class 93 locomotive improves it.

I do think if Grand Union’s service is an operational success, that we will see these locomotives replacing Class 68 locomotives on passenger services, where there is a proportion of electrification.

Could the almost brand-new Class 68 locomotives be converted to run on hydrogen, as surely they are too young for the scrapyard?

Stadler are not stupid and I suspect they could be converted to something with a smaller carbon footprint. My choice would be hydrogen.

August 11, 2021 Posted by | Transport/Travel | , , , | 9 Comments

What Is Possible On The East Coast Main Line?

In the Wikipedia entry for the Class 91 locomotive, there is an amazing story.

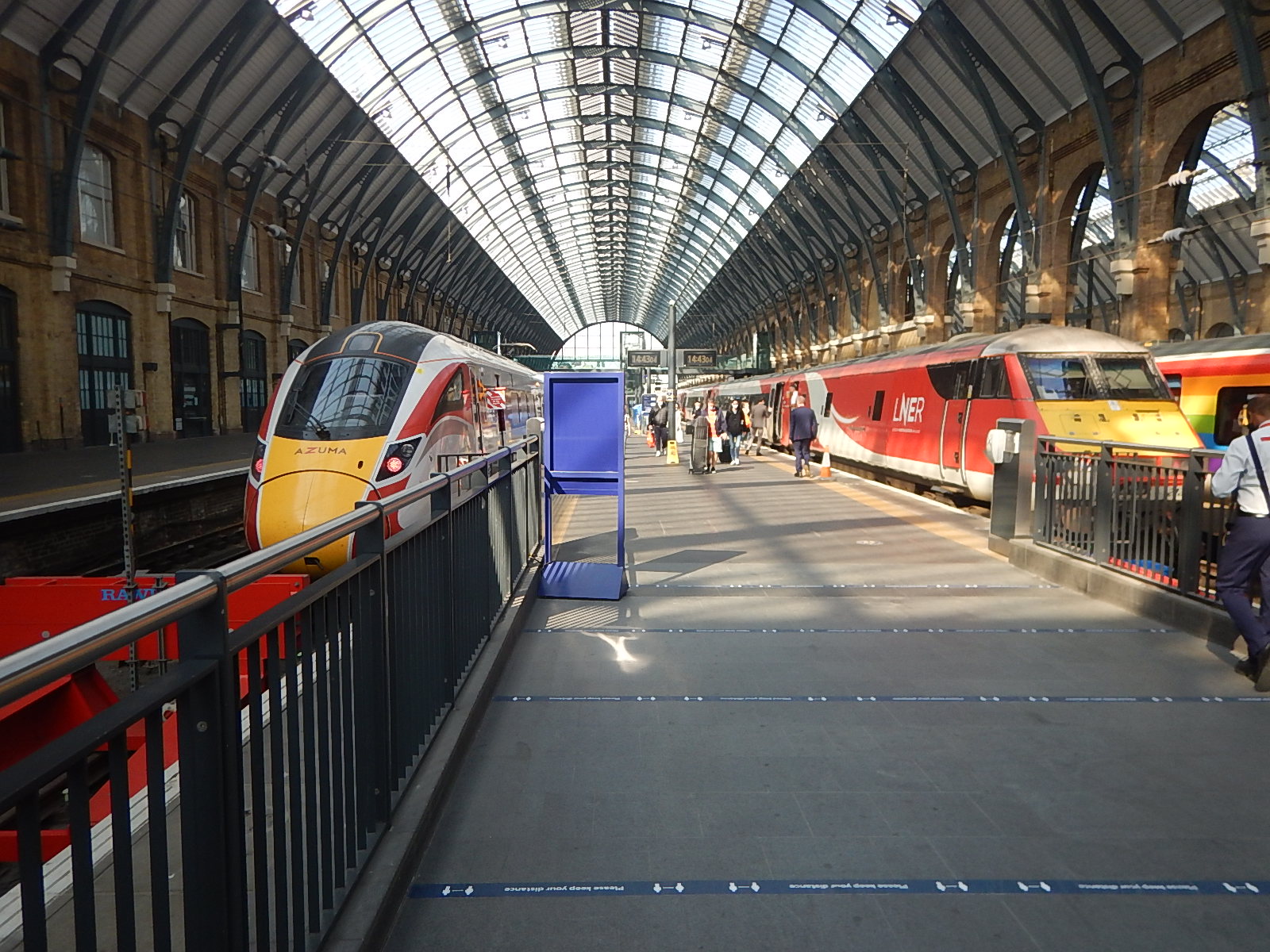

This picture shows one of these locomotives at Kings Cross.

Note.

  1. They have a design speed of 140 mph.
  2. They have a power output of 4.8 MW.
  3. They were built around 1990 by British Rail at Crewe.

They were designed to run services between London King’s Cross and Edinburgh as fast as possible, as the motive power of the InterCity 225 trains.

This section in the Wikipedia entry for the Class 91 locomotive is entitled Speed Record. This is the first paragraph.

A Class 91, 91010 (now 91110), holds the British locomotive speed record at 161.7 mph (260.2 km/h), set on 17 September 1989, just south of Little Bytham on a test run down Stoke Bank with the DVT leading. Although Class 370s, Class 373s and Class 374s have run faster, all are EMUs which means that the Electra is officially the fastest locomotive in Britain. Another loco (91031, now 91131), hauling five Mk4s and a DVT on a test run, ran between London King’s Cross and Edinburgh Waverley in 3 hours, 29 minutes and 30 seconds on 26 September 1991. This is still the current record. The set covered the route in an average speed of 112.5 mph (181.1 km/h) and reached the full 140 mph (225 km/h) several times during the run.

Note.

  1. For the British locomotive speed record, locomotive was actually pushing the train and going backwards, as the driving van trailer (DVT) was leading.
  2. How many speed records of any sort, where the direction isn’t part of the record, have been set going backwards?
  3. I feel that this record could stand for many years, as it is not very likely anybody will build another 140 mph locomotive in the foreseeable future. Unless a maverick idea for a high speed freight locomotive is proposed.

I have a few general thoughts on the record run between Kings Cross and Edinburgh in three-and-a-half hours.

  • I would assume that as in normal operation of these trains, the Class 91 locomotive was leading on the run to the North.
  • For various reasons, they would surely have had at least two of British Rail’s most experienced drivers in the cab.
  • At that time, 125 mph InterCity 125 trains had been the workhorse of East Coast Main Line for well over ten years, so British Rail wouldn’t have been short of experienced high speed drivers.
  • It was a Thursday, so they must have been running amongst normal traffic.
  • On Monday, a typical run between Kings Cross and Edinburgh is timetabled to take four hours and twenty minutes.
  • High Speed Two are predicting a time of three hours and forty-eight minutes between Euston and Edinburgh via High Speed Two and  the West Coast Main Line.

The more you look at it, a sub-three-and-and-a-half hour time, by 1980s-technology on a less-than-perfect railway was truly remarkable.

So how did they do it?

Superb Timetabling

In Norwich-In-Ninety Is A Lot More Than Passengers Think!, I talk about how Network Rail and Greater Anglia created a fast service between Liverpool Street and Norwich.

I suspect that British Rail put their best timetablers on the project, so that the test train could speed through unhindered.

Just as they did for Norwich-in-Ninety and probably will be doing to the East Coast Main Line to increase services and decrease journey times.

A Good As ERTMS Signalling

Obviously in 1991, there was no modern digital in-cab signalling and I don’t know the standard of communication between the drivers and the signallers.

On the tricky sections like Digswell Viaduct, through Hitchin and the Newark Crossing were other trains stopped well clear of any difficult area, as modern digital signalling can anticipate and take action?

I would expect the test train got a signalling service as good as any modern train, even if parts of it like driver to signaller communication may have been a bit experimental.

There may even have been a back-up driver in the cab with the latest mobile phone.

It must have been about 1991, when I did a pre-arranged airways join in my Cessna 340 on the ground at Ipswich Airport before take-off on a direct flight to Rome. Air Traffic Control had suggested it to avoid an intermediate stop at say Southend.

The technology was arriving and did it help the drivers on that memorable run North ensure a safe and fast passage of the train?

It would be interesting to know, what other equipment was being tested by this test train.

A Possible Plan

I suspect that the plan in 1991 was to use a plan not unlike one that would be used by Lewis Hamilton, or in those days Stirling Moss to win a race.

Drive a steady race not taking any chances and where the track allows speed up.

So did British Rail drive a steady 125 mph sticking to the standard timetable between Kings Cross and Edinburgh?

Then as the Wikipedia extract indicated, at several times during the journey did they increase the speed of the train to 140 mph.

And the rest as they say was an historic time of 3 hours, 29 minutes and 30 seconds. Call it three-and-a-half-hours.

This represented a start-to-stop average speed of 112.5 mph over the 393 miles of the East Coast Main Line.

Can The Current Trains Achieve Three-And-A-Half-Hours Be Possible Today?

Consider.

  • The best four hours and twenty minutes timings of the Class 801 trains, represents an average speed of 90.7 mph.
  • The Class 801 trains and the InterCity 225 trains have similar performance.
  • There have been improvements to the route like the Hitchin Flyover.
  • Full ERTMS in-cab signalling is being installed South of Doncaster.
  • I believe ERTMS and ETC could solve the Newark Crossing problem! See Could ERTMS And ETCS Solve The Newark Crossing Problem?
  • I am a trained Control Engineer and I believe if ERTMS and ETC can solve the Newark Crossing problem, I suspect they can solve the Digswell Viaduct problem.
  • The Werrington Dive Under is being built.
  • The approaches to Kings Cross are being remodelled.

I can’t quite say easy-peasy. but I’m fairly certain the Kings Cross and Edinburgh record is under serious threat.

  • A massive power supply upgrade to the North of Doncaster is continuing. See this page on the Network Rail web site.
  • ERTMS and ETC probably needs to be installed all the way between Kings Cross and Edinburgh.
  • There may be a need to minimise the number of slower passenger trains on the East Coast Main Line.
  • The Northumberland Line and the Leamside Line may be needed to take some trains from the East Coast Main Line.

Recent Developments Concerning the Hitachi Trains

There have been several developments  since the Hitachi Class 800 and Class 801 trains were ordered.

  • Serious engineers and commentators like Roger Ford of Modern Railways have criticised the lugging of heavy diesel engines around the country.
  • Network Rail have upgraded the power supply South of Doncaster and have recently started to upgrade it between Doncaster and Edinburgh. Will this extensive upgrade cut the need to use the diesel power-packs?
  • Hitachi and their operators must have collected extensive in-service statistics about the detailed performance of the trains and the use of the diesel power-packs.
  • Hitachi have signed an agreement with Hyperdrive Innovation of Sunderland to produce battery-packs for the trains and two new versions of the trains have been announced; a Regional Battery Train and an Intercity Tri-Mode Battery Train.
  • East Coast Trains have ordered five five-car Class 803 trains, each of which will have a small battery for emergency use and no diesel power-packs.
  • Avanti West Coast have ordered ten seven-car Class 807 trains, each of which have no battery or diesel power-packs.

And these are just the ones we know about.

The Class 807 Trains And Liverpool

I find Avanti West Coast’s Class 807 trains the most interesting development.

  • They have been partly financed by Rock Rail, who seem to organise train finance, so that the train operator, the train manufacturer all get the best value, by finding good technical solutions.
  • I believe that these trains have been designed so they can run between Euston and Liverpool Lime Street stations in under two hours.
  • Does the absence of battery or diesel power-packs save weight and improve performance?
  • Euston and Liverpool Lime Street in two hours would be an average of only 96.8 mph.
  • If the Class 807 trains could achieve the same start-stop average of 112.5 mph achieved by the InterCity 225 test run between Kings Cross and Edinburgh, that would mean a Euston and Liverpool Lime Street time of one hour and forty-three minutes.
  • Does Thunderbird provision on the West Coast Main Line for the Class 390 trains mean that the Class 807 trains don’t need emergency power?
  • Have diesel power-packs been rarely used in emergency by the Hitachi trains?

I believe the mathematics show that excellent sub-two hour times between Euston and Liverpool Lime Street are possible by Avanti West Coast’s new Class 807 trains.

The Class 803 Trains And Edinburgh

East Coast Trains ordered their Class 803 trains in March 2019,  nine months before Avanti West Coast ordered their Class 807 trains.

In Trains Ordered For 2021 Launch Of ‘High-Quality, Low Fare’ London – Edinburgh Service, I outlined brief details of the trains and the proposed service.

  • FirstGroup is targeting the two-thirds of passengers, who fly between London and Edinburgh.
  • They are also targeting business passengers, as the first train arrives in Edinburgh at 10:00.
  • The trains are five-cars.
  • The trains are one class with onboard catering, air-conditioning, power sockets and free wi-fi.
  • Stops will be five trains per day with stops at Stevenage, Newcastle and Morpeth.
  • The trains will take around four hours.
  • The service will start in Autumn 2021.

I also thought it would be a successful service

As I know Edinburgh, Liverpool and London well, I believe there are similarities between the Euston-Liverpool Lime Street and Kings Cross-Edinburgh routes.

  • Both routes are between two cities known all over the world.
  • Both routes are fully-electrified.
  • Both routes have the potential to attract passengers from other transport modes.

The two services could even be run at similar speeds.

  • Euston-Liverpool Lime Street in two hours will be at 96.8 mph
  • Kings Cross-Edinburgh in four hours will be at 98.3 mph.

Does this explain the similar lightweight trains?

Could Lightweight Trains Help LNER?

There is one important factor, I haven’t talked about in detail in this post. Batteries and diesel power-packs on the Hitachi trains.

I have only mentioned them in the following circumstances.

  • When trains are not fitted with battery and/or diesel power-packs.
  • When battery developments are being undertaken.

Let’s consider the LNER fleet.

  • LNER has thirteen nine-car Class 800 trains, each of which has five diesel power-packs
  • LNER has ten five-car Class 800 trains, each of which has three diesel power-packs
  • LNER has thirty nine-car Class 801 trains, each of which has one diesel power-pack
  • LNER has twelve five-car Class 801 trains, each of which has one diesel power-pack

There are sixty-five trains, 497 coaches and 137 diesel power-packs.

And look at their destinations.

  • Aberdeen – No Electrification from Edinburgh
  • Alnmouth – Fully Electrified
  • Berwick-upon-Tweed – Fully Electrified
  • Bradford Forster Square – Fully Electrified
  • Darlington – Fully Electrified
  • Doncaster – Fully Electrified
  • Durham – Fully Electrified
  • Edinburgh – Fully Electrified
  • Glasgow – Fully Electrified
  • Grantham – Fully Electrified
  • Harrogate – No Electrification from Leeds – Possible Battery Destination
  • Huddersfield – No Electrification from Leeds – Possible Battery Destination – Probable Electrification
  • Hull – No Electrification from Temple Hirst Junction – Possible Battery Destination
  • Inverness – No Electrification from Stirling
  • Leeds – Fully Electrified
  • Lincoln – No Electrification from Newark North Gate – Possible Battery Destination
  • Middlesbrough – No Electrification from Northallerton – Possible Battery Destination
  • Newcastle – Fully Electrified
  • Newark North Gate – Fully Electrified
  • Northallerton – Fully Electrified
  • Peterborough – Fully Electrified
  • Skipton – Fully Electrified
  • Retford – Fully Electrified
  • Stevenage – Fully Electrified
  • Stirling – Fully Electrified
  • Sunderland – No Electrification from Northallerton – Possible Battery Destination
  • Wakefield Westgate – Fully Electrified
  • York – Fully Electrified

The destinations can be summarised as followed.

  • Not Electrified – 2
  • Possible Battery Destination – 6
  • Fully Electrified – 20

This gives a total of 28.

Could the trains be matched better to the destinations?

  • Some routes like Edinburgh, Glasgow, Newcastle and Stirling could possibly be beneficially handled by lightweight trains without any diesel or battery power-packs.
  • Only Aberdeen and Inverness can’t be reached by all-electric or battery-electric trains.
  • In LNER Seeks 10 More Bi-Modes, I proposed a hydrogen-electric flagship train, that would use hydrogen North of the existing electrification.

There certainly appear to be possibilities.

Example Journey Times To Edinburgh

This table shows the various time for particular start-stop average speeds between Kings Cross and Edinburgh.

  • 80 mph – 4:54
  • 85 mph – 4:37
  • 90 mph – 4:12
  • 98.2 mph – 4:00
  • 100 mph – 3:56
  • 110 mph – 3:34
  • 120 mph – 3:16
  • 125 mph – 3:08

Note.

  • Times are given in h:mm.
  • A few mph increase in average speed reduces journey time by a considerable amount.

The figures certainly show the value of high speed trains and of removing bottlenecks, as average speed is so important.

Decarbonisation Of LNER

LNER Seeks 10 More Bi-Modes was based on an article in the December 2020 Edition of Modern Railways, with the same title. These are the first two paragraphs of the article.

LNER has launched the procurement of at least 10 new trains to supplement its Azuma fleet on East Coast main line services.

In a Prior Information Notice published on 27 October, the operator states it is seeking trains capable of operating under 25kW overhead power with ‘significant self-power capability’ for operation away from overhead wires. ‘On-board Energy Storage for traction will be specified as a mandatory requirement to reduce, and wherever practical eliminate, diesel usage where it would otherwise be necessary, although LNER anticipates some degree of diesel traction may be required to meet some self-power requirements. Suppliers tendering are asked to detail their experience of designing and manufacturing a fleet of multi-mode trains with a range of traction options including battery-electric, diesel-electric, hydrogen-electric, battery-diesel, dual fuel and tri-mode.

From this, LNER would appear to be serious about decarbonisation and from the destination list I published earlier, most services South of the Scottish Central Belt can be decarbonised by replacing diesel-power packs with battery power-packs.

That last bit, sounds like a call for innovation to provide a solution to the difficult routes to Aberdeen and Inverness. It also looks as if it has been carefully worded not to rule anybody out.

This press release from Hitachi is entitled Hitachi And Eversholt Rail To Develop GWR Intercity Battery Hybrid Train – Offering Fuel Savings Of More Than 20%.

It announces the Hitachi Intercity Tri-mode Battery Train, which is described in this Hitachi infographic.

As the Hitachi press release is dated the 15th of December 2020, which is after the publication of the magazine, it strikes me that LNER and Hitachi had been talking.

At no point have Hitachi stated what the range of the train is on battery power.

To serve the North of Scotland these gaps must be bridged.

  • Aberdeen and Edinburgh Haymarket – 130 miles
  • Inverness and Stirling – 146 miles

It should also be noted that distances in Scotland are such, that if these gaps could be bridged by battery technology, then probably all of the North of Scotland’s railways could be decarbonised. As Hitachi are the major supplier of Scotland’s local and regional electric trains, was the original Prior Information Notice, written to make sure Hitachi responded?

LNER run nine-car Class 800 trains on the two long routes to Aberdeen and Inverness.

  • These trains have five diesel power-packs under coaches 2,3, 5, 7 and 8.
  • As five-car Class 800 trains have diesel power-packs under coaches 2, 3 and 4, does this mean that Hitachi can fit diesel power-packs under all cars except for the driver cars?
  • As the diesel and battery power-packs appear to be interchangeable, does this mean that Hitachi could theoretically build some very unusual trains?
  • Hitachi’s trains can be up to twelve-cars in normal mode and twenty-four cars in rescue mode.
  • LNER would probably prefer an all Azuma fleet, even if a few trains were a bit longer.

Imagine a ten-car train with two driver and eight intermediate cars, with all of the intermediate cars having maximum-size battery-packs.

Supposing, one or two of the battery power-packs were to be replaced with a diesel power-pack.

There are a lot of possibilities and I suspect LNER, Hitachi and Hyperdrive Innovation are working on a train capable of running to and from the North of Scotland.

Conclusion

I started by asking what is possible on The East Coast Main Line?

As the time of three-and-a-half hours was achieved by a short-formation InterCity 225 train in 1991 before Covids, Hitchin, Kings Cross Remodelling, Power Upgrades, Werrington and lots of other work, I believe that some journeys between Kings Cross and Edinburgh could be around this time within perhaps five years.

To some, that might seem an extraordinary claim, but when you consider that the InterCity 225 train in 1991 did it with only a few sections of 140 mph running, I very much think it is a certainly at some point.

As to the ultimate time, earlier I showed that an average of 120 mph between  King’s Cross and Edinburgh gives a time of 3:16 minutes.

Surely, an increase of fourteen minutes in thirty years is possible?







May 15, 2021 Posted by | Transport/Travel | , , , , , , , , , , , , , , , , , , , , , , , , , , | 3 Comments

Roger Ford’s Cunning Plan

In the February 2020 of Modern Railways, there is an article called LNER Procurement, which has been written by Roger Ford.

It is Roger’s reply to an article in the December 2020 Edition of Modern Railways, which was entitled LNER Seeks 10 More Bi-Modes.

He starts by describing the requirement and then says this.

Would any fleet engineer in his or her right mind want to add a unique sub-fleet of 10 high speed trains to an existing successful fleet, even if they were hydrogen-electric tri-modes from the respected Kim Chong t’ae Electric Locomotive Works?

In my analysis of the December 2020 article, I wrote this post with the same name, where I said this, under a heading of More Azumas?

Surely, It would require a very innovative train at perhaps a rock-bottom price from another manufacturer, for LNER to not acquire extra Azumas.

So it would appear that Roger and myself are vaguely in agreement on the subject of more Azumas.

The last section of the article has a title of Cunning.

Roger puts forward, the view that the procurement process, as well as being compatible with EU law, could be a warning to Hitachi, to make sure that LNER get a good deal.

It certainly could be, and I remember a similar maneuver by ICI around 1970.

The company was buying a lot of expensive IBM 360 computers.

ICI needed a new computer to do scientific calculations at their Central Instrument Research Establishment (CIRL) at Pangbourne in Berkshire.

  • English Electric had just released a clone of an IBM 360 and were keen to sell it to ICI.
  • As it would do everything that ICI wanted, they bought one.
  • It worked well and did everything that CIRL wanted at a cheaper price.

IBM’s reaction was supposedly quick and dramatic. The salesman who dealt with ICI, was immediately fired!

But as ICI had about a dozen large IBM computers, there wasn’t much they could do to one of the most important and largest UK companies.

IBM also made sure, that ICI got their next computer at a good price.

I’m with Roger that all the shenanigans are a warning to Hitachi.

Roger finishes the article with these two paragraphs.

A genuine bluff would have been to seek bids for the long-term deployment of remanufactured IC225s. Which in these straitened times could still turn out to be a more viable option.

I rather fancy the idea of a hydrogen-electric Class 91. Owner Eversholt Rail might even have played along on the understanding that it funded the inevitable hybrid Azumas.

Note that IC225s are InterCity 225 trains.

  • The 31 trains, were built for  British Rail in the 1980s.
  • They are hauled by a 4.83 MW Class 91 locomotive, which is usually at the Northern end of the train.
  • Nine Mark 4 coaches and a driving van trailer complete the train.
  • As with the Hitachi Azumas (Class 800 and Class 801 trains), they are capable of operating at 140 mph on lines where digital in-cab ERTMS signalling has been installed.

I just wonder, if a Class 91 locomotive could be to the world’s first 140 mph hydrogen-electric locomotive.

Consider the following.

Dynamics

The wheels, bogies and traction system were designed by British Rail Engineering Ltd, who were the masters of dynamics. This is a sentence from the locomotive’s Wikipedia entry.

Unusually, the motors are body mounted and drive bogie-mounted gearboxes via cardan shafts. This reduces the unsprung mass and hence track wear at high speeds.

That is a rather unique layout. But it obviously works, as otherwise these locomotives would have been scrapped decades ago.

I believe the quality dynamics are because BREL owned a PACE 231R for a start, which was an analogue computer, that was good enough for NASA to use two computers like this to calculate how to put a man on the moon.

London and Edinburgh is a slightly shorter distance, run at a somewhat slower speed.

Space

This picture shows a Class 91 locomotive.

What is in the space in the rear end of the nearly twenty metre-long locomotive?

This sentence from the Wikipedia entry for the locomotive gives a clue.

The locomotive also features an underslung transformer, so that the body is relatively empty compared to contemporary electric locomotives.

It also states that much of the layout came from the APT-P, which was a version of the tilting Advanced Passenger Train.

Would the space be large enough for a tank of hydrogen and some form of generator that used the hydrogen as fuel?

It should be noted that one version of the APT used a gas-turbine engine, so was the locomotive designed for future use as a bi-mode?

Fuel Cells

I’ve ignored fuel cells, as to get the amount of power needed, the fuel cells could be too large for the locomotive.

Class 91 Locomotive Performance

The performance of a Class 91 locomotive is as follows.

  • Power output – 4.83 MW
  • Operating speed – 140 mph
  • Record Speed – 161 mph

Not bad for a 1980s locomotive.

Required Performance Using Hydrogen Fuel

If the locomotives were only needed to use hydrogen to the North of the electrification from London, the locomotive would need to be able to haul a rake of coaches twice on the following routes.

  • Aberdeen and Edinburgh Haymarket – 130 miles
  • Inverness and Stirling – 146 miles

A range of three hundred miles would be sufficient.

The locomotive would need refuelling at Aberdeen and Inverness.

The operating speed of both routes is nowhere near 140 mph and I suspect that a maximum speed of 100 mph on hydrogen, pulling or pushing a full-size train, would probably be sufficient.

When you consider that a nine-car Class 800 train has five 560 kW diesel engines, that give a total power of 2.8 MW, can carry 611 passengers and an InterCity 225 can only carry 535, I don’t think that the power required under hydrogen will be as high as that needed under electricity.

Rolls-Royce

Rolls-Royce have developed a 2.5 MW generator, that is the size of a beer keg. I wrote about it in Our Sustainability Journey.

Could one of these incredibly-powerful generators provide enough power to speed an InterCity 225 train, through the Highlands of Scotland to Aberdeen and Inverness, at speeds of up to 100 mph.

I would give it a high chance of being a possible dream.

Application Of Modern Technology

I do wonder, if the locomotive’s cardan shaft drive could be improved by modern technology.

These pictures show Joseph Bazalgette’s magnificent Abbey Mills Pumping station in East London.

A few years ago, Thames Water had a problem. Under the pumping station are Victorian centrifugal pumps that pump raw sewage to Beckton works for treatment. These are connected to 1930s electric motors in Dalek-like structures on the ground floor, using heavy steel shafts. The motors are controlled from the control panel in the first image.

The shafts were showing signs of their age and needed replacement.

So Thames Water turned to the experts in high-power transmission at high speed – Formula One.

The pumps are now connected to the electric motors, using high-strength, lower-weight carbon-fibre shafts.

Could this and other modern technology be used to update the cardan shafts and other parts of these locomotives?

Could The Locomotives Use Regenerative Braking To Batteries?

I’ll start by calculating the kinetic energy of a full InterCity 225 train.

  • The Class 91 locomotive weighs 81.5 tonnes
  • Nine Mark 4 coaches weigh a total of 378 tonnes
  • A driving van trailer weighs 43.7 tonnes.
  • This gives a total weight of 503.2 tonnes.

Assuming that each of the 535 passengers, weighs 90 Kg with babies, baggage, bikes and buggies, this gives a passenger weight of 48.15 tonnes or a total train weight of 551.35 tonnes.

Using Omni’s Kinetic Energy Calculator, gives the following values at different speeds.

  • 100 mph – 153 kWh
  • 125 mph – 239 kWh
  • 140 mph – 300 kWh

I think, that a 300 kWh battery could be fitted into the back of the locomotive, along with the generator and the fuel tank.

With new traction motors, that could handle regenerative braking, this would improve the energy efficiency of the trains.

Sustainable Aviation Fuel

Sustainable aviation fuel produced by companies like Altalto would surely be an alternative to hydrogen.

  • It has been tested by many aerospace companies in large numbers of gas turbines.
  • As it has similar properties to standard aviation fuel, the handling rules are well-known.

When produced from something like household waste, by Altalto, sustainable aviation fuel is carbon-neutral and landfill-negative.

ERTMS Signalling And Other Upgrades

Full ERTMS digital signalling will needed to be fitted to the trains to enable 140 mph running.

Conclusion

I believe it is possible to convert a Class 91 locomotive into a hydrogen-electric locomotive with the following specification.

  • 4.83 MW power on electricity.
  • 140 mph on electrification
  • 2.5 MW on hydrogen power.
  • 100 mph on hydrogen
  • Regenerative braking to battery.

If it were easier to use sustainable aviation fuel, that may be a viable alternative to hydrogen, as it is easier to handle.



February 3, 2021 Posted by | Hydrogen, Transport/Travel | , , , , , , , , , , , , | 2 Comments

LNER Seeks 10 More Bi-Modes

The title of this post, is the same as that of an article in the December 2020 Edition of Modern Railways.

This is the opening paragraph.

LNER has launched the procurement of at least 10 new trains to supplement its Azuma fleet on East Coast Main Line services.

Some other points from the article.

  • It appears that LNER would like to eliminate diesel traction if possible.
  • On-board energy storage is mentioned.
  • No form of power appears to be ruled out, including hydrogen.
  • LNER have all 65 of their Azumas in service.

The last paragraph is very informative.

Infrastructure upgrades are due to prompt a timetable recast in May 2022 (delayed from December 2021) from which point LNER will operate 6.5 trains per hour, out of Kings Cross, compared to five today. As an interim measure, LNER is retaining seven rakes of Mk 4 coaches hauled by 12 Class 91 locomotives to supplement the Azuma fleet and support its timetable ambitions until the new trains are delivered.

These are my thoughts.

More Azumas?

Surely, It would require a very innovative train at perhaps a rock-bottom price from another manufacturer, for LNER to not acquire extra Azumas.

Classic-Compatible Trains For High Speed Two

Consider.

  • Alstom, Bombardier, CAF, Hitachi, Siemens and Talgo are involved in the competition to design Classic-Compatible trains for High Speed Two.
  • As the York and Edinburgh section of the East Coast Main Line will eventually be upgraded and used by High Speed Two services,
  • Also in the December 2020 Edition of Modern Railways, is an article entitled 140 mph Plan For ECML North of York, which details improvements proposed by Northern Powerhouse Rail to improve services between Leeds and Edinburgh.

Would there be advantages to High Speed Two, LNER and Network Rail and Northern Powerhouse Rail, to have some commonality between the  High Speed Two, LNER and Northern Powerhouse Rail fleets?

Hopefully, the various government-controlled companies are talking.

A Flagship Train For Aberdeen And Inverness

The InterCity 225s, which consist of a Class 91 locomotive and a rake of nine Mark 4 coaches, have given thirty years of top-quality service on the East Coast Main Line and appear to be being asked to handle services until the new trains are delivered.

  • Full-length InterCity 225s are 245 metres long and have 406 Standard and 129 First seats or a total of 535 seats.
  • Nine-car Azumas are 234 metres long and have 510 Standard and 101 First seats or a total of 611 seats.
  • Two five-car Azumas working as a pair are 260 metres long and have 604 seats. They can also be handled on most platforms, that are used by LNER.
  • The power of a Class 91 locomotive is 4.83 MW.
  • A Class 91 locomotive is 19.4 metres long and weighs 81.5 tonnes.
  • Both Azumas and InterCity 225s can maintain 125 mph with ease on the East Coast Main Line and both will be able to reach 140 mph with in-cab signalling.

There would appear to be nothing wrong with locomotive-hauled high speed services, in terms of capacity and performance.

In The Mathematics Of A Hydrogen-Powered Freight Locomotive, I laid out my thoughts on a high-powered railway locomotive fuelled by hydrogen, that used one or possibly two Rolls-Royce gas-turbine engines to generate electricity for traction.

With all the work done, by the companies bidding for Classic-Compatible trains for High Speed Two, into very high speed trains, I believe that at least one company could build a locomotive with this specification.

  • 140 mph operation on 25 KVAC overhead electrification. As I said, that was done by British Rail almost forty years ago.
  • Ability to use full digital in-cab signalling. This is on its way and already working in some applications.
  • 110 mph operation on hydrogen. Hitachi are planning 100 mph battery trains, so it should be possible.
  • 400 mile range on one filling of hydrogen. This is working in Germany.
  • Ability to be upgraded to higher speeds on electric power, should the East Coast Main Line be upgraded for higher speeds in the future. The train manufacturers are probably ahead of track designers with this one.

Such a locomotive would be key to building a train with this specification.

  • Sub-four hour time between London and Edinburgh.
  • Sub-seven hour time between London and Aberdeen, which has 130 miles without wires.
  • Sub-eight hour time between London and Inverness, which has 146 miles without wires.
  • Hydrogen would be used, where there is no electrification.
  • Zero-carbon at all times.
  • A maximum length of 260 metres, which I estimate could give a passenger capacity of around 640 seats.
  • The last coach would include a driving van trailer.
  • They would not need the ability to split and join, except for the purpose of rescue, as there is no platform on the route, that could accommodate the resulting 520 metre long pair of trains.

I estimate that a fleet of around seven trains would be needed to run the current Aberdeen and Inverness services.

A few extra thoughts.

  • Could they have an up-market more spacious interior, as their main competition to the North of Scotland, would be the budget airlines?
  • Could they be slightly longer, with some platform work at Kings Cross and other stations?
  • Add a few extra trains to the order, so that extra services between London and Edinburgh could be added to the timetable.
  • Could the driving van trailer incorporate an observation car?
  • Hydrogen refuelling shouldn’t be a problem in Scotland, as the country is developing a hydrogen economy.
  • Hydrogen refuelling wouldn’t be needed in England, as they’d be using the electrification.
  • As an alternative to hydrogen, sustainable aviation fuel could be used.

I suspect that Talgo, would be very happy to tender.

  • They are developing hydrogen-powered trains as I wrote in Talgo: Our Hydrogen Train Will Be Ready In 2023.
  • They are building a factory in Scotland, close to the Forth Bridge.
  • Because of the factory, Talgo probably have the ear of the Scottish Government, who would probably welcome a Scottish-built train.
  • A shorter version of these trains without the hydrogen, could be the design for a High Speed Two Classic-Compatible train, for which Talgo, are on the short list of suppliers.

What better way, would there be to sell your hydrogen-powered high speed trains, than to give prospective clients a ride up from London to the factory in the luxury version?

A New Elizabethan

I can remember The Elizabethan, which was a steam-hauled non-stop express between London and Edinburgh between 1953 and 1961.

I have laid out my ideas for a modern express train of the same name in A New Elizabethan.

It could be an interesting concept, to increase capacity between London and Edinburgh.

Splitting And Joining

Some of LNER’s philosophy to serve places like Harrogate, Huddersfield and Middlesbrough, depends on the ability to split and join trains.

A pair of Azumas could leave London and go to Leeds, where they would split, with one train going to Harrogate and the other going to Huddersfield.

When returning to London, the two trains would join at Leeds.

The big advantage of splitting and joining, is that it increases the capacity on the main line, as services can be arranged, so that every path always carries a full-length train. I would expect that LNER would prefer never to run a single five-car Azuma into Kings Cross.

Currently LNER have these paths to and from Kings Cross.

  • 2 tph between London Kings Cross and Leeds
  • 1 tph between London Kings Cross and Lincoln and East Yorkshire
  • 2 tph between London Kings Cross and Edinburgh

Note.

  1. LNER have already started to extend services from Leeds, so will we see splitting and joining being used on one tph at Leeds to provide services to several destinations, throughout the day.
  2. Splitting and joining at Edinburgh is surely another possibility, to serve Stirling and Glasgow, with the same train.
  3. Splitting and joining at York could serve destinations like Middlesbrough, Newcastle, Redcar, Scarborough and Sunderland.
  4. In A Trip To Grantham Station – 4th November 2020, I advocated splitting at Grantham station to serve both Nottingham and Lincoln.

There are a lot of possibilities for splitting and joining.

As LNER has a fleet of twenty-two five-car Azumas, if the new trains are needed to split and join on certain services, this might mean more five-car Azumas are a better buy.

What Will Happen To Nine Car Azumas?

Hitachi have launched the Regional Battery Train concept, the specification of which is given in this Hitachi infographic.

The diesel engines in LNER’s Class 800 trains will be able to be replaced with batteries, making them all-electric trains.

  • Destinations like Cleethorpes, Dundee, Grimsby, Harrogate, Huddersfield, Hull, Lincoln, Middlesbrough Nottingham, Perth, Redcar, Scarborough, Sheffield and Sunderland will be within range of battery electric Azumas.
  • Some destinations would need the ability to charge the train before it returned, but I can see lots of places getting an appropriate service, even if it was just one or two trains per day.
  • Unfortunately, Aberdeen and Inverness would be too far for battery electric Azumas, so services will still need to be run by nine-car bi-mode Azumas.

Five-car battery electric Azumas working in pairs from London could be the key to increasing LNER services.

I can see that LNER may end up with too many nine-car Azumas, if nine-car trains are replaced by pairs of five-car trains to serve two destinations by splitting and joining.

Would it be possible to shorten nine-car Azumas to five-car trains?

These are the formations of the two trains.

  • nine-car: DPTS-MS-MS-TS-MS-TS-MC-MF-DPTF
  • five-car: DPTS-MS-MS-MC-DPTF

It is known, that the trains have a computer, that does a quick check on start-up to determine, what cars are present and correct in the train.

  • This means that if LNER needed twelve-car trains for say London and Edinburgh, they could create a sub-fleet by just buying the requisite number of extra TS (Trailer Standard) and MS (Motor Standard) cars and coupling them up.
  • This feature also means that operators running fleets of five-car Hitachi trains, like TransPennine Express and Hull Trains can increase capacity by just purchasing the extra cars.
  • It would also allow, cars to be shuffled to create viable trains, after say several cars were damaged by vandalism.

All trains these days seem to have this very operator-friendly feature.

With LNER’s trains, I suspect that all cars of the same type are identical.

This would mean, that a nine-car train can be converted to a five-car by removing two TS (Trailer Standard), one MS (Motor Standard) and one MF (Motor First) cars.

The four cars, that have been removed could be reconfigured to form the middle three cars of a new five-car train, which would be completed by adding new DPTS (Driver Pantograph Trailer Standard) and DPTF (Driver Pantograph Trailer First) cars.

An Increase In Paths From 5 To 6.5

This will certainly allow LNER to run more services.

The odd half path could be easy to explain.

  • Hull is a city, that is on the up.
  • I suspect that it could support a five-car direct service from London with a frequency of one tph.
  • But Hull Trains are also running a successful service on the route.

Perhaps a fair solution, would be to allow both LNER and Hull Trains to run a one train per two hour (tp2h) service.

If LNER didn’t want to use the path to just run a five-car train to Hull, there are several possibilities for a split and join.

  • With a Cleethorpes, Lincoln or Nottingham service at Grantham.
  • With a Cleethorpes or Lincoln service at Newark.
  • With a Cleethorpes, Middlesbrough, Sheffield or Sunderland service at Doncaster.

I can only see splitting and joining increasing, which surely means an Azuma order is more likely.

As someone, who spent a working life, writing software to schedule projects, I can’t resist speculating on what to do with the extra whole path, that LNER will be allocated, when the infrastructure allows.

  • Many travellers wouldn’t mind LNER providing more seats between the English and Scottish capitals.
  • Many would like an alternative to flying.
  • Others would like a faster service.
  • Leeds and York will soon be a route, that LNER’s Azumas will be able to use without diesel, because of extra electrification and Azumas with traction batteries.

This leads me to believe that LNER could use the extra path for a third London and Edinburgh service in every hour, that ran via Leeds.

  • Additionally, it might stop at stations like Peterborough, York, Darlington or Newcastle.
  • It could also provide a non-stop London and Leeds service.
  • Some services could go non-stop between London and Edinburgh.
  • The direct London and Edinburgh service would be under four hours.
  • Going via Leeds would add under an hour.

It would be run by a nine-car all-electric Azumas, of which there will be unlikely to be a shortage.

How Many Azumas Could Be Fitted With Batteries Instead Of Diesel Engines?

The Wikipedia entry for the Class 800 train, has a section called Powertrain, where this is said.

Despite being underfloor, the generator units (GU) have diesel engines of V12 formation. The Class 801 has one GU for a five to nine-car set. These provide emergency power for limited traction and auxiliaries if the power supply from the overhead line fails. The Class 800 and Class 802 bi-mode has three GU per five-car set and five GU per nine-car set. A five-car set has a GU situated under vehicles 2/3/4 and a nine-car set has a GU situated under vehicles 2/3/5/7/8.

Consider.

  • Class 807 trains for Aventi West Coast will have no batteries or diesel engines. Does this save weight?
  • Class 803 trains for East Coast Trains will only have a small battery for emergency hotel power, in case of catenary failure. Does this save weight?
  • Saving weight should improve acceleration and deceleration, which could reduce journey times.
  • Removal of diesel engines would reduce the trains carbon footprint.
  • Removal of diesel engines could reduce maintenance costs.
  • Diesel engines are only needed for services that run North of Edinburgh. Other sections without electrification are probably within battery range or could be easily made so.
  • It appears every Motor car (MC, MF and MS) can be fitted with a diesel engine, although in Class 801 trains, only one is fitted. Does that mean that every Motor car in the future, could have a battery?

I think this could lead to the following.

  • The Class 801 trains are fitted with sufficient batteries to enable handling of expected emergencies. These could be similar to those in the Class 803 trains.
  • Enough nine-car Class 800 trains would be kept with diesel engines to work the Aberdeen and Inverness services. These routes at 130 and 146 miles without wires are too long for battery trains, without a succession of chargers along the routes.
  • If a third Edinburgh service were to be introduced, could some of the remainder of the nine-car Class 800 trains be converted to Class 801 trains, by removing the diesel engines?
  • I would expect most of the five-car thirty-six Class 800 trains would be fitted with batteries to run services to destinations, that can be reached on battery power. In a few years time, these will probably mean splitting and joining at Edinburgh, Leeds and other places.
  • Could we even see the twelve five-car Class 801 trains converted to battery electric Class 800 trains, which would surely give maximum flexibility about their use?

If the software on the trains, is as intelligent as it could be and can accept cars with diesel engines, batteries or no extra power, then LNER will have an enormous amount of flexibility, to configure the trains as they need.

I could even see a nine-car Class 800 train with a mix of batteries and diesel engines, that can be used as range extenders, reaching further towards Aberdeen and Inverness.

Consider a five-car Class 800 train with two batteries and a single diesel engine!

  • If I assume that Hitachi’s specification for the Regional Battery Train, is for a five-car train with three diesel engines replaced with battery packs, then a two battery pack train could have a range of 60 km or 37 miles.
  • If the route wasn’t very challenging, and the computer made judicious use of the diesel engine, could the train’s range be extended to beyond the ninety kilometres of the three-battery pack train.
  • The diesel engine could also be used to charge the batteries, before returning to the electrification of the main line.

In Vivarail’s Plans For Zero-Emission Trains, I talked about Adrian Shooter and his concept of a Pop-Up Metro, run for perhaps a year, to test if a Metro service would be viable, instead of spending the money on consultants.

The two-battery pack/one diesel Class 800 train, could run a Pop-Up London Service to test the need for a London service. All it would need is a convenient platform long enough to take a 130 metre long Class 800 train.

Possible destinations to test could include Cleethorpes, Dundee, Glenrothes-with-Thornton, Grimsby, Nottingham, Norwich, Perth, Redcar, Sheffield and Sunderland

Conclusion

There is a lot of scope to develop LNER’s services.

I think it is likely that the order will go to Hitachi.

But as I indicated, I do believe that there is scope for a manufacturer to design a zero-carbon train, that was able to serve the Aberdeen and Inverness.

  • I suspect a fleet of ten trains would be sufficient.
  • Trains would use the 25 KVAC overhead electrification, where it exists and hydrogen or battery power North of the wires.

The trains would also be capable of being upgraded to high speeds, should the East Coast Main Line be turned into a High Speed Line.

I also think, that whatever trains are bought, there will be a large upgrading of the existing Hitachi fleet, which will add batteries to a lot of trains.

November 25, 2020 Posted by | Hydrogen, Transport/Travel | , , , , , , , , , , , , , , , , , , | 13 Comments

!40 mph Electric Trains At Kings Cross Station

This picture shows LNER’s old and new 140 mph electric trains at Kings Cross station.

On the left is a nine-car Class 801 train.

  • Introduced into service in 2019
  • 234 metres long
  • Capacity – 510 Standard and 101 First
  • One diesel engine for emergency power.

On the right is an InterCity 225.

Both trains are designed for 140 mph and will be able to attain this speed, when in-cab digital signalling is available.

It looks like LNER will have the following full-size electric fleet.

  • Thirty Class 801 trains
  • Seven InterCity 225 trains and spare coaches, driving van trailers and locomotives.

Both trains will be able to work any route with full electrification.

Changes In The Future To LNER Services

I predict that the following will happen.

140 mph Running Between Woolmer Green And Doncaster

This will happen and the following trains will take advantage.

The odd ones out will be Grand Central’s Class 180 trains, which are diesel and only capable of 125 mph.

How long will the other train operating companies accept slow trains on the 140 mph railway?

Digital In-Cab Signalling And 140 mph Running Will Speed Up Services

In Thoughts On Digital Signalling On The East Coast Main Line, I said that following train times would be possible., in addition to a London Kings Cross and Leeds time of two hours.

  • London Kings Cross and Bradford Forster Square – two hours and thirty minutes
  • London Kings Cross and Harrogate – two hours and thirty minutes
  • London Kings Cross and Huddersfield – two hours and twenty minutes
  • London Kings Cross and Hull – two hours and thirty minutes
  • London Kings Cross and Middlesbrough – two hours and thirty minutes
  • London Kings Cross and Scarborough – two hours and thirty minutes
  • London Kings Cross and Skipton – two hours and thirty minutes
  • London Kings Cross and York – two hours

Note.

  1. All timings would be possible with Hitachi Class 80x trains.
  2. Timings on Fully-electrified routes would be possible with InterCity 225 trains.

It appears that Grand Central will be stuck in the slow lane.

Grand Central Will Acquire Hitachi Trains Or Give Up

Grand Central‘s destinations of Bradford Interchange and Sunderland can’t be reached by all-electric trains, so will either have to follow Hull Trains and purchase Hitachi bi-mode trains or give up their routes.

The Diesel Engines In The Class 801 Trains Will Be Replaced By Batteries

East Coast Trains’ Class 803 trains have a slightly different powertrain to LNER’s Class 801 trains, which is explained like this in Wikipedia.

Unlike the Class 801, another non-bi-mode AT300 variant which despite being designed only for electrified routes carries a diesel engine per unit for emergency use, the new units will not be fitted with any, and so would not be able to propel themselves in the event of a power failure. They will however be fitted with batteries to enable the train’s on-board services to be maintained, in case the primary electrical supplies would face a failure.

I wouldn’t be surprised to see a similar battery system fitted to the Class 801 trains.

The Diesel Engines In Hull Trains Class 802 Trains Will Be Replaced By Batteries

In Hull Issues New Plea For Electrification, I showed how Hitachi’s Class 802 trains with batteries instead of diesel engines could work long-distance services to and from Hull.

This will happen, as electric trains to London, would be a dream for a marketing man or woman.

Will The InterCity 225 Trains Lose Some First Class Seats?

This may happen, so that the seating layout in both trains is almost identical.

I’m certain, that it could be arranged, that seat numbers in both trains could have a similar position.

This would mean that if an InterCity 225 train replaced a Class 801 train, there wouldn’t need to be a seat reallocation.

Could InterCity 225 Trains Be Fitted With Emergency Batteries?

If LNER thought they were needed, I’m sure that this would be possible and Hyperdrive Innovation would oblige!

Conclusion

British Rail last hurrah, is giving Hitachi’s latest trains, a run for their money!



September 17, 2020 Posted by | Transport/Travel | , , , , , , , , | 8 Comments

Could Battery-Electric Hitachi Trains Work Chiltern Railways’s Services?

Before I answer this question, I will lay out a few specifications and the current status.

Hitachi’s Proposed Battery Electric Train

Based on information in an article in Issue 898 of Rail Magazine, which is entitled Sparking A Revolution, the specification of Hitachi’s proposed battery-electric train is given as follows.

  • Based on Class 800-802/804 trains or Class 385 trains.
  • Range of 55-65 miles.
  • Operating speed of 90-100 mph
  • Recharge in ten minutes when static.
  • A battery life of 8-10 years.
  • Battery-only power for stations and urban areas.

For this post, I will assume that the train is four or five cars long.

Chiltern Railways’ Main Line Services

These are Chiltern Railways services that run on the Chiltern Main Line.

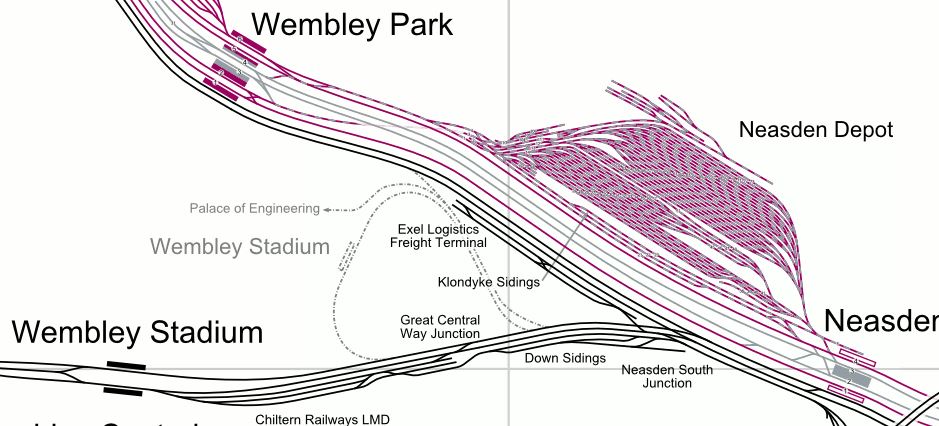

London Marylebone And Gerrards Cross

  • The service runs at a frequency of one train per hour (tph)
  • Intermediate stations are Wembley Stadium, Sudbury & Harrow Road, Sudbury Hill Harrow, Northolt Park, West Ruislip, Denham and Denham Golf Club

The service is nineteen miles long and takes thirty minutes.

It should be possible to run this service with trains charged at one end of the route.

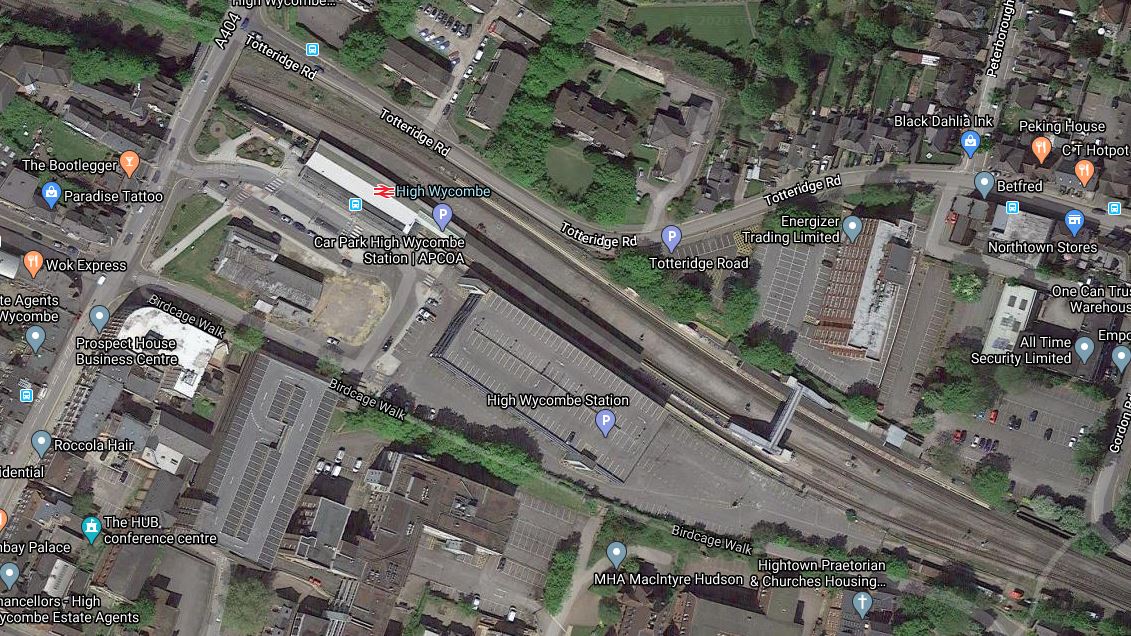

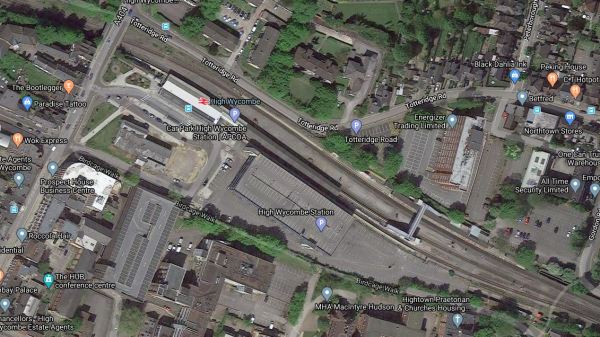

London Marylebone And High Wycombe

  • The service runs at a frequency of one tph
  • Intermediate stations are Wembley Stadium,  South Ruislip, Gerrards Cross and Beaconsfield
  • Some services terminate in a bay platform 1 at High Wycombe station.

The service is twenty-eight miles long and takes forty-two minutes.

It should be possible to run this service with trains charged at one end of the route.

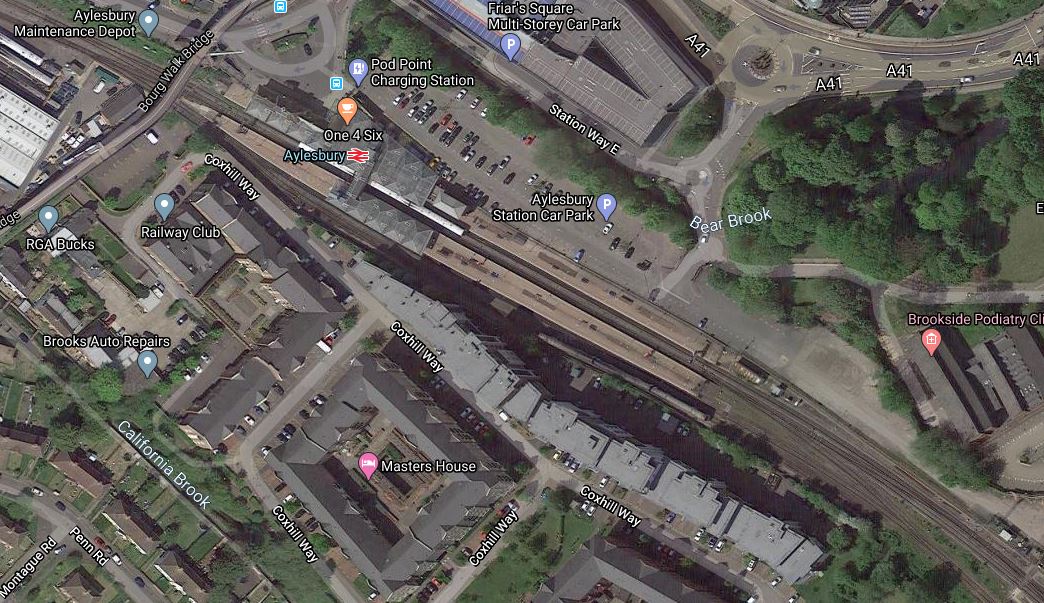

London Marylebone And Aylesbury Via High Wycombe

  • The service runs at a frequency of one tph
  • Intermediate stations are Gerrards Cross, Seer Green and Jordans, Beaconsfield, High Wycombe, Saunderton, Princes Risborough, Monks Risborough and Little Kimble
  • This service usually terminates in Platform 1 at Aylesbury station.

The service is 43.5 miles long and takes sixty-six minutes.

It should be possible to run this service with trains charged at both ends of the route.

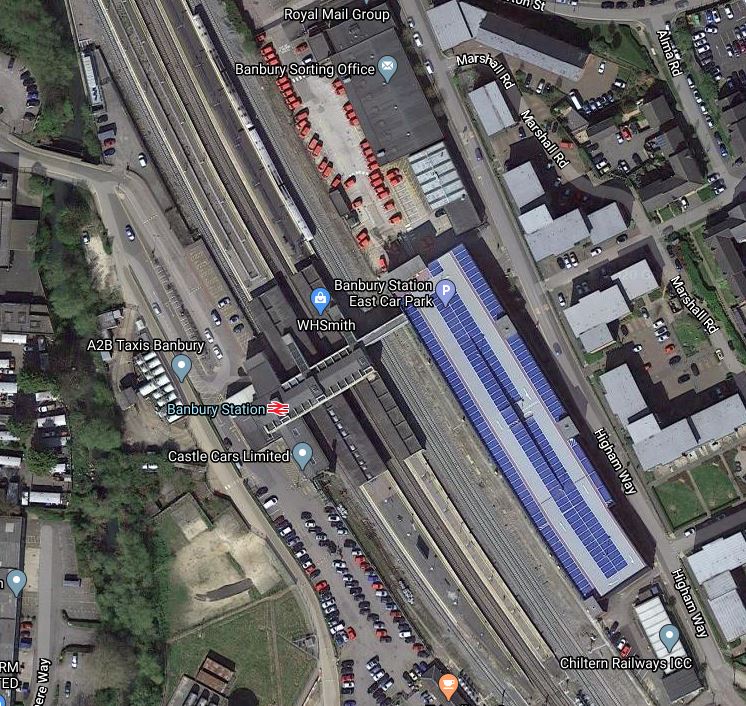

London Marylebone And Banbury (And Stratford-upon-Avon)

  • The service runs at a frequency of one tph
  • Intermediate stations for the Banbury service are Denham Golf Club, Gerrards Cross, Beaconsfield, High Wycombe, Princes Risborough, Haddenham & Thame Parkway, Bicester North and Kings Sutton.
  • Intermediate stations for the Stratford-upon-Avon service are Denham Golf Club, Gerrards Cross, Beaconsfield, High Wycombe, Princes Risborough, Haddenham & Thame Parkway, Bicester North and Kings Sutton, Banbury, Leamington Spa, Warwick, Hatton, Claverdon, Bearley, Wilmcote and Stratford-upon-Avon Parkway.

The Banbury service is 69 miles long and takes one hour and forty-five minutes.

The Stratford-upon-Avon service is 104 miles long and takes two hours and twenty-two minutes.

Running these two services will need a bit of ingenuity.

Leamington Spa And Birmingham Moor Street

  • The service runs at a frequency of one train per two hours (tp2h)
  • Intermediate stations for the service are Warwick, Hatton, Lapworth, Dorridge and Solihull.

The service is 23 miles long and takes forty-one minutes.

It should be possible to run this service with trains charged at one end of the route.

London Marylebone And Birmingham Moor Street

  • The service runs at a frequency of one tph
  • Intermediate stations for the service are High Wycombe, Banbury, Leamington Spa, Warwick Parkway and Solihull.

The service is 112 miles long and takes one hour and forty-four minutes.

It should be possible to run this service with trains charged at both ends of the route and also fully charged somewhere in the middle.

Distances from London Marylebone of the various stations are.

  • High Wycombe – 28 miles
  • Bicester North – 55 miles
  • Banbury – 69 miles
  • Leamington Spa – 89 miles
  • Warwick – 91 miles
  • Warwick Parkway – 92 miles
  • Solihull – 105 miles

Consider.

  • It looks like a fully-charged train from London Marylebone could reach Bicester North, but not Banbury, with a 55-65 mile battery range.
  • Travelling South, Bicester North could be reached with a fully-charged train from Birmingham Moor Street.

But it would appear to be too marginal to run a reliable service.

London Marylebone And Birmingham Snow Hill

  • The service runs at a frequency of one tph
  • Intermediate stations for the service are Bicester North, Banbury, Leamington Spa, Warwick, Warwick Parkway, Dorridge, Solihull and Birmingham Moor Street

The service is 112 miles long and takes two hours and a minute.

It should be possible to run this service with trains charged at both ends of the route and also fully charged somewhere in the middle.

London Marylebone And Kidderminster

Some services between London Marylebone and Birmingham Snow Hill are extended to Kidderminster.

The distance between Kidderminster and Birmingham Snow Hill is twenty miles and the service takes forty-two minutes.

London Marylebone And Oxford

  • The service runs at a frequency of two tph
  • Intermediate stations for the service are High Wycombe, Haddenham & Thame Parkway, Bicester Village, Islip and, Oxford Parkway.
  • The service runs into dedicated platforms at Oxford station.

The service is 67 miles long and takes one hour and nine minutes.

It should be possible to run this service with trains charged at both ends of the route and some supplementary charging somewhere in the middle.

Chiltern’s Aylesbury Line Services

These are Chiltern Railway‘s services that run on the London And Aylesbury Line (Amersham Line).

London Marylebone And Aylesbury (And Aylesbury Vale Parkway) via Amersham

  • The service runs at a frequency of two tph
  • Intermediate stations are Harrow-on-the-Hill, Rickmansworth, Chorleywood, Chalfont & Latimer, Amersham, Great Missenden, Wendover and Stoke Mandeville.
  • It appears that there is sufficient time at Aylesbury Vale Parkway in the turnround to charge the train using a Fast Charge system.

The Aylesbury service is 39 miles long and takes one hour.

The Aylesbury Vale Parkway service is 41 miles long and takes one hour and twelve minutes.

It should be possible to run both services with trains charged at both ends of the route.



Chiltern Railways’ Future Train Needs

Chiltern Railways will need to add to or replace some or all of their fleet in the near future for various reasons.

Decarbonisation

Chiltern are probably the passenger train operating company, with the lowest proportion of zero-carbon trains. It scores zero for zero-carbon!

Government policy of an extinction date of 2040 was first mentioned by Jo Johnson, when he was Rail Minister in February 2018.

As new trains generally last between thirty and forty years and take about five years to design and deliver, trains ordered tomorrow, will probably still be running in 2055, which is fifteen years after Jo Johnson’s diesel extinction date.

I feel that, all trains we order now, should be one of the following.

  • All-electric
  • Battery-electric
  • Hydrogen-electric
  • Diesel electric trains, that can be converted to zero-carbon, by the replacement of the diesel power, with an appropriate zero-carbon source.

Hitachi seem to be designing an AT-300 diesel-electric train for Avanti West Coast, where the diesel engines can be replaced with batteries, according to an article in the January 2020 Edition of Modern Railways.

Pollution And Noise In And Around Marylebone Station

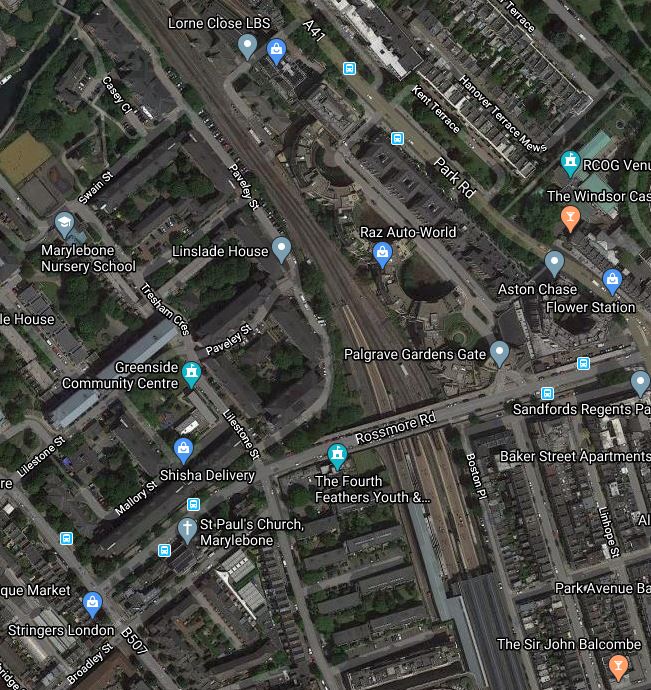

This Google Map shows the area around Marylebone station.

Cinsider.

  • Marylebone station is in the South-East corner of the map.
  • The station is surrounded by some of the most expensive real estate in London.
  • A lot of Chiltern’s trains do not meet the latest regulations for diesel trains.
  • Blackfriars, Cannon Street, Charing Cross, Euston, Fenchurch Street, Kings Cross, Liverpool Street, London Bridge, Paddington, St. Pancras, Victoria and Waterloo stations are diesel-free or have plans to do so.

Will the residents, the Greater London Council and the Government do something about improving Chiltern’s pollution and noise?

New trains would be a necessary part of the solution.

New And Extended Services

Consider.

  • Chiltern plan to extend the Aylesbury Parkway service to Milton Keynes in connection with East West Rail. This service would appear to be planned to run via High Wycombe and Princes Risborough.
  • There has also been proposals for a new Chiltern terminus at Old Oak Common in West London to connect to Crossrail, High Speed Two and the London Overground.
  • Chiltern could run a service between Oxford and Birmingham Moor Street.
  • With the demise of the Croxley Rail Link around Watford, Chiltern could be part of a revived solution.
  • In Issue 899 of Rail Magazine in an article entitled Calls For Major Enhancement To Oxford And Didcot Route, it states that there will be three tph between Oxford and Marylebone, two of which will start from a new station at Cowley.

Chiltern certainly have been an expansionist railway in the past.

I wouldn’t be surprised to see Chiltern ordering new trains.

As I said earlier, I suspect they wouldn’t want to order some new short-life diesel trains.

125 mph Running

Consider.

  • The West Coast Main Line has an operating speed of 125 mph.
  • East West Rail is being built for an operating speed of 125 mph.
  • Some parts of the Chiltern Main Line could be electrified and upgraded to 125 mph operation.

For these reasons, some of Chiltern’s new fleet must be capable of modification, so it can run at 125 mph, where it is possible.

100 mph Trains

Around half of Chiltern’s fleet are 100 mph trains, but the other half, made up of Class 165 trains only have a 75 mph operating speed.

Running a fleet, where all trains have a similar performance, must give operational and capacity improvements.

Increasing Capacity

Chiltern’s Main Line service to Birmingham is run using six Mark 3 carriages between a Class 68 locomotive and a driving van trailer.

These trains are 177.3 metres long and hold 444 passengers.

These trains are equivalent in length to a seven-car Hitachi Class AT-300 train, which I estimate would hold just over 500 passengers.

Changing some trains for a more modern design, could increase the passenger capacity, but without increasing the train length.

Aventi West Coast And High Speed Two

Chiltern’s services to Birmingham will come under increasing pressure from Avanti West Coast‘s revamped all-electric fleet, which within ten years should be augmented by High Speed Two.

It will be difficult selling the joys of comfortable diesel trains against the environmental benefits of all-electric zero-carbon faster trains.

Great Western Railway And Possible Electrification To Oxford

Chiltern’s services to Oxford will also come under increasing pressure from Great Western Railway’s services to Oxford.

  • When Crossrail opens, Paddington will be a much better terminal than Marylebone.
  • Crossrail will offer lots of new connections from Reading.
  • Great Western Railway could run their own battery-electric trains to Oxford.
  • Great Western Railway will be faster between London and Oxford at 38 minutes to Chiltern’s 65 minutes.

Will new trains be needed on the route to retain passengers?

Will Chiltern Have Two Separate Fleets?

Currently, Chiltern Railways have what is effectively  two separate fleets.

  • A Chiltern Main Line fleet comprised of five sets of six Mark 3 coaches, a Class 68 locomotive and a driving van trailer.
  • A secondary fleet of thirty-four assorted diesel multiple units of various ages and lengths, which do everything else.

But would this be their fleet, if they went for a full renewal to fully-decarbonise?

Would they acquire more Main Line sets to work the services to Birmingham, Kidderminster and perhaps some other Midlands destinations?

Do the Oxford services require more capacity for both Oxford and Bicester Village and would more Main Line sets be a solution?

What destinations will be served and what trains will be needed to work services from new destinations like Milton Keynes and Old Oak Common?

I can see Chiltern acquiring two fleets of battery-electric trains.

  • Chiltern Main Line trains based on Hitachi AT-300 trains with between five and seven cars.
  • Suburban trains for shorter journeys, based on Hitachi Class 385 trains with perhaps four cars.

Both would be fairly similar under the skin.

Conclusion On Chiltern Railways’ Future Trains

I am very much drawn to the conclusion, that Chiltern will have to introduce a new fleet of zero-carbon trains.

Electrification would be a possibility, but have we got enough resources to carry out the work, at the same time as High Speed Two is being built?

Hydrogen might be a possibility, but it would probably lead to a loss of capacity on the trains.

Battery-electric trains might not be a solution, but I suspect they could be the best way to increase Chiltern’s fleet and decarbonise at the same time.

  • Hitachi’s basic train design is used by several train operating companies and appears to be well received, by Train operating companies, staff and passengers.
  • Hitachi appear to be well-advanced with a battery-electric version.
  • Hitachi seem to have sold the concept of battery-electric AT-300 trains to Avanti West Coast to replace their diesel-electric Class 221 trains.

The sale of trains to Avanti West Coast appears to be very significant, in that Hitachi will be delivering a diesel-electric fleet, that will then be converted to battery-electric.

I like this approach.

  • Routes can be converted gradually and the trains fully tested as diesel-electric.
  • Electrification and/or charging stations can be added, to the rail network.
  • As routes are ready, the trains can be converted to battery-electric.

It would appear to be a low-risk approach, that could ensure conversion of the fleet does not involve too much disruption to passengers.

Possible Electrification That Might Help Chiltern Railways

These lines are or could be electrified in the near future.

Amersham Line Between Harrow-on-the-Hill and Amersham Stations

The only electrified line on the Chiltern Railways network is the section of the Amersham Line between Harrow-on-the-Hill and Amersham stations.

  • It is electrified using London Underground’s system.
  • It is fourteen miles long and trains take twenty-two minutes.
  • London Marylebone and Harrow-on-the-Hill is a distance of only nine miles
  • Aylesbury and Amersham is a distance of only fifteen miles.

Could this be of use in powering Children Railways’ trains?

The maths certainly look promising, as if nothing else it means the maximum range of one of Hitachi’s proposed battery-electric trains is fourteen miles further, which may enable Chiltern’s proposed service between London Marylebone and Milton Keynes to reach the 25 KVAC electrification at Bletchley.

But if the new trains were to use the London Underground electrification, they would have to be dual-voltage units.

As Hitachi have already built dual-voltage Class 395 trains for the UK, I don’t think, that this will be a problem.

Dorridge/Whitlock’s End And Worcestershire via Birmingham Snow Hill

In the February 2020 Edition of Modern Railways, there is a feature, which is entitled West Midlands Builds For The Future.

This is said about electrification on the Snow Hill Lines.

Remodelling Leamington is just one of the aspirations WMRE has for upgrading the Great Western’s Southern approach to Birmingham, which serves a number of affluent suburbs, with growing passenger numbers. “Electrification of the Snow Hill Lines commuter network is something which we are keen to explore.’ says Mr. Rackliff.

As well as reducing global carbon emissions, yhis would also help reduce air pollution in central Birmingham and local population centres. ‘From a local perspective, we’d initially want to see electrification of the core network between Dorridge/Whitlock’s End and Worcestershire via Birmingham Snow Hill as a minimum, but from a national perspective it would make sense to electrify the Chiltern Main Line all the way to Marylebone.’

Note the following distances from Dorridge.

  • Leamington Spa – 13 miles
  • Banbury – 33 miles
  • Bicester North – 47 miles
  • High Wycombe – 74 miles

It looks as if, electrification of the Snow Hill Lines would allow trains to travel from Bicester or Banbury to Birmingham Moor Street, Birmingham Snow Hill or Kidderminster.

Reading And Nuneaton via Didcot, Oxford, Banbury, Leamington Spa And Coventry

This route, which is used by CrossCountry services and freight trains, has been mentioned in the past, as a route that may be electrified.

Note the following distances from Didcot.

  • Oxford – 10 miles
  • Ayhno Junction – 27 miles
  • Banbury 32 miles
  • Leamington Spa – 52 miles
  • Coventry – 62 miles
  • Nuneaton – 72 miles

Electrifying this route would link together the following lines.

Note that Aynho Junction is only 36 miles from High Wycombe and 64 miles from London Marylebone.

Fast Charging At Terminal Stations

Chiltern Railways use the following terminal stations.

  • Aylesbury station, where a bay platform is used.
  • Aylesbury Parkway station
  • Banbury station, where a bay platform is used.
  • Birmingham Moor Street station, where all bay platforms are used.
  • Birmingham Show Hill station
  • High Wycombe station, where a bay platform is used.
  • Kidderminster station
  • London Marylebone station, where all platforms are used.
  • Oxford station, where two North-facing bay platforms are used.
  • Stratford-upon-Avon station

I suspect that something like Viviarail’s Fast-Charge system, based on well-proven third-rail technology could be used.

  • This system uses a bank of batteries to transfer power to the train’s batteries.
  • The transfer is performed using modified high-quality third-rail electrification technology.
  • Battery-to-battery transfer is fast, due to the low-impedance of batteries.
  • The system will be able to connect automatically, without driver action.
  • The third-rail is only switched on, when a train is present.
  • The battery bank will be trickle-charged from any convenient power source.

Could the battery bank be installed under the track in the platform to save space?

If Network Rail and Chiltern Railways would prefer a solution based on 25 KVAC technology, I’m sure that Furrer + Frey or another electrification company have a solution.

Installing charging in a platform at a station, would obviously close the platform for a couple of months, but even converting all six platforms at Marylebone station wouldn’t be an impossible task.

Possible Electrification Between London Marylebone And Harrow-on-the-Hill

Consider.

  • All trains to Aylesbury have to travel between London Marylebone and Harrow-on-the-Hill stations, which is nine miles of track without electrification. It takes about twelve minutes.
  • Trains via High Wycombe use this section of track as far as Neasden South Junction, which is give miles and typically takes seven minutes.
  • Leaving Marylebone, these trains are accelerating, so will need more power.

This map from carto.metro.free.fr shows the lines around Neasden.

Note.

  1. The Chiltern Railways tracks are shown in black.
  2. Two tracks continue to the North-West to Harrow-on-the-Hill and Aylesbury.
  3. Two tracks continue to the West to Wembley Stdium station and High Wycombe.
  4. Two tracks continue South-East into Marylebone station, running non-stop.
  5. The Jubilee Line tracks in the middle are shown in silver,
  6. The Metropolitan Line tracks are shown in mauve.

These pictures were taken of the two Chiltern tracks from a Jubilee Line train running between West Hampstead and Wembley Park stations.

Note, that the tracks have no electrification and there is plenty of space.

I feel that to accelerate the trains out of Marylebone and make sure that the batteries are fully charged, that these tracks should be electrified.

There is space on this section for 25 KVAC overhead, but would it be better to use an electrified rail system?

  • As you approach Marylebone there are several tunnels, which might make installation of overhead wires difficult and disruptive.
  • There are London Underground tracks and their third and fourth rail electrification everywhere.
  • Between Harrow-on-the Hill and Amersham stations, Chiltern and Metropolitan Line trains share the same track, which is electrified to London Underground standards and used for traction power by the Metropolitan Line trains.
  • Trains connect and disconnect to third-rail electrification, without any complication and have been doing it for over a hundred years.

On the other hand, there are arguments against third-rail systems like safety and electrical inefficiency.

Running Chiltern’s Routes Using A Battery-Electric Train

I will now take each route in order and look at how battery-electric trains could run the route.

London Marylebone And Oxford

Consider.

  • This route is 67 miles.
  • An out and back trip is 134 miles.
  • The route is probably too long for the proposed Hitachi battery-electric train, without some intermediate charging.
  • Trains currently wait in the bay platforms at Oxford for up to thirty minutes, which is more than enough time to fully-charge the train for return to Marylebone.

When I outlined this route, I said this.

It should be possible to run this service with trains charged at both ends of the route and some supplementary charging somewhere in the middle.

I’m discussing this route first, as it has the complication of needing some form of intermediate charging.

The obvious place for some intermediate charging would be High Wycombe station.

  • It is 28 miles from Marylebone
  • It is 38 miles from Oxford
  • Trains seem to stop for a couple of minutes at High Wycombe.

As trains would only need to pick up a half-charge at the station, would it be possible for a train passing through High Wycombe to be able to use a Fast-Charge system, to give the battery a boost?

As a Control and Electrical Engineer by training, I think that this is more than possible.

It leads me to believe that with Fast Charging systems at Marylebone, Oxford and High Wycombe, Hitachi’s proposed battery-electric trains can run a reliable service between Marylebone and Oxford.

London Marylebone And Gerrards Cross

Consider.

  • This route is just nineteen miles.
  • An out and back trip is thirty-eight miles.
  • Trains appear to use a reversing siding to change tracks to return to London. They wait in the siding for up to thirty minutes, which is more than enough time to fully-charge the train for return to Marylebone.

I am fairly sure, that this route could be run by trains charged at Marylebone station only.

However, if charging is needed at Gerrards Cross, there is plenty of time, for this to be performed in the reversing siding.

It might even be reversed with all charging taking place at Gerrards Cross, so that fast turnrounds can be performed in Marylebone station.

London Marylebone And High Wycombe

Consider.

  • This route is just twenty-eight miles.
  • An out and back trip is fifty-six miles.
  • Trains wait in the bay platform for up to thirty minutes, which is more than enough time to fully-charge the train for return to Marylebone.

Everything said for the Gerrards Cross service would apply to the High Wycombe service.

London Marylebone And Banbury

Consider.

  • This route is 69 miles.
  • An out and back trip is 138 miles.
  • The route is probably too long for the proposed Hitachi battery-electric train, without some intermediate charging.
  • Trains wait in platform 4 at Banbury for around thirty minutes, which is more than enough time to fully-charge the train for return to Marylebone.
  • Trains call at High Wycombe station.

As with the Marylebone and Oxford route, this route will need some intermediate charging and as with the Oxford service, High Wycombe is the obvious choice,

High Wycombe is only 41 miles from Banbury, which is well within range of Hitachi’s proposed battery-electric train.

London Marylebone And Stratford-upon-Avon

Consider.

  • This route is 104 miles.
  • An out and back trip is 208 miles.
  • The distance between Stratford-upon-Avon and Banbury is 35 miles.
  • The route is probably too long for the proposed Hitachi battery-electric train, without some intermediate charging.
  • Trains wait in Platform 1 at Stratford-upon-Avon for over thirty minutes, which is more than enough time to fully-charge the train for return to Marylebone.
  • Trains call at Banbury station, where they wait for several minutes.
  • Trains call at High Wycombe station.

As with the Marylebone and Oxford and Marylebone and Banbury routes, this route will need some intermediate charging and as with the Oxford and Banbury services, High Wycombe is the obvious choice,

But this route could also use the Fast Charging system at Banbury.

London Marylebone And Birmingham Moor Street

Consider.

  • This route is 112 miles.
  • An out and back trip is 224 miles.
  • The distance between Birmingham Moor Street and Banbury is 43 miles.
  • The route is probably too long for the proposed Hitachi battery-electric train, without some intermediate charging.
  • Trains wait in the bay platform at Birmingham Moor Street for thirteen minutes, which is more than enough time to fully-charge the train for return to Marylebone.
  • Trains call at Banbury and High Wycombe stations.

As with the Marylebone and Stratford-upon-Avon route, this route will need some intermediate charging and as with the Stratford-upon-Avon service, High Wycombe and Banbury are the obvious choice,

London Marylebone And Birmingham Snow Hill

Consider.

  • This route is 112 miles.
  • An out and back trip is 224 miles.
  • The distance between Birmingham Snow Hill and Banbury is 43 miles.
  • The route is probably too long for the proposed Hitachi battery-electric train, without some intermediate charging.
  • Trains wait in the bay platform at Birmingham Snow Hill for ten minutes, which is more than enough time to fully-charge the train for return to Marylebone.
  • Trains call at Banbury and High Wycombe stations.

As with the Marylebone and Stratford-upon-Avon route, this route will need some intermediate charging and as with the Stratford-upon-Avon service, High Wycombe and Banbury are the obvious choice,

London Marylebone And Kidderminster

Consider.

  • This route is 132 miles.
  • An out and back trip is 264 miles.
  • The distance between Kidderminster and Banbury is 63 miles.
  • The route is probably too long for the proposed Hitachi battery-electric train, without some intermediate charging.
  • Trains call at Banbury and High Wycombe stations.

As with the Marylebone and Stratford-upon-Avon and Birmingham routes, this route will need some intermediate charging and as with the Stratford-upon-Avon and Birmingham services, High Wycombe and Banbury are the obvious choice,

London Marylebone And Aylesbury Via High Wycombe

Consider.

  • The route is 43.5 miles
  • An out and back trip is 87 miles.
  • The route is probably short enough for the proposed Hitachi battery-electric train, to run the route without intermediate charging.
  • This service usually terminates in Platform 1 at Aylesbury station, where trains wait for up to thirteen minutes, which is more than enough time to fully-charge the train for return to Marylebone.
  • The train will also be fully-charged at Marylebone.

It looks that this route could be easily handled with charging at both ends of the route, but if there has been a charging error, the train can obviously make a pit-stop at High Wycombe to give the battery a top-up.

London Marylebone And Aylesbury Via Amersham

Consider.

  • The route is 39 miles
  • An out and back trip is 78 miles.
  • The route is probably short enough for the proposed Hitachi battery-electric train, to run the route without intermediate charging.
  • This service usually terminates in Platform 3 at Aylesbury station, where trains wait for up to twenty minutes, which is more than enough time to fully-charge the train for return to Marylebone.
  • The train will also be fully-charged at Marylebone.

It looks that this route could be easily handled with charging at both ends of the route, but if there has been a charging error, the train can obviously make a pit-stop at High Wycombe to give the battery a top-up.

London Marylebone And Aylesbury Vale Parkway Via Amersham

Consider.

  • The route is 41 miles
  • An out and back trip is 82 miles.
  • The route is probably short enough for the proposed Hitachi battery-electric train, to run the route without intermediate charging.
  • This service usually terminates in Platform 1 at Aylesbury Vale Parkway station, where trains wait for up to nine minutes, which is more than enough time to fully-charge the train for return to Marylebone.
  • The train will also be fully-charged at Marylebone.

It looks that this route could be easily handled with charging at both ends of the route, but if there has been a charging error, the train can obviously make a pit-stop at Aylesbury to give the battery a top-up.

Leamington Spa And Birmingham Moor Street

Consider.

  • The route is 23 miles
  • An out and back trip is 46 miles.
  • This service usually terminates in a bay platform at Birmingham Moor Street station, where trains wait for up to twenty minutes, which is more than enough time to fully-charge the train for return to Leamington Spa.

I am fairly sure, that this route could be run by trains charged at Bitmingham Moor Street station only.

New And Extended Services

These services are planned or have been mentioned as possibilities.

London Marylebone And Milton Keynes Via High Wycombe, Princes Risborough, Aylesbury And Aylesbury Vale Parkway

This is the new service that Chiltern will start running in the next few years.

Consider.

  • I estimate the distance between Aylesbury Vale Parkway and Bletchley, where 25 KVAC overhead electrification starts is 18 miles, with Milton Keynes a further three miles.
  • The distance between Marylebone and Bletchley via High Wycombe would be 63.5 miles.
  • The route is probably short enough for the proposed Hitachi battery-electric train, to run the route without intermediate charging.
  • Charging would normally be in Milton Keynes and Marylebone, with a certain amount of charging from the 25 KVAC between Bletchley and Milton Keynes.

It looks that this route could be handled with charging at both ends of the route, but if there has been a charging error, the train can obviously make a pit-stop at High Wycombe or Aylesbury to give the battery a top-up.

Birmingham Moor Street And Oxford

Consider.

  • Birmingham Moor Street station could have more South-facing bay platforms.
  • Birmingham Moor Street station is only a short walk from the new High Speed Two station at Birmingham Curzon Street.
  • Oxford station has two North-facing bay platforms.
  • Oxford station and Aynho Junction is only twenty miles and well within battery range, if High Wycombe and Banbury is electrified.
  • Banbury and Oxford currently takes 23 minutes.
  • Banbury and Birmingham Moor Street currently takes 44 minutes

It looks like a Birmingham Moor Street and Oxford service would take one hour and seven minutes.

London Marylebone And The Cowley Branch

This proposed service is probably about four to five miles further on from Oxford station.

There may be problems with how the track is laid out, but with a charging station at the end of the branch, I doubt that distance would be a problem.

Croxley Rail Link Proposal

I said this earlier.

With the demise of the Croxley Rail Link around Watford, Chiltern could be part of a revived solution.

The original plan died a long time ago, but could there be a simpler Chiltern-based solution?

  • Rebuild the railway between Croxley and Watford High Street stations.
  • Build new stations at Watford Vicarage Road and Cassiobridge.
  • A single track link would be more affordable could certainly handle two tph and possibly four.
  • Chiltern would run a two tph service between Watford Junction and Aylesbury stations.
  • The service would call at Watford High Street, Watford Vicarage Road, Cassiobridge, Croxley, Rickmansworth, Chorleywood, Chalfont & Latimer, Amersham, Great Missenden, Wendover and Stoke Mandeville.

I’m sure a more comprehensive scheme than the original one can be devised.

Important Stations

These are some of the more important stations and a few notes.

Aylesbury

As Chiltern develops the network in the next few years, these services could run to and/or through Aylesbury station.

  • One tph – London Marylebone and Aylesbury via High Wycombe
  • One tph – London Marylebone and Aylesbury via Amersham
  • One tph – London Marylebone and Aylesbury Vale Parkway via Amersham
  • One tph – London Marylebone and Milton Keynes via High Wycombe and Aylesbury Vale Parkway (new service)

I could also see a two tph service between Watford Junction and Aylesbury via Amersham.

Summing all this up means that two tph go via High Wycombe and four tph go via Amersham.

This Google Map shows Aylesbury station.

Note.

  1. Platforms are numbered 1 to 3 from South to North.
  2. Trains going South via High Wycombe call in Platforms 1 or 2.
  3. Trains going South via Amersham call in Platforms 2 and 3
  4. Trains going North call in Platforms 2 and 3.

These pictures show the station.

It is a spacious station, with step-free access and I feel that it could handle more services.

Banbury

I am sure that Banbury station, will be an important charging point for Chiltern’s battery-electric trains going North of Banbury.

This Google Map shows the layout of the recently-refurbished Banbury station.

Note.

  1. Platforms are numbered 1 to 4 from West to East.
  2. Trains going North call in Platforms 1 or 2.
  3. Trains going South call in Platforms 3 or 4.
  4. The Marylebone and London service usually turns back in Platform 4 after waiting there for over half-an-hour.
  5. Northbound Stratford-upon-Avon services generally use Platform 1, but most others generally use Playform 2.
  6. Southbound Stratford-upon-Avon services generally use Platform 4, but most others generally use Playform 3.

It looks to me, that Banbury station could handle the charging of trains as they pass through, as all of Chiltern’s services that serve destinations to the North of Banbury, stop at the station.

Hitachi are saying, that one of their proposed battery-electric trains needs ten minutes to be fully-charged.

So there may need to be some adjustment to the time-table to lengthen the stops at Banbury, to give ten minutes of charging time.

Alternatively, a few miles of electrification could be centred on Banbury, perhaps between Aynho Junction and Leamington Spa, which is a distance of twenty-six miles, which takes one of Chiltern’s trains around twenty-three minutes.

This would surely give enough time to fully-charge the batteries, but would also benefit CrossCountry, if they should go the battery-electric route.

I have followed the route between Aynho Junction and Leamington Spa in my helicopter and it would appear to be a fairly straight and uncomplicated route. I would say, it is about as difficult to electrify, as the Midland Main Line between Bedford and Kettering/Corby, which appears to have been one of Hetwork Rail’s better electrification projects, which should be delivered on time and has been installed without too much disruption to trains and passengers.

High Wycombe

It looks to me, that High Wycombe station will be an important charging point for Chiltern’s battery-electric trains going North to Oxford and Banbury.

Unlike Banbury, High Wycombe has not seen many changes over the years.

This Google Map shows High Wycombe station.

Note.

  1. Platforms are numbered 1 to 3 from South to North.
  2. Platform 1 is a bay platform that faces London.
  3. Platform 2 is the Westbound platform.
  4. Platform 3 is the Eastbound platform.
  5. High Wycombe has five tph in both directions, with an upgrade to six tph possible, after two tph run to the Cowley Branch.

The frequency of the trains through High Wycombe station could probably be handled by a Fast Charging system, but it would be tight to fit all current five services into an hour. It would appear to preclude any extra services going through High Wycombe, as there just isn’t enough time in an hour.

For this reason, I think that High Wycombe station needs full electrification, so that all passing trains can top up their batteries.

This gives the interesting possibility, that a train leaving High Wycombe for London with a full battery, would probably have enough charge in the battery to travel the 28 miles to London Marylebone and return. The train could always have a top-up at Marylebone.

So how far would the electrfication, through High Wycombe run?

Given that for operational reasons, it is probably best that pantographs are raised and lowered in stations, it is probably best if the various routes were electrified to the next station.

  • The Chiltern Main Line route would be electrified as far as Banbury station, where all trains stop. The distance would be 41 miles.
  • The Oxford route would be electrified as far as Bicester Village station, where all trains stop. The distance would be less than two miles from the Chiltern Main Line
  • The Aylesbury route would be electrified as far as Princes Risborough station, where all trains stop. This would be included in the Chiltern Main Line electrification.

It looks to me, that just 43 miles of double-track electrification would enable Hitachi’s proposed battery-electric trains to reach all parts of the Chiltern network.

Distances of the various destinations from the electrification are as follows.

  • Birmingham Moor Street – 43 miles
  • Birmingham Snow Hill – 43 miles
  • Kidderminster – 63 miles
  • Marylebone – 28 miles
  • Milton Keynes – 27 miles
  • Oxford – 38 miles
  • Oxford – Cowley – 43 miles
  • Stratford-upon-Avon  35 miles

Only Kidderminster could be tricky, but not if the Snow Hill Lines are electrified through Birmingham.

Electrification of the Chiltern Main Line between High Wycombe and Banbury with a number of Fast Charging systems in selected stations, would be my preferred option of enabling Hitachi’s proposed battery-electric trains to work the Chiltern network.

These pictures show High Wycombe station.

It does appear that the bridge at the Western end of the station my need to be modified, so that overhead wires can be threaded underneath.

Conclusion

Quite unexpectedly, I am pleasantly surprised.

Chiltern Railways’ current network can be run by Hitachi’s proposed battery-electric AT-300 trains.

  • Fast charging systems will be needed at Aylesbury, Aylesbury Vale Parkway, Banbury, Birmingham Moor Street, Birmingham Snow Hill, Gerrards Cross, High Wycombe, Kidderminster, Marylebone, Milton Keynes and Oxford.
  • Banbury and High Wycombe will need to be able to top-up trains as they pass through.
  • No large scale electrification will be needed. Although any new electrification will be greatly accepted!

As I indicated earlier, I would electrify the core part of the Chiltern Main Line route between High Wycombe and Banbury.

It would probably be a good idea to electrify a few miles at the Southern end of the line, where it runs into Marylebone station.

  • Marylebone and Harrow-on-the-Hill.
  • Marylebone and West Ruislip
  • Old Oak Common and West Ruislip.

I would use third-rail electrification to be compatible with London Underground and because of the automatic connection and disconnection.

But most surprisingly, there are already generous turnround times at most terminal stations, which give enough time to charge the trains.

It’s almost, as if Chiltern are preparing for battery-electric trains.













February 21, 2020 Posted by | Transport/Travel | , , , , , , , , , , , , , , , | 7 Comments

Five Mark 4 Coaches, A Driving Van Trailer And A Stadler UKLight Locomotive

In writing Would Electrically-Driven Trains Benefit From Batteries To Handle Regenerative Braking?, I started to analyse the mathematics and possibilities of a train with the following formation.

The sub-section got too large and important so I decided to write it as a separate post.

I like the Class 68 locomotive, as it looks professional and seems to do all asked of it.

So what would be the kinetic energy of a formation of five Mark 4 coaches, between a DVT and a Class 68 Locomotive?

  • The five Mark 4 coaches would weigh 209 tonnes.
  • The Class 68 locomotive weighs 85 tonnes.
  • The DVT weighs 42.7 tonnes
  • I will assume that a five cars will seat around 300 passengers.
  • The passengers weigh 27 tonnes, if you assume each weighs 90 Kg, with baggage, bikes and buggies.
  • The train weight is 363.7 tonnes.

At 100 mph, which is the maximum speed of the Class 68 locomotive, the Omni Kinetic Energy Calculator gives the kinetic energy of the train as 100 kWh.

I doubt there’s the space to squeeze a 100 kWh of battery into a Class 68 locomotive to handle the regenerative braking of the locomotive, but I do believe that a locomotive can be built with the following specification.

  • Enough diesel power to pull perhaps five or six Mark 4 coaches and a DVT at 125 mph.
  • Ability to use both 25 KVAC and 750 VDC electrification.
  • Battery to handle regenerative braking.
  • As the Class 88 electro-diesel locomotive, which is around the same weight as a Class 68 locomotive, I suspect the proposed locomotive would be a bit heavier at perhaps 95 tonnes.

This train would have a kinetic energy of 160 kWh at 125 mph.

Consider.

  • If the locomotive could have a 200 kWh battery, it could harvest all the regenerative braking energy.
  • Accelerating the train to cruising speed uses most energy.
  • Running at a constant high speed, would conserve the kinetic energy in the train.
  • Stadler, who manufacture the Class 68 and 88 locomotives are going to supply a diesel/electric/battery version of the Class 755 train, for the South Wales Metro. In What Is The Battery Size On A Tri-Mode Stadler Flirt?, I estimated the battery size is about 120 kWh.
  • The Class 68 and 88 locomotives are members of Stadler’s Eurolight family, which are designed for a 125 mph capability with passenger trains.
  • I don’t believe the UK is the only country looking for an efficient locomotive to haul short rakes of coaches at 125 mph, on partially-electrified lines.

It should also be noted, that to pull heavy freight trains, the Class 88 locomotive has a 700 kW Caterpillar C27 diesel that weighs over six tonnes, whereas 200 kWh of battery, would weigh about two tonnes. I believe that a smaller diesel engine might allow space for a large enough battery and still be able to sustain the 125 mph cruise.

Stadler have the technology and I wonder, if they can produce a locomotive to fill the market niche!

In HS2 To Kick Off Sheffield Wiring, I reported on the news that the Northern section of the Midland Main Line between Clay Cross North Junction and Sheffield will be electrified.

This would greatly improve the performance of diesel/electric/battery hybrid trains between London and Sheffield.

  • Between London and Kettering, the trains would be electrically-powered.
  • Between Kettering and Clay Cross, they would use a mixture of diesel and battery operation.
  • Between Clay Cross and Sheffield, the trains would be electrically-powered.

Note.

  1. Going North, trains would pass Kettering with a full battery.
  2. Going South, trains would pass Clay Cross with a full battery.
  3. Regenerative braking at stops between Kettering and Clay Cross would help recharge the batteries.
  4. The diesel engine would be sized to keep the train cruising at 125 mph on the gentle Midland Main Line and back up the acceleration needed after stops.

It would be a faster and very electrically-efficient journey, with a large reduction in the use of diesel power.

The locomotive would also have other uses in the UK.

  • TransPennine services, where they could surely replace the Class 68 locomotives, that will haul Mark 5A coaches between Liverpool and Scarborough and Manchester Airport and Middlesborough.
  • Between London and Holyhead
  • Waterloo to Exeter via Basingstoke and Salisbury.
  • Marylebone to Birmingham via the Chiltern Main Line, if the two ends were to be electrified.
  • Services on the East West Rail Link.
  • Between Norwich and Liverpool
  • CrossCountry services.

Note.

  1. Services could use a rake of Mark 4 coaches and a DVT or a rake of new Mark 5A coaches.
  2. If more electrification is installed, the trains would not need to be changed, but would just become more efficient.
  3. The competition would be Bombardier’s proposed 125 mph bi-mode Aventra with batteries, that I wrote about in Bombardier Bi-Mode Aventra To Feature Battery Power.

And that is just the UK!

Conclusion

Using the Mark 4 coaches or new Mark 5A coaches with a new 125 mph diesel/electric/battery hybrid Stadler UKLight locomotive could create an efficient tri-mode train for the UK rail network.

The concept would have lots of worldwide applications in countries that like the UK, are only partially electrified.





August 5, 2018 Posted by | Transport/Travel | , , , , , , , , | 1 Comment

Are Train Coaches Making A Comeback In The UK?

There were two stories yesterday, where new coaches to be built by Spanish company CAF.

Both sets of coaches probably use the same basic bodyshell, running gear and electrical and heating services, so once CAF designed the sleeper trains, they probably have developed a vehicle that could be used for any profitable purpose.

At present the Caledonian Sleeper uses two types of coach; a sleeping car and a lounge/seated sleeper car and these are being replaced with an identical number of coaches.

But little has been said about the design and make-up of the new coaches.

I suspect, that we will see lounge cars with large windows, so that the Scottish countryside can be enjoyed in style, if the weather permits.

The new coaches will be compared to British Rail’s legendary Mark 3 coach.

  • I’m also sure that CAF have set out to design a coach, that rides better.
  • The new coach must also be capable of running at 200 kph., as Mark 3s do every day in large numbers.
  • Will the coaches pass the cement lorry test, as a Mark 3-derived multiple unit did at Oxshott?

The 1960s design of the Mark 3 has set a very high bar.

Even less has been said about the five car rakes of coaches for TransPennine Express.

But in common with the other rakes of coaches in mainline service in the UK on Chiltern and the East Coast Main Line, and in East Anglia, they would need some means of driving the train from the other end, which is currently done with a driving van trailer.

A DVT is very much a solution of the 1970s, although it does have advantages in that the empty space can be used for bicycles, surfboards and other large luggage. Hence, the van in the name.

If you look at CAF’s Civity train, it is very much a stylish modular design and I’m sure CAF, have the expertise to build a stylish driving cab into some of the new coaches they are building.

I therefore think we will be seeing these five-car rakes of coaches for TransPennine Express, with a driving cab at one end.

One of the big advantages of this approach is that trains can be pulled and pushed by any suitable and available locomotive.

Operators wouldn’t be tied to one particular power unit, so as more electrification is installed, they could change to something more suitable.

You also have the possibility of designing the coach with the driving cab as perhaps a buffet/observation car or using it for First Class, so that the other coaches are very much a standard interior.

The approach also has the advantage that if you need a longer train, you just couple another coach into the rake.

I’m sure that CAF have designed a rake of coaches that has impressed TransPennine Express, otherwise they wouldn’t have ordered the coaches.

Some people might think that going back to coaches is a retrograde step.

Consider.

  • Chiltern run an excellent service with coaches.
  • Deutsche Bahn still uses lots of rakes of coaches.
  • Rakes of coaches are more flexible than fixed-length multiple units.
  • The most appropriate locomotive can be used.
  • Some passengers might think, that coaches give a better ride than multiple units.

But I suspect the biggest factor in the revival of coaches, is that a rake of stylish new coaches and a Class 68 locomotive are more affordable than a new Class 800 train. They are also available earlier.

Imagine going across the Pennines from Liverpool to York in the buffet/restaurant/observation/driving car of one of these new trains, enjoying a  Great Western Pullman Dining experience, as the countryside goes by.

If it is done, it would set a high standard for other train operators.

May 24, 2016 Posted by | Food, Transport/Travel | , , , , | Leave a comment
