The Class 319 Flex Units To Be Class 769

This is the title of a short article in the June 2017 Edition of Modern Railways.

Giving the Class 319 Flex train, its own unique class number of 769, must say that Porterbrook, Northern, Network Rail and the Department of Transport, think that the bi-mode conversion of a Class 319 train is a viable project.

The article gives some new details about the trains.

  • Northern have ordered eight units, which will be delivered before the end of May 2018.
  • The first unit is at Wabtec’s Brush Traction facility in Louthborough.
  • Completion of the design and the first load testing is plasnned before the end of May.
  • The first unit is due to be completed with driver training underway, by the end of the year.
  • Northern will get a total of thirty-two Class 319 trains, which probably include the eight Class 769 trains.
  • Tri-mode functionality and dynamic mode changeover on the move are being considered.
  • Full production rate is a Class 769 train every two weeks.

The Class 319 Flex train has definitely moved from concept to a real train.

The article finishes by saying that Porterbrook expects further orders soon, while  it is also considering transferring the concept to other roiling stock, such as the Class 455 train.

Why Convert Class 455 Trains?

The Class 319 and Class 455 trains are very similar electrical multiple units based on Mark 3 coaches.

But there are a few differences.

  • The Class 455 is third-rail only, whereas the Class 319 is dual-voltage.
  • The Class 455 is a 75 mph train, whereas the Class 319  is a 100 mph train.
  • South West Trains’ Class 455 trains have had an extensive refurbishment and are fitted with 2+2 seating.
  • South West Trains planned to upgrade the traction package of the Class 455 trains, which would include new AC traction motors and regenerative braking. This article in Rail Magazine has full details.

A Class 455 Flex train could have the following specification.

  • The updated 2 x 2 seating.
  • The new traction package with AC traction motors and regenerative braking.
  • 75 mph operating speed on both electric and diesel.

It could be a better financial proposition for both the leasing company and the train operator.

In The Class 319 Flex Train And Third Rail Routes, I looked at various third-rail routes that could be served with a Class 319 Flex train.

Some of these routes could be served by a Class 455 Flex train, instead of the Class 319 Flex train.

The article states that Porterbrook are expecting further orders and could it be, that the company have assessed the number of bi-mode trains required and found that a large proportion of the available Class 319 trains might need to be converted.

So creating a Class 455 Flex train for use in areas with third rail electrification, might be a prudent action.

South Western Railway, will have around ninety well-maintained Class 455 trains with the refurbished interiors going spare, so there is certainly no shortage of trains to convert.

South Western Railway And Class 455 Flex Trains

South Western Railway, themselves could have some uses for the trains.

I doubt that the trains would be acceptable running long distance services from say Waterloo to Salisbury, due to being designed as short distance commuter trains and the lack of a toilet and tables.

They would be ideal for the following local services.

In some places like the Lymington Branch, they would release Class 158/159 trains to boost services on the West of England Main Line.

Merseyrail And The Class 455 Flex Trains

In the June 2017 Edition of Modern Railways, Chris Stokes talks about the problems of running services between Bidston and Wrexham Central stations on the Borderlands Line. He concludes with the following.

So the operation of the route is very tight, but it appears to work quite well.

There has been talk of using battery trains on this route in place of an expensive full electrification, which would allow Merseyrail’s new Stadler trains to run the route in the following manner.

  • At least two trains per hour (tph).
  • Longer trains.
  • Calls at proposed new stations on the route.

In an ideal world, the service would terminate at the Northern end of the line by going round the third-rail electrified Loop Line under Liverpool City Centre.

The Class 455 train appears on a brief look to be the same size as Merseyrail’s current Class 508 trains, so it should be possible to use the Liverpool Loop.

Chris Stokes has told me two things.

  • The Class 455 trains, used redundant trailer cars from Class 508 trains, that were shortened for Merseyrail, so there can’t be much difference in the size of the Class 455 and Class 507/508 trains.
  • The Wrexham service used to terminate at Birkenhead North station.

So it seems a better Northern terminus could be possible.

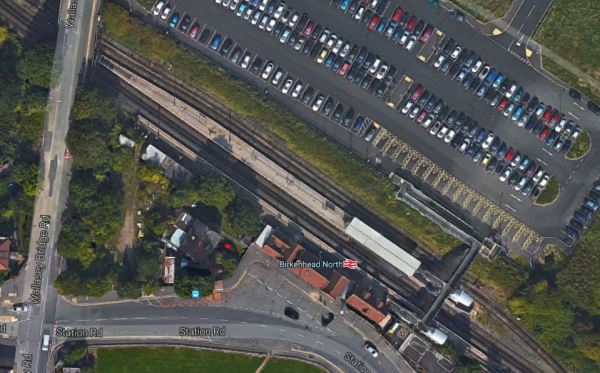

Ideally, the Loop Line would be used, but look at this Google Map of Birkenhead North station.

The Wikipedia entry for the station, has a section entitled Wrexham Diesel Service. This is said.

From 4 January 1971 until 2 October 1978, the diesel service on the Bidston to Wrexham line, which had previously operated from New Brighton, was diverted to Birkenhead North. These trains terminated on the centre platform which had previously been used for Liverpool-bound services, and when one of the diesel trains was present (which in that timetable was much of the time), Liverpool-bound electric services used the outer north side of the island platform instead. The diesel service was cut back to Bidston from 2 October 1978. Regular use of the outer platform at Birkenhead North thereafter ceased.

Note that the service used to be Wrexham to New Brighton, which with the replacement of a short chord and some work at New Brighton station might be another alternative, although the service wasn’t very busy.

So could a Class 455 Flex train work the route in the following manner?

  • Use diesel power between Wrexham Central and Bidston stations.
  • Use electric power from Bidston to Liverpool.
  • Join the other Wirral Line trains and terminate in the Liverpool Loop, stopping at the four stations in Central Liverpool.

As to frequency, you could run as many trains as you want, as the Borderlands Line is double-track, with the exception of a short single track section between the two Wrexham stations.

A round trip would take nearly three hours based on current timings, which would mean the following numbers of trains would be needed.

  • One tph – three trains.
  • Two tph – six trains.
  • Four tph – twelve trains.

As Merseyrail like to run four tph on the various branches, why not use this frequency on the Borderlands Line?

It would be a Turn-Up-And-Go service, that would benefit a large number of people.

Does the service have to terminate at Wrexham?

It certainly wouldn’t require any electrification or challenging engineering to open up these and other possible routes.

The Class 455 Flex train may have other uses in Liverpool.

Northern’s services in the area will probably use a few Class 319 Flex trains alongside their Class 319 trains, that already serve Liverpool Lime Street.

So where services are being extended from Merseyrail’s third-rail network, why not use some Class 319 Flex trains, as these trains have a third-rail capability from their days South of the Thames?

  • There may be an engineering or operational problem with a dual-voltage Class 319 Flex train.
  • The pantograph of a Class 319 Flex train might make the train too large for parts of Merseyrail’s third-rail network.
  • A third-rail only Class 455 Flex train may be a better financial proposition for leasing companies and train operators.

Or it could be that Porterbrook’s response to the Class 319 Flex train has been so positive, that the alternative offered by the Class 455 Flex train is welcomed.

Merseyrail’s prime route for a bi-mode Flex train would be the Canada Dock branch.

  •  There is a long term aspiration to run a passenger service.
  • The branch is not electrified but it could connect to Liverpool’s third-rail network at both ends and also to 25 KVAC at the Southern end.
  • Numerous freight trains use the route.
  • Perhaps four stations at about ten million pounds a time would need to be rebuilt.
  • Liverpool Football Ground would get a station.

Class 455 Flex trains could run a Southport, Ormskirk or Kirkby to Liverpool South Parkway service tomorrow.

A Four-Car Diesel Multiple Unit

In Who Would Want An Electric Train Powered Only By Diesel?, I discussed the fact that according to the Porterbrook brochure,

A diesel-only version of Class 319 Flex is now being delivered for one operator.

Could it be, that the updated interior of the Class 455 train, is exactly what the operator wants in a diesel train?

A Class 455 Flex train would have the following characteristics, if the third-rail equipment was removed.

  • Four cars.
  • Diesel power only.
  • 75 mph operating speed.
  • A quality 2 x 2 interior.
  • A train that meets all the present and future access and disabled regulations.

That sounds to me like a high-quality replacement train for which Direct Rail Services will provide you with two Class 68 locomotives and some elderly coaches, which probably don’t meet the latest regulations.

But also, the UK suburban diesel multiple unit fleet has quite a lot of two and three car trains, but very few four-car ones and you see lots of four-car trains made by coupling two two-car units together. So perhaps, some train operators, see these trains as an easy and affordable way to increase the number of four-car trains on their routes without any form of electrification.

As South Western Railway take over the South West Trains franchise on the 20th August 2017, perhaps some Class 455 trains would be available soon after, as they could replace them with new Class 707 trains.

I suspect that a Class 455 Flex train could be available early in 2018.

Conclusions

The Class 319 Flex train or more properly the Class 769 train looks to be a successful concept.

I’m also convinced that Porterbrook have decided the market is larger than they originally thought, so they are seriously looking at converting Class 455 trains, to make sure they have enough trains.
