Thoughts On The West London Orbital Railway At West Hampstead Thameslink Station

I passed through West Hampstead Thameslink station today and took some pictures of the two tracks that run through the station on the South side of the four tracks of the Midland Main Line.

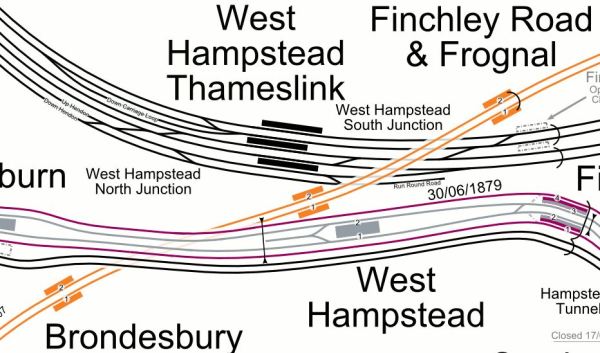

This map from carto.metro.free.fr shows the lines through the various stations at West Hampstead.

Note.

  1. The six tracks shown in black through West Hampstead Thameslink station.
  2. The Northernmost four tracks are those of the Midland Main Line.
  3. The Southernmost pair are labelled Up Hendon and Down Hendon and lead to the the Dudding Hill Line. via Cricklewood station.
  4. There is also a short track which is labelled Run Round Road, which could be useful to reverse trains on the West London Orbital Railway.
  5. The six tracks are crossed by the North London Line, which is shown in orange.

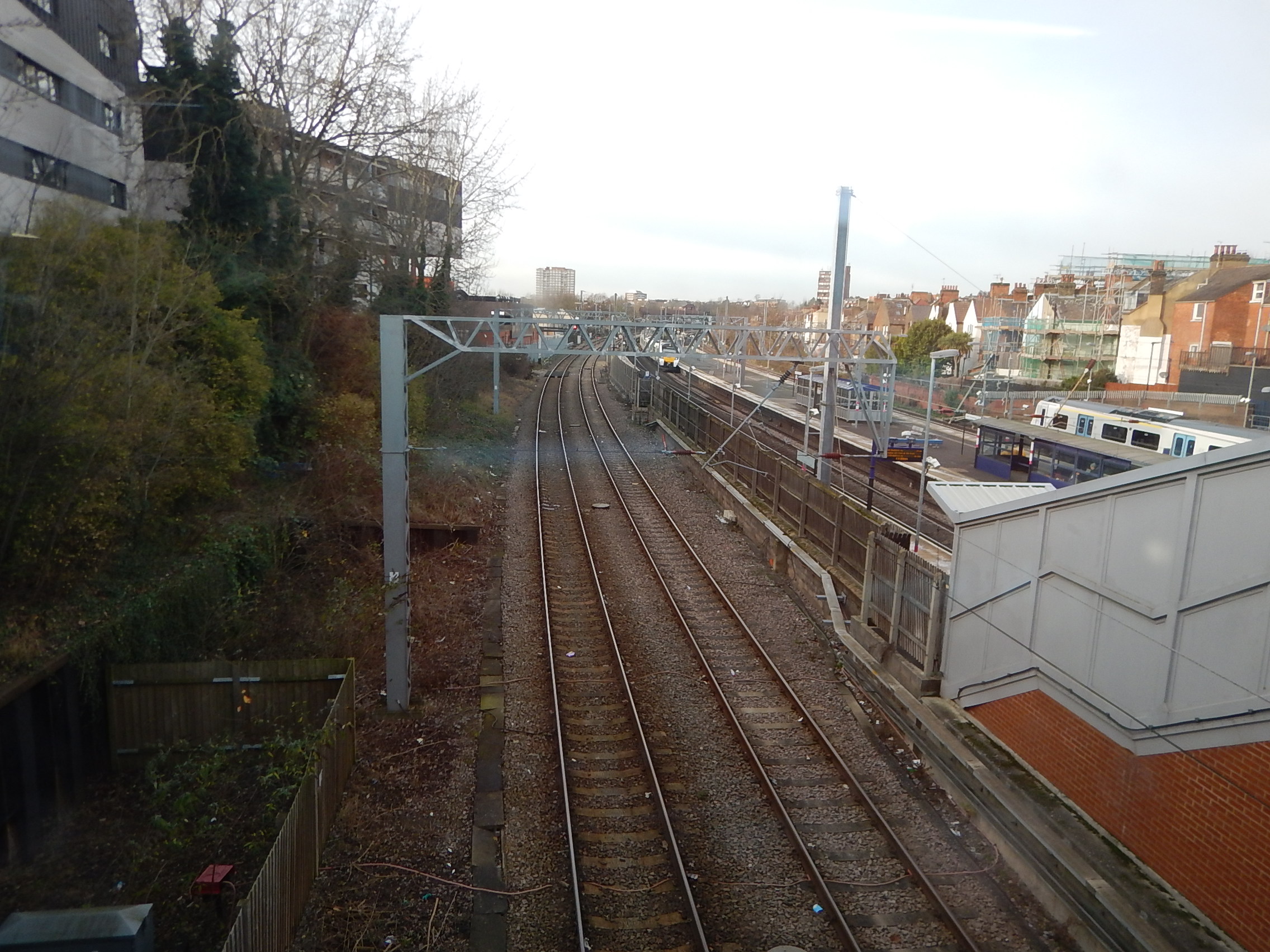

This picture shows the two Hendon Lines looking away from London from the footbridge of the station.

Note.

  1. The Down Hendon is on the left, with the Up Hendon on the right.
  2. Both tracks have 25 KVAC overhead electrification.
  3. The bridge, from which I took the picture, is step-free.

As there are numerous crossovers on the approach to the station, I feel that it would be possible to build a platform on the Up Hendon line.

  • The platform would share an island and access with the existing Platform 4.
  • It would be fully step-free.
  • Electrification in the platform could recharge an electric train, that was using batteries.
  • A single platform could handle the required four trains per hour (tph)

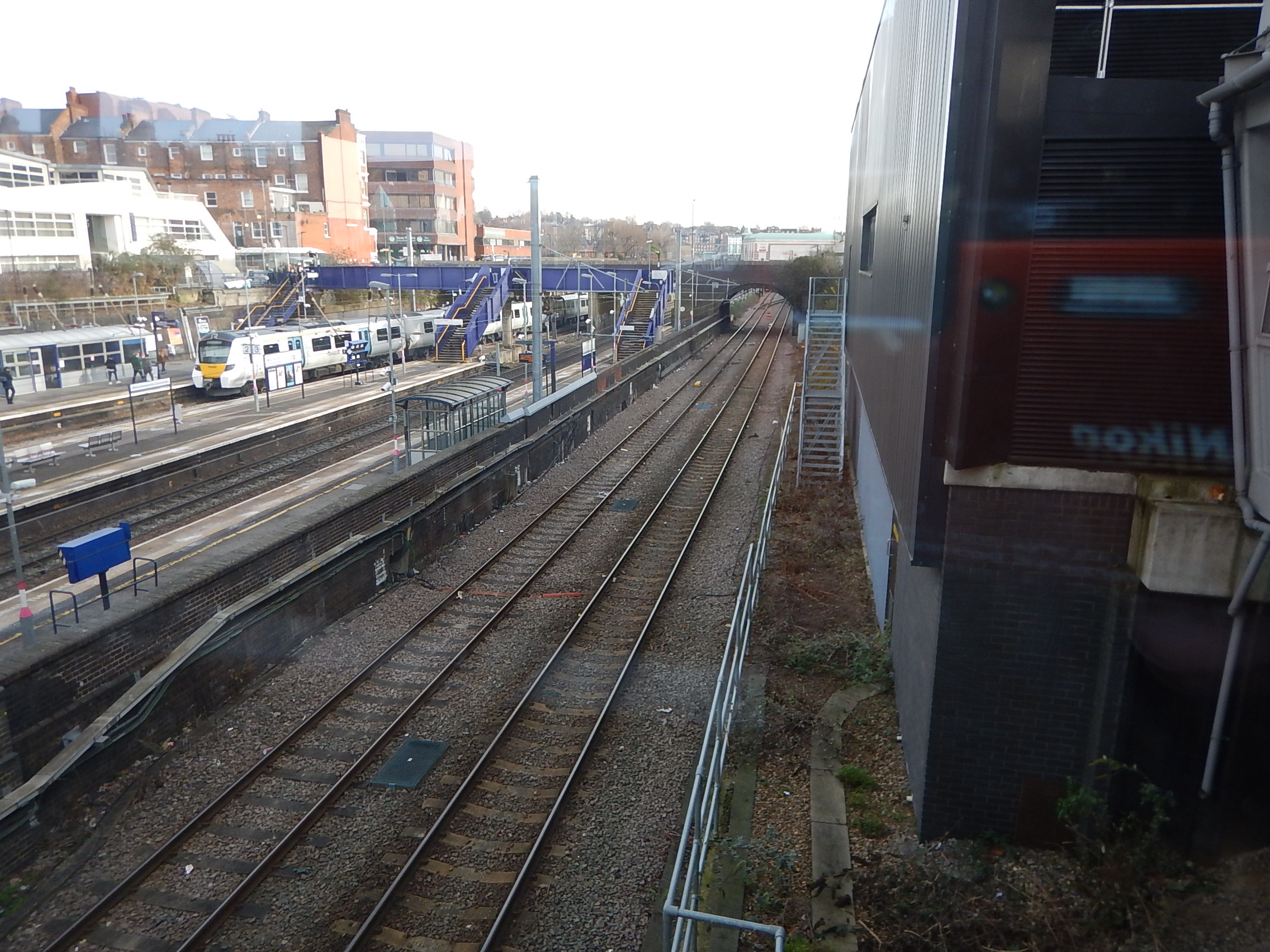

This picture shows the two Hendon Lines looking towards London from the footbridge of the station.

It would appear that if required the platform could be made long enough for an eight-car train or built on the Down Hendon line.

There are certainly possibilities to make the interchange between Thameslink and the West London Orbital Railway a very easy one, that is totally step-free.

Will The West London Orbital Railway Take Passengers From The North London Line?

I suspect that there are passengers, who will swap from the the North London Line to the West London Orbital Railway.

They will do it because the new route will be more convenient.

This will be no bad thing, as the North London Line can get crowded at times. And it will only get more so in the future!
